ELECTROPHORESIS BASIC PRINCIPLES GENERAL INTRODUCTION Electrophoresis a separation

ELECTROPHORESIS BASIC PRINCIPLES

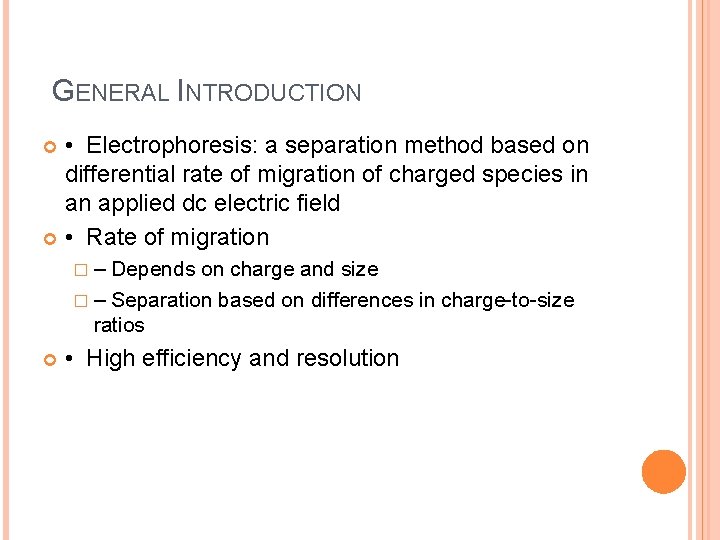

GENERAL INTRODUCTION • Electrophoresis: a separation method based on differential rate of migration of charged species in an applied dc electric field • Rate of migration � – Depends on charge and size � – Separation based on differences in charge-to-size ratios • High efficiency and resolution

HISTORICAL NOTES • Initially developed by Arne Tiselius in the 1930’s � – Separated serum proteins • Slab gel electrophoresis: developed in the 1950’s • Capillary electrophoresis: � – developed in the 1980’s � – Narrow bore tubes used • Applications of electrophoresis: � – Separation of proteins and nucleic acids (single nucleotide differentiation capability!) � – The human genome Project • Human DNA: ~three billion nucleotides

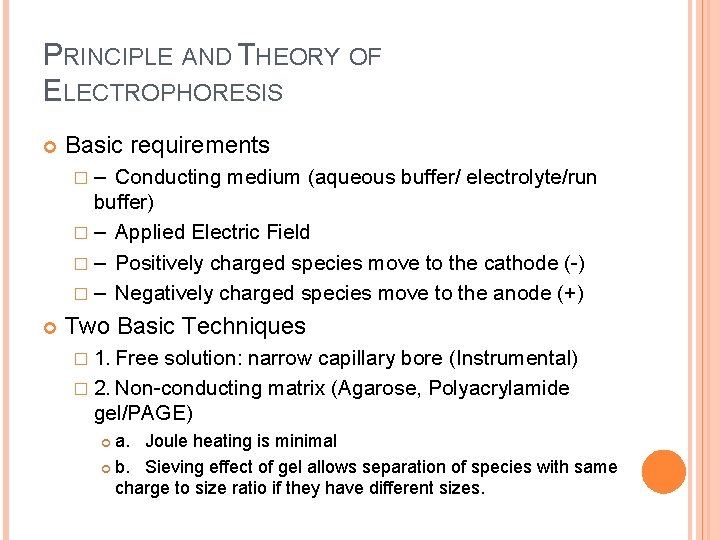

PRINCIPLE AND THEORY OF ELECTROPHORESIS Basic requirements �– Conducting medium (aqueous buffer/ electrolyte/run buffer) � – Applied Electric Field � – Positively charged species move to the cathode (-) � – Negatively charged species move to the anode (+) Two Basic Techniques � 1. Free solution: narrow capillary bore (Instrumental) � 2. Non-conducting matrix (Agarose, Polyacrylamide gel/PAGE) a. Joule heating is minimal b. Sieving effect of gel allows separation of species with same charge to size ratio if they have different sizes.

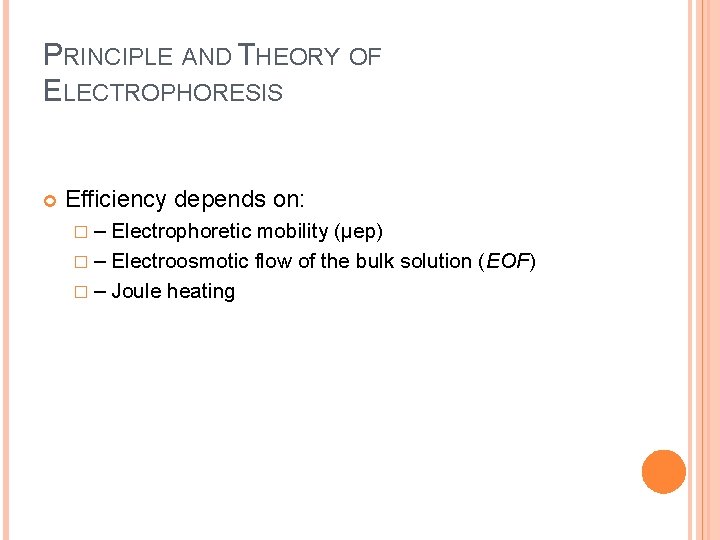

PRINCIPLE AND THEORY OF ELECTROPHORESIS Efficiency depends on: � – Electrophoretic mobility (µep) � – Electroosmotic flow of the bulk solution (EOF) � – Joule heating

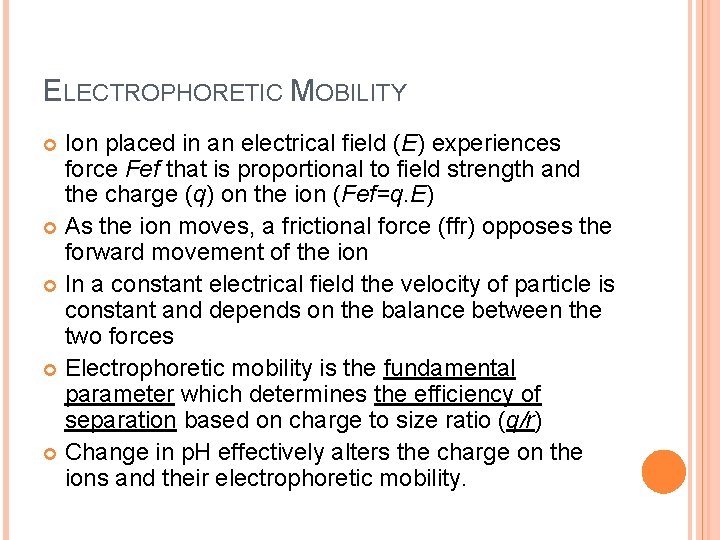

ELECTROPHORETIC MOBILITY Ion placed in an electrical field (E) experiences force Fef that is proportional to field strength and the charge (q) on the ion (Fef=q. E) As the ion moves, a frictional force (ffr) opposes the forward movement of the ion In a constant electrical field the velocity of particle is constant and depends on the balance between the two forces Electrophoretic mobility is the fundamental parameter which determines the efficiency of separation based on charge to size ratio (q/r) Change in p. H effectively alters the charge on the ions and their electrophoretic mobility.

ELECTROPHORETIC MOBILITY Fef = q × E F fr = 6 × π ×η × r × vep η : viscosity r : radius vep : electrophoretic − migration− velocity Fef = F fr vep = q × E / 6 × π ×η × r µep = vep / E = q / 6 × π ×η × r = const × q/r µep : electrophoretic − mobility N = µep V / 2 D (D is diffusion coeffient)

JOULE HEATING Ohmic/Joule heating � heating occurs as charged particles move within the conducting buffer upon application of an electrical field. Temperature gradient are generated leading to convective flows within the electrolyte Convective flow leads to band broadening Increase in temperature can also damage macromolecules. Method for decreasing joule heating: Decrease applied voltage- leads to long analysis time � Dissipate heat- use thin gel or small diameter capillaries which have large surface-to-volume ratio. Their electrical resistance is high, thus current flow is reduced for a given voltage. �

ELECTOOSMOTIC FLOW (EOF) Incomplete neutralization SL EOF refers to migration of the bulk liquid toward the cathode Origin: formation of a double layer at the wall of the capillary. Glass, fused silica, agarose exibit surface charges � Silanol groups are deprotonated at p. H higher than 4. � Potential difference is established Positive ions in solution migrate to the wall. A double layer is developed at the wall of the capillary. Stern layer (SL): layer of positive charge that compensate for the negative charge on the surface Diffuse layer (DL): layer adjacent to the Stern layer: layer of mobile cations

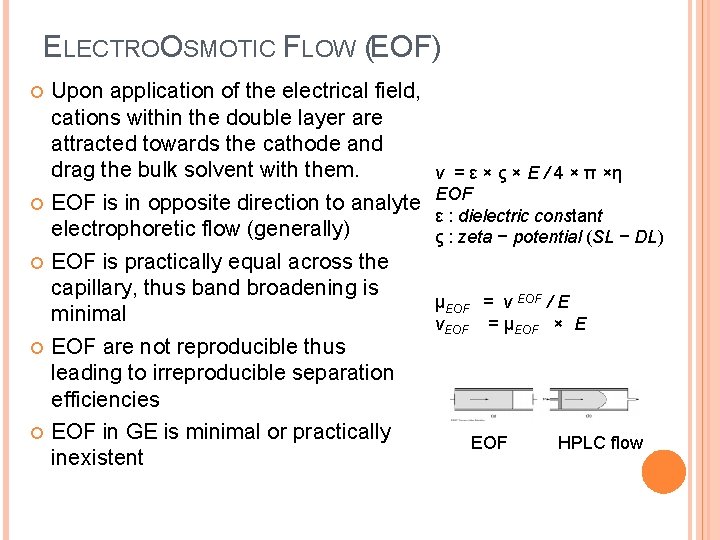

ELECTROOSMOTIC FLOW (EOF) Upon application of the electrical field, cations within the double layer are attracted towards the cathode and drag the bulk solvent with them. EOF is in opposite direction to analyte electrophoretic flow (generally) EOF is practically equal across the capillary, thus band broadening is minimal EOF are not reproducible thus leading to irreproducible separation efficiencies EOF in GE is minimal or practically inexistent v = ε × ς × E / 4 × π ×η EOF ε : dielectric constant ς : zeta − potential (SL − DL) µEOF = v EOF / E v. EOF = µEOF × E EOF HPLC flow

USE OF EOF IN CAPILLARY ELECTROPHORESIS If EOF is more important that electrophoretic mobility, all analytes are dragged by the bulk solvent towards the negative electrode Mobile Phase Electropherogram The order of elution is: fastest cation, slower cations, neutrals (single zone), slowest anion, faster anions

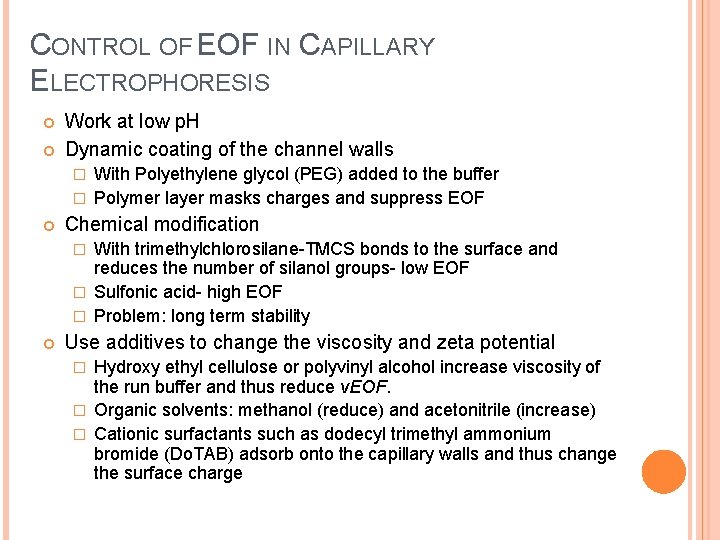

CONTROL OF EOF IN CAPILLARY ELECTROPHORESIS Work at low p. H Dynamic coating of the channel walls With Polyethylene glycol (PEG) added to the buffer � Polymer layer masks charges and suppress EOF � Chemical modification With trimethylchlorosilane-TMCS bonds to the surface and reduces the number of silanol groups- low EOF � Sulfonic acid- high EOF � Problem: long term stability � Use additives to change the viscosity and zeta potential Hydroxy ethyl cellulose or polyvinyl alcohol increase viscosity of the run buffer and thus reduce v. EOF. � Organic solvents: methanol (reduce) and acetonitrile (increase) � Cationic surfactants such as dodecyl trimethyl ammonium bromide (Do. TAB) adsorb onto the capillary walls and thus change the surface charge �

SEPARATION EFFICIENCY AND RESOLUTION Efficiency and resolution depend on both the electrophoretic flow and the EOF Apparent mobility is given by: µapp = µep + µEOF If EOF dominates, all analytes move towards the cathode (-)

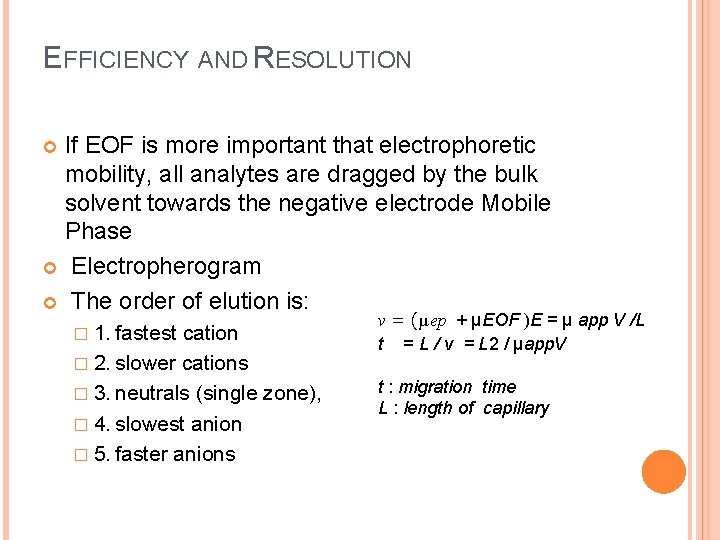

EFFICIENCY AND RESOLUTION If EOF is more important that electrophoretic mobility, all analytes are dragged by the bulk solvent towards the negative electrode Mobile Phase Electropherogram The order of elution is: � 1. fastest cation � 2. slower cations � 3. neutrals (single zone), � 4. slowest anion � 5. faster anions v = (µep + µEOF )E = µ app V /L t = L / v = L 2 / µapp. V t : migration time L : length of capillary

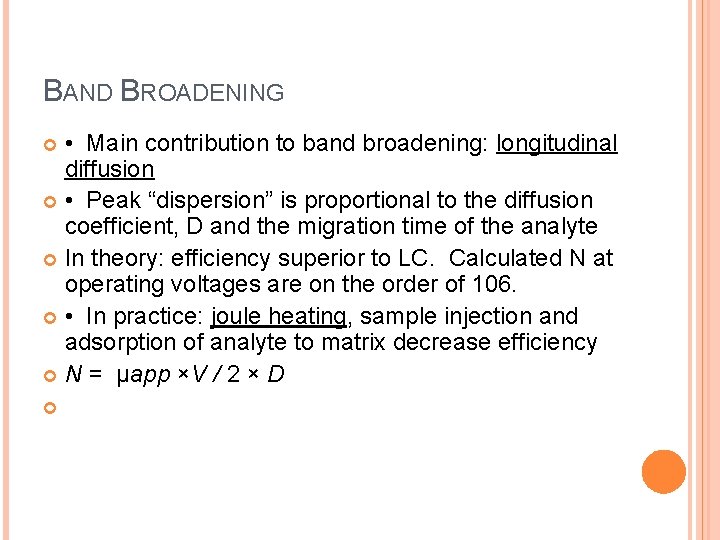

BAND BROADENING • Main contribution to band broadening: longitudinal diffusion • Peak “dispersion” is proportional to the diffusion coefficient, D and the migration time of the analyte In theory: efficiency superior to LC. Calculated N at operating voltages are on the order of 106. • In practice: joule heating, sample injection and adsorption of analyte to matrix decrease efficiency N = µapp ×V / 2 × D

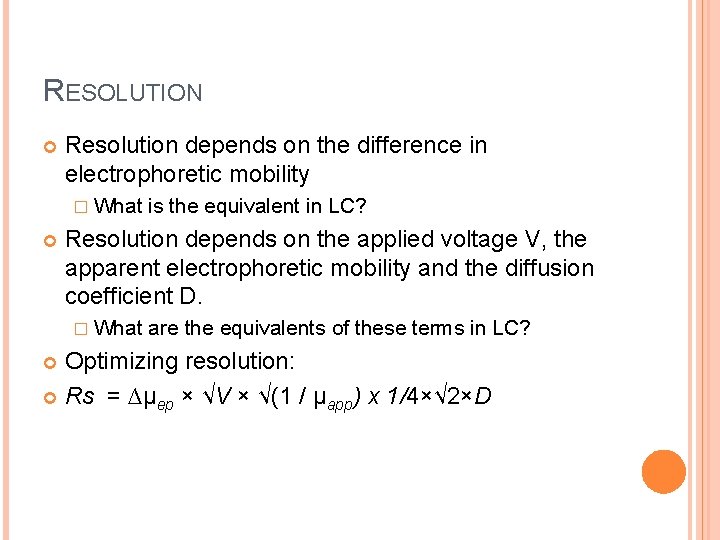

RESOLUTION Resolution depends on the difference in electrophoretic mobility � What is the equivalent in LC? Resolution depends on the applied voltage V, the apparent electrophoretic mobility and the diffusion coefficient D. � What are the equivalents of these terms in LC? Optimizing resolution: Rs = ∆µep × √V × √(1 / µapp) x 1/4×√ 2×D

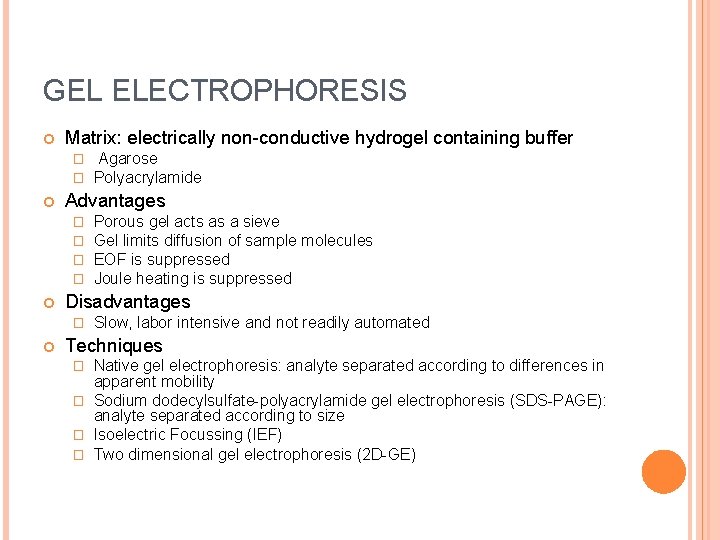

GEL ELECTROPHORESIS Matrix: electrically non-conductive hydrogel containing buffer � � Advantages � � Porous gel acts as a sieve Gel limits diffusion of sample molecules EOF is suppressed Joule heating is suppressed Disadvantages � Agarose Polyacrylamide Slow, labor intensive and not readily automated Techniques Native gel electrophoresis: analyte separated according to differences in apparent mobility � Sodium dodecylsulfate-polyacrylamide gel electrophoresis (SDS-PAGE): analyte separated according to size � Isoelectric Focussing (IEF) � Two dimensional gel electrophoresis (2 D-GE) �

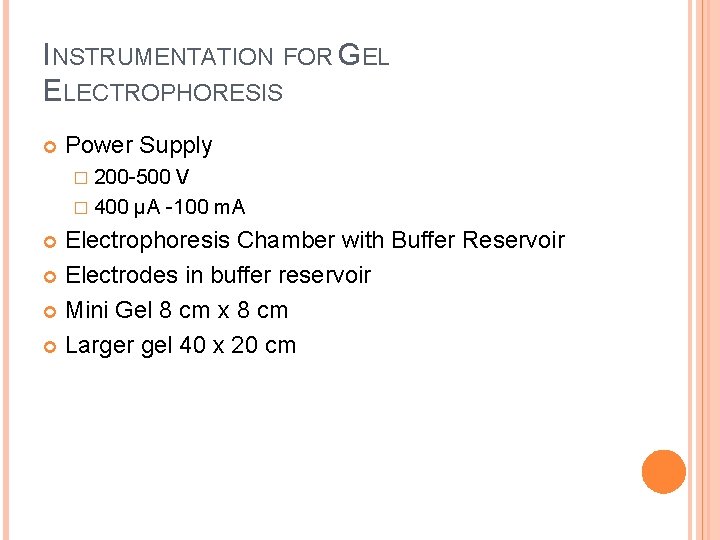

INSTRUMENTATION FOR GEL ELECTROPHORESIS Power Supply � 200 -500 V � 400 µA -100 m. A Electrophoresis Chamber with Buffer Reservoir Electrodes in buffer reservoir Mini Gel 8 cm x 8 cm Larger gel 40 x 20 cm

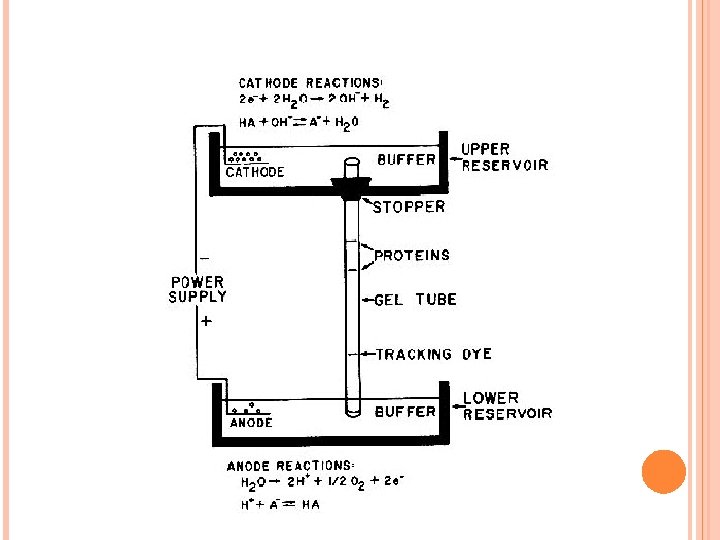

Tube Gel Unit

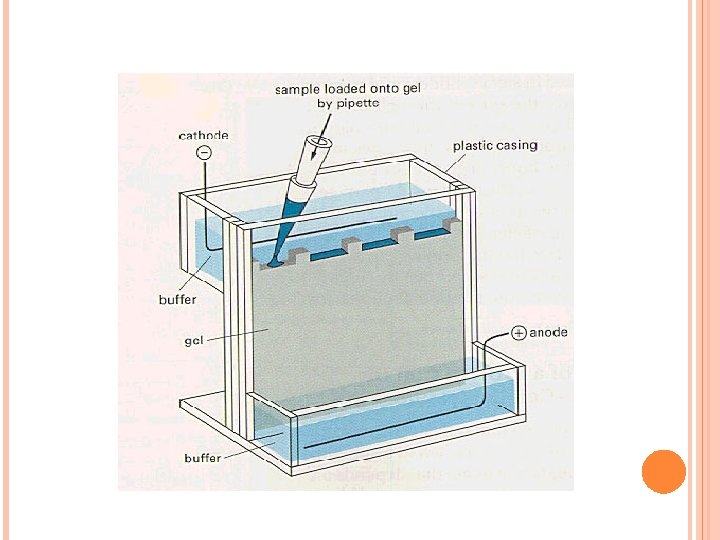

Slab Gel Unit

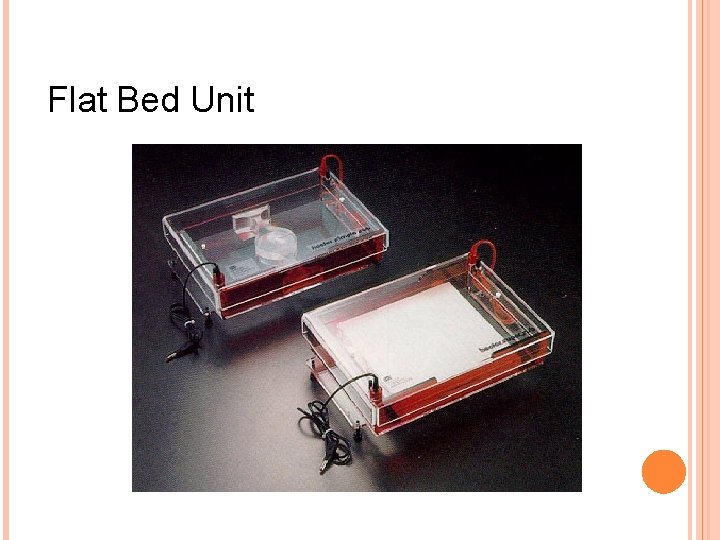

Flat Bed Unit

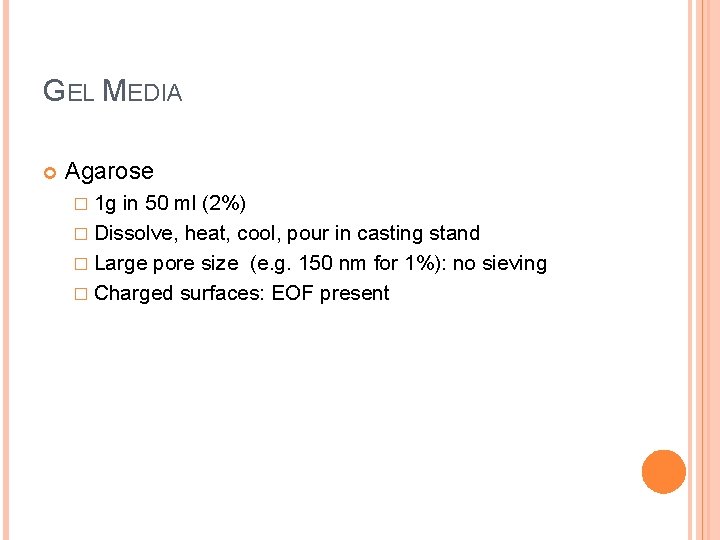

GEL MEDIA Agarose � 1 g in 50 ml (2%) � Dissolve, heat, cool, pour in casting stand � Large pore size (e. g. 150 nm for 1%): no sieving � Charged surfaces: EOF present

POLYACRYLAMIDE GEL Polyacrylamide � Copolymerization of acrylamide and N, N’- methylene- bisacrylamide � Initiator: TEMED (N, N, N′ Tetramethylenediamine) and Ammonium Persulfate(NH 4)2 S 2 O 8 ) � Sieving effect present: pore size depends on total gel concentration (%T: 5 -20%) and degree of cross linking – SDS for denaturing and coating proteins � Mercaptoethanol for reducing dissulfide bonds

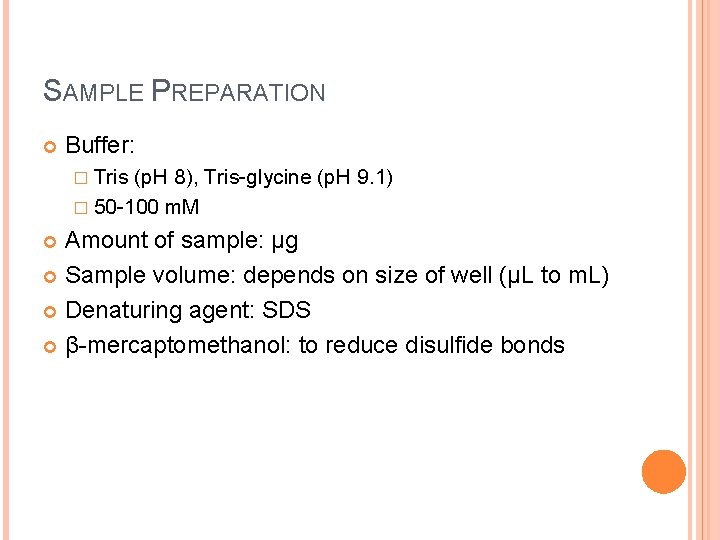

SAMPLE PREPARATION Buffer: � Tris (p. H 8), Tris-glycine (p. H 9. 1) � 50 -100 m. M Amount of sample: µg Sample volume: depends on size of well (µL to m. L) Denaturing agent: SDS β-mercaptomethanol: to reduce disulfide bonds

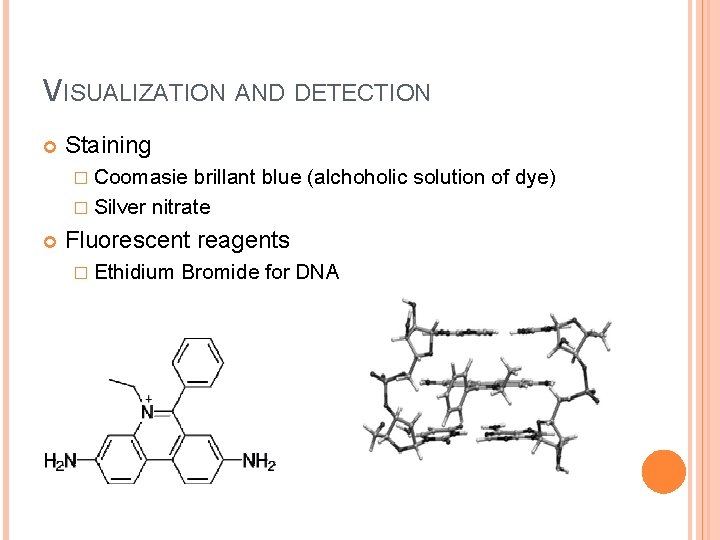

VISUALIZATION AND DETECTION Staining � Coomasie brillant blue (alchoholic solution of dye) � Silver nitrate Fluorescent reagents � Ethidium Bromide for DNA

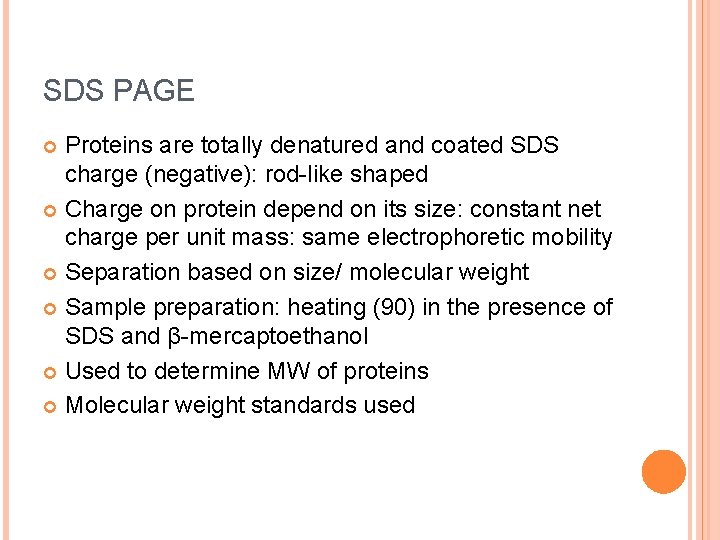

SDS PAGE Proteins are totally denatured and coated SDS charge (negative): rod-like shaped Charge on protein depend on its size: constant net charge per unit mass: same electrophoretic mobility Separation based on size/ molecular weight Sample preparation: heating (90) in the presence of SDS and β-mercaptoethanol Used to determine MW of proteins Molecular weight standards used

ISOELECTRIC FOCUSSING (IEF) Separation based on p. I Agarose gel used p. H gradient from cathode to anode Several ampholytes with different p. I used (same concentration to maintain conductivity constant) Gel immersed in medium p. H mixture (1 � 2 % carrier ampholyte) Most ampholytes are charged Anode compartment: low p. H buffer in (lower than the lowest p. I) High p. H buffer in cathode compartment (higher the highest p. I) Apply field: – Negatively charged amphoyte will move towards the anode (lowest p. I at end). – Positively charged ampholytes will move towards the cathode (highest p. I at end). – Cathodic side becomes more acidic – Anodic side becomes more basic – p. H range determined by choice of ampholytes

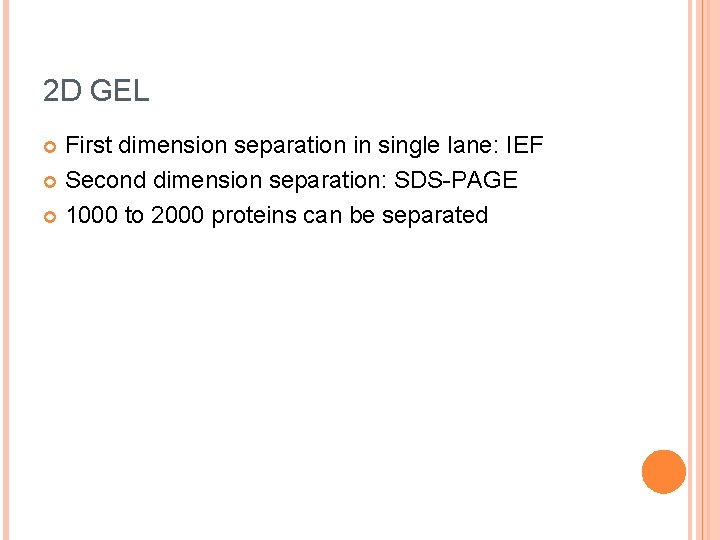

2 D GEL First dimension separation in single lane: IEF Second dimension separation: SDS-PAGE 1000 to 2000 proteins can be separated

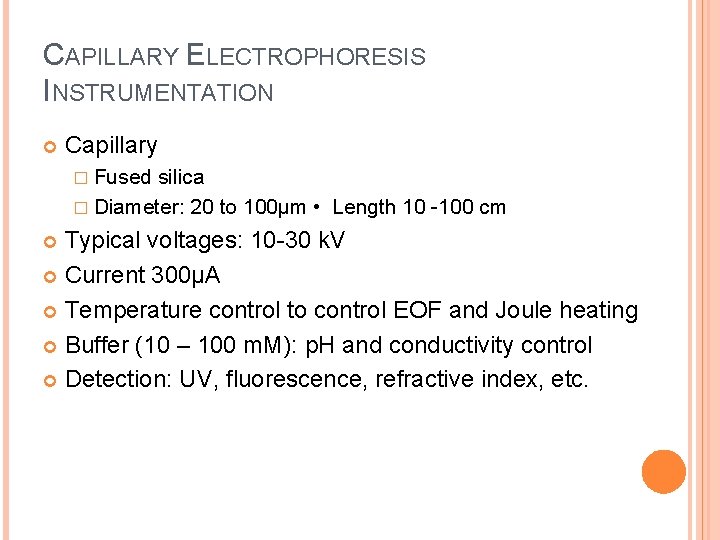

CAPILLARY ELECTROPHORESIS INSTRUMENTATION Capillary � Fused silica � Diameter: 20 to 100µm • Length 10 -100 cm Typical voltages: 10 -30 k. V Current 300µA Temperature control to control EOF and Joule heating Buffer (10 – 100 m. M): p. H and conductivity control Detection: UV, fluorescence, refractive index, etc.

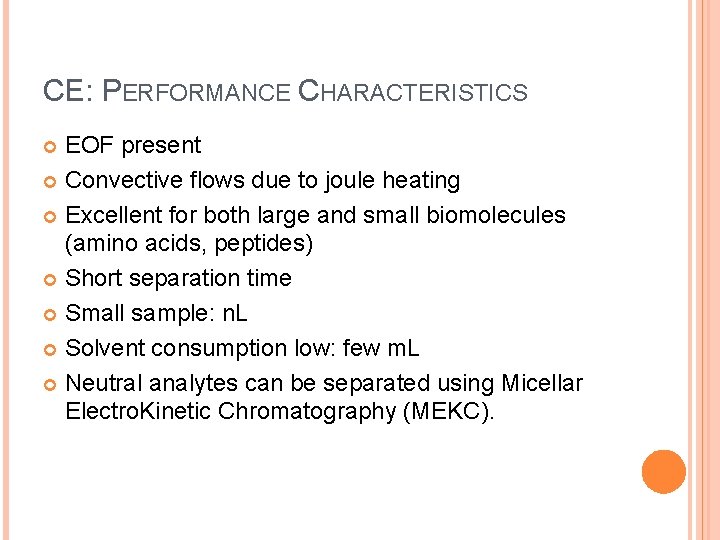

CE: PERFORMANCE CHARACTERISTICS EOF present Convective flows due to joule heating Excellent for both large and small biomolecules (amino acids, peptides) Short separation time Small sample: n. L Solvent consumption low: few m. L Neutral analytes can be separated using Micellar Electro. Kinetic Chromatography (MEKC).

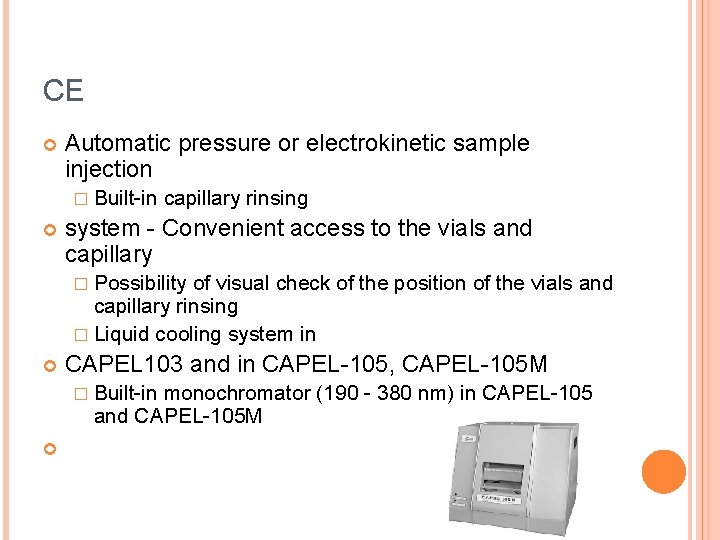

CE Automatic pressure or electrokinetic sample injection � Built-in capillary rinsing system - Convenient access to the vials and capillary � Possibility of visual check of the position of the vials and capillary rinsing � Liquid cooling system in CAPEL 103 and in CAPEL-105, CAPEL-105 M � Built-in monochromator (190 - 380 nm) in CAPEL-105 and CAPEL-105 M

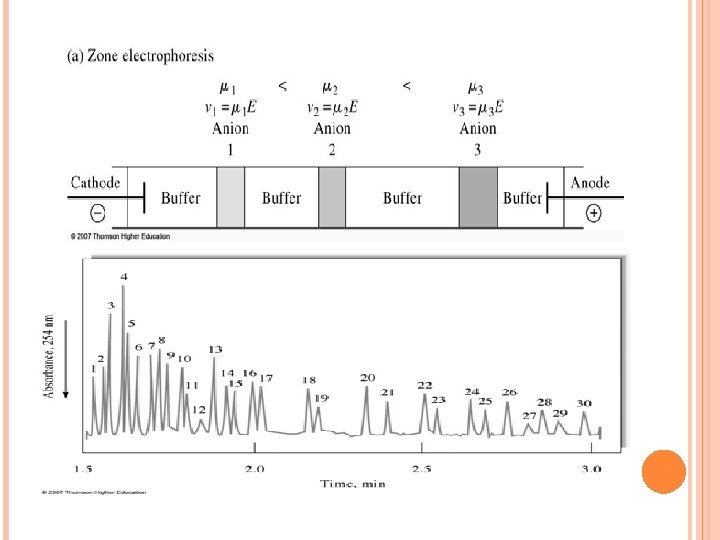

CAPILLARY ZONE ELECTROPHORESIS (CZE) Controlled electroosmotic flow used Separates anions as well as cations Separation of cations: no coating of walls � Positively charged “mobile phase” moves towards cathode Separation of anions: treat walls with an alkyl ammonium salt: reverse osmotic flow � Negatively charged “mobile phase” moves towards anode Apparent mobility µapp = µep + µEOF

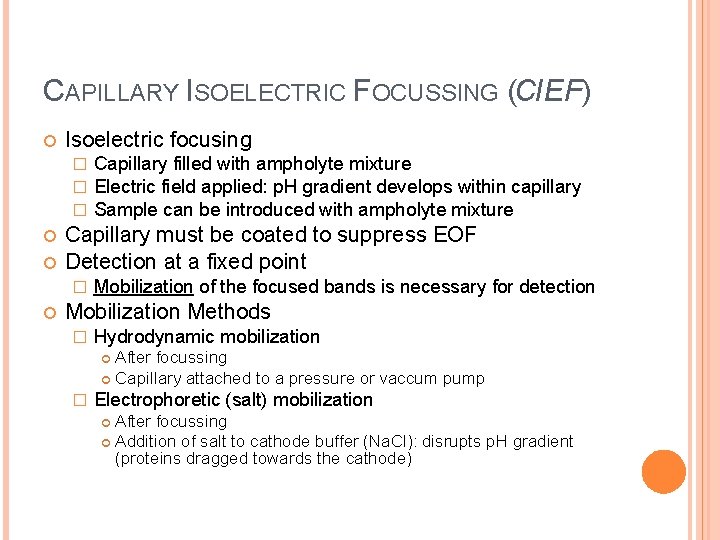

CAPILLARY ISOELECTRIC FOCUSSING (CIEF) Isoelectric focusing � � � Capillary must be coated to suppress EOF Detection at a fixed point � Capillary filled with ampholyte mixture Electric field applied: p. H gradient develops within capillary Sample can be introduced with ampholyte mixture Mobilization of the focused bands is necessary for detection Mobilization Methods � Hydrodynamic mobilization After focussing Capillary attached to a pressure or vaccum pump � Electrophoretic (salt) mobilization After focussing Addition of salt to cathode buffer (Na. Cl): disrupts p. H gradient (proteins dragged towards the cathode)

CAPILLARY GEL ELECTROPHORESIS Gel � � Separation of analytes with similar mobilities Advantages � � Speed Efficiency Fully automated No casting of gels, no staining, no scanning!!! NO WORK!? Disadvantages � � anti-convective medium sieving medium No multisample capability No 2 D capability Applications � � Separation of ss. DNA, ds. DNA, RNA Sizing of DNA fragments
