Electronics Manufacturing By Ed Red Electronics manufacturing comprises

Electronics Manufacturing By Ed Red Electronics manufacturing comprises 1/3 of all manufacturing in the world! ME 482 - Manufacturing Systems

Objectives • Review basic processes used to make IC’s. • Review basic processes used to make circuit boards. • Review methods and equipment used to assemble circuit boards. ME 482 - Manufacturing Systems

IC production overview An ingot is sliced into wafers of thickness about 0. 02 inches, followed by polishing and edge rounding. Procedures are repeated until you build the desired integrated circuit features that you want. . these are called dies. A crystal growing IC production process is used to The process begins by producing from a planar process grow single crystal quartzite (Si. O 2) an electronic-grade silicon consisting of regioningots of silicon of (EGS) with little impurity. The process specific layering or dediameters involves mixing of elements into a furnace, layering processes to approaching 12 grinding of the resulting alloy, and further constitute the many inches and lengths to chemical reaction with the powder to produce microscopic electronic 10 ft. the pure silicon. devices spread across the wafer surface. ME 482 - Manufacturing Systems Transfer of the IC to an electronics component is called packaging.

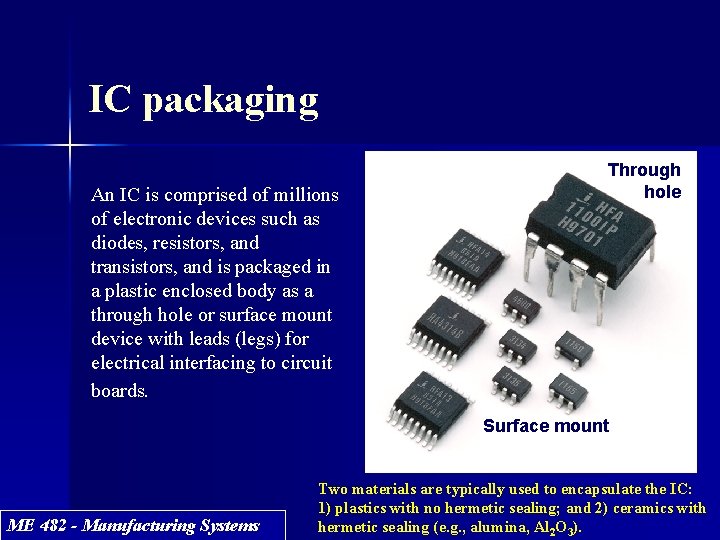

IC packaging An IC is comprised of millions of electronic devices such as diodes, resistors, and transistors, and is packaged in a plastic enclosed body as a through hole or surface mount device with leads (legs) for electrical interfacing to circuit boards. Through hole Surface mount ME 482 - Manufacturing Systems Two materials are typically used to encapsulate the IC: 1) plastics with no hermetic sealing; and 2) ceramics with hermetic sealing (e. g. , alumina, Al 2 O 3).

IC packaging The number of I/O terminals is a function of the number of devices on the IC. The dependency between the two is established by Rent’s Rule (around 1960): nio = C ncm where nio is the number of I/O leads and nc is the number of circuits on the IC, usually taken as the number of logic gates. Some common values for C and m are: Microprocessor C = 4. 5 m = 0. 5 Static memory C = 6. 0 m = 0. 12 ME 482 - Manufacturing Systems Lead spacing is about 20 mils

IC etch Photolithographic process applied to a silicon wafer: (1) prepare surface; (2) apply photoresist; (3) soft bake; (4) align mask and expose; (5) develop resist; (6) hard bake; (7) etch; (8) strip resist. ME 482 - Manufacturing Systems

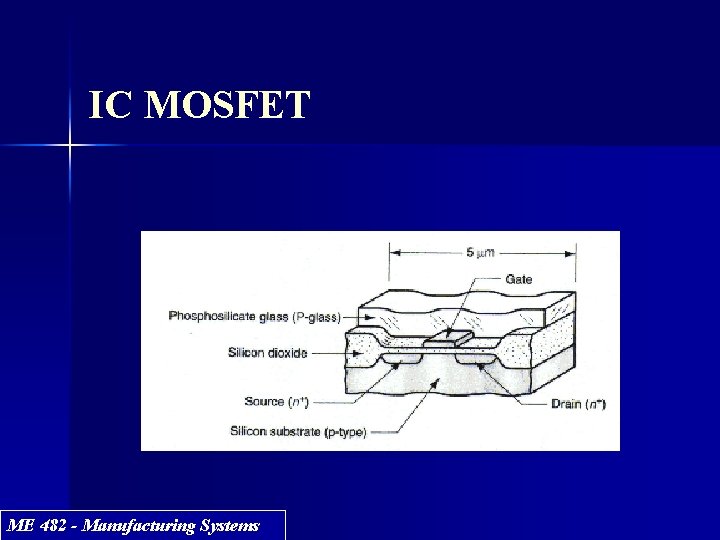

IC MOSFET ME 482 - Manufacturing Systems

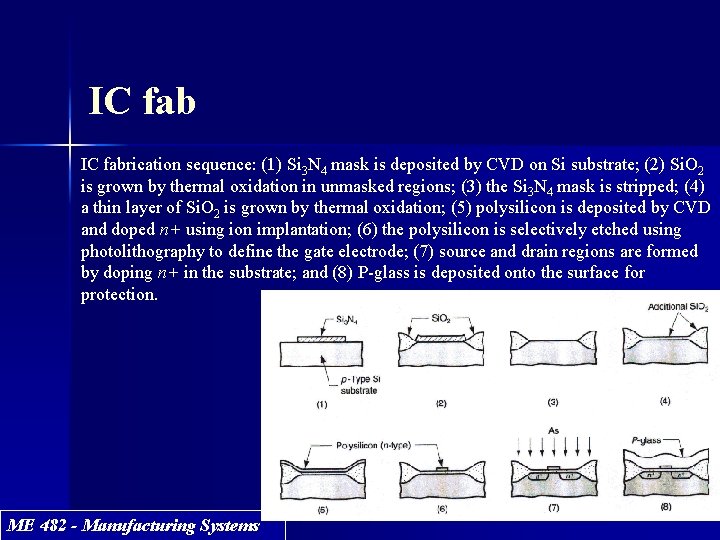

IC fabrication sequence: (1) Si 3 N 4 mask is deposited by CVD on Si substrate; (2) Si. O 2 is grown by thermal oxidation in unmasked regions; (3) the Si 3 N 4 mask is stripped; (4) a thin layer of Si. O 2 is grown by thermal oxidation; (5) polysilicon is deposited by CVD and doped n+ using ion implantation; (6) the polysilicon is selectively etched using photolithography to define the gate electrode; (7) source and drain regions are formed by doping n+ in the substrate; and (8) P-glass is deposited onto the surface for protection. ME 482 - Manufacturing Systems

IC wafer This 8 -inch "wafer" of silicon contains 212 Media. GX™ processors produced on the 0. 35 micron production line. (For comparison, a human hair is 50 to 70 microns wide. ) (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

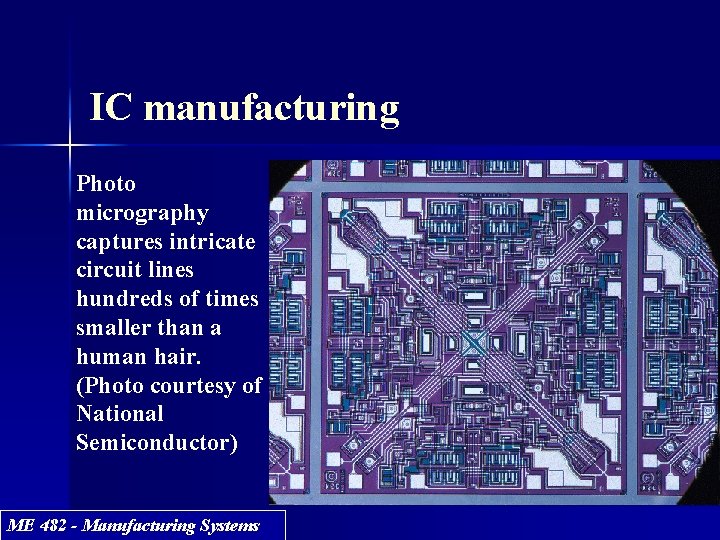

IC manufacturing Photo micrography captures intricate circuit lines hundreds of times smaller than a human hair. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

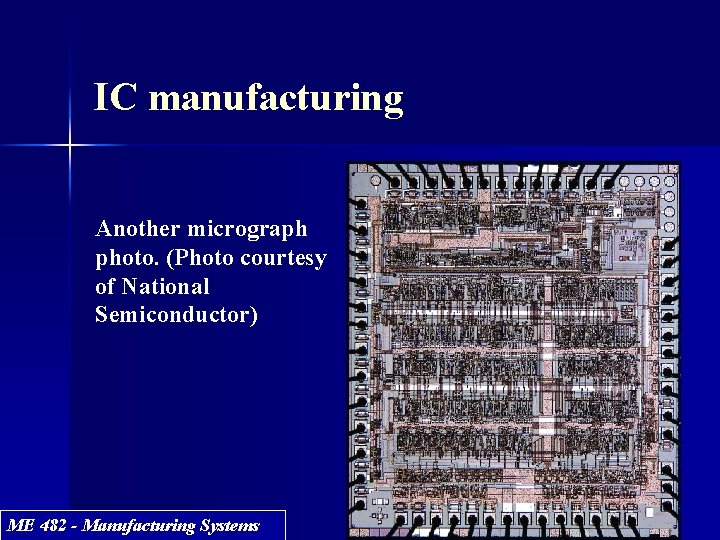

IC manufacturing Another micrograph photo. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

IC manufacturing A manufacturing associate wears a "bunnysuit" while handling wafers at this 1200 degree Centigrade furnace. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

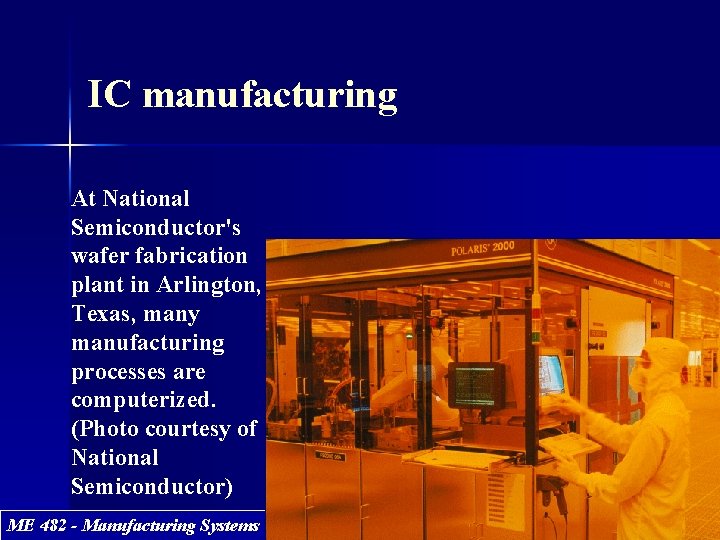

IC manufacturing At National Semiconductor's wafer fabrication plant in Arlington, Texas, many manufacturing processes are computerized. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

IC manufacturing A common clean room requirement of 100 implies that no more than 100 particles of size 0. 5 mm or greater can exist in 1 ft 3. National's wafer fabrication facility in South Portland, Maine, houses the latest sub-micron manufacturing equipment. Containers in foreground, called pods, protect wafers from dust particles. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

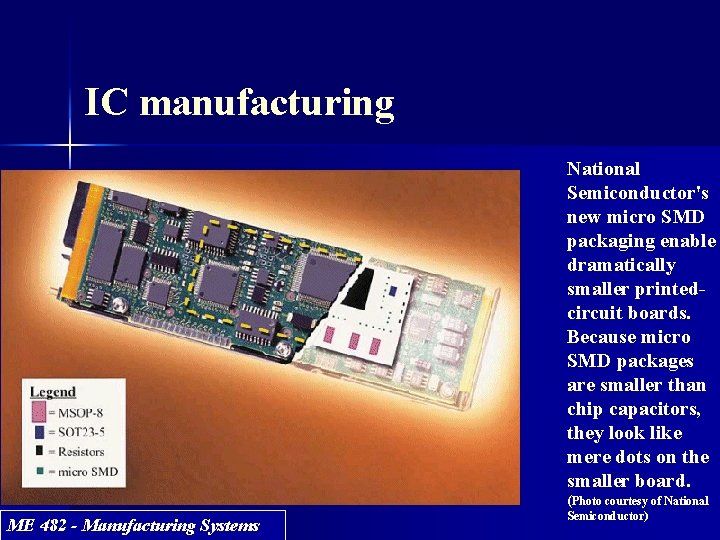

IC manufacturing National Semiconductor's new micro SMD packaging enable dramatically smaller printedcircuit boards. Because micro SMD packages are smaller than chip capacitors, they look like mere dots on the smaller board. (Photo courtesy of National ME 482 - Manufacturing Systems Semiconductor)

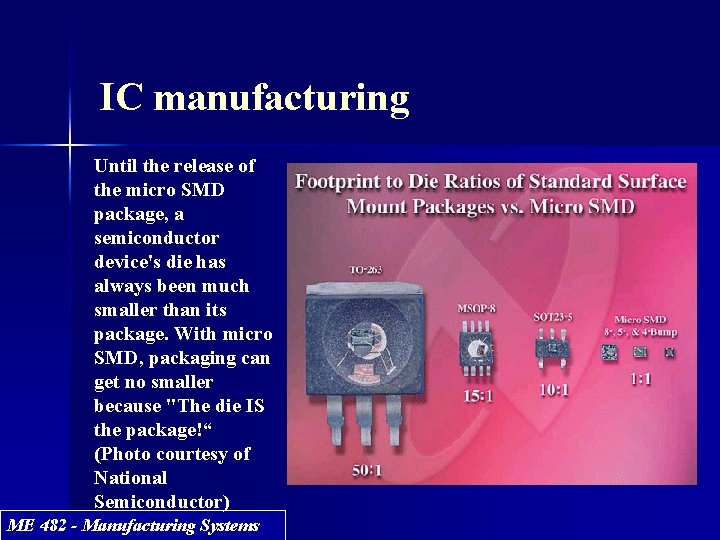

IC manufacturing Until the release of the micro SMD package, a semiconductor device's die has always been much smaller than its package. With micro SMD, packaging can get no smaller because "The die IS the package!“ (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

IC manufacturing Last year, National Semiconductor introduced the world’s smallest dual op amp, the LMC 6035. Now a portfolio of products are available in this package -- a package so small that several devices fit on the head of a pushpin with room to spare. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

IC manufacturing National Semiconductor's new four-, five-, and eight-bump micro SMD packages comply with a JEDEC standard. The chip-scale packages' solderbump pitch is 5 mm. (Photo courtesy of National Semiconductor) ME 482 - Manufacturing Systems

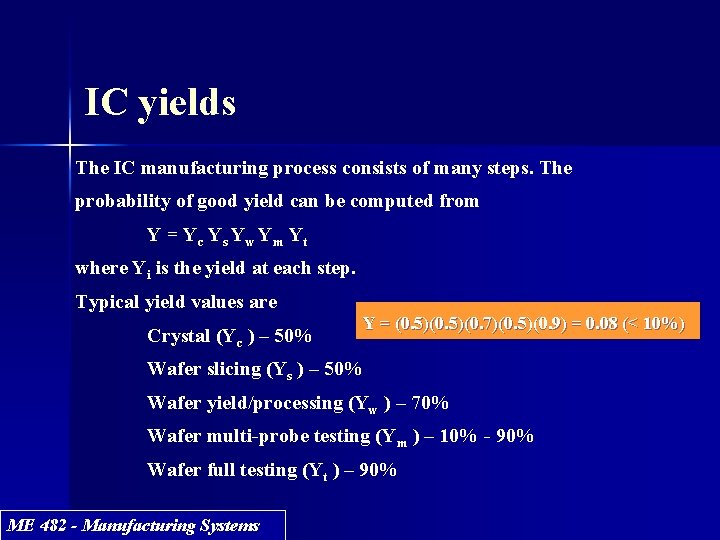

IC yields The IC manufacturing process consists of many steps. The probability of good yield can be computed from Y = Yc Ys Yw Ym Yt where Yi is the yield at each step. Typical yield values are Crystal (Yc ) – 50% Y = (0. 5)(0. 7)(0. 5)(0. 9) = 0. 08 (< 10%) Wafer slicing (Ys ) – 50% Wafer yield/processing (Yw ) – 70% Wafer multi-probe testing (Ym ) – 10% - 90% Wafer full testing (Yt ) – 90% ME 482 - Manufacturing Systems

Circuit boards The printed circuit board (PCB) is a laminated medium for mounting and interfacing electronic components, thus providing for their electrical connection. The layers are made of copper foil conducting layers interspersed with insulating layers made of polymer composites reinforced with glass or paper fabrics. Copper foil thickness is around 0. 0015 in, while the insulation layer ranges from 0. 031 in. to 0. 125 in. Single and double-sided boards are produced in quantity and then laminated to make multi-layer boards in a fairly complex process, since via holes are needed to electrically connect the different layers. ME 482 - Manufacturing Systems copper foil insulator

Circuit boards – prep steps 1. Board preparation – shearing to create the proper board profile, hole making to create tooling holes, and shaping operations to create tabs, slots and other features. These phases are followed with bar-coding and board cleaning. 2. Hole drilling – Circuit holes are drilled or punched to create insertion holes or via holes. Since the drill bit is usually small (< 0. 05”) and required to pass through different layers having different properties, the drill speed is usually very high (100, 000 rpm) and thus requires special drill motors/spindles. ME 482 - Manufacturing Systems

Circuit boards – prep steps 3. Circuit pattern imaging and etching – uses either of two methods – screen printing (tracks > 0. 01 in. ) or photolithography (tracks < 0. 01 in. ) – to create the tracks and land of the circuit. The photolithography method is similar to that used in IC production. The only difference is that the photoresist covers portions of the copper layer and chemical etching is used to remove the exposed copper. 4. Plating – used to plate the holes to provide a conductive path. Uses either electroplating or electroless plating methods. 5. Cleaning/inspection - finished boards are usually cleaned, inspected and tested to complete the process. Visual inspection is used to find obvious flaws, while continuity testing is used to find more subtle problems, particularly in multi-layer boards. Finally, the board tracks and land surfaces are coated with solder to protect the copper. ME 482 - Manufacturing Systems

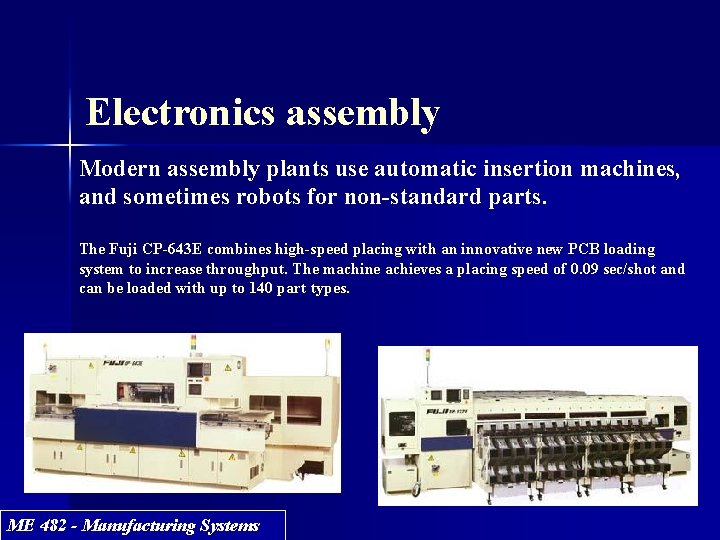

Electronics assembly Modern assembly plants use automatic insertion machines, and sometimes robots for non-standard parts. The Fuji CP-643 E combines high-speed placing with an innovative new PCB loading system to increase throughput. The machine achieves a placing speed of 0. 09 sec/shot and can be loaded with up to 140 part types. ME 482 - Manufacturing Systems

Electronics assembly: control technologies Critical to advanced electronics manufacturing are: • Vision processes for part inspection, and rigid-body offsets for precision assembly • Motion and I/O control, using asynchronous architectures • Mechanism and tooling design and calibration ME 482 - Manufacturing Systems

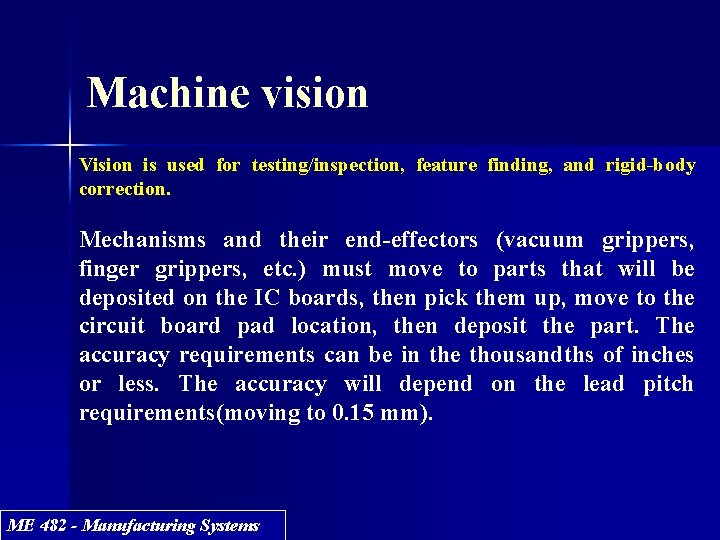

Machine vision Vision is used for testing/inspection, feature finding, and rigid-body correction. Mechanisms and their end-effectors (vacuum grippers, finger grippers, etc. ) must move to parts that will be deposited on the IC boards, then pick them up, move to the circuit board pad location, then deposit the part. The accuracy requirements can be in the thousandths of inches or less. The accuracy will depend on the lead pitch requirements(moving to 0. 15 mm). ME 482 - Manufacturing Systems

Machine vision Vision is used for testing/inspection, feature finding, and rigid-body correction. Because of errors in part presentation and the part picking, it is required that vision systems view these parts relative to the tool before placement to correct for part picking rigidbody errors (offsets) in both position and orientation. Similar errors exist for the placement of the circuit board on the board holder. ME 482 - Manufacturing Systems

Example - asynchronous control method Control process 1 Server Process 1 (Tool process) Pick up part Control process 2 Process 2 (Vision process) while(1): Move part under camera Wait until signal 5 == Part_there Set signal 5 to Part_there Take picture and load offsets Wait until signal 93 == Vsn_Done Set signal 93 = Vsn_Done Read offsets and adjust target Set signal 5 = Part_not_there ME 482 - Manufacturing Systems

Electronics assembly Assembly considerations: • Use control programs. • Move components from reel feeders to the board. • Insert components through holes or surface mount them. • Through hole assembly: - pre-form the leads. - insert leads into holes. - crop or clinch leads on the other side of the board. - wave solder the board undersides. ME 482 - Manufacturing Systems

Electronics assembly Assembly considerations: • Surface mounted component: - rely on calibration procedures and sensor measurement. - place and orient the leads on mounting pads (land). - screening used to place solder paste onto the pads - boards passed through oven to “reflow” solder ME 482 - Manufacturing Systems

Electronics board testing (after cleaning) Testing methods: • Inspection • Vision systems • Functional testing ( tested by energizing circuits) • Burn-in test to verify full functionality for a given period of time If the board fails any of these tests, then rework is often used to try to recover the board. ME 482 - Manufacturing Systems

Electronics assembly videos We will now see videos on circuit board assembly. Be sure to take notes because you will be tested on the video material! ME 482 - Manufacturing Systems

The state of electronics manufacturing in the U. S. Reference - “Electronic Manufacturing and Packaging in Japan, ” Michael J. Kelly, Chair William R. Boulton, Editor, John A. Kukowski, Eugene S. Meieran, Michael Pecht, John W. Peeples, Rao R. Tummala, JTEC (Japanese Technology Evaluation Center) Panel Report, February, 1995 Note: See report link on class website ME 482 - Manufacturing Systems

The state Report conclusions: • Japan leads the United States in almost every electronics packaging technology. • Japan clearly has achieved a strategic advantage in electronics production and process technologies. • Japan has established this marked competitive advantage in electronics as a consequence of developing low-cost, high-volume consumer products. ME 482 - Manufacturing Systems

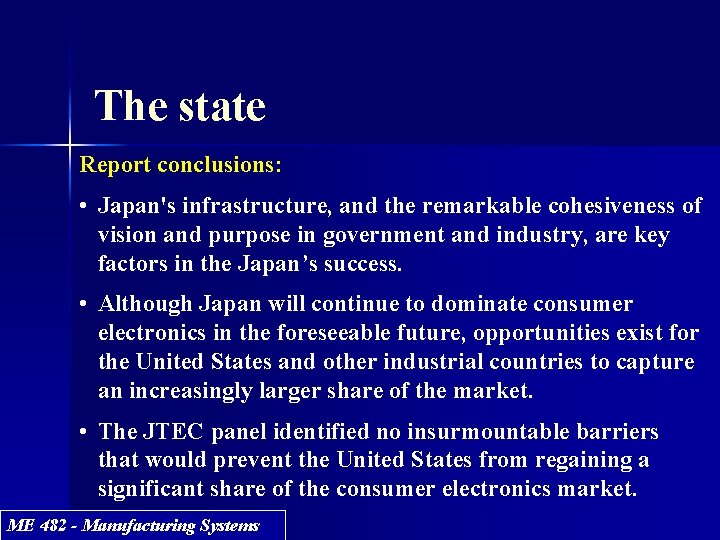

The state Report conclusions: • Japan's infrastructure, and the remarkable cohesiveness of vision and purpose in government and industry, are key factors in the Japan’s success. • Although Japan will continue to dominate consumer electronics in the foreseeable future, opportunities exist for the United States and other industrial countries to capture an increasingly larger share of the market. • The JTEC panel identified no insurmountable barriers that would prevent the United States from regaining a significant share of the consumer electronics market. ME 482 - Manufacturing Systems

Electronics manufacturing Report conclusions: “The Japanese can do it; Americans can do it. The issue that separates the United States from Japan in high-volume, low-cost electronic assembly is neither technology nor manufacturing; it is primarily the will to take the measures necessary to compete and succeed. ” ME 482 - Manufacturing Systems

Electronics manufacturing What have we learned? ME 482 - Manufacturing Systems
