Electronic Technician Certification Program Warning !!! Timer setting e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 123 min 00 01. Determine the voltage at B (VB) for the circuit shown a. 32 V b. 24 V c. 20 V d. None of the above 40 V Enter selection in the box E 1 02. Determine the current through R 2 for the circuit shown a. 0. 32 A b. 3. 2 A c. 0 A d. None of the above Enter selection in the box R 1 VB R 3 100 50 R 2 75 Vo

Electronic Technician Certification Program Warning !!! Timer setting e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 03. Determine the current through R 3 for the circuit shown a. 0. 32 A b. 0. 0 A c. 3. 2 A d. None of the above 40 V Enter selection in the box 123 min 00 R 1 VB 100 50 E 1 04. Determine the voltage across R 3 (vr 3) for the circuit shown a. 0. 0 V b. 3. 2 V c. 12 V d. None of the above Enter selection in the box R 3 R 2 75 Vo

Electronic Technician Certification Program Warning !!! Timer setting e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 05. Determine the current through R 1 for the circuit shown a. 2. 3 A b. 1. 5 A c. 1. 0 A d. None of the above 50 V Enter selection in the box E 1 06. Determine the current through R 2 for the circuit shown a. 0. 0 A b. 1. 0 A c. 1. 2 A d. None of the above Enter selection in the box 123 min 00 R 1 50 VB Vo R 2 100 R 3 25

Electronic Technician Certification Program e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 07. Resistance and current are: a. Measure in the same units b. Inversely proportional c. Directly proportional d. Always smaller than the voltage Enter selection in the box Warning !!! Timer setting 123 min 00 08. If the resistance in a circuit is doubled and the voltage remains the same the current is a. Remains the same b. Is doubled c. Is halved d. May increase or decrease Enter selection in the box

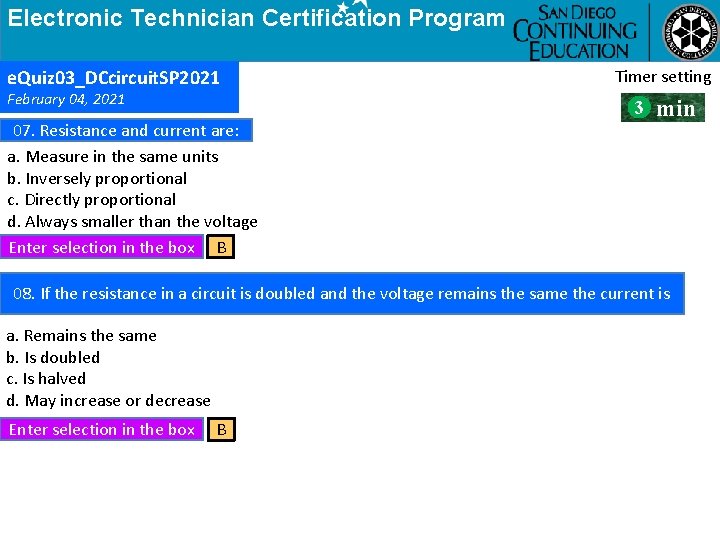

Electronic Technician Certification Program e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 07. Resistance and current are: a. Measure in the same units b. Inversely proportional c. Directly proportional d. Always smaller than the voltage Enter selection in the box B Warning !!! Timer setting 123 min 00 08. If the resistance in a circuit is doubled and the voltage remains the same the current is a. Remains the same b. Is doubled c. Is halved d. May increase or decrease Enter selection in the box B

Electronic Technician Certification Program e. Quiz 03_DCcircuit. SP 2021 February 04, 2021 09. Calculate the period T for frequency of 2 MHZ a. 5 micro. Sec b. 0. 5 micro. Sec c. 0. 5 m. Sec d. none of the above Enter selection in the box 10. A sine wave with a peak-to-peak value of 20 V has rms value of a. 7. 07 Vrms b. 14 Vrms c. 7. 87 Vrms d. none of the above Enter selection in the box Warning !!! Timer setting 123 min 00
