Electronic Structure and the Periodic Table Unit 6

Electronic Structure and the Periodic Table Unit 6 Honors Chemistry

Wave Theory of Light James Clerk Maxwell n Electromagnetic waves – a form of energy that exhibits wavelike behavior as it travels through space n Visible light – a form of electromagnetic radiation that is perceivable to human beings and is seen in the colors of the rainbow n ROY G. BIV

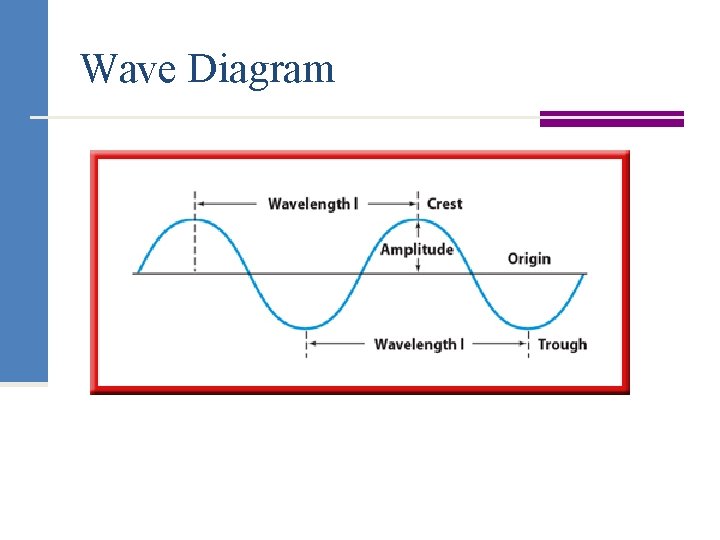

Wave Diagram

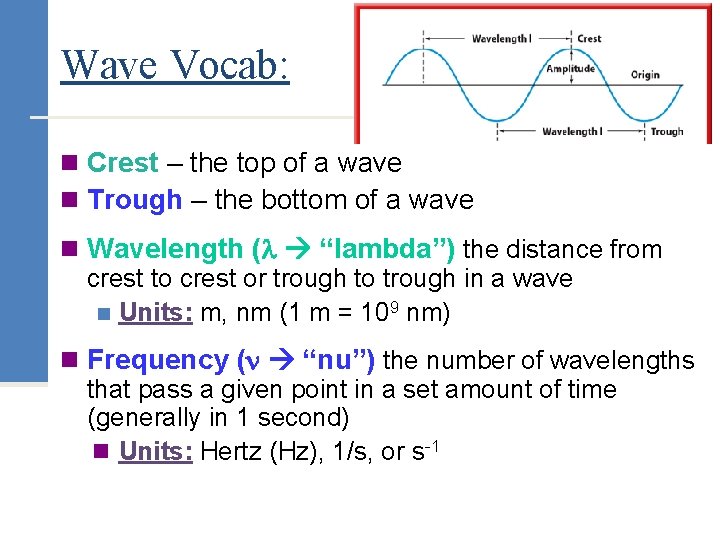

Wave Vocab: n Crest – the top of a wave n Trough – the bottom of a wave n Wavelength ( “lambda”) the distance from crest to crest or trough to trough in a wave n Units: m, nm (1 m = 109 nm) n Frequency ( “nu”) the number of wavelengths that pass a given point in a set amount of time (generally in 1 second) n Units: Hertz (Hz), 1/s, or s-1

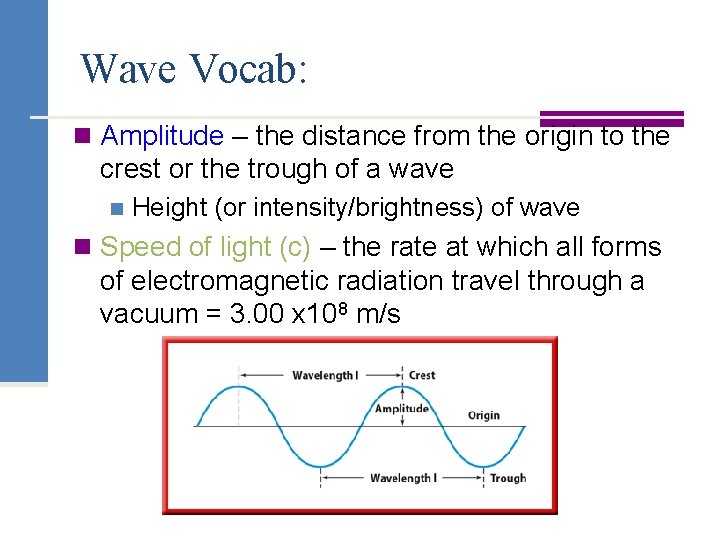

Wave Vocab: n Amplitude – the distance from the origin to the crest or the trough of a wave n Height (or intensity/brightness) of wave n Speed of light (c) – the rate at which all forms of electromagnetic radiation travel through a vacuum = 3. 00 x 108 m/s

Wave Theory of Light

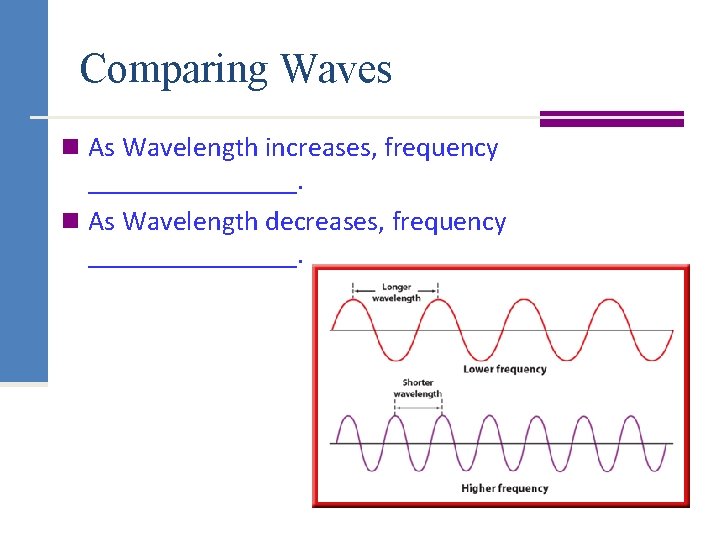

Comparing Waves n As Wavelength increases, frequency ________. n As Wavelength decreases, frequency ________.

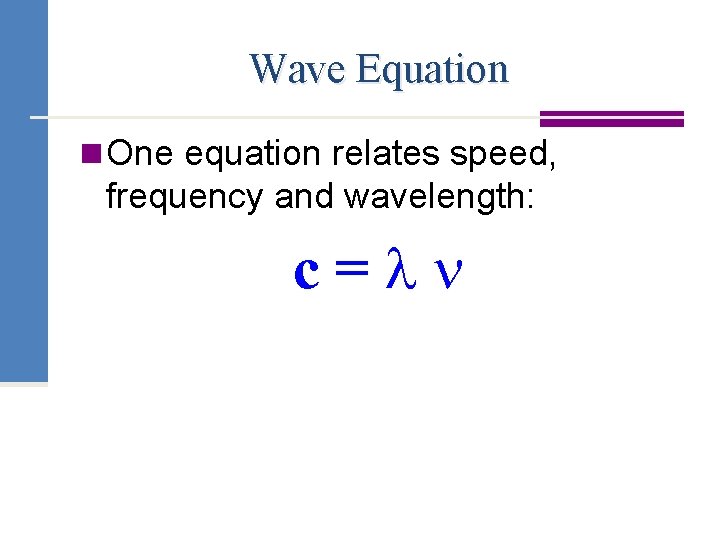

Wave Equation n One equation relates speed, frequency and wavelength: c=

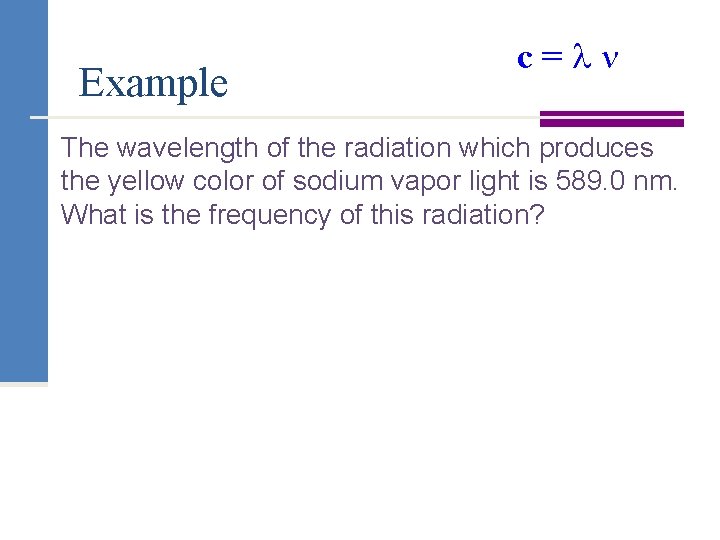

Example c= The wavelength of the radiation which produces the yellow color of sodium vapor light is 589. 0 nm. What is the frequency of this radiation?

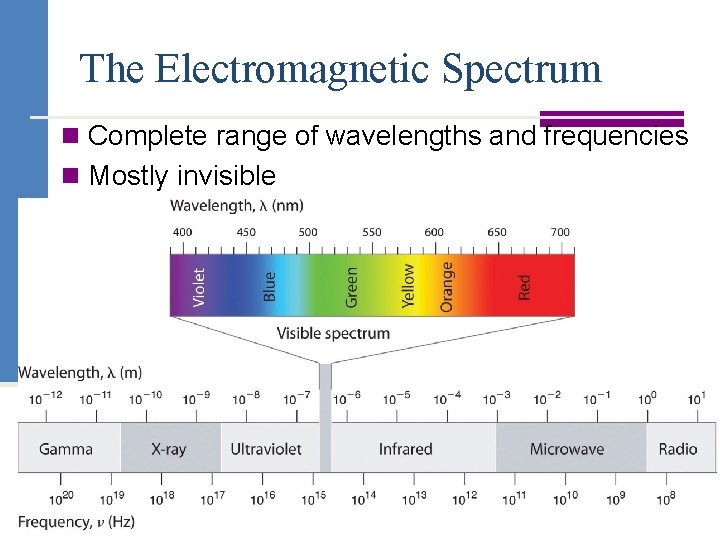

The Electromagnetic Spectrum n Complete range of wavelengths and frequencies n Mostly invisible

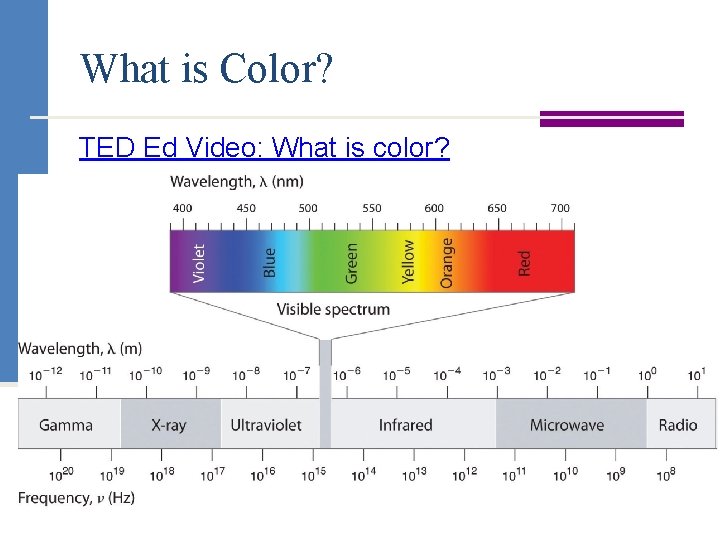

What is Color? TED Ed Video: What is color?

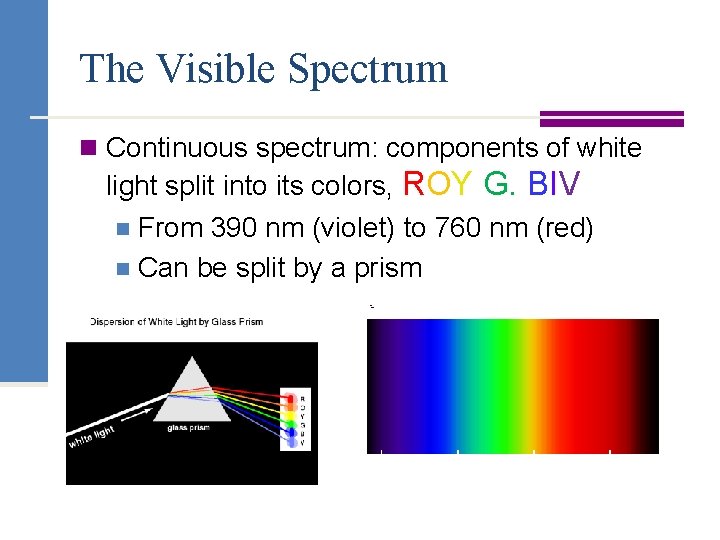

The Visible Spectrum n Continuous spectrum: components of white light split into its colors, ROY G. BIV n From 390 nm (violet) to 760 nm (red) n Can be split by a prism

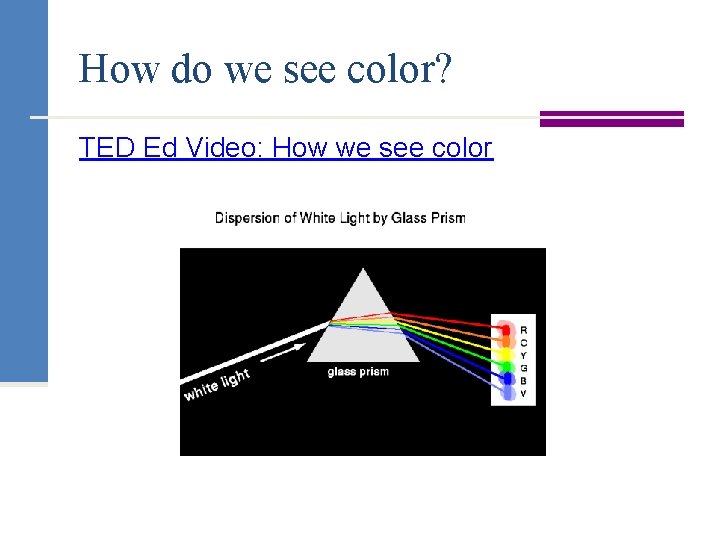

How do we see color? TED Ed Video: How we see color

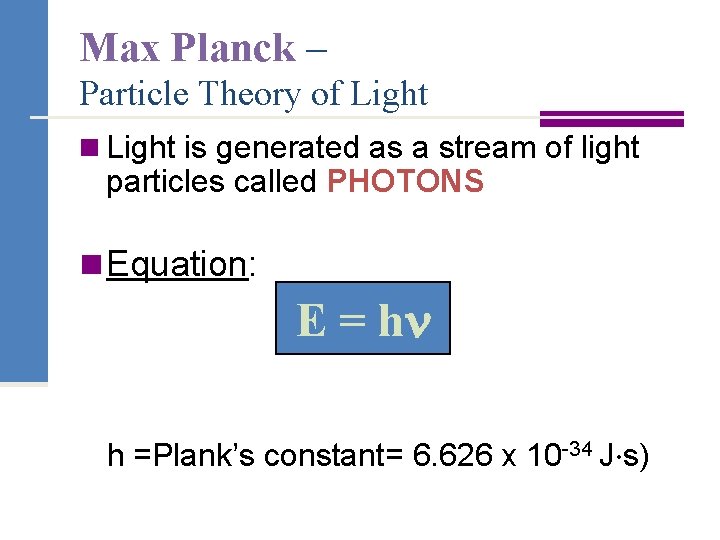

Max Planck – Particle Theory of Light n Light is generated as a stream of light particles called PHOTONS n Equation: E = h h =Plank’s constant= 6. 626 x 10 -34 J·s)

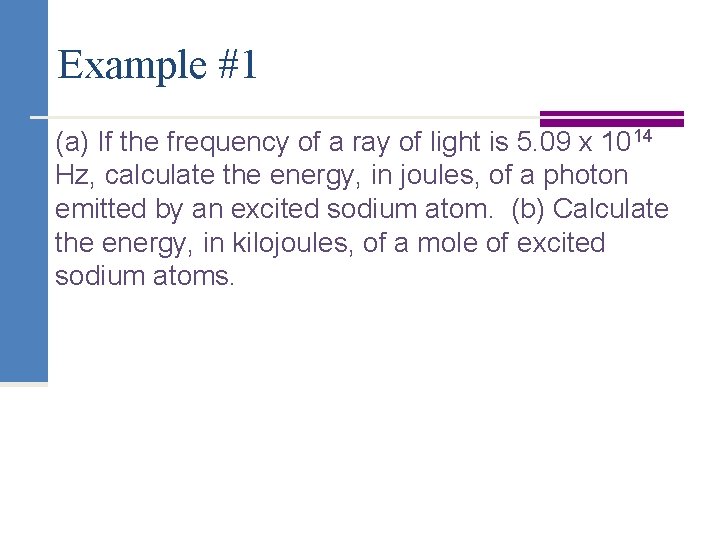

Example #1 (a) If the frequency of a ray of light is 5. 09 x 1014 Hz, calculate the energy, in joules, of a photon emitted by an excited sodium atom. (b) Calculate the energy, in kilojoules, of a mole of excited sodium atoms.

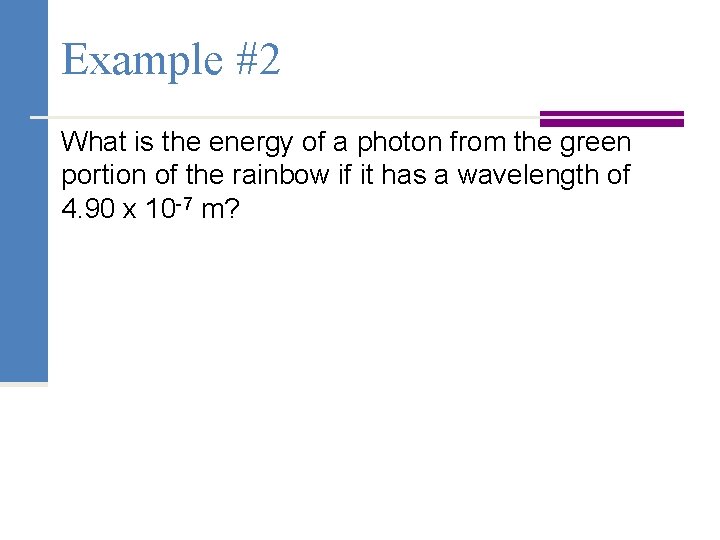

Example #2 What is the energy of a photon from the green portion of the rainbow if it has a wavelength of 4. 90 x 10 -7 m?

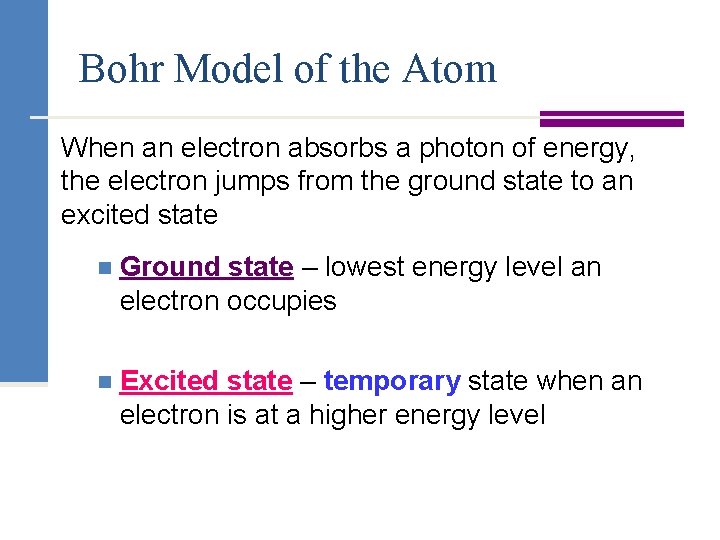

Bohr Model of the Atom When an electron absorbs a photon of energy, the electron jumps from the ground state to an excited state n Ground state – lowest energy level an electron occupies n Excited state – temporary state when an electron is at a higher energy level

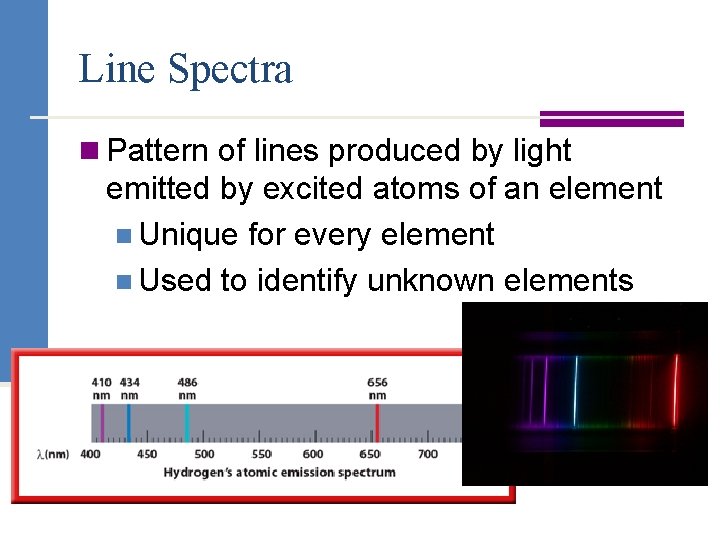

Line Spectra n Pattern of lines produced by light emitted by excited atoms of an element n Unique for every element n Used to identify unknown elements

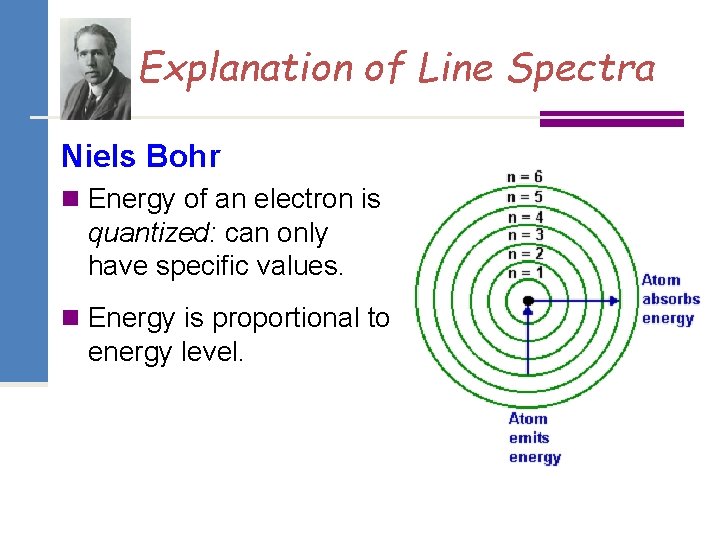

Explanation of Line Spectra Niels Bohr n Energy of an electron is quantized: can only have specific values. n Energy is proportional to energy level.

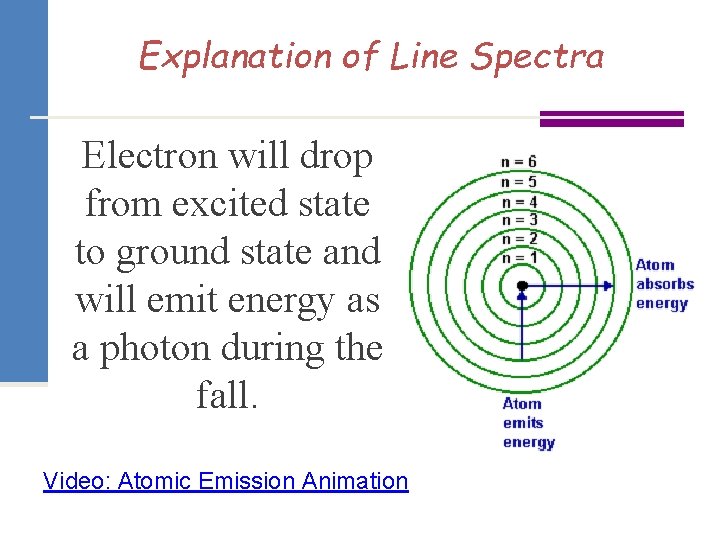

Explanation of Line Spectra Electron will drop from excited state to ground state and will emit energy as a photon during the fall. Video: Atomic Emission Animation

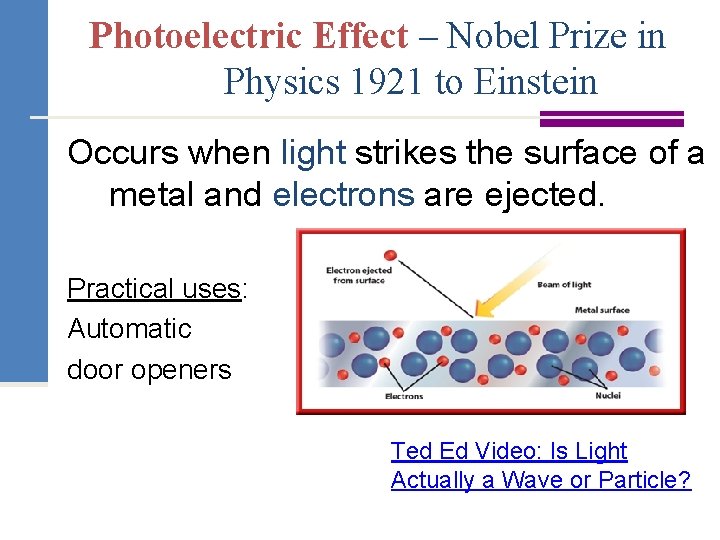

Photoelectric Effect – Nobel Prize in Physics 1921 to Einstein Occurs when light strikes the surface of a metal and electrons are ejected. Practical uses: Automatic door openers Ted Ed Video: Is Light Actually a Wave or Particle?

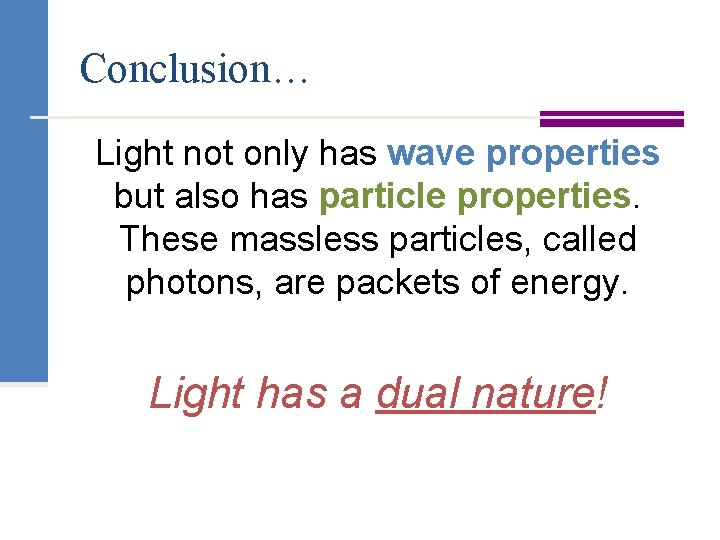

Conclusion… Light not only has wave properties but also has particle properties. These massless particles, called photons, are packets of energy. Light has a dual nature!

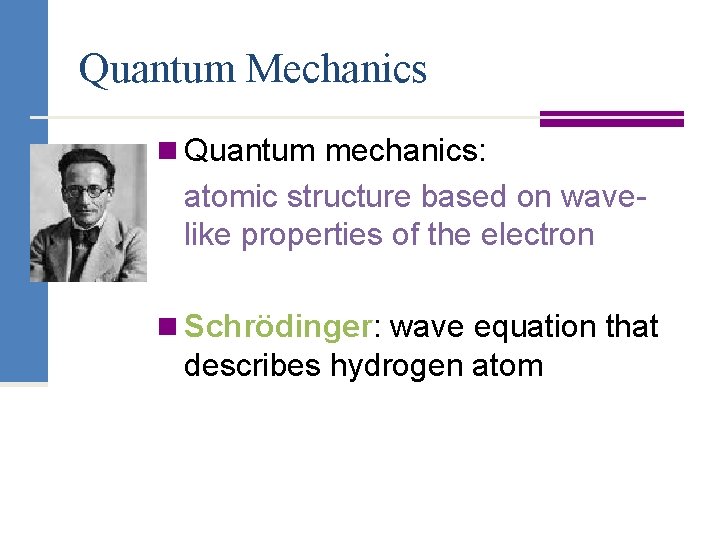

Quantum Mechanics n Quantum mechanics: atomic structure based on wavelike properties of the electron n Schrödinger: wave equation that describes hydrogen atom

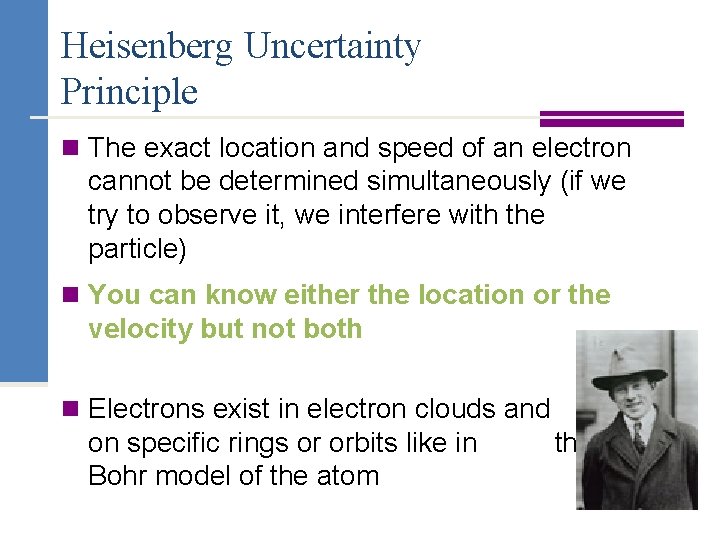

Heisenberg Uncertainty Principle n The exact location and speed of an electron cannot be determined simultaneously (if we try to observe it, we interfere with the particle) n You can know either the location or the velocity but not both n Electrons exist in electron clouds and on specific rings or orbits like in Bohr model of the atom not the

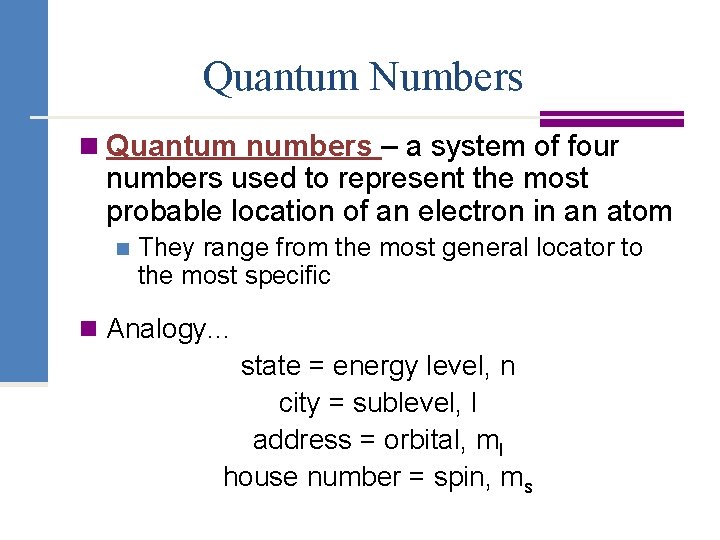

Quantum Numbers n Quantum numbers – a system of four numbers used to represent the most probable location of an electron in an atom n They range from the most general locator to the most specific n Analogy. . . state = energy level, n city = sublevel, l address = orbital, ml house number = spin, ms

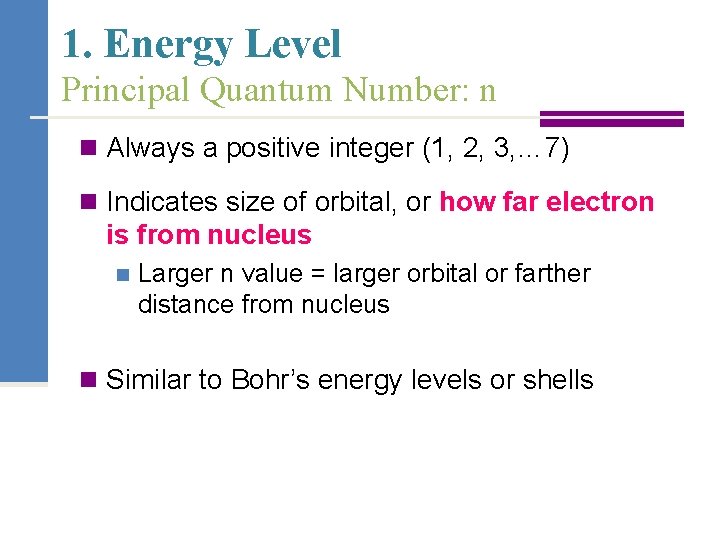

1. Energy Level Principal Quantum Number: n n Always a positive integer (1, 2, 3, … 7) n Indicates size of orbital, or how far electron is from nucleus n Larger n value = larger orbital or farther distance from nucleus n Similar to Bohr’s energy levels or shells

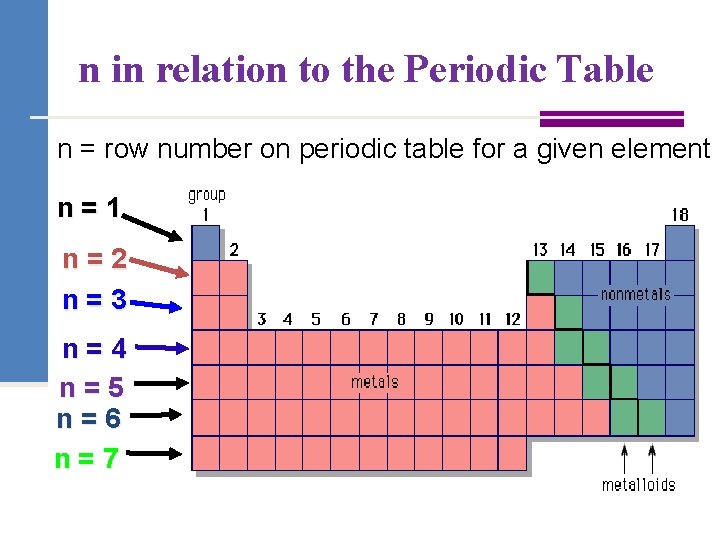

n in relation to the Periodic Table n = row number on periodic table for a given element n=1 n=2 n=3 n=4 n=5 n=6 n=7

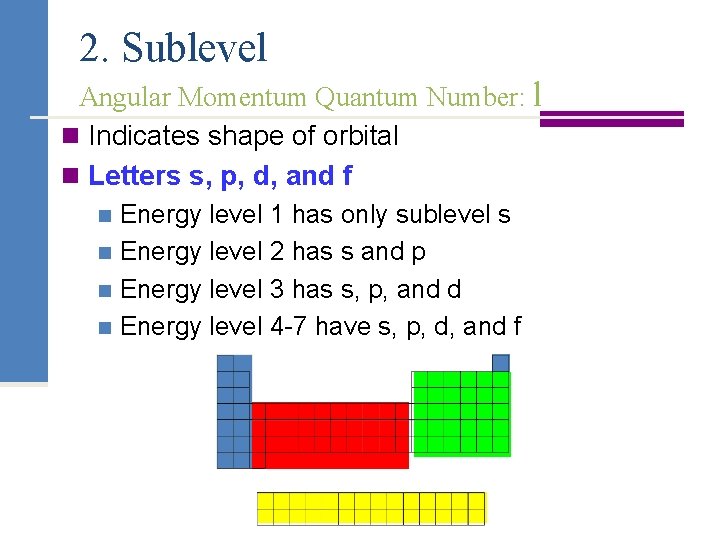

2. Sublevel Angular Momentum Quantum Number: l n Indicates shape of orbital n Letters s, p, d, and f Energy level 1 has only sublevel s n Energy level 2 has s and p n Energy level 3 has s, p, and d n Energy level 4 -7 have s, p, d, and f n

In order of increasing energy the sublevels generally go: s<p<d<f HOWEVER, there is some overlapping of sublevels at higher energy levels Ex. ) 4 s vs. 3 d

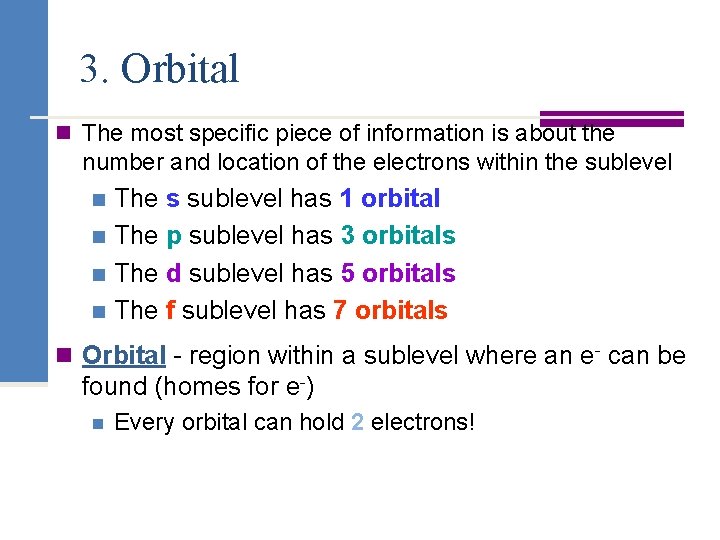

3. Orbital n The most specific piece of information is about the number and location of the electrons within the sublevel The s sublevel has 1 orbital n The p sublevel has 3 orbitals n The d sublevel has 5 orbitals n The f sublevel has 7 orbitals n n Orbital - region within a sublevel where an e- can be found (homes for e-) n Every orbital can hold 2 electrons!

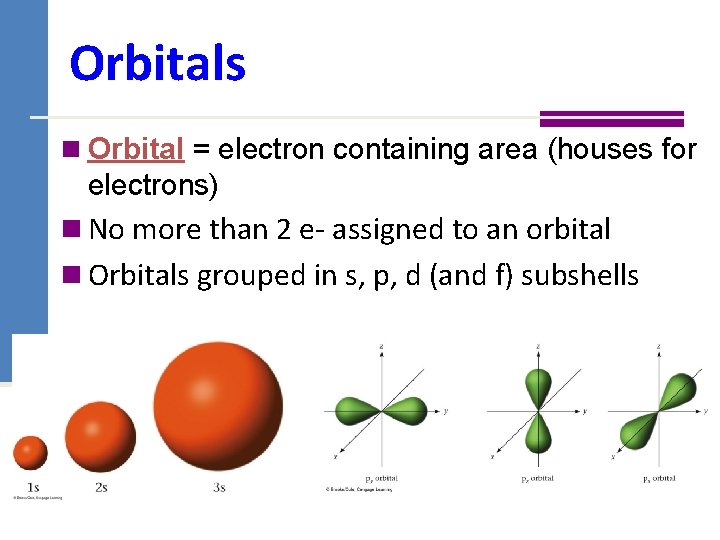

Orbitals n Orbital = electron containing area (houses for electrons) n No more than 2 e- assigned to an orbital n Orbitals grouped in s, p, d (and f) subshells

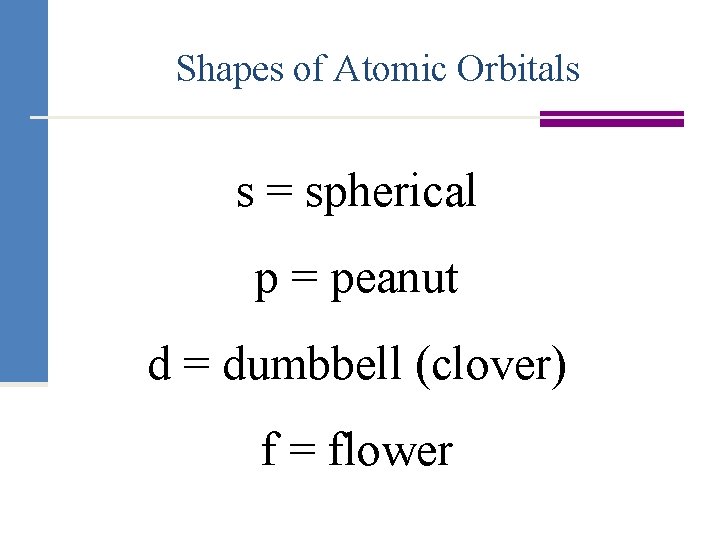

Shapes of Atomic Orbitals s = spherical p = peanut d = dumbbell (clover) f = flower

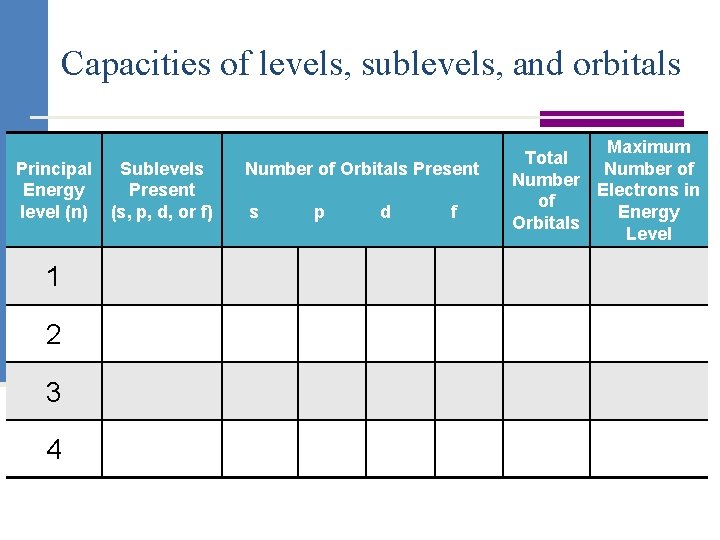

Capacities of levels, sublevels, and orbitals Principal Energy level (n) 1 2 3 4 Sublevels Present (s, p, d, or f) Number of Orbitals Present s p d f Maximum Total Number of Number Electrons in of Energy Orbitals Level

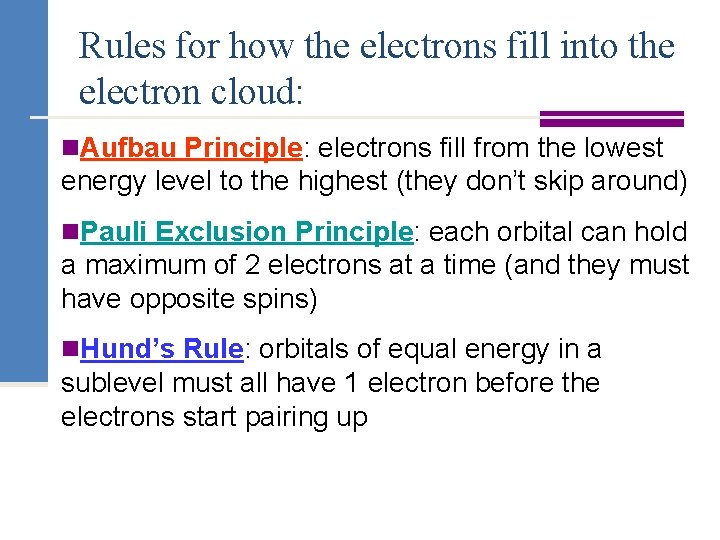

Rules for how the electrons fill into the electron cloud: n. Aufbau Principle: electrons fill from the lowest energy level to the highest (they don’t skip around) n. Pauli Exclusion Principle: each orbital can hold a maximum of 2 electrons at a time (and they must have opposite spins) n. Hund’s Rule: orbitals of equal energy in a sublevel must all have 1 electron before the electrons start pairing up

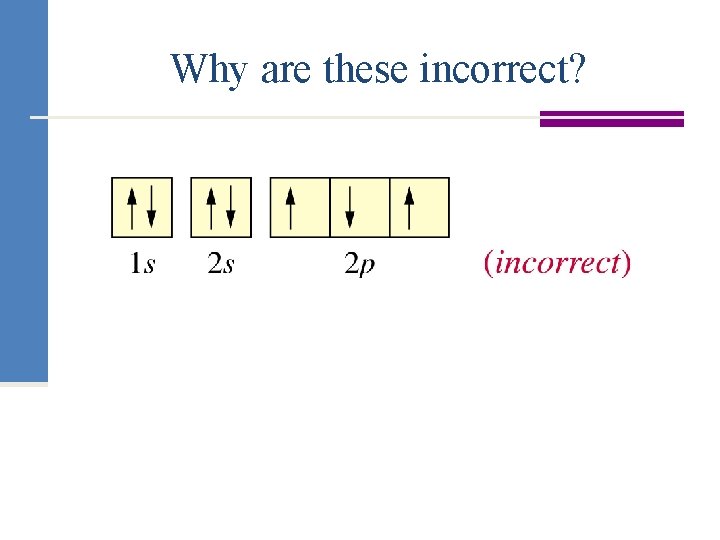

Why are these incorrect?

Why are these incorrect?

Why are these incorrect?

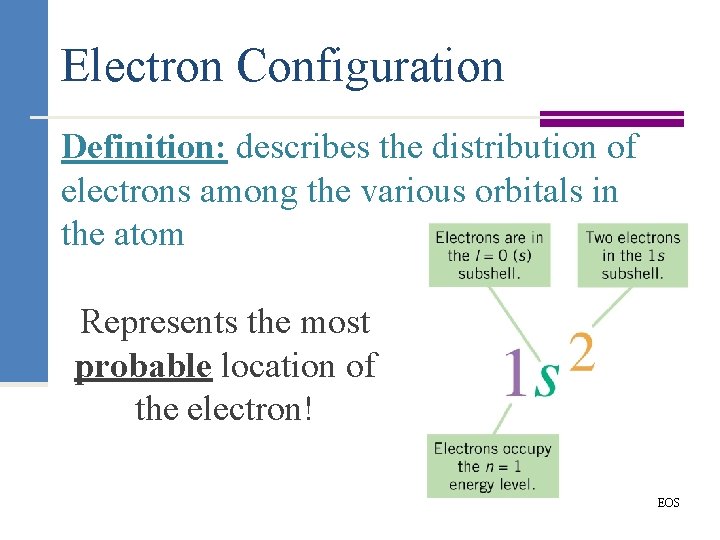

Electron Configuration Definition: describes the distribution of electrons among the various orbitals in the atom Represents the most probable location of the electron! EOS

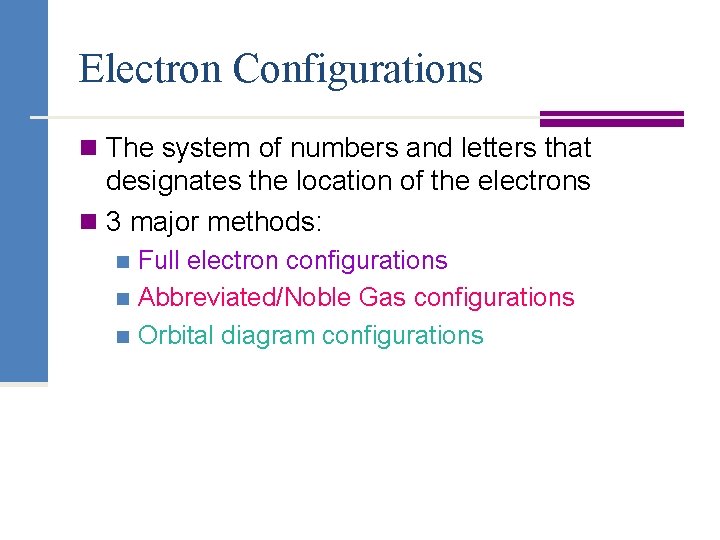

Electron Configurations n The system of numbers and letters that designates the location of the electrons n 3 major methods: Full electron configurations n Abbreviated/Noble Gas configurations n Orbital diagram configurations n

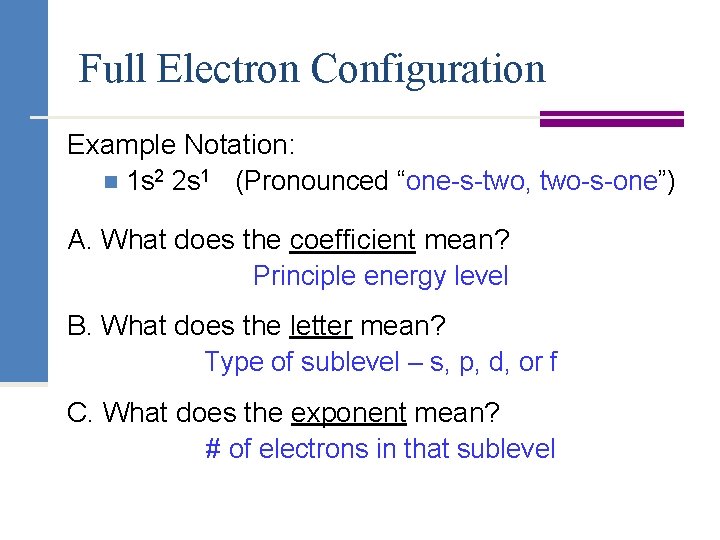

Full Electron Configuration Example Notation: n 1 s 2 2 s 1 (Pronounced “one-s-two, two-s-one”) A. What does the coefficient mean? Principle energy level B. What does the letter mean? Type of sublevel – s, p, d, or f C. What does the exponent mean? # of electrons in that sublevel

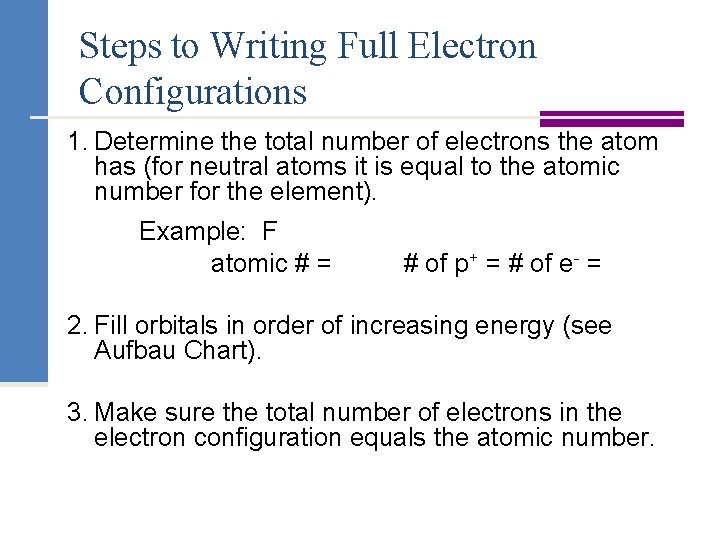

Steps to Writing Full Electron Configurations 1. Determine the total number of electrons the atom has (for neutral atoms it is equal to the atomic number for the element). Example: F atomic # = # of p+ = # of e- = 2. Fill orbitals in order of increasing energy (see Aufbau Chart). 3. Make sure the total number of electrons in the electron configuration equals the atomic number.

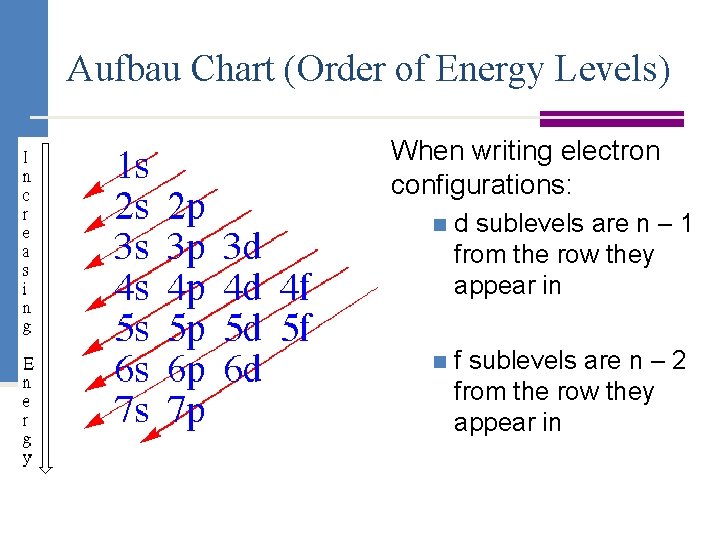

Aufbau Chart (Order of Energy Levels) When writing electron configurations: n d sublevels are n – 1 from the row they appear in n f sublevels are n – 2 from the row they appear in

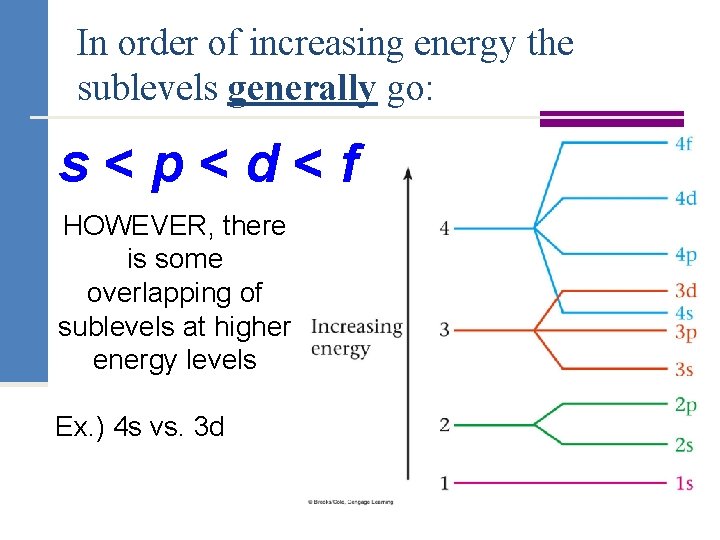

In order of increasing energy the sublevels generally go: s<p<d<f HOWEVER, there is some overlapping of sublevels at higher energy levels Ex. ) 4 s vs. 3 d

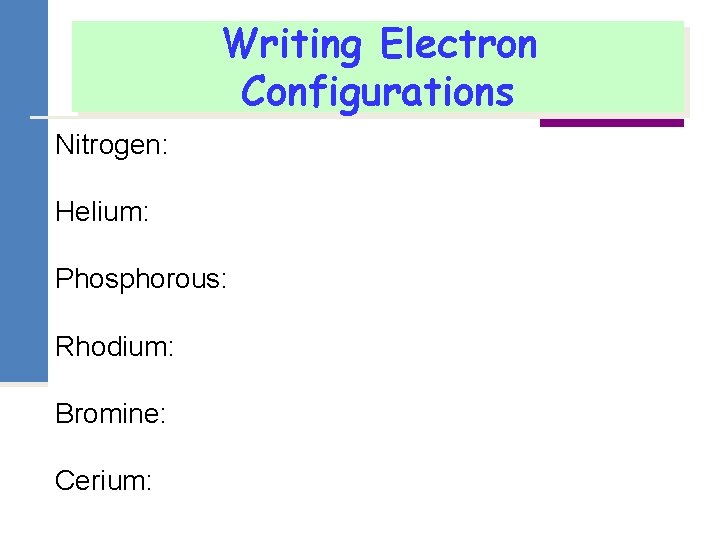

Writing Electron Configurations Nitrogen: Helium: Phosphorous: Rhodium: Bromine: Cerium:

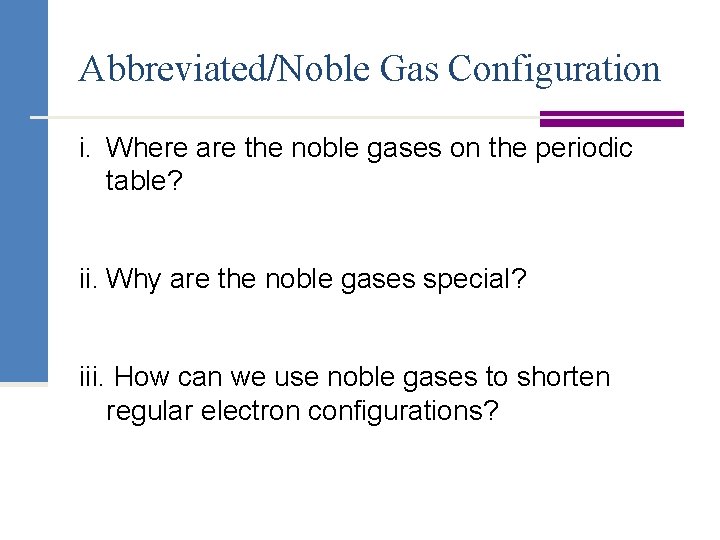

Abbreviated/Noble Gas Configuration i. Where are the noble gases on the periodic table? ii. Why are the noble gases special? iii. How can we use noble gases to shorten regular electron configurations?

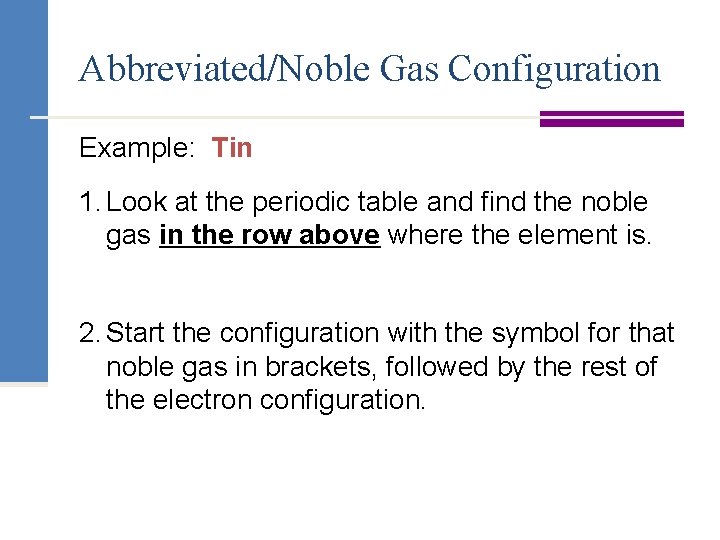

Abbreviated/Noble Gas Configuration Example: Tin 1. Look at the periodic table and find the noble gas in the row above where the element is. 2. Start the configuration with the symbol for that noble gas in brackets, followed by the rest of the electron configuration.

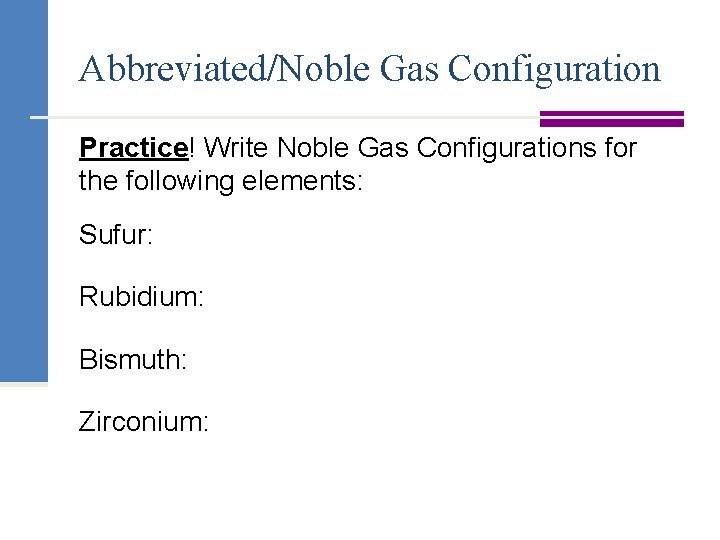

Abbreviated/Noble Gas Configuration Practice! Write Noble Gas Configurations for the following elements: Sufur: Rubidium: Bismuth: Zirconium:

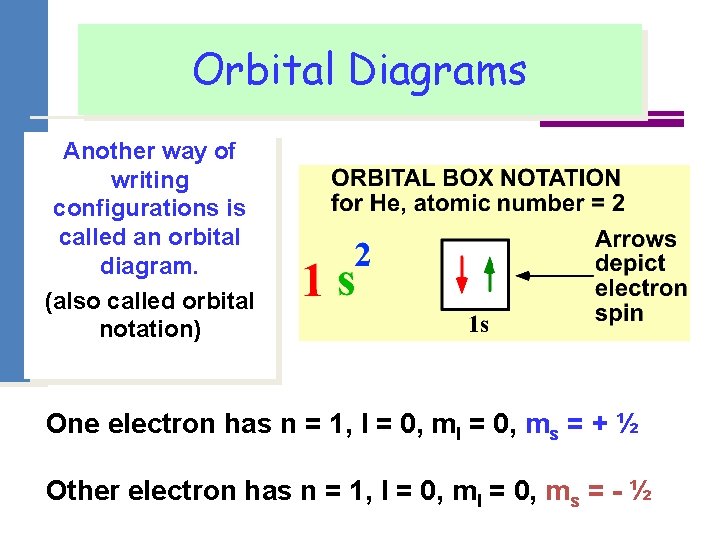

Orbital Diagrams Another way of writing configurations is called an orbital diagram. (also called orbital notation) One electron has n = 1, l = 0, ms = + ½ Other electron has n = 1, l = 0, ms = - ½

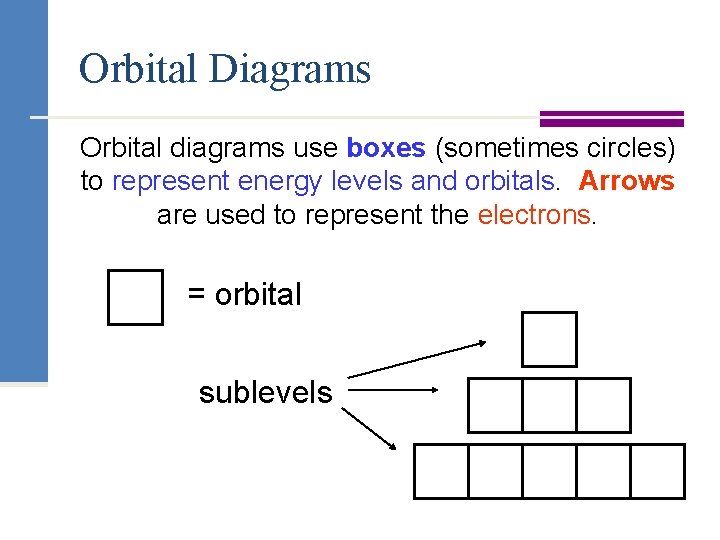

Orbital Diagrams Orbital diagrams use boxes (sometimes circles) to represent energy levels and orbitals. Arrows are used to represent the electrons. = orbital sublevels

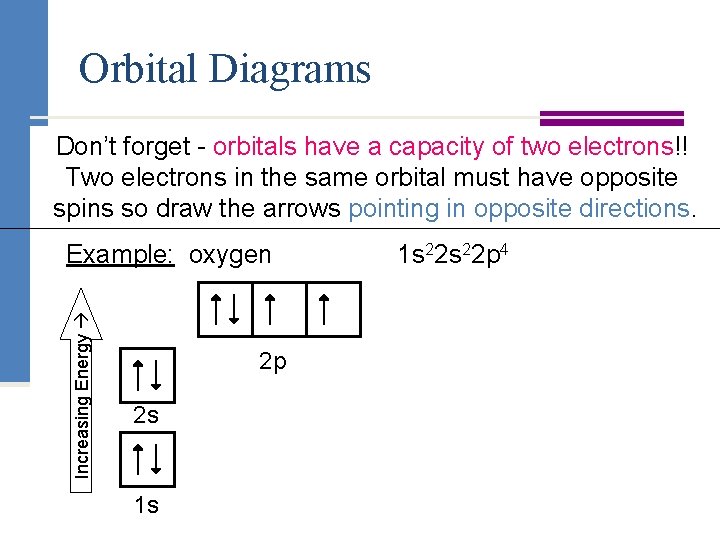

Orbital Diagrams Don’t forget - orbitals have a capacity of two electrons!! Two electrons in the same orbital must have opposite spins so draw the arrows pointing in opposite directions. Increasing Energy Example: oxygen 2 p 2 s 1 s 1 s 22 p 4

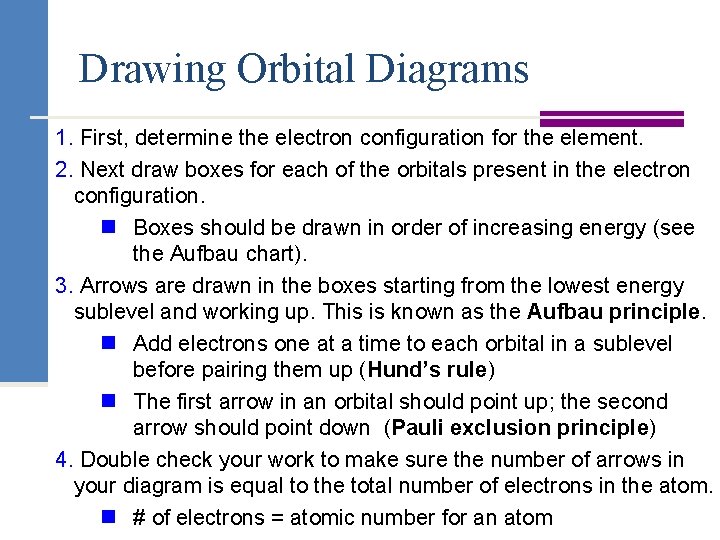

Drawing Orbital Diagrams 1. First, determine the electron configuration for the element. 2. Next draw boxes for each of the orbitals present in the electron configuration. n Boxes should be drawn in order of increasing energy (see the Aufbau chart). 3. Arrows are drawn in the boxes starting from the lowest energy sublevel and working up. This is known as the Aufbau principle. n Add electrons one at a time to each orbital in a sublevel before pairing them up (Hund’s rule) n The first arrow in an orbital should point up; the second arrow should point down (Pauli exclusion principle) 4. Double check your work to make sure the number of arrows in your diagram is equal to the total number of electrons in the atom. n # of electrons = atomic number for an atom

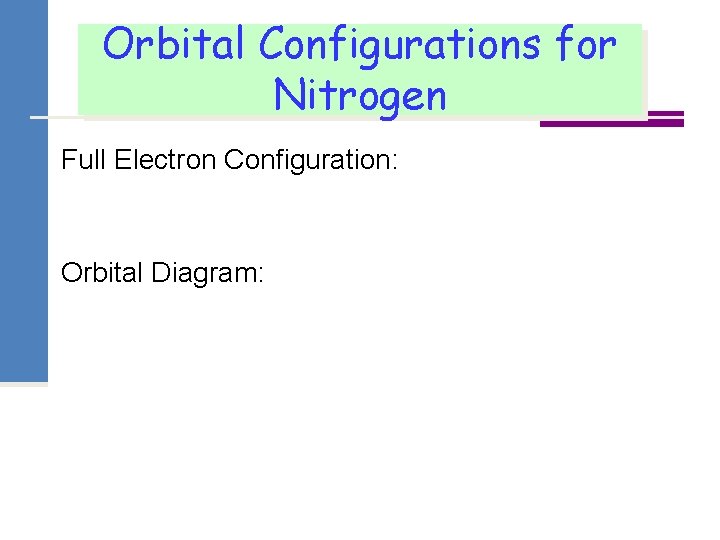

Orbital Configurations for Nitrogen Full Electron Configuration: Orbital Diagram:

Orbital Configurations for Nickel Full Electron Configuration: Orbital Diagram:

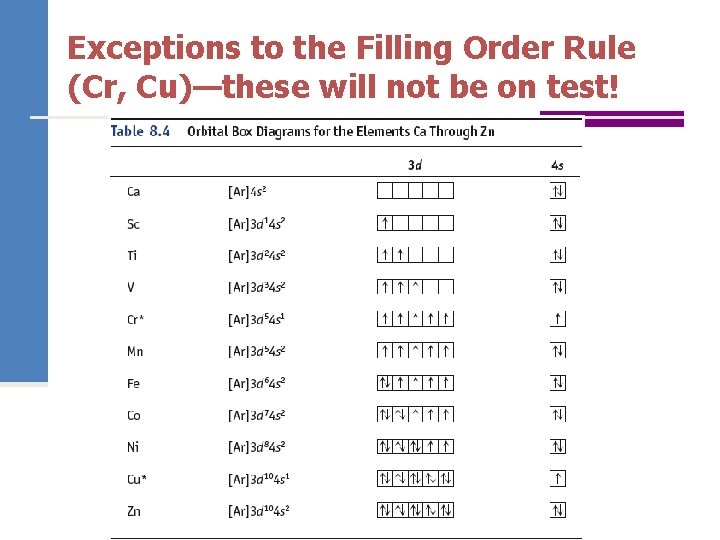

Exceptions to the Filling Order Rule (Cr, Cu)—these will not be on test!

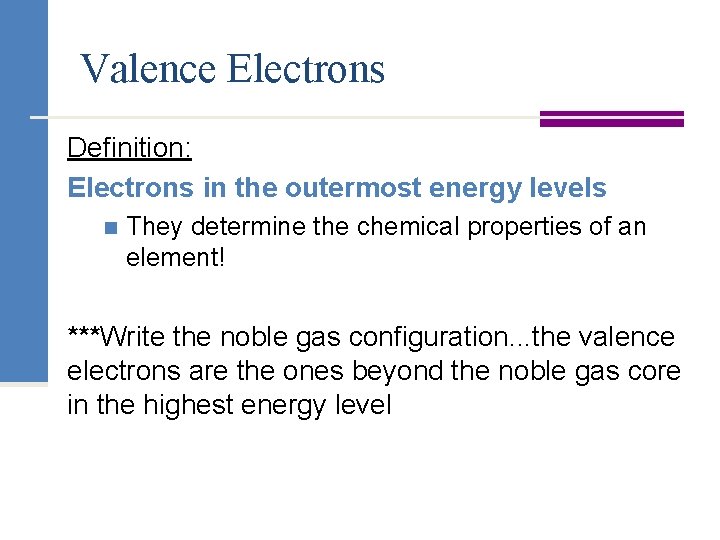

Valence Electrons Definition: Electrons in the outermost energy levels n They determine the chemical properties of an element! ***Write the noble gas configuration. . . the valence electrons are the ones beyond the noble gas core in the highest energy level

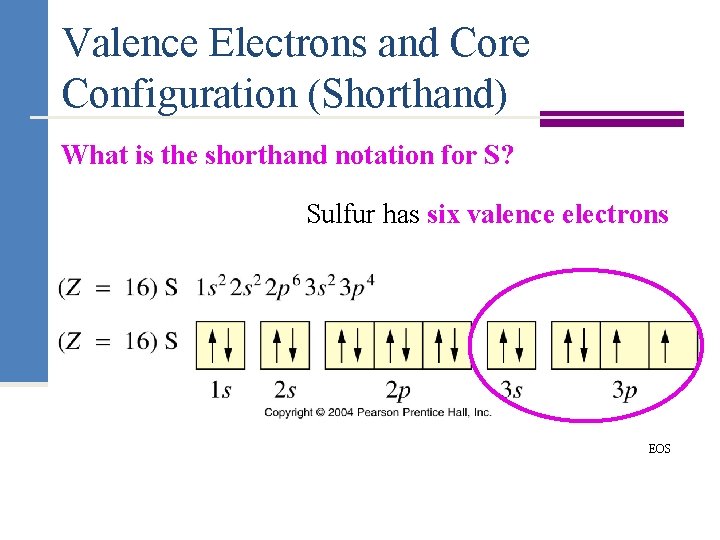

Valence Electrons and Core Configuration (Shorthand) What is the shorthand notation for S? Sulfur has six valence electrons EOS

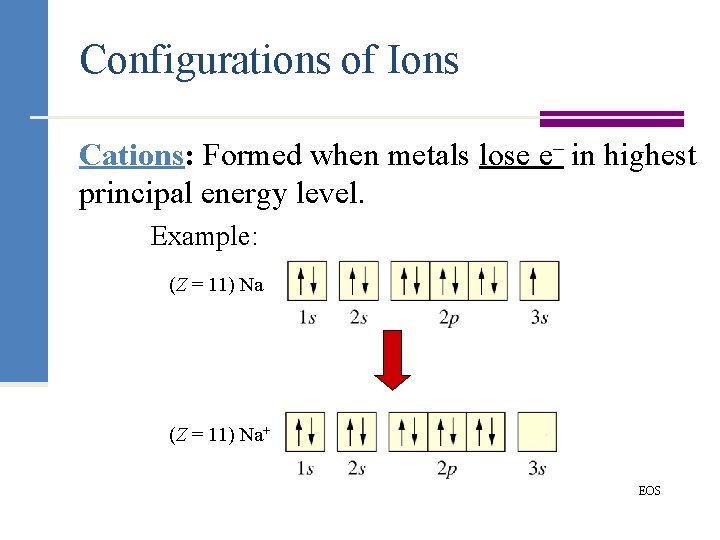

Configurations of Ions Cations: Formed when metals lose e– in highest principal energy level. Example: (Z = 11) Na+ EOS

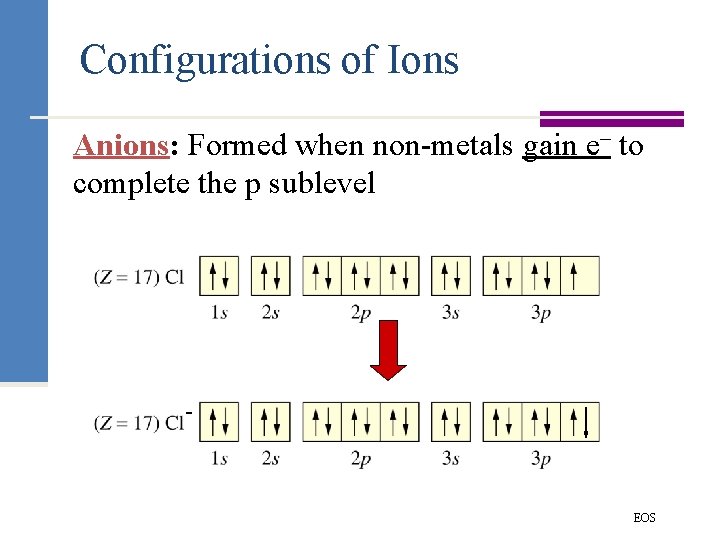

Configurations of Ions Anions: Formed when non-metals gain e– to complete the p sublevel - EOS

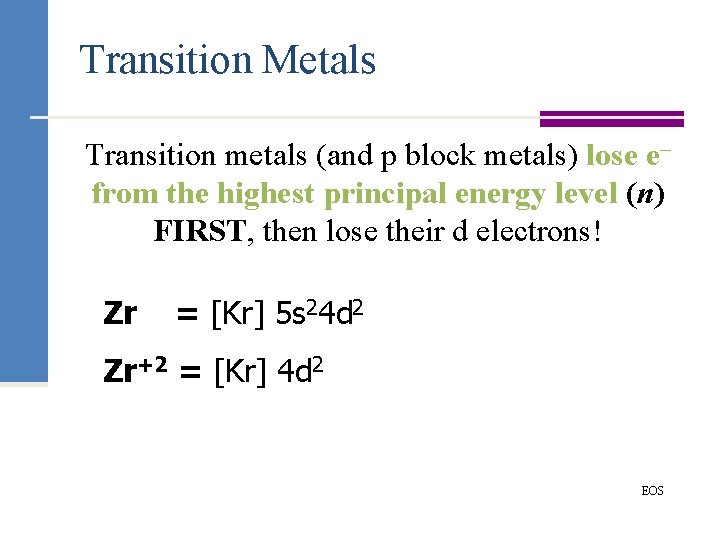

Transition Metals Transition metals (and p block metals) lose e– from the highest principal energy level (n) FIRST, then lose their d electrons! Zr = [Kr] 5 s 24 d 2 Zr+2 = [Kr] 4 d 2 EOS

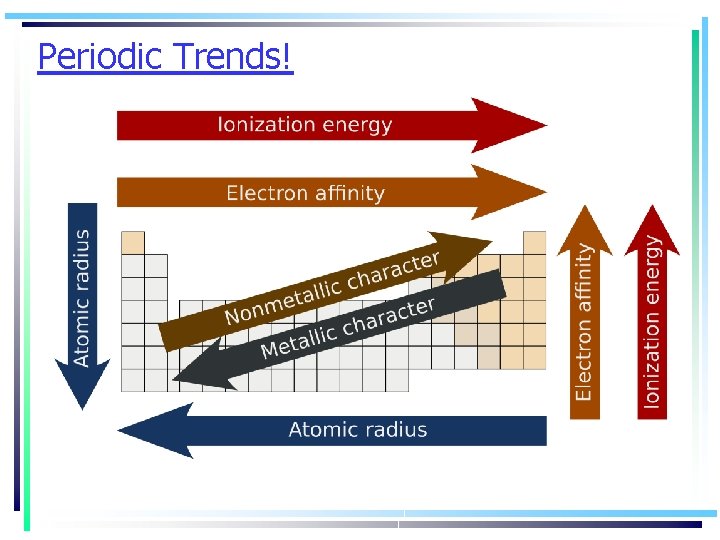

Periodic Trends!

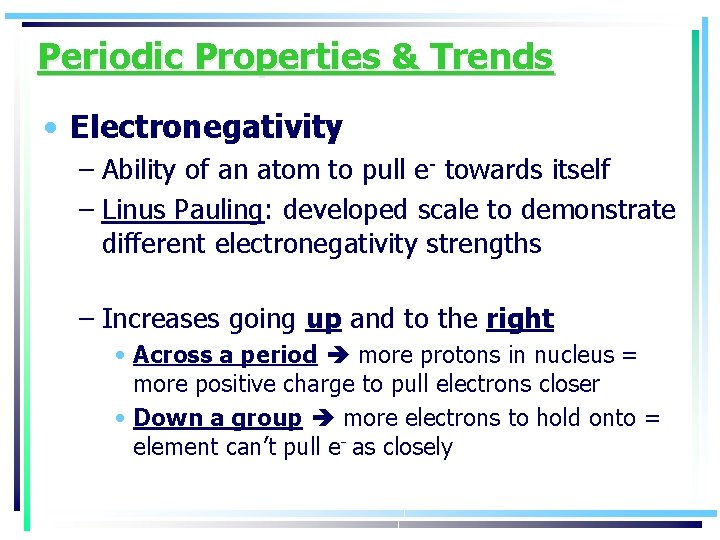

Periodic Properties & Trends • Electronegativity – Ability of an atom to pull e- towards itself – Linus Pauling: developed scale to demonstrate different electronegativity strengths – Increases going up and to the right • Across a period more protons in nucleus = more positive charge to pull electrons closer • Down a group more electrons to hold onto = element can’t pull e- as closely

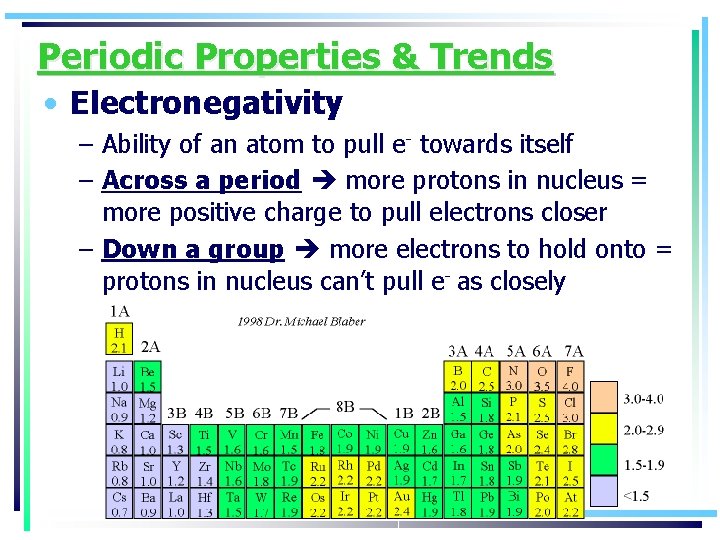

Periodic Properties & Trends • Electronegativity – Ability of an atom to pull e- towards itself – Across a period more protons in nucleus = more positive charge to pull electrons closer – Down a group more electrons to hold onto = protons in nucleus can’t pull e- as closely

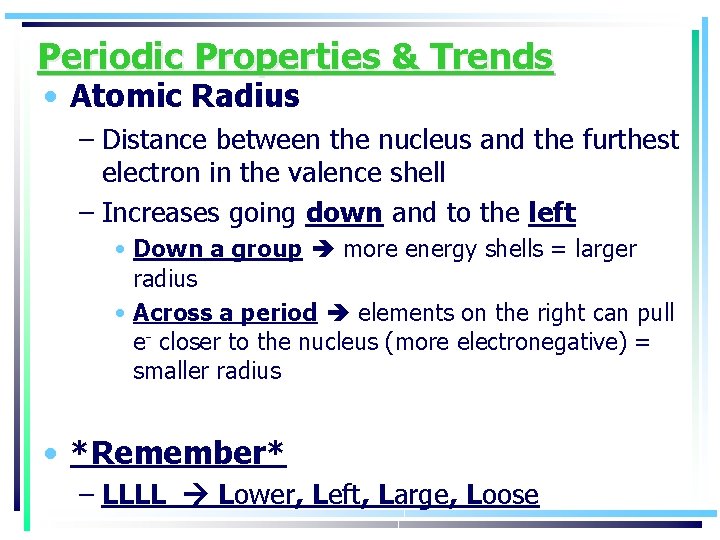

Periodic Properties & Trends • Atomic Radius – Distance between the nucleus and the furthest electron in the valence shell – Increases going down and to the left • Down a group more energy shells = larger radius • Across a period elements on the right can pull e- closer to the nucleus (more electronegative) = smaller radius • *Remember* – LLLL Lower, Left, Large, Loose

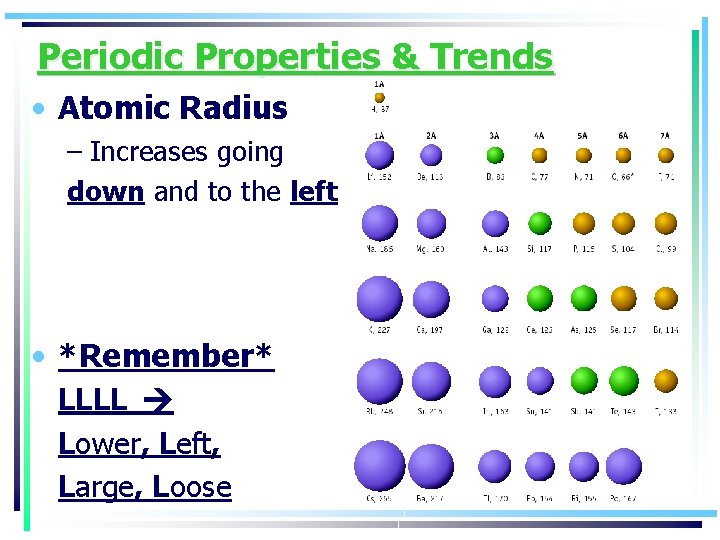

Periodic Properties & Trends • Atomic Radius – Increases going down and to the left • *Remember* LLLL Lower, Left, Large, Loose

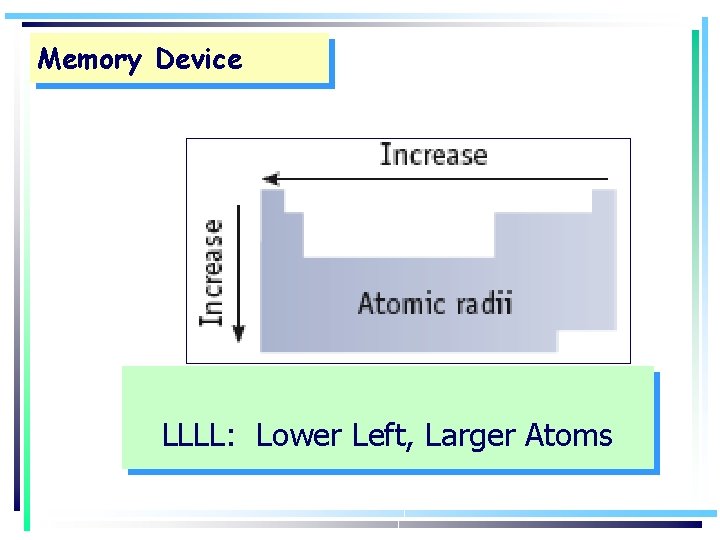

Memory Device LLLL: Lower Left, Larger Atoms

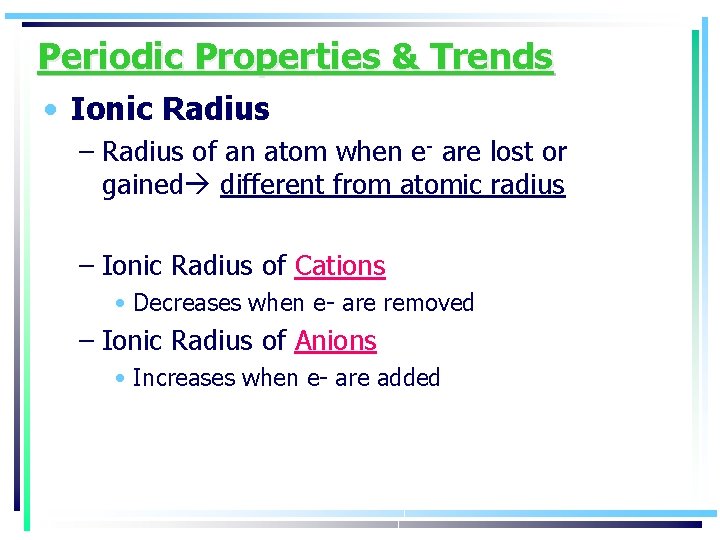

Periodic Properties & Trends • Ionic Radius – Radius of an atom when e- are lost or gained different from atomic radius – Ionic Radius of Cations • Decreases when e- are removed – Ionic Radius of Anions • Increases when e- are added

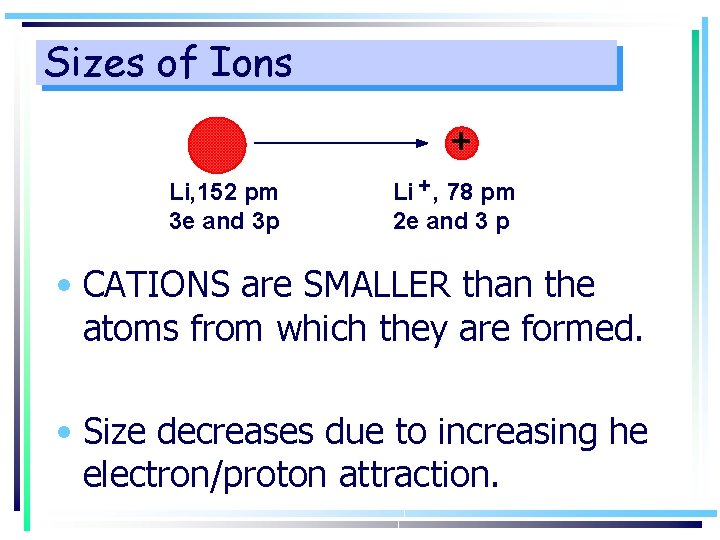

Sizes of Ions + Li, 152 pm 3 e and 3 p Li + , 78 pm 2 e and 3 p • CATIONS are SMALLER than the atoms from which they are formed. • Size decreases due to increasing he electron/proton attraction.

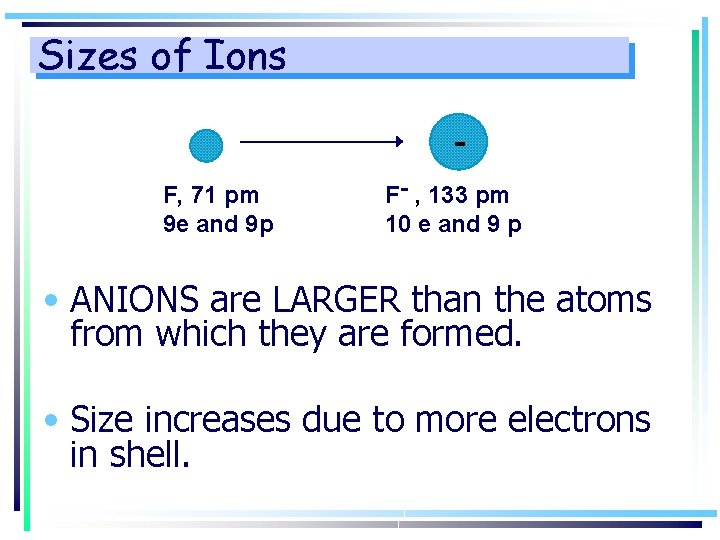

Sizes of Ions F, 71 pm 9 e and 9 p F- , 133 pm 10 e and 9 p • ANIONS are LARGER than the atoms from which they are formed. • Size increases due to more electrons in shell.

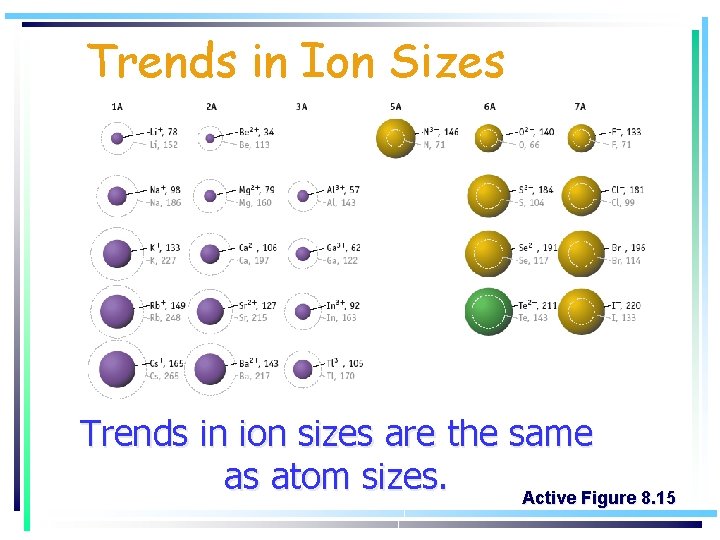

Trends in Ion Sizes Trends in ion sizes are the same as atom sizes. Active Figure 8. 15

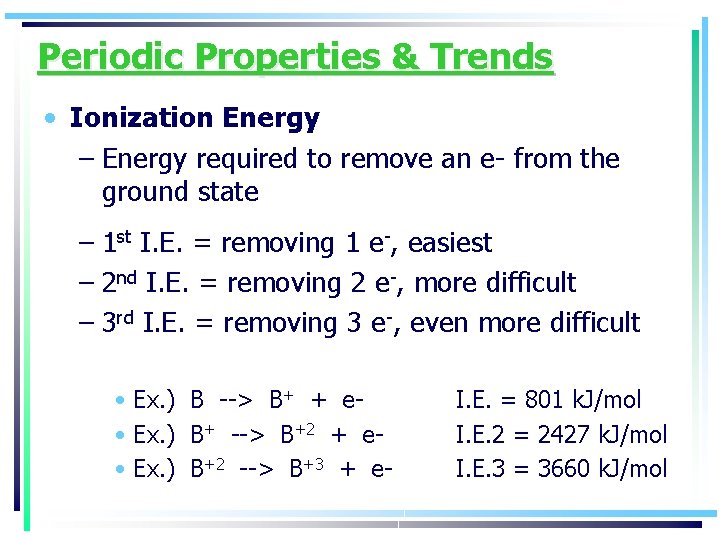

Periodic Properties & Trends • Ionization Energy – Energy required to remove an e- from the ground state – 1 st I. E. = removing 1 e-, easiest – 2 nd I. E. = removing 2 e-, more difficult – 3 rd I. E. = removing 3 e-, even more difficult • Ex. ) B --> B+ + e • Ex. ) B+ --> B+2 + e • Ex. ) B+2 --> B+3 + e- I. E. = 801 k. J/mol I. E. 2 = 2427 k. J/mol I. E. 3 = 3660 k. J/mol

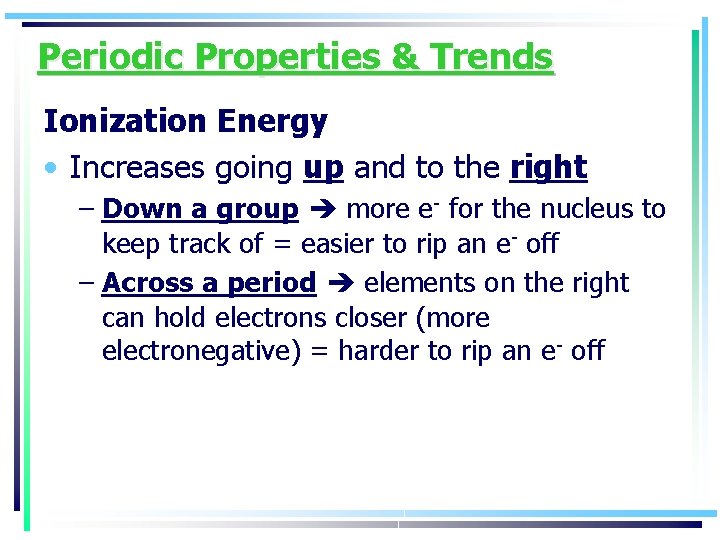

Periodic Properties & Trends Ionization Energy • Increases going up and to the right – Down a group more e- for the nucleus to keep track of = easier to rip an e- off – Across a period elements on the right can hold electrons closer (more electronegative) = harder to rip an e- off

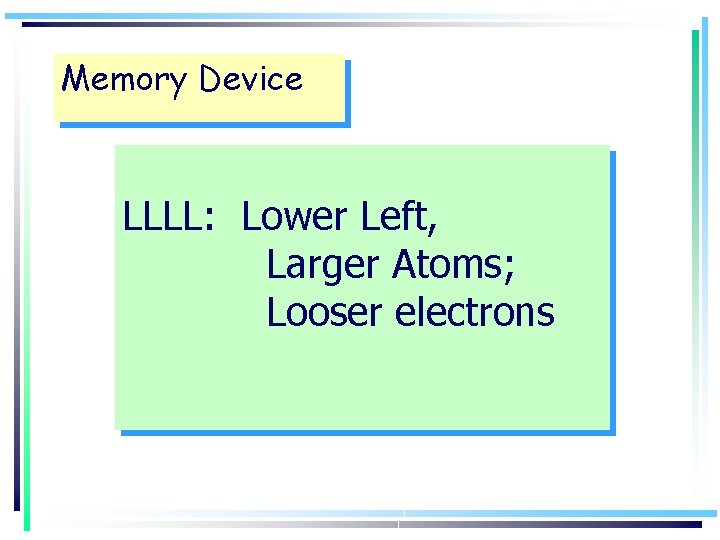

Memory Device LLLL: Lower Left, Larger Atoms; Looser electrons

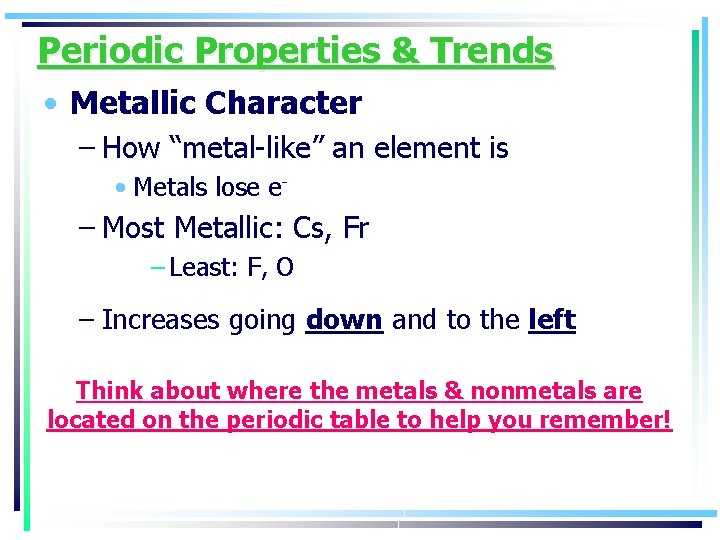

Periodic Properties & Trends • Metallic Character – How “metal-like” an element is • Metals lose e- – Most Metallic: Cs, Fr – Least: F, O – Increases going down and to the left Think about where the metals & nonmetals are located on the periodic table to help you remember!

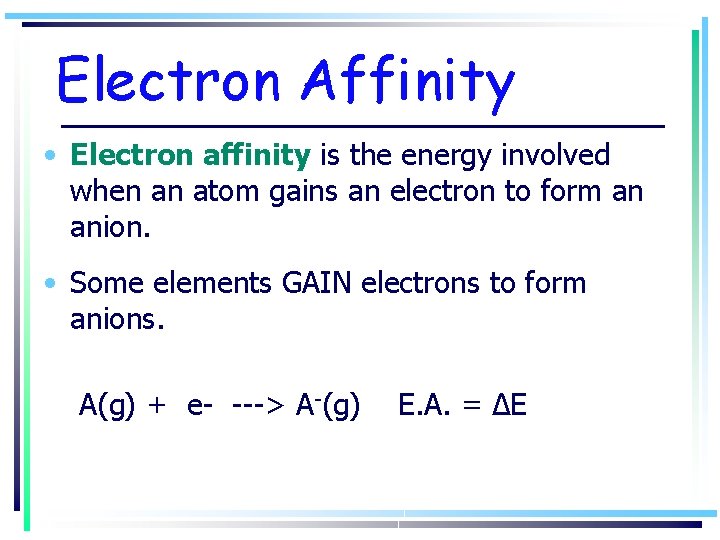

Electron Affinity • Electron affinity is the energy involved when an atom gains an electron to form an anion. • Some elements GAIN electrons to form anions. A(g) + e- ---> A-(g) E. A. = ∆E

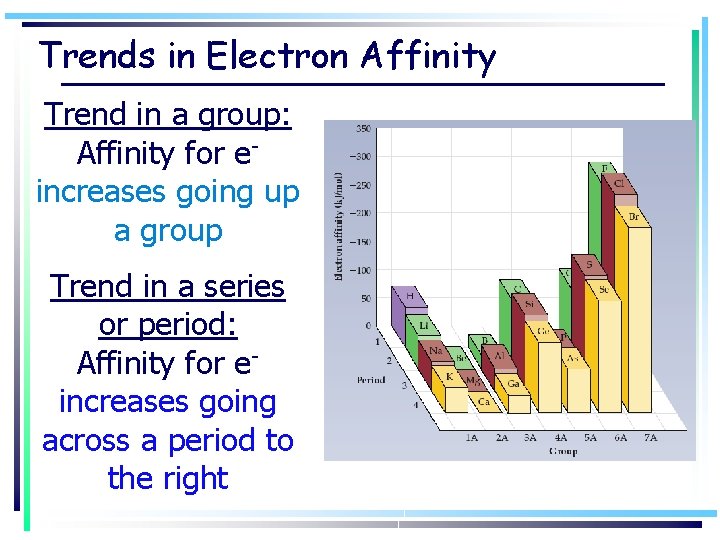

Trends in Electron Affinity Trend in a group: Affinity for eincreases going up a group Trend in a series or period: Affinity for eincreases going across a period to the right

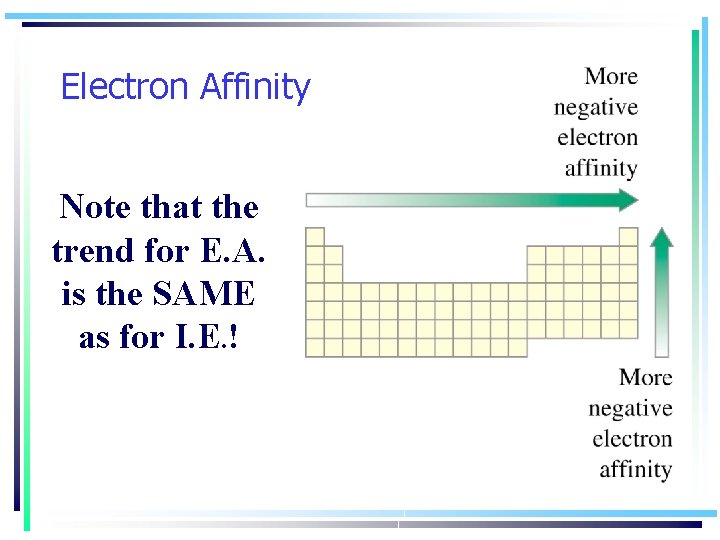

Electron Affinity Note that the trend for E. A. is the SAME as for I. E. !

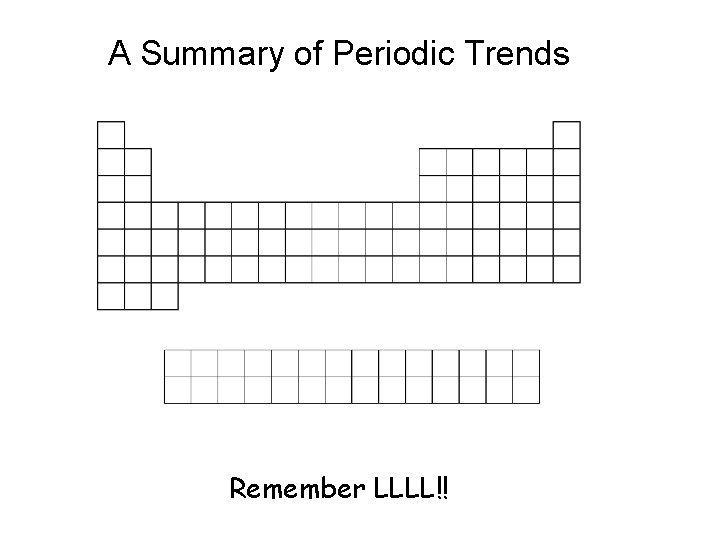

A Summary of Periodic Trends Remember LLLL!!
