Electronic Spectroscopy NMR Powerpoint Templates Page 1
μ=γI Isotope 1 H 2 H 11 B 13 C 15 N 17 O 19 F 29 Si 31 P Natural % Magnetic Magnetogyric Spin (I) Abundance Moment (μ)* Ratio (γ)† 99. 9844 0. 0156 81. 17 1. 108 0. 37 0. 037 100. 0 4. 700 100. 0 1/2 1 3/2 1/2 5/2 1/2 1/2 2. 7927 0. 8574 2. 6880 0. 7022 -0. 2832 -1. 8930 2. 6273 -0. 5555 1. 1305 26. 753 4, 107 8, 5847 6, 728 -2, 713 -3, 628 25, 179 -5, 319 10, 840 * μ in units of nuclear magnetons = 5. 05078 • 10 -27 JT-1 † γ in units of 107 rad T-1 sec-1 Powerpoint Templates Page 2
E = - μ. B 0 Nuclear Spins in B 0 ΔE = γB 0 h/2π Powerpoint Templates Page 3
Values for H atom Applied field strength of 7. 05 T – 1 H is approximately 0. 120 J/mol, which corresponds to a frequency of 300 MHz – 13 C is approximately 0. 030 J/mol, which corresponds to a frequency of 75 MHz Powerpoint Templates Page 4

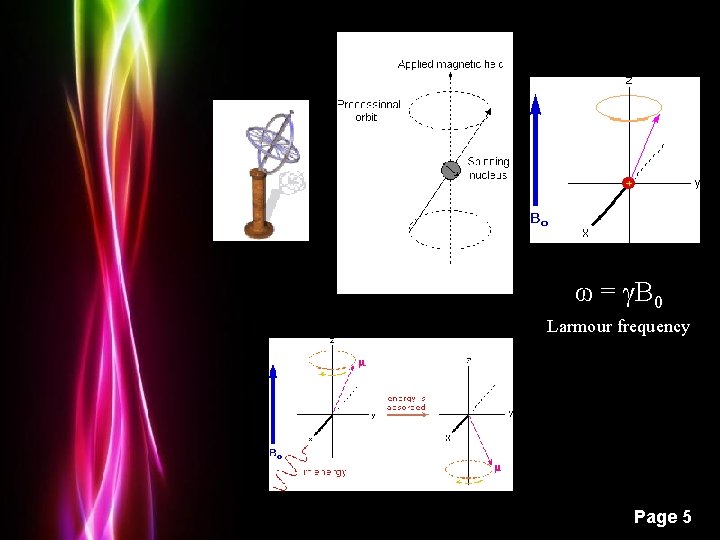

ω = γB 0 Larmour frequency Powerpoint Templates Page 5

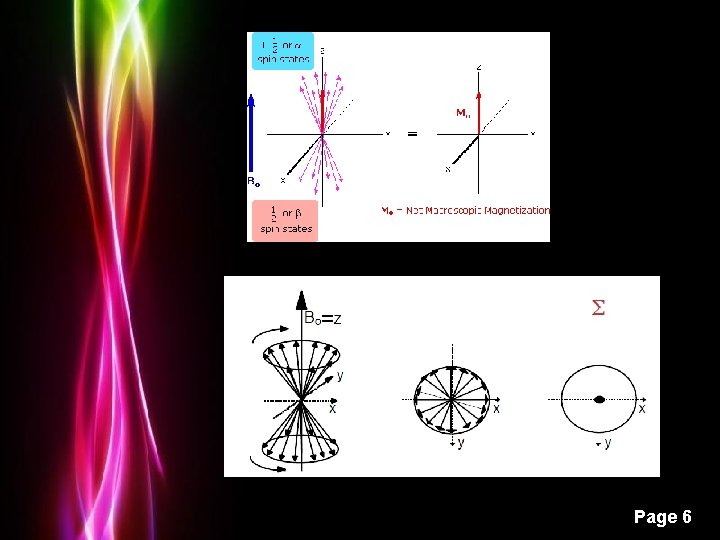

Powerpoint Templates Page 6

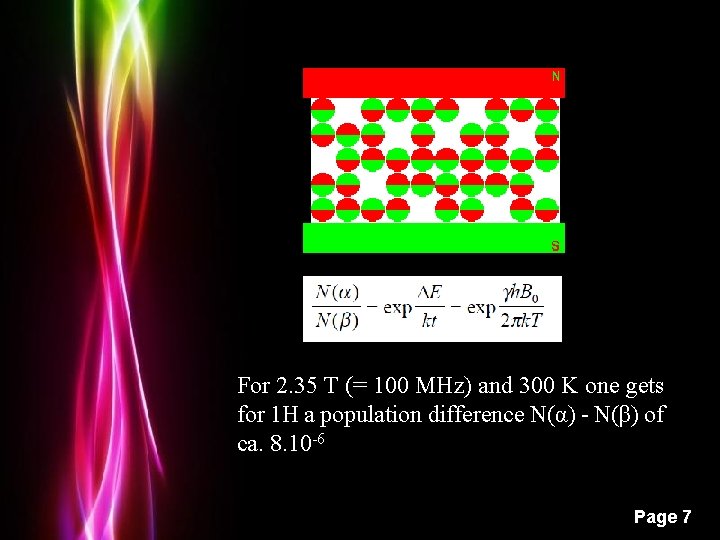

For 2. 35 T (= 100 MHz) and 300 K one gets for 1 H a population difference N(α) - N(β) of ca. 8. 10 -6 Powerpoint Templates Page 7
Powerpoint Templates Page 8

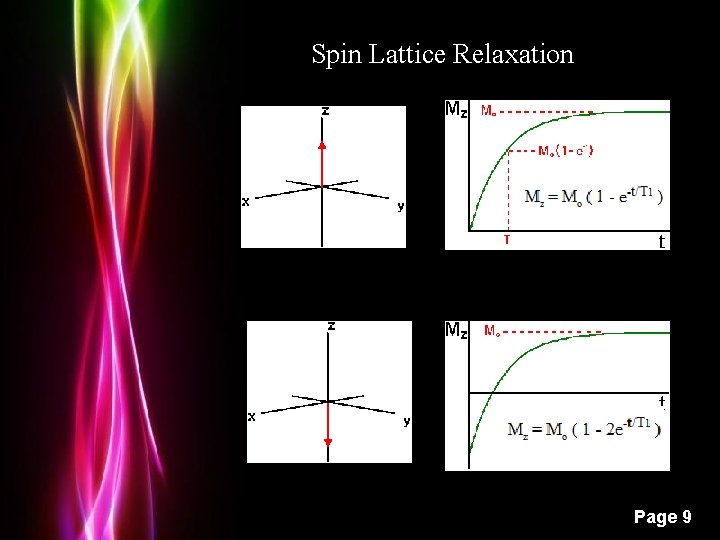

Spin Lattice Relaxation Powerpoint Templates Page 9

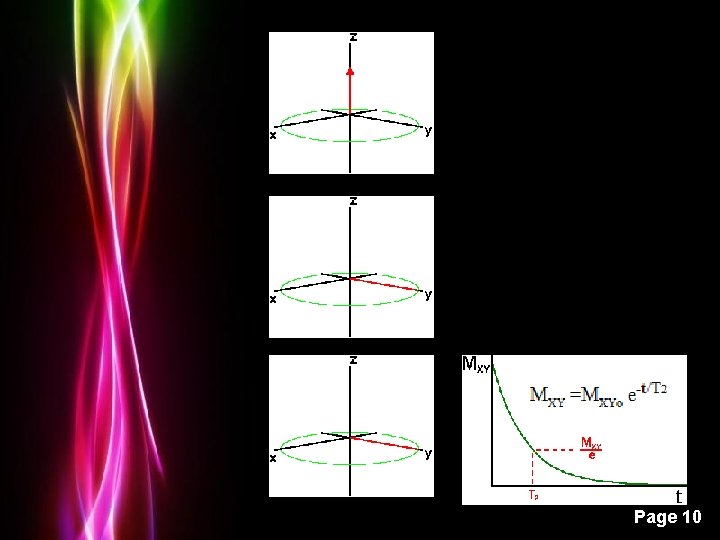

Powerpoint Templates Page 10

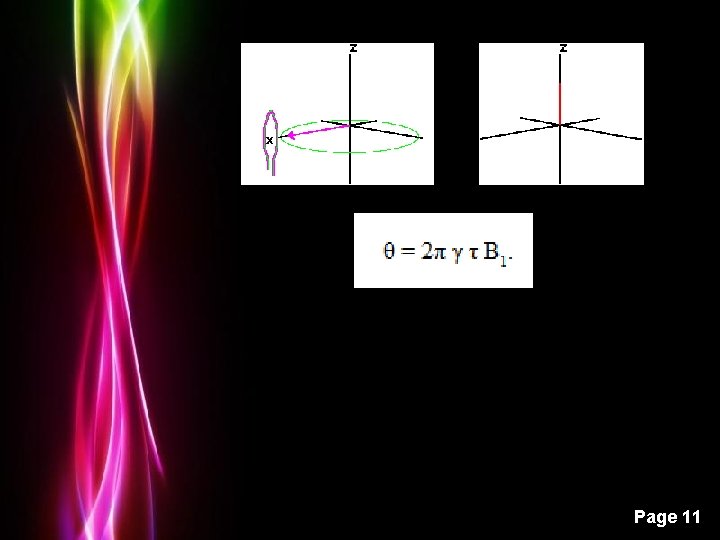

Powerpoint Templates Page 11
Powerpoint Templates Page 12

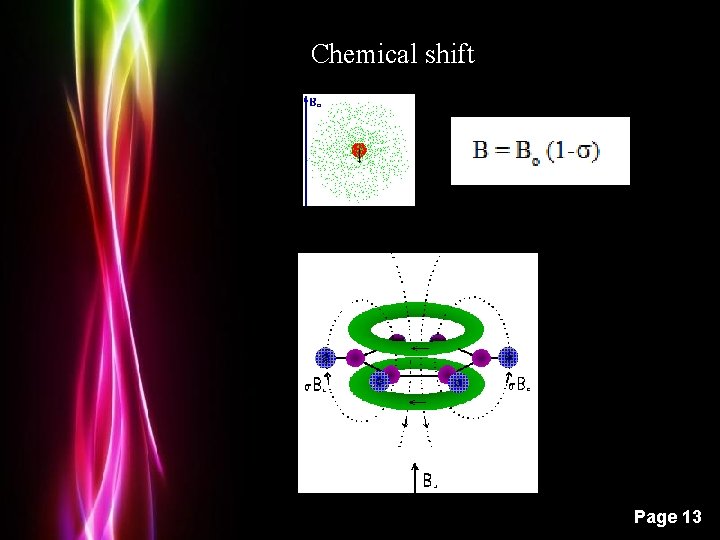

Chemical shift Powerpoint Templates Page 13

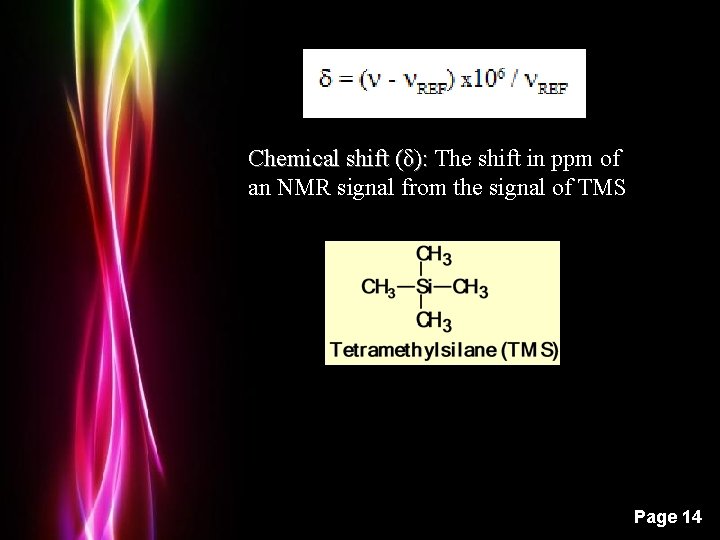

Chemical shift (δ): The shift in ppm of an NMR signal from the signal of TMS Powerpoint Templates Page 14

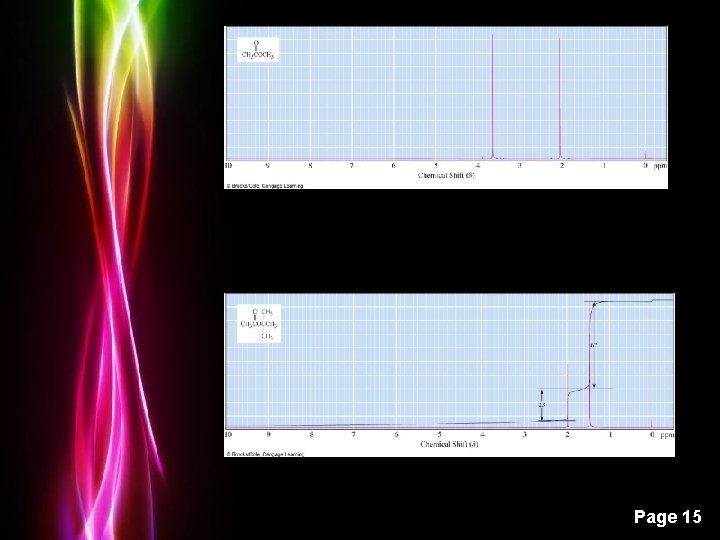

Powerpoint Templates Page 15
Powerpoint Templates Page 16
Powerpoint Templates Page 17
Powerpoint Templates Page 18

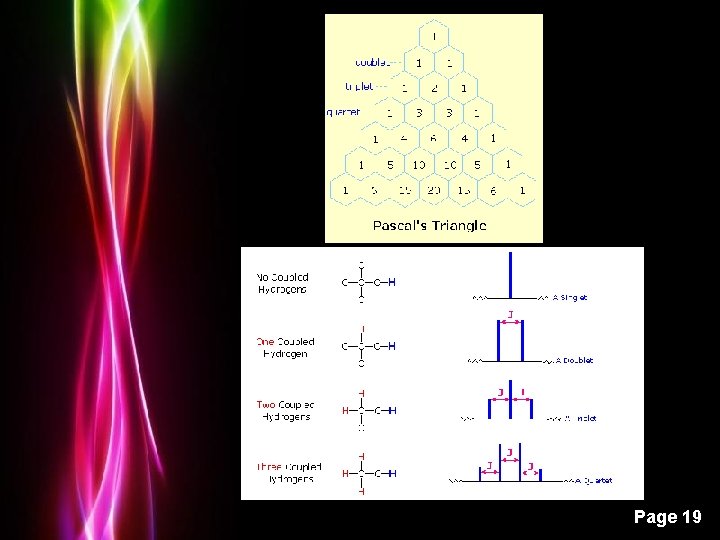

Powerpoint Templates Page 19
Powerpoint Templates Page 20

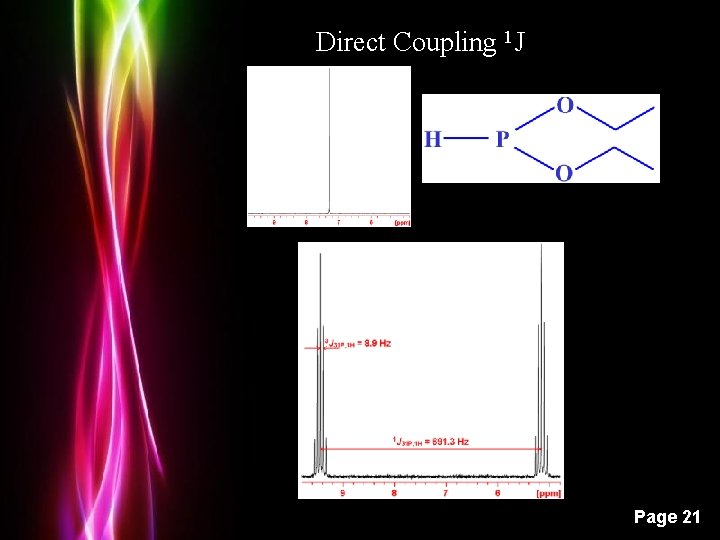

Direct Coupling 1 J Powerpoint Templates Page 21
Powerpoint Templates Page 22

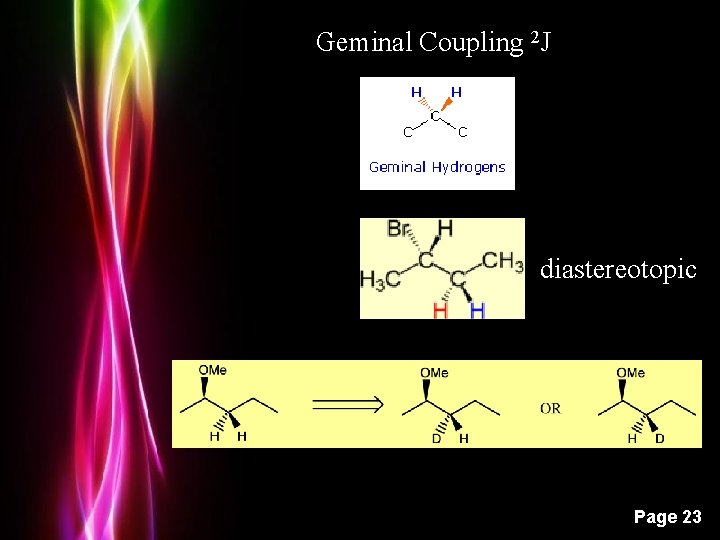

Geminal Coupling 2 J diastereotopic Powerpoint Templates Page 23
Powerpoint Templates Page 24

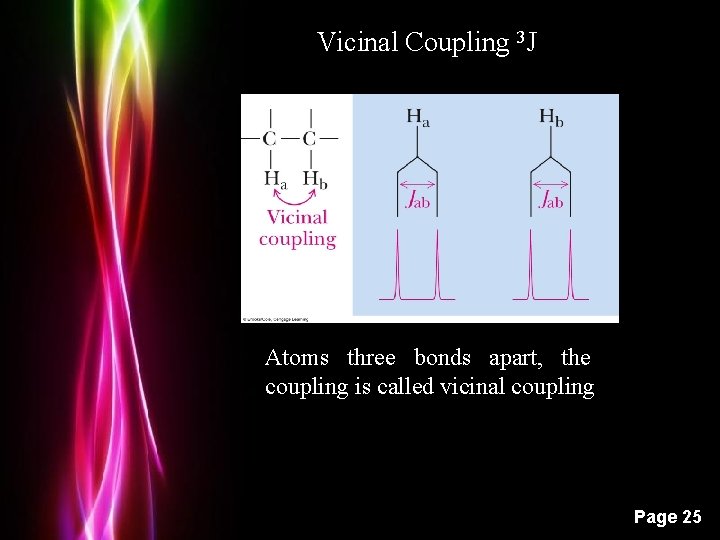

Vicinal Coupling 3 J Atoms three bonds apart, the coupling is called vicinal coupling Powerpoint Templates Page 25
