Electronic spectra of transition metal complexes Characteristics of

Electronic spectra of transition metal complexes

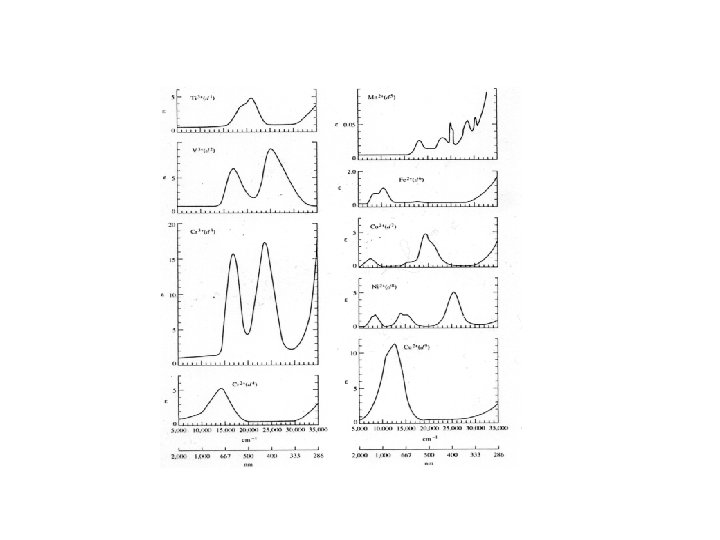

Characteristics of electronic spectra a) Wavelength Energy of electronic transition b) Shape. Gaussian Band Shape - coupling of electronic and vibrational states c) Intensity. Molar absorptivity, (M 1 cm 1) due to probability of electronic transitions. d) Number of bands Transitions between States of given dn configuration.

Band intensity in electronic spectra (e) Electronic transitions are controlled by quantum mechanical selection rules which determine the probability (intensity) of the transition. Transition Spin and Symmetry forbidden "d-d" bands Spin allowed and Symmetry forbidden "d-d" bands Spin and Symmetry allowed LMCT and MLCT bands εmax (M 1 cm 1) 0. 02 - 1 (Oh) 1 - 10 (Td) 10 – 103 - 5 x 104

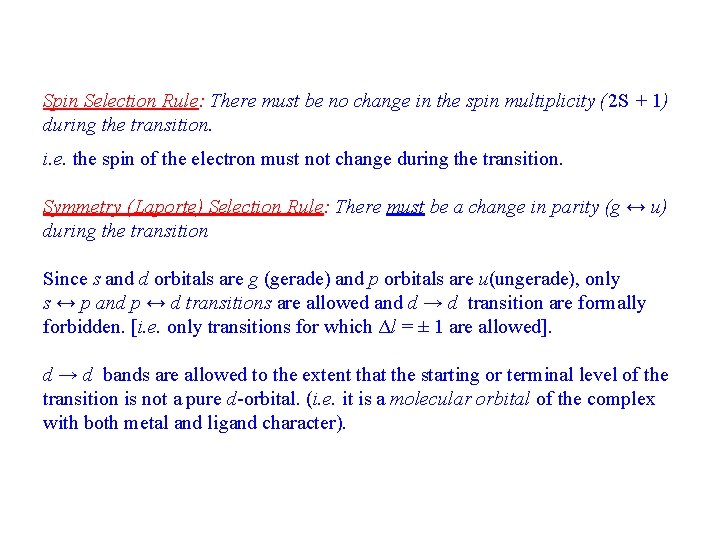

Spin Selection Rule: There must be no change in the spin multiplicity (2 S + 1) during the transition. i. e. the spin of the electron must not change during the transition. Symmetry (Laporte) Selection Rule: There must be a change in parity (g ↔ u) during the transition Since s and d orbitals are g (gerade) and p orbitals are u(ungerade), only s ↔ p and p ↔ d transitions are allowed and d → d transition are formally forbidden. [i. e. only transitions for which Δl = ± 1 are allowed]. d → d bands are allowed to the extent that the starting or terminal level of the transition is not a pure d-orbital. (i. e. it is a molecular orbital of the complex with both metal and ligand character).

States for dn configurations Russel-Saunders Coupling • Angular momentum of individual electrons couple to give total angular momentum for dn configuration ML = ∑ml • Spin momentum of individual electron spins couple together to give total spin, S = ∑s • Inter-electronic repulsions between the electrons in the d orbitals give rise to ground state and excited states for dn configurations. • States are labeled with Tern Symbols • Electonic transitions between ground and excited states are summarized in Orgel and Tanabe-Sugano diagrams. • Term Symbols (labels for states) contain information about L and S for state Hund’s Rules. i) Ground state has maximum spin, S ii) For states of same spin, ground state has maximum L.

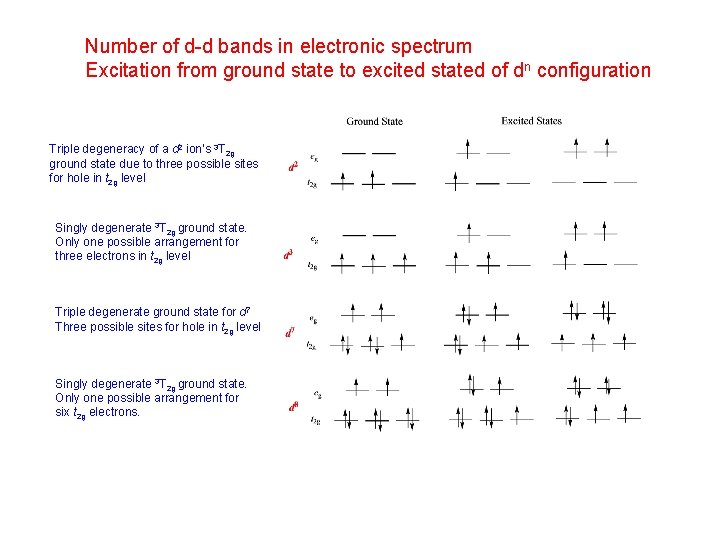

Number of d-d bands in electronic spectrum Excitation from ground state to excited stated of dn configuration Triple degeneracy of a d 2 ion’s 3 T 2 g ground state due to three possible sites for hole in t 2 g level Singly degenerate 3 T 2 g ground state. Only one possible arrangement for three electrons in t 2 g level Triple degenerate ground state for d 7 Three possible sites for hole in t 2 g level Singly degenerate 3 T 2 g ground state. Only one possible arrangement for six t 2 g electrons.

Labeling of d-d bands in electronic spectrum. • Consider states of dn configuration • Determine free ion ground state Term Symbol (labels for states) • Assign splitting of states in ligand field • Spectroscopic labeling of bands. • • Orgel diagrams (high-spin) Tanabe-Sugano diagrams (high-spin and low-spin)

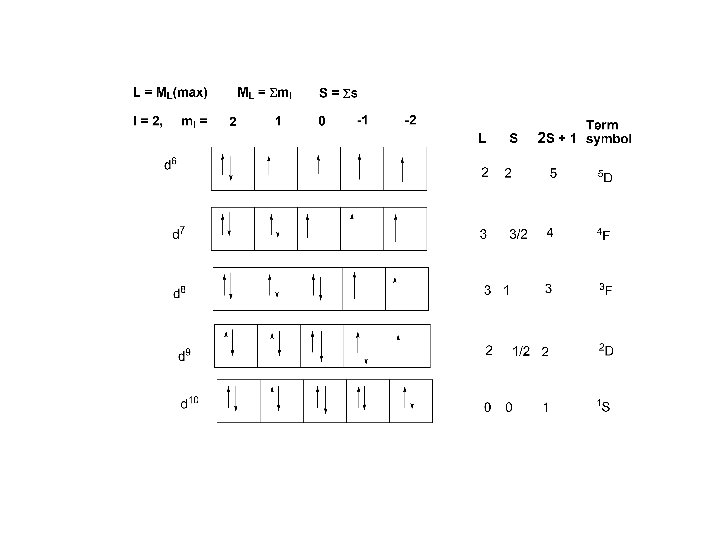

Individual electron l = 2, ml = 2, 1, 0, -1, -2 Maximum ml = l l = 0, 1, 2, 3, Orbital: s, p, d , f ________________ dn configuration, L = 0, 1, 2, 3, 4 Term Symbol S, P, D, F, G ML = Σ ml, maximum ML = L Spin Multiplicity = 2 S +1

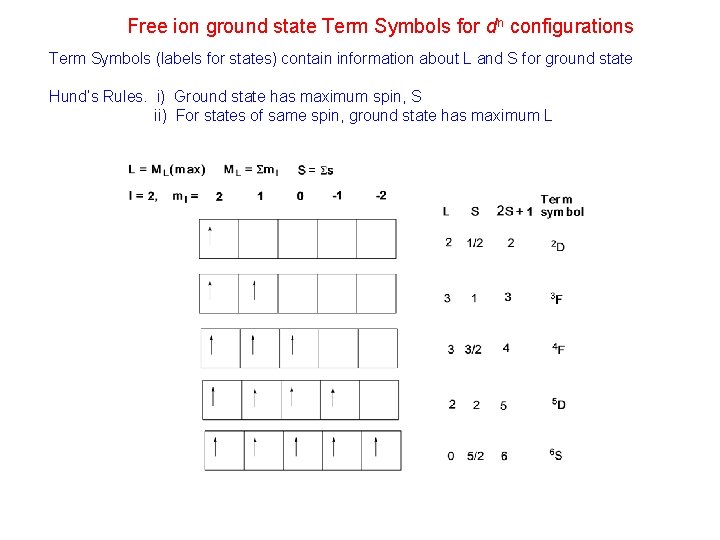

Free ion ground state Term Symbols for dn configurations Term Symbols (labels for states) contain information about L and S for ground state Hund’s Rules. i) Ground state has maximum spin, S ii) For states of same spin, ground state has maximum L

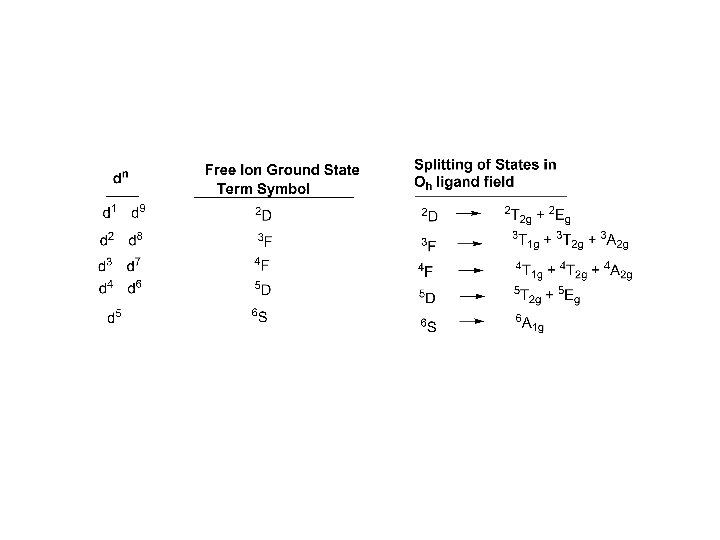

Splitting of the weak field dn ground state terms in an octahedral ligand field Ground state determined by inspection of degeneracy of terms for given dn

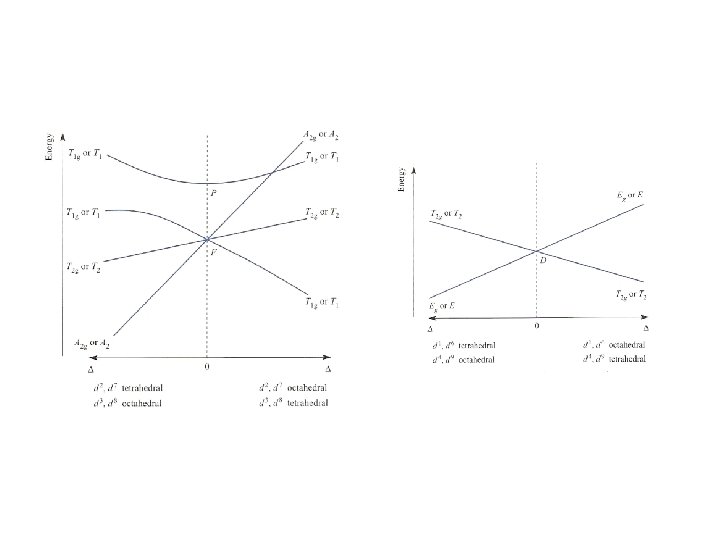

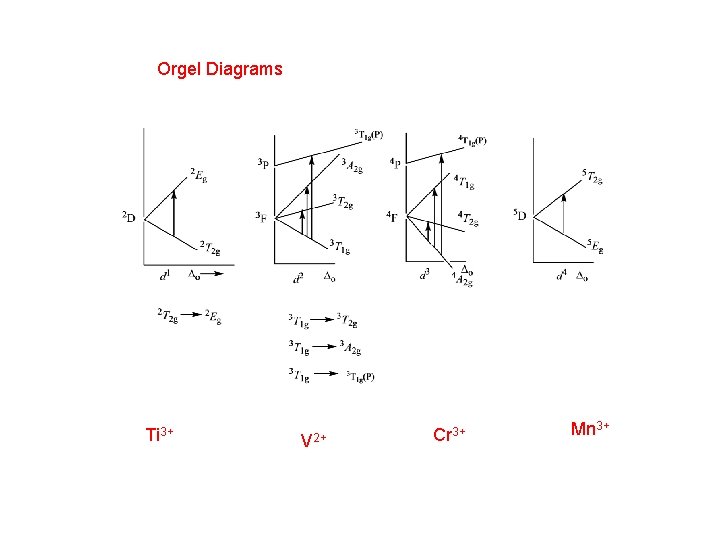

Orgel Diagrams Ti 3+ V 2+ Cr 3+ Mn 3+

(a) [Ni(H 20)6]2+ (b) [Ni(NH 3)6]2+

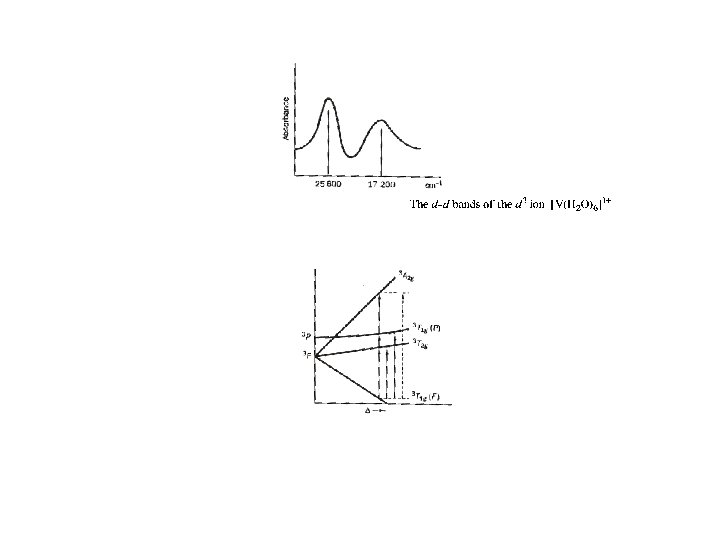

The Tanabe-Sugano diagram for the d 2 ion

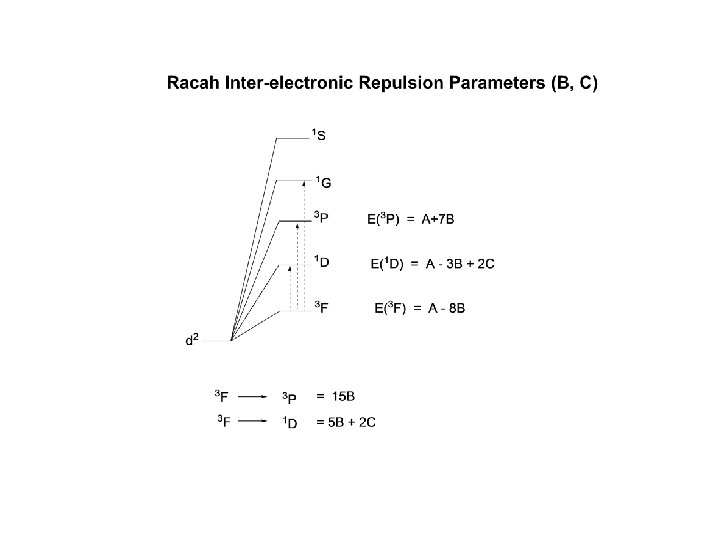

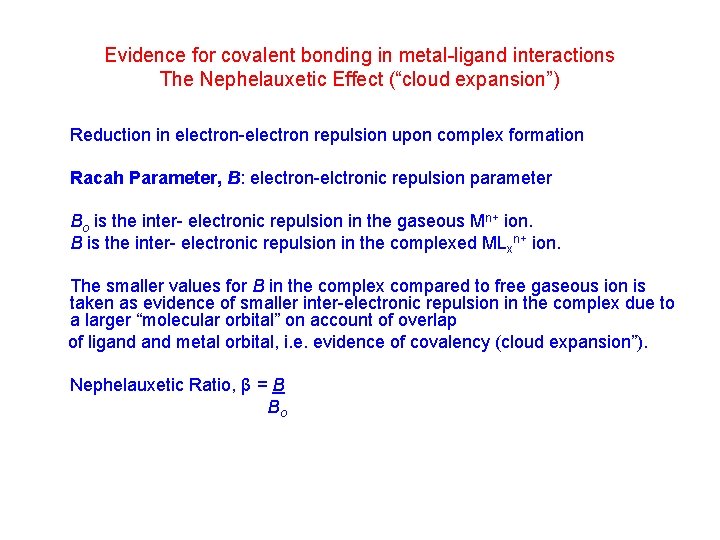

Evidence for covalent bonding in metal-ligand interactions The Nephelauxetic Effect (“cloud expansion”) Reduction in electron-electron repulsion upon complex formation Racah Parameter, B: electron-elctronic repulsion parameter Bo is the inter- electronic repulsion in the gaseous Mn+ ion. B is the inter- electronic repulsion in the complexed MLxn+ ion. The smaller values for B in the complex compared to free gaseous ion is taken as evidence of smaller inter-electronic repulsion in the complex due to a larger “molecular orbital” on account of overlap of ligand metal orbital, i. e. evidence of covalency (cloud expansion”). Nephelauxetic Ratio, β = B Bo

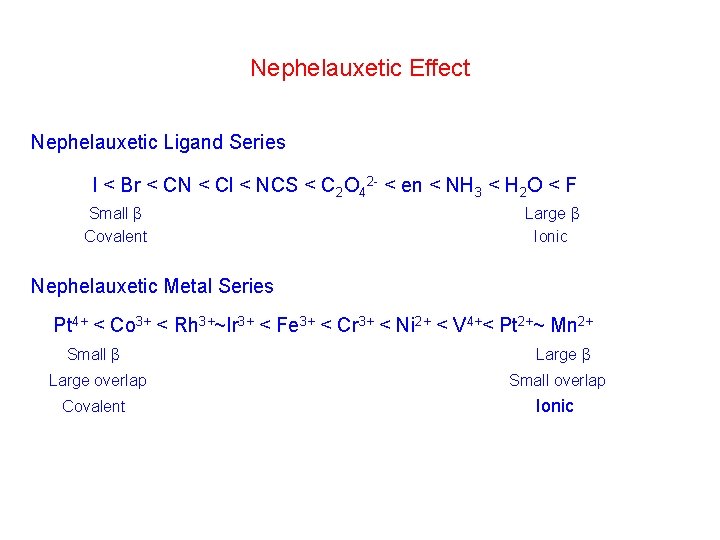

Nephelauxetic Effect Nephelauxetic Ligand Series I < Br < CN < Cl < NCS < C 2 O 42 - < en < NH 3 < H 2 O < F Small β Covalent Large β Ionic Nephelauxetic Metal Series Pt 4+ < Co 3+ < Rh 3+~Ir 3+ < Fe 3+ < Cr 3+ < Ni 2+ < V 4+< Pt 2+~ Mn 2+ Small β Large overlap Small overlap Covalent Ionic

Empirical Racah parameters, h, k β = 1– [h(ligand) x k(metal)] Cr(NH 3)63+ β = 1 –hk β = 1 –(1. 4)(0. 21) = 0. 706 Cr(CN)63 - β = 1 –hk β = 1 –(2. 0)(0. 21) = 0. 580 Bo - B = hligands x kmetal ion Bo

Typical Δo and λmax values for octahedral (ML 6) d-block metal complexes _________________________________ Complex Δo cm-1 ~ λmax (nm) Complex Δo cm-1 λmax (nm) __________________________________________ [Ti(H 2 O)6]3+ 20, 300 493 [Fe(H 2 O)6]2+ 9, 400 1064 3+ [V(H 2 O)6] 20, 300 493 [Fe(H 2 O)6]3+ 13, 700 730 2+ 3[V(H 2 O)6] 12, 400 806 [Fe(CN)6] 35, 000 286 [Cr. F 6]315, 000 667 [Fe(CN)6]433, 800 296 [Co(H 2 O)6]3+, l. s. 20, 700 483 [Fe(C 2 O 4)3]314, 100 709 [Cr(H 2 O)6]2+ 14, 100 709 [Co(CN)6]3 - l. s. 34, 800 287 [Cr(H 2 O)6]3+ 17, 400 575 [Co(NH 3)6]3+ l. s. 22, 900 437 3+ [Cr(NH 3)6] 21, 600 463 [Ni(H 2 O)6]2+ 8, 500 1176 [Cr(en)3]3+ 21, 900 457 [Ni(NH 3)6]2+ 10, 800 926 32+ [Cr(CN)6] 26, 600 376 [Ni(en)3] 11, 500 870 __________________________________________

1. Assign the metal oxidation state in the following compounds. a. b. c. K 2[Pt. Cl 6] Na 2[Fe(CO)4] [Mn(CH 3)(CO)5] 2. Account for the following: The manganous ion, [Mn(H 2 O)6]2+, reacts with CN- to form [Mn(CN)6]4 - which has = 1. 95 B. M. , but with I- to give [Mn. I 4]2 - which has = 5. 93 B. M. [Co(NH 3)6]Cl 3 is diamagnetic, whereas Na 3[Co. F 6] is paramagnetic ( = 5. 02 B. M). [Pt. Br 2 Cl 2]2 is diamagnetic and exists in two isomeric forms, whereas [Ni. Br 2 Cl 2]2 has a magnetic moment, = 3. 95 B. M. , and does not exhibit isomerism. Copper(II) complexes are typically blue with one visible absorption band in their electronic spectra whereas copper(I) complexes are generally colorless. Assign a spectroscopic label to the Cu 2+ transition.
