Electronic Pressure and Temperature Switches: Session #4 • UDS 3 • UAS 3 •

Electronic Pressure and Temperature Switches: Session #4 • UDS 3 • UAS 3 • UQS 7

Today’s Session u u u u 2 UAS 3, UDS 3, UQ 7 Overview

Today’s Session u u u u 2 UAS 3, UDS 3, UQ 7 Overview Display Menu Features/Functions Application Examples Target Markets Wrap-up Survey

UDS 3/UAS 3 u 3 discrete components in one compact device n n n

UDS 3/UAS 3 u 3 discrete components in one compact device n n n Gauge, Switch, Transducer Less than the cost of all three units combined Can change parameters without shutting down manufacturing line + 3 + = UDS 7

UDS 3/UAS 3 u Multiple components in one compact device n n n Gauge,

UDS 3/UAS 3 u Multiple components in one compact device n n n Gauge, Switch, Transducer Less than the cost of all three units combined Can change parameters without shutting down manufacturing line + 4 + = UDS 7

UDS 3 Overview u u u u 5 Four switch outputs and 1 analog

UDS 3 Overview u u u u 5 Four switch outputs and 1 analog output (4 -20 m. A; 0 -10 VDC output option available) 8 -digit 14 -segment LED display 20 -segment scalable bar graph Trend arrows (last value change) Pressure ranges: 150 -9000 psi Terminal strip with 14 slots Process connections: ¼” NPT F, G ¼ F UL, CSA approvals, IP 65 protection

UAS 3 Overview u u u u u 6 Integrated Trip Amplifier Accuracy: 0.

UAS 3 Overview u u u u u 6 Integrated Trip Amplifier Accuracy: 0. 2% FS Four switch outputs and 1 analog output (4 -20 m. A; 0 -10 VDC output option available) 8 -digit 14 -segment LED display 20 -segment scalable bar graph For pressure, temperature and level Monitors and controls any sensor with analog output Ideal with 400 Series pressure transducers UL, CSA approvals; IP 65 protection

UQS 7 Overview u u u u u 7 Flow and volume flow monitoring

UQS 7 Overview u u u u u 7 Flow and volume flow monitoring Flow rate: 2. 6 g/m up to 45 g/m Ultrasonic sensor Two switch outputs and 1 analog output (4 -20 m. A; 0 -10 VDC output option available) 4 -digit 7 -segment LED display Water and similar media Max pressure 360 psi 5 Pin M 12 electrical mating connector IP 65 protection

UAS 3 Digital Display Scalable Bar Graph Display in PSI, Bar, C°, F°, k.

UAS 3 Digital Display Scalable Bar Graph Display in PSI, Bar, C°, F°, k. Pa Trend Indication Switch Point Indication Control Menu 8

Menu Features/Functions u MODE ANOP DAMP Peak Display Calibration menu Value Standard, Turn analog

Menu Features/Functions u MODE ANOP DAMP Peak Display Calibration menu Value Standard, Turn analog on, Max off Smooth Show Allows Min you out. Window, and todigital Error (Internal display values configure thatthe switch has to AOZ Watchdog) seenunit of measure any OFFS n Scale analog output – ON/OFF Delete (0 Min/Max psi=4 m. A) n on Offset – shifting n Set each switch point Values display range to incr/decr pressure AOFS n Option to delete or CUT LEV n Scale analog output – retain min/max values off psi=20 m. A) n Supress signal Set(400 to NO or NCwithin DELcut-off range n n u u u u u 9 BGZS/BGFS n Set delay up to 9. 99 s n Scale the bargraph Each switch is independent

Application – UAS 3 u u 10 Tire press is measured in force rather

Application – UAS 3 u u 10 Tire press is measured in force rather than psi UAS 3 is configured using the “CAL” menu

Application – Level Measurement u Different ways to measure level n Tank Level Indicator

Application – Level Measurement u Different ways to measure level n Tank Level Indicator UAS 3 for use indoors or in an enclosure 11

Application – Level Measurement u Different ways to measure level n n Tank Level

Application – Level Measurement u Different ways to measure level n n Tank Level Indicator Submersible Transducer 20 m. A (Full) 12 m. A (1/2 Full) UAS 3 for use indoors or in an enclosure 4 m. A (Empty) 12

Application – Level Measurement u Different ways to measure level n n n Tank

Application – Level Measurement u Different ways to measure level n n n Tank Level Indicator Submersible Transducer 20 m. A (Full) 12 m. A (1/2 Full) 4 m. A (Empty) 13 UAS 3 for use indoors or in an enclosure

Application – Hydraulic Power Pack u Pressure Control in Hydraulic Power Packs Dial Pressure

Application – Hydraulic Power Pack u Pressure Control in Hydraulic Power Packs Dial Pressure Gauges 4 mech. Pressure switches Feature: Display/Switch points/Analog Output Benefit: Costs Savings; Less Components and Installation 14 UDS 3

Application – Injection Molding u Injection Molding n n UDS 3, Transducers, UAS 3

Application – Injection Molding u Injection Molding n n UDS 3, Transducers, UAS 3 Used in: Polyurethane machines n Reaction molding machines n Pressure control and indication of two components (liquid plastic) in mixing form n 15

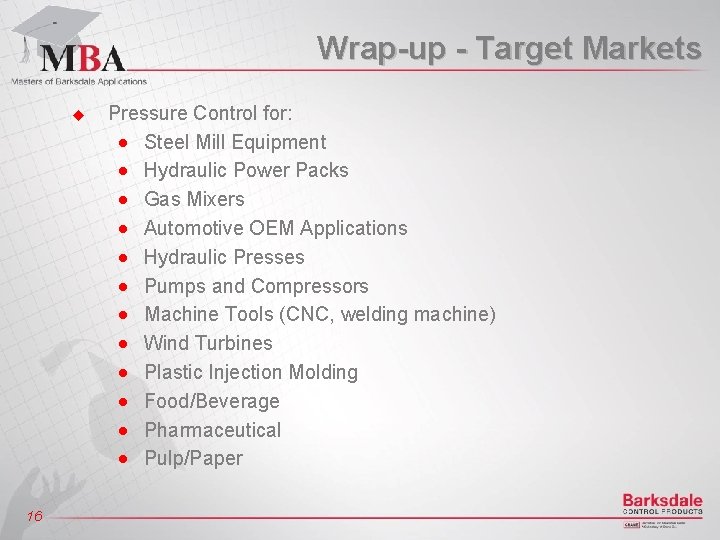

Wrap-up - Target Markets u 16 Pressure Control for: n Steel Mill Equipment n

Wrap-up - Target Markets u 16 Pressure Control for: n Steel Mill Equipment n Hydraulic Power Packs n Gas Mixers n Automotive OEM Applications n Hydraulic Presses n Pumps and Compressors n Machine Tools (CNC, welding machine) n Wind Turbines n Plastic Injection Molding n Food/Beverage n Pharmaceutical n Pulp/Paper

Wrap-up u Three product groups n n n u Sell the strengths n n

Wrap-up u Three product groups n n n u Sell the strengths n n n n 17 Dual switch pressure with analog output (UDS 7, SW 200) Dual switch temperature w/analog output (UTS 7, TS 2000) Four switch pressure, Four switch controller, Dual switch flowmeter, all with analog output (UDS 3, UAS 3, UQS 7) High accuracy (0. 5%) Replace multiple components Long life (100 m cycles) Lower long term cost Rapid cycle applications Digital display Programmability

Solid State vs. Electromechanical u. Market n n outlook (worldwide): Unit shipment declines of

Solid State vs. Electromechanical u. Market n n outlook (worldwide): Unit shipment declines of electromechanical through 2011 High single-digit growth rates for solid state switches Sensor Type 2006 2011 Share Change Diaphragm 68. 8 67 -1. 8 Bellows 10. 8 10. 7 -0. 1 Piston 10. 1 9. 9 -0. 2 Bourdon Tube 1. 9 -0 Solid State 8. 4 10. 5 +2. 1 100% Source: 2006 VDC Research Group 18

Survey u Please take our survey! n n n 19 Anonymous Available on MBA

Survey u Please take our survey! n n n 19 Anonymous Available on MBA page Also will be sent by email Do you want more applications? More technical details? Help us make the program better!
