ELECTRONIC COMMUNICATIONS LOGBOOKS SAR Crew Manual Chapter 4
ELECTRONIC COMMUNICATIONS & LOGBOOKS SAR Crew Manual Chapter 4
Introduction
Radio Watch • A radio watch must be at all times when an RCM-SAR vessel is underway. • Each volunteer shall know the duties of keeping a radio watch.
Radio Watch Duties 1 • Pre-departure checks of equipment, including set up of volume and squelch. • Set up Channel 16 and working channels • Check of EPIRB, DSC and DMB where fitted • Ensure portable radios and cell phones start fully charged • Monitoring any change in weather reports • Listen for and react to the spoken word MAYDAY or PAN

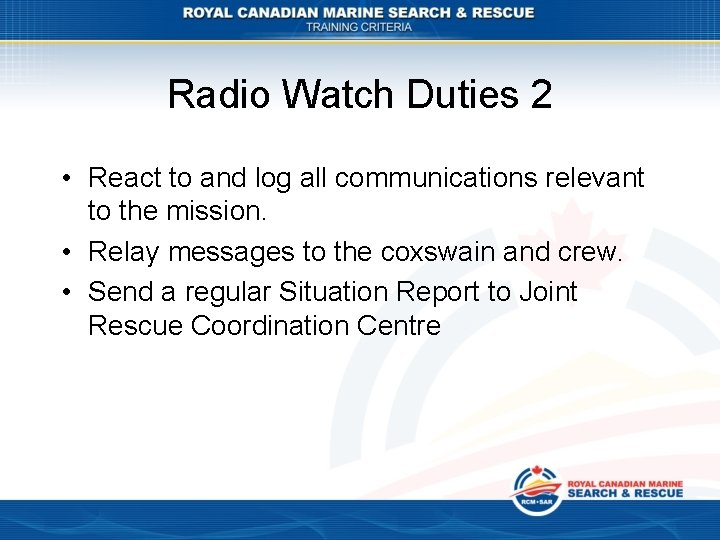

Radio Watch Duties 2 • React to and log all communications relevant to the mission. • Relay messages to the coxswain and crew. • Send a regular Situation Report to Joint Rescue Coordination Centre
Log Books
Log Keeping • All RCM-SAR vessels are to keep a deck log and radio log. Erasures are not allowed, but are to be deleted by lining thorough and initialed. • A running log may be kept in ink whilst out on the water.

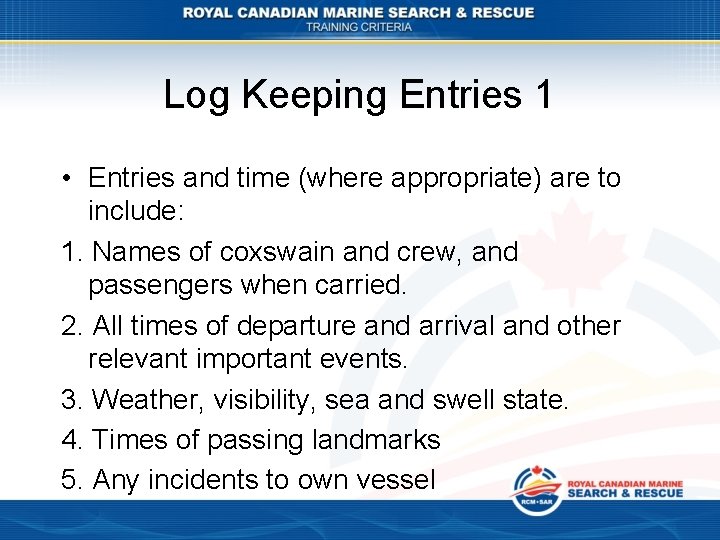

Log Keeping Entries 1 • Entries and time (where appropriate) are to include: 1. Names of coxswain and crew, and passengers when carried. 2. All times of departure and arrival and other relevant important events. 3. Weather, visibility, sea and swell state. 4. Times of passing landmarks 5. Any incidents to own vessel
Log Keeping Entries 2 6. Any abnormal activities sighted and reported. 7. All distress and urgency signals received or exchanged buy your vessel. 8. All communications sent or received by your vessel on what channel. 9. Any strange signals or communications or circumstances monitored.
Logbook Abbreviations 1 16/83 A Adv Blw. D. DMB F/V Ht. L Abm Alngsd CC Descr. ETA Ft. I/O Lat. A/C Ahd Ch. 16 DF ETD GMB JRCC Lic. Abv. Astn Coxn Dft. F/G GRT Kts. Loc.
Logbook Abbreviations 2 LKP M/V O/B PIW Rf. Rx Std Dn V/l Long. Lt. MOB Msg. O/D P/C POB Pos. Rk. RPM S/V Sitrep Super/ Wlhse VAC VTS m Nm Pgd Pt. RTB Stbd. Tx Wx
Log Keeping • A log is kept to record all pertinent events in the vessels operations, and may be used during legal action. If it is not recorded, it may be taken as it did not happen. • Rough logs are also legal documents, as well as any other notes made at the time.
Information to be Logged 1 1. Time tasked by JRCC 2. Details of information supplied by JRCC 3. Time away from dock 4. Last known position of search object 5. Description of search objects 6. Time on scene 7. Time, position and type of search pattern 8. Weather, visibility, sea and swell
Information to be Logged 2 9. Tide and current 10. Information on distressed vessel 11. Name and address of operator 12. Persons on board 13. Vessel license or registration number 14. Type of assistance supplied 15. Distance towed 16. Disposal of vessels/ persons recovered
Information to be Logged 3 17. Time of stand down 18. Time of return to base. 19. Time able to return to standby (if different to return to base). 20. JRCC incident number.
Search and Rescue Communications
SAR Region Boundaries • Canadian Joint Rescue Centres 1. JRCC Victoria, BC 2. JRCC Halifax, NS 3. JRCC Trenton, ON 4. MRSC Quebec City, QC 5. MRSC St. Johns, NL
SAR Region Boundaries
VHF Communication System

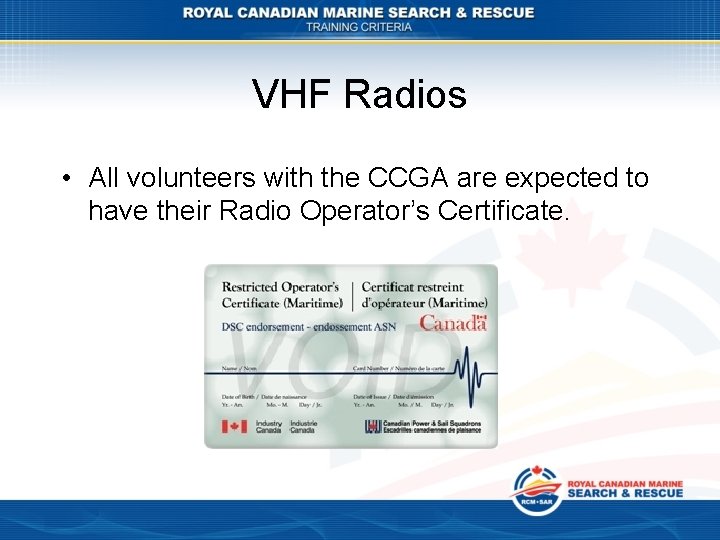

VHF Radios • All volunteers with the CCGA are expected to have their Radio Operator’s Certificate.

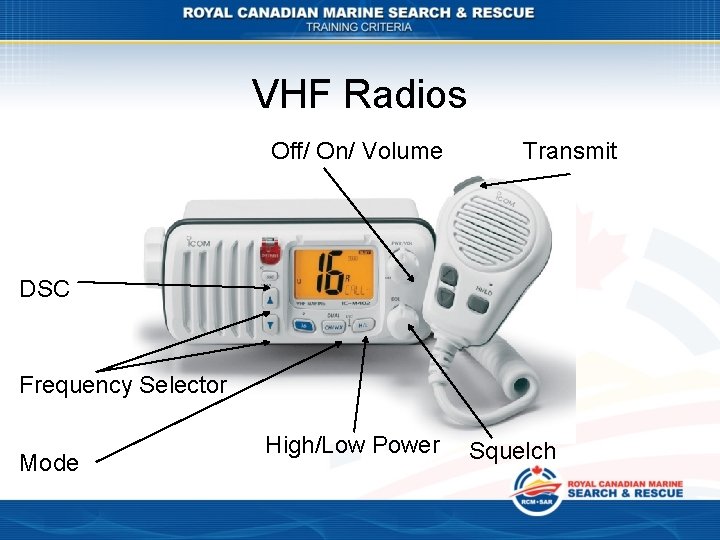

VHF Radios Off/ On/ Volume Transmit DSC Frequency Selector Mode High/Low Power Squelch
VHF Radios • Squelch - adjust the receiver sensitivity and limits unwanted radio noise. Too high a squelch will result in weaker signals not being heard. • Channel/ Mode - Keep the radio in USA/CDA mode at all times. • Simplex channels transmit and receive on same frequency - duplex send and receive on different frequencies.
VHF Radios • Hi/Lo - this control the power with which the VHF will transmit. High is generally 25 W whilst Low is about 5 W. • Handheld VHFs have a high of about 5 W and a low of about 1 W.
VHF Radio Procedures • Use Channel 16 for calling only, except for MAYDAY. Monitor at all times. • Name the station being called x 2, followed by the calling stations name or call sign x 2. • Always identify yourself when calling. • Use standard marine language and vocabulary
VHF Marine Language Over Channel All after Affirmative Correction Seelonce Out Roger Wilco Say again I say again Standby Word after All before Word before Negative That is correct Read back I spell Break Seelonce finis
Phonetic Alphabet Because it is easy to confuse the sounds of some letters, when spoken over a radio, their phonetic equivalent is used instead. . Alfa Echo India Mike Quebec Uniform Bravo Foxtrot Juliett November Romeo Victor Yankee Charlie Golf Kilo Oscar Sierra Whiskey Zulu Delta Hotel Lima Papa Tango Xray
Search and Rescue Communications

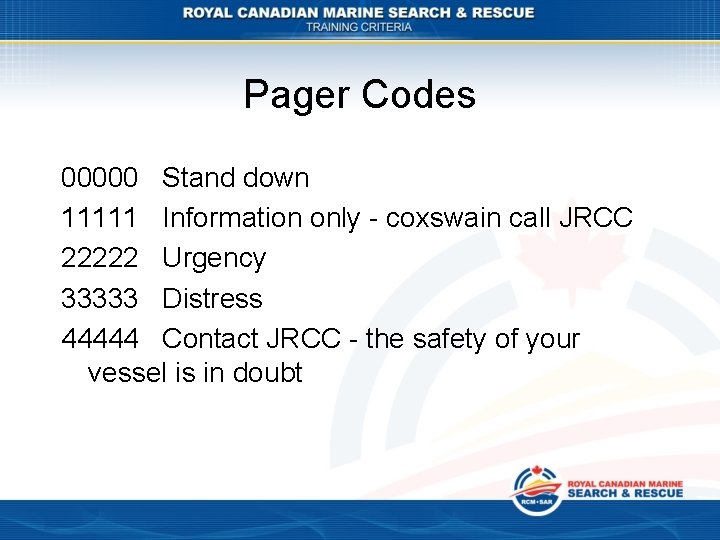

Pager Codes 00000 Stand down 11111 Information only - coxswain call JRCC 22222 Urgency 33333 Distress 44444 Contact JRCC - the safety of your vessel is in doubt
Communications

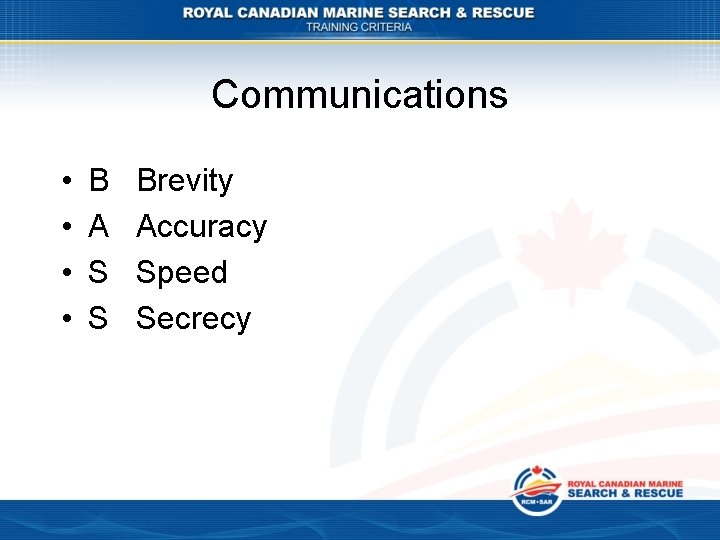

Communications • • B A S S Brevity Accuracy Speed Secrecy
Communications 1 • Think before you speak • Key the microphone for 1 second before speaking • Keep messages short and to the point • Use a working channel - not Channel 16 • Check the channel is clear before speaking • Keep microphone about 2 inches from the mouth

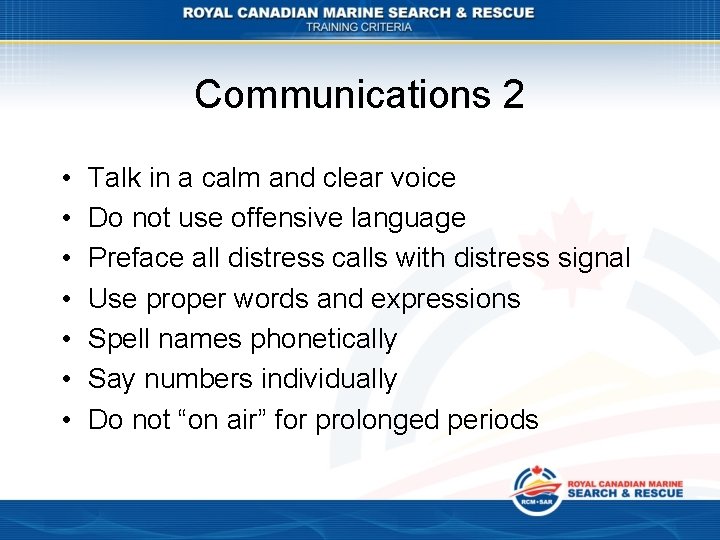

Communications 2 • • Talk in a calm and clear voice Do not use offensive language Preface all distress calls with distress signal Use proper words and expressions Spell names phonetically Say numbers individually Do not “on air” for prolonged periods
Distress Communications
Distress Communications • The Global Maritime Distress and Safety System applies to all vessels of 300 gross registered tons, or carrying passengers on international voyages

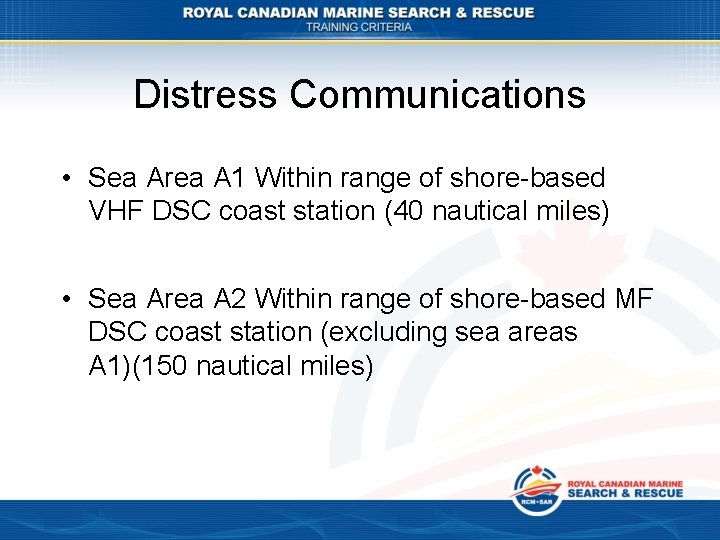

Distress Communications • Sea Area A 1 Within range of shore-based VHF DSC coast station (40 nautical miles) • Sea Area A 2 Within range of shore-based MF DSC coast station (excluding sea areas A 1)(150 nautical miles)

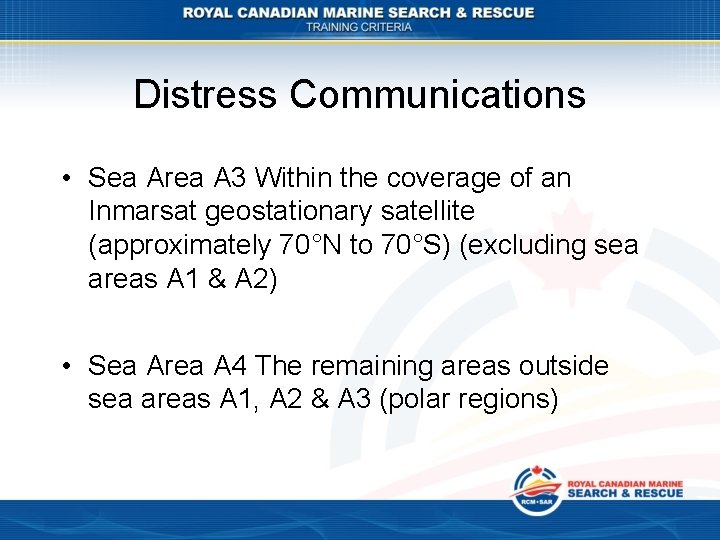

Distress Communications • Sea Area A 3 Within the coverage of an Inmarsat geostationary satellite (approximately 70°N to 70°S) (excluding sea areas A 1 & A 2) • Sea Area A 4 The remaining areas outside sea areas A 1, A 2 & A 3 (polar regions)

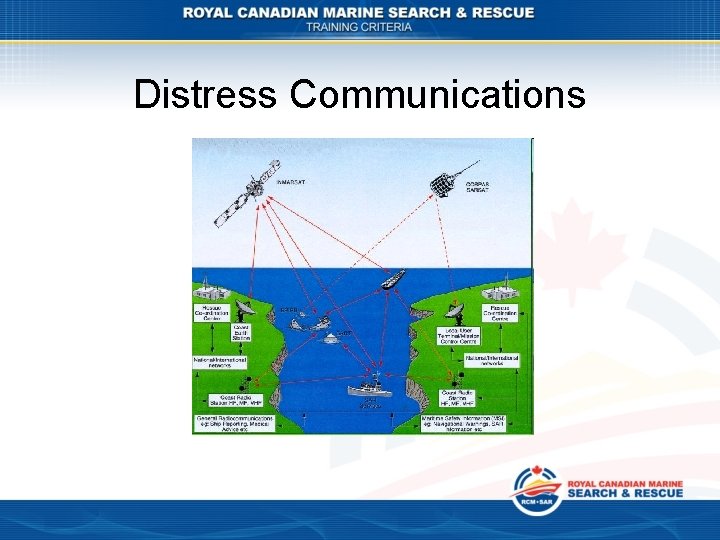

Distress Communications
Distress Communications

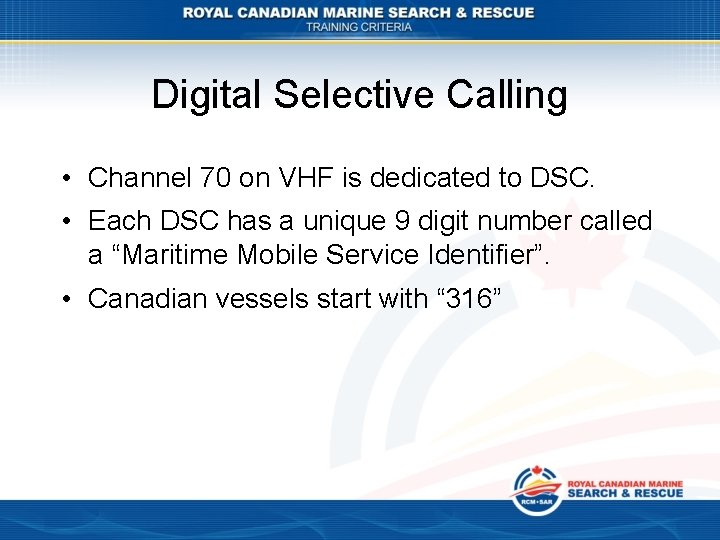

Digital Selective Calling • Channel 70 on VHF is dedicated to DSC. • Each DSC has a unique 9 digit number called a “Maritime Mobile Service Identifier”. • Canadian vessels start with “ 316”
EPIRBs, ELTs and SARTs
EPIRBs, ELTs and SARTs • All Emergency Position Indicating Radio Beacons (Marine), Emergency Location Transmitters (Aircraft), and Search and Rescue Transmitters transmit on either 121. 5 or 406 MHz • EPIRBs all have their own unique identification number.
EPIRBs • Emergency Position Indicating Radio Beacons • Automatic EPIRBs will float free and be activated by water • Manual activation will require removal from their brackets and activated.
ELTs • Emergency Locator Transmitters are fitted to aircraft and also transmit on 406 MHz

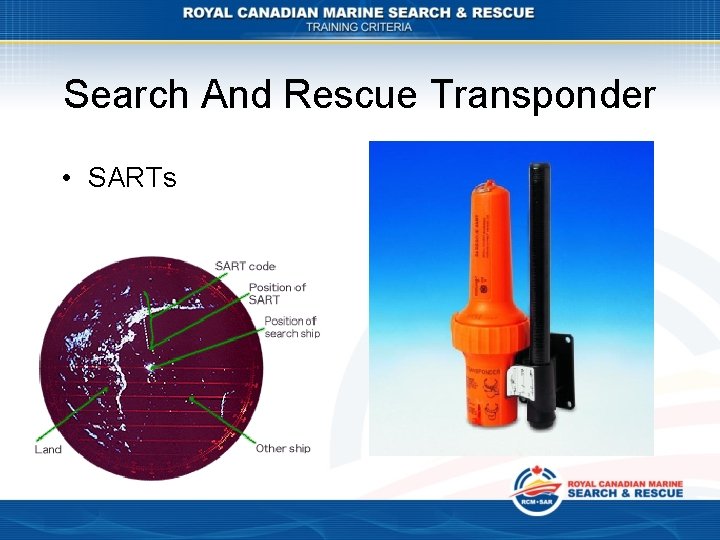

Search And Rescue Transponder • SARTs
Distress Messages
Distress Messages • Procedure for Channel 16: 1. Transmit an alarm signal. 2. Say “MAYDAY, MAYDAY”. 3. “This is RCM-SAR 13, RCMSAR 13”. 4. Give vessel position be latitude/ longitude of bearing and distance from identifiable point. 5. State the nature of distress and assistance required.
Distress Messages 6. State number of persons on board, injuries and other vessels involved. 7. Describe your vessel. 8. Provide any other pertinent information to assist rescuers. 9. REPEAT, say “Over” and listen
Distress Messages • Imposition of Silence “SEELONCE MAYDAY” • Finish of Mayday “MAYDAY FINIS” • Urgency “PAN, PAN” x 3
Distress Messages • If you are underway and you hear a distress message and no-one else answers, answer the vessel, gather and log all information given, and pass information to Joint Rescue Coordination Centre or Marine Communications and Traffic Services.
