ELECTRON TRANSPORT CHAINSYSTEM BIOT 309 Fall 2013 Electron

ELECTRON TRANSPORT CHAIN/SYSTEM BIOT 309 Fall 2013

• Electron transport chains are the cellular mechanisms used for extracting energy from sunlight in photosynthesis and also from redox reactions, such as the oxidation of sugars (respiration). • The electron transport chain consists of a spatially separated series of redox reactions in which electrons are transferred from a donor molecule to an acceptor molecule. The underlying force driving these reactions is the Gibbs free energy of the reactants and products. The Gibbs free energy is the energy available ("free") to do work. Any reaction that decreases the overall Gibbs free energy of a system is thermodynamically spontaneous.

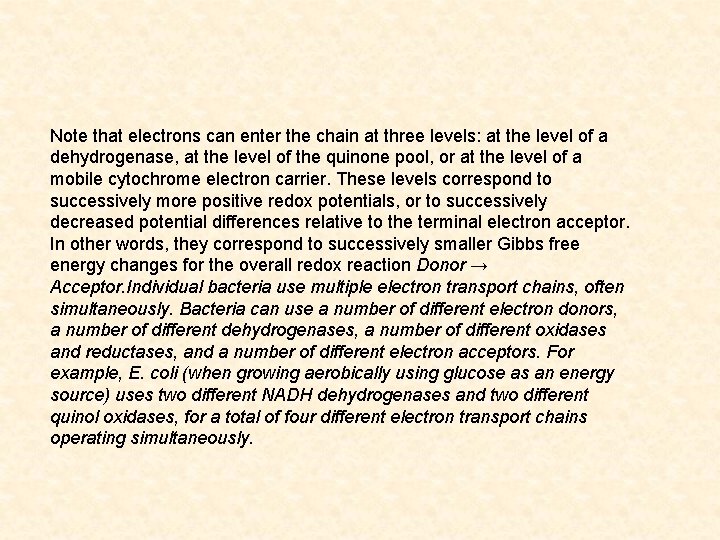

Note that electrons can enter the chain at three levels: at the level of a dehydrogenase, at the level of the quinone pool, or at the level of a mobile cytochrome electron carrier. These levels correspond to successively more positive redox potentials, or to successively decreased potential differences relative to the terminal electron acceptor. In other words, they correspond to successively smaller Gibbs free energy changes for the overall redox reaction Donor → Acceptor. Individual bacteria use multiple electron transport chains, often simultaneously. Bacteria can use a number of different electron donors, a number of different dehydrogenases, a number of different oxidases and reductases, and a number of different electron acceptors. For example, E. coli (when growing aerobically using glucose as an energy source) uses two different NADH dehydrogenases and two different quinol oxidases, for a total of four different electron transport chains operating simultaneously.

ELECTRON TRANSPORT CHAIN/SYSTEM • In bacterial membrane b/c – Allows charge separation – Stabilizes exact conformation • Responsible for: – Extruding protons and establishing proton motive force (pmf) across membrane (proton pump) – Removing electrons from substrates (NADH, FADH 2, etc. ) – Transferring electrons down a series of electron carriers to final electron acceptor, e. g. , O 2 during aerobic respiration • Not responsible for: generation of ATP; membrane bound ATP synthase does this

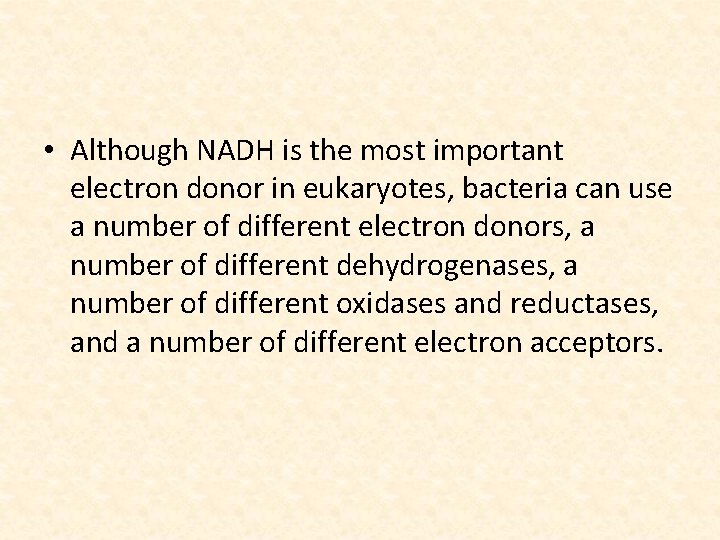

• Although NADH is the most important electron donor in eukaryotes, bacteria can use a number of different electron donors, a number of different dehydrogenases, a number of different oxidases and reductases, and a number of different electron acceptors.

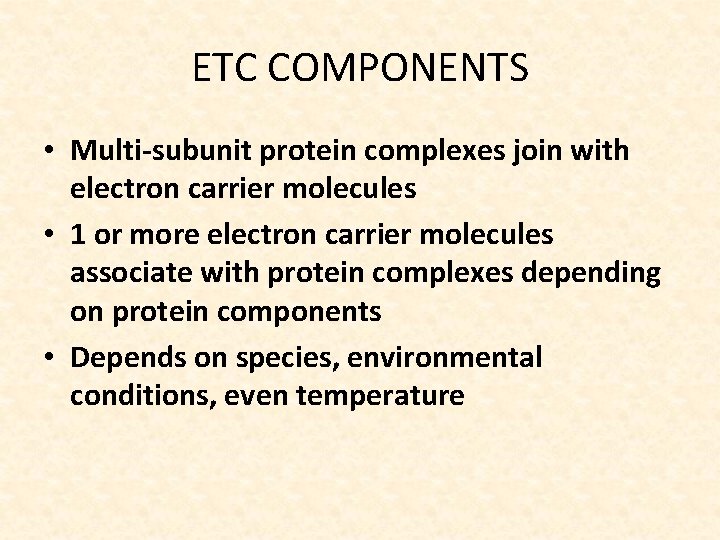

ETC COMPONENTS • Multi-subunit protein complexes join with electron carrier molecules • 1 or more electron carrier molecules associate with protein complexes depending on protein components • Depends on species, environmental conditions, even temperature

ETC COMPONENTS • Major classes of electron carrier types that undergo redox are: – Flavoproteins – Quinones – Iron-Sulfur proteins – Cytochromes

ETC/S GENERAL STRUCTURE 1. Dehydrogenase –> Quinones –> cytochromes (aerobic) 2. Dehydrogenase –> Quinones –> reductases (anaerobic) • Characteristics: Branched, modular, inducible – Multiple types of each => flexibility – Branches occur at quinones and cytochromes • Differ in Δ p generation b/c # coupling sites differ • Differ in final acceptor, e. g. , oxygen, affinity • Bacterial ETC: species may use > 1 ETC b/c – More diverse – Genomes allow picking of system to suit environment, e. g. , different carriers, different proteins – Different carbon sources – Different electron acceptors and donors

PRINCIPLE FOR ELECTRON MOVEMENT • E- move from high potential electron carriers to low potential electron carriers; each step involves redox reaction

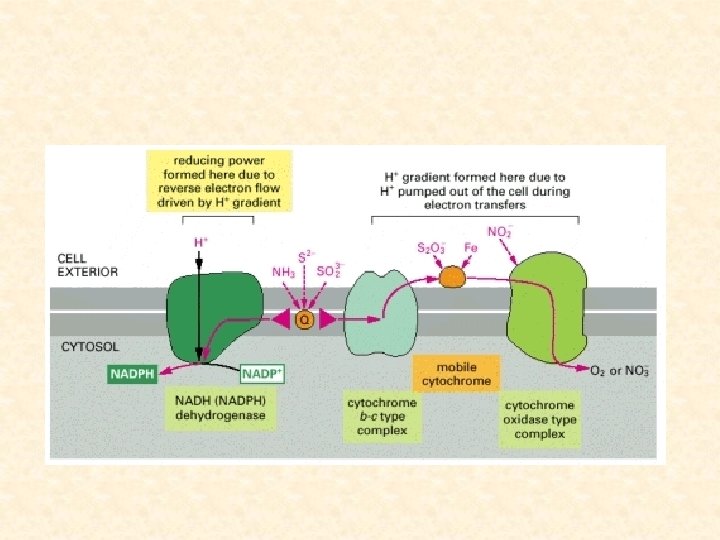

ELECTRON TRANSPORT CHAIN OF PROKARYOTES (AEROBIC) simple example

MORE COMPLEX ARRANGEMENT IN SOME BACTERIA • H+ moves outside membrane (proton motive force) • Electrons passed from one electron carrier to another • Not all extrude H+ Question 1: How many H+ move outside per ETC component? Question 2: Are these integral or peripheral proteins?

ETC OVERALL ATP PRODUCTION NADH + H+ + ½ O 2+ 3 ADP + 3 Pi —> NAD+ + 3 ATP + 4 H 20 NADH yields 3 ATP [FADH 2 ] + ½ O 2+ 2 ADP + 2 Pi —> [FAD]+ + 2 ATP + 3 H 20 FADH 2 yields 2 ATP

FLAVOPROTEIN ELECTRON CARRIERS • Large enzyme complexes with flavins (FAD, FMN) as ecarrier REDOX • Named after electron donor, e. g. , NADH dehydrogenase • Accept electrons from many sources: NADH, succinate • Pump protons (not in all bacteria) to periplasm • Funnel electrons to quinones • Associated with many different proteins -> different redox capabilities (potential) • Synthesized when needed, i. e. , inducible

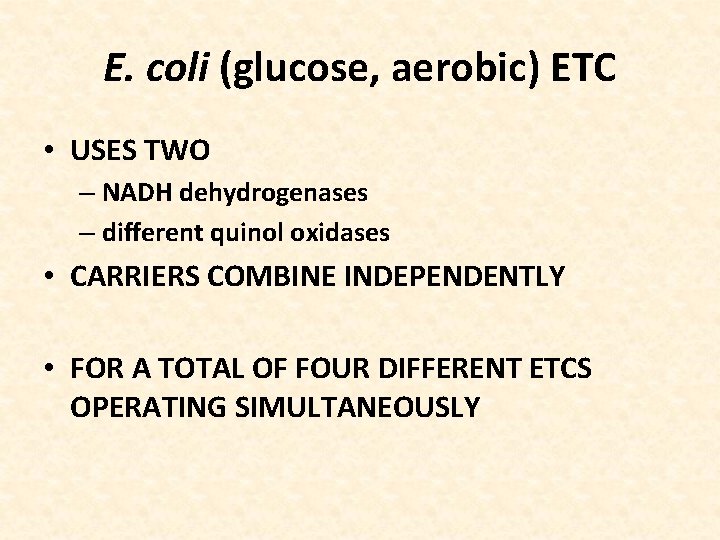

E. coli (glucose, aerobic) ETC • USES TWO – NADH dehydrogenases – different quinol oxidases • CARRIERS COMBINE INDEPENDENTLY • FOR A TOTAL OF FOUR DIFFERENT ETCS OPERATING SIMULTANEOUSLY

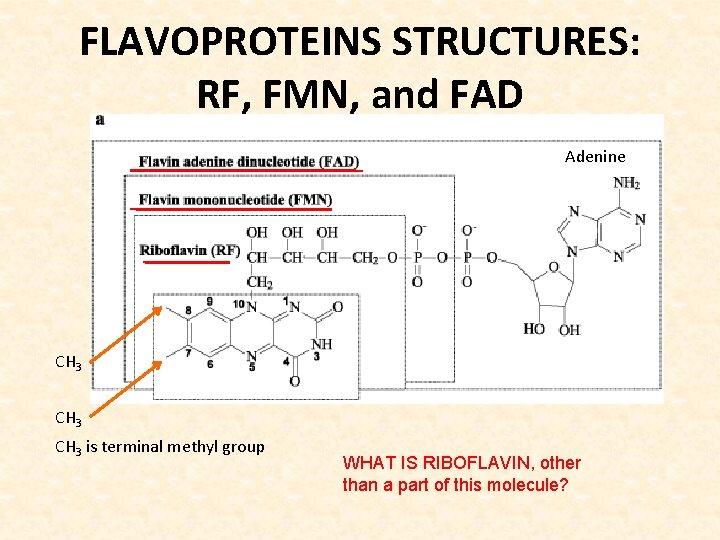

FLAVOPROTEINS STRUCTURES: RF, FMN, and FAD Adenine CH 3 is terminal methyl group WHAT IS RIBOFLAVIN, other than a part of this molecule?

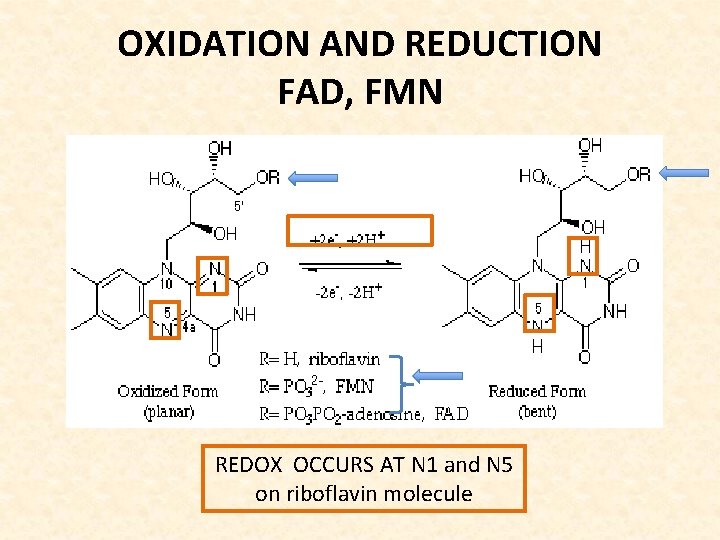

OXIDATION AND REDUCTION FAD, FMN REDOX OCCURS AT N 1 and N 5 on riboflavin molecule

ETC: QUINONE ELECTRON CARRIERS • • • Mediators of electron transfer between different protein complexes in biological membranes mobile carriers of electrons in membranes, but some tightly associated with protein molecules to function in intramolecular electron transfer Example = NDH-1 -type dehydrogenases (NDH-1) functioning as NADH: MK oxidoreductase Lipids, lipid soluble Can be highly mobile Carry H+ and eside chains of varying lengths and differing saturation (-CH 2 -CH=C(CH 3)-CH 2 -)n Head groups can also vary Ubiquinone and menaquinone – UQ (Coenzyme Q) – aerobic and nitrate respiration, mostly G– MQ (structure related to vitamin K) – fumarate respiration, mostly G+, anaerobic G-, not in humans • Responsible for Q-cycle

OXIDIZED AND REDUCED FORMS REDOX Number of isoprenoid units( R) depends on species (-CH -CH=C(CH )-CH -) 2 3 Head Group 2 n

QUINONE ELECTRON CARRIERS • Used by E. coli as terminal e- acceptor – E. coli does not have a cytochrome oxidase or a bc 1 complex • Two different terminal quinol oxidases (both proton pumps) reduce oxygen to water

ETC: IRON-SULFUR PROTEIN ELECTRON CARRIERS • Non-heme iron and acid-labile sulfur - at biological p. H the sulfur is bound to the iron • Non-heme iron bound to cysteine sulfur of a protein • Several iron sulfur clusters – Different Eh values – Proteins can have more than one Fe-S cluster – e- move around among them

ETC: IRON – SULFUR PROTEINS ELECTRON CARRIERS • REDOX Redox rxns in membrane (cytoplasm = non-ETC) • Non-heme iron bound to: – Sulfur of cysteine on protein (#) – “acid-labile” sulfur * (sulfide) # * LINEAR 2 F - 2 S SEVERAL DIFFERENT Fe-S CLUSTERS CUBANE 4 F - 4 S # *

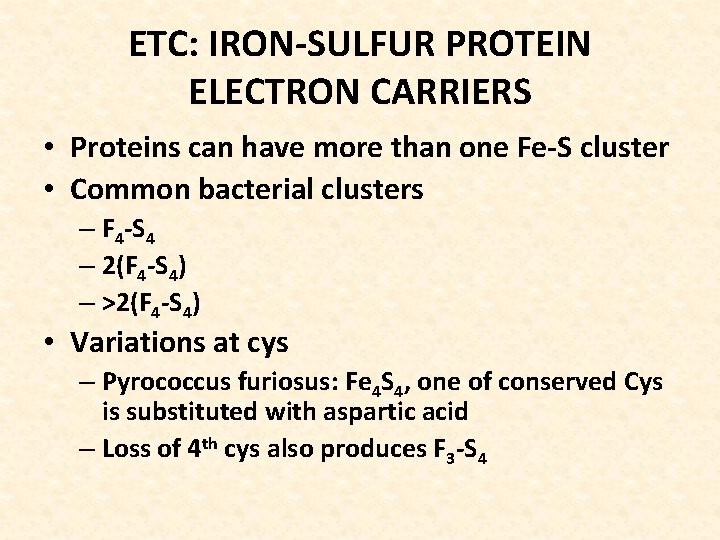

ETC: IRON-SULFUR PROTEIN ELECTRON CARRIERS • Proteins can have more than one Fe-S cluster • Common bacterial clusters – F 4 -S 4 – 2(F 4 -S 4) – >2(F 4 -S 4) • Variations at cys – Pyrococcus furiosus: Fe 4 S 4, one of conserved Cys is substituted with aspartic acid – Loss of 4 th cys also produces F 3 -S 4

ETC: IRON-SULFUR PROTEIN ELECTRON CARRIERS • Protein structure determines if redox is: -1 -2 -2 or -3 (MW 6, 000 -9, 0000) (Fe 4 S 4*S 4 CYs)2(Fe 4 S 4*S 4 CYS)3 • Standard redox potentials do not apply b/c located within protein • Actual redox potential depends on protein • oxidoreductases

ETC: CYTOCHROME ELECTRON CARRIERS • Heme (non-heme Fe (NH-Fe)) = redox prosthetic group in proteins Fe 2+ Fe 3+ • Have 4 pyrroles attached by methylene bridges • Pyrrole N linked with Fe • Different classes based on side chains of pyrrole rings - Different heme types in bacteria: a, b, c, d, o - Iron has redox capacity

TETRAPYRROLE/PORPHRYIN methylene pyrrole Tetrapyrrole or porphryin

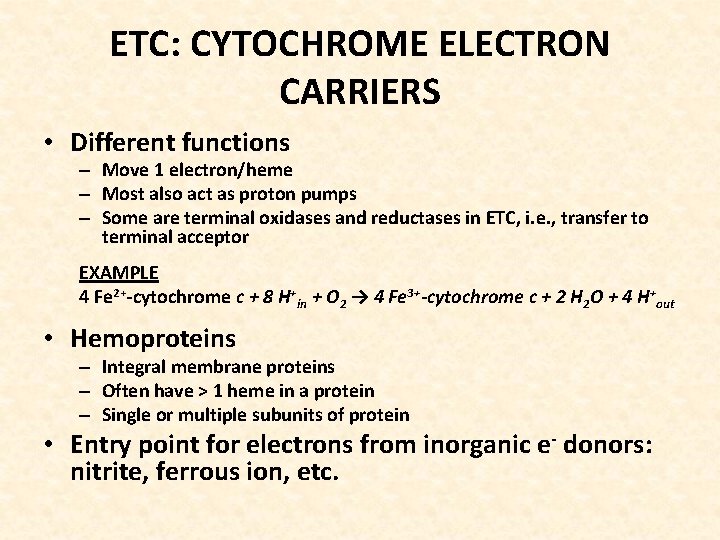

ETC: CYTOCHROME ELECTRON CARRIERS • Different functions – Move 1 electron/heme – Most also act as proton pumps – Some are terminal oxidases and reductases in ETC, i. e. , transfer to terminal acceptor EXAMPLE 4 Fe 2+-cytochrome c + 8 H+in + O 2 → 4 Fe 3+-cytochrome c + 2 H 2 O + 4 H+out • Hemoproteins – Integral membrane proteins – Often have > 1 heme in a protein – Single or multiple subunits of protein • Entry point for electrons from inorganic e- donors: nitrite, ferrous ion, etc.

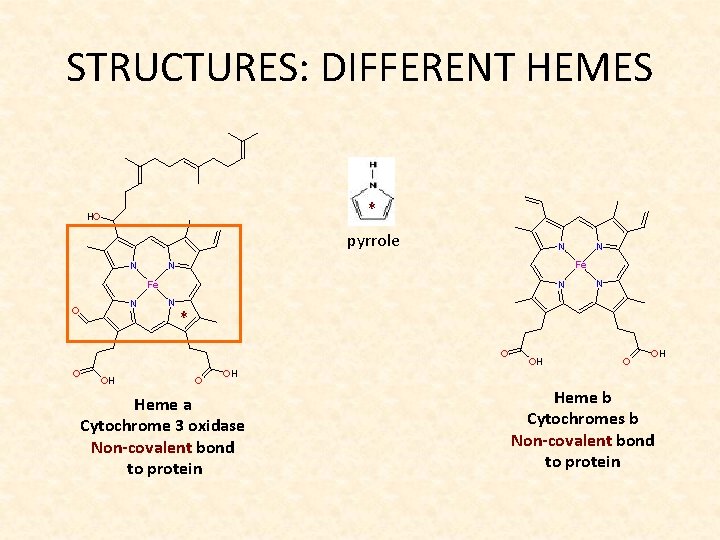

STRUCTURES: DIFFERENT HEMES * pyrrole * Heme a Cytochrome 3 oxidase Non-covalent bond to protein Heme b Cytochromes b Non-covalent bond to protein

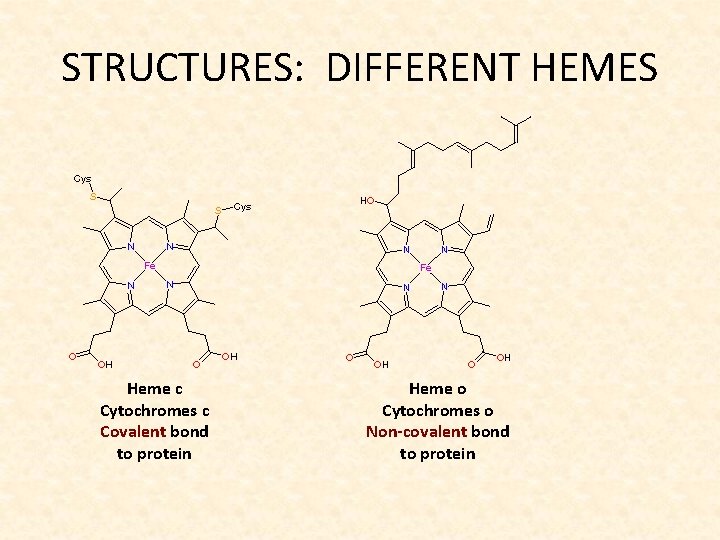

STRUCTURES: DIFFERENT HEMES Heme c Cytochromes c Covalent bond to protein Heme o Cytochromes o Non-covalent bond to protein

DIFFERENT HEMES Heme d Cytochromes d Non-covalent bond to protein Heme d 1 Occurs with cytochrome c -> cytochrome cd 1 nitrate reductase

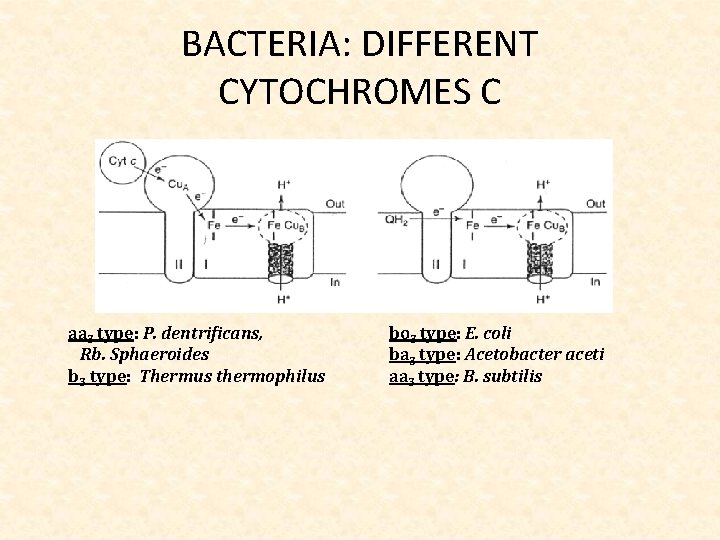

BACTERIA: DIFFERENT CYTOCHROMES C aa 3 type: P. dentrificans, Rb. Sphaeroides b 3 type: Thermus thermophilus bo 3 type: E. coli ba 3 type: Acetobacter aceti aa 3 type: B. subtilis

TERMINAL ELECTRON ACCEPTORS • Inorganic and organic molecules • Inducible • Two general types – Aerobic uses OXIDASES: oxygen – Anaerobic uses REDUCTASES: fumarate, nitrate

TERMINAL OXIDASE VARIATIONS • Cytochrome oxidases: a, aa 3, b, d, o and combinations thereof, e. g. , bd, cbb 3 – Differ in: • affinities for oxygen • types of hemes or metals • ability to work as proton pumps • Quinol oxidases

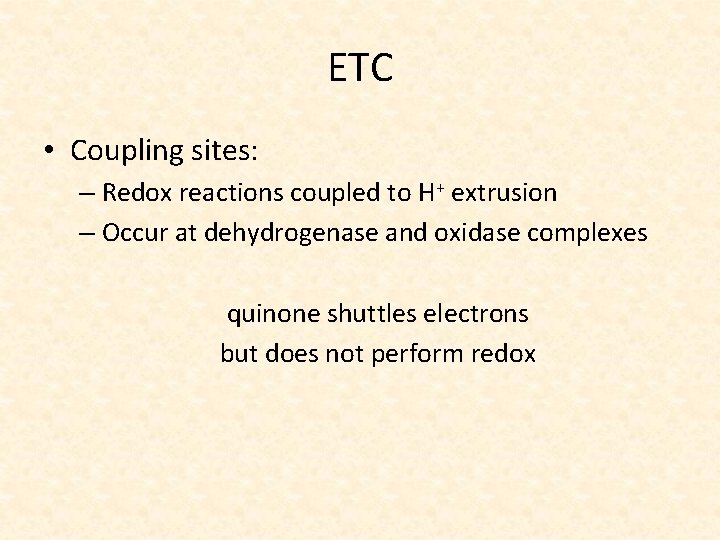

ETC • Coupling sites: – Redox reactions coupled to H+ extrusion – Occur at dehydrogenase and oxidase complexes quinone shuttles electrons but does not perform redox

ETC in DIFFERENT BACTERIA • See White, Chapter 4. 7 for ETC of different bacteria • See Figure 4. 14, 4. 15, 4. 16 • E. coli is summarized next

SUMMARY: E. coli ETC • NADH dehydrogenase – NDH-1, coupling site; 4 H+/e– NDH-2, not a coupling site no proton movement, only e- transfer • 3 quinones – ETC branches here – Type and % varies with e- acceptor(s) in use and [O 2] – Aerobic: UQ = 60%, MQ = 3%, DMQ = 37% – Anaerobic: grow on nitrate – DMQ = 70%, MQ = 30% – Anaerobic: fumarate – MQ = 74%, DMQ = 16%, UQ = rest. . .

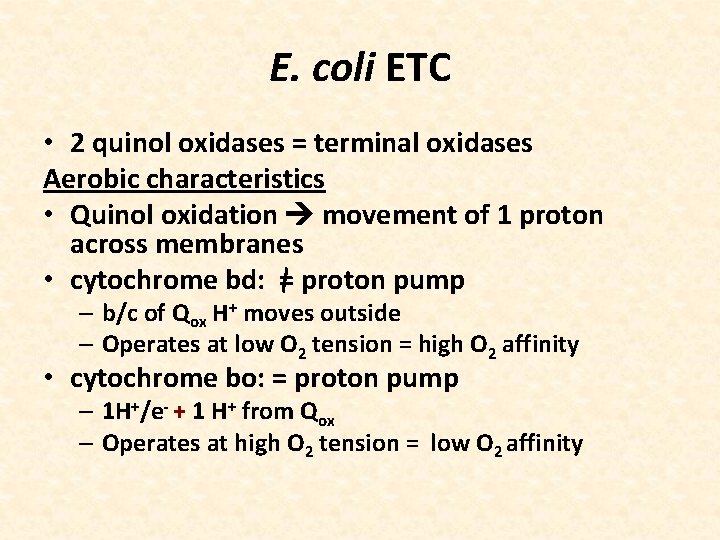

E. coli ETC • 2 quinol oxidases = terminal oxidases Aerobic characteristics • Quinol oxidation movement of 1 proton across membranes • cytochrome bd: = proton pump – b/c of Qox H+ moves outside – Operates at low O 2 tension = high O 2 affinity • cytochrome bo: = proton pump – 1 H+/e- + 1 H+ from Qox – Operates at high O 2 tension = low O 2 affinity

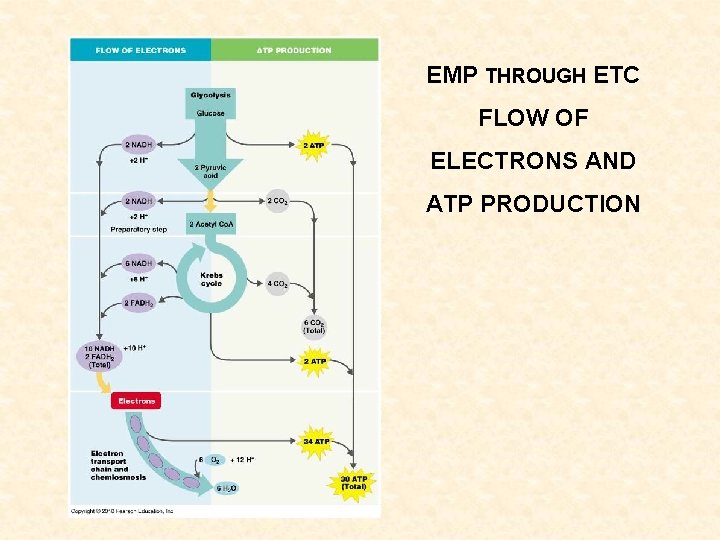

EMP THROUGH ETC FLOW OF ELECTRONS AND ATP PRODUCTION

http: //vcell. ndsu. nodak. edu/animations/etc/movie. htm

END OF ETC
