Electron Orbitals and Configurations SWBAT Know the different
![Electron Orbitals and Configurations SWBAT: Know the different kinds of orbitals Explain electron configurations Electron Orbitals and Configurations SWBAT: Know the different kinds of orbitals Explain electron configurations](https://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-1.jpg)
Electron Orbitals and Configurations SWBAT: Know the different kinds of orbitals Explain electron configurations within an atom
![Electron Orbital Analogy: Boarding House Electron Orbital Analogy: Boarding House](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-2.jpg)

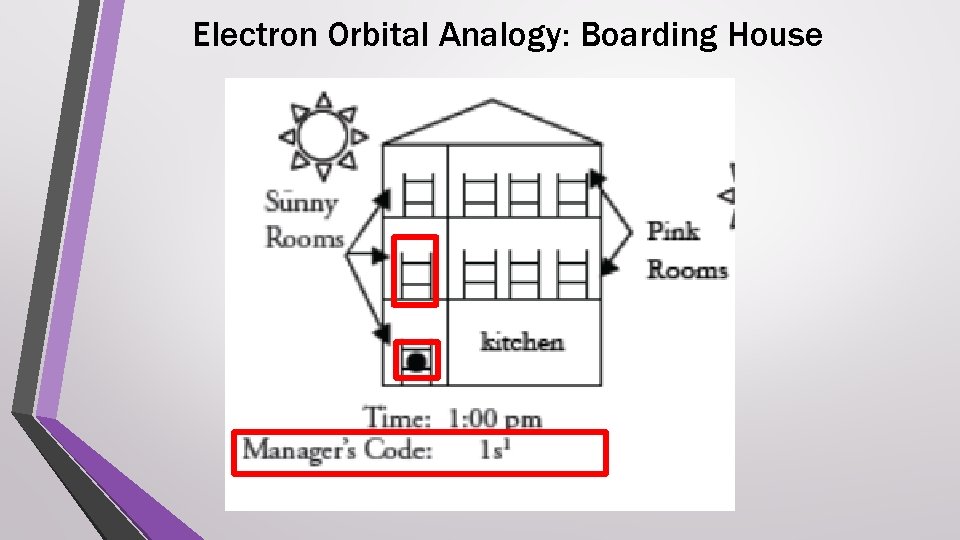

Electron Orbital Analogy: Boarding House
![Electron Orbital Analogy: Boarding House Electron Orbital Analogy: Boarding House](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-3.jpg)

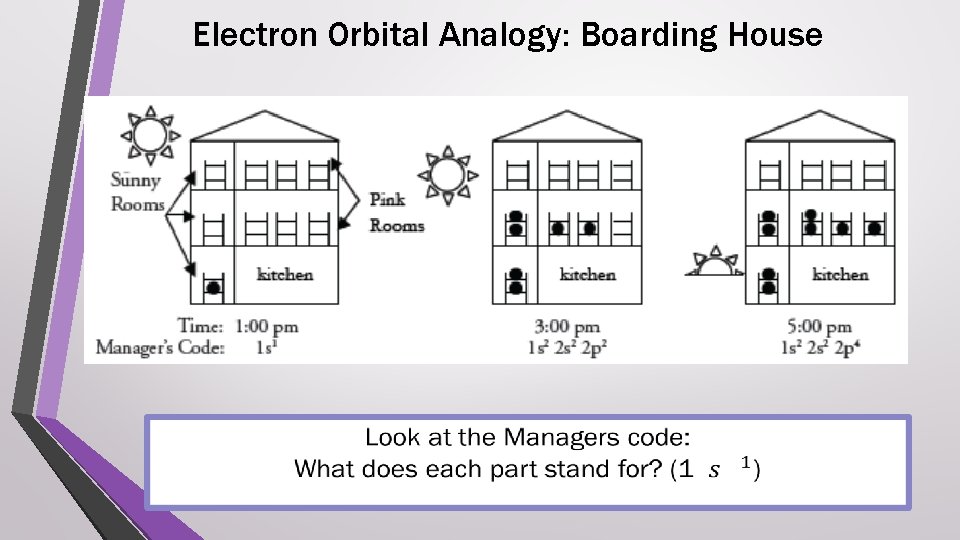

Electron Orbital Analogy: Boarding House
![Electron Orbital Analogy: Boarding House Manager Rules: 1. The boarding house rents out beds Electron Orbital Analogy: Boarding House Manager Rules: 1. The boarding house rents out beds](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-4.jpg)

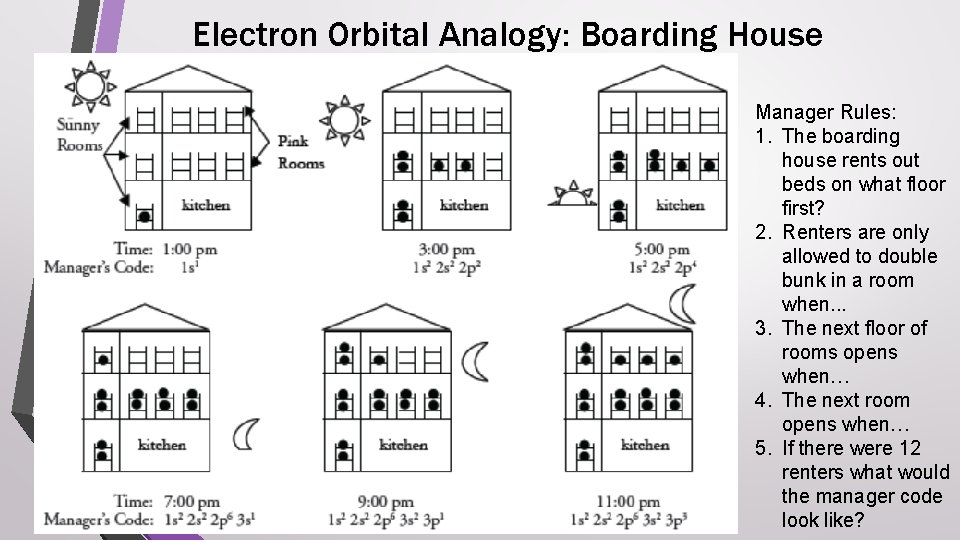

Electron Orbital Analogy: Boarding House Manager Rules: 1. The boarding house rents out beds on what floor first? 2. Renters are only allowed to double bunk in a room when. . . 3. The next floor of rooms opens when… 4. The next room opens when… 5. If there were 12 renters what would the manager code look like?
![Electron ORBITALS An orbital is. . . a region in space where one is Electron ORBITALS An orbital is. . . a region in space where one is](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-5.jpg)

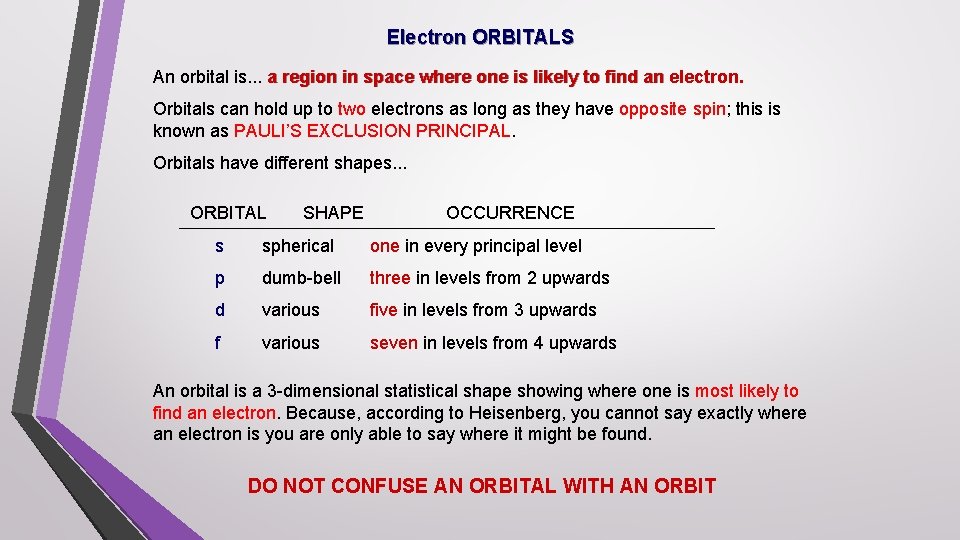

Electron ORBITALS An orbital is. . . a region in space where one is likely to find an electron. Orbitals can hold up to two electrons as long as they have opposite spin; this is known as PAULI’S EXCLUSION PRINCIPAL. Orbitals have different shapes. . . ORBITAL SHAPE OCCURRENCE s spherical one in every principal level p dumb-bell three in levels from 2 upwards d various five in levels from 3 upwards f various seven in levels from 4 upwards An orbital is a 3 -dimensional statistical shape showing where one is most likely to find an electron. Because, according to Heisenberg, you cannot say exactly where an electron is you are only able to say where it might be found. DO NOT CONFUSE AN ORBITAL WITH AN ORBIT
![RULES AND PRINCIPLES HEISENBERG’S UNCERTAINTY PRINCIPLE “You cannot determine the position and momentum of RULES AND PRINCIPLES HEISENBERG’S UNCERTAINTY PRINCIPLE “You cannot determine the position and momentum of](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-6.jpg)

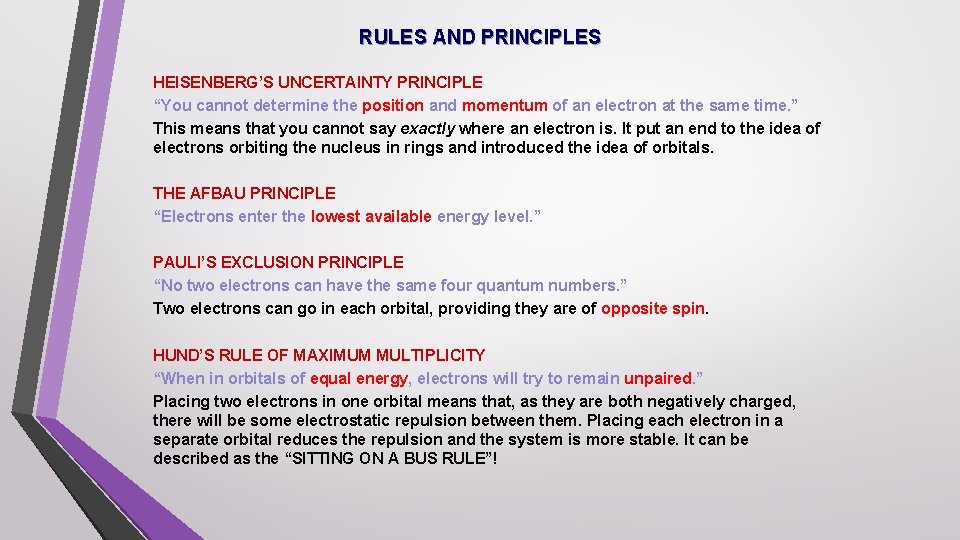

RULES AND PRINCIPLES HEISENBERG’S UNCERTAINTY PRINCIPLE “You cannot determine the position and momentum of an electron at the same time. ” This means that you cannot say exactly where an electron is. It put an end to the idea of electrons orbiting the nucleus in rings and introduced the idea of orbitals. THE AFBAU PRINCIPLE “Electrons enter the lowest available energy level. ” PAULI’S EXCLUSION PRINCIPLE “No two electrons can have the same four quantum numbers. ” Two electrons can go in each orbital, providing they are of opposite spin. HUND’S RULE OF MAXIMUM MULTIPLICITY “When in orbitals of equal energy, electrons will try to remain unpaired. ” Placing two electrons in one orbital means that, as they are both negatively charged, there will be some electrostatic repulsion between them. Placing each electron in a separate orbital reduces the repulsion and the system is more stable. It can be described as the “SITTING ON A BUS RULE”!
![SHAPES OF ORBITALS s orbitals • spherical • one occurs in every principal energy SHAPES OF ORBITALS s orbitals • spherical • one occurs in every principal energy](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-7.jpg)

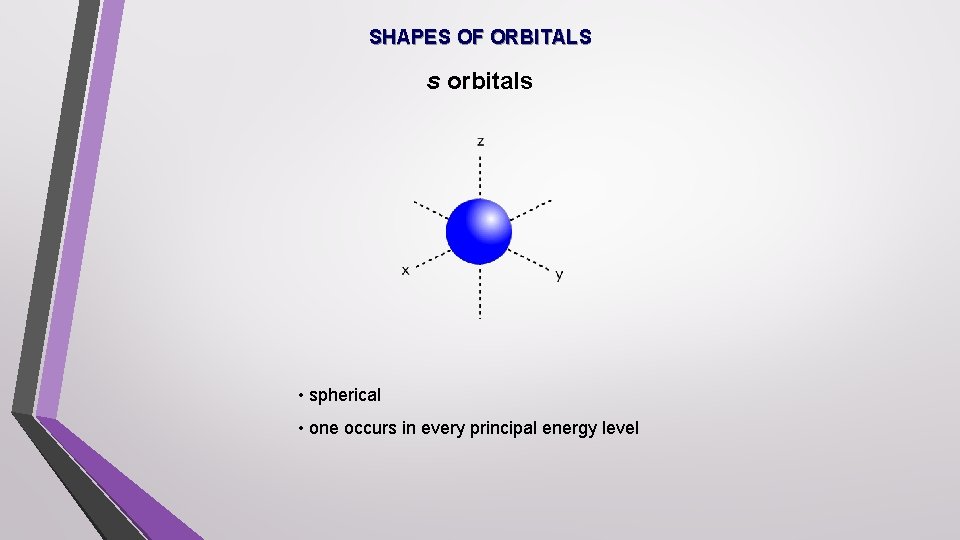

SHAPES OF ORBITALS s orbitals • spherical • one occurs in every principal energy level
![SHAPES OF ORBITALS p orbitals • dumb-bell shaped • three occur in energy levels SHAPES OF ORBITALS p orbitals • dumb-bell shaped • three occur in energy levels](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-8.jpg)

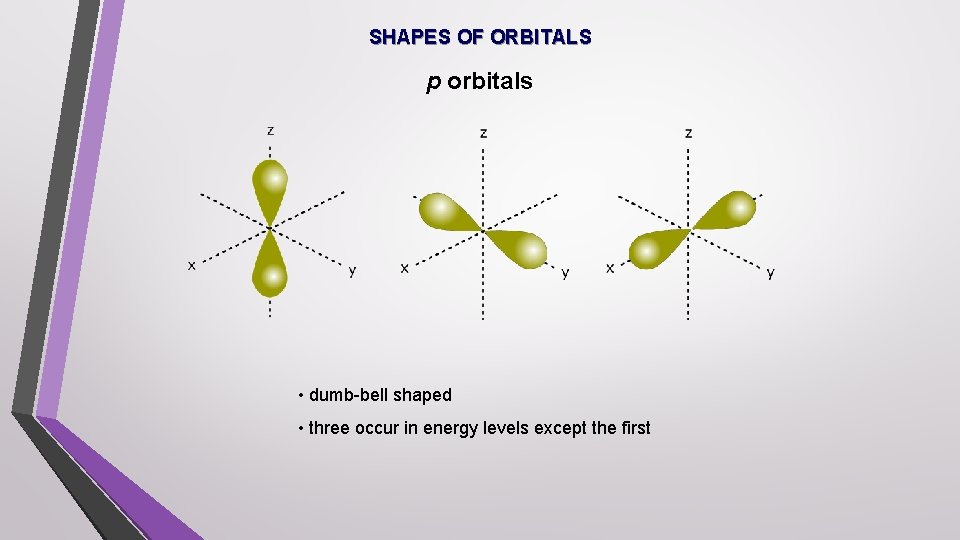

SHAPES OF ORBITALS p orbitals • dumb-bell shaped • three occur in energy levels except the first
![SHAPES OF ORBITALS d orbitals • various shapes • five occur in energy levels SHAPES OF ORBITALS d orbitals • various shapes • five occur in energy levels](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-9.jpg)

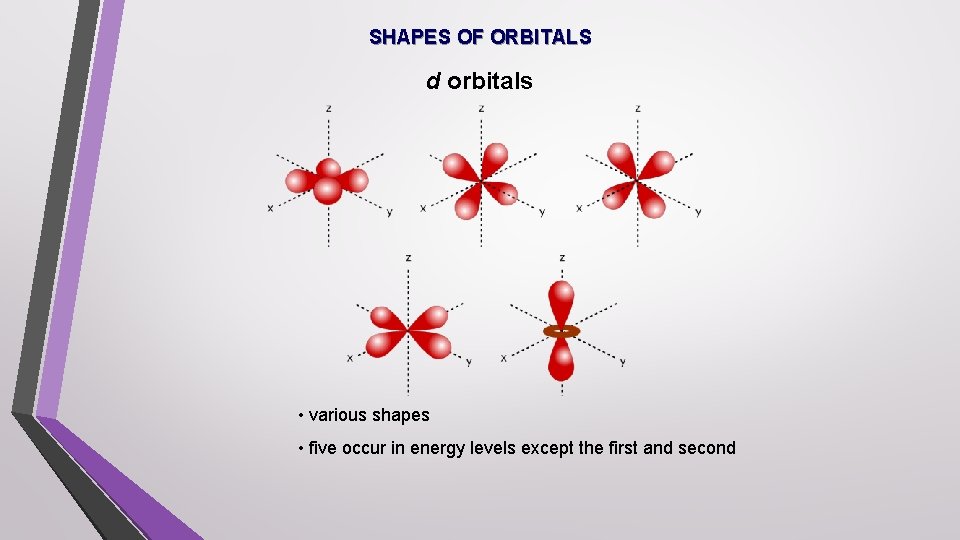

SHAPES OF ORBITALS d orbitals • various shapes • five occur in energy levels except the first and second
![ORDER OF FILLING ORBITALS SUB LEVELS 4 4 f 4 d 4 p 4 ORDER OF FILLING ORBITALS SUB LEVELS 4 4 f 4 d 4 p 4](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-10.jpg)

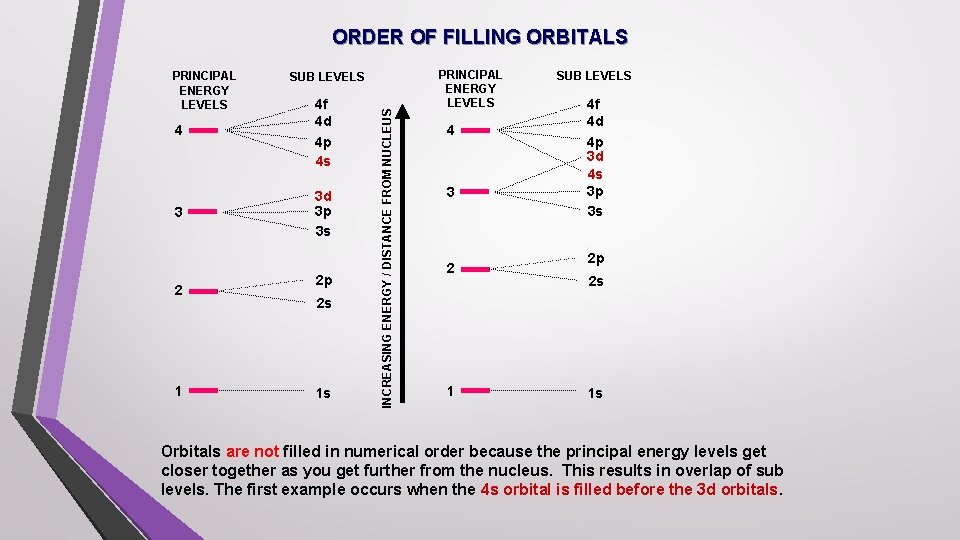

ORDER OF FILLING ORBITALS SUB LEVELS 4 4 f 4 d 4 p 4 s 3 3 d 3 p 3 s 2 1 2 p 2 s 1 s INCREASING ENERGY / DISTANCE FROM NUCLEUS PRINCIPAL ENERGY LEVELS 4 3 2 1 SUB LEVELS 4 f 4 d 4 p 3 d 4 s 3 p 3 s 2 p 2 s 1 s Orbitals are not filled in numerical order because the principal energy levels get closer together as you get further from the nucleus. This results in overlap of sub levels. The first example occurs when the 4 s orbital is filled before the 3 d orbitals.
![Resources: Order of filling orbitals Resources: Order of filling orbitals](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-11.jpg)

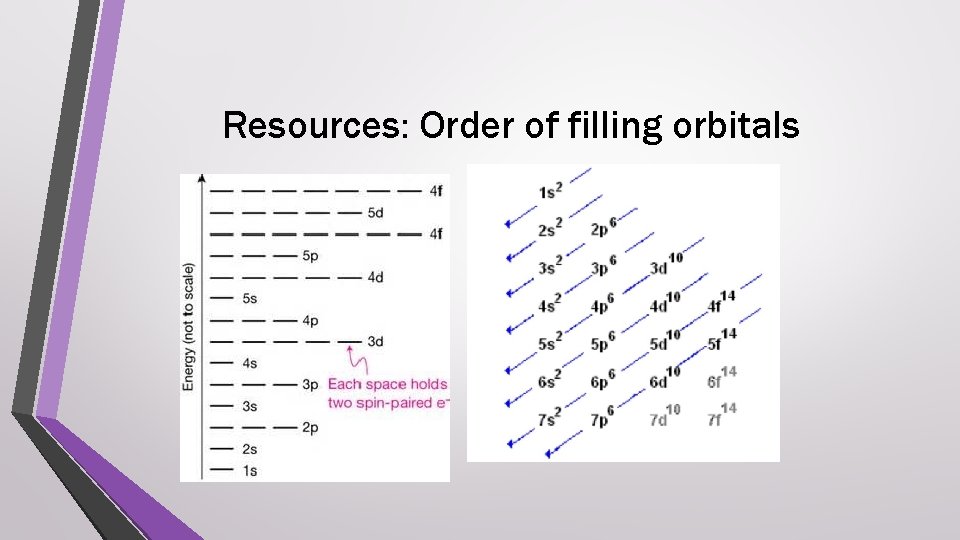

Resources: Order of filling orbitals
![INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ‘AUFBAU’ PRINCIPAL 4 4 f This states INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ‘AUFBAU’ PRINCIPAL 4 4 f This states](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-12.jpg)

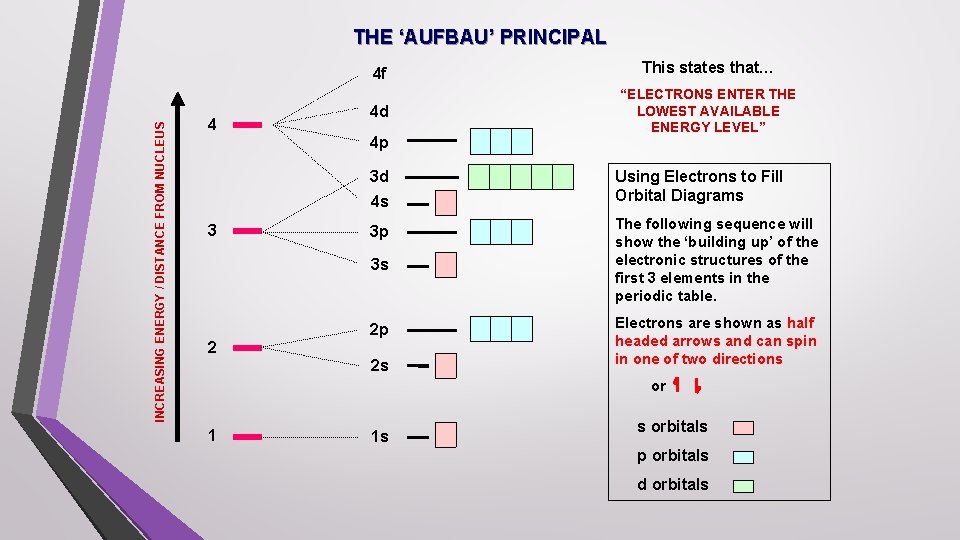

INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ‘AUFBAU’ PRINCIPAL 4 4 f This states that… 4 d “ELECTRONS ENTER THE LOWEST AVAILABLE ENERGY LEVEL” 4 p 3 d 4 s 3 3 p 3 s 2 2 p 2 s Using Electrons to Fill Orbital Diagrams The following sequence will show the ‘building up’ of the electronic structures of the first 3 elements in the periodic table. Electrons are shown as half headed arrows and can spin in one of two directions or 1 1 s s orbitals p orbitals d orbitals
![THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-13.jpg)

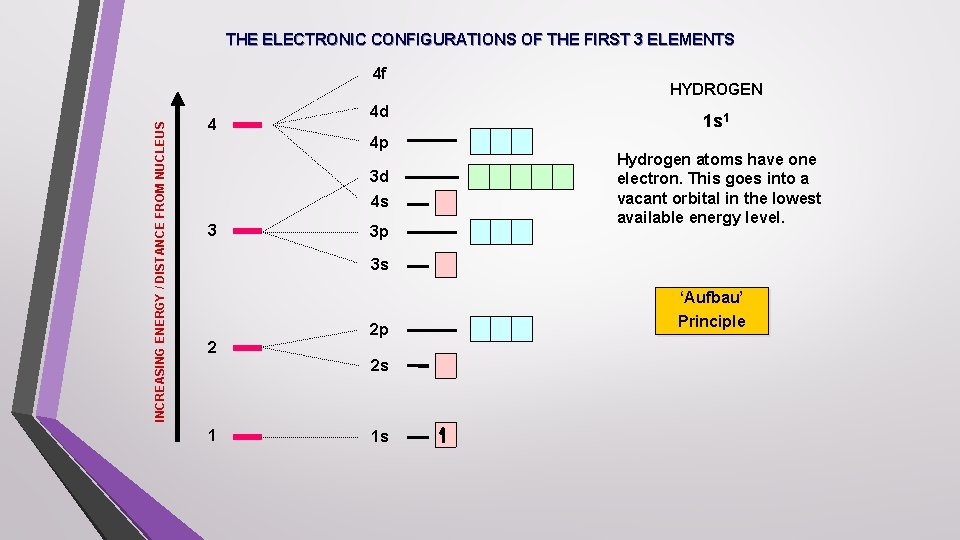

THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS 4 f 4 4 d 4 p 3 d 4 s 3 3 p HYDROGEN 1 s 1 Hydrogen atoms have one electron. This goes into a vacant orbital in the lowest available energy level. 3 s ‘Aufbau’ 2 2 p 2 s 1 1 s Principle
![THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-14.jpg)

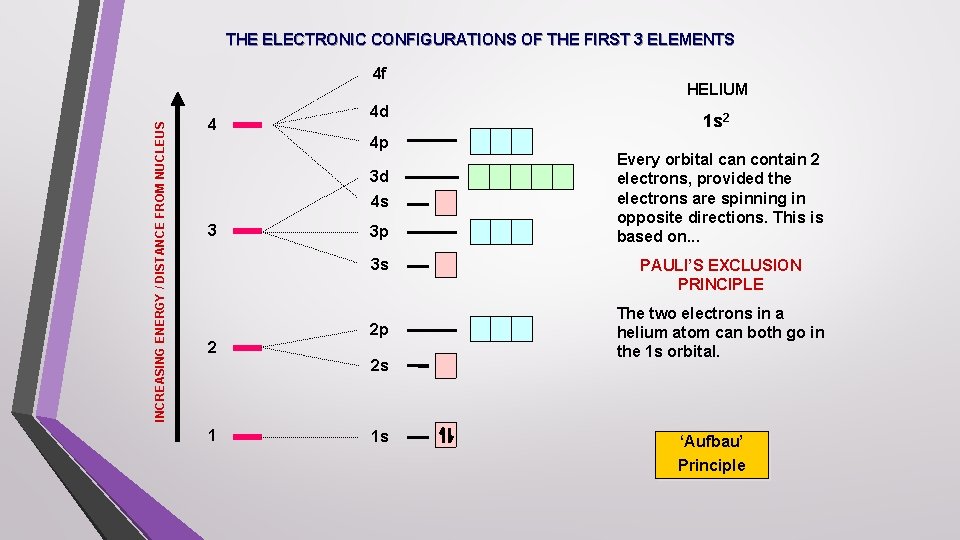

THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS 4 f 4 4 d 4 p 3 d 4 s 3 3 p 3 s 2 2 p 2 s 1 1 s HELIUM 1 s 2 Every orbital can contain 2 electrons, provided the electrons are spinning in opposite directions. This is based on. . . PAULI’S EXCLUSION PRINCIPLE The two electrons in a helium atom can both go in the 1 s orbital. ‘Aufbau’ Principle
![THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-15.jpg)

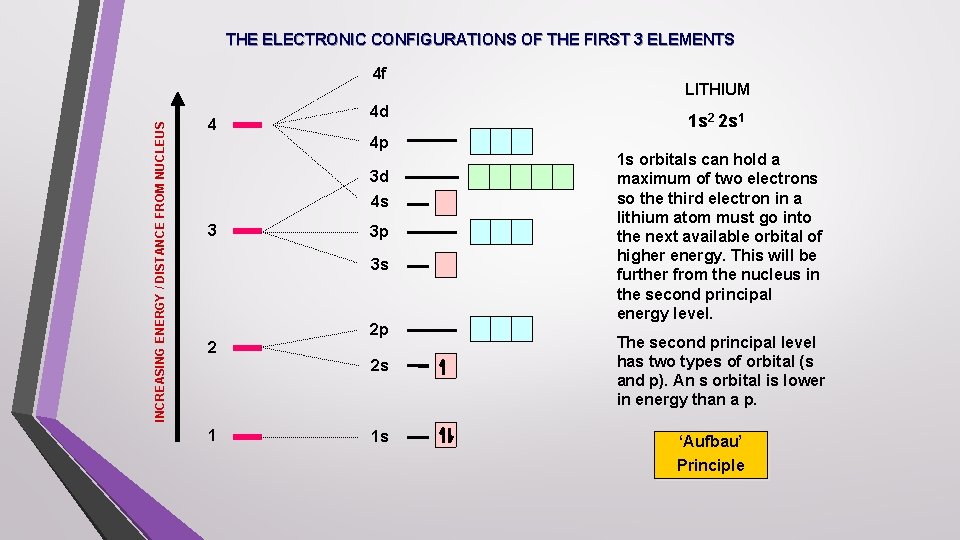

THE ELECTRONIC CONFIGURATIONS OF THE FIRST 3 ELEMENTS INCREASING ENERGY / DISTANCE FROM NUCLEUS 4 f 4 4 d 4 p 3 d 4 s 3 3 p 3 s 2 2 p 2 s 1 1 s LITHIUM 1 s 2 2 s 1 1 s orbitals can hold a maximum of two electrons so the third electron in a lithium atom must go into the next available orbital of higher energy. This will be further from the nucleus in the second principal energy level. The second principal level has two types of orbital (s and p). An s orbital is lower in energy than a p. ‘Aufbau’ Principle
![PLICKERS: Check for Understanding • • What does the following picture represent on the PLICKERS: Check for Understanding • • What does the following picture represent on the](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-16.jpg)

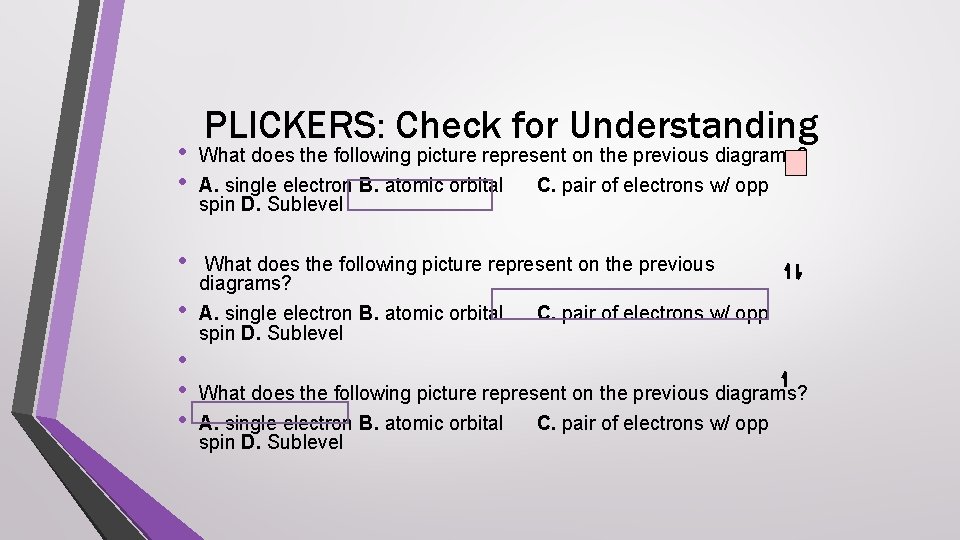

PLICKERS: Check for Understanding • • What does the following picture represent on the previous diagrams? A. single electron B. atomic orbital C. pair of electrons w/ opp spin D. Sublevel
![Exceptions to the rule • Chromium and copper have different electron configurations in order Exceptions to the rule • Chromium and copper have different electron configurations in order](http://slidetodoc.com/presentation_image_h2/7b4431fef3337b69f161773c8777233e/image-17.jpg)

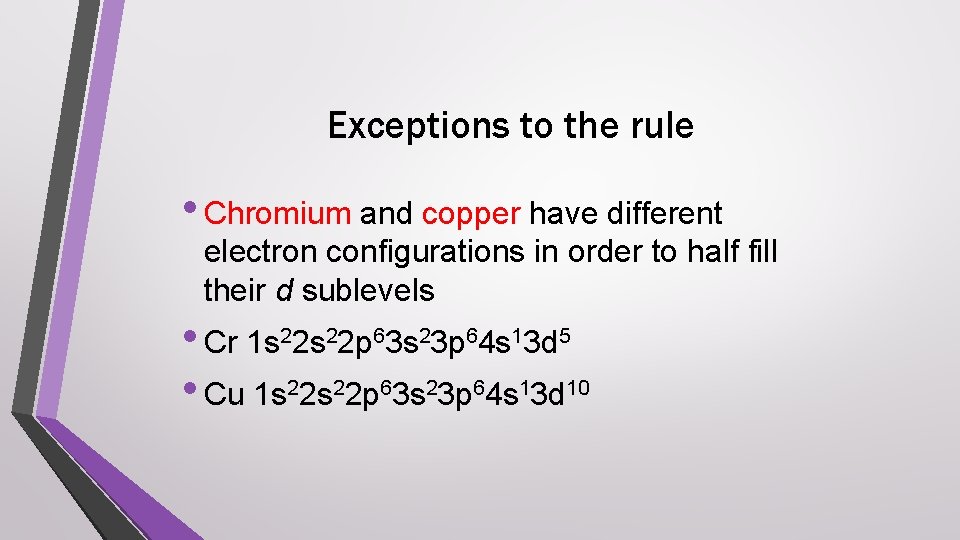

Exceptions to the rule • Chromium and copper have different electron configurations in order to half fill their d sublevels • Cr 1 s 22 p 63 s 23 p 64 s 13 d 5 • Cu 1 s 22 p 63 s 23 p 64 s 13 d 10
