Electron Microscopy Osler Institute Pathology Board Review Primer

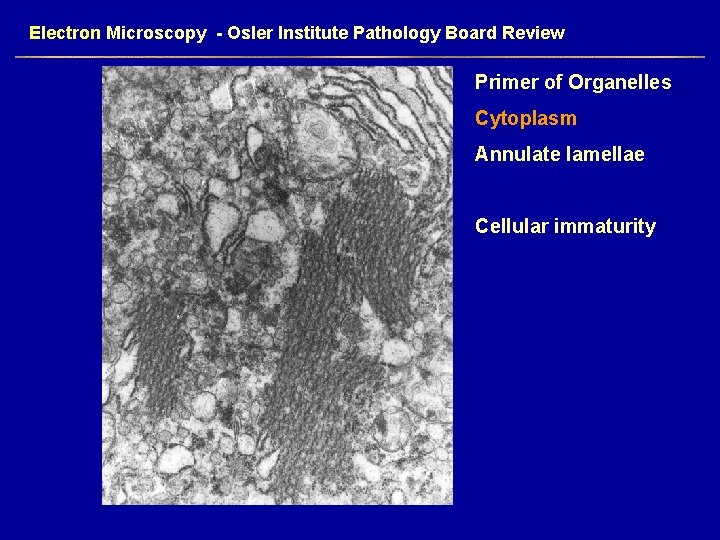

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Annulate lamellae Cellular immaturity

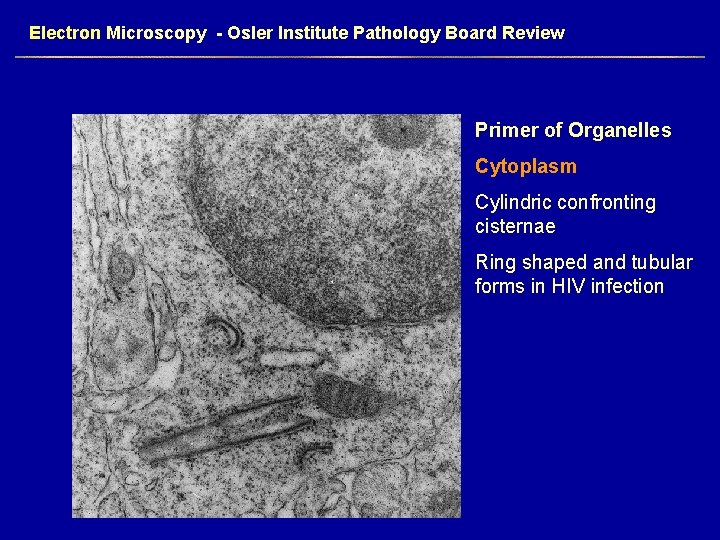

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Cylindric confronting cisternae Ring shaped and tubular forms in HIV infection

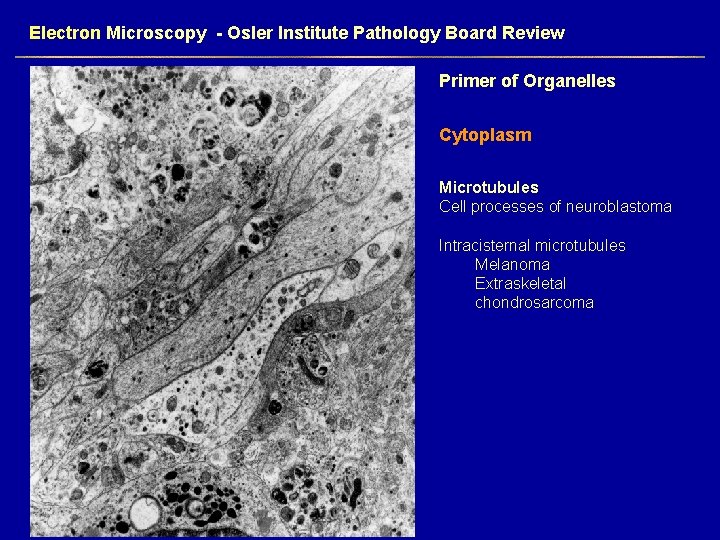

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Microtubules Cell processes of neuroblastoma Intracisternal microtubules Melanoma Extraskeletal chondrosarcoma

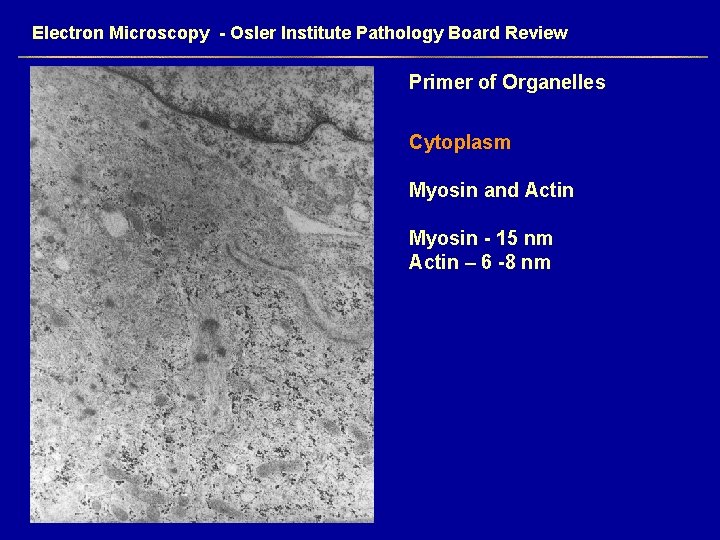

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Myosin and Actin Myosin - 15 nm Actin – 6 -8 nm

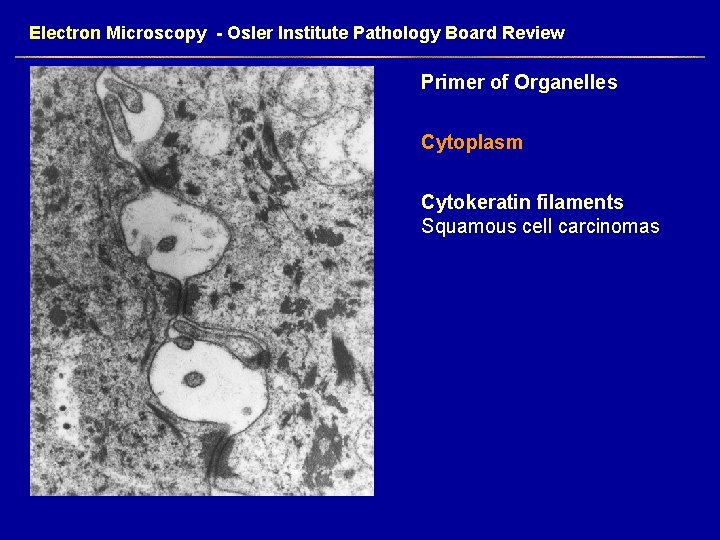

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Cytokeratin filaments Squamous cell carcinomas

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Vimentin filaments Mesenchymal cells, endothelial cells, tumors Abundant in rhabdoid tumors of the kidney Carcinoid tumor with intracytoplasmic vimentin filaments

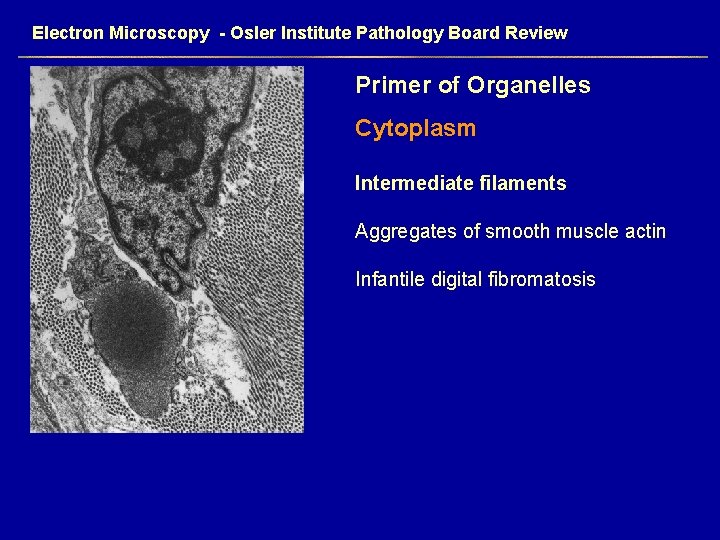

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Intermediate filaments Aggregates of smooth muscle actin Infantile digital fibromatosis

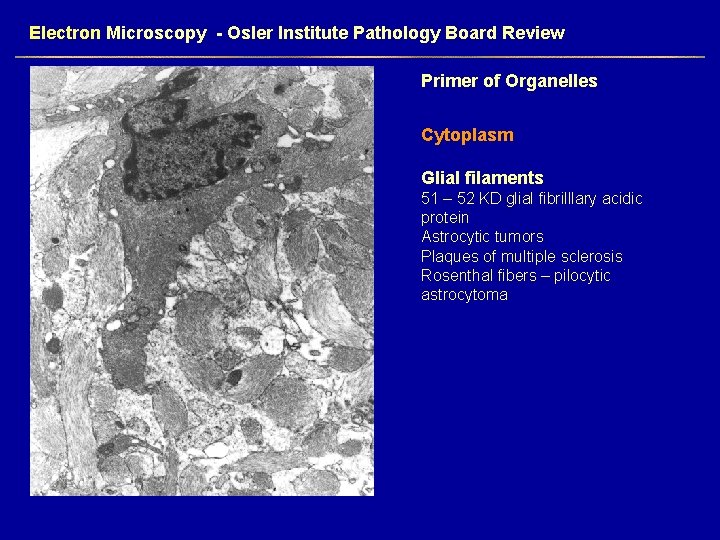

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Glial filaments 51 – 52 KD glial fibrilllary acidic protein Astrocytic tumors Plaques of multiple sclerosis Rosenthal fibers – pilocytic astrocytoma

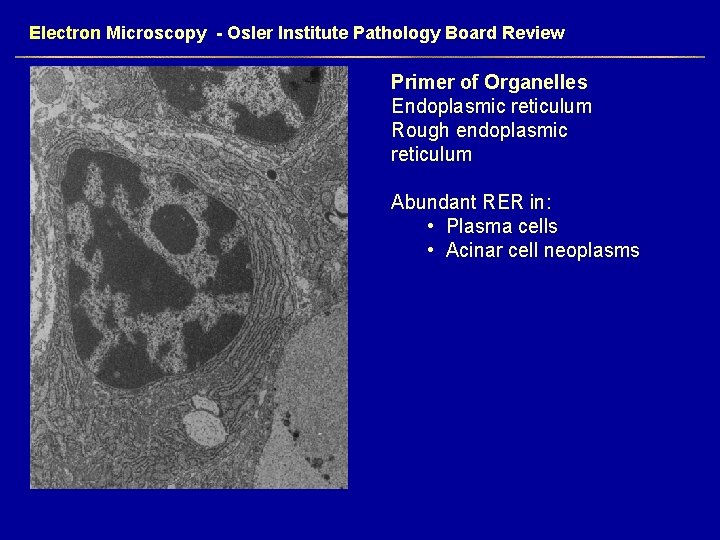

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Endoplasmic reticulum Rough endoplasmic reticulum Abundant RER in: • Plasma cells • Acinar cell neoplasms

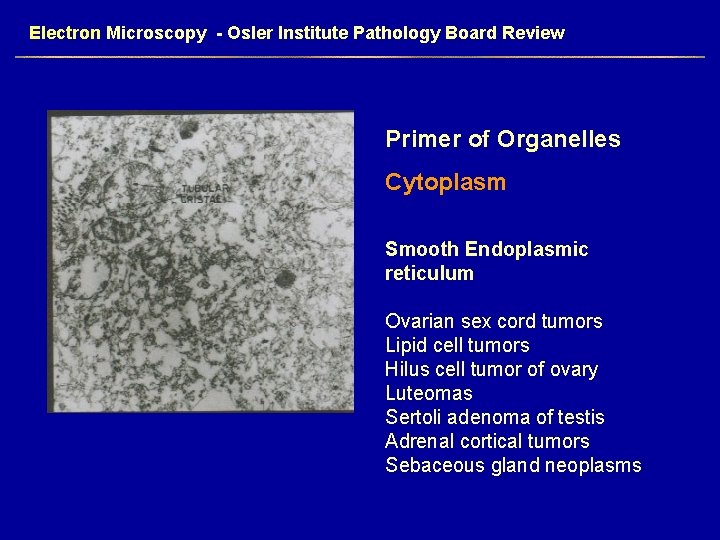

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Smooth Endoplasmic reticulum Ovarian sex cord tumors Lipid cell tumors Hilus cell tumor of ovary Luteomas Sertoli adenoma of testis Adrenal cortical tumors Sebaceous gland neoplasms

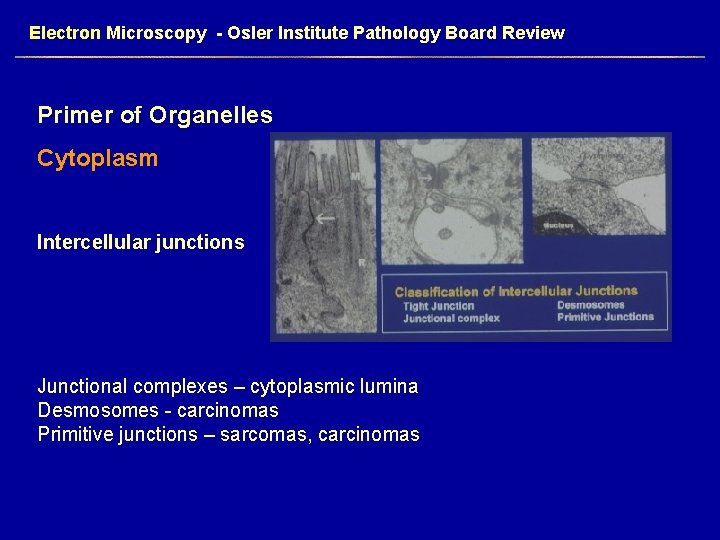

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Intercellular junctions Junctional complexes – cytoplasmic lumina Desmosomes - carcinomas Primitive junctions – sarcomas, carcinomas

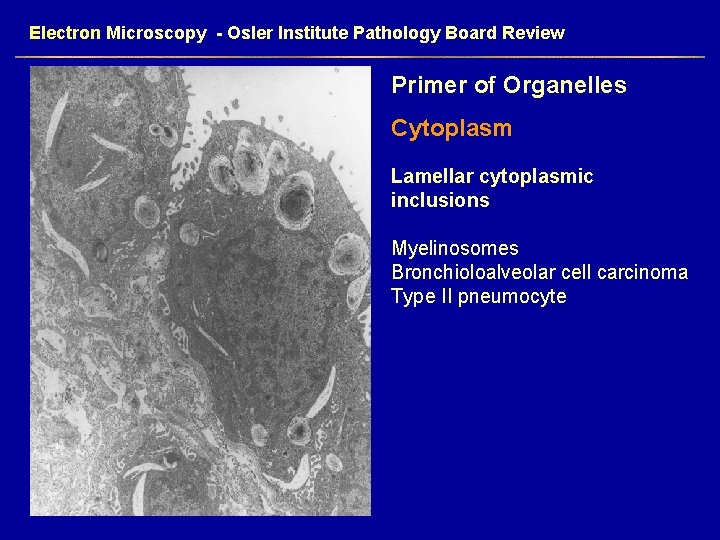

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Lamellar cytoplasmic inclusions Myelinosomes Bronchioloalveolar cell carcinoma Type II pneumocyte

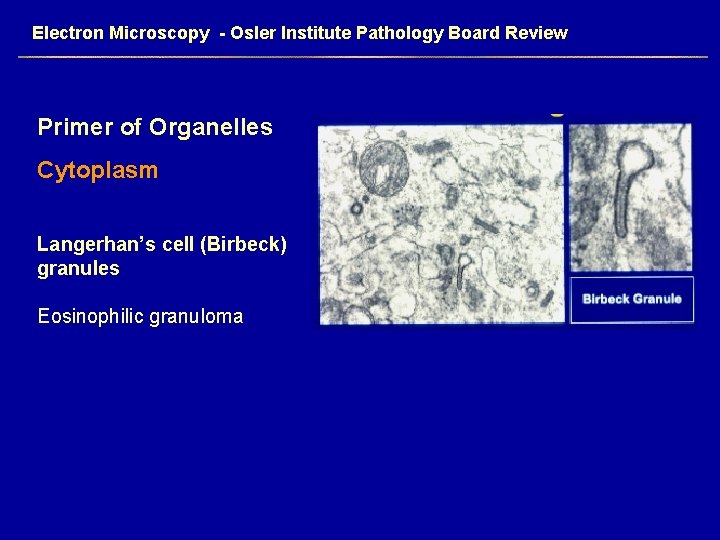

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Langerhan’s cell (Birbeck) granules Eosinophilic granuloma

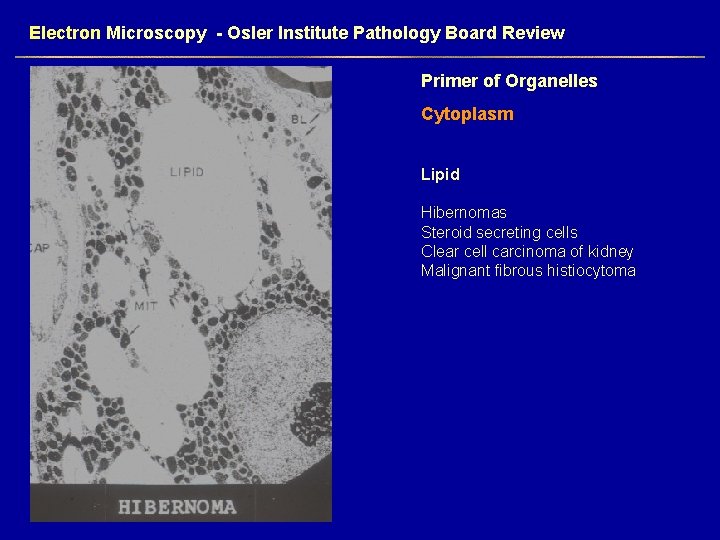

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Lipid Hibernomas Steroid secreting cells Clear cell carcinoma of kidney Malignant fibrous histiocytoma

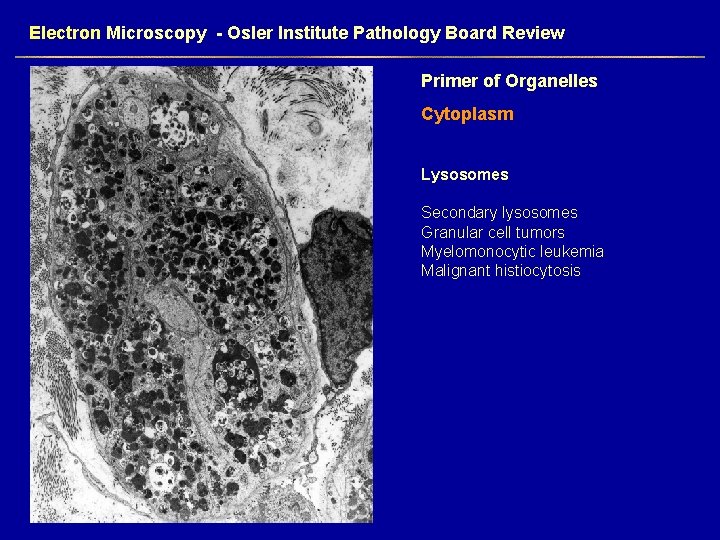

Electron Microscopy - Osler Institute Pathology Board Review Primer of Organelles Cytoplasm Lysosomes Secondary lysosomes Granular cell tumors Myelomonocytic leukemia Malignant histiocytosis
