Electromagnetic Induction Physics Mrs. Coyle
Part I • Faraday’s Law of Induction
The Flying Ring • http: //teachertube. com/view. Video. php? vid eo_id=125587
How can current be induced in a wire? • • Michael Faraday English professor 1791 - 1867 When the magnetic field that is “felt” by the wire is changed, a current is induced in the wire. http: //itp. nyu. edu/~ndl 5/electricity/images/f raday. gif
Note • When a wire is moved in a constant magnetic field, the wire “feels” a changed magnetic field and current is induced.

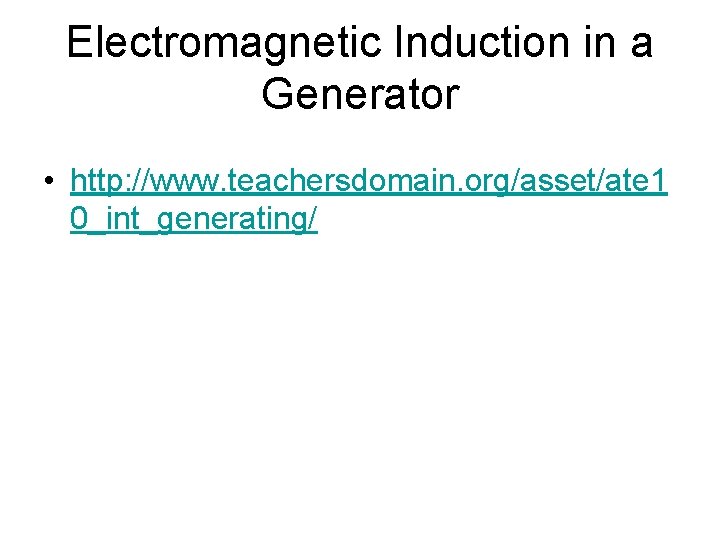

Electromagnetic Induction in a Generator • http: //www. teachersdomain. org/asset/ate 1 0_int_generating/
Faraday's Law of Induction V= - D F / Dt When the magnetic flux, F, is changed, a current with a voltage V, is induced in a wire loop.
Magnetic Flux, F • The number of magnetic (flux) field lines which pass through a given crosssectional area A.

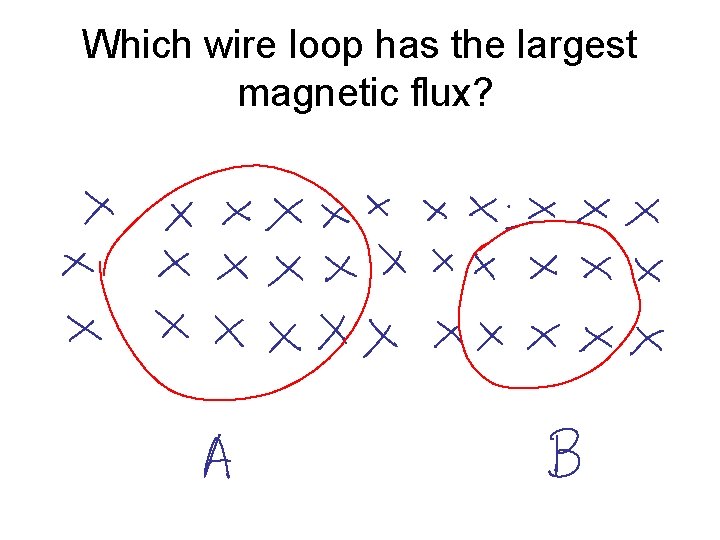

Which wire loop has the largest magnetic flux?
Which wire , 1, 2 or 3 has the largest magnetic flux?

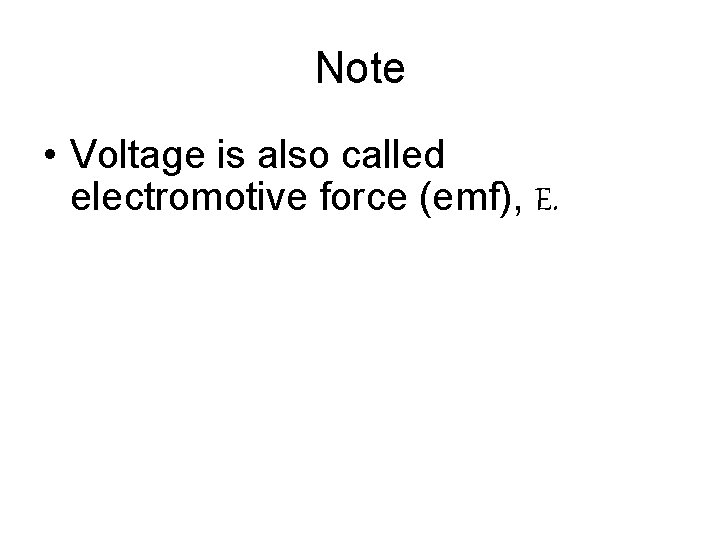

Note • Voltage is also called electromotive force (emf), E.
How can current be induced in a loop that is in a magnetic field? • By changing the magnetic flux over time.
The magnetic flux can be changed by: 1. Changing the orientation of the wire loop in which the current is to be induced (movement). 2. Changing the strength of the magnetic field (change current of wire that causes the field). 3. Changing the area of the coil.
1. Movement of the wire (Motional EMF) L V = - B Lv sinq L: length of the wire q: angle between v and B

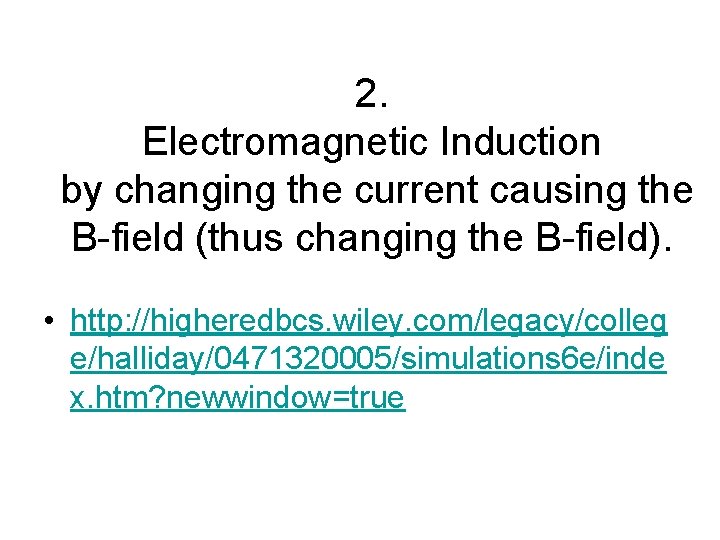

2. Electromagnetic Induction by changing the current causing the B-field (thus changing the B-field). • http: //higheredbcs. wiley. com/legacy/colleg e/halliday/0471320005/simulations 6 e/inde x. htm? newwindow=true

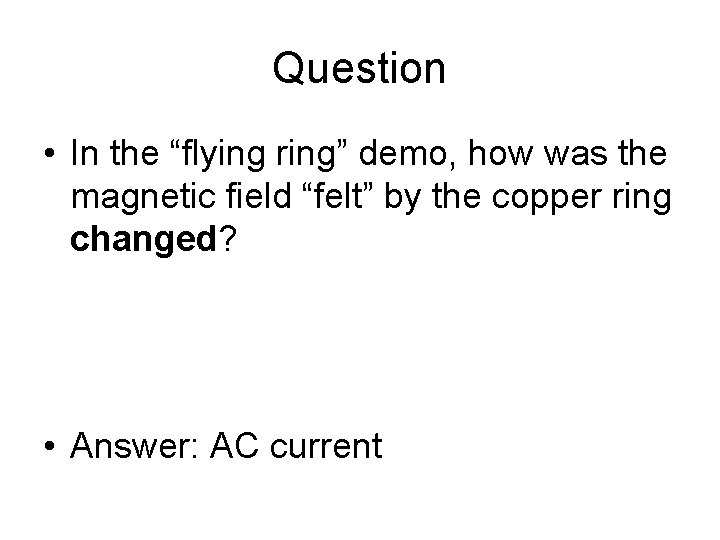

Question • In the “flying ring” demo, how was the magnetic field “felt” by the copper ring changed? • Answer: AC current

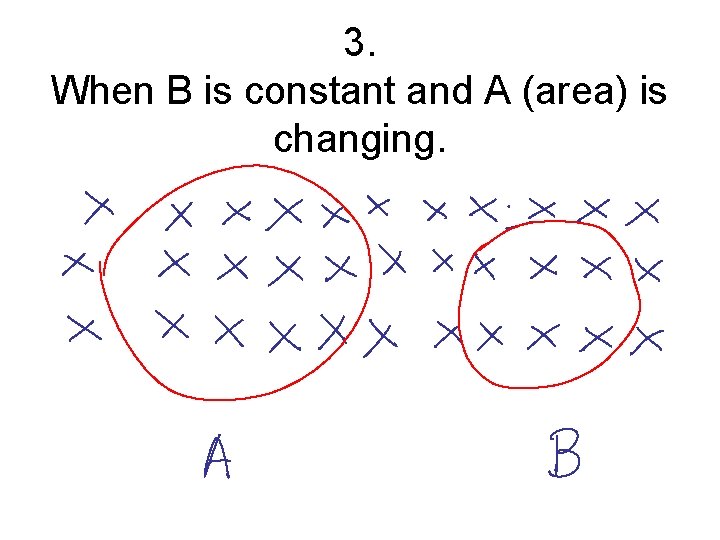

3. When B is constant and A (area) is changing.
Generator http: //www. walterfendt. de/ph 14 e/generator_e. htm
Generators at Hoover Dam http: //nrgfuture. org/Hoover_Dam_generators. jpg
3 minute video on Hoover Dam • http: //www. teachersdomain. org/resource/p hy 03. sci. phys. energy. hooverelec/
Part II • Lenz’s Law
What is the direction of the induced current? • Lenz’s Law: The induced current has a magnetic field that opposes the original change in flux. • Indicated by minus (–) sign in Faraday’s equation.

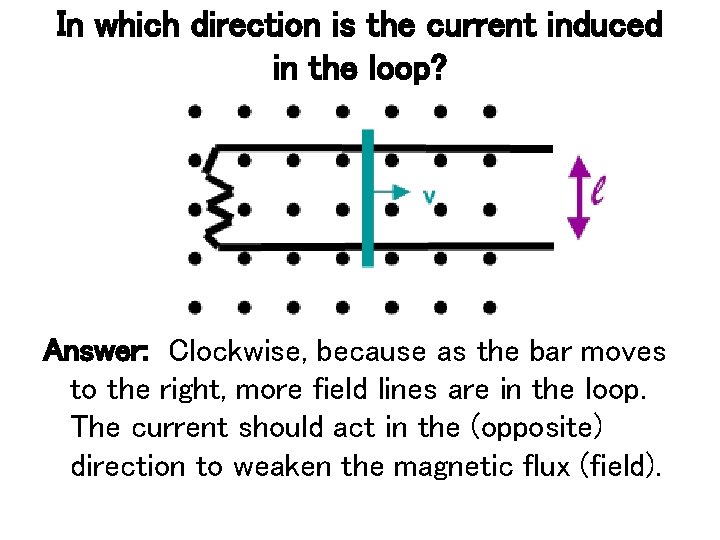

In which direction is the current induced in the loop? Answer: Clockwise, because as the bar moves to the right, more field lines are in the loop. The current should act in the (opposite) direction to weaken the magnetic flux (field).
Example: Change in Area What is the direction of the induced current? Before After • The new smaller area contains less field lines (in the area), so the current will act in direction to strengthen the magnetic field, so the current will be induced clockwise.
Applet –Change in Area • http: //dev. physicslab. org/asp/applets/javap hysmath/java/indcur/default. asp

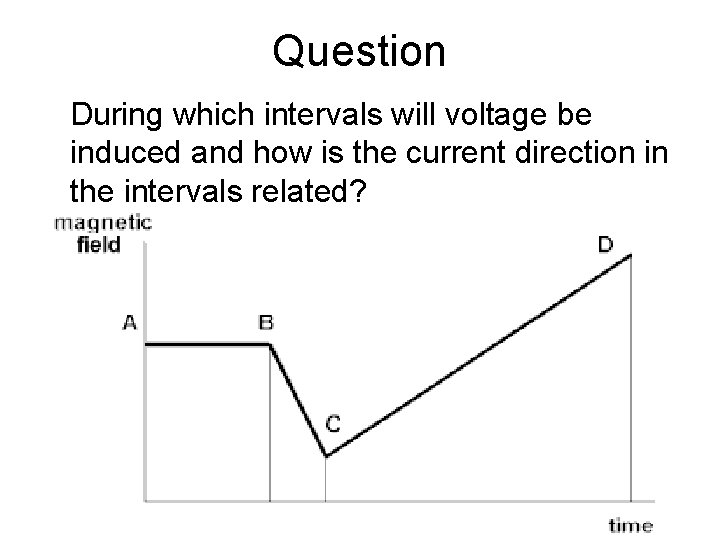

Question During which intervals will voltage be induced and how is the current direction in the intervals related?

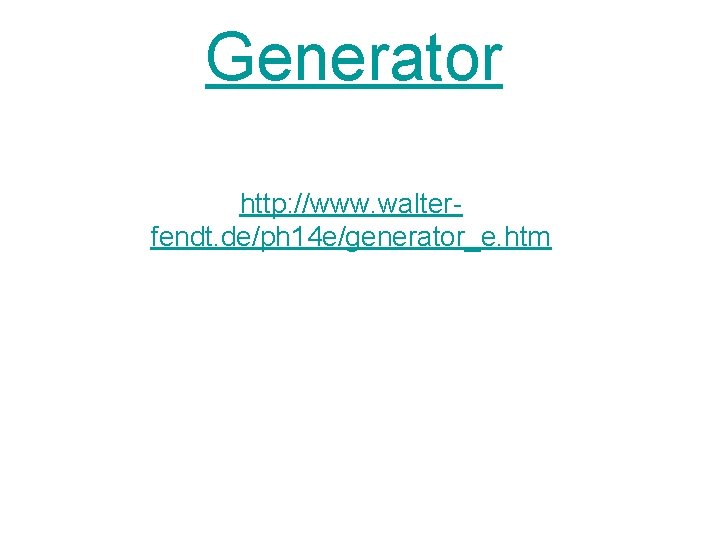

Generator http: //www. walterfendt. de/ph 14 e/generator_e. htm
