Electrochemistry Redox Oxidation Reduction Potato Clock My name

Electrochemistry Redox Oxidation / Reduction

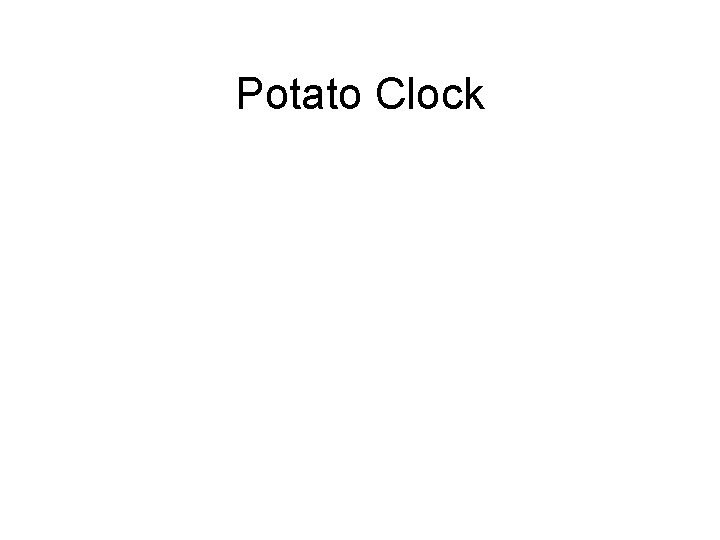

Potato Clock

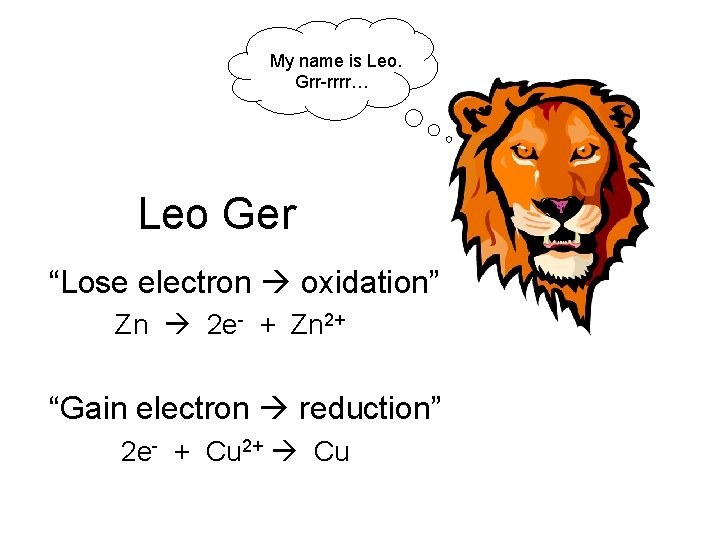

My name is Leo. Grr-rrrr… Leo Ger “Lose electron oxidation” Zn 2 e- + Zn 2+ “Gain electron reduction” 2 e- + Cu 2+ Cu

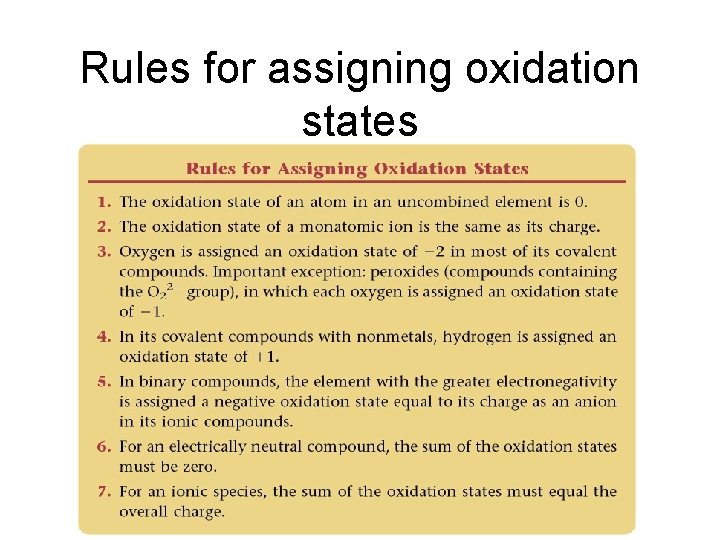

Rules for assigning oxidation states

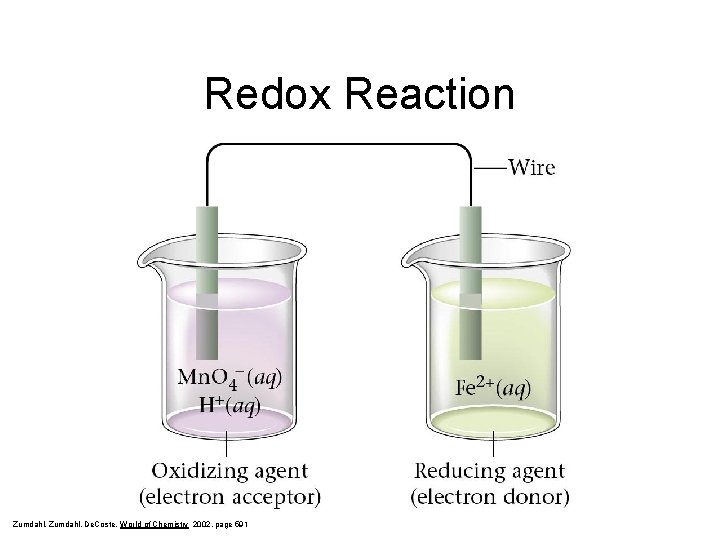

Redox Reaction Zumdahl, De. Coste, World of Chemistry 2002, page 591

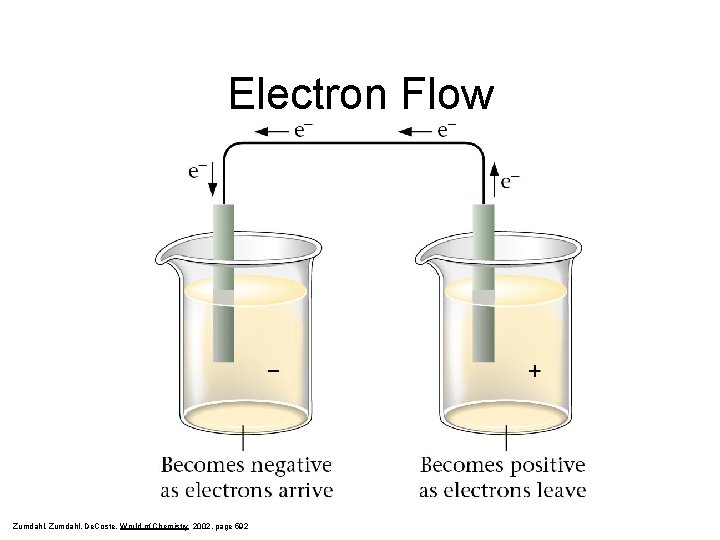

Electron Flow Zumdahl, De. Coste, World of Chemistry 2002, page 592

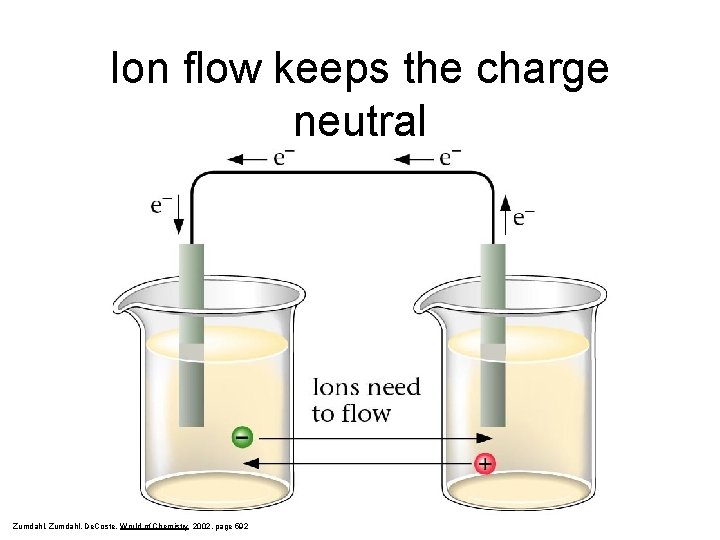

Ion flow keeps the charge neutral Zumdahl, De. Coste, World of Chemistry 2002, page 592

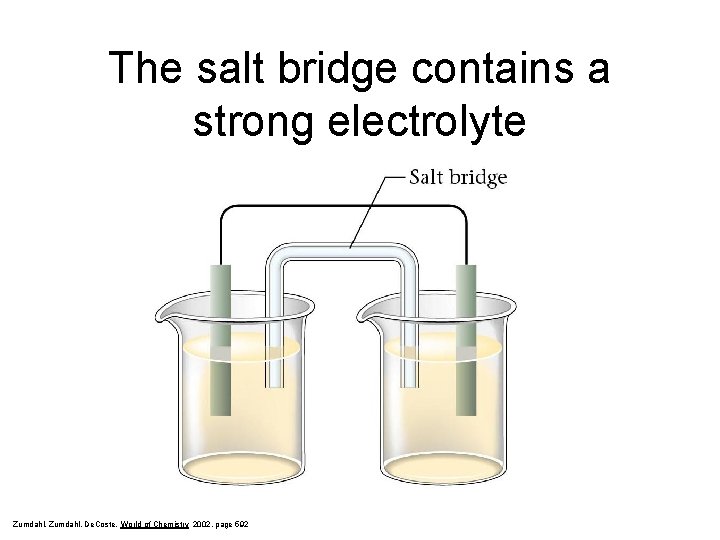

The salt bridge contains a strong electrolyte Zumdahl, De. Coste, World of Chemistry 2002, page 592

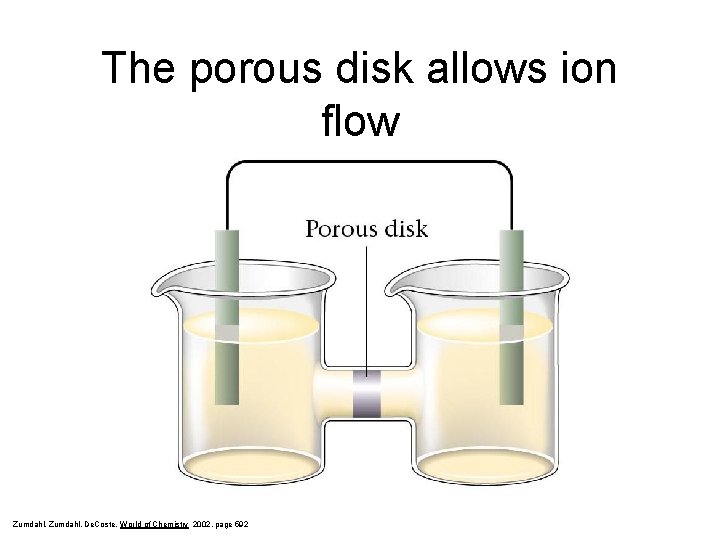

The porous disk allows ion flow Zumdahl, De. Coste, World of Chemistry 2002, page 592

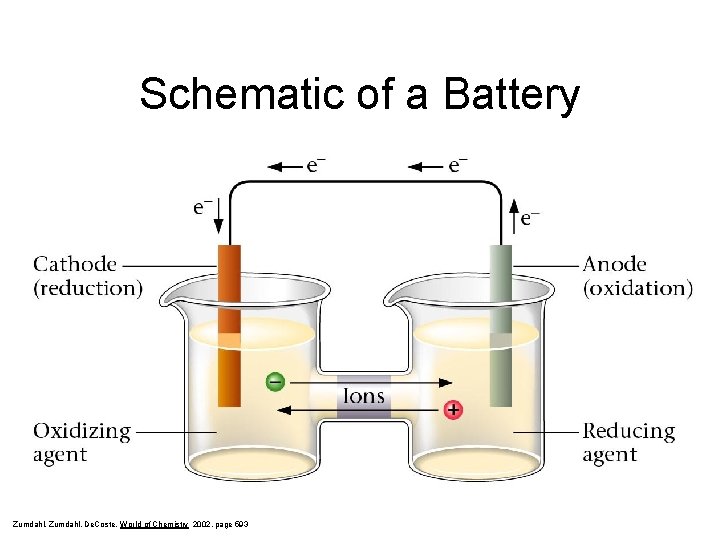

Schematic of a Battery Zumdahl, De. Coste, World of Chemistry 2002, page 593

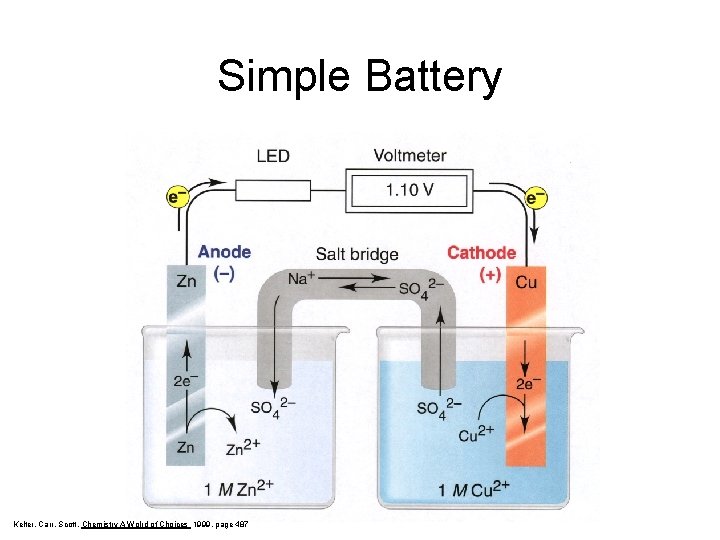

Simple Battery Kelter, Carr, Scott, Chemistry A Wolrd of Choices 1999, page 487

Redox of a Battery Kelter, Carr, Scott, Chemistry A Wolrd of Choices 1999, page 487

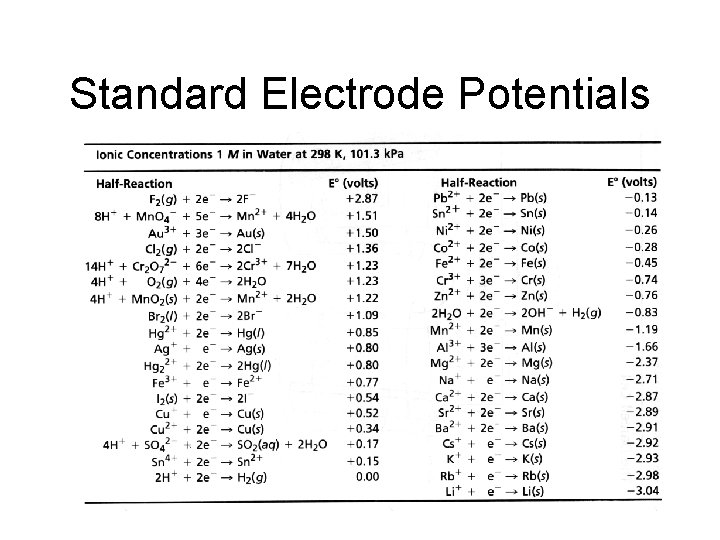

Standard Electrode Potentials

Types of Batteries • • • Lead Ni-cad Alkaline Rechargeable Mercury Lithium

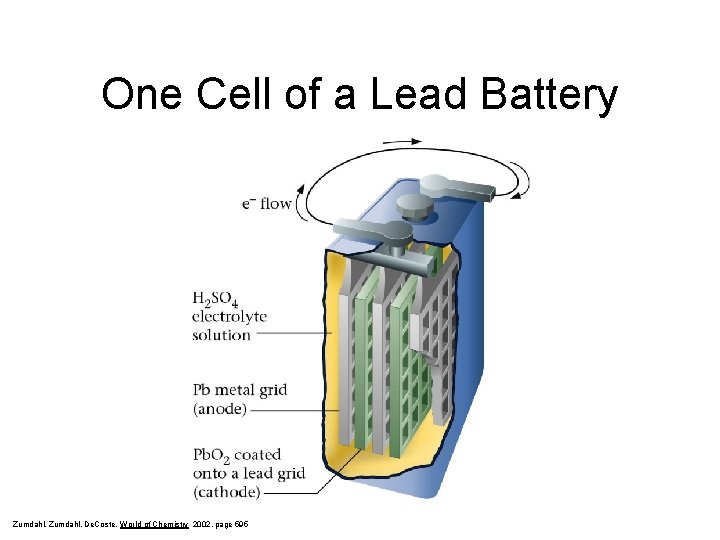

One Cell of a Lead Battery Zumdahl, De. Coste, World of Chemistry 2002, page 595

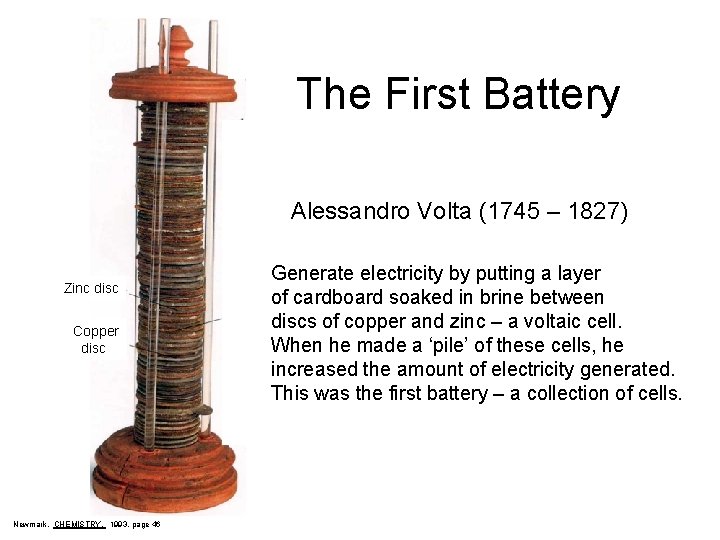

The First Battery Alessandro Volta (1745 – 1827) Zinc disc Copper disc Newmark, CHEMISTRY, 1993, page 46 Generate electricity by putting a layer of cardboard soaked in brine between discs of copper and zinc – a voltaic cell. When he made a ‘pile’ of these cells, he increased the amount of electricity generated. This was the first battery – a collection of cells.

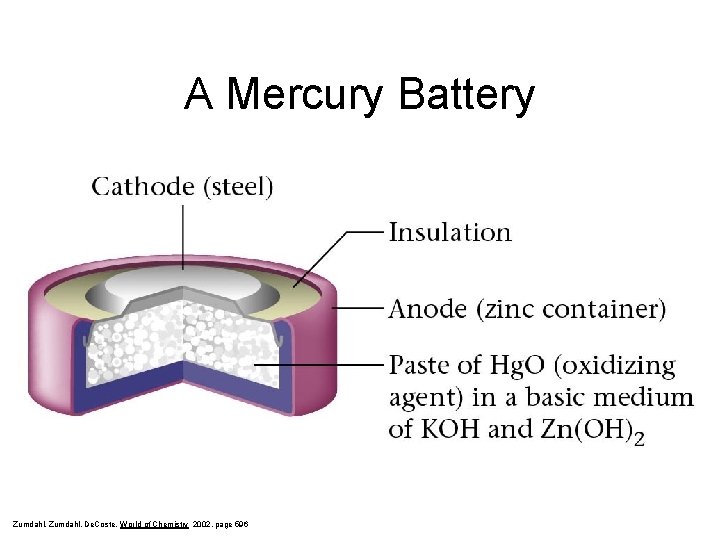

A Mercury Battery Zumdahl, De. Coste, World of Chemistry 2002, page 596

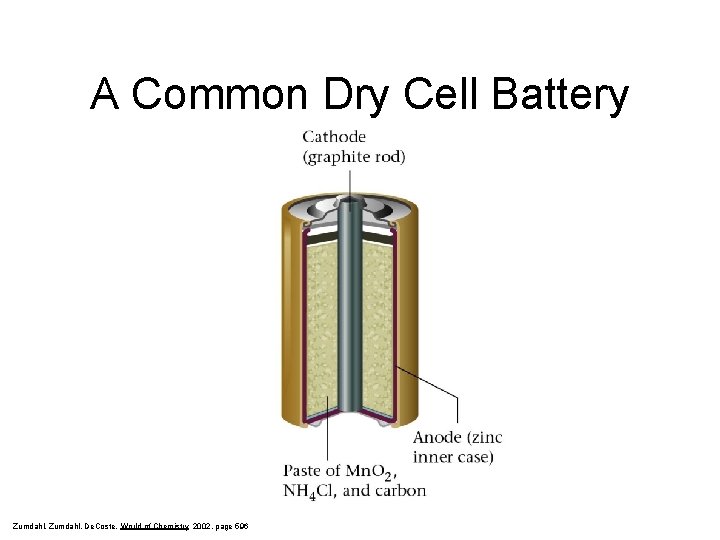

A Common Dry Cell Battery Zumdahl, De. Coste, World of Chemistry 2002, page 596

Electroplating

Cathodic Protection of an Underground Pipe Zumdahl, De. Coste, World of Chemistry 2002, page 598
