Electrochemical prosses 4 The electrochemical processes are called
- Slides: 65
Electrochemical prosses
4 The electrochemical processes are called redox reactions which is accompanied by the release or absorption of electricity. 4 The electrodes are the main part of the electrochemical processes. 4 The electrode is a conductive material (metal, carbon) in contact with an electrolyte.
Redox processes are the chemical processes associated with the electrons transfer Zn + Cu+2 = Zn+2 + Cu Red 1 + Ox 2 = Ox 1 +Red 2 Oxidation: Red 1 - ne = Ox 1 Reduction: Ox 2 + ne = Red 2 symbolic notation: Ox 1/Red 1; Ox 2/Red 2 Zn+2/Zn ; Cu+2/Cu
Ox 1/Red 1 Ox 2/Red 2 Zn+2/Zn Cu+2 / Cu An electric double layer is formed at the interface as due to release of metal ions (Zn +2 / Zn), and (Cu +2 / Cu) by adsorption of metal ions on the surface Zn - 2 e = Zn 2+ Cu - 2 e = Cu 2+
Equilibrium is established when the electrode potential reaches a value which is capable of stopping the oxidation (or reduction), which occurs the first time after the immersion of the metal in solution

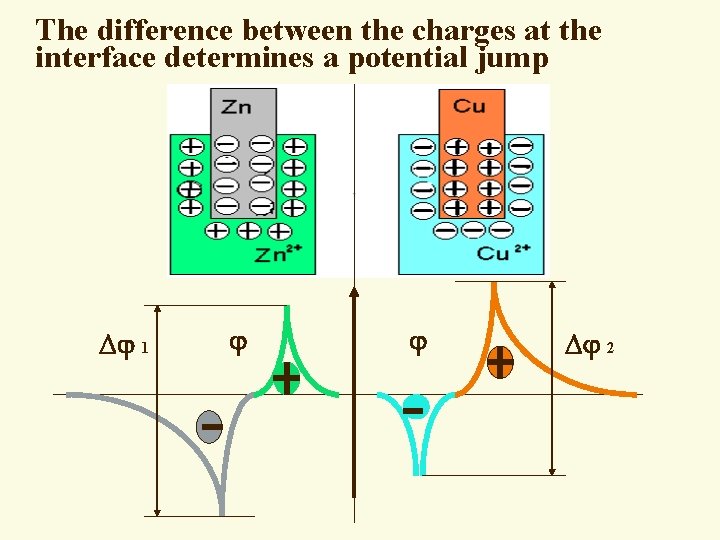

The difference between the charges at the interface determines a potential jump 1 2
§ The magnitude of the potential difference is called an electrode potential ( ) depends on: § the nature of the electrode material § the concentrations of ions in solution § temperature § PH
Ø The absolute value of an electrode potential can not be measured Ø The electrode potential measured under standard conditions (T = 298 K, P = 1 atm, C = 1 M) with respect to another electrode called a standard electrode potential
Standard hydrogen electrode + 2 H +2 e H 2 °(2 H /H ) = 0 V + 2 under standard conditions P(Н ) = 105 Pа T = 298 K C = 1 mol/L 2
Measurement of an electrode potential Н - 2 е = 2 Н+
A series of redox potentials Half-reaction 0, V Br 2 + 2 e = 2 Br Br. O 3 + 5 H+ + 4 e = HBr. O + 2 H 2 O HBr. O + H+ + 2 e = Br + H 2 O Cl 2 + 2 e = 2 Cl Cl. O 4 + 8 H+ + 8 e = Cl + 4 H 2 O 2 Cl. O 4 + 16 H+ + 14 e = Cl 2 + 8 H 2 O 1, 09 1, 45 1, 33 1, 36 1, 34 Cl. O 4 + 4 H 2 O + 8 e = Cl + 8 OH 0, 56
A series of redox potentials of metals Elecrode process о, V К - е- = К+ - 2, 92 Ba - 2 e- = Br 2+ - 2, 91 Ca - 2 e- = Ca 2+ - 2, 87 Na - e- = Na+ - 2, 81 Mg - 2 e- = Mg 2+ - 2, 36 Be - 2 e- = Be 2+ - 1, 85 Al - 3 e- = Al 3+ - 1, 66 Mn - 2 e- = Mn 2+ - 1, 18 Zn - 2 e- = Zn 2+ - 0, 76 Fe - 2 e- = Fe 2+ - 0, 44 Cd - 2 e- = Cd 2+ - 0, 40 Co - 2 e- = Co 2+ - 0, 28 Ni - 2 e- = Ni 2+ - 0, 25 Sn - 2 e- = Sn 2+ - 0, 14 Pb - 2 e- = Pb 2+ - 0, 13 H 2 - 2 e- = 2 H+ 0, 00 Bi - 3 e- = Bi 3+ 0, 22 Cu - 2 e- = Cu 2+ 0, 34 Ag - e- = Ag+ 0, 80 Hg - 2 e- = Hg 2+ 0, 85 Pt - 2 e- = Pt 2+ 1, 19 Au - 3 e- = Au 3+ 1, 50

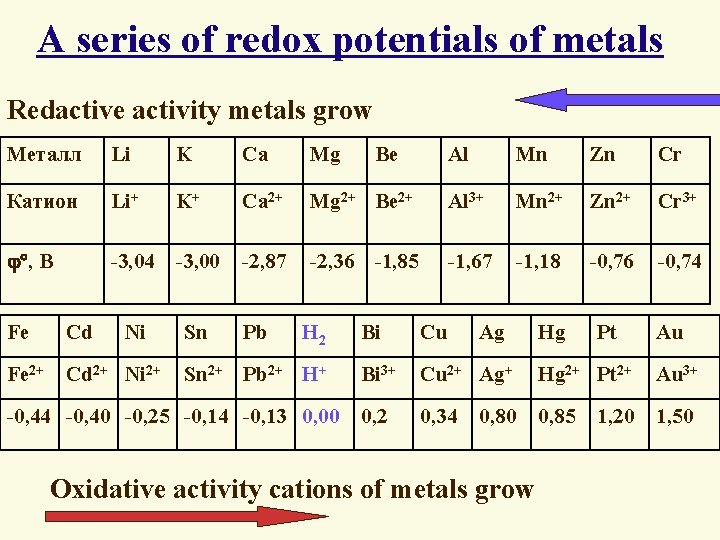

A series of redox potentials of metals Redactive activity metals grow Металл Li K Ca Mg Катион Li+ K+ Ca 2+ , В -3, 04 -3, 00 -2, 87 Ni Sn Fe Cd Fe 2+ Cd 2+ Ni 2+ Pb Al Mn Zn Cr Mg 2+ Be 2+ Al 3+ Mn 2+ Zn 2+ Cr 3+ -2, 36 -1, 85 -1, 67 -1, 18 -0, 76 -0, 74 H 2 Sn 2+ Pb 2+ H+ -0, 44 -0, 40 -0, 25 -0, 14 -0, 13 0, 00 Be Bi Cu Ag Bi 3+ Cu 2+ Ag+ Hg 2+ Pt 2+ Au 3+ 0, 2 0, 34 0, 85 1, 50 0, 80 Oxidative activity cations of metals grow Hg Pt 1, 20 Au
At series of redox potentials of metals : Ø Each metal displaces another metal from salt solution which have a larger value of the electrode potential Al + Hg(NO 3)2 = Al(NO 3)3 + Hg Ø Metals having (-) potentials displace hydrogen from acid solutions of weak oxidants Zn + H 2 SO 4(dil. ) = Zn. SO 4 + H 2
Gibs Energy for electrochemical processes G° = -z. F ° (stand. cond. ) G = -z. F (unstand. cond. ) z - the least common multiple of the number of electrons in the two half-reactions F – Faraday’s number = cathod - anode

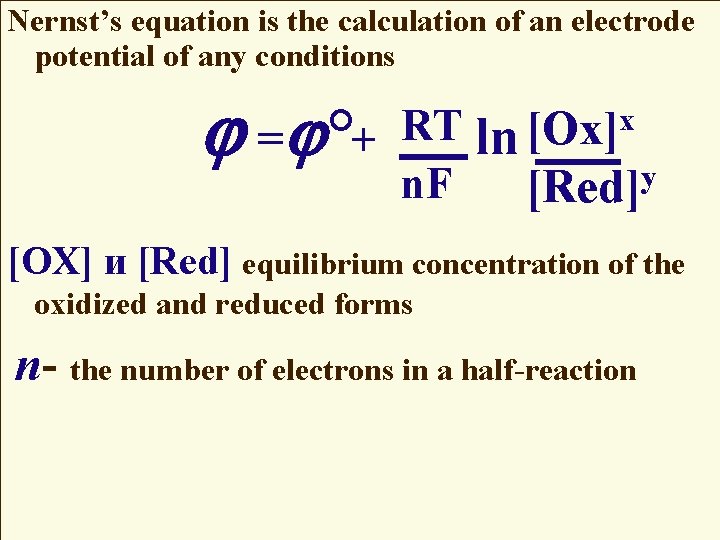

Nernst’s equation is the calculation of an electrode potential of any conditions x RT [Ox] = °+ ln y n. F [Red] [OX] и [Red] equilibrium concentration of the oxidized and reduced forms n- the number of electrons in a half-reaction
For metal electrode . -1 F =96487 k. L mol , -1 -1 R=8, 31 J mol K , T =298 K
Chemical power sources 4 Galvanic Cells 4 Concentration elements 4 Fuel cells 4 Batteries 4 Due to the direct conversion of chemical energy into electrical Chemical power sources have a high coefficient of performance (about 70 -90%)
Galvanic Cell
The electrochemical cell comprises: anode (oxidation), cathode (the recovery process). Symbolic notation: (anode)(-)Zn|Zn 2+||Cu 2+|Cu(+) (cathode) or (-)Zn|Zn. SO 4||Cu. SO 4|Cu(+)
4 The cause of the electric current flow in a galvanic cell is the difference between the electrode potentials (electromotive force - EMF) two Redox systems interconnected EMF = Е = = cathode - аnode > 0 EMF = Е = (Сu) - (Zn) = 0, 34 – (-0, 76)= 1, 1 V G = -z. FЕ
Modern Chemical power sources 4 They have a common electrolyte (alkali) and steel as a construction material buildings and shunts. 4 Material (-) electrode (reducing agent) used Mg, Zn, Pb, Fe, Cd. 4 Material (+) electrode (oxidant) was used Pb. O 2, Hg. O, Mn. O 2, Cu. Cl, etc.

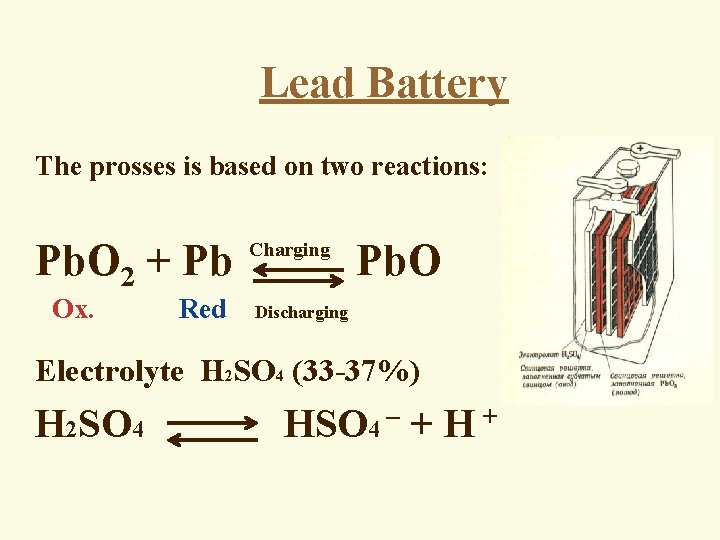

Lead Battery The prosses is based on two reactions: Pb. O 2 + Pb Pb. O Charging Ox. Red Discharging Electrolyte H 2 SO 4 (33 -37%) H 2 SO 4 HSO 4 + H +
Device Battery (-)Pb│Pb. SO 4│H 2 SO 4 │ Pb. O 2 │ Pb(+) 4 Cellular alloy plate (Pb + trace of Sb). 4 A mixture of glycerol with Pb. O 2 is filled in the cell 4 Plates are collected in batteries and dipped in a solution H 2 SO 4 ( = 1, 18 g/cm 3). 4 Battery is charged by passing an electric current.
Charging Battery 4 (-) cathode: Pb. SO 4 + 2 e = Pb + SO 42 4 (+) anode: Pb. SO 4 - 2 e + 2 H 2 O = Pb. O 2 + SO 42 + 4 H+ Discharging Battery (-) anode: Pb 2 e + SO 42 = Pb. SO 4 (+) cathode: Pb. O 2 + 2 e + SO 42 + 4 H+= Pb. SO 4+ 2 H 2 O For a charged battery: = 2, 1 V When the battery is charging, electrolyte density increases and decreases during discharge. Knowing the density we can judge the state of charge.

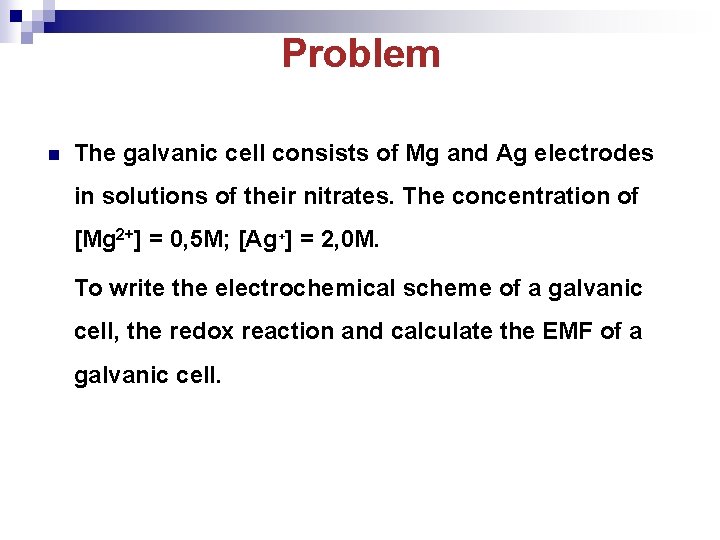

Problem n The galvanic cell consists of Mg and Ag electrodes in solutions of their nitrates. The concentration of [Mg 2+] = 0, 5 M; [Ag+] = 2, 0 M. To write the electrochemical scheme of a galvanic cell, the redox reaction and calculate the EMF of a galvanic cell.
Corrosion of Metals
n Corrosion of metals - is the process of spontaneous fracture of metals under the influence of the environment, which is accompanied by the release of energy and material dispersion n Corrosion processes are irreversible, in accordance with the 2 nd law of thermodynamics (entropy increase)
Classification of corrosion processes according to mechanism: 1) chemical a) in solution nonelectrolytes b) gas 2) electrochemical a) atmospheric, b) soil, c) stray currents
n Chemical and electrochemical corrosion is determined by Gibbs free energy change: G°= - RTln. K = - n. F ° n Chemical corrosion is determined by the equilibrium constant of reversible heterogeneous reactions n Electrochemical corrosion is determined by an electrical work n The kinetics process is very important
Chemical corrosion n n occurs in corrosive atmospheres at high temperatures aggressive organics nonelectrolytes x. Me + y. O 2 = Mex. Oy G° < 0 n The examples: n destruction of combustion engines destruction of cutting tools gas turbine blades, nozzles, the exhaust nozzles n n
Electrochemical corrosion - is the n n destruction of the metal in the electrolyte medium. Mechanism of the process: anodic oxidation of the metal: Ме - nе = Меn+ cathodic reduction of oxidant: Ox + ne = Red O 2 + 2 H 2 O + 4 e = 4 OH 2 H+ + 2 e = H 2

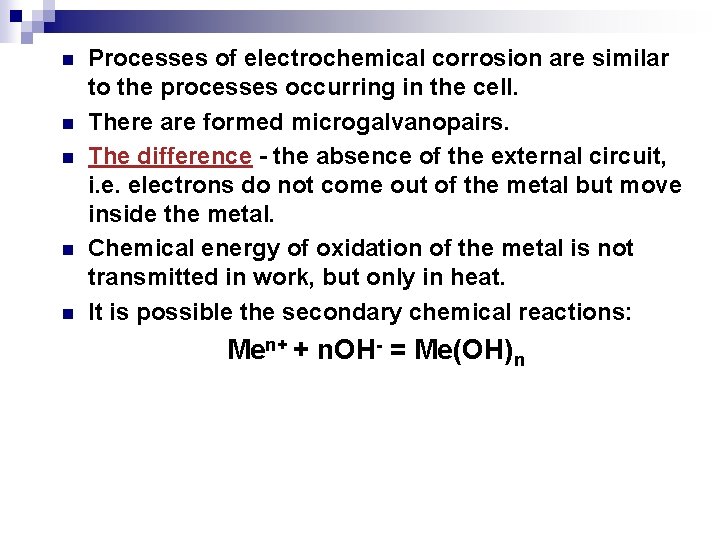

n n n Processes of electrochemical corrosion are similar to the processes occurring in the cell. There are formed microgalvanopairs. The difference - the absence of the external circuit, i. e. electrons do not come out of the metal but move inside the metal. Chemical energy of oxidation of the metal is not transmitted in work, but only in heat. It is possible the secondary chemical reactions: Men+ + n. OH- = Me(OH)n

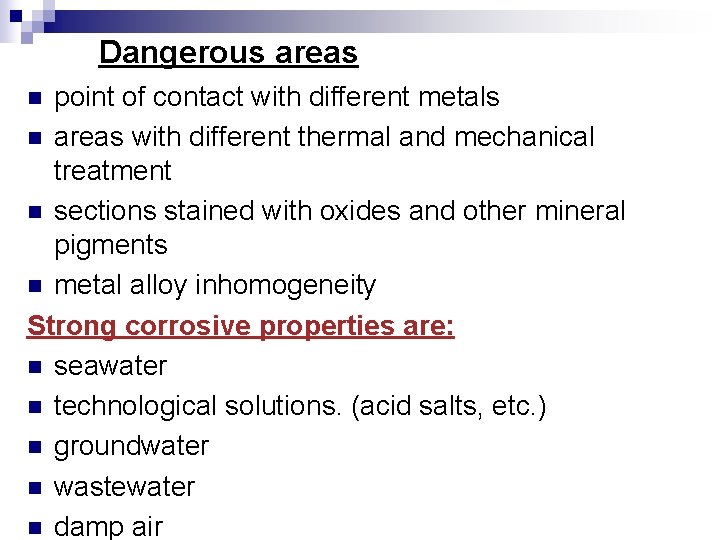

Dangerous areas point of contact with different metals n areas with different thermal and mechanical treatment n sections stained with oxides and other mineral pigments n metal alloy inhomogeneity Strong corrosive properties are: n seawater n technological solutions. (acid salts, etc. ) n groundwater n wastewater n damp air n
Corrosion of iron by atmospheric oxygen dissolved in the water air rust Drop of water Ion (Fe)
Soil corrosion of Fe under acidic conditions Mikrogalvanich cell scheme: (-)Fe|Fe 2+, 2 H+, СO 32 -, SO 42 -|Fe(+) (- ) Fe - 2 e = Fe 2 (+ ) 2 H+ + 4 e = H 2 Fe 2 + SO 42 - = Fe SO 4
Corossion of Fe together with Cu H+ Cu cathode Fe-anode H+ Anode(-) Fe | H 2 SO 4 | Cu (+)Cathode °(Fe /Fe) = - 0, 44 V (+)K 2 H+ + 2 e = H 2 °(2 H /H ) = 0, 0 V A(-) Fe - 2 e = Fe 2+ 2+ + 2
Methods of Corrosion Protection n n n Creating a rational constructions Impact on the environment Inhibitors Protective Coating: lubrication varnishes, paint, polymers, oxidation, phosphating, metal coatings Protection of the external potential: tread, the current source
Anodic protection Example: galvanized iron air Drop of water

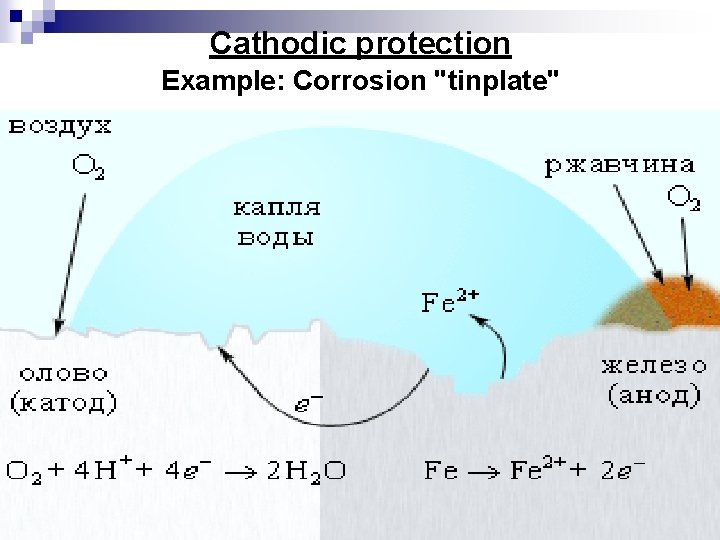

Cathodic protection Example: Corrosion "tinplate"

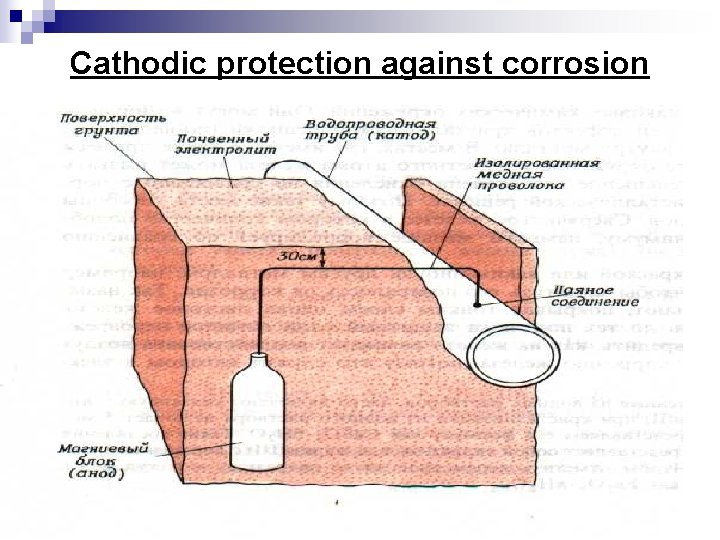

Cathodic protection against corrosion
Electrolysis 4 Electrolysis is not a spontaneous process ( G 0) 4 This is a redox process called by the electric current passing through a solution or molten electrolyte 4 The driving force is the electrolysis voltage applied to the electrodes, which causes the moving of cations and anions towards the cathode and the anode
а > equil. Anode (+) The current source Inert electrodes cathode< equil. Cathode (-)

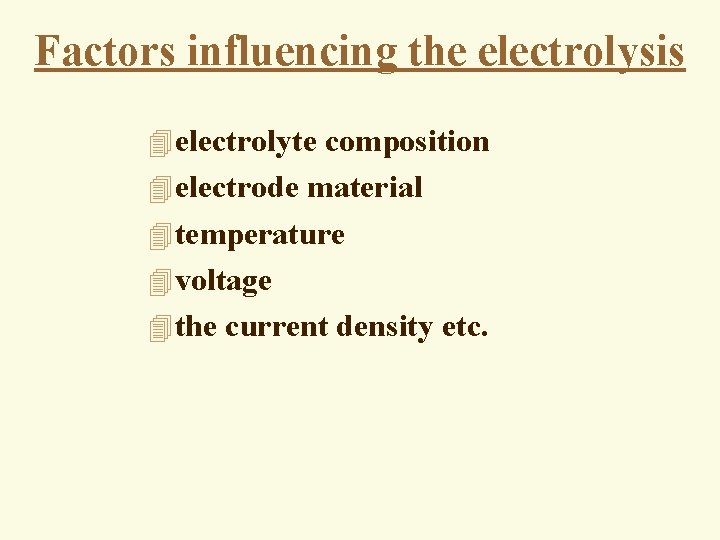

Factors influencing the electrolysis 4 electrolyte composition 4 electrode material 4 temperature 4 voltage 4 the current density etc.
4 Discharging occurs simultaneously with cations discharging anions; therefore externally imposed voltage is divided into two parts extending at an anodic oxidation and cathodic reduction of the ions or molecules sometimes.
Electrolysis of a fused salt 2 Cl�-2 e=Cl 2 Na+ + e=Na 2 Na. Cl = 2 Na + Cl 2
Sequence of ion discharging If the solution of two or more kinds of cations and anions is most likely the process with a minimum expenditure of energy 4 At the cathode, reducing cation in order to reduce their potential 4 Anions are oxidized at the anode in the ascending order of their potential
At series of redox potentials of metals The order of the oxidation Металл Li K Ca Mg Катион Li+ K+ Ca 2+ , В -3, 04 -3, 00 -2, 87 Ni Sn Fe Cd Fe 2+ Cd 2+ Ni 2+ Pb Al Mn Zn Cr Mg 2+ Be 2+ Al 3+ Mn 2+ Zn 2+ Cr 3+ -2, 36 -1, 85 -1, 67 -1, 18 -0, 76 -0, 74 H 2 Sn 2+ Pb 2+ H+ -0, 44 -0, 40 -0, 25 -0, 14 -0, 13 0, 00 Be Bi Cu Ag Bi 3+ Cu 2+ Ag+ Hg 2+ Pt 2+ Au 3+ 0, 2 0, 34 0, 85 1, 50 0, 80 Hg Pt 1, 20 Au The order of the reduction
Electrolysis of a water solution
Water, as part of the electrolyte solution in the electrode, participates processes 4 Oxidation of water: 2 H 2 O - 4 e = O 2 + 4 H+ o = + 1, 23 V 4 Portentials: F–, SO 42 -, NO 3 -, PO 43 -, CO 32 - etc. > than + 1, 23 В 4 Consequently, these anions can not be oxidized in aqueous solution
Reduction of water: 2 H 2 O + 2 e = H 2 + 2 OH- 4 in the alkali medium: o = – 0, 828 V 4 In the neutral medium: = – 0, 41 V 4 Potentials of the ions of alkali and alkaline -earth metals, Al, Ti < potential than hydrogen reduction. 4 Consequently, these metals can not be obtained by electrolysis of aqueous solutions of their salts
Металл Li K Ca Mg Катион Li+ K+ Ca 2+ , В -3, 04 -3, 00 -2, 87 Ni Sn Fe Cd Fe 2+ Cd 2+ Ni 2+ Pb Al Mn Zn Cr Mg 2+ Be 2+ Al 3+ Mn 2+ Zn 2+ Cr 3+ -2, 36 -1, 85 -1, 67 -1, 18 -0, 76 -0, 74 H 2 Sn 2+ Pb 2+ H+ -0, 44 -0, 40 -0, 25 -0, 14 -0, 13 0, 00 Be Bi Cu Ag Bi 3+ Cu 2+ Ag+ Hg 2+ Pt 2+ Au 3+ 0, 2 0, 34 0, 85 1, 50 0, 80 Hg Pt 1, 20 Au At the cathode: Metal can not be restored in the solution, and recovering water Recovering metal and water Recovered metal
On the inert anode: 4 Simple anions are oxidized in the ascending order of their potential not exceeding +1, 5 V (S 2 , I , Br , Cl ) 4 If the solution contains oxoanions then oxidized not they, but the water molecules: H 2 O - 2 e = 2 H+ + O 2 4 In alkaline solutions OH � ions are oxidized: 4 OH - 4 e = O 2 + 2 H 2 O
Electrolysis with an active anode 4 The anode is made of metal which is capable to oxidize before the particles in the solution cathode: Cu 2+ + 2 e = Cuo anode (Cu): Cuo - 2 e = Cu 2+
Metal refining Purification of copper
EXAMPLES Electrolysis of aqueous salt solutions with the inert anode Na. Cl Na+ + Cl K (-) 2 H 2 O + 2 e = H 2 + 2 OH A (+) 2 Cl - 2 e = Cl 2 2 H 2 O + 2 Cl = H 2 + 2 OH + Cl 2 H 2 O + 2 Na. Cl = H 2 + 2 Na. OH + Cl 2
K 2 SO 4 2 K+ + SO 42 K (-) 2 H 2 O + 2 e = H 2 + 2 OH A (+) 2 H 2 O - 4 e = O 2 + 4 H+ 6 H 2 O = 2 H 2 + O 2 + 4 OH + 4 H+ 2 H 2 O = 2 H 2 + O 2
2+ 2 Zn. SO 4 Zn + SO 4 K (-) Zn 2+ + 2 e = Zn 2 H 2 O + 2 e = H 2 + 2 OH A (+) 2 H 2 O -4 e = O 2 + 4 H+ Zn 2++4 H 2 O= Zn + H 2 + O 2 + 2 OH + 4 H+ Zn. SO 4+ 2 H 2 O = Zn + H 2 + O 2 + H 2 SO 4
The electrolysis of aqueous salt solutions with the anode active 2+ Сu. Cl 2 Cu + 2 Cl K (-) Cu 2+ + 2 e = Cu A (+) Cu - 2 e = Cu 2+
4 The lowest voltage at which electrolysis occurs (Uel), equal to the difference of Redox potentials for the half reaction: Uel. = Udecomp. = (Ox)- (Red) for Na. Cl: (Na /Na) = -2, 71 V; (Cl /Cl ) = +1, 36 V Udecomp. = 1, 36 - (-2, 71) = 4, 07 V + 2 This is the decomposition voltage

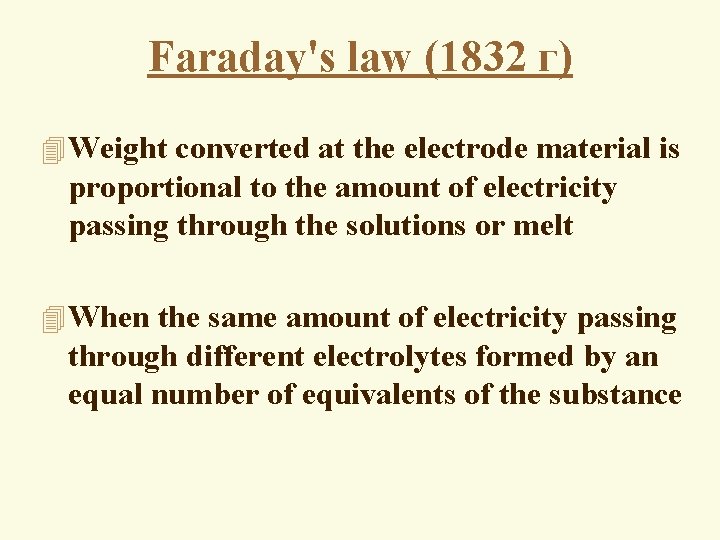

Faraday's law (1832 г) 4 Weight converted at the electrode material is proportional to the amount of electricity passing through the solutions or melt 4 When the same amount of electricity passing through different electrolytes formed by an equal number of equivalents of the substance

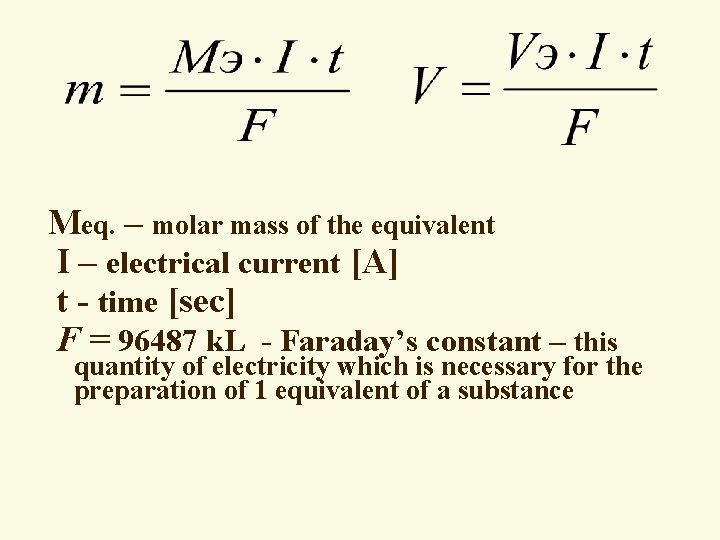

Мeq. – molar mass of the equivalent I – electrical current [A] t - time [sеc] F = 96487 k. L - Faraday’s constant – this quantity of electricity which is necessary for the preparation of 1 equivalent of a substance

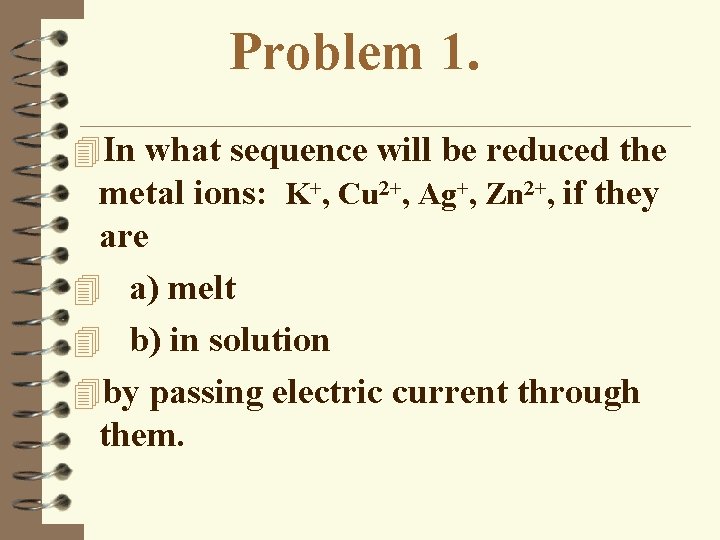

Problem 1. 4 In what sequence will be reduced the metal ions: K+, Cu 2+, Ag+, Zn 2+, if they are 4 a) melt 4 b) in solution 4 by passing electric current through them.
Problem 2. 4 Describe the electrolysis of aqueous solutions: а) Ni. Cl 2 б) Ni(NO 3)2 в) Li. Cl г) Na 3 PO 4 д) Na. OH (расплав)
Problem 3. 4 Current of 6 A runs for 1. 5 hours in a dilute solution of H 2 SO 4. Calculate the mass of decomposed water and volume H 2 and O 2 evolved at the electrodes.
