Electricity Sector Management Palestine Hebron Power Electricity Co

Electricity Sector Management Palestine Hebron Power Electricity Co.

HEPCO • Establishment • Organization Chart • Concession Area Map • 33/11 KV Substations • SW & HW Used

Establishment of Hebron Electric Power Company 2000

Concession Area Map • Total Area: 91 km² • Population: 250, 000 • Subscribers: 45, 660 Approximately Halhul Beit Inun Issa Loza Hebron Dowara Oddese Baq’a Jalajel Qilqes Aqabet Ngile

Software in Use Cash Management Fixed Assets Purchasing Account receivables Document Archiving & Control System Order Managment Inventory General Ledger Account Payable Integration Payroll and HR Billing System Logistic Modules Fleet Management Customers’ Files Electronic Archiving

HEPCo Distribution System • Existing System 11 k. V Network • Peak Load Curve • Testing Equipments • Technical Indicators • Electricity Statistics

• HEPCO Projects

• On going Projects

On going and future projects Main Power Control (MPC) Project is under Execution will be finished end of this year a. 33 underground cables (feeders) for south substation from MPC of 12 km length route. b. 11 KV underground cables system reinforcement of 20 km route c. New connection point 33 KV for Halhul d. New 33 KV connection points for 2 new feeders for (33/11 KV) substations. e. Low voltage network improvement Connection Points IEC Control Center Ras MPC Duhdah Hussein West Harayek Em Daliye Fahs MPC Under-construction

Electricity in winter •

Hebron Electric Power Co.

Renewable Energy Customer Guide Net Metering

Net Metering

Energy Conservation

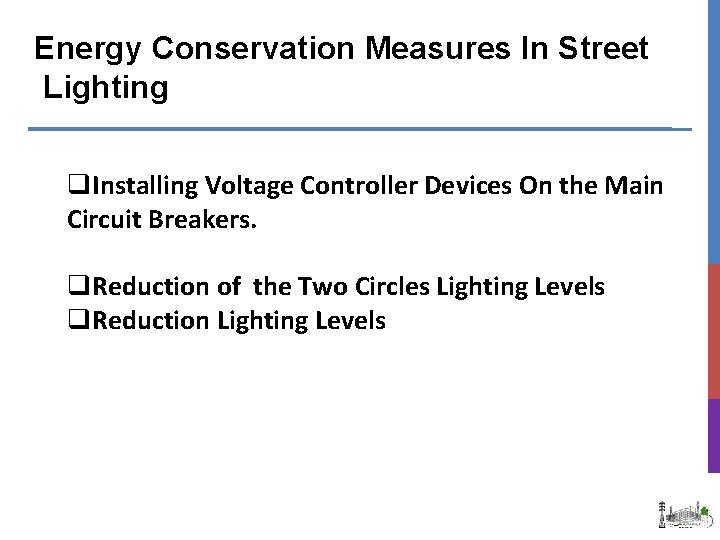

Energy Conservation Measures In Street Lighting q. Installing Voltage Controller Devices On the Main Circuit Breakers. q. Reduction of the Two Circles Lighting Levels q. Reduction Lighting Levels

LED Street Lighting Project 17

On Going Project: • 190 LED 152 watt lamps replaced 250 watt • HPS lamps in Hawwoz Street Future Project: New street Marloqa Street will have new Led Luminaries after Months

4 proposed projects to financed by ESCWA as part of RE future Projects in Hebron area Proposed Projects

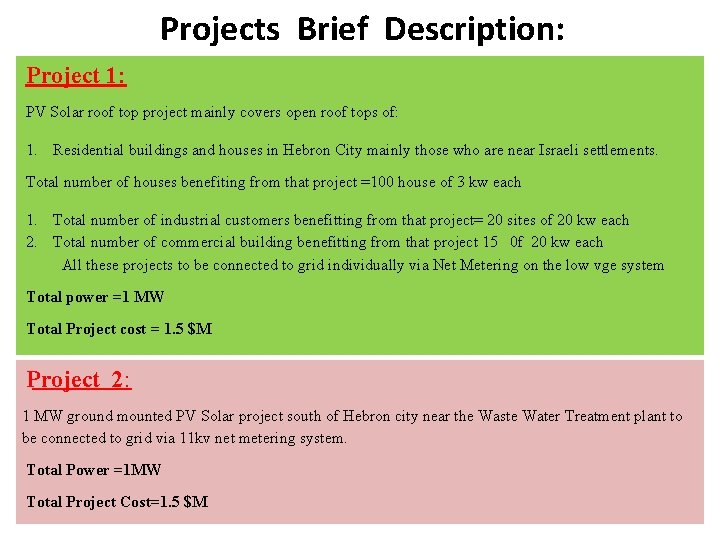

Projects Brief Description: Project 1: PV Solar roof top project mainly covers open roof tops of: 1. Residential buildings and houses in Hebron City mainly those who are near Israeli settlements. Total number of houses benefiting from that project =100 house of 3 kw each 1. Total number of industrial customers benefitting from that project= 20 sites of 20 kw each 2. Total number of commercial building benefitting from that project 15 0 f 20 kw each All these projects to be connected to grid individually via Net Metering on the low vge system Total power =1 MW Total Project cost = 1. 5 $M Project 2: 1 MW ground mounted PV Solar project south of Hebron city near the Waste Water Treatment plant to be connected to grid via 11 kv net metering system. Total Power =1 MW Total Project Cost=1. 5 $M

Project 3 : Project brief description*: Lanfill which is owned by Hebron Municipality (60%) location is south of Hebron , between Hebron And Yatta, area 100 donom. this landfill of MSW is closed and now under rehabilitation from World Bank. Gas generated from that landfill will be utilized to generate electricity of estimated power 1000 kw max. This power will be sold to IEC network which is not far from but still need power line 33 kv to constructed and need the approval of IEC, This project will be of much benefit to the environment and CO 2 reduction World bank project is undergoing project and will be finished within months. Project No 4: Led outdoor lighting fixtures (street lamps) 120 watt to replace 250 watt HPS luminaries in main streets of Hebron City QTY=3000 unit. Total cost estimate =1. 45 $M

Achievements on the way to Smart System Automated Electrical SWG and SCADA control 1 of MV feeders and substations 2 GIS system integrated with electrical and other • On going project - control systems 3 Smart Energy Meters for 3 phase customers - • On going projects 4 5 Communication Infra structure – Ongoing • project Future smart 1 phase energy meters to be • installed •

�Smarter Demand + Smarter Supply �+ Demand Response Grid = The Smart

�The Smart Grid is a combination of hardware, management and reporting software, built a top an intelligent communications infrastructure. �The flow of electricity from utility to consumer becomes a two-way conversation, saving consumers money, energy, delivering more transparency in terms of end-user use, and reducing carbon emissions.

�Modernization of the electricity delivery system so that it monitors, protects and automatically optimizes the operation of its interconnected elements – from the central and distributed generator through the highvoltage network and distribution system, to industrial users and building automation systems, and to end-use consumers and their appliances and other household devices.

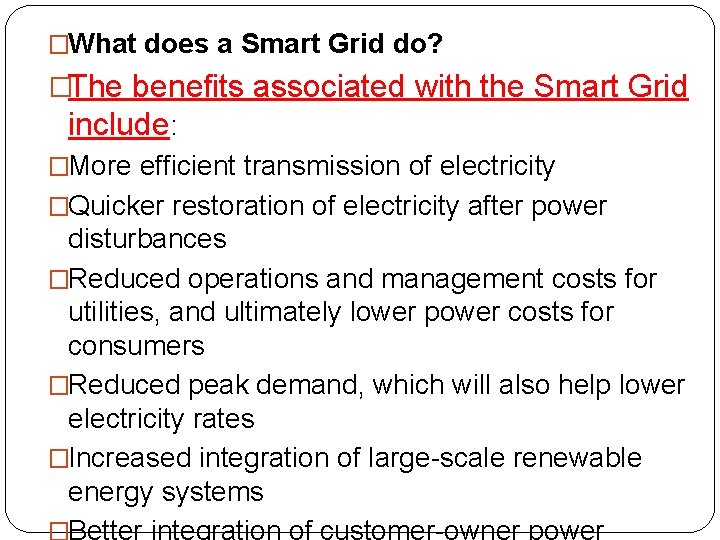

�What does a Smart Grid do? �The benefits associated with the Smart Grid include: �More efficient transmission of electricity �Quicker restoration of electricity after power disturbances �Reduced operations and management costs for utilities, and ultimately lower power costs for consumers �Reduced peak demand, which will also help lower electricity rates �Increased integration of large-scale renewable energy systems

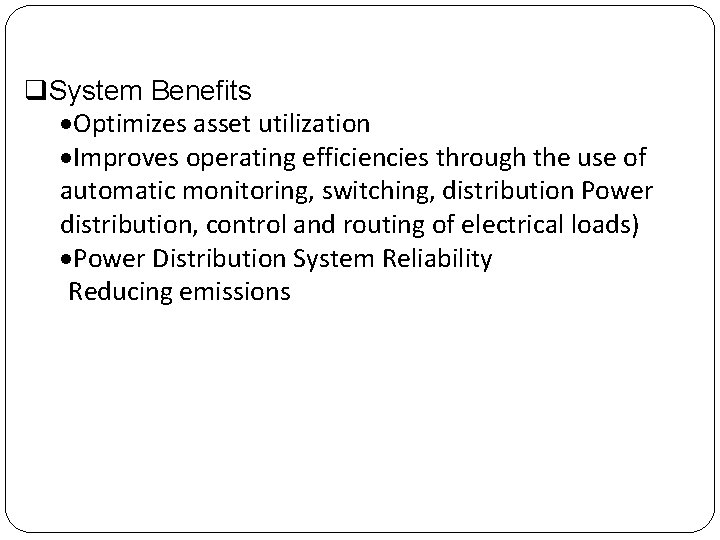

q. System Benefits Optimizes asset utilization Improves operating efficiencies through the use of automatic monitoring, switching, distribution Power distribution, control and routing of electrical loads) Power Distribution System Reliability Reducing emissions

END OF SHOW THANK YOU MHM
