Electricity Label each picture as friction induction conduction

Electricity

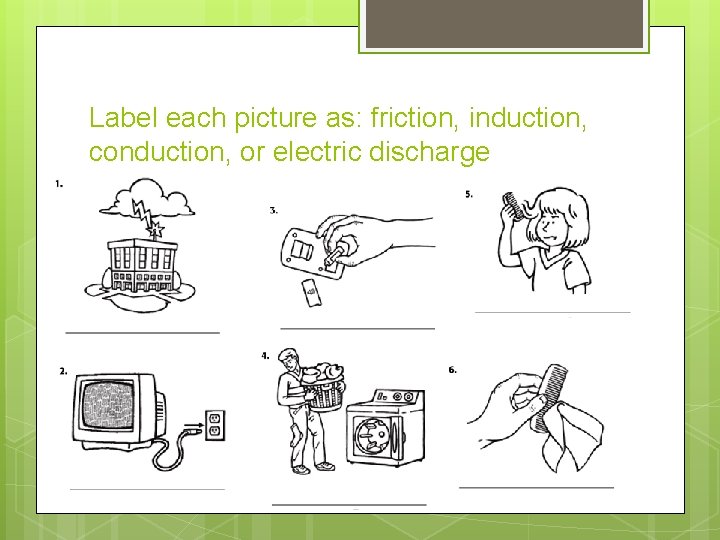

Label each picture as: friction, induction, conduction, or electric discharge

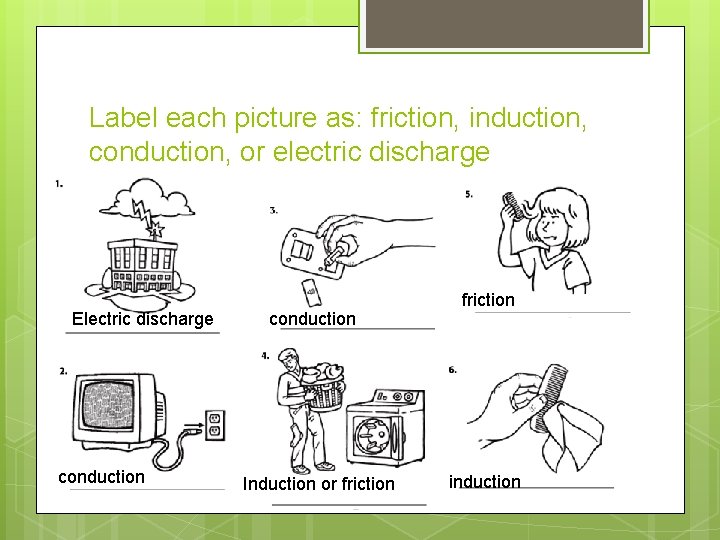

Label each picture as: friction, induction, conduction, or electric discharge Electric discharge conduction Induction or friction induction

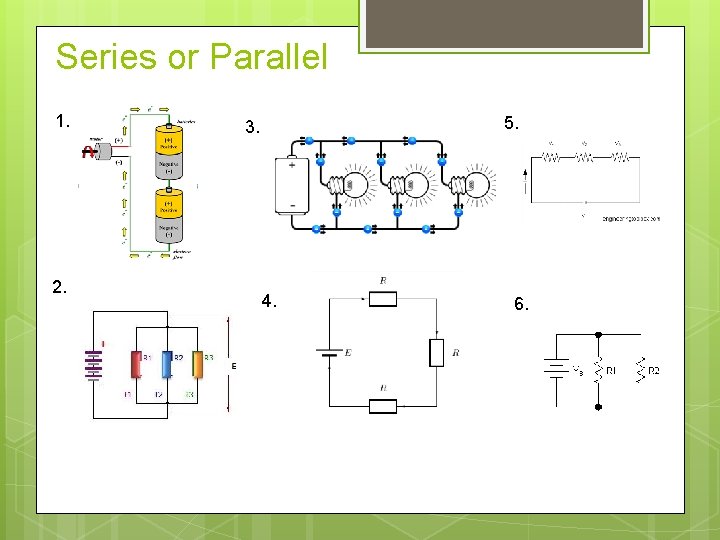

Series or Parallel 1. 2. 5. 3. 4. 6.

Series or Parallel 1. 5. 3. parallel series 2. 4. parallel series 6. series parallel

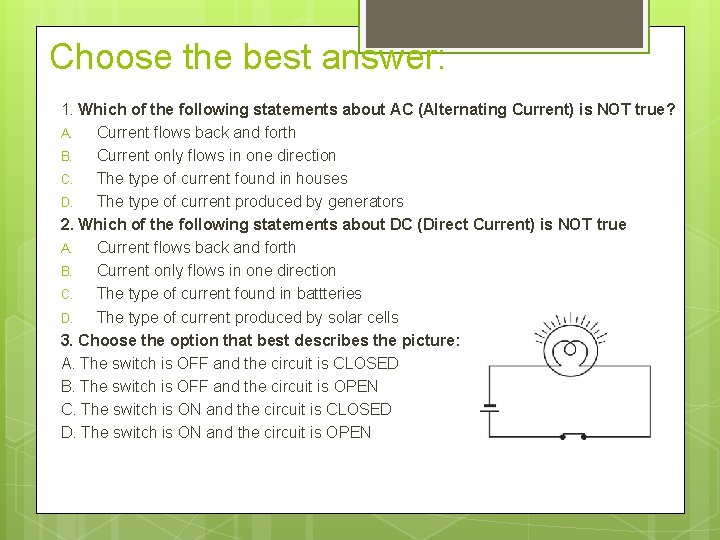

Choose the best answer: 1. Which of the following statements about AC (Alternating Current) is NOT true? A. Current flows back and forth B. Current only flows in one direction C. The type of current found in houses D. The type of current produced by generators 2. Which of the following statements about DC (Direct Current) is NOT true A. Current flows back and forth B. Current only flows in one direction C. The type of current found in battteries D. The type of current produced by solar cells 3. Choose the option that best describes the picture: A. The switch is OFF and the circuit is CLOSED B. The switch is OFF and the circuit is OPEN C. The switch is ON and the circuit is CLOSED D. The switch is ON and the circuit is OPEN

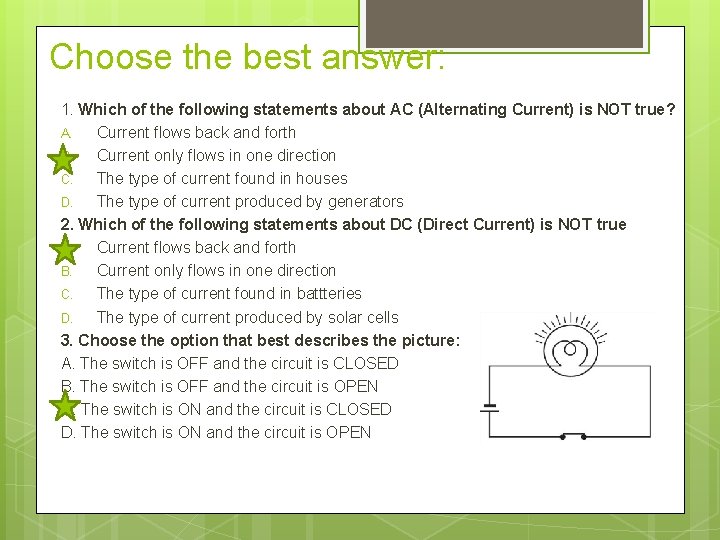

Choose the best answer: 1. Which of the following statements about AC (Alternating Current) is NOT true? A. Current flows back and forth B. Current only flows in one direction C. The type of current found in houses D. The type of current produced by generators 2. Which of the following statements about DC (Direct Current) is NOT true A. Current flows back and forth B. Current only flows in one direction C. The type of current found in battteries D. The type of current produced by solar cells 3. Choose the option that best describes the picture: A. The switch is OFF and the circuit is CLOSED B. The switch is OFF and the circuit is OPEN C. The switch is ON and the circuit is CLOSED D. The switch is ON and the circuit is OPEN

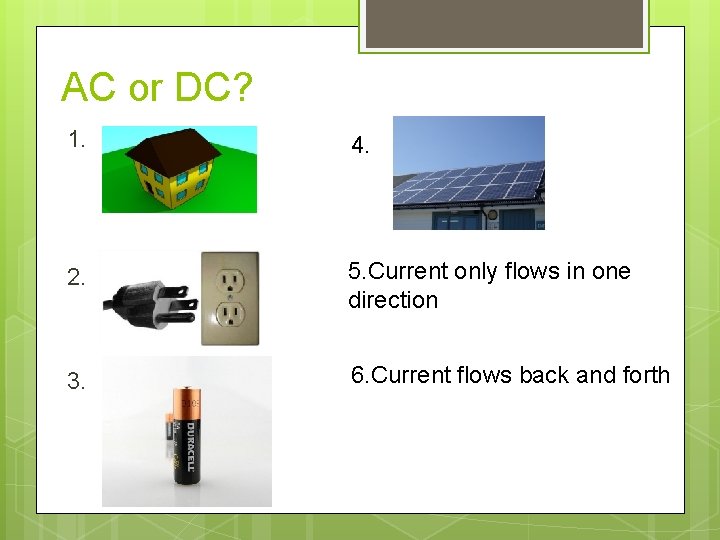

AC or DC? 1. 4. 2. 5. Current only flows in one direction 3. 6. Current flows back and forth

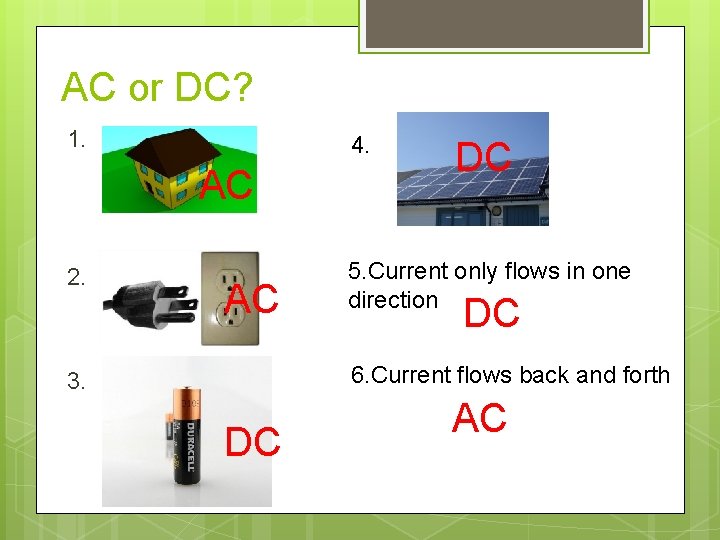

AC or DC? 1. 4. AC 2. AC DC 5. Current only flows in one direction DC 6. Current flows back and forth 3. DC AC

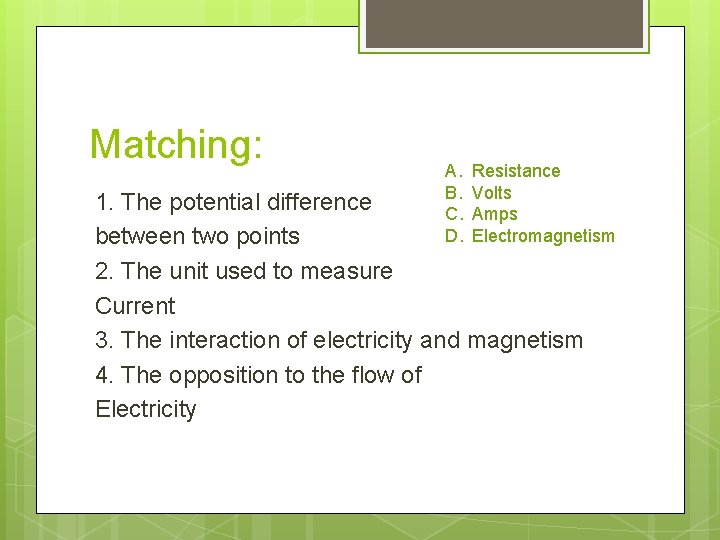

Matching: A. B. C. D. Resistance Volts Amps Electromagnetism 1. The potential difference between two points 2. The unit used to measure Current 3. The interaction of electricity and magnetism 4. The opposition to the flow of Electricity

Matching: A. B. C. D. Resistance Volts Amps Electromagnetism 1. The potential difference between two points 2. The unit used to measure Current 3. The interaction of electricity and magnetism 4. The opposition to the flow of Electricity
