Electrical Series III Soldering Tools and Techniques by
Electrical Series III Soldering Tools and Techniques by: Tridib K. Saha
Tools Solder Wick Soldering Iron/Station Flux Pen Lab Goggles Flat Cutter

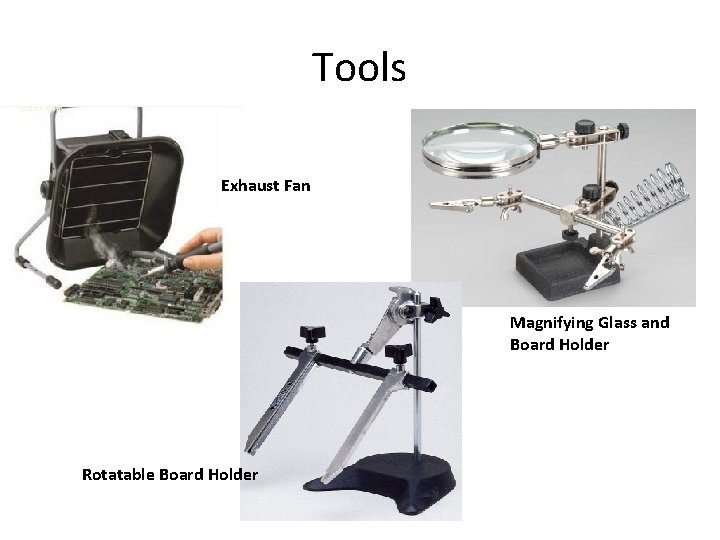

Tools Exhaust Fan Magnifying Glass and Board Holder Rotatable Board Holder
Solder Iron Tips Remember: More the surface area the quicker your component will heat up.
Cleaning solder tips • Add distilled water to the yellow/green foam rub the tip on it • Poke the tip on a dry strand of metal scrub.
Procedure and Safety • Procedures: – The ideal soldering temperature is 600 F to 750 F i. e. 60 -75 setting on the solder station – Steady LED light means warming up – The iron is ready to use once LED starts blinking • Safety: – Never put solder iron anywhere else but the station. – Wear eye gear and covered cloth to prevent hot solder iron or solder in contact with skin – Prevent yourself from breathing solder smoke directly by using an exhaust fan (a little bit is not hazardous)
How to Solder? Place Chip on the right place. Make sure you know the orientation Solder Iron and solder should be in the opposite direction.

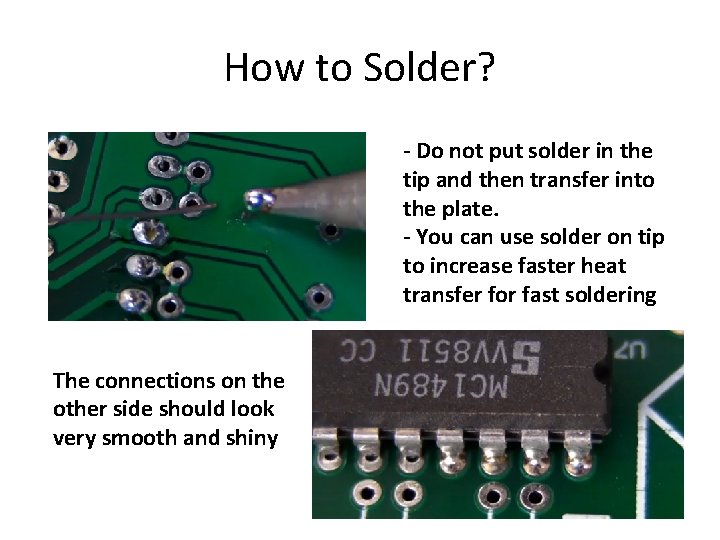

How to Solder? - Do not put solder in the tip and then transfer into the plate. - You can use solder on tip to increase faster heat transfer for fast soldering The connections on the other side should look very smooth and shiny
How to solder Resistors?
Other Soldering Places

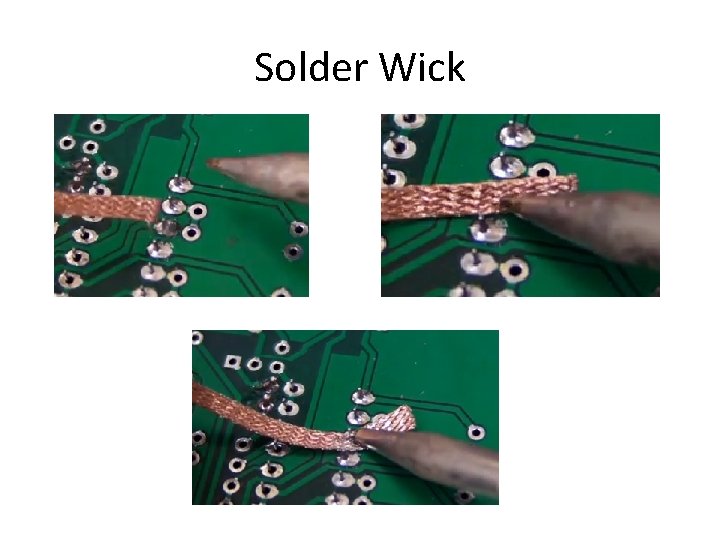

Solder Wick

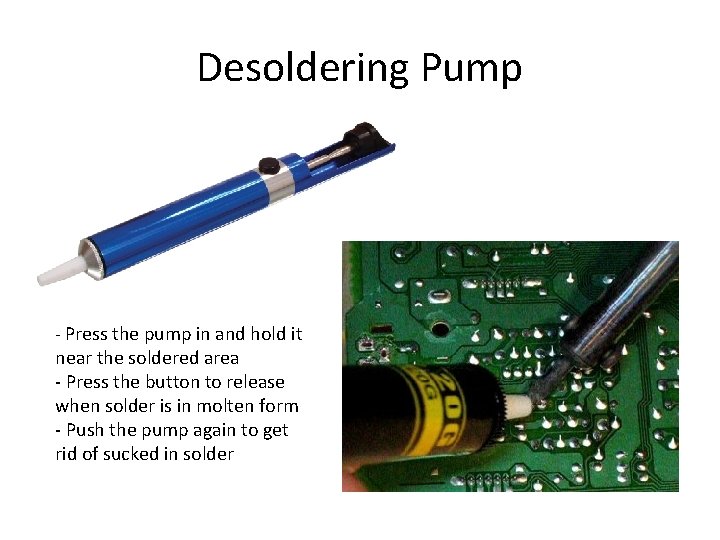

Desoldering Pump - Press the pump in and hold it near the soldered area - Press the button to release when solder is in molten form - Push the pump again to get rid of sucked in solder
Surface Mount Chips/Devices (SMD)
Flux-Solder Tip-Drag & Go-Fix
Surface Mount Resistors
How to solder them?

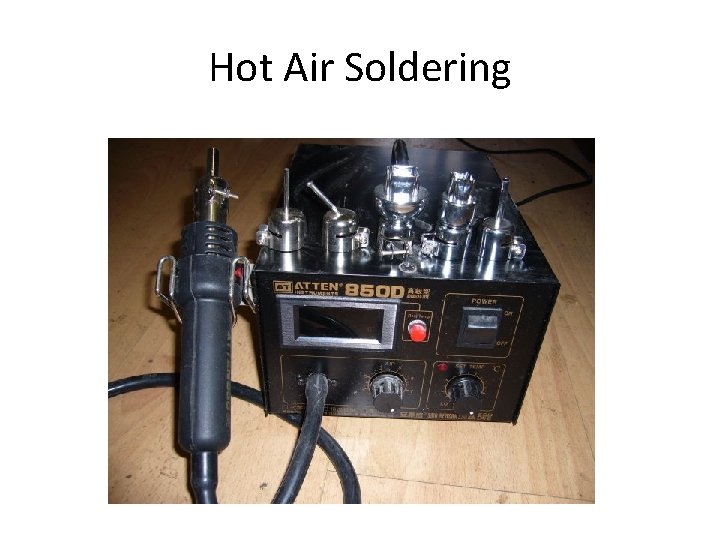

Hot Air Soldering
How to do it?
Questions?
