Electrical Principles and Wiring Materials UNIT 33 Principles

Electrical Principles and Wiring Materials UNIT 33

Principles of Electricity is a form of energy that can produce light, heat, magnetism, chemical changes n Resistance: tendency of a material to prevent electrical flow n Conductor: if electricity flows easily n Insulator: material that provides great resistance n

CONDUCTORS SILVER-premium conductor (too expensive) n COPPER-very good conductor n ALUMINUM-good conductor(outside) n

Amps, Volts, Watts n n Amperes: measure of the rate of flow of electricity in a conductor. Watt/volts Volts: measure of electrical pressure. Watt/amperes Watts: measure of the amount of energy or work that can be done. Volts x amperes Ohms: measure of electrical resistance to flow

Ohm Law George Simon Ohm –made several discovers relating to electrical current. n Ohm law is the unit used to measure a material’s resistance to the flow of electrical current. n

Ohm’s Law --- Formulas Ohm = R n Volts = E n Amps = I n Ohm’s Law: E = IR n I=E/R R=E/I

Measurements n Voltage, amperage, and resistance can be measured by various types of meters. n Voltmeter – measures voltage n Ammeter – measures amperage n Ohmmeter – measures resistance

Electrical Safety Shock and Fire n Never disconnect any safety device n Don’t touch electrical items with wet hands or feet n Don’t remove ground plug prong n Use GFI in wet areas n Discontinue use of extension cord that feels warm n Don’t put extension cords under carpet n

Electrical Safety Install wiring according to NEC n Blown fuse or breaker, determine cause n Don’t replace fuse with larger fuse n Don’t leave heat producing appliances unattended n Heaters & lamps away from combustibles n Don’t remove back of TV (30, 000 v when off) n Electric motors lubricated, free of grease etc. n

Electrical Safety Keep appliances dry n Don’t use damaged switches, outlets, fixtures, extension cords n Follow manufacturer’s instructions (RTDM) for installation and use of electrical equipment n

Power Generation & Distribution systems Power Plant to Step-up station(13, 800 – 22, 000 volts) Step-up station thru transmission lines (69, 000 – 750, 000 volts) to a Step-down station reduces to 720014, 000 volts to home transformer.

Service Entrance Transformer: drops volts from 72, 0014, 000 volts to 240 volts (three wires) n Service drop: wires etc from transformer to house n Entrance head: weather-proof at house n Meter: $$$ n Service Entrance Panel (SEP): box with fuses or breakers n

Electric Meter Kilowatthours: how electricity is sold n Kilo = 1000 n Watthour = use of 1 watt for one hour n n 100 watt light bulb for 1 hour - 100 watthours n Kilowatthour = 1000 watts for one hour

Terms n Alternating current (AC) – Electrical current that alternates or changes direction several times per second. Current moves on the direction the voltage forces it.

Terms n Direct Current (DC) – Electrical current flowing in one direction. n Transformer – a device used to increase or decrease voltage. n Cycle – The flow of electricity in one direction, the reverse flow of electricity in the other direction, and the start of flow in the other direction.

Terms n Single Phase – most common. One transformer is used between the distribution line and the meter. Has three wires, two “hot” and one neutral. Provides service for 120 volt and 240 volt systems.

Terms n Three Phase – designed especially for large electrical loads. More expensive due to three wires and three transformers. Advantage is that the load is divided among the three phases and design for three-phase motors.

Terms n Short circuit – direct connection between “hot” & neutral wires.

Terms Fuse – a device used to protect circuits from an overload of current. Must be replaced. n Circuit breaker – protects circuits. Can be manually reset for further use. n Time-Delay fuse – a fuse having the ability to carry an overload of a short period before melting the fuse link. n

Terms n Underwriters’ Laboratory (U. L. ) – a national organization that tests all types of wiring materials and electrical devices to insure they meet minimum standards for safety and quality.

Terms n National Electrical Code (N. E. C. ) regulates electrical wiring installations. Regulations are approved by the National Board of Fire Underwriters,

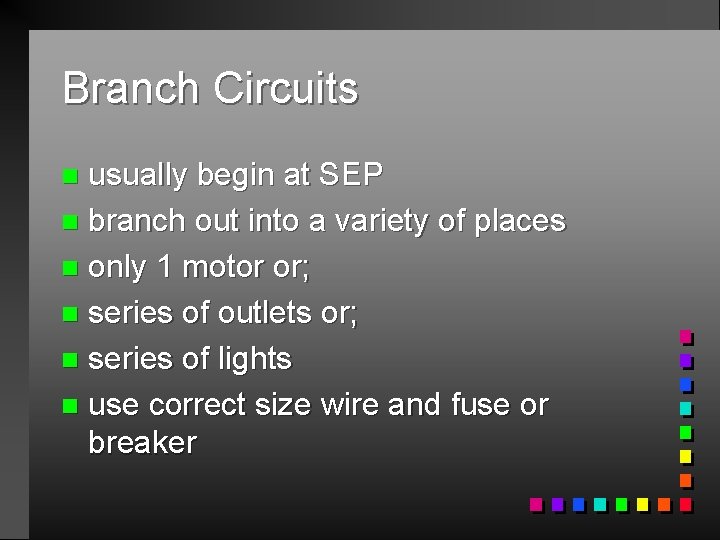

Branch Circuits usually begin at SEP n branch out into a variety of places n only 1 motor or; n series of outlets or; n series of lights n use correct size wire and fuse or breaker n

Types of Cable Nonmetallic sheathed cable: copper or aluminum wire covered with paper, rubber, or vinyl for insulation n Armored cable: flexible metal sheath with individual wires inside. Wires are insulated n Conduit: tubing with individually insulated wires n

Wire Type and Size copper n No 14 (14 gauge) = 15 amp circuits n No 12 = 20 amps n No 10 = 30 amps n aluminum use one size larger n lower gauge number = larger wire n No 8 and larger use bundles of wires n current travels on outer surface of wire, so a bundle of smaller wires can carry more n

Voltage Drop loss of voltage as it travels along a wire n lights dim, motors overheat n larger wires have less voltage drop for a given amount of current n longer wire = greater problem n must increase wire size as distance increases n

Wire Identification Type of outer covering, individual wire covering, cable construction, number of wires n Wire type stamped on outer surface n

Wire Types Type T – use in dry locations only n Type TW – can used in dry or wet condition n THHN – dry location with high temps n THW and THWN - wet, high temps n XHHW - high moisture & heat resistance n UF - direct burial in soil but not concrete n

Wire Identification Color coded: black, red, & blue = positive or hot wires which carry current to appliances n White = neutral wires carry current from appliance back to source n Green or Bare = ground all metal boxes and appliances n

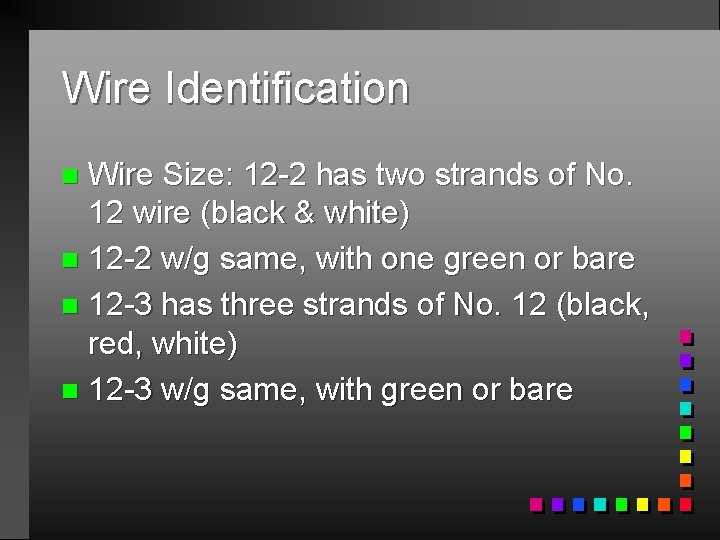

Wire Identification Wire Size: 12 -2 has two strands of No. 12 wire (black & white) n 12 -2 w/g same, with one green or bare n 12 -3 has three strands of No. 12 (black, red, white) n 12 -3 w/g same, with green or bare n

Electrical exercise n Problems in electricity
