Electrical Power Systems Overview Inhibits Sensors Before Inhibits

Electrical Power Systems • • • Overview Inhibits Sensors Before Inhibits Shunt Regulation SCBR Regulation DC-DC Converters Solar Cells Batteries Battery Box

Electrical Power Systems Overview

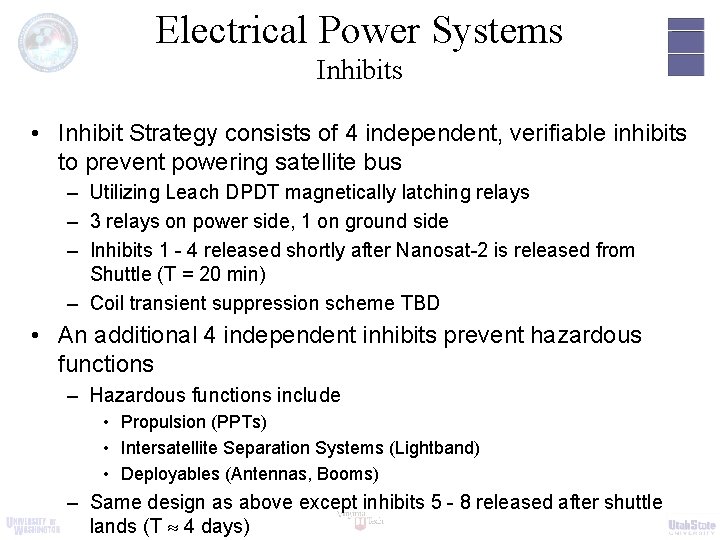

Electrical Power Systems Inhibits • Inhibit Strategy consists of 4 independent, verifiable inhibits to prevent powering satellite bus – Utilizing Leach DPDT magnetically latching relays – 3 relays on power side, 1 on ground side – Inhibits 1 - 4 released shortly after Nanosat-2 is released from Shuttle (T = 20 min) – Coil transient suppression scheme TBD • An additional 4 independent inhibits prevent hazardous functions – Hazardous functions include • Propulsion (PPTs) • Intersatellite Separation Systems (Lightband) • Deployables (Antennas, Booms) – Same design as above except inhibits 5 - 8 released after shuttle lands (T 4 days)

Electrical Power Systems Inhibits

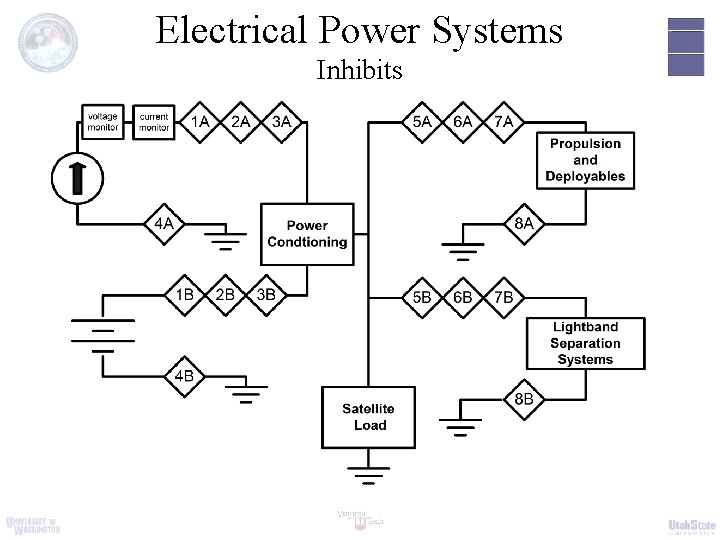

Electrical Power Systems Inhibits 4 1 2 3 8 5 6 7

Electrical Power Systems Inhibits • Inhibit Details Leach XL Series MSDS + Solar Cell In Solar Cell Out Battery In Battery Out MSDS -

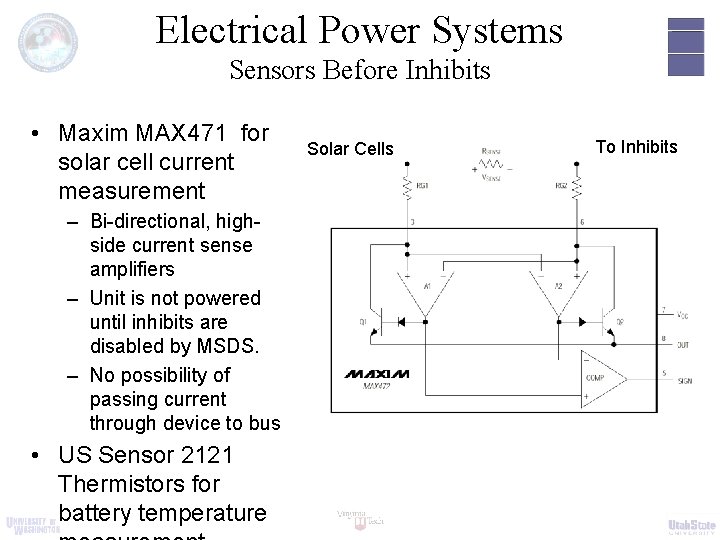

Electrical Power Systems Sensors Before Inhibits • Maxim MAX 471 for solar cell current measurement – Bi-directional, highside current sense amplifiers – Unit is not powered until inhibits are disabled by MSDS. – No possibility of passing current through device to bus • US Sensor 2121 Thermistors for battery temperature Solar Cells To Inhibits

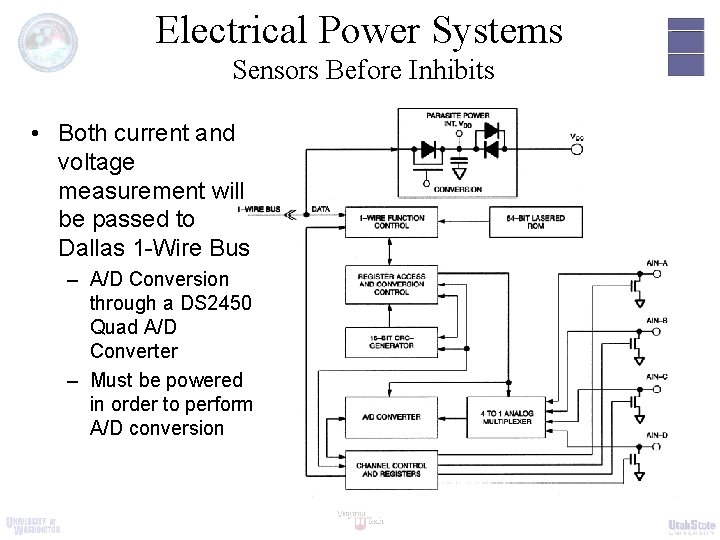

Electrical Power Systems Sensors Before Inhibits • Both current and voltage measurement will be passed to Dallas 1 -Wire Bus – A/D Conversion through a DS 2450 Quad A/D Converter – Must be powered in order to perform A/D conversion

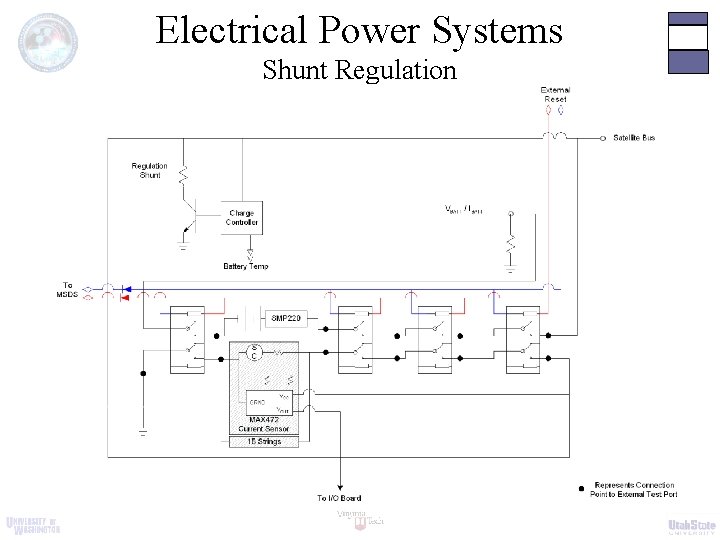

Electrical Power Systems Shunt Regulation

Electrical Power Systems SCBR Regulation

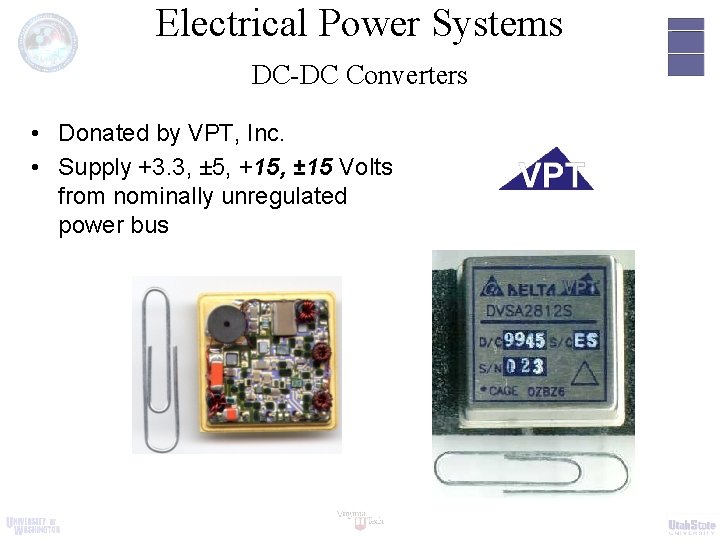

Electrical Power Systems DC-DC Converters • Donated by VPT, Inc. • Supply +3. 3, ± 5, +15, ± 15 Volts from nominally unregulated power bus

Electrical Power Systems Solar Cells • Tecstar Triple-Junction 24% Cascade cells • Heritage on DS-1, Mighty. Sat, SMEX, TRACE, others • Cells supplied kitted – – Cover glass Diode on each cell Interconnects String terminators

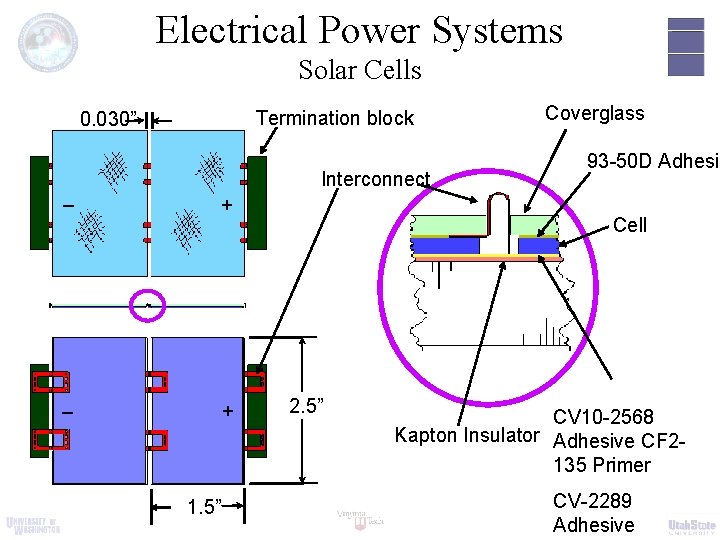

Electrical Power Systems Solar Cells Termination block 0. 030” Interconnect – + 1. 5” Coverglass 93 -50 D Adhesiv Cell 2. 5” CV 10 -2568 Kapton Insulator Adhesive CF 2135 Primer CV-2289 Adhesive

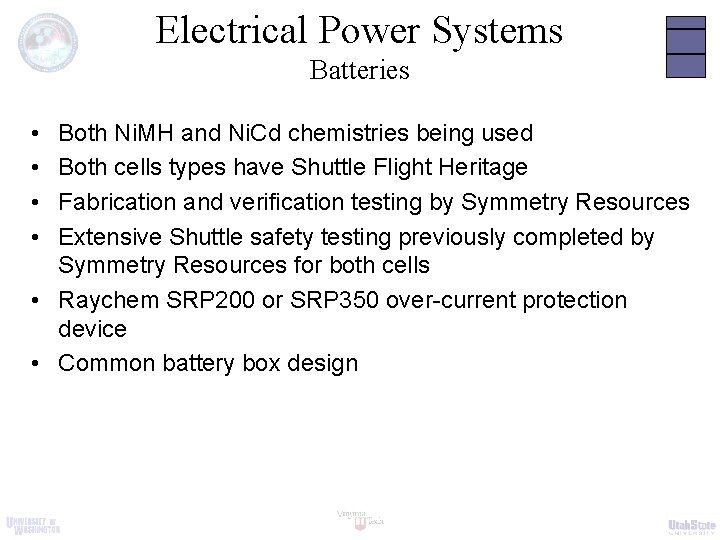

Electrical Power Systems Batteries • • Both Ni. MH and Ni. Cd chemistries being used Both cells types have Shuttle Flight Heritage Fabrication and verification testing by Symmetry Resources Extensive Shuttle safety testing previously completed by Symmetry Resources for both cells • Raychem SRP 200 or SRP 350 over-current protection device • Common battery box design

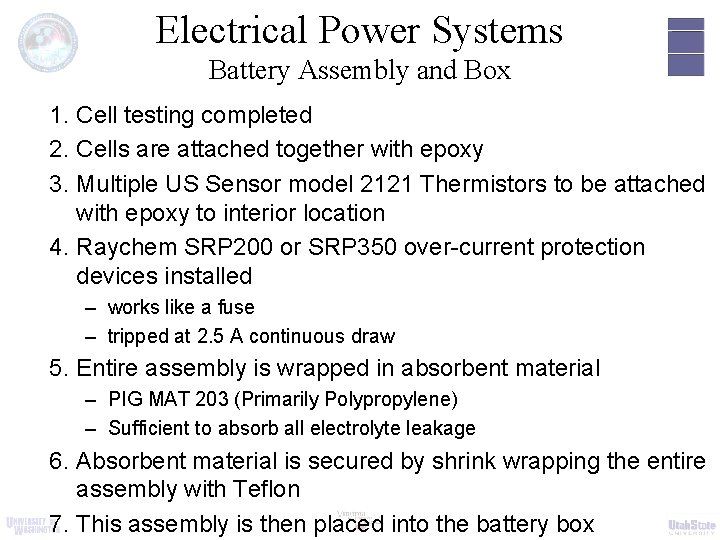

Electrical Power Systems Battery Assembly and Box 1. Cell testing completed 2. Cells are attached together with epoxy 3. Multiple US Sensor model 2121 Thermistors to be attached with epoxy to interior location 4. Raychem SRP 200 or SRP 350 over-current protection devices installed – works like a fuse – tripped at 2. 5 A continuous draw 5. Entire assembly is wrapped in absorbent material – PIG MAT 203 (Primarily Polypropylene) – Sufficient to absorb all electrolyte leakage 6. Absorbent material is secured by shrink wrapping the entire assembly with Teflon 7. This assembly is then placed into the battery box

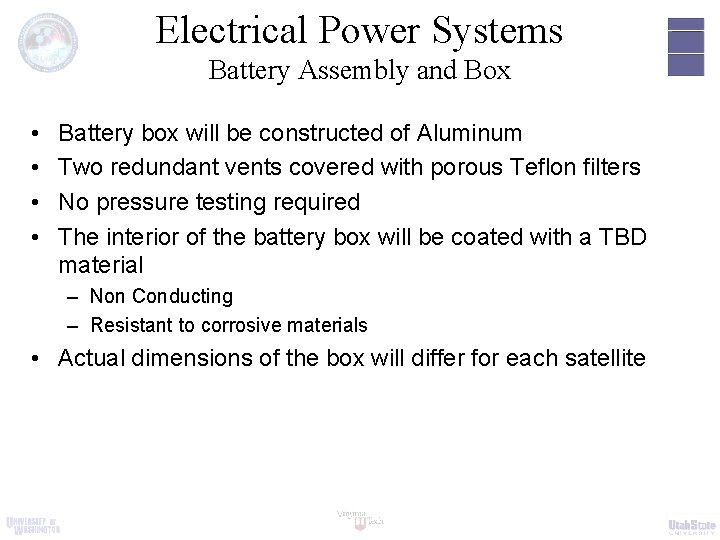

Electrical Power Systems Battery Assembly and Box • • Battery box will be constructed of Aluminum Two redundant vents covered with porous Teflon filters No pressure testing required The interior of the battery box will be coated with a TBD material – Non Conducting – Resistant to corrosive materials • Actual dimensions of the box will differ for each satellite

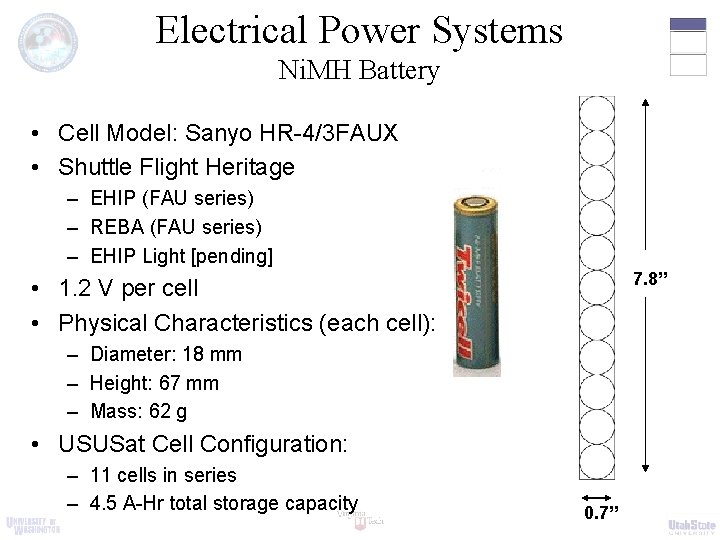

Electrical Power Systems Ni. MH Battery • Cell Model: Sanyo HR-4/3 FAUX • Shuttle Flight Heritage – EHIP (FAU series) – REBA (FAU series) – EHIP Light [pending] 7. 8” • 1. 2 V per cell • Physical Characteristics (each cell): – Diameter: 18 mm – Height: 67 mm – Mass: 62 g • USUSat Cell Configuration: – 11 cells in series – 4. 5 A-Hr total storage capacity 0. 7”

Electrical Power Systems Ni. Cd Battery • Cell Models: – Sanyo CADNICA KR-1400 AE – Sanyo CADNICA KR-1100 AEL • Shuttle Flight Heritage – Mightysat • 1. 2 V per cell

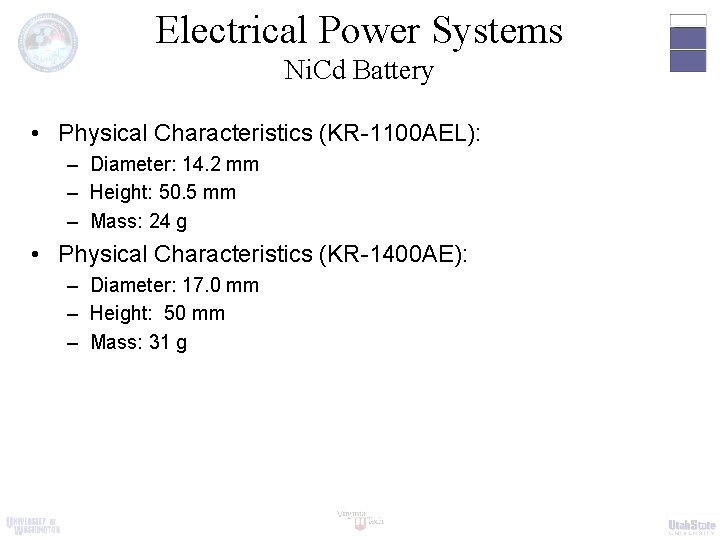

Electrical Power Systems Ni. Cd Battery • Physical Characteristics (KR-1100 AEL): – Diameter: 14. 2 mm – Height: 50. 5 mm – Mass: 24 g • Physical Characteristics (KR-1400 AE): – Diameter: 17. 0 mm – Height: 50 mm – Mass: 31 g

Electrical Power Systems Ni. Cd Battery • Dawgstar Cell Configuration: – 20 CADNICA KR-1100 AEL cells in series – 24 A-Hr Total Storage Capacity – 24 V Nominal

Electrical Power Systems Ni. Cd Battery • Hokie. Sat Cell Configuration: – 15 CADNICA KR-1400 AE cells in series – 21 A-Hr Total Storage Capacity – 24 V Nominal

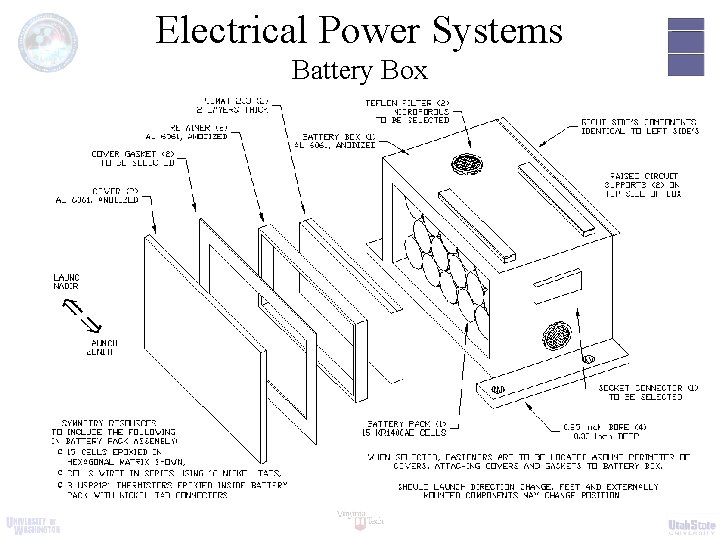

Electrical Power Systems Battery Box

Electrical Power Systems Battery Box • Potting Material: PIG Corp. Mat 203 – Used by Mighty. Sat 1, others – Polypropylene • Vents: Osmonics, Inc. CAMEO 25 F – Polypropylene, PFTE • Interface Port: Air. Born, Inc. connector
