Electrical plant Boxes for Flush mounting rapid installation

Electrical plant Boxes for Flush mounting rapid installation with precision installation

Flush mounting solutions Rapid installation flush mounting solution SFM 3 CG Traditional wall (Red hollow brick) Plasterboard wall FINAL EFFECT TOTAL flush mounting solution with precision installation SFM 3/HP SFM 3 CG/HP Traditional wall (Red hollow brick) Plasterboard wall FINAL EFFECT

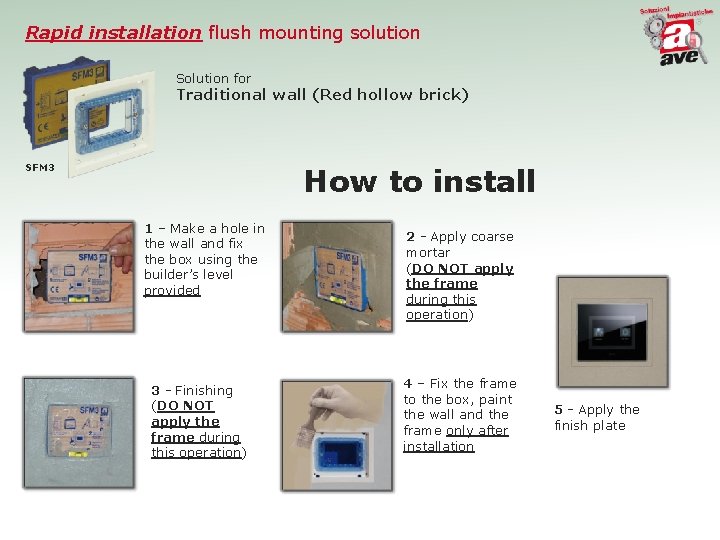

Rapid installation flush mounting solution Solution for Traditional wall (Red hollow brick) SFM 3 How to install 1 – Make a hole in the wall and fix the box using the builder’s level provided 3 - Finishing (DO NOT apply the frame during this operation) 2 - Apply coarse mortar (DO NOT apply the frame during this operation) 4 – Fix the frame to the box, paint the wall and the frame only after installation 5 - Apply the finish plate

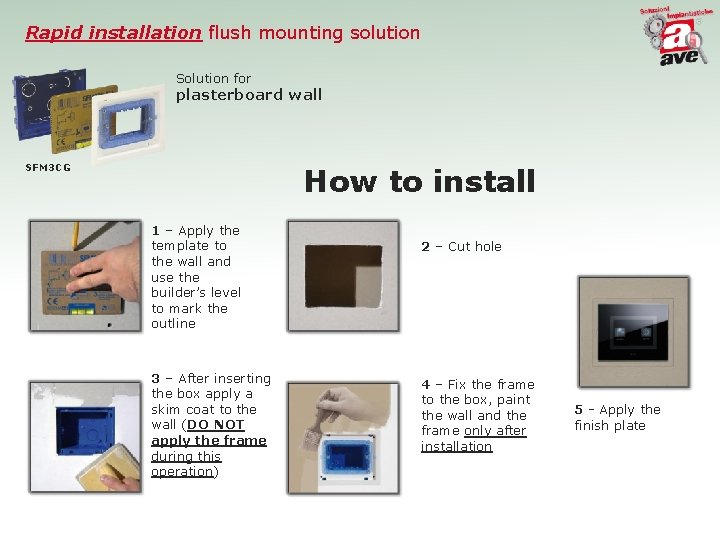

Rapid installation flush mounting solution Solution for plasterboard wall SFM 3 CG How to install 1 – Apply the template to the wall and use the builder’s level to mark the outline 3 – After inserting the box apply a skim coat to the wall (DO NOT apply the frame during this operation) 2 – Cut hole 4 – Fix the frame to the box, paint the wall and the frame only after installation 5 - Apply the finish plate

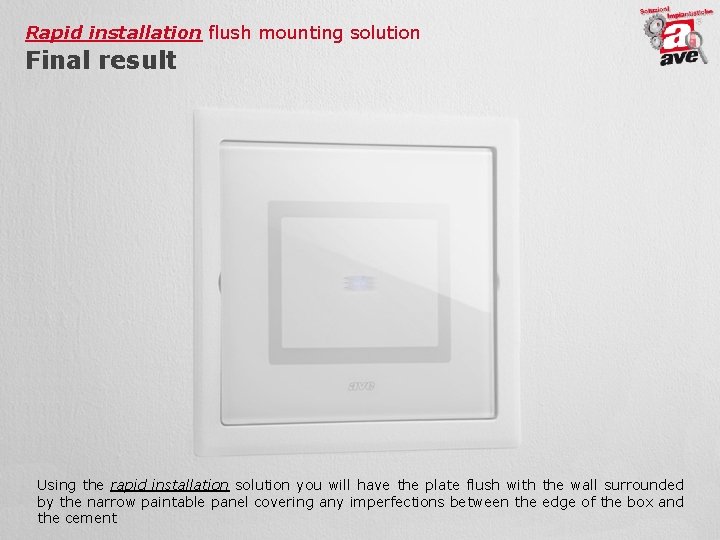

Rapid installation flush mounting solution Final result Using the rapid installation solution you will have the plate flush with the wall surrounded by the narrow paintable panel covering any imperfections between the edge of the box and the cement

TOTAL flush mounting solution with precision installation Solution for traditional wall (Red hollow brick) SFM 3/HP How to install 1 – Make a hole and fix the box using the builder’s level provided 3 – Apply the finish coat 4 – Paint the wall 2 – Apply the coarse mortar 5 – Apply the finish plate

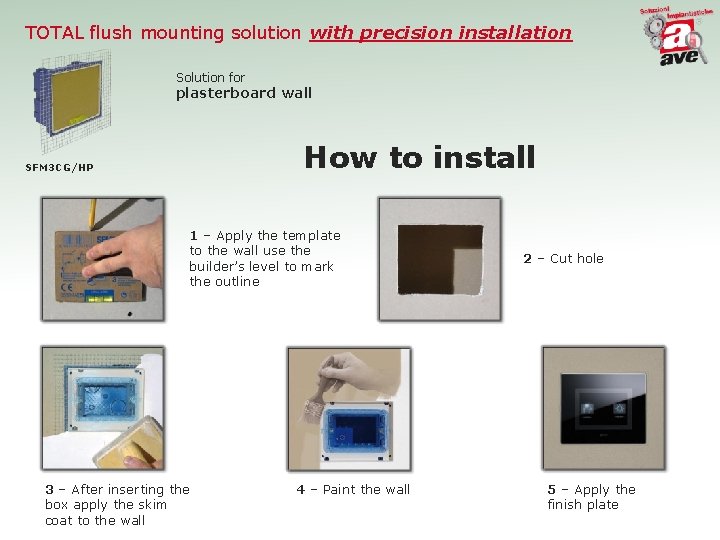

TOTAL flush mounting solution with precision installation Solution for plasterboard wall How to install SFM 3 CG/HP 1 – Apply the template to the wall use the builder’s level to mark the outline 3 – After inserting the box apply the skim coat to the wall 4 – Paint the wall 2 – Cut hole 5 – Apply the finish plate

TOTAL flush mounting solution with precision installation Final result Using the TOTAL flush mounting solution with precision installation you will have the plate flush with the wall completely embedded without a cover frame

Electrical plant solutions SFM 3/H SFM 3 P SFM 3 CG G C /HP SFM 3 Special boxes for flush wall installation www. ave. it
