Electrical contacts n What is an electrical contact
- Slides: 38
Electrical contacts n What is an electrical contact? n Why doesn’t it always work? Lena Sjögren Corrosion and Metals Research Institute
Cable connection between two printed circuit board assemblies An electrical signal between the two boards will be transmitted through six contacts: solder joint (printed circuit board to contact pin) - connector (contact pin to contact spring) - insulation displacement connection (contact spring to cable) - insulation displacement connection - connector - solder joint

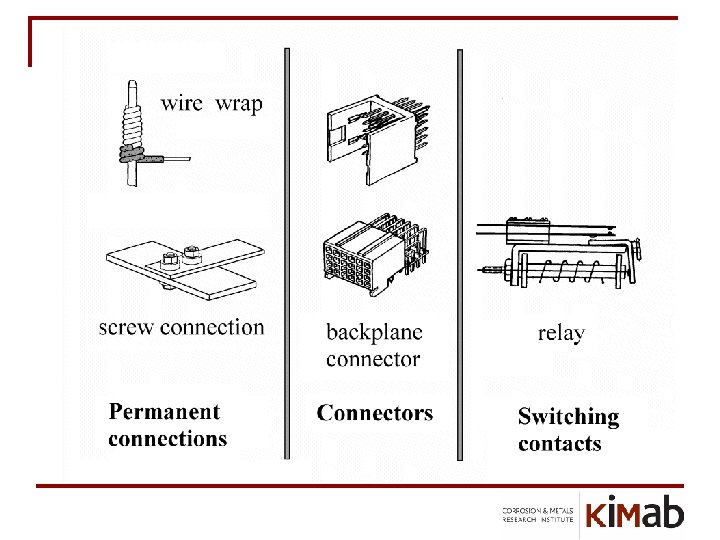

Electrical contacts n Power transmission n Signal transmission n Grounding – personal safety n Signal ground n Electromagnetic shielding
Kontaktområde - förstoring

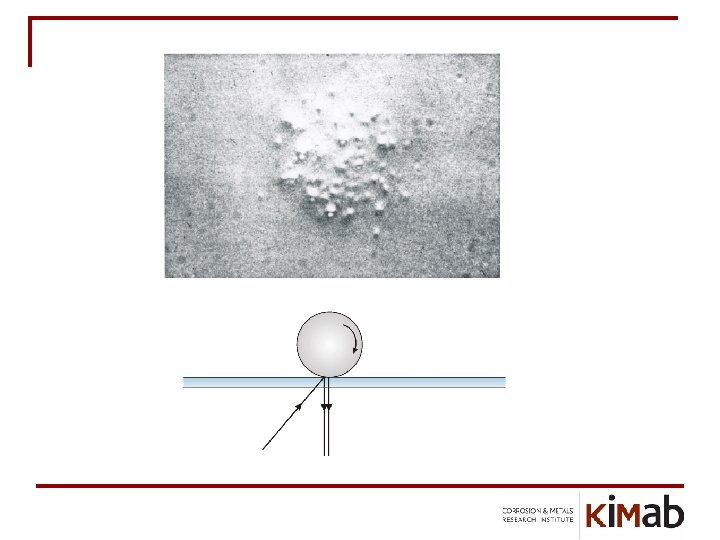

Contact area Force
Current is constricted through the contact spots The detour required from the current (the electrons) results in an additional voltage drop thus resistance constriction resistance
Constriction resistance one contact spot plastic deformation contact area contact force hardness constriction resistance resistivity contact spot diameter
Gold plated connector contact 0, 5 N contact normal force Constriction resistance: 1 m. W
Example 0, 5 N contact normal force d = 0, 02 mm hard gold, 160 HV (kp/mm 2) Rconstr. = 1, 3 m. W Measured, new contact: 11, 3 m. W (bulk 10, 0 m. W) after use: 23, 0 m. W (bulk 10, 0 m. W) Resistance increase Rconstr. = 10 Contact area after use 1 Initial contact area = 1 100
Kontaktrörelse - återbildning F Contact area, cross section Contact surface seen from above
Kontaktrörelse - återbildning F Contact area, cross section Contact surface seen from above
Resistans som funktion av tid/antal Resistance/contact failures Time Ack. number
Tenn – rensning av ytfilm F Contact area, cross section Contact surface seen from above
Rensning av ytfilmer, forts. Noble metal contacts Base metal contacts Soft films on hard substrate Hard films on soft substrate Squeeze and shear Crack Friction force Contact force Cylinder Rough surface, Ra>0, 5 cylinder min 50 -100 mm wipe

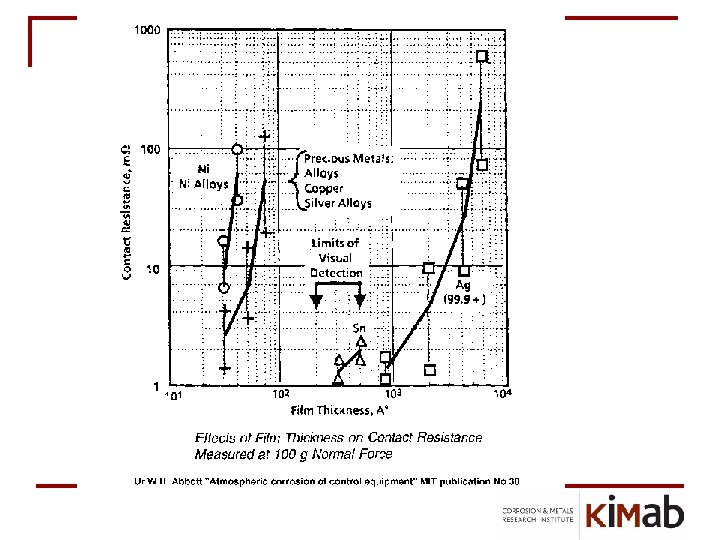

Fritting silver, copper
Rensningsmekanismer, översikt
Termiska effekter Contact spot Kontaktpunkt Current constriction through contact spots – - constriction resistance - heat emission
Silver - temperaturökning
Tenn - temperaturökning
Failure mechanisms n Contact force reduction q q Initially too low contact force / variations Plastic deformation (manufacturing, closing) Stress corrocion cracking Stress relaxation
Stress relaxation
Failure mechanisms n Contact force reduction q q n Initially too low contact force / variations Plastic deformation (manufacturing, closing) Stress corrocion cracking Stress relaxation Film growth q q q Corrosion Diffusion Contamination
Pore corrosion Corrosion creep
Failure mechanisms n Contact force reduction q q n Film growth q q q n Initially too low contact force / variations Plastic deformation (manufacturing, closing) Stress corrocion cracking Stress relaxation Corrosion Diffusion Contamination Wear q q Mating wear Fretting
Fretting oxidation/corrosion
Fretting risk – tangential force control
Design and materials n Where is the spring? design and materials Þ spring properties n Contact material Þ environmental resistance, requirements on contact force, surface geometry etc. n Housing Þ mechanical stability, environmental resistance
Anslutningsdon
Ag. Cd. O-relay – with/without enclosure, open/closed enclosed Open Closedcontact, not enclosed upper limit G 2 Bulletin No 102, ”Corrosion of Electronics” lower limit G 1
AMP-don, tredje fjäder
IDC (Insulation displacemenet contacts)
Screw
Skruv med jordbricka, klimatprovning Contact resistance Tin PCB Grounding washer Aluminium 1 Initial 2 Change of temp 3 Dry heat +85°C 4 Damp heat 5 Corrosion
Skruv utan jordbricka, klimatprovning Contact resistance 1 Initial 2 Change of temp 3 Dry heat +85°C 4 Damp heat 5 Corrosion
Sammanfattning
