electrical conduction system SA node internodal pathways AV

  • Slides: 50
Download presentation

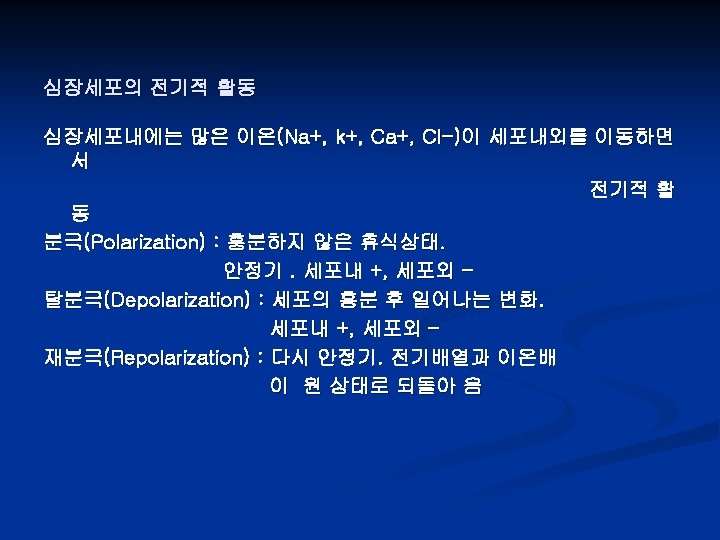

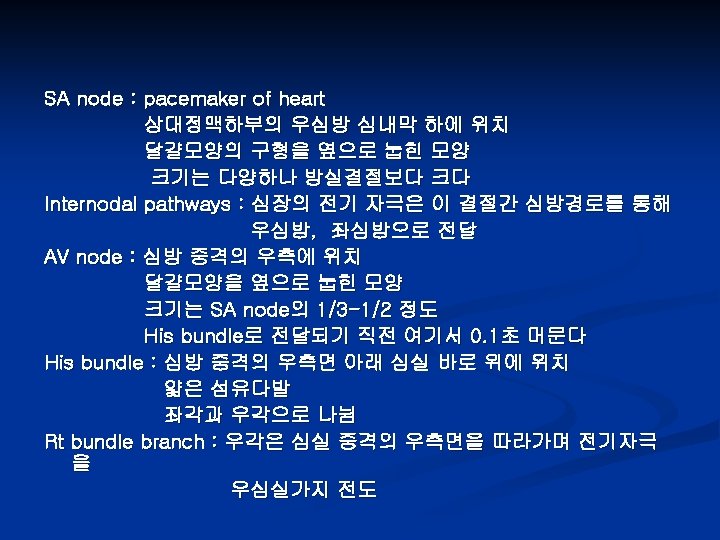

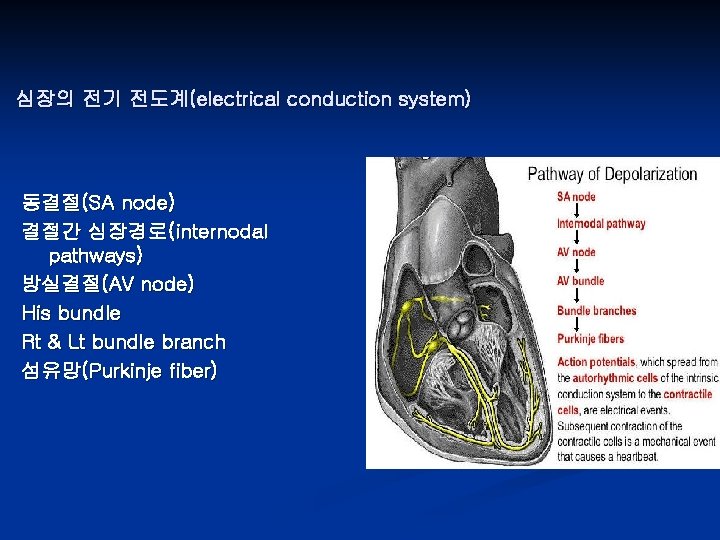

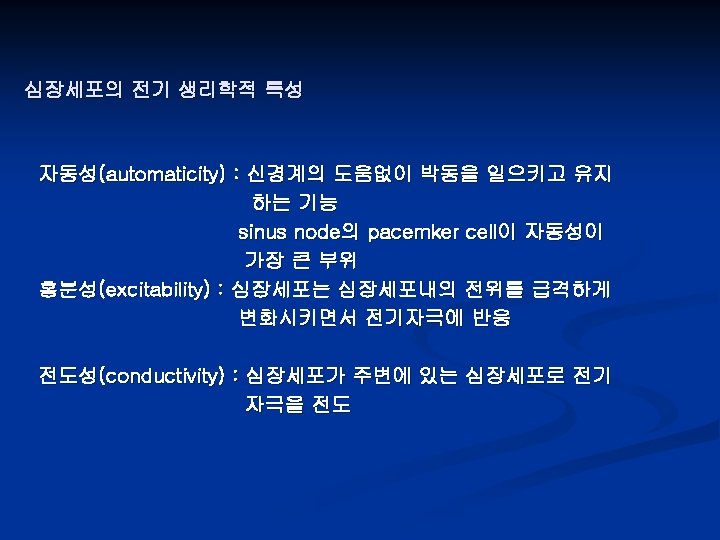

심장의 전기 전도계(electrical conduction system) 동결절(SA node) 결절간 심장경로(internodal pathways) 방실결절(AV node) His bundle

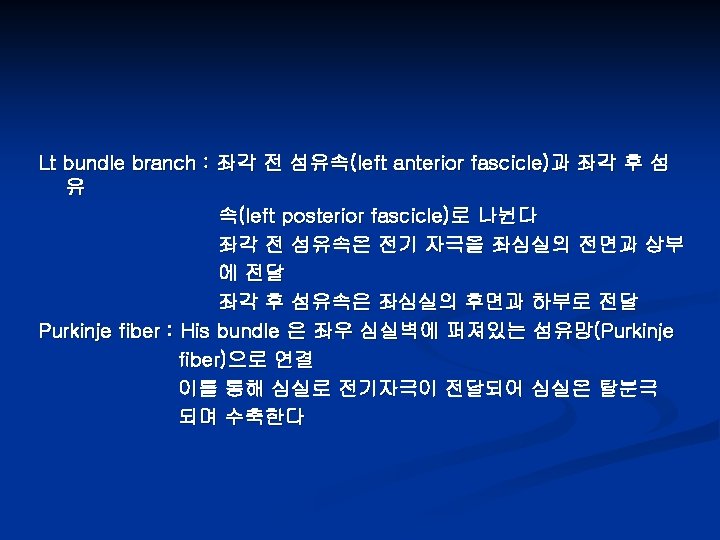

심장의 전기 전도계(electrical conduction system) 동결절(SA node) 결절간 심장경로(internodal pathways) 방실결절(AV node) His bundle Rt & Lt bundle branch 섬유망(Purkinje fiber)

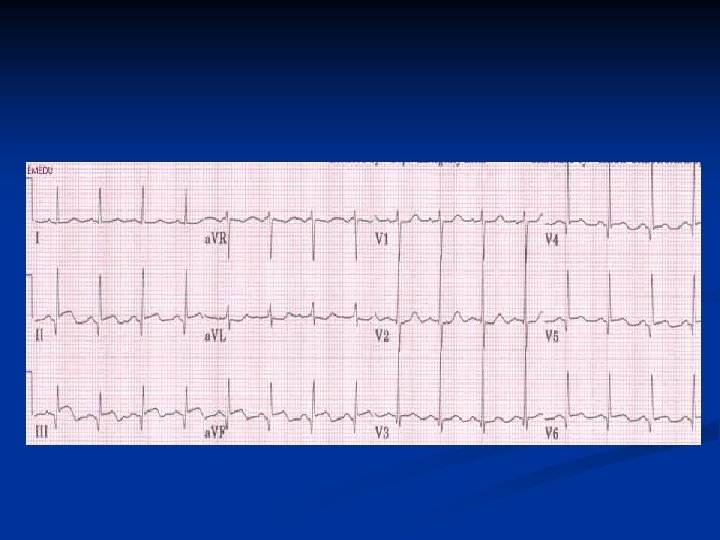

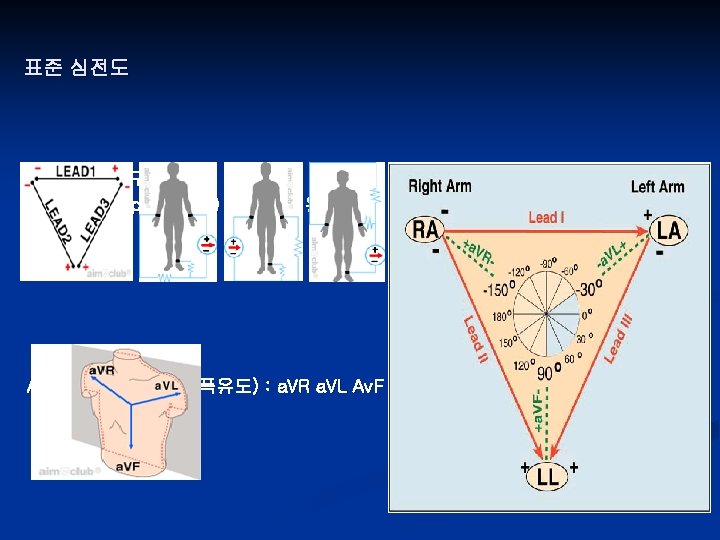

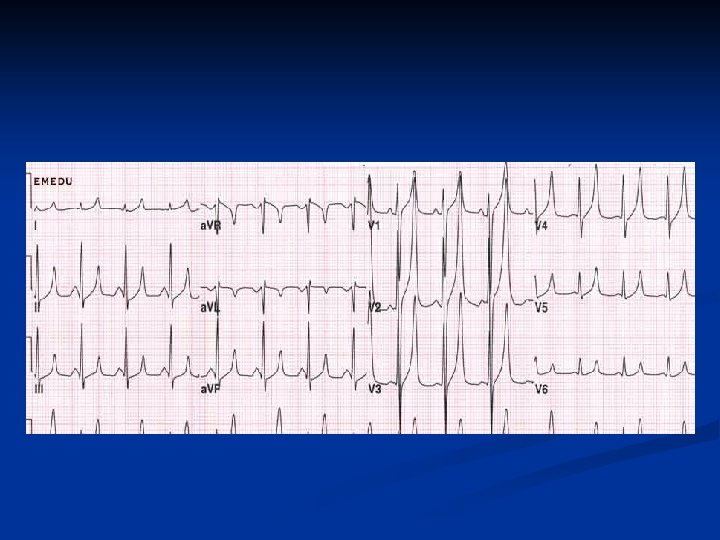

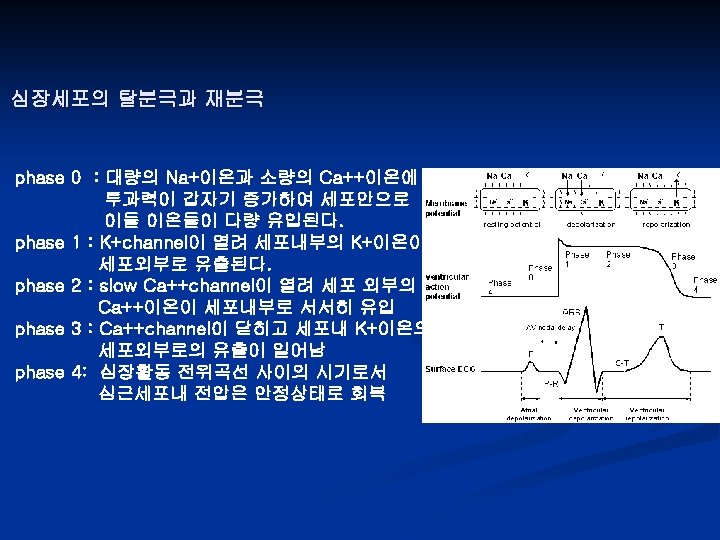

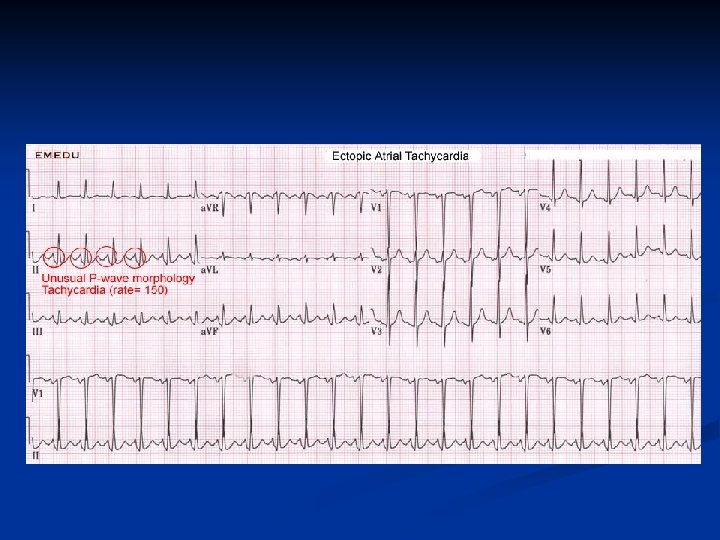

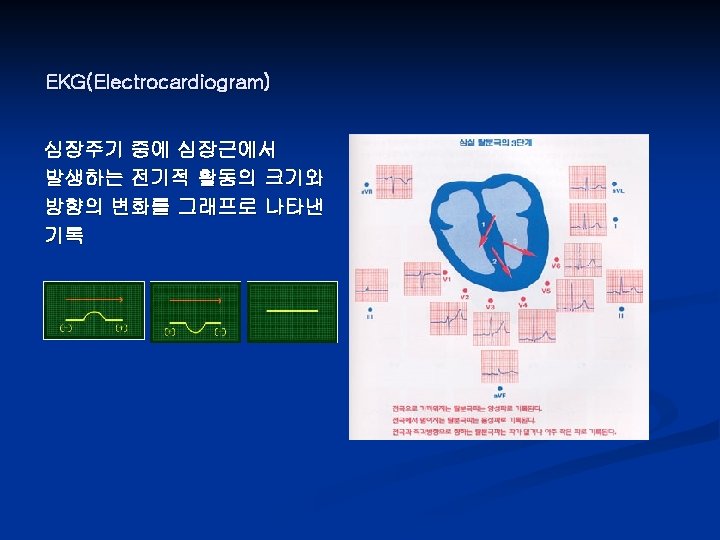

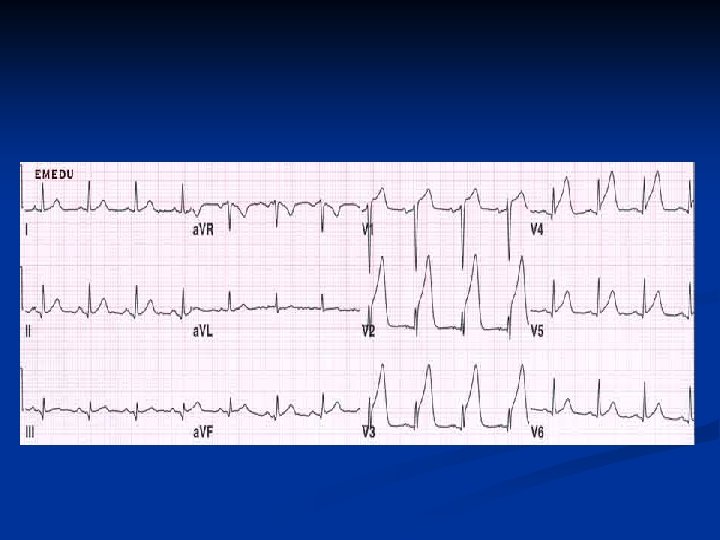

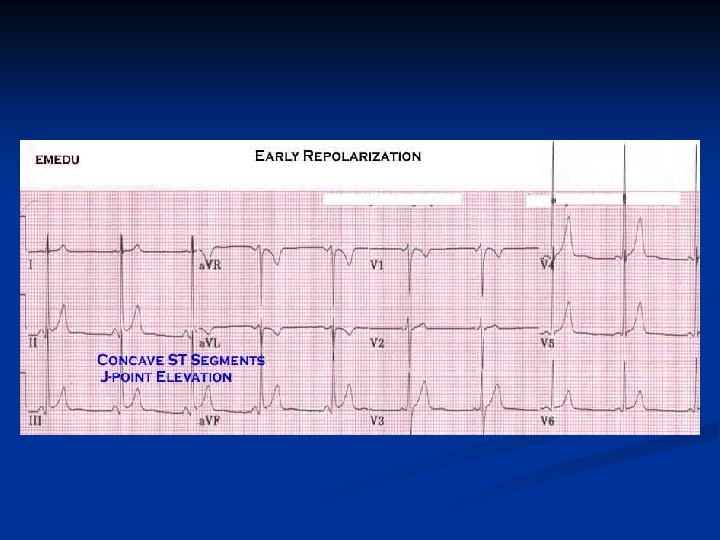

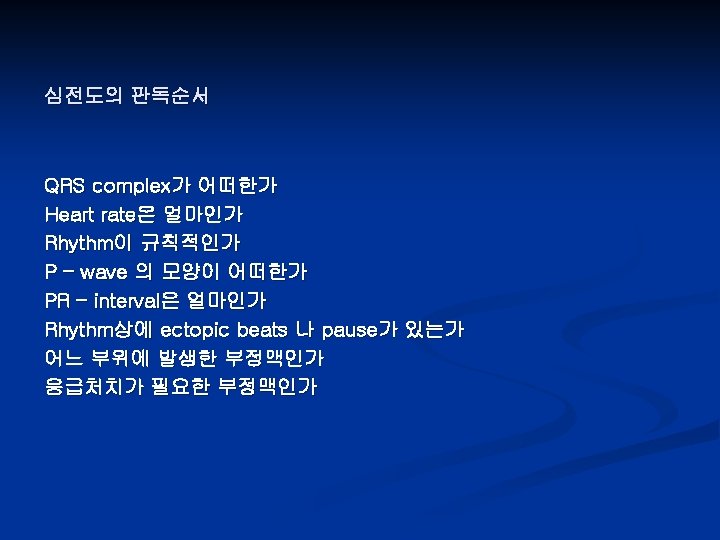

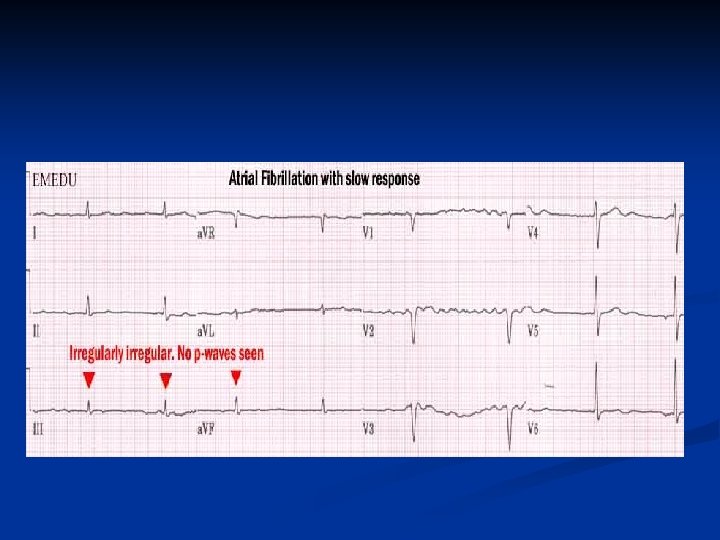

표준 심전도 12 leads 로 구성 Standard (bipolar limb) lead(사지유도) Augmented leads(증폭유도) : a.

표준 심전도 12 leads 로 구성 Standard (bipolar limb) lead(사지유도) Augmented leads(증폭유도) : a. VR a. VL Av. F

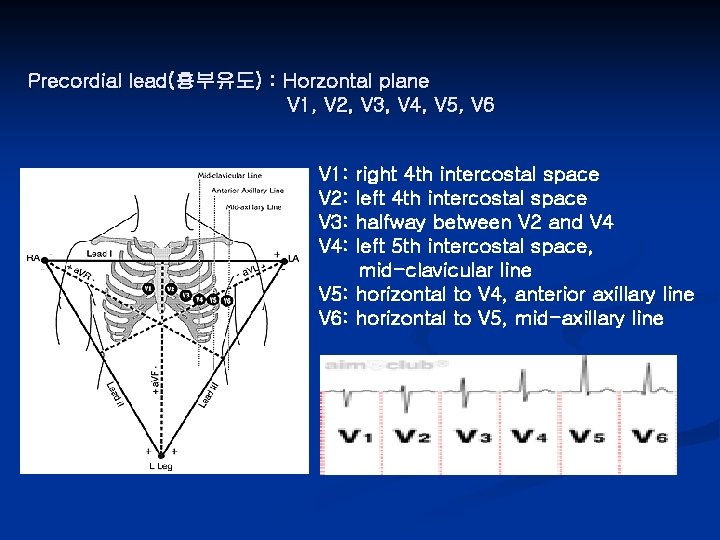

Precordial lead(흉부유도) : Horzontal plane V 1, V 2, V 3, V 4, V

Precordial lead(흉부유도) : Horzontal plane V 1, V 2, V 3, V 4, V 5, V 6 V 1: V 2: V 3: V 4: right 4 th intercostal space left 4 th intercostal space halfway between V 2 and V 4 left 5 th intercostal space, mid-clavicular line V 5: horizontal to V 4, anterior axillary line V 6: horizontal to V 5, mid-axillary line
