ELECTRICAL CIRCUITS AND COMPONENT SYMBOLS 1 Some circuit

ELECTRICAL CIRCUITS AND COMPONENT SYMBOLS 1

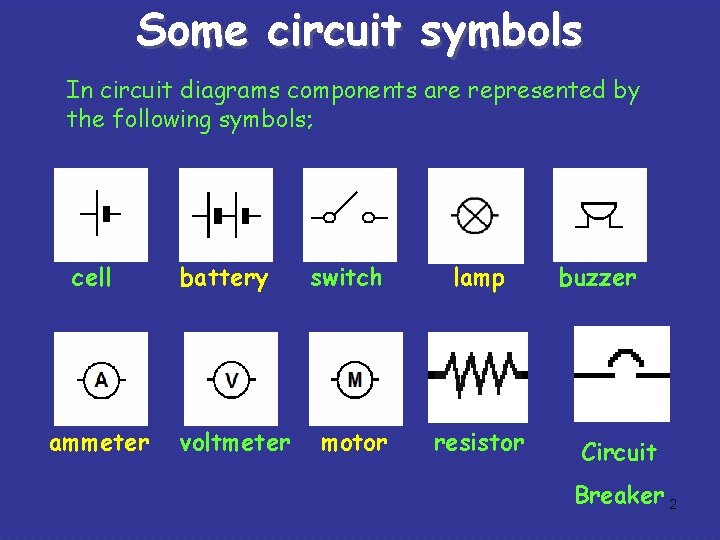

Some circuit symbols In circuit diagrams components are represented by the following symbols; cell ammeter battery voltmeter switch motor lamp resistor buzzer Circuit Breaker 2

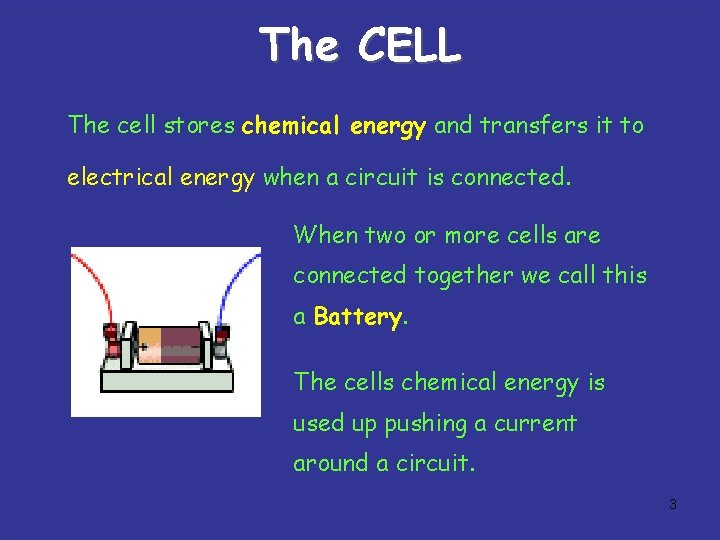

The CELL The cell stores chemical energy and transfers it to electrical energy when a circuit is connected. When two or more cells are connected together we call this a Battery. The cells chemical energy is used up pushing a current around a circuit. 3

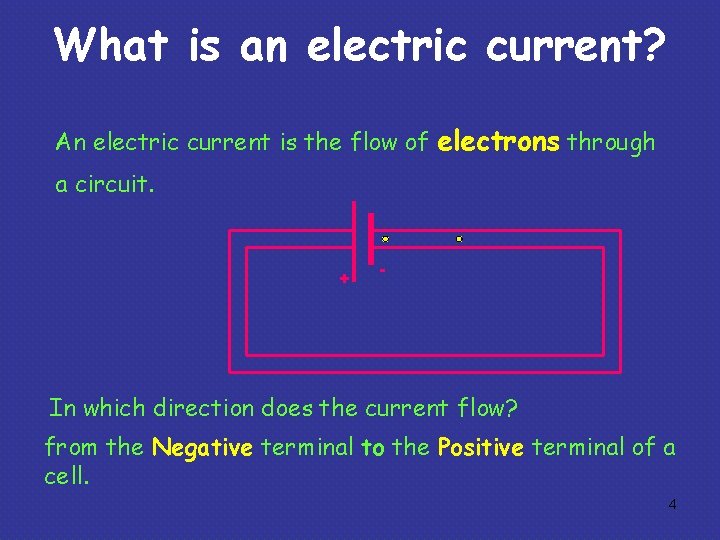

What is an electric current? An electric current is the flow of electrons through a circuit. + - In which direction does the current flow? from the Negative terminal to the Positive terminal of a cell. 4

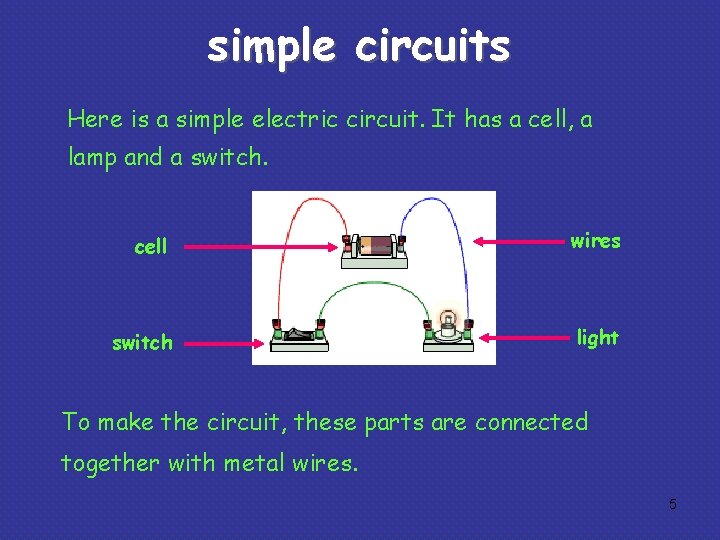

simple circuits Here is a simple electric circuit. It has a cell, a lamp and a switch. cell wires switch light To make the circuit, these parts are connected together with metal wires. 5

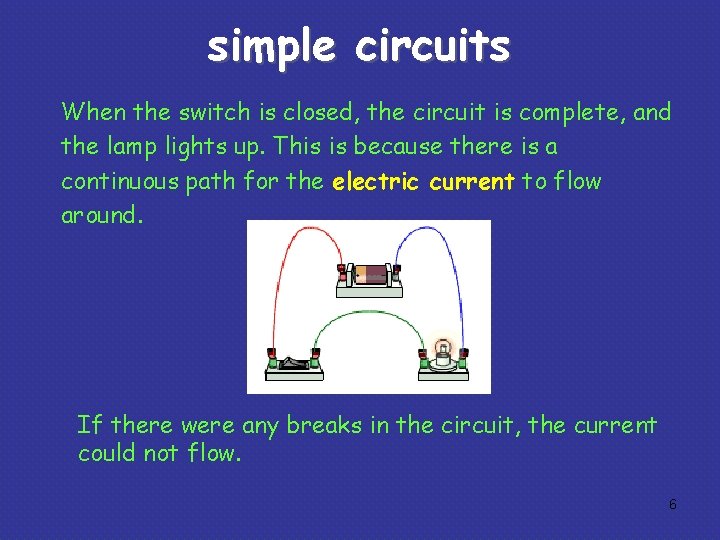

simple circuits When the switch is closed, the circuit is complete, and the lamp lights up. This is because there is a continuous path for the electric current to flow around. If there were any breaks in the circuit, the current could not flow. 6

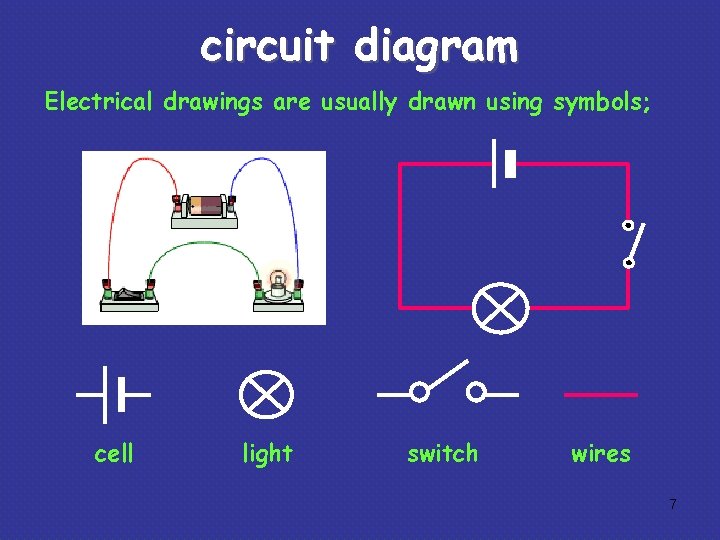

circuit diagram Electrical drawings are usually drawn using symbols; cell light switch wires 7

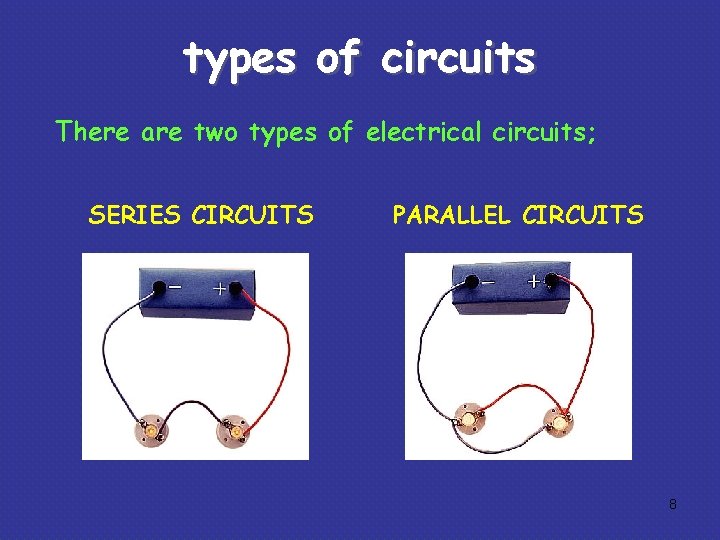

types of circuits There are two types of electrical circuits; SERIES CIRCUITS PARALLEL CIRCUITS 8

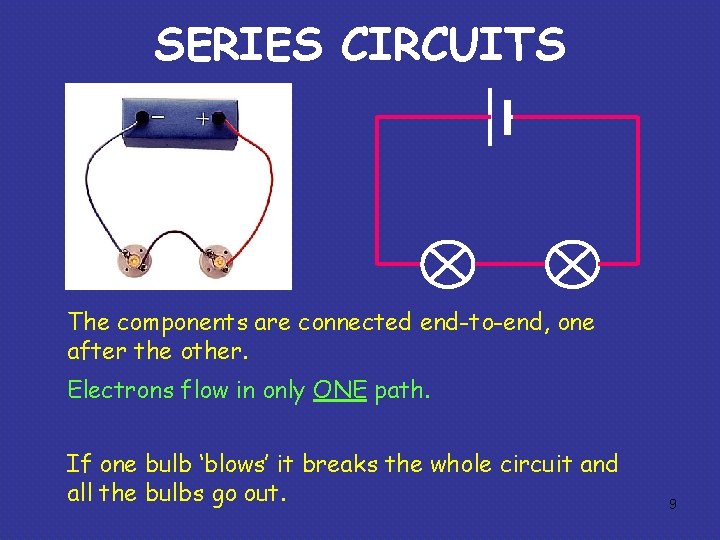

SERIES CIRCUITS The components are connected end-to-end, one after the other. Electrons flow in only ONE path. If one bulb ‘blows’ it breaks the whole circuit and all the bulbs go out. 9

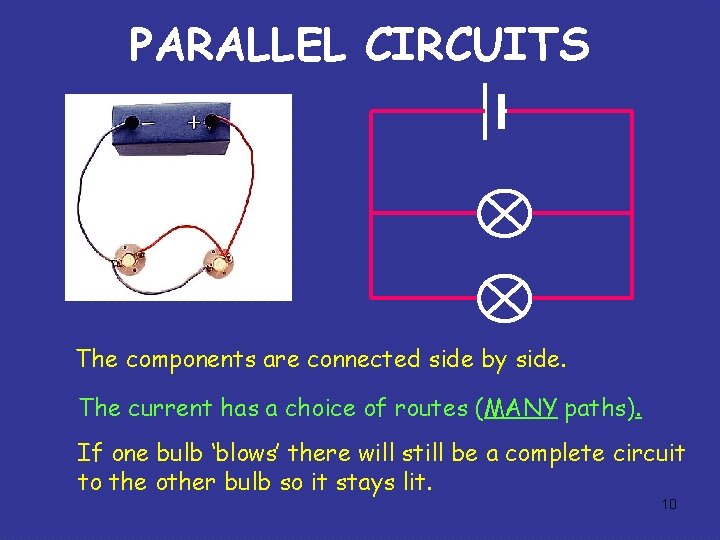

PARALLEL CIRCUITS The components are connected side by side. The current has a choice of routes (MANY paths). If one bulb ‘blows’ there will still be a complete circuit to the other bulb so it stays lit. 10

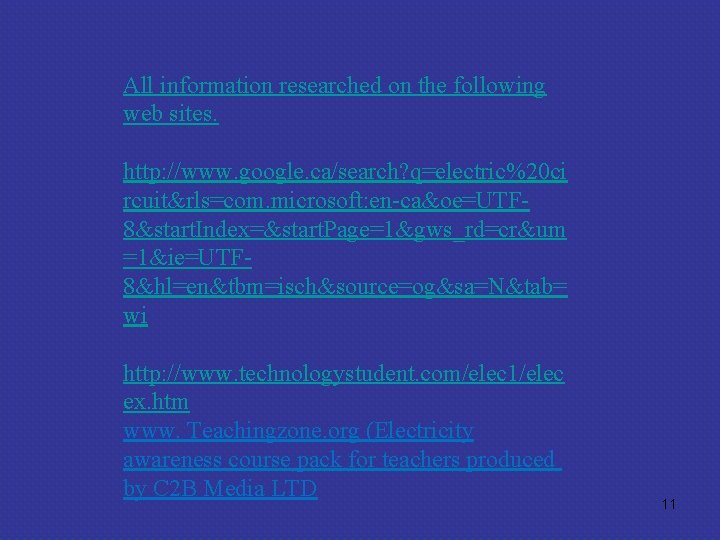

All information researched on the following web sites. http: //www. google. ca/search? q=electric%20 ci rcuit&rls=com. microsoft: en-ca&oe=UTF 8&start. Index=&start. Page=1&gws_rd=cr&um =1&ie=UTF 8&hl=en&tbm=isch&source=og&sa=N&tab= wi http: //www. technologystudent. com/elec 1/elec ex. htm www. Teachingzone. org (Electricity awareness course pack for teachers produced by C 2 B Media LTD 11
