Electrical Characteristics of Channelopathies Involving Skeletal Muscle Bob

Electrical Characteristics of Channelopathies Involving Skeletal Muscle Bob Ruff, M. D. , Ph. D. Chief, SCI Service Louis Stokes Cleveland VAMC Barbara E. Shapiro, M. D. , Ph. D. Case Western Reserve Univ. Jacob Levitt, M. D. Albert Einstein College of Medicine

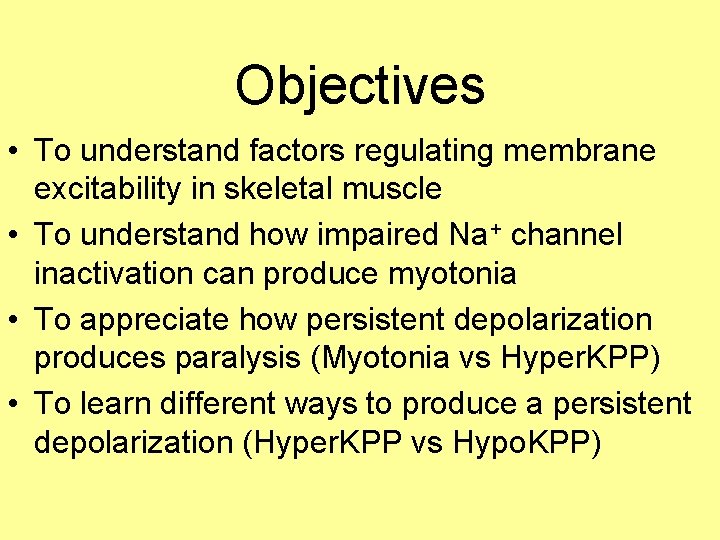

Objectives • To understand factors regulating membrane excitability in skeletal muscle • To understand how impaired Na+ channel inactivation can produce myotonia • To appreciate how persistent depolarization produces paralysis (Myotonia vs Hyper. KPP) • To learn different ways to produce a persistent depolarization (Hyper. KPP vs Hypo. KPP)

Roles of Na+, K+ and Cl- Channels in Membrane Excitability • • Kir sets resting membrane potential Kv (delayed rectifier) repolarizes after AP Cl- channel stabilizes membrane potential INa drives AP

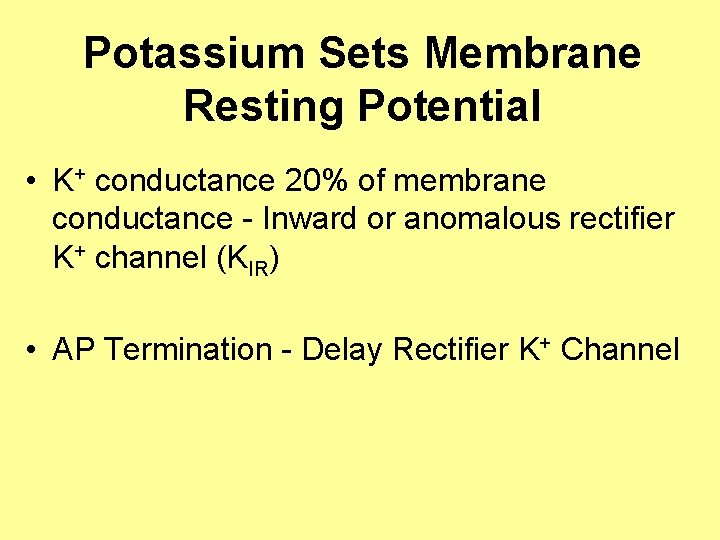

Potassium Sets Membrane Resting Potential • K+ conductance 20% of membrane conductance - Inward or anomalous rectifier K+ channel (KIR) • AP Termination - Delay Rectifier K+ Channel

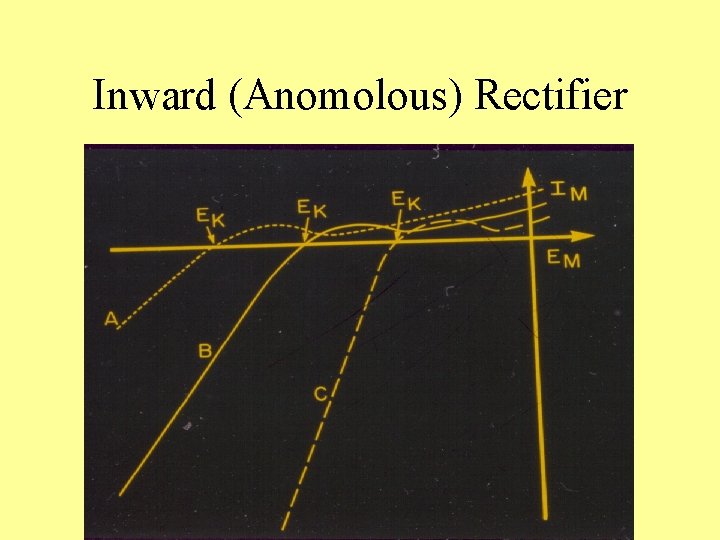

Inward (Anomolous) Rectifier

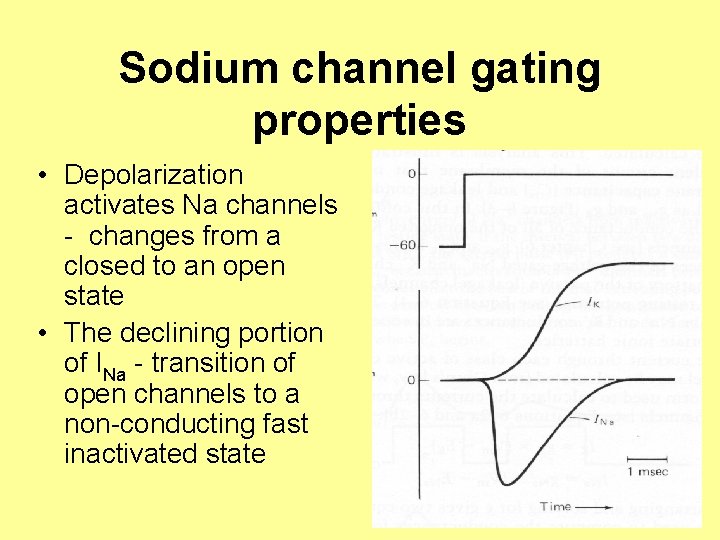

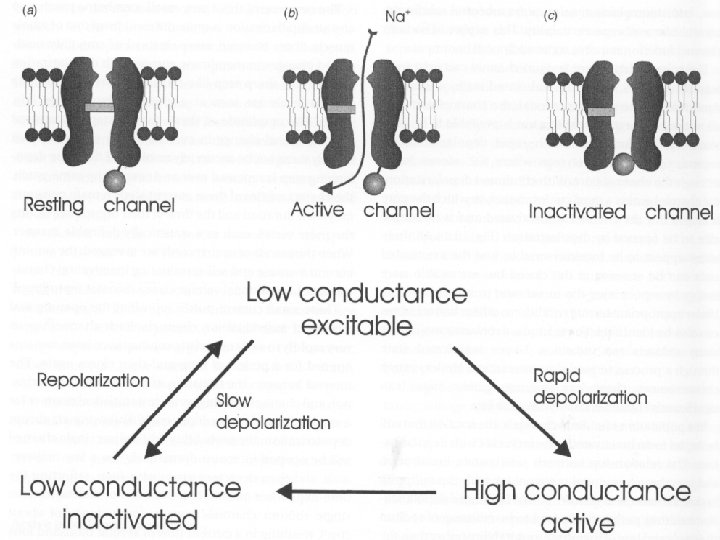

Sodium channel gating properties • Depolarization activates Na channels - changes from a closed to an open state • The declining portion of INa - transition of open channels to a non-conducting fast inactivated state

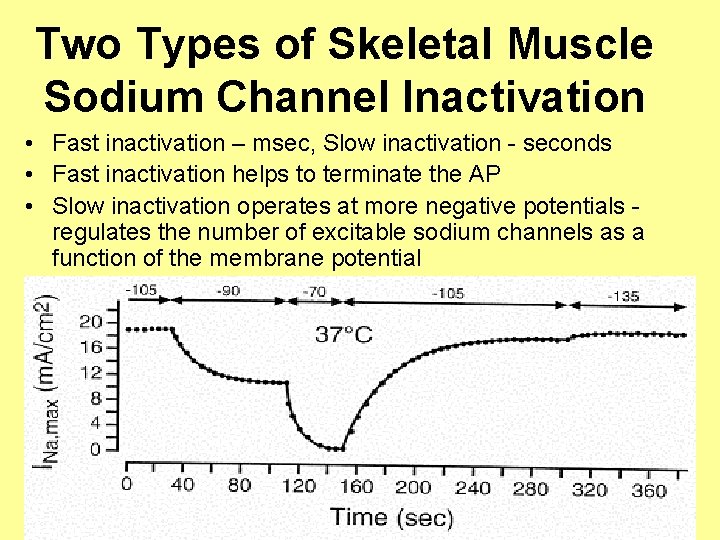

Two Types of Skeletal Muscle Sodium Channel Inactivation • Fast inactivation – msec, Slow inactivation - seconds • Fast inactivation helps to terminate the AP • Slow inactivation operates at more negative potentials - regulates the number of excitable sodium channels as a function of the membrane potential

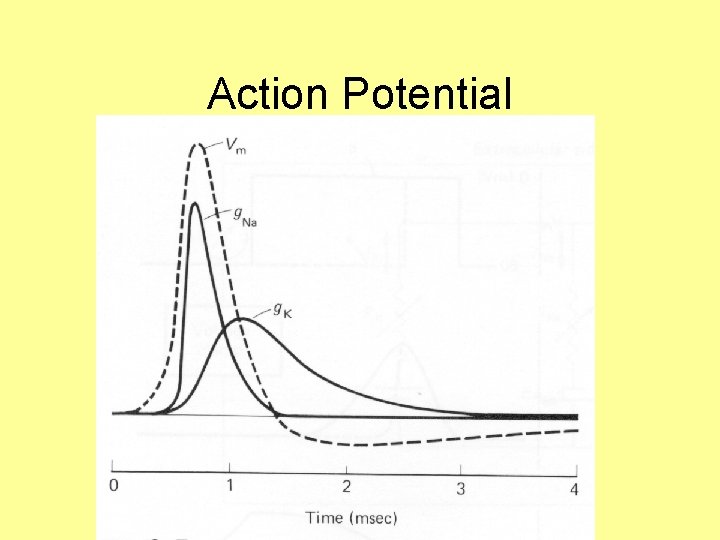

Action Potential

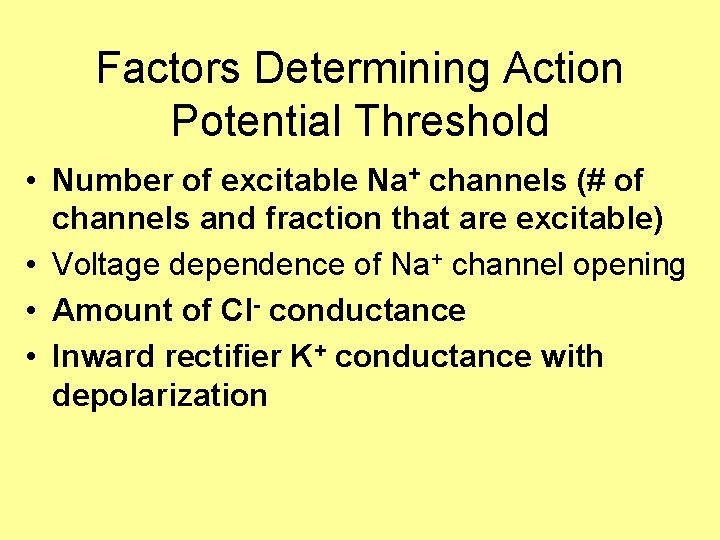

Factors Determining Action Potential Threshold • Number of excitable Na+ channels (# of channels and fraction that are excitable) • Voltage dependence of Na+ channel opening • Amount of Cl- conductance • Inward rectifier K+ conductance with depolarization

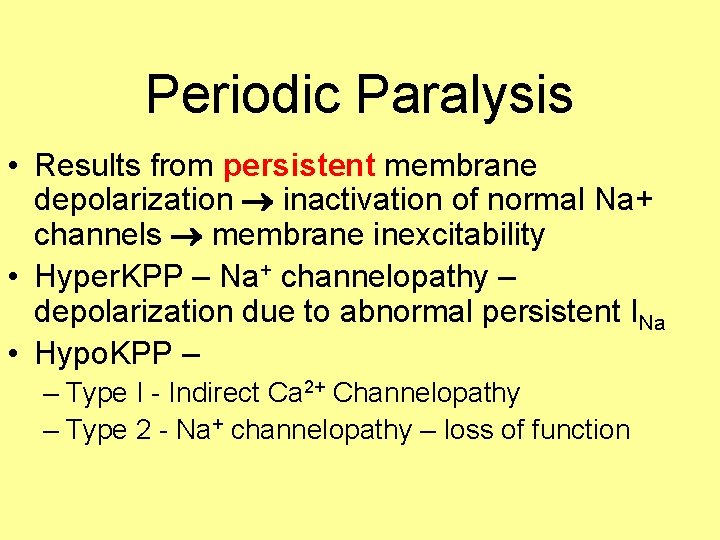

Periodic Paralysis • Results from persistent membrane depolarization inactivation of normal Na+ channels membrane inexcitability • Hyper. KPP – Na+ channelopathy – depolarization due to abnormal persistent INa • Hypo. KPP – – Type I - Indirect Ca 2+ Channelopathy – Type 2 - Na+ channelopathy – loss of function

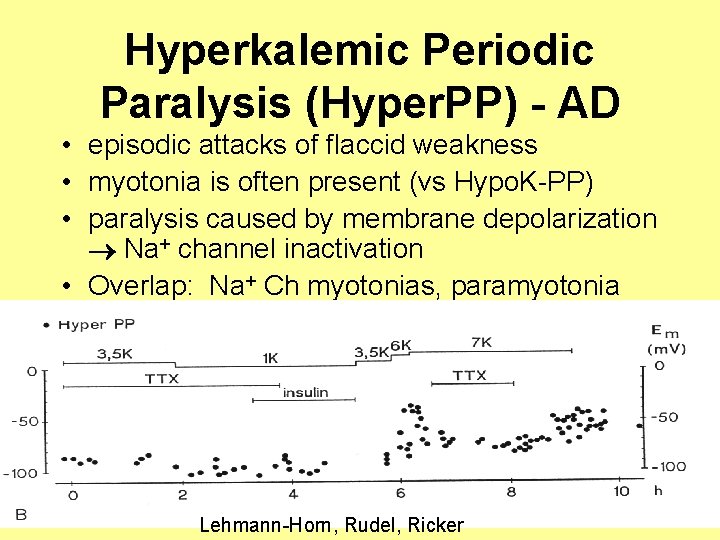

Hyperkalemic Periodic Paralysis (Hyper. PP) - AD • episodic attacks of flaccid weakness • myotonia is often present (vs Hypo. K-PP) • paralysis caused by membrane depolarization Na+ channel inactivation • Overlap: Na+ Ch myotonias, paramyotonia Lehmann-Horn, Rudel, Ricker

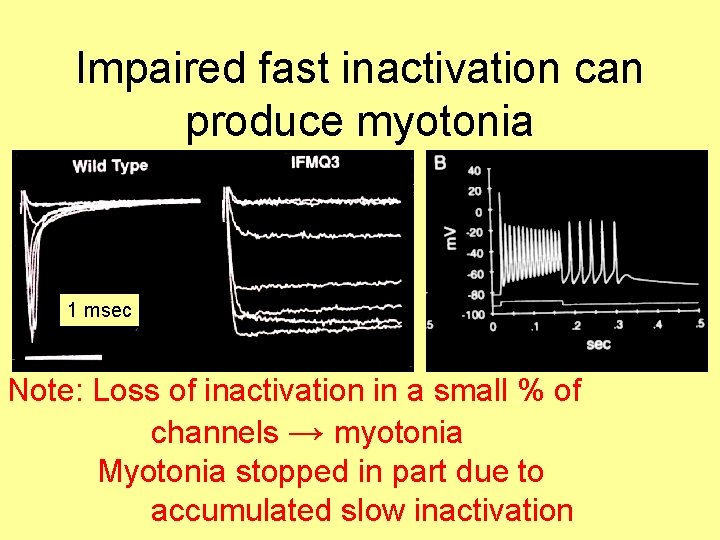

Impaired fast inactivation can produce myotonia 1 msec Note: Loss of inactivation in a small % of channels → myotonia Myotonia stopped in part due to accumulated slow inactivation

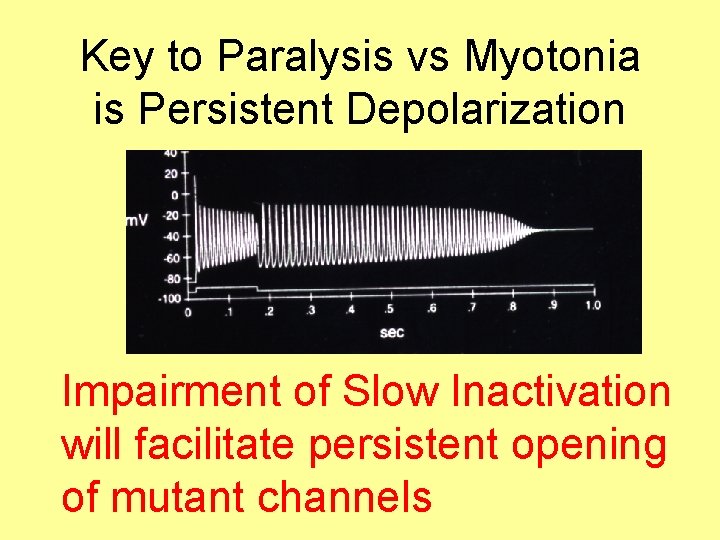

Key to Paralysis vs Myotonia is Persistent Depolarization Impairment of Slow Inactivation will facilitate persistent opening of mutant channels

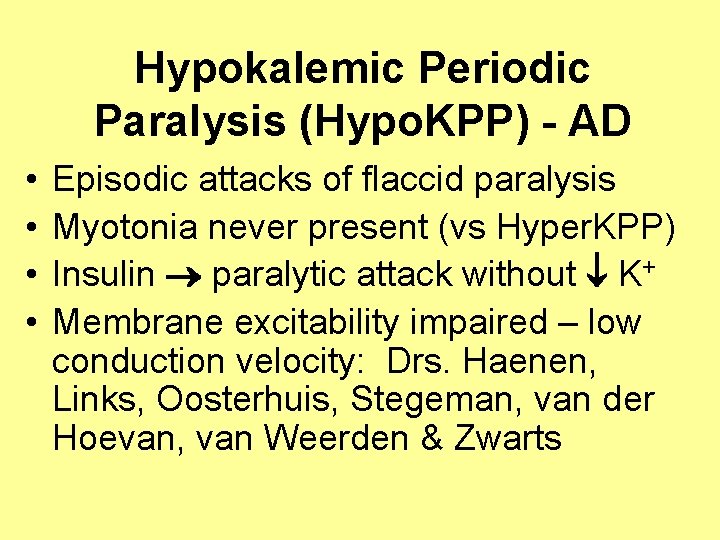

Hypokalemic Periodic Paralysis (Hypo. KPP) - AD • • Episodic attacks of flaccid paralysis Myotonia never present (vs Hyper. KPP) Insulin paralytic attack without K+ Membrane excitability impaired – low conduction velocity: Drs. Haenen, Links, Oosterhuis, Stegeman, van der Hoevan, van Weerden & Zwarts

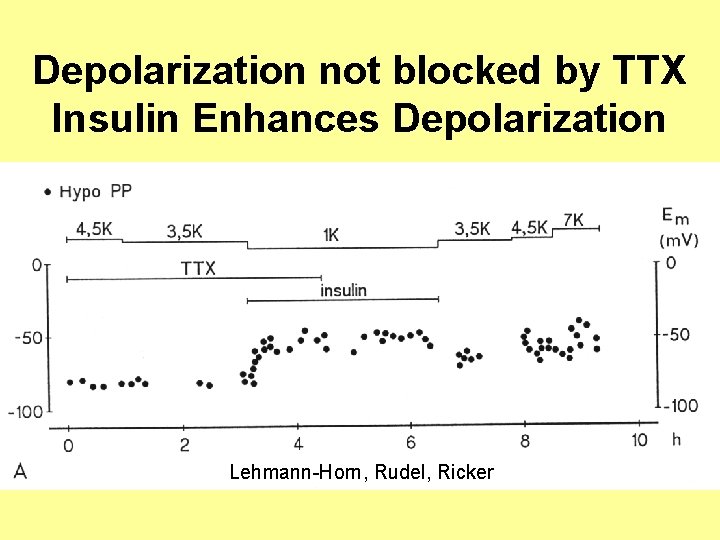

Depolarization not blocked by TTX Insulin Enhances Depolarization Lehmann-Horn, Rudel, Ricker

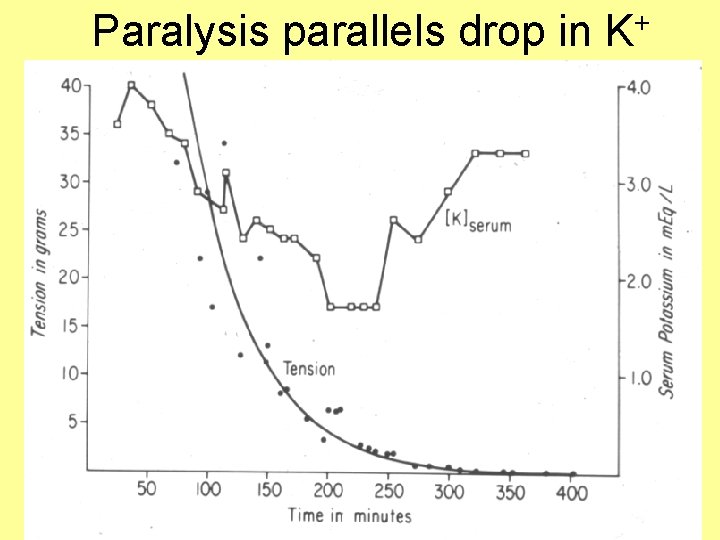

Paralysis parallels drop in K+

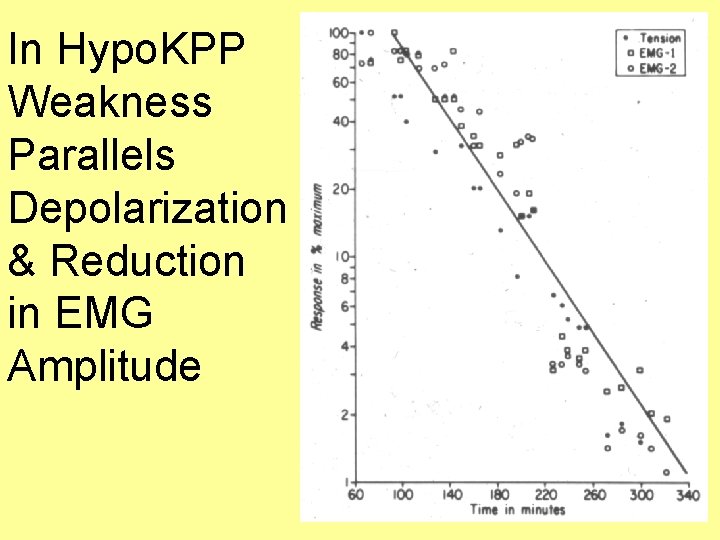

In Hypo. KPP Weakness Parallels Depolarization & Reduction in EMG Amplitude

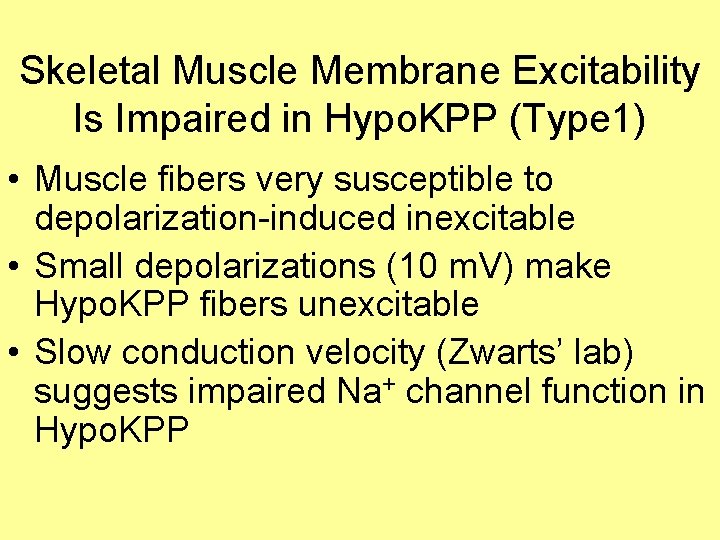

Skeletal Muscle Membrane Excitability Is Impaired in Hypo. KPP (Type 1) • Muscle fibers very susceptible to depolarization-induced inexcitable • Small depolarizations (10 m. V) make Hypo. KPP fibers unexcitable • Slow conduction velocity (Zwarts’ lab) suggests impaired Na+ channel function in Hypo. KPP

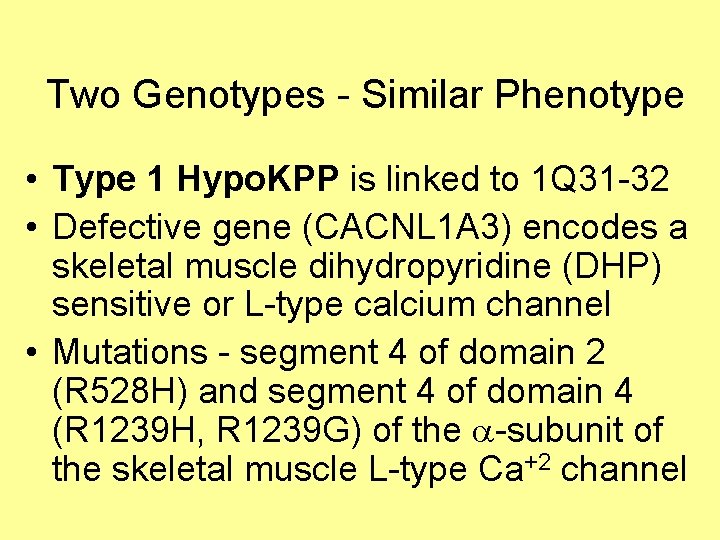

Two Genotypes - Similar Phenotype • Type 1 Hypo. KPP is linked to 1 Q 31 -32 • Defective gene (CACNL 1 A 3) encodes a skeletal muscle dihydropyridine (DHP) sensitive or L-type calcium channel • Mutations - segment 4 of domain 2 (R 528 H) and segment 4 of domain 4 (R 1239 H, R 1239 G) of the -subunit of the skeletal muscle L-type Ca+2 channel

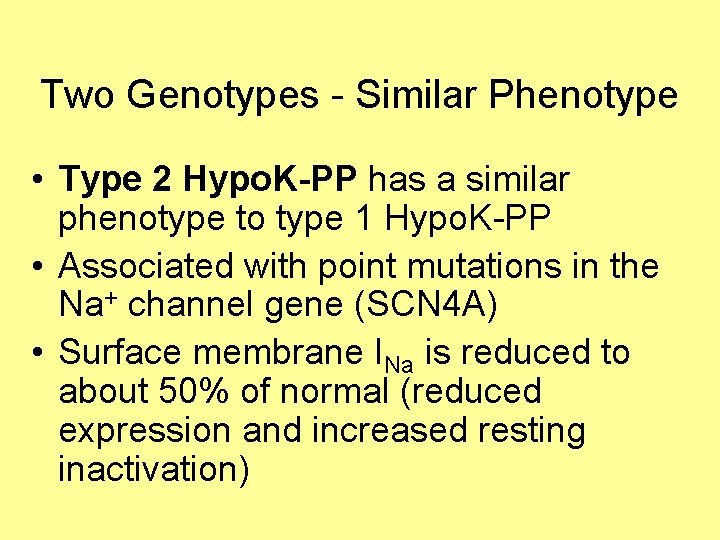

Two Genotypes - Similar Phenotype • Type 2 Hypo. K-PP has a similar phenotype to type 1 Hypo. K-PP • Associated with point mutations in the Na+ channel gene (SCN 4 A) • Surface membrane INa is reduced to about 50% of normal (reduced expression and increased resting inactivation)

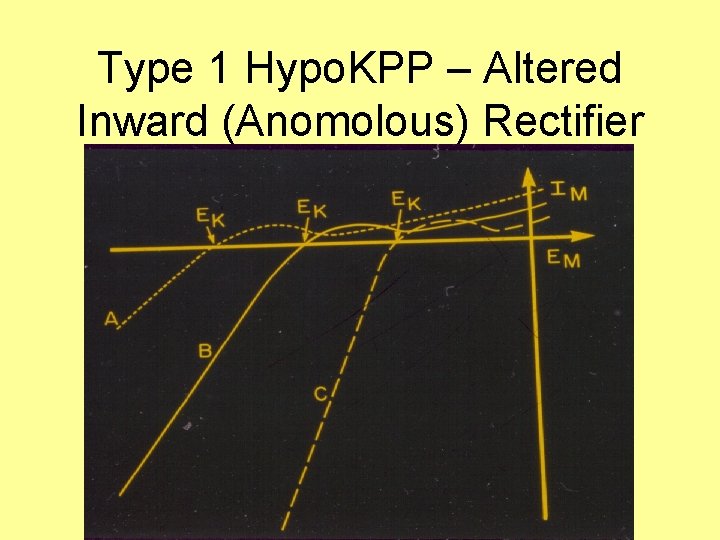

Type 1 Hypo. KPP – Altered Inward (Anomolous) Rectifier

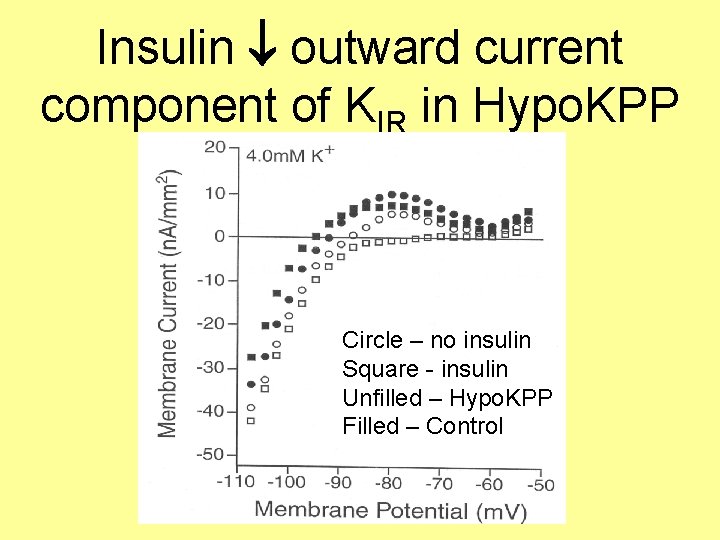

Insulin outward current component of KIR in Hypo. KPP Circle – no insulin Square - insulin Unfilled – Hypo. KPP Filled – Control

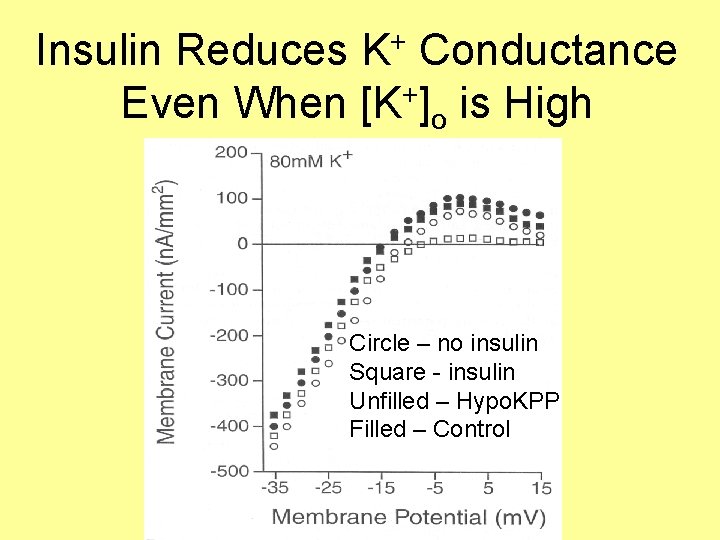

+ Insulin Reduces K Conductance Even When [K+]o is High Circle – no insulin Square - insulin Unfilled – Hypo. KPP Filled – Control

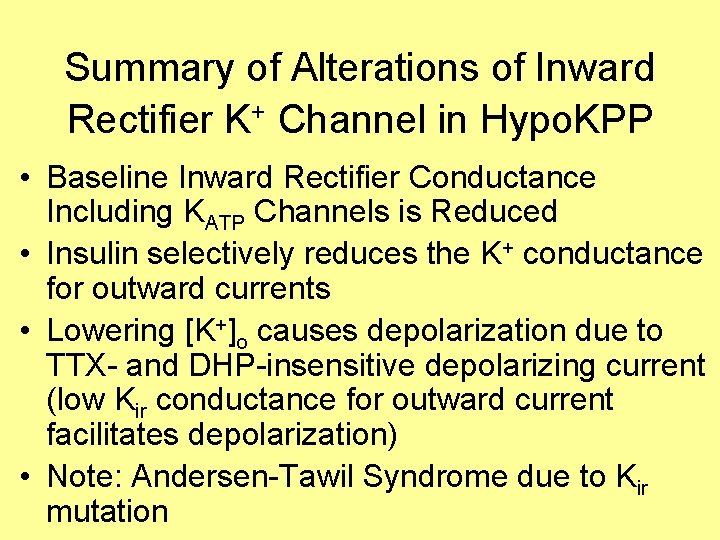

Summary of Alterations of Inward Rectifier K+ Channel in Hypo. KPP • Baseline Inward Rectifier Conductance Including KATP Channels is Reduced • Insulin selectively reduces the K+ conductance for outward currents • Lowering [K+]o causes depolarization due to TTX- and DHP-insensitive depolarizing current (low Kir conductance for outward current facilitates depolarization) • Note: Andersen-Tawil Syndrome due to Kir mutation

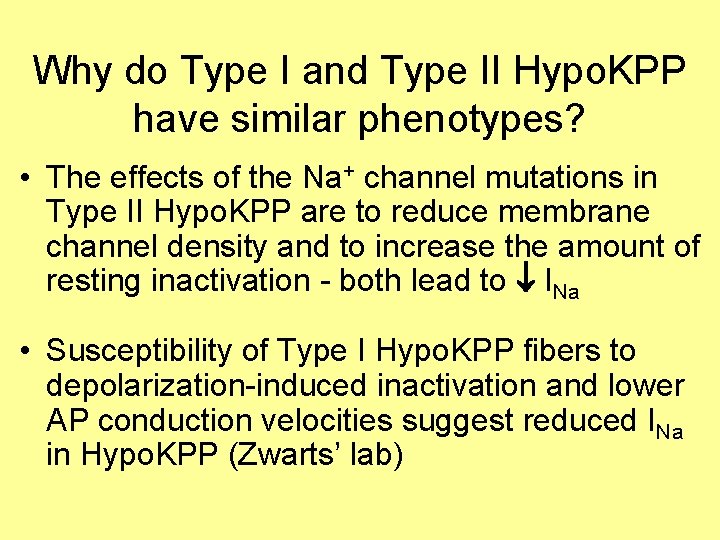

Why do Type I and Type II Hypo. KPP have similar phenotypes? • The effects of the Na+ channel mutations in Type II Hypo. KPP are to reduce membrane channel density and to increase the amount of resting inactivation - both lead to INa • Susceptibility of Type I Hypo. KPP fibers to depolarization-induced inactivation and lower AP conduction velocities suggest reduced INa in Hypo. KPP (Zwarts’ lab)

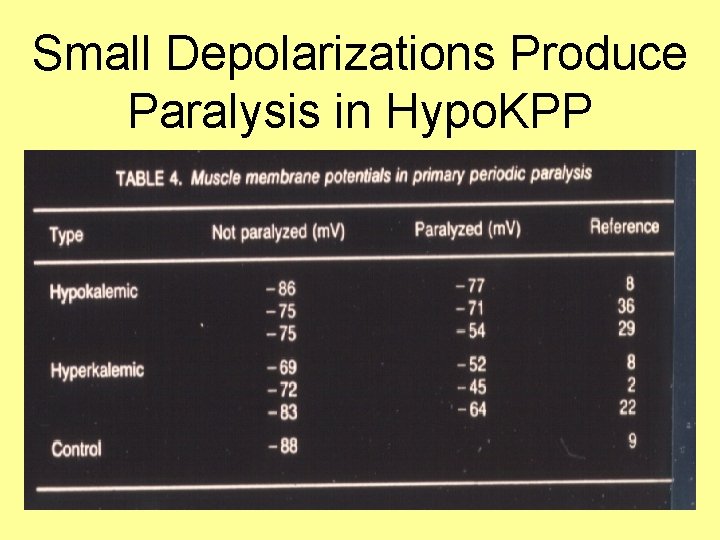

Small Depolarizations Produce Paralysis in Hypo. KPP

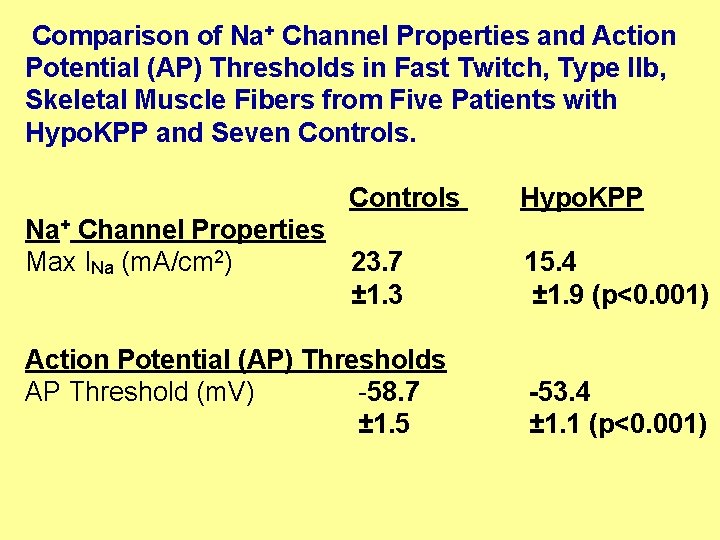

Comparison of Na+ Channel Properties and Action Potential (AP) Thresholds in Fast Twitch, Type IIb, Skeletal Muscle Fibers from Five Patients with Hypo. KPP and Seven Controls. Controls Hypo. KPP Na+ Channel Properties Max INa (m. A/cm 2) 23. 7 15. 4 ± 1. 3 ± 1. 9 (p<0. 001) Action Potential (AP) Thresholds AP Threshold (m. V) -58. 7 ± 1. 5 -53. 4 ± 1. 1 (p<0. 001)

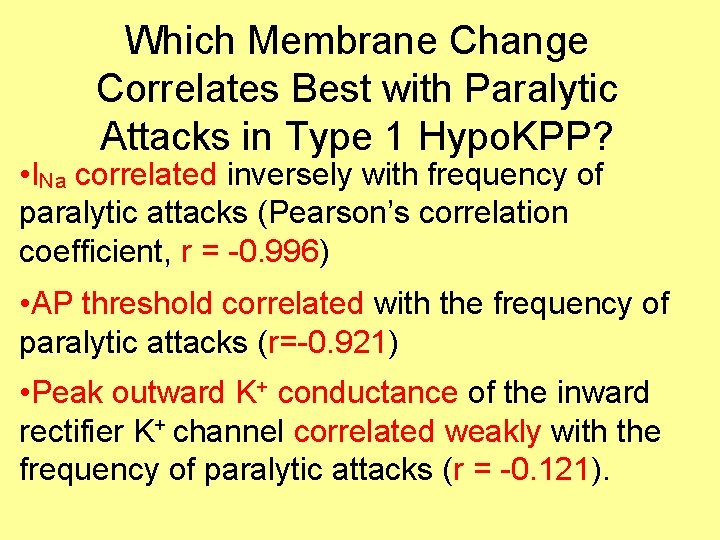

Which Membrane Change Correlates Best with Paralytic Attacks in Type 1 Hypo. KPP? • INa correlated inversely with frequency of paralytic attacks (Pearson’s correlation coefficient, r = -0. 996) • AP threshold correlated with the frequency of paralytic attacks (r=-0. 921) • Peak outward K+ conductance of the inward rectifier K+ channel correlated weakly with the frequency of paralytic attacks (r = -0. 121).

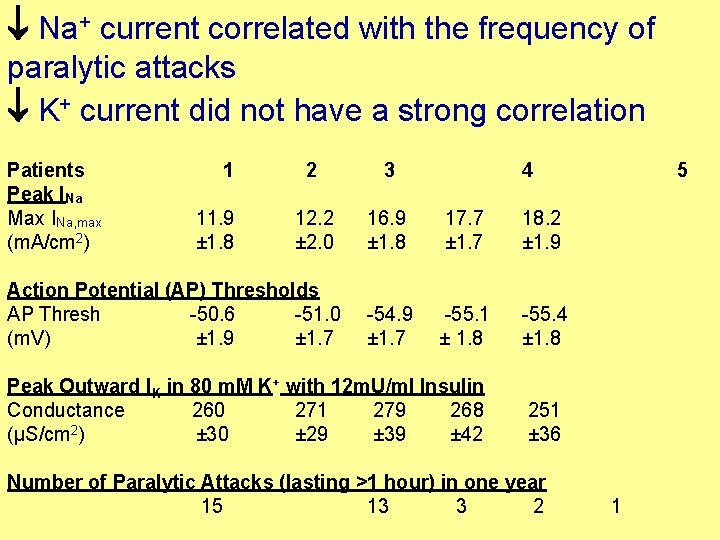

Na+ current correlated with the frequency of paralytic attacks K+ current did not have a strong correlation Patients Peak INa Max INa, max (m. A/cm 2) 1 11. 9 ± 1. 8 2 3 12. 2 ± 2. 0 16. 9 ± 1. 8 17. 7 ± 1. 7 18. 2 ± 1. 9 -54. 9 ± 1. 7 -55. 1 ± 1. 8 -55. 4 ± 1. 8 Action Potential (AP) Thresholds AP Thresh -50. 6 -51. 0 (m. V) ± 1. 9 ± 1. 7 4 Peak Outward IK in 80 m. M K+ with 12 m. U/ml Insulin Conductance 260 271 279 268 251 (µS/cm 2) ± 30 ± 29 ± 39 ± 42 ± 36 Number of Paralytic Attacks (lasting >1 hour) in one year 15 13 3 2 5 1

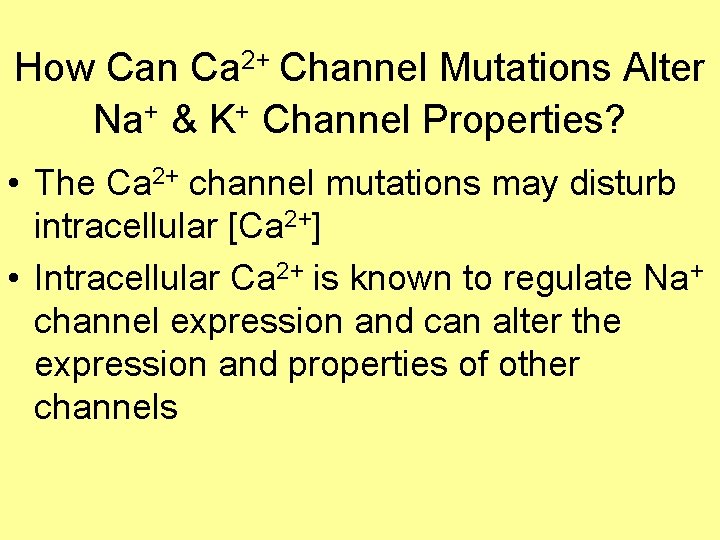

How Can Ca 2+ Channel Mutations Alter Na+ & K+ Channel Properties? • The Ca 2+ channel mutations may disturb intracellular [Ca 2+] • Intracellular Ca 2+ is known to regulate Na+ channel expression and can alter the expression and properties of other channels

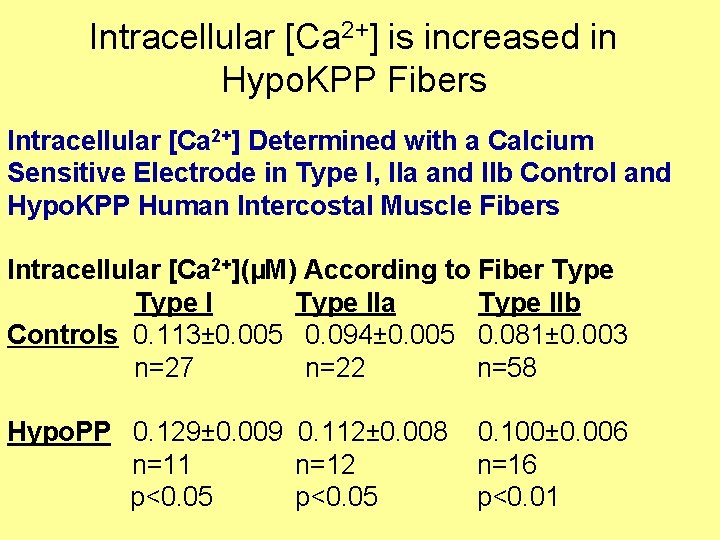

Intracellular [Ca 2+] is increased in Hypo. KPP Fibers Intracellular [Ca 2+] Determined with a Calcium Sensitive Electrode in Type I, IIa and IIb Control and Hypo. KPP Human Intercostal Muscle Fibers Intracellular [Ca 2+](µM) According to Fiber Type IIa Type IIb Controls 0. 113± 0. 005 0. 094± 0. 005 0. 081± 0. 003 n=27 n=22 n=58 Hypo. PP 0. 129± 0. 009 0. 112± 0. 008 0. 100± 0. 006 n=11 n=12 n=16 p<0. 05 p<0. 01

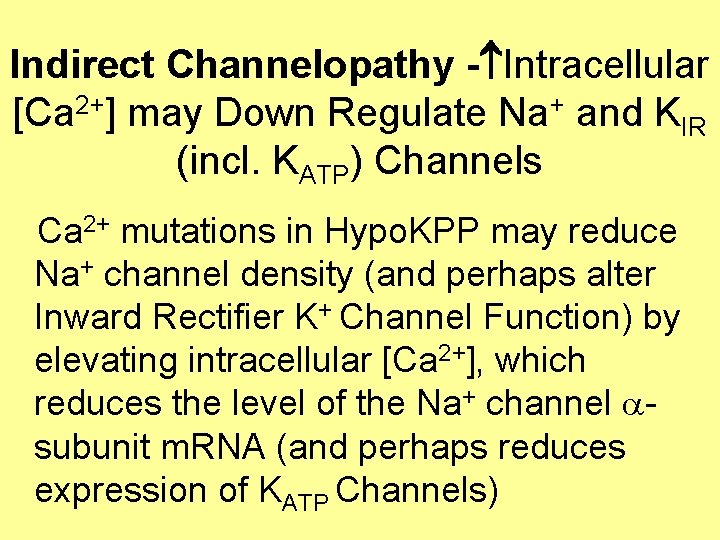

Indirect Channelopathy - Intracellular [Ca 2+] may Down Regulate Na+ and KIR (incl. KATP) Channels Ca 2+ mutations in Hypo. KPP may reduce Na+ channel density (and perhaps alter Inward Rectifier K+ Channel Function) by elevating intracellular [Ca 2+], which reduces the level of the Na+ channel subunit m. RNA (and perhaps reduces expression of KATP Channels)

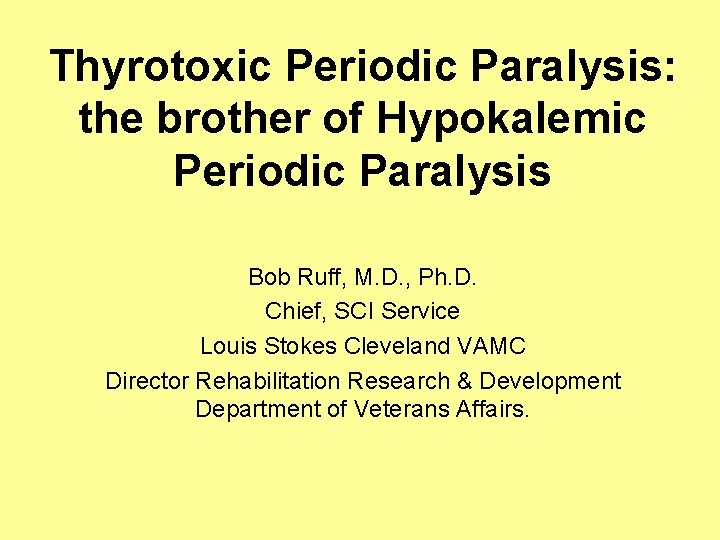

Thyrotoxic Periodic Paralysis: the brother of Hypokalemic Periodic Paralysis Bob Ruff, M. D. , Ph. D. Chief, SCI Service Louis Stokes Cleveland VAMC Director Rehabilitation Research & Development Department of Veterans Affairs.

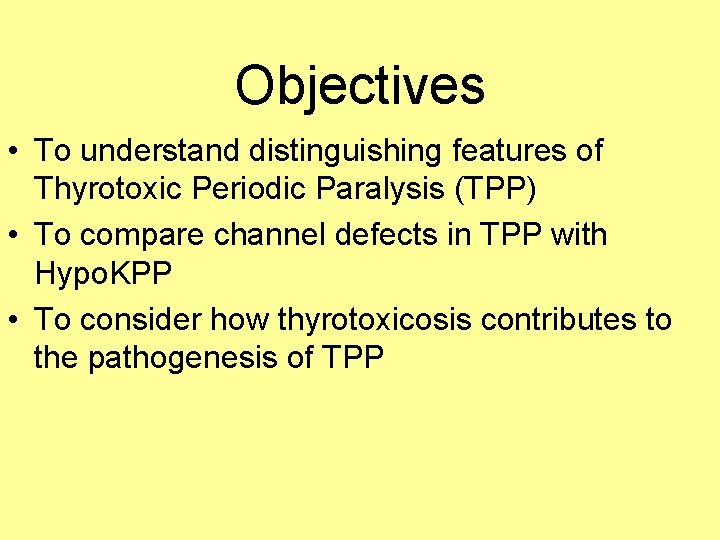

Objectives • To understand distinguishing features of Thyrotoxic Periodic Paralysis (TPP) • To compare channel defects in TPP with Hypo. KPP • To consider how thyrotoxicosis contributes to the pathogenesis of TPP

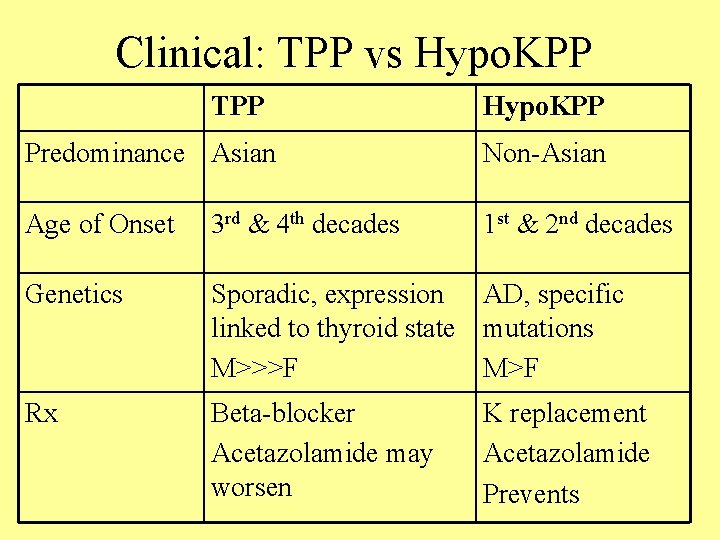

Clinical: TPP vs Hypo. KPP TPP Hypo. KPP Predominance Asian Non-Asian Age of Onset 3 rd & 4 th decades 1 st & 2 nd decades Genetics Sporadic, expression AD, specific linked to thyroid state mutations M>>>F M>F Rx Beta-blocker Acetazolamide may worsen K replacement Acetazolamide Prevents

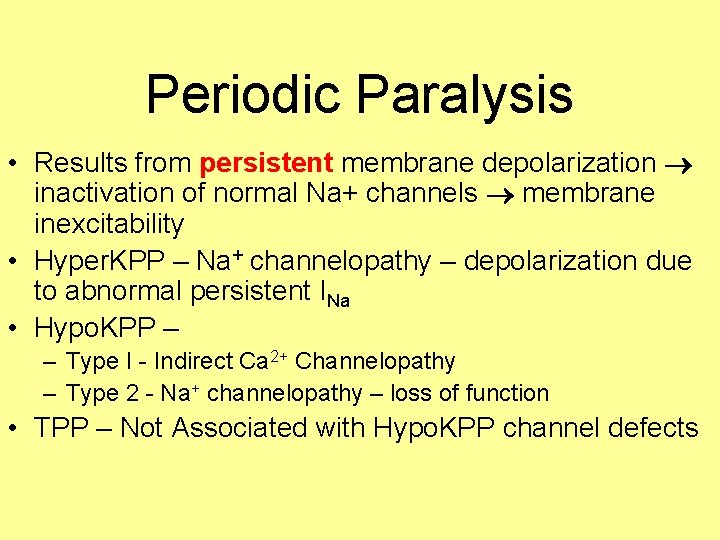

Periodic Paralysis • Results from persistent membrane depolarization inactivation of normal Na+ channels membrane inexcitability • Hyper. KPP – Na+ channelopathy – depolarization due to abnormal persistent INa • Hypo. KPP – – Type I - Indirect Ca 2+ Channelopathy – Type 2 - Na+ channelopathy – loss of function • TPP – Not Associated with Hypo. KPP channel defects

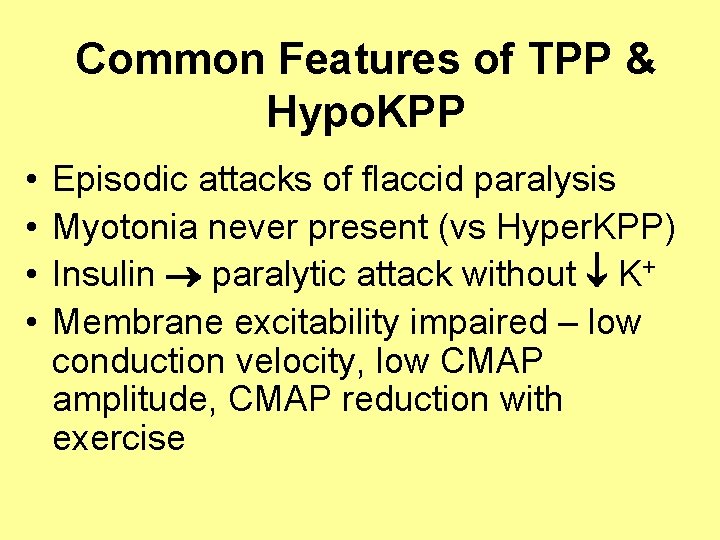

Common Features of TPP & Hypo. KPP • • Episodic attacks of flaccid paralysis Myotonia never present (vs Hyper. KPP) Insulin paralytic attack without K+ Membrane excitability impaired – low conduction velocity, low CMAP amplitude, CMAP reduction with exercise

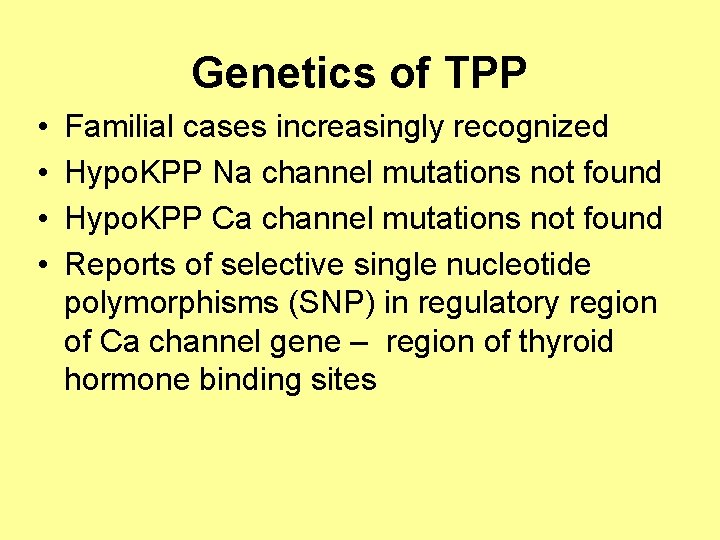

Genetics of TPP • • Familial cases increasingly recognized Hypo. KPP Na channel mutations not found Hypo. KPP Ca channel mutations not found Reports of selective single nucleotide polymorphisms (SNP) in regulatory region of Ca channel gene – region of thyroid hormone binding sites

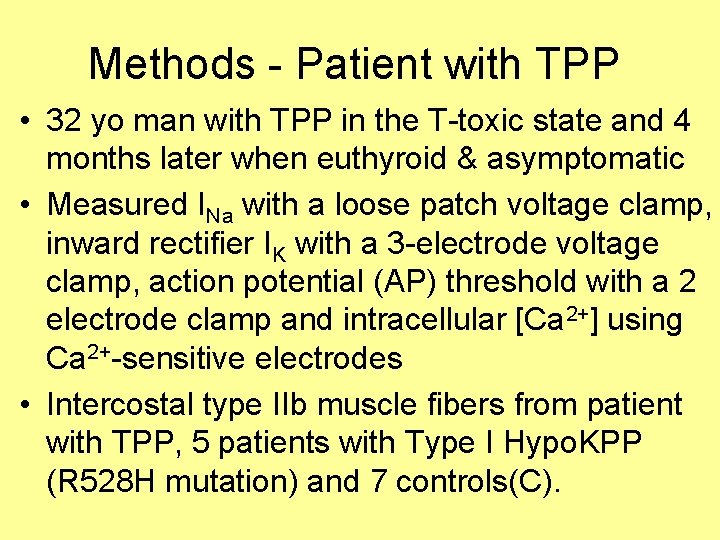

Methods - Patient with TPP • 32 yo man with TPP in the T-toxic state and 4 months later when euthyroid & asymptomatic • Measured INa with a loose patch voltage clamp, inward rectifier IK with a 3 -electrode voltage clamp, action potential (AP) threshold with a 2 electrode clamp and intracellular [Ca 2+] using Ca 2+-sensitive electrodes • Intercostal type IIb muscle fibers from patient with TPP, 5 patients with Type I Hypo. KPP (R 528 H mutation) and 7 controls(C).

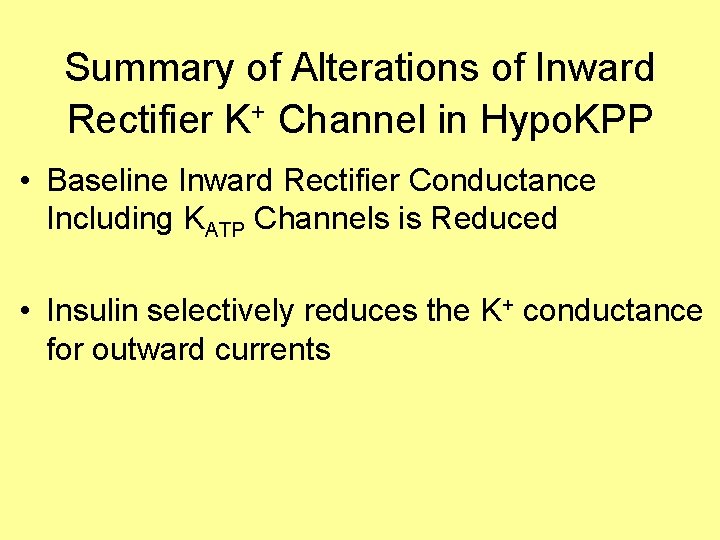

Summary of Alterations of Inward Rectifier K+ Channel in Hypo. KPP • Baseline Inward Rectifier Conductance Including KATP Channels is Reduced • Insulin selectively reduces the K+ conductance for outward currents

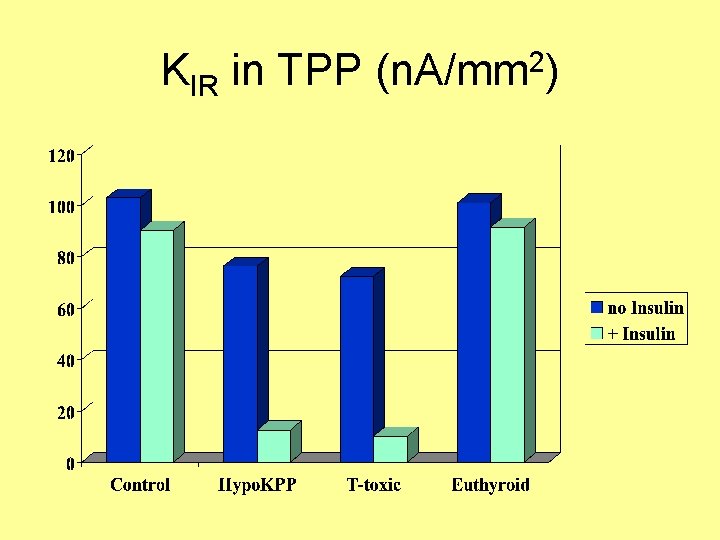

KIR in TPP (n. A/mm 2)

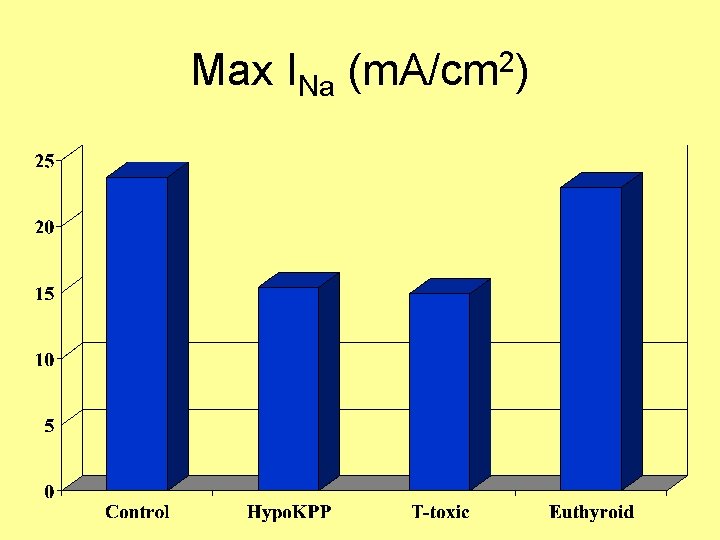

Max INa (m. A/cm 2)

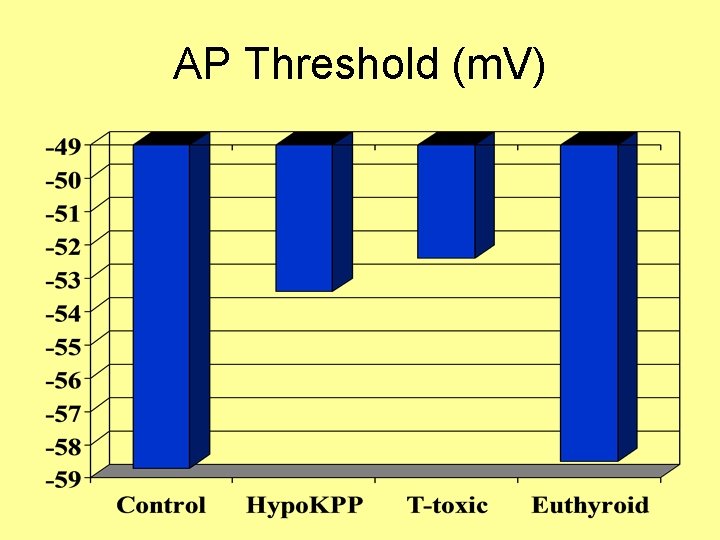

AP Threshold (m. V)

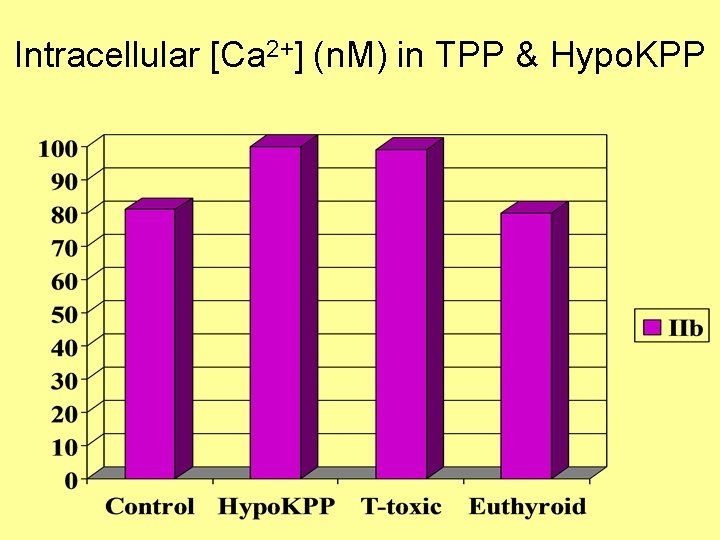

Intracellular [Ca 2+] (n. M) in TPP & Hypo. KPP

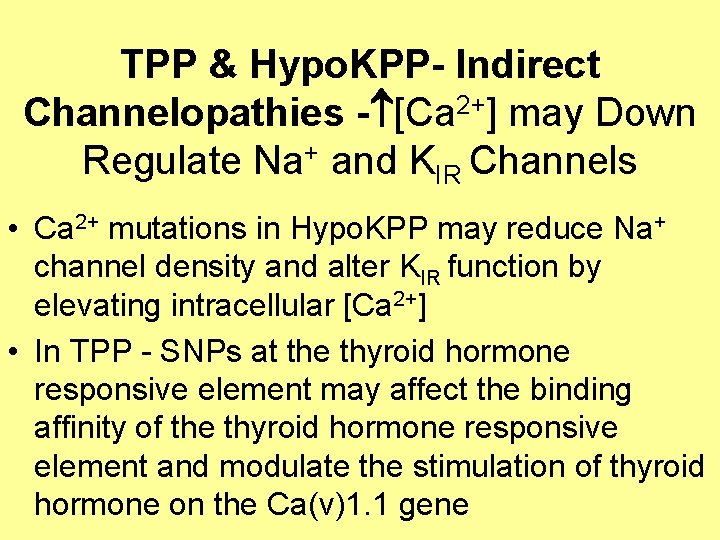

TPP & Hypo. KPP- Indirect Channelopathies - [Ca 2+] may Down Regulate Na+ and KIR Channels • Ca 2+ mutations in Hypo. KPP may reduce Na+ channel density and alter KIR function by elevating intracellular [Ca 2+] • In TPP - SNPs at the thyroid hormone responsive element may affect the binding affinity of the thyroid hormone responsive element and modulate the stimulation of thyroid hormone on the Ca(v)1. 1 gene

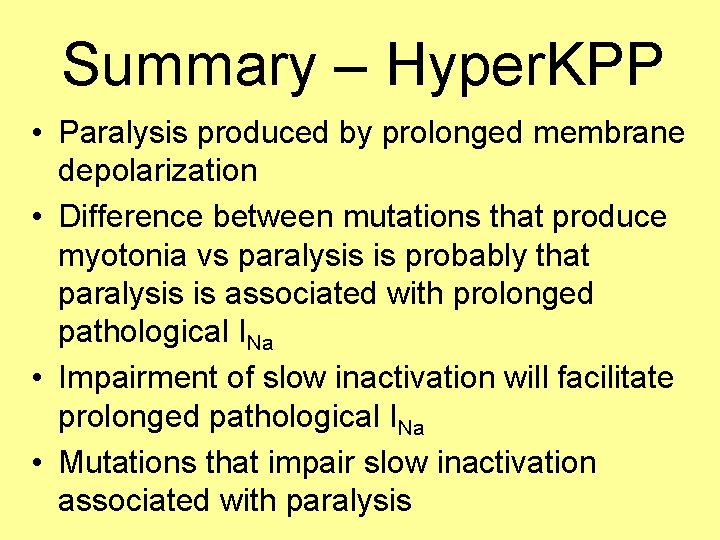

Summary – Hyper. KPP • Paralysis produced by prolonged membrane depolarization • Difference between mutations that produce myotonia vs paralysis is probably that paralysis is associated with prolonged pathological INa • Impairment of slow inactivation will facilitate prolonged pathological INa • Mutations that impair slow inactivation associated with paralysis

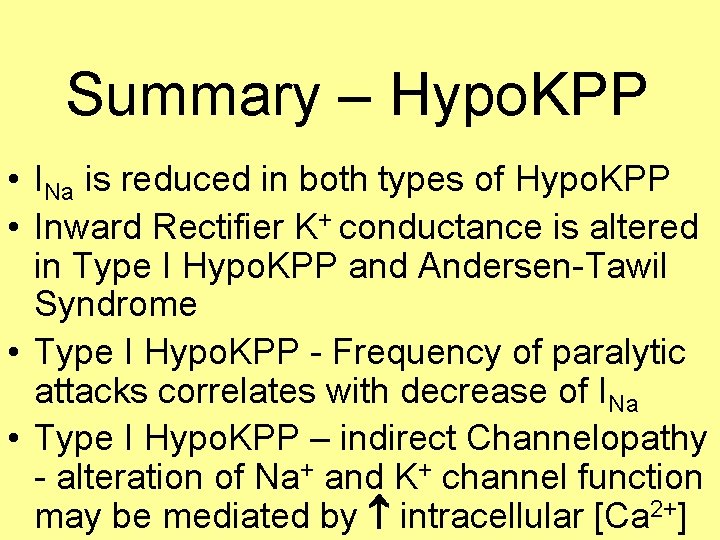

Summary – Hypo. KPP • INa is reduced in both types of Hypo. KPP • Inward Rectifier K+ conductance is altered in Type I Hypo. KPP and Andersen-Tawil Syndrome • Type I Hypo. KPP - Frequency of paralytic attacks correlates with decrease of INa • Type I Hypo. KPP – indirect Channelopathy - alteration of Na+ and K+ channel function may be mediated by intracellular [Ca 2+]

Supported by the Clinical Research and Development Service, Office of Research and Development, Department of Veterans Affairs

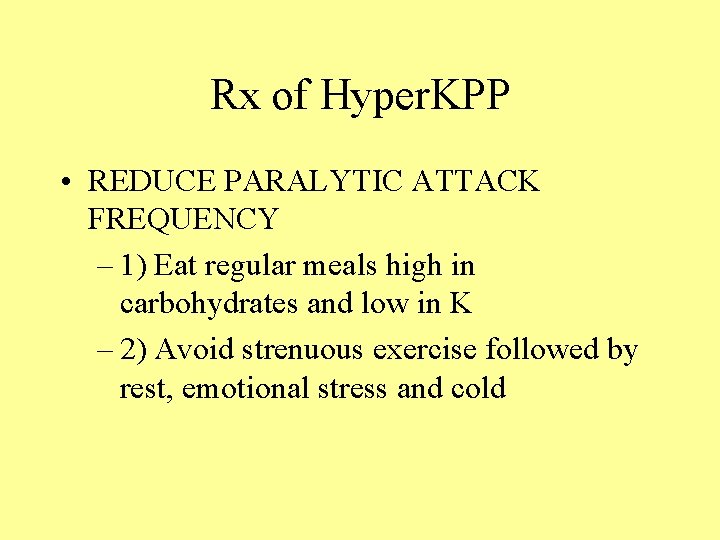

Rx of Hyper. KPP • REDUCE PARALYTIC ATTACK FREQUENCY – 1) Eat regular meals high in carbohydrates and low in K – 2) Avoid strenuous exercise followed by rest, emotional stress and cold

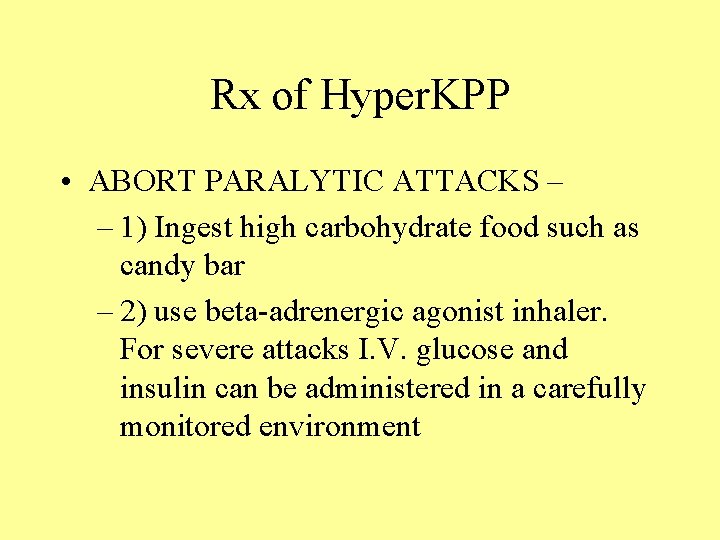

Rx of Hyper. KPP • ABORT PARALYTIC ATTACKS – – 1) Ingest high carbohydrate food such as candy bar – 2) use beta-adrenergic agonist inhaler. For severe attacks I. V. glucose and insulin can be administered in a carefully monitored environment

Rx of Hyper. KPP • IF PARAMYOTONIA AND STIFFNESS ARE PRESENT – – 1) Mexiletine 150 mg twice a day increasing to 300 mg three times a day to reduce stiffness – 2) Tocainide is a second line agent if mexiletine fails; however blood counts must be monitored due to the risk of bone marrow suppression. The dose of tocainide is 400 -1200 mg per day

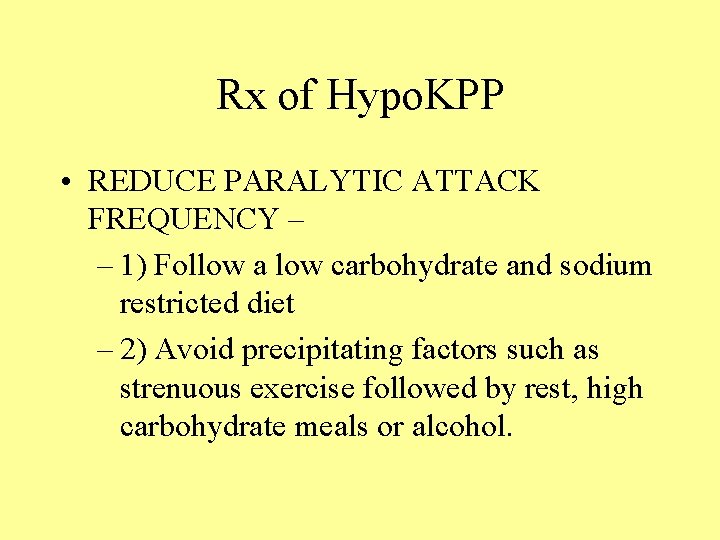

Rx of Hypo. KPP • REDUCE PARALYTIC ATTACK FREQUENCY – – 1) Follow a low carbohydrate and sodium restricted diet – 2) Avoid precipitating factors such as strenuous exercise followed by rest, high carbohydrate meals or alcohol.

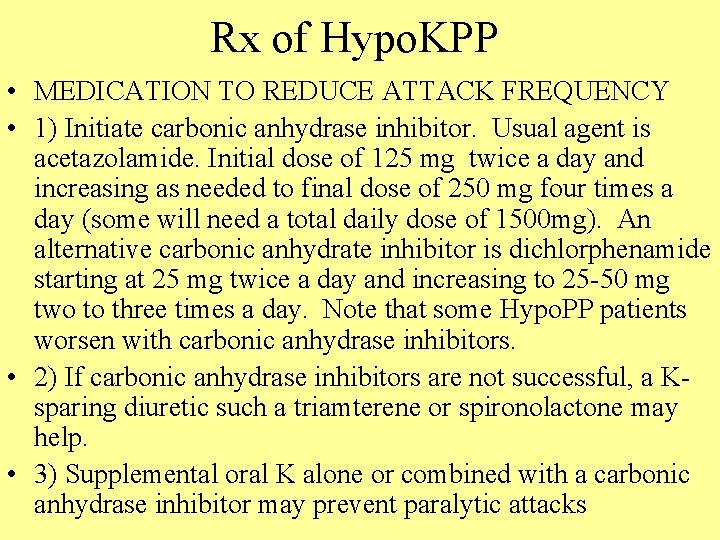

Rx of Hypo. KPP • MEDICATION TO REDUCE ATTACK FREQUENCY • 1) Initiate carbonic anhydrase inhibitor. Usual agent is acetazolamide. Initial dose of 125 mg twice a day and increasing as needed to final dose of 250 mg four times a day (some will need a total daily dose of 1500 mg). An alternative carbonic anhydrate inhibitor is dichlorphenamide starting at 25 mg twice a day and increasing to 25 -50 mg two to three times a day. Note that some Hypo. PP patients worsen with carbonic anhydrase inhibitors. • 2) If carbonic anhydrase inhibitors are not successful, a Ksparing diuretic such a triamterene or spironolactone may help. • 3) Supplemental oral K alone or combined with a carbonic anhydrase inhibitor may prevent paralytic attacks

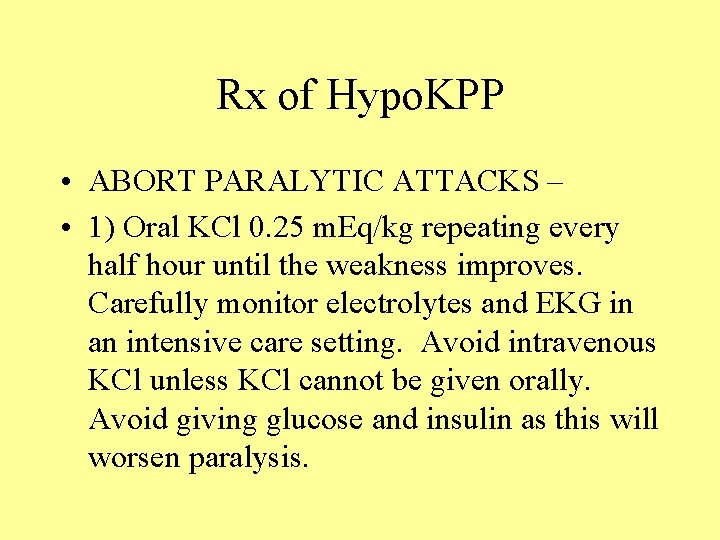

Rx of Hypo. KPP • ABORT PARALYTIC ATTACKS – • 1) Oral KCl 0. 25 m. Eq/kg repeating every half hour until the weakness improves. Carefully monitor electrolytes and EKG in an intensive care setting. Avoid intravenous KCl unless KCl cannot be given orally. Avoid giving glucose and insulin as this will worsen paralysis.

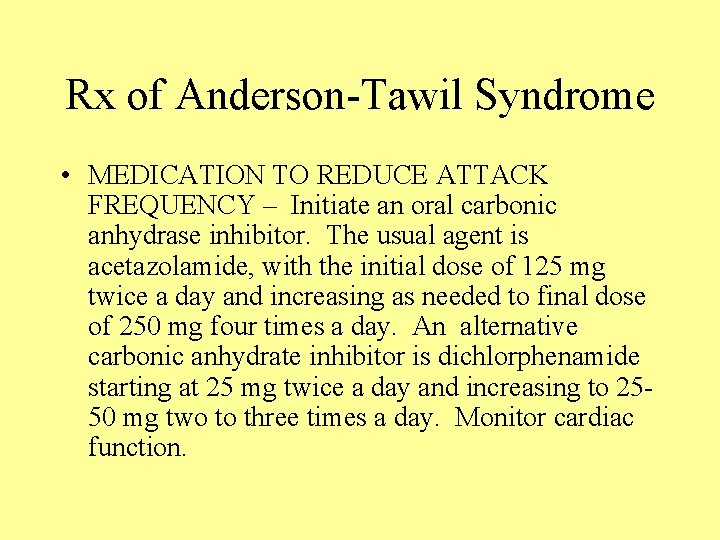

Rx of Anderson-Tawil Syndrome • MEDICATION TO REDUCE ATTACK FREQUENCY – Initiate an oral carbonic anhydrase inhibitor. The usual agent is acetazolamide, with the initial dose of 125 mg twice a day and increasing as needed to final dose of 250 mg four times a day. An alternative carbonic anhydrate inhibitor is dichlorphenamide starting at 25 mg twice a day and increasing to 2550 mg two to three times a day. Monitor cardiac function.

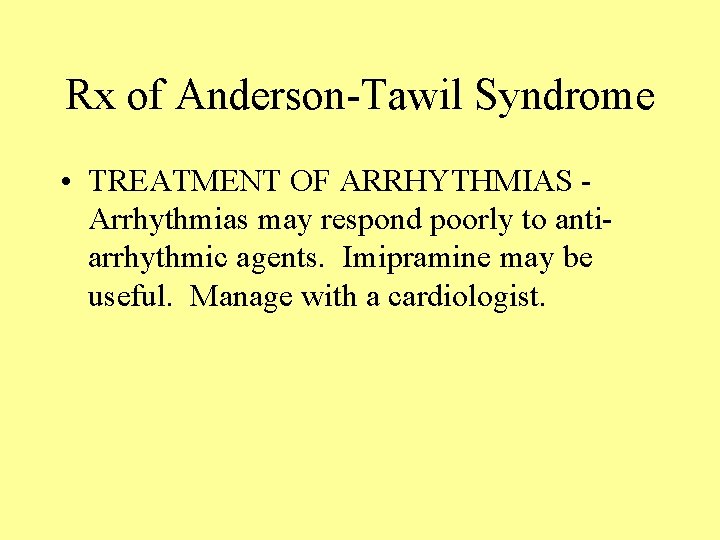

Rx of Anderson-Tawil Syndrome • TREATMENT OF ARRHYTHMIAS - Arrhythmias may respond poorly to antiarrhythmic agents. Imipramine may be useful. Manage with a cardiologist.

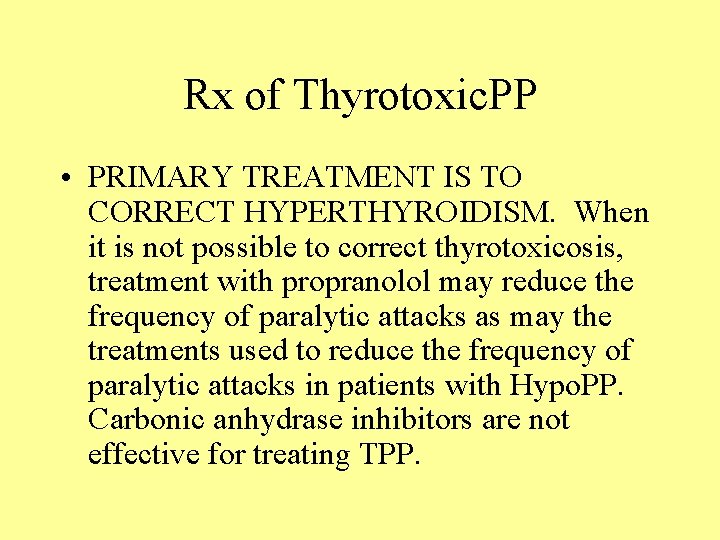

Rx of Thyrotoxic. PP • PRIMARY TREATMENT IS TO CORRECT HYPERTHYROIDISM. When it is not possible to correct thyrotoxicosis, treatment with propranolol may reduce the frequency of paralytic attacks as may the treatments used to reduce the frequency of paralytic attacks in patients with Hypo. PP. Carbonic anhydrase inhibitors are not effective for treating TPP.

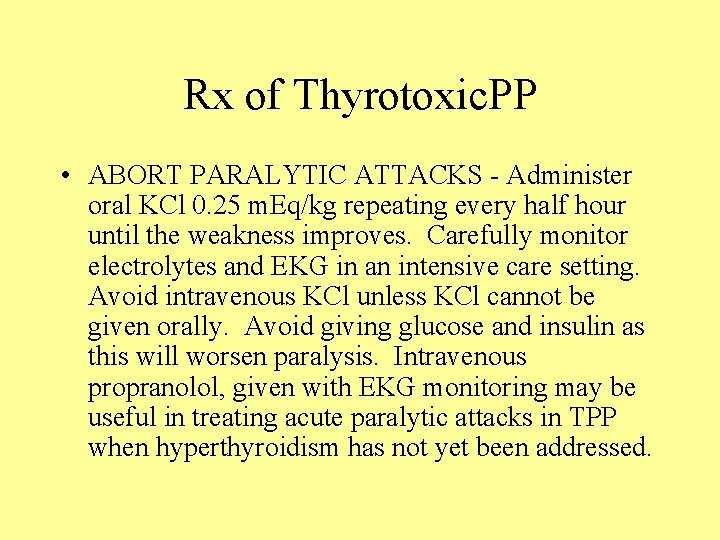

Rx of Thyrotoxic. PP • ABORT PARALYTIC ATTACKS - Administer oral KCl 0. 25 m. Eq/kg repeating every half hour until the weakness improves. Carefully monitor electrolytes and EKG in an intensive care setting. Avoid intravenous KCl unless KCl cannot be given orally. Avoid giving glucose and insulin as this will worsen paralysis. Intravenous propranolol, given with EKG monitoring may be useful in treating acute paralytic attacks in TPP when hyperthyroidism has not yet been addressed.

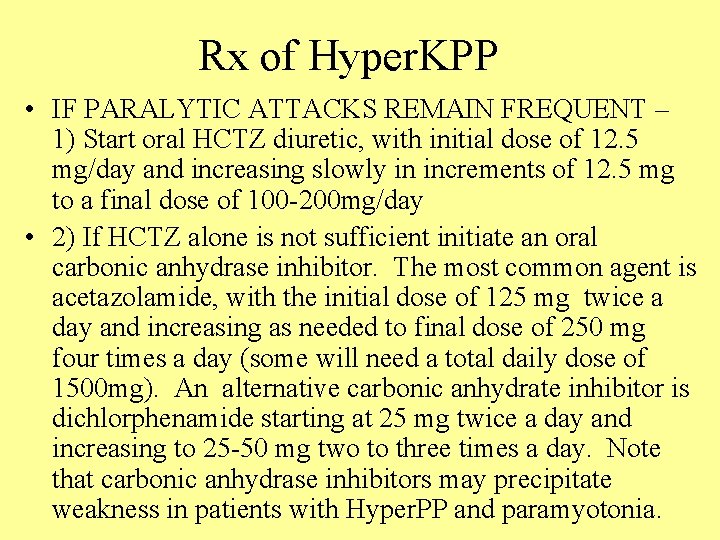

Rx of Hyper. KPP • IF PARALYTIC ATTACKS REMAIN FREQUENT – 1) Start oral HCTZ diuretic, with initial dose of 12. 5 mg/day and increasing slowly in increments of 12. 5 mg to a final dose of 100 -200 mg/day • 2) If HCTZ alone is not sufficient initiate an oral carbonic anhydrase inhibitor. The most common agent is acetazolamide, with the initial dose of 125 mg twice a day and increasing as needed to final dose of 250 mg four times a day (some will need a total daily dose of 1500 mg). An alternative carbonic anhydrate inhibitor is dichlorphenamide starting at 25 mg twice a day and increasing to 25 -50 mg two to three times a day. Note that carbonic anhydrase inhibitors may precipitate weakness in patients with Hyper. PP and paramyotonia.
