Electrical Apparatus Dan Melkey Power Line Supply “This workforce solution was funded by a grant awarded by the U. S. Department of Labor’s Employment and Training Administration. The solution was created by the grantee and does not necessarily reflect the official position of the U. S. Department of Labor. The Department of Labor makes no guarantees, warranties, or assurances of any kind, express or implied, with respect to such information, including any information on linked sites and including, but not limited to, accuracy of the information or its completeness, timeliness, usefulness, adequacy, continued availability, or ownership. ” This work by Alpena Community College’s Sustainable Solutions for Northeast Michigan, a Department of Labor, TAACCCT funded project, is licensed under the Creative Commons Attribution 4. 0 International License. To view a copy of this license, visit http: //creativecommons. org/licenses/by/4. 0/
Types of Reclosers
RECLOSER CONTROL Hydraulic Vs Electronic
HYDRAULIC RECLOSER OPERATION
Fast Curve
Contacts Reclosing
Delayed Curve
Lock Out
Type H Maintenance: http: //www. cooperindustries. com/content/dam/publ ic/powersystems/resources/library/280_Reclosers. C ontrols/S 280103. pdf Type L Maintenance: http: //www. cooperindustries. com/content/dam/publ ic/powersystems/resources/library/280_Reclosers. C ontrols/S 280151. pdf

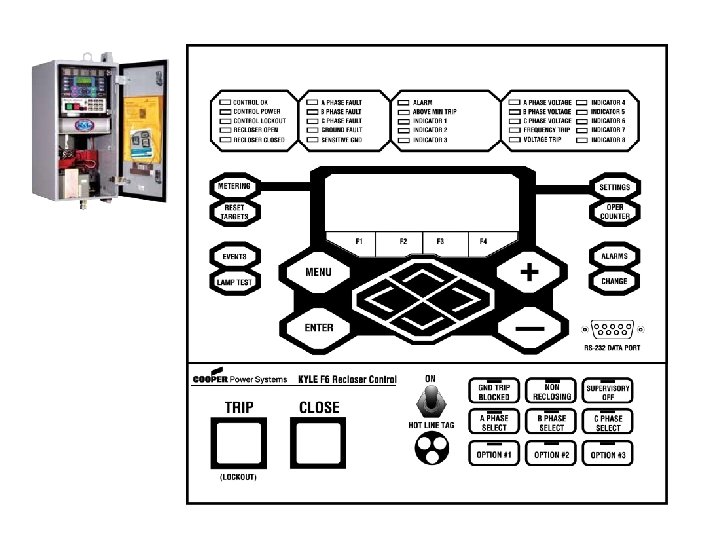

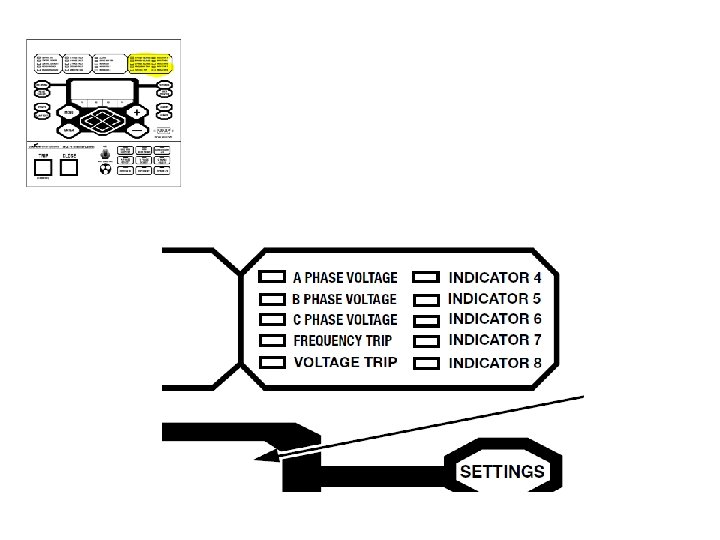

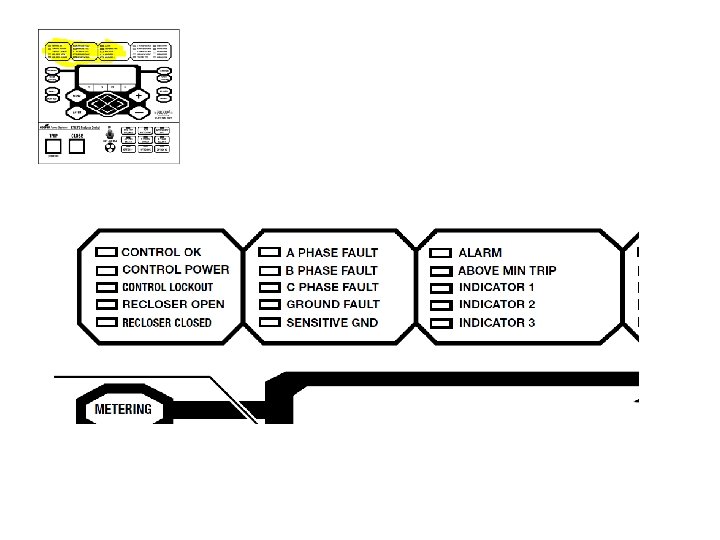

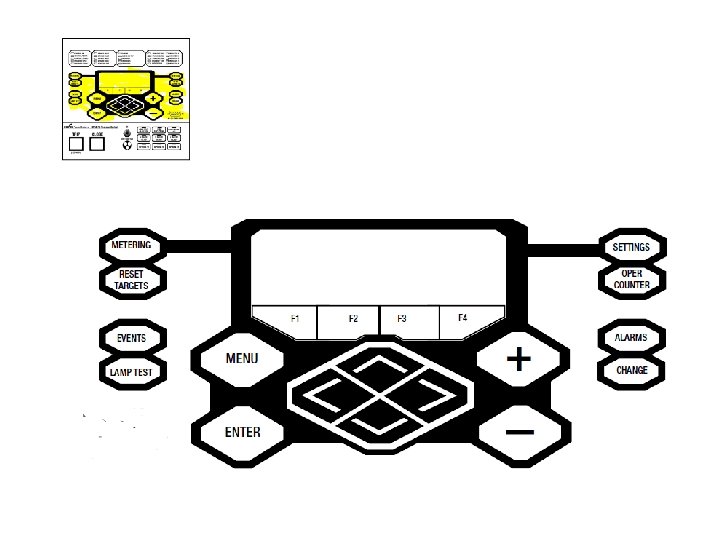

ELETRONIC RECLOSERS Recloser + Control
INTERRUPTER MEDIUM Oil Vs Vacuum
Oil Interruption
Vacuum Interruption
Vacuum Interruption
SINGLE PHASE vs THREE PHASE vs TRIPLE/SINGLE
SINGLE PHASE Can be Hydraulic or Electronic
THREE PHASE (Gang Operated)
Three-Phase TRIPLE/SINGLE
Triple-Single Mode A: Three phase trip, three phase lockout Mode B: Single phase trip, three phase lockout Mode C: Single phase trip, single phase lockout
RECLOSER DIELECTRIC INSULATION Oil Vs Air Vs Solid Vs SF 6
Oil Dielectric
WE/VWE Closing Coil • Recloser requires voltage from source side for closing • Closing coil connected between bushings 3 & 5 • High voltage closing vs low voltage closing
Air Dielectric
Solid Dielectric
SF 6 Dielectric
Selection Factors • • • System Voltage Maximum Fault Current Maximum Load Current Minimum Fault Current Single Phase or Three Phase

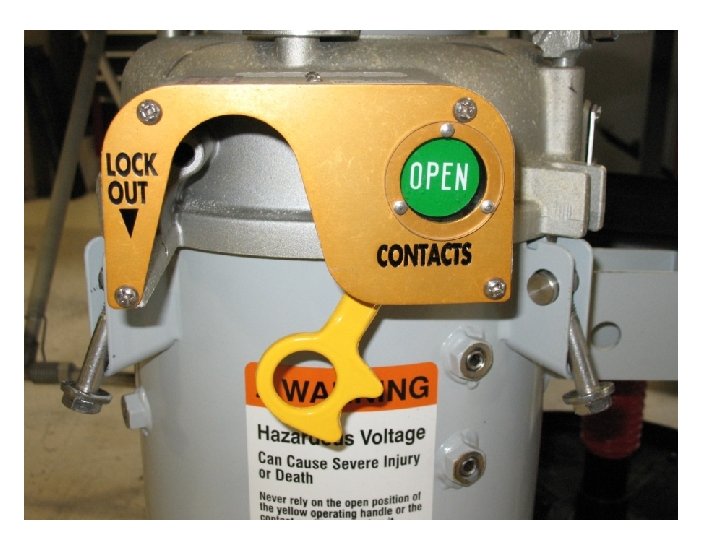

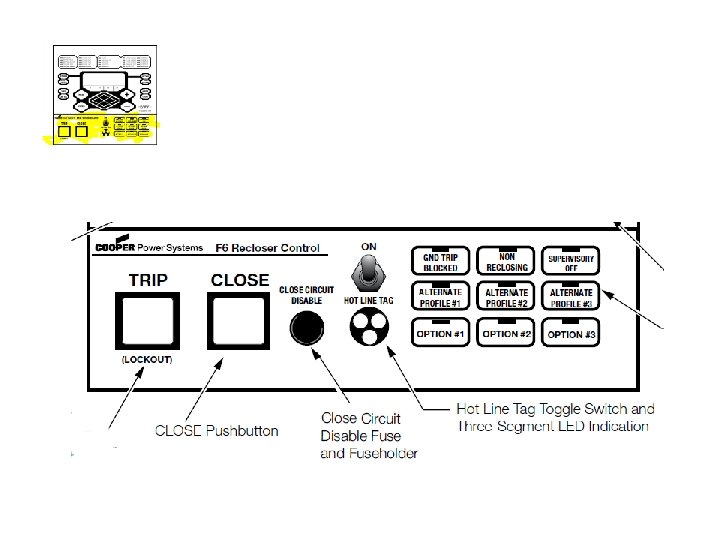

Operation • In single/single mode, pulling down one yellow handle trips and locks out just that unit. • To close, push yellow handle up then hit close button in control. • Non-reclosing will cause just a faulted phase(s) to lockout. • HLT causes all phases to lockout if there is a fault.
Installation • Control runs off AC which needs to be brought into the F 6 control. • Control has a 24 V battery for backup. • Ground the F 6 control cabinet.
If Recloser Fails to Respond • Check “ALARM” functionality for problem information • Inspect for closing voltage • Check control cable connections • Verify yellow handle is up
Substation Equipment
Substation Equipment
Substation Equipment
Substation Equipment
Substation Equipment
Substation Equipment
Substation Equipment
Substation Equipment
QUESTIONS ? ? ?
