Electric Wiring & Illumination

Accessories of Electrical Installation • All the wiring systems and electrical installations needs the following accessories: 1. Cables 2. Flexible wires 3. Switches 4. Fuses 5. Ceiling rose 6. Lamp holders 7. Plugs 8. Socket outlets 9. Junction boxes

• Cables: Ø A cable is made of some conducting material such as copper or aluminium. It is surrounded by insulation and a sheath for mechanical protection. Ø The cables are generally classified according to the insulation used. Different types of cables are as follows: 1. Weather- proof cables 2. Polyvinyl chloride insulated cables (PVC) 3. Lead sheathed cables 4. Cab tyre sheathed cables (CTS)

• Flexible cords: Ø In the flexible cord, a large number of fine wires are used to form the conductor. These are insulated by plastic insulation. Ø The flexible cords are used as connecting wires to connect the portable domestic appliances and light fittings etc. Ø These cords are easy to guide and handle.

• Switches: Ø A switch is supposed to carry out the make (connect) and break (disconnect) of electrical connection to the load. Ø Switches should be connected to the live (L) wire in the circuit. Ø The switches can be classified into two types as follows: 1. Tumbler switch 2. Flush switch

• Fuses: Ø In any electrical installation, fuse is used for protecting the appliances against overcurrent. Fuse is used in different stages of the wiring. Ø A fuse can be made of the following conducting materials: 1. Copper 2. Zinc 3. Lead 4. Tin 5. Aluminium 6. Alloys of lead and tin

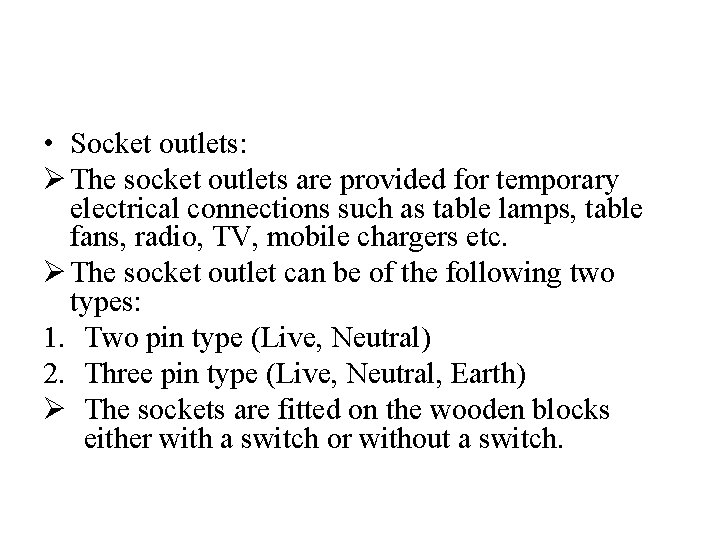

• Socket outlets: Ø The socket outlets are provided for temporary electrical connections such as table lamps, table fans, radio, TV, mobile chargers etc. Ø The socket outlet can be of the following two types: 1. Two pin type (Live, Neutral) 2. Three pin type (Live, Neutral, Earth) Ø The sockets are fitted on the wooden blocks either with a switch or without a switch.

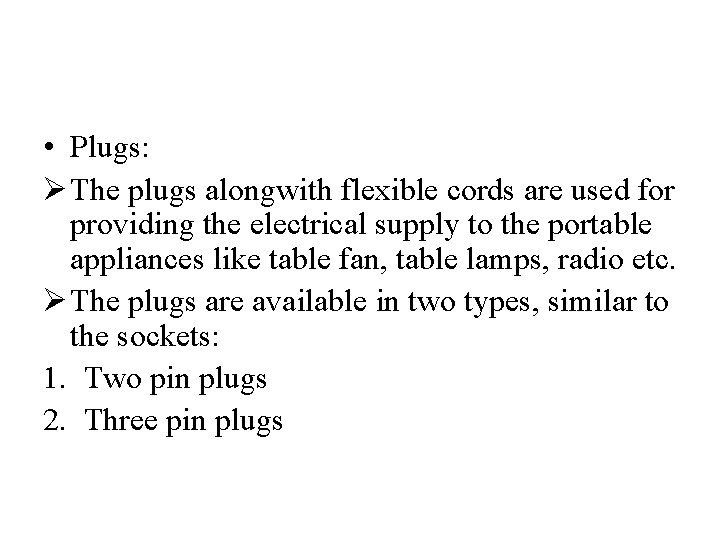

• Plugs: Ø The plugs alongwith flexible cords are used for providing the electrical supply to the portable appliances like table fan, table lamps, radio etc. Ø The plugs are available in two types, similar to the sockets: 1. Two pin plugs 2. Three pin plugs

• Lamp holder: Ø A lamp holder supports the lamp and connects it to the supply system as well Ø The lamp holders are classified into following different types: 1. Batten holders 2. Angle holder 3. Pendant holder 4. Water tight bracket holders 5. Bracket holders

• Ceiling rose: Ø The ceiling rose is used for connecting the ceiling fans, pendant lamps etc to the supply system. Ø Ceiling rose is made of the following two parts: 1. Base 2. Cover

Different Symbols Used In Electric Wiring • Following are the conventional symbols to be used for wiring accessories in wiring plans and drawing of electrical installations. Sr. No. Description 1. Earthing 2. Single pole one way switch 3. Single pole double throw switch (S. P. D. T. ) 4. Double pole double throw switch (D. P. D. T. ) Symbol

Sr. No. Description 5. Fuse 6. Circuit breaker 7. Two way switch symbol
