Electric dipole spin resonance and spin decoherence for heavy holes in quantum dots Denis Bulaev and Daniel Loss Department of Physics University of Basel, Switzerland

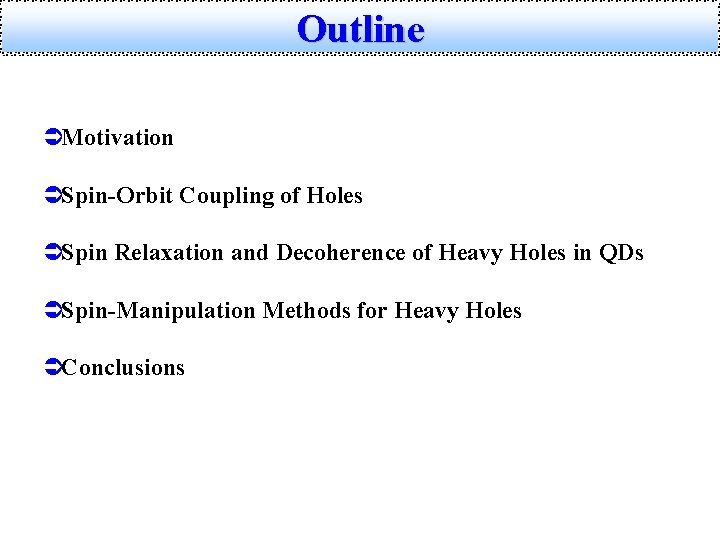

Outline ÜMotivation ÜSpin-Orbit Coupling of Holes ÜSpin Relaxation and Decoherence of Heavy Holes in QDs ÜSpin-Manipulation Methods for Heavy Holes ÜConclusions

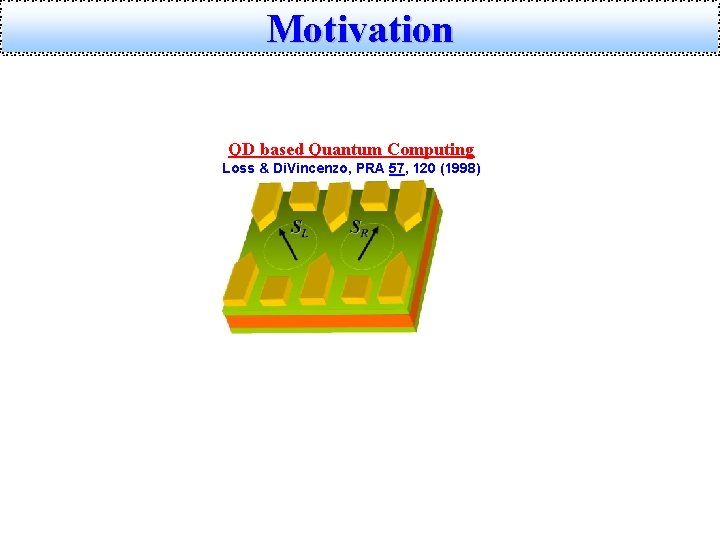

Motivation QD based Quantum Computing Loss & Di. Vincenzo, PRA 57, 120 (1998)

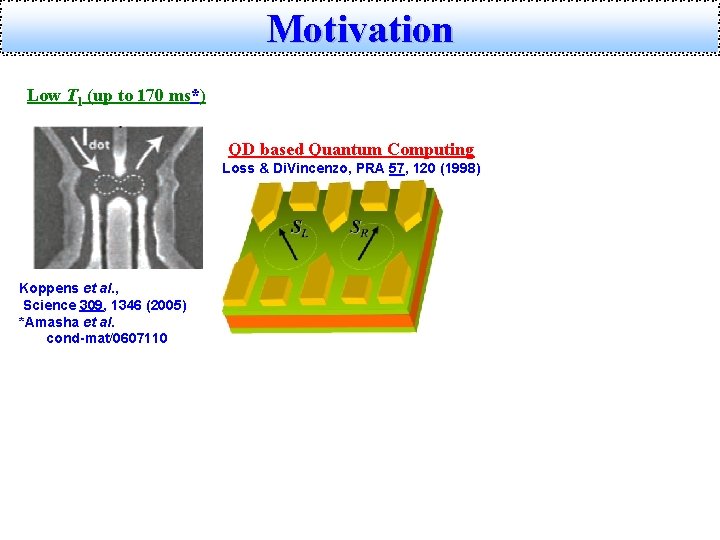

Motivation Low T 1 (up to 170 ms*) QD based Quantum Computing Loss & Di. Vincenzo, PRA 57, 120 (1998) Koppens et al. , Science 309, 1346 (2005) *Amasha et al. cond-mat/0607110

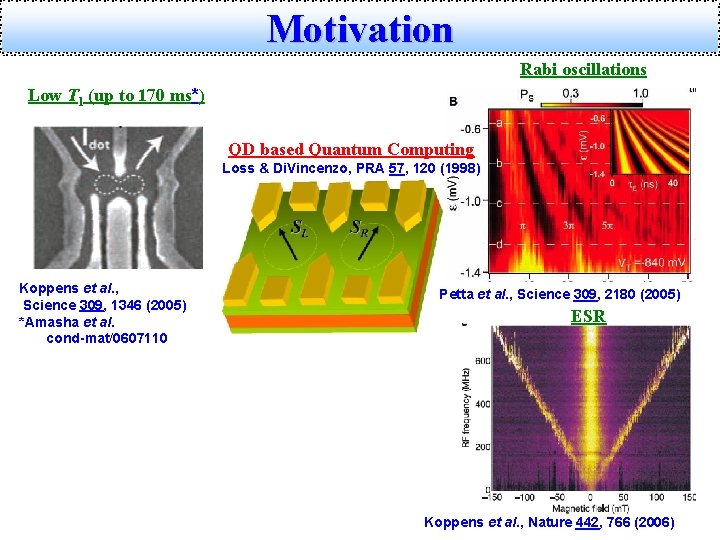

Motivation Rabi oscillations Low T 1 (up to 170 ms*) QD based Quantum Computing Loss & Di. Vincenzo, PRA 57, 120 (1998) Koppens et al. , Science 309, 1346 (2005) *Amasha et al. cond-mat/0607110 Petta et al. , Science 309, 2180 (2005) ESR Koppens et al. , Nature 442, 766 (2006)

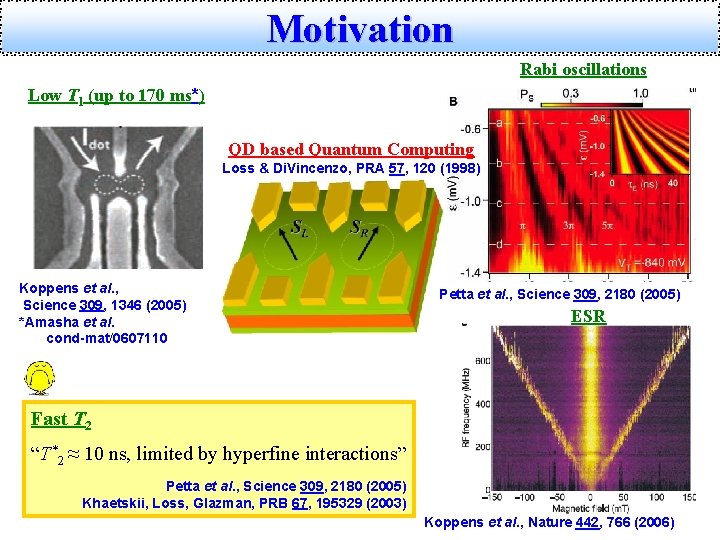

Motivation Rabi oscillations Low T 1 (up to 170 ms*) QD based Quantum Computing Loss & Di. Vincenzo, PRA 57, 120 (1998) Koppens et al. , Science 309, 1346 (2005) *Amasha et al. cond-mat/0607110 Petta et al. , Science 309, 2180 (2005) ESR Fast T 2 “T*2 ≈ 10 ns, limited by hyperfine interactions” Petta et al. , Science 309, 2180 (2005) Khaetskii, Loss, Glazman, PRB 67, 195329 (2003) Koppens et al. , Nature 442, 766 (2006)

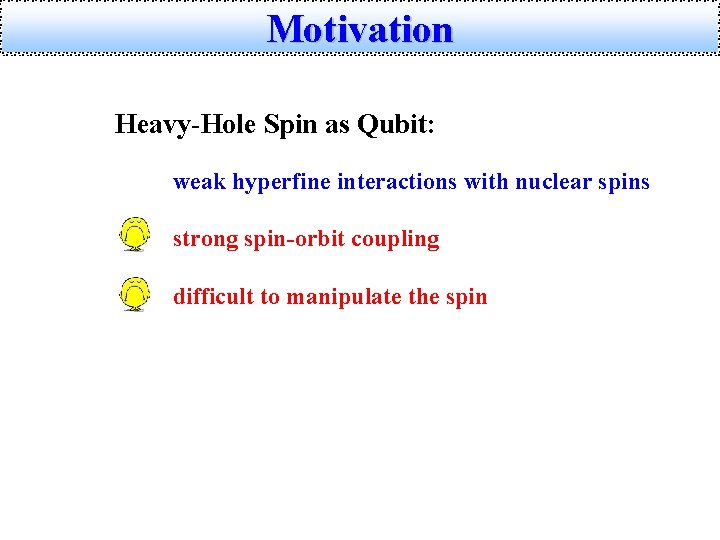

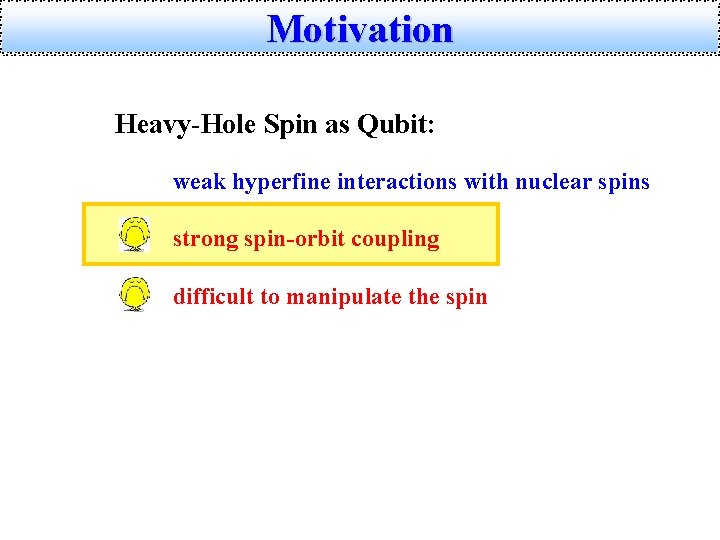

Motivation Heavy-Hole Spin as Qubit: weak hyperfine interactions with nuclear spins strong spin-orbit coupling difficult to manipulate the spin

Motivation Heavy-Hole Spin as Qubit: weak hyperfine interactions with nuclear spins strong spin-orbit coupling difficult to manipulate the spin

Spin-Orbit Coupling: 3 D vs 2 D Bulk Semiconductor E HH ± 3/2 LH ± 1/2 k [001] Quantum Well E D HH ± 3/2 LH ± 1/2 kⅡ

Spin-Orbit Coupling: 2 D vs 0 D [001] Quantum Well E D HH ± 3/2 LH ± 1/2 kⅡ [001] Flat Quantum Dot E D HH ± 3/2 LH ± 1/2

Spin-Orbit Coupling: QD E D HH ± 3/2 LH ± 1/2 Winkler, PRB 62, 4245 (2000) DB & Loss, PRL 95, 076805 (2005) Luttinger, PR 102, 1030 (1956)

Spin-Orbit Coupling: QD E No LH-HH Coupling D HH ± 3/2 LH ± 1/2 Winkler, PRB 62, 4245 (2000) DB & Loss, PRL 95, 076805 (2005) Luttinger, PR 102, 1030 (1956)

Spin-Orbit Coupling: QD E No LH-HH Coupling D HH ± 3/2 LH ± 1/2 Winkler, PRB 62, 4245 (2000) No SO Coupling of HHs Luttinger, PR 102, 1030 (1956)

Spin-Orbit Coupling: QD E D HH ± 3/2 LH ± 1/2

Spin-Orbit Coupling: QD E D HH ± 3/2 LH ± 1/2 D

Effective Hamiltonian of Heavy Holes Rashba SO coupling R. Winkler, PRB 62, 4245 (2000) Dresselhaus SO coupling DB & D. Loss, PRL 95, 076805 (2006) SO due to BII-field DB & D. Loss, cond-mat/0608410

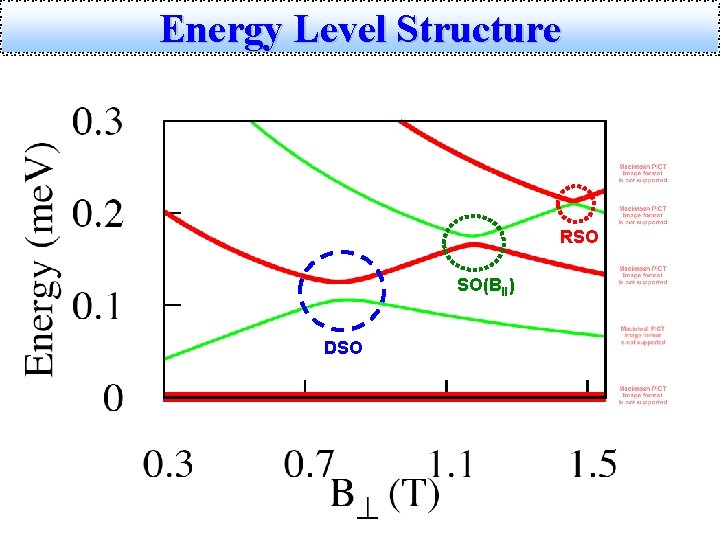

Energy Level Structure RSO SO(BII) DSO

Spin Evolution. No Damping Sz B 0 Sx wz t

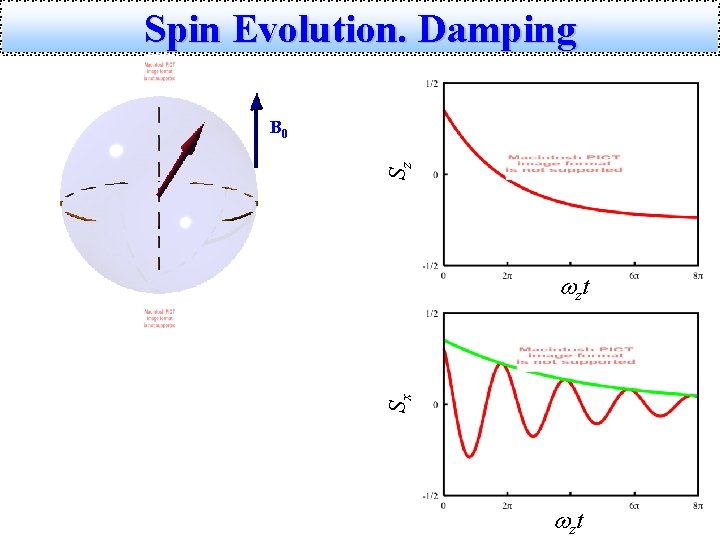

Spin Evolution. Damping Sz B 0 Sx wz t

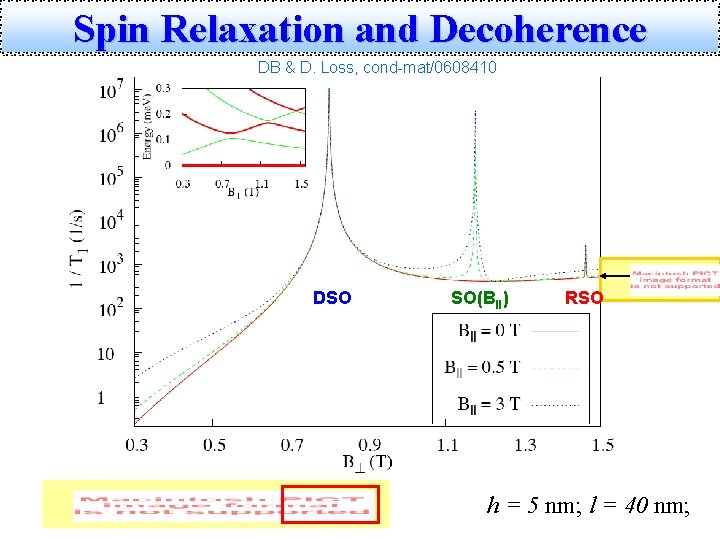

Spin Relaxation and Decoherence DB & D. Loss, cond-mat/0608410 DSO SO(BII) RSO h = 5 nm; l = 40 nm;

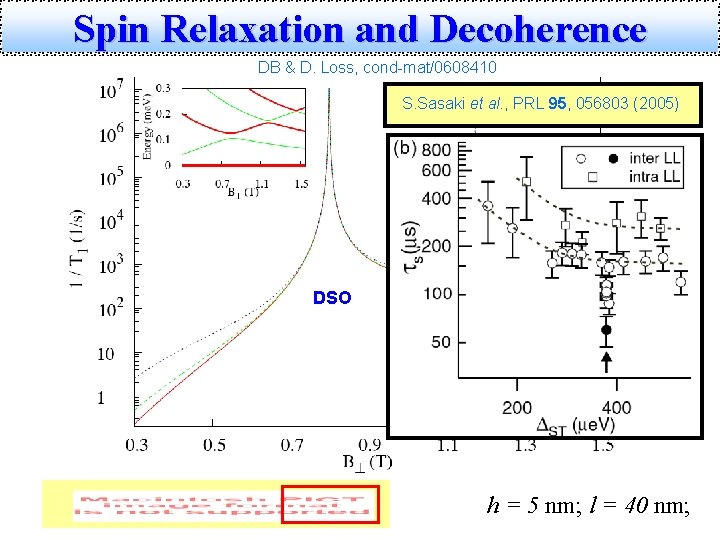

Spin Relaxation and Decoherence DB & D. Loss, cond-mat/0608410 S. Sasaki et al. , PRL 95, 056803 (2005) DSO SO(BII) RSO h = 5 nm; l = 40 nm;

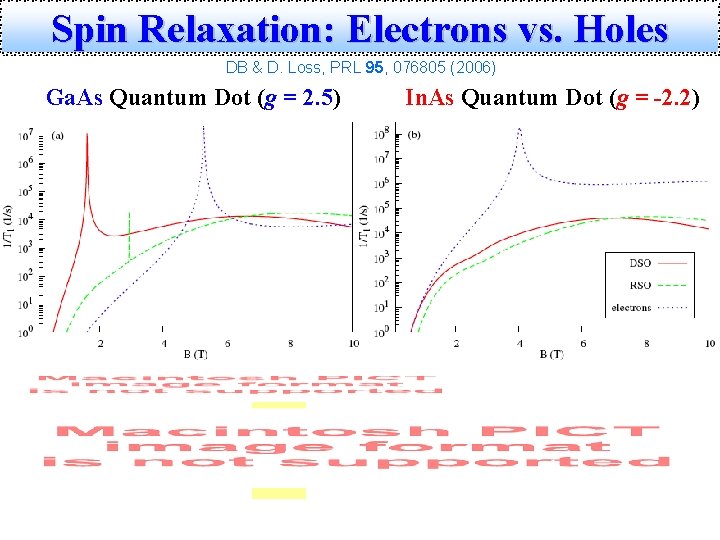

Spin Relaxation: Electrons vs. Holes DB & D. Loss, PRL 95, 076805 (2006) Ga. As Quantum Dot (g = 2. 5) In. As Quantum Dot (g = -2. 2)

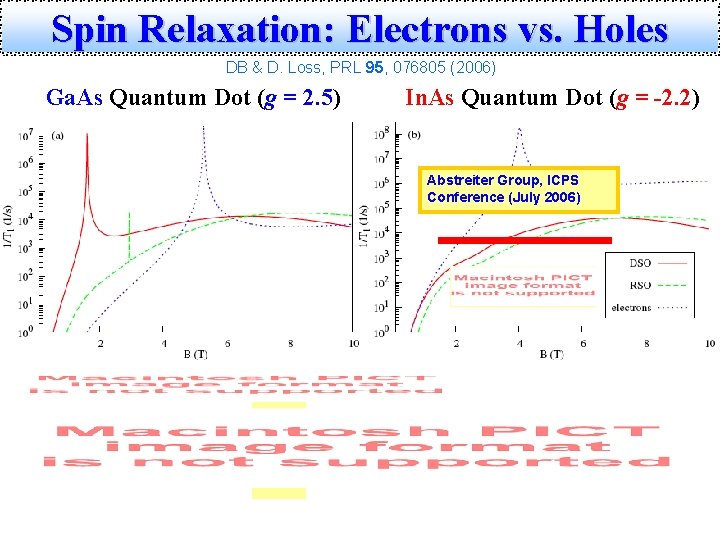

Spin Relaxation: Electrons vs. Holes DB & D. Loss, PRL 95, 076805 (2006) Ga. As Quantum Dot (g = 2. 5) In. As Quantum Dot (g = -2. 2) Abstreiter Group, ICPS Conference (July 2006)

Spin Relaxation due LH-HH SOI 5 orders of magnitude longer than that due to RSO, DSO, and SO(BII) Other Theories Woods, Reinecke, & Kotlyar, PRB 69, 125330 (2004) Lü, Cheng, & Wu, PRB 71, 076308 (2005)

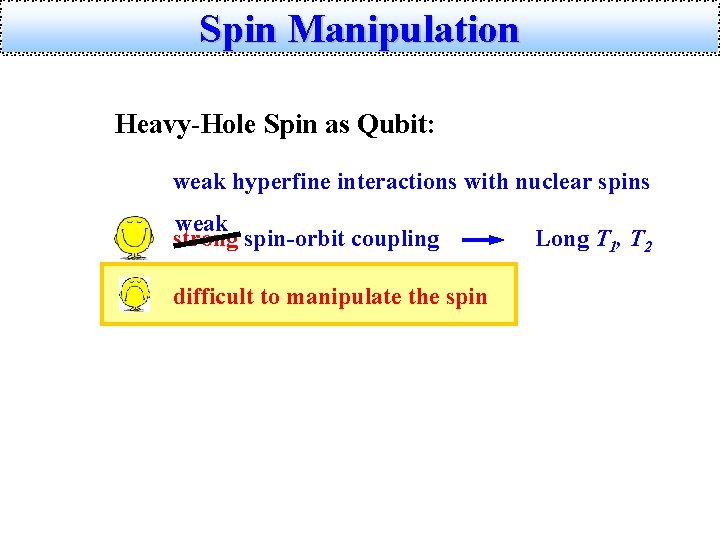

Spin Manipulation Heavy-Hole Spin as Qubit: weak hyperfine interactions with nuclear spins weak strong spin-orbit coupling difficult to manipulate the spin Long T 1, T 2

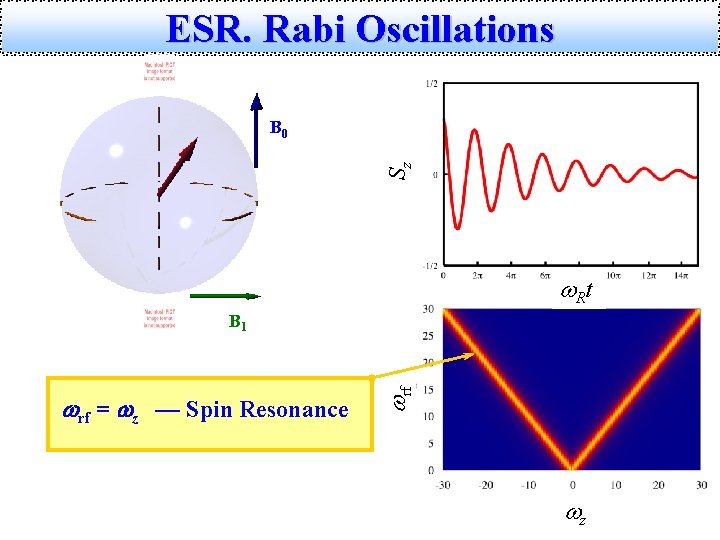

ESR. Rabi Oscillations Sz B 0 w. R t wrf = wz — Spin Resonance wrf B 1 wz

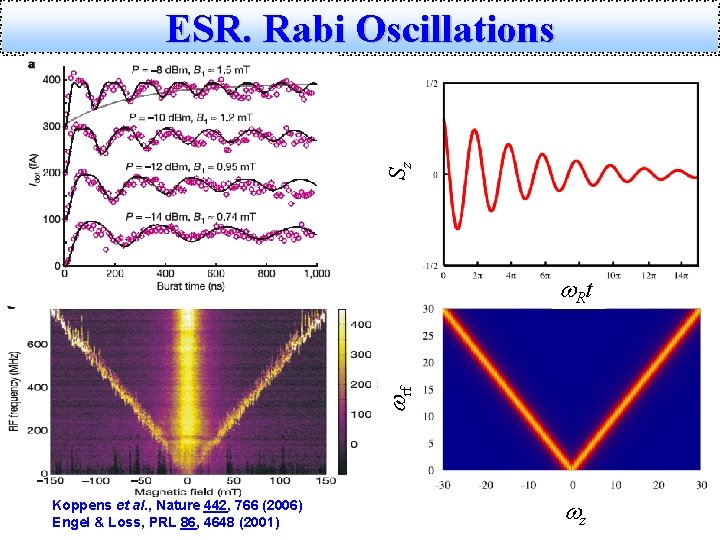

ESR. Rabi Oscillations Sz B 0 w. R t wrf B 1 Koppens et al. , Nature 442, 766 (2006) Engel & Loss, PRL 86, 4648 (2001) wz

Electric Dipole Spin Resonance No magnetic-dipole transitions!!! DB & D. Loss, cond-mat/0608410

Electric Dipole Spin Resonance No magnetic-dipole transitions!!! DSO SO(BII) RSO SO(BII) Electric-dipole transitions!!! DSO DB & D. Loss, cond-mat/0608410

Electric Dipole Spin Resonance 0 d. SO=0 (min) 0 Bloch equations: d. SO=|e| l w. Z / 2 w (max)

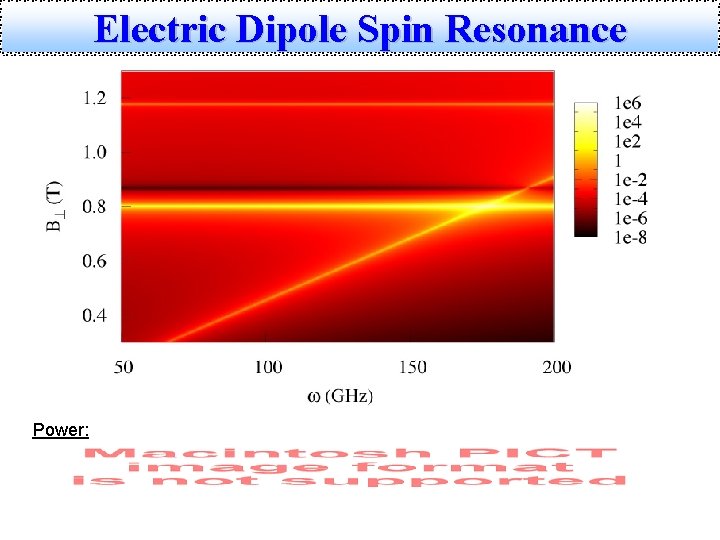

Electric Dipole Spin Resonance Power:

Electric Dipole Spin Resonance Power:

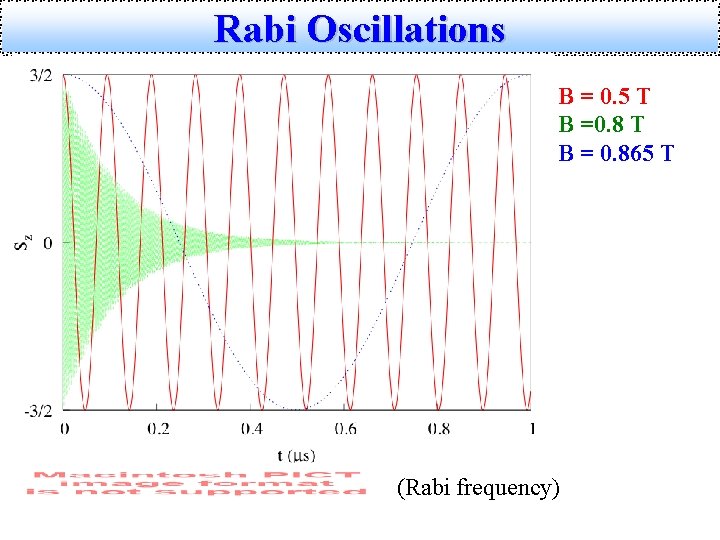

Rabi Oscillations B = 0. 5 T B =0. 8 T B = 0. 865 T (Rabi frequency)

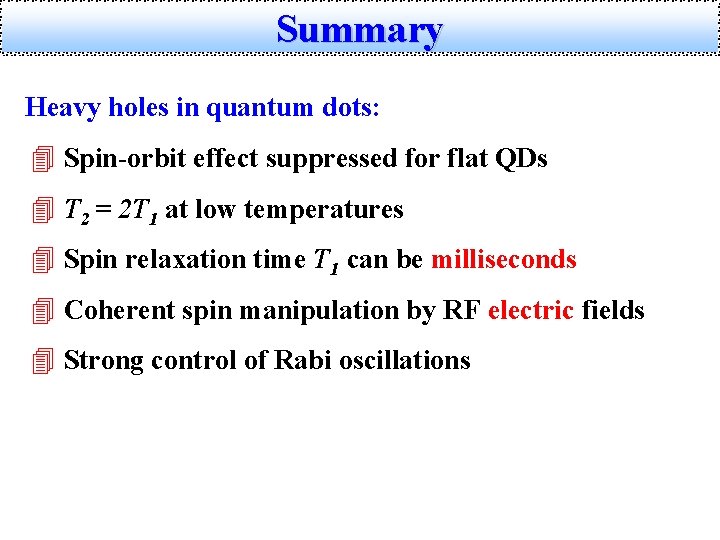

Summary Heavy holes in quantum dots: 4 Spin-orbit effect suppressed for flat QDs 4 T 2 = 2 T 1 at low temperatures 4 Spin relaxation time T 1 can be milliseconds 4 Coherent spin manipulation by RF electric fields 4 Strong control of Rabi oscillations

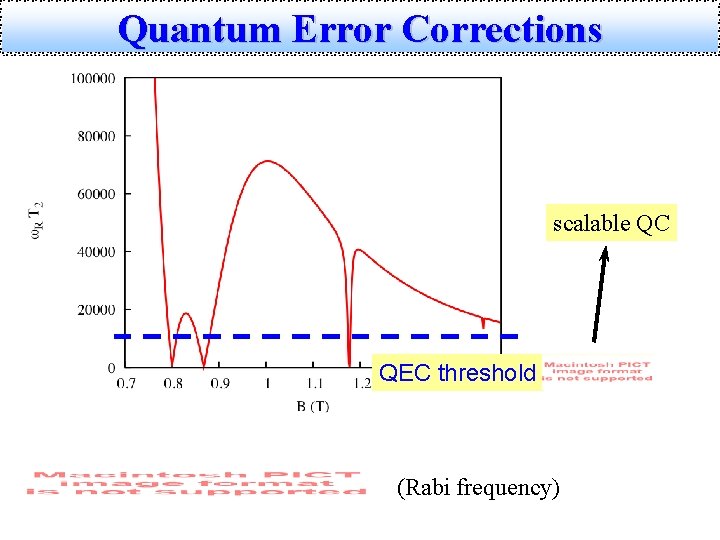

Quantum Error Corrections scalable QC QEC threshold (Rabi frequency)
