Electric Bus Management System Project Proposal William Chow

Electric Bus Management System Project Proposal William Chow, Amer Al-Mousa, Osama Mohammed 1

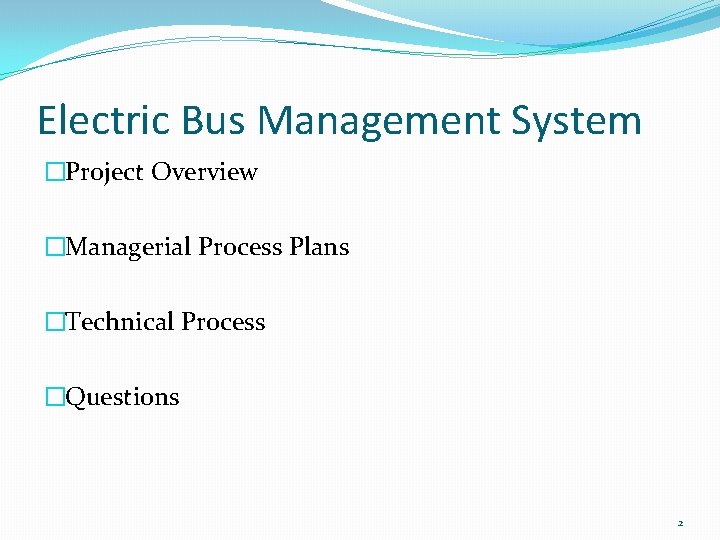

Electric Bus Management System �Project Overview �Managerial Process Plans �Technical Process �Questions 2

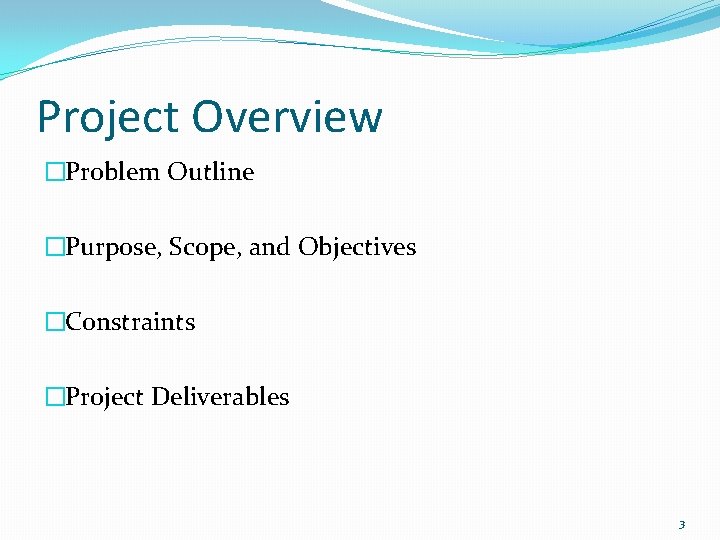

Project Overview �Problem Outline �Purpose, Scope, and Objectives �Constraints �Project Deliverables 3

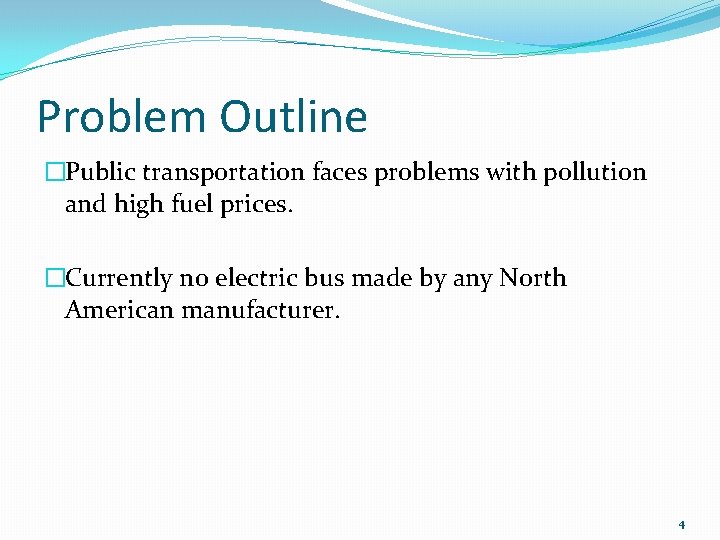

Problem Outline �Public transportation faces problems with pollution and high fuel prices. �Currently no electric bus made by any North American manufacturer. 4

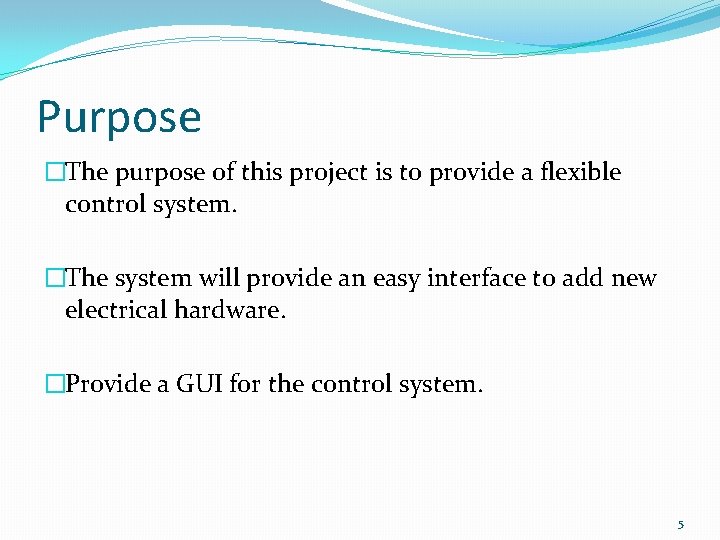

Purpose �The purpose of this project is to provide a flexible control system. �The system will provide an easy interface to add new electrical hardware. �Provide a GUI for the control system. 5

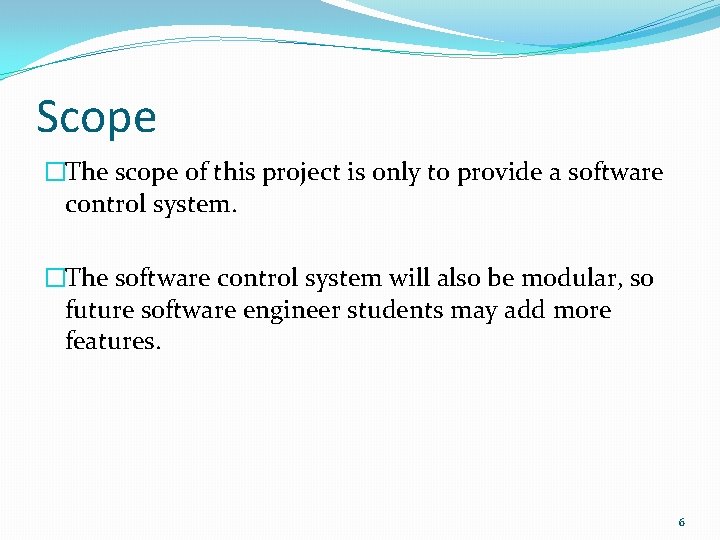

Scope �The scope of this project is only to provide a software control system. �The software control system will also be modular, so future software engineer students may add more features. 6

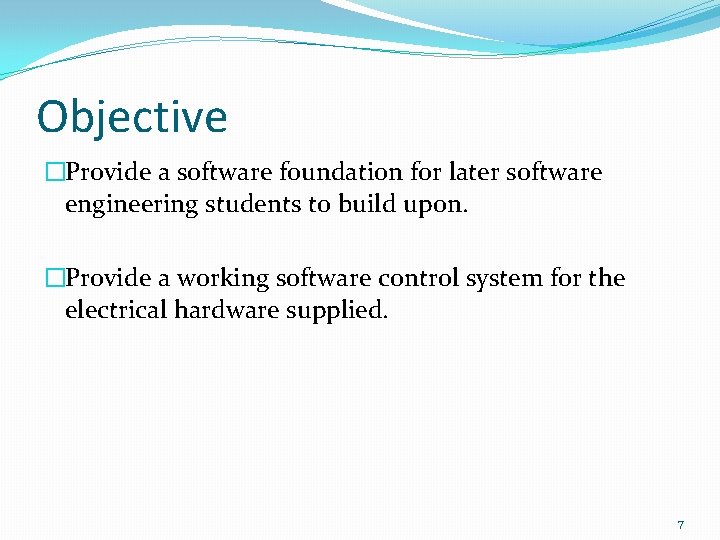

Objective �Provide a software foundation for later software engineering students to build upon. �Provide a working software control system for the electrical hardware supplied. 7

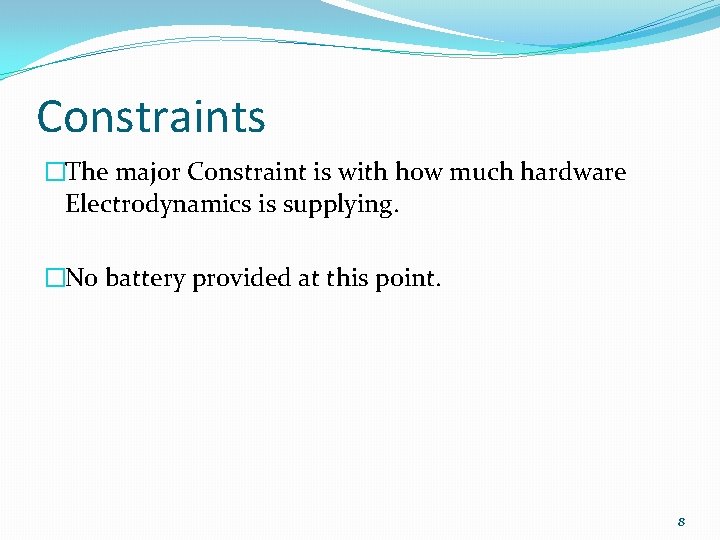

Constraints �The major Constraint is with how much hardware Electrodynamics is supplying. �No battery provided at this point. 8

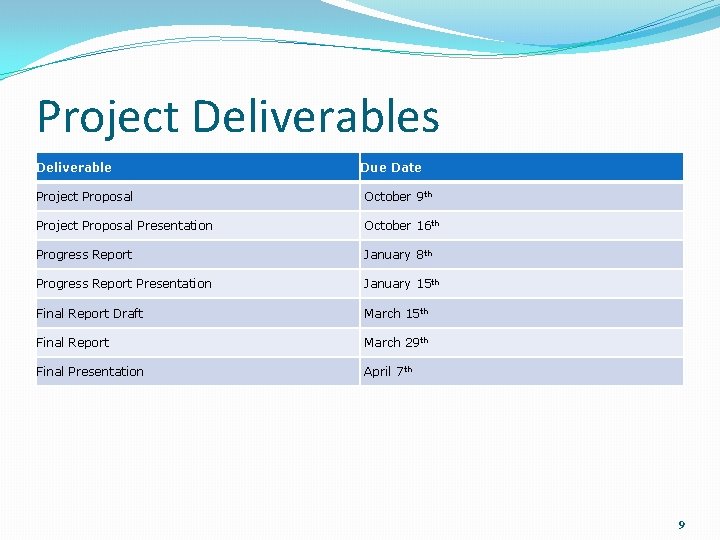

Project Deliverables Deliverable Due Date Project Proposal October 9 th Project Proposal Presentation October 16 th Progress Report January 8 th Progress Report Presentation January 15 th Final Report Draft March 15 th Final Report March 29 th Final Presentation April 7 th 9

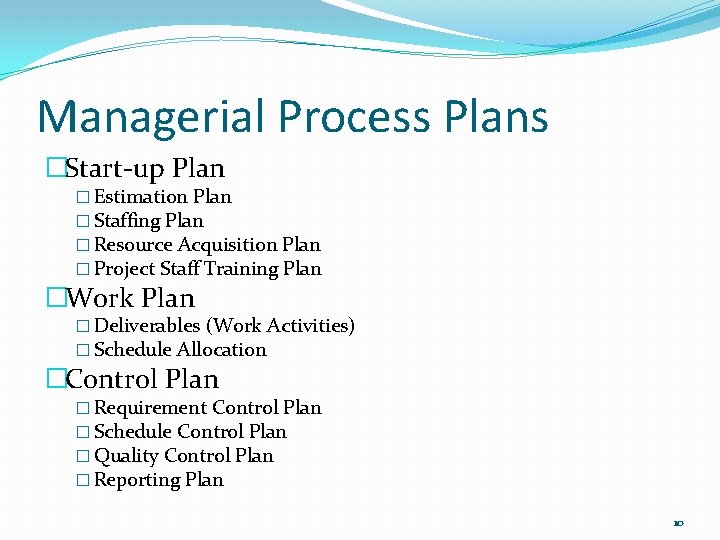

Managerial Process Plans �Start-up Plan � Estimation Plan � Staffing Plan � Resource Acquisition Plan � Project Staff Training Plan �Work Plan � Deliverables (Work Activities) � Schedule Allocation �Control Plan � Requirement Control Plan � Schedule Control Plan � Quality Control Plan � Reporting Plan 10

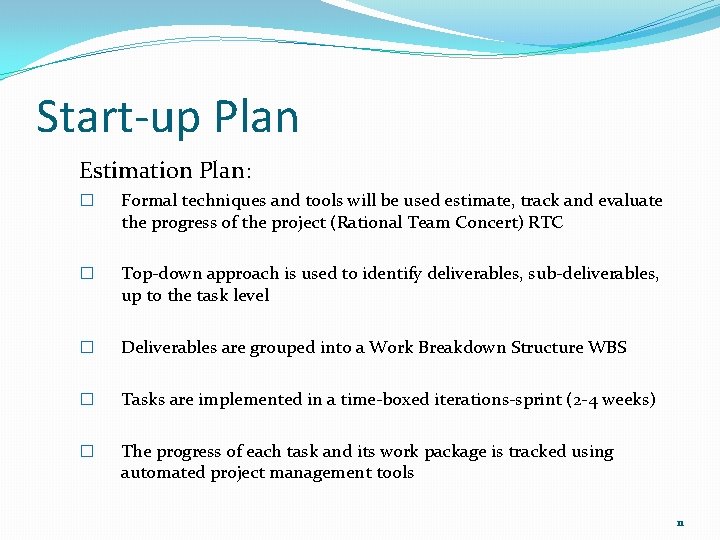

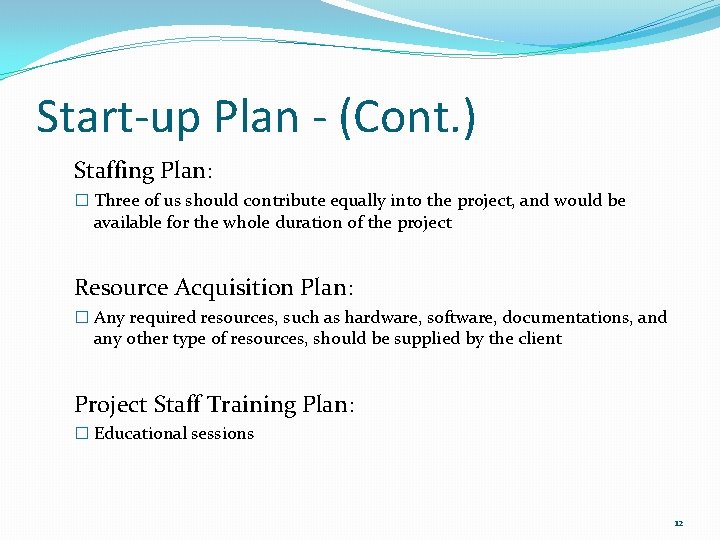

Start-up Plan Estimation Plan: � Formal techniques and tools will be used estimate, track and evaluate the progress of the project (Rational Team Concert) RTC � Top-down approach is used to identify deliverables, sub-deliverables, up to the task level � Deliverables are grouped into a Work Breakdown Structure WBS � Tasks are implemented in a time-boxed iterations-sprint (2 -4 weeks) � The progress of each task and its work package is tracked using automated project management tools 11

Start-up Plan - (Cont. ) Staffing Plan: � Three of us should contribute equally into the project, and would be available for the whole duration of the project Resource Acquisition Plan: � Any required resources, such as hardware, software, documentations, and any other type of resources, should be supplied by the client Project Staff Training Plan: � Educational sessions 12

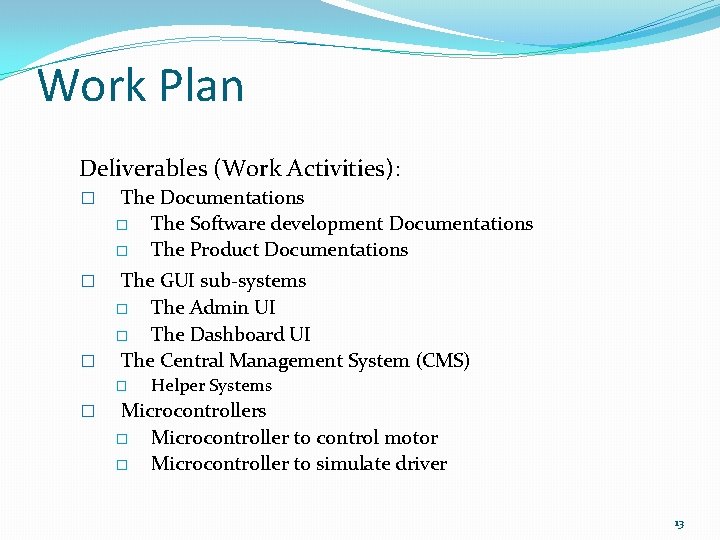

Work Plan Deliverables (Work Activities): � The Documentations � The Software development Documentations � The Product Documentations The GUI sub-systems � The Admin UI � The Dashboard UI � The Central Management System (CMS) � � � Helper Systems Microcontrollers � Microcontroller to control motor � Microcontroller to simulate driver 13

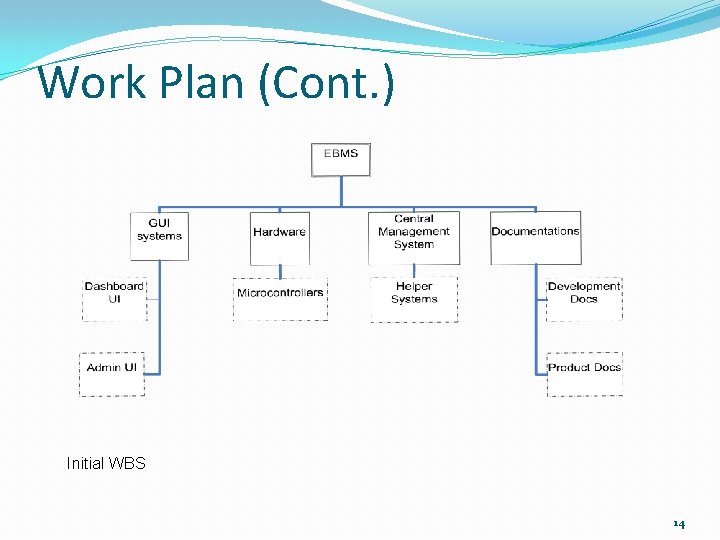

Work Plan (Cont. ) Initial WBS 14

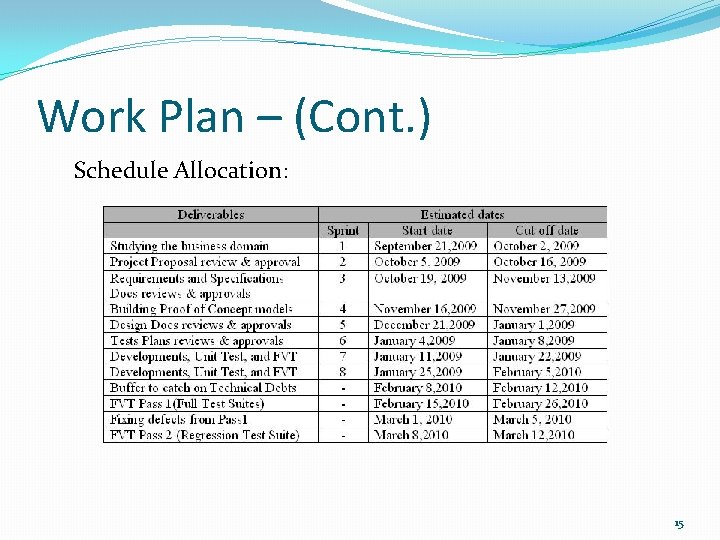

Work Plan – (Cont. ) Schedule Allocation: 15

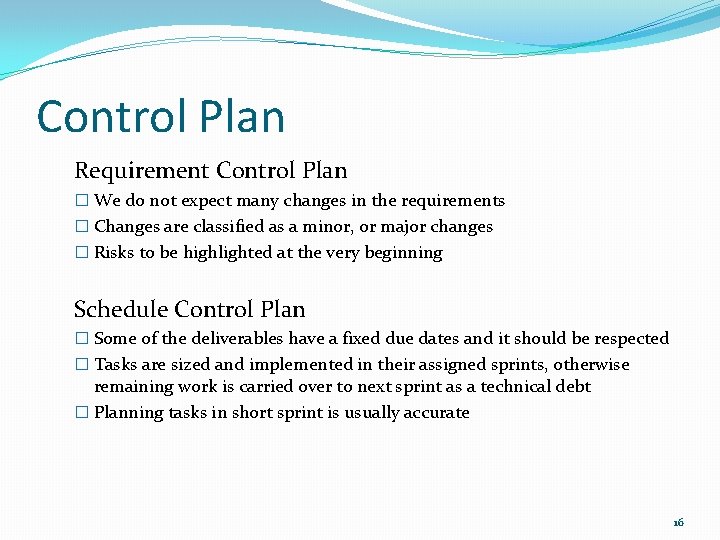

Control Plan Requirement Control Plan � We do not expect many changes in the requirements � Changes are classified as a minor, or major changes � Risks to be highlighted at the very beginning Schedule Control Plan � Some of the deliverables have a fixed due dates and it should be respected � Tasks are sized and implemented in their assigned sprints, otherwise remaining work is carried over to next sprint as a technical debt � Planning tasks in short sprint is usually accurate 16

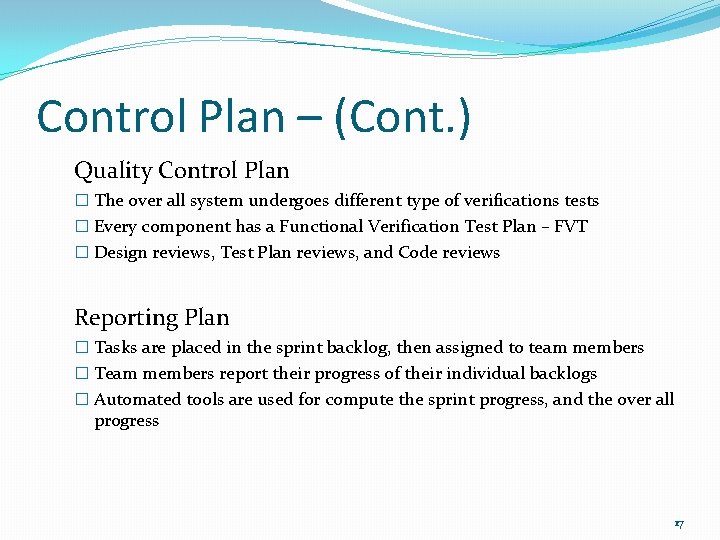

Control Plan – (Cont. ) Quality Control Plan � The over all system undergoes different type of verifications tests � Every component has a Functional Verification Test Plan – FVT � Design reviews, Test Plan reviews, and Code reviews Reporting Plan � Tasks are placed in the sprint backlog, then assigned to team members � Team members report their progress of their individual backlogs � Automated tools are used for compute the sprint progress, and the over all progress 17

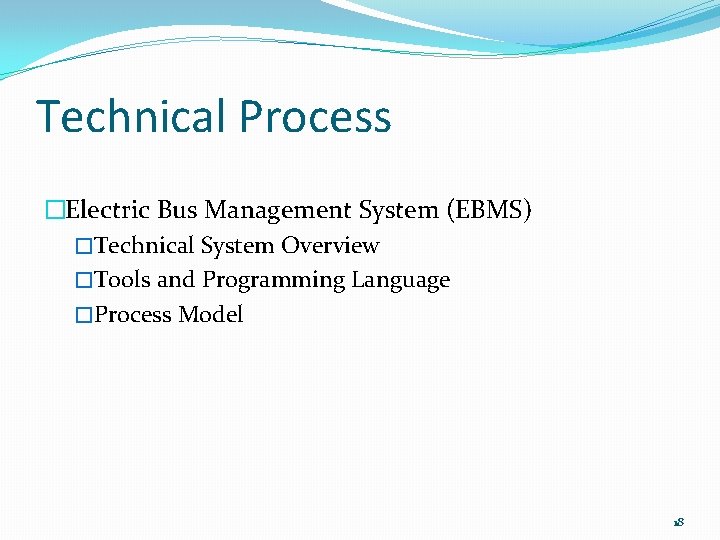

Technical Process �Electric Bus Management System (EBMS) �Technical System Overview �Tools and Programming Language �Process Model 18

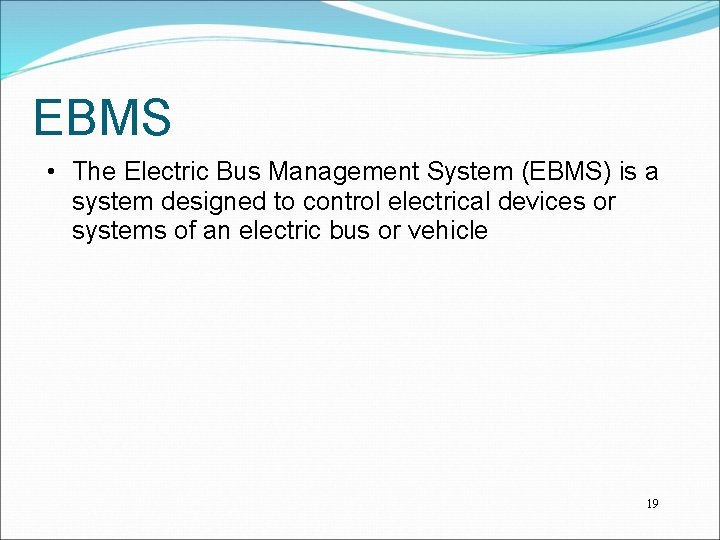

EBMS • The Electric Bus Management System (EBMS) is a system designed to control electrical devices or systems of an electric bus or vehicle 19

EBMS Components • EBMS composed of several subsystems • 2 Different Software Systems o o Central Management System (CMS) GUI (Dashboard, Admin UI) o o Microcontroller to control Electric Motor Microcontroller to interface with a Mechanical Device used to simulate a bus driver • 2 Microcontrollers 20

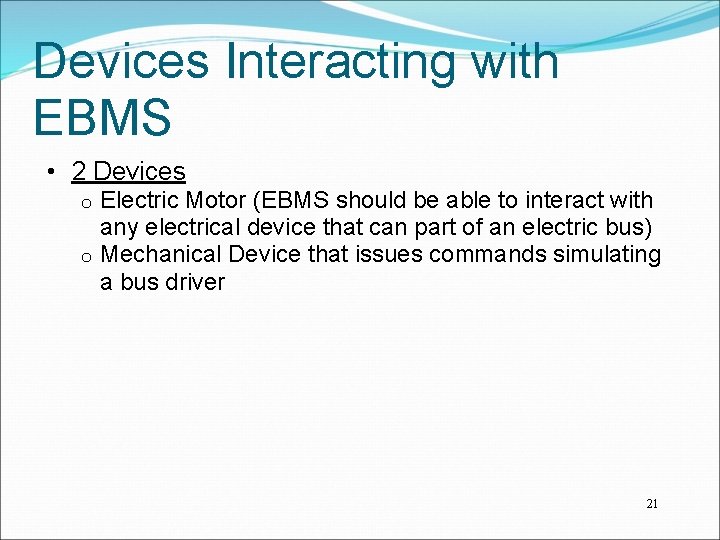

Devices Interacting with EBMS • 2 Devices Electric Motor (EBMS should be able to interact with any electrical device that can part of an electric bus) o Mechanical Device that issues commands simulating a bus driver o 21

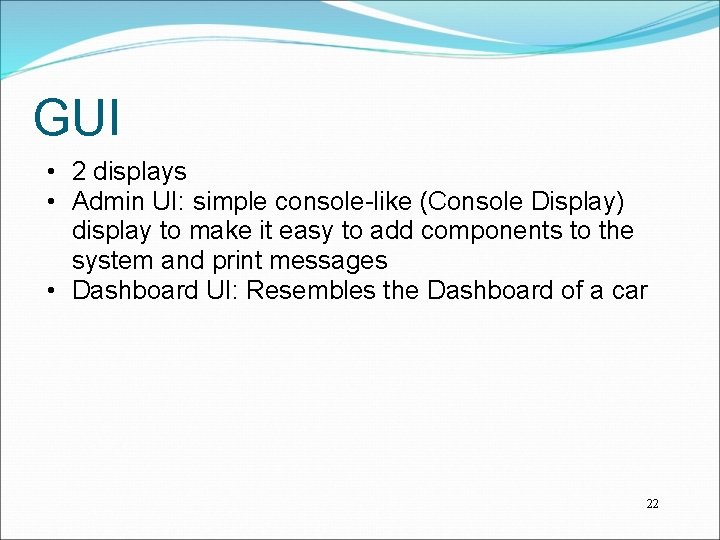

GUI • 2 displays • Admin UI: simple console-like (Console Display) display to make it easy to add components to the system and print messages • Dashboard UI: Resembles the Dashboard of a car 22

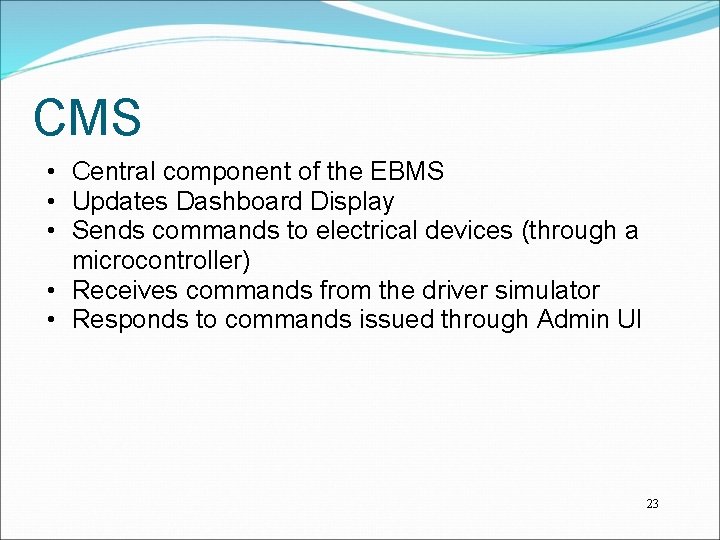

CMS • Central component of the EBMS • Updates Dashboard Display • Sends commands to electrical devices (through a microcontroller) • Receives commands from the driver simulator • Responds to commands issued through Admin UI 23

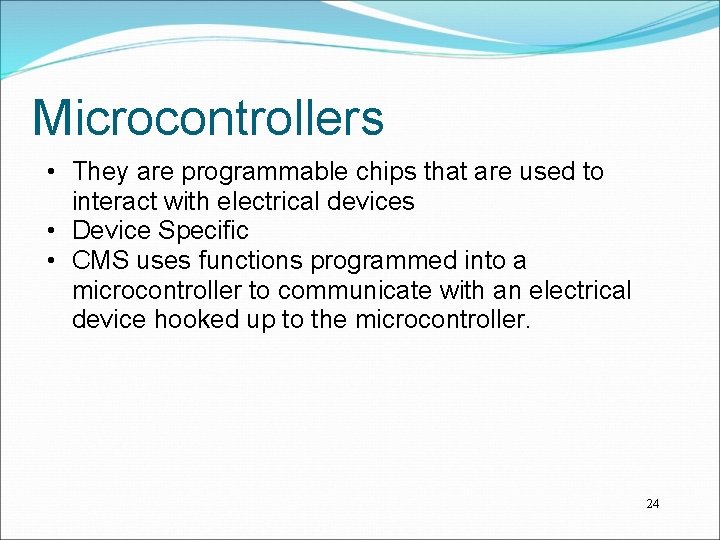

Microcontrollers • They are programmable chips that are used to interact with electrical devices • Device Specific • CMS uses functions programmed into a microcontroller to communicate with an electrical device hooked up to the microcontroller. 24

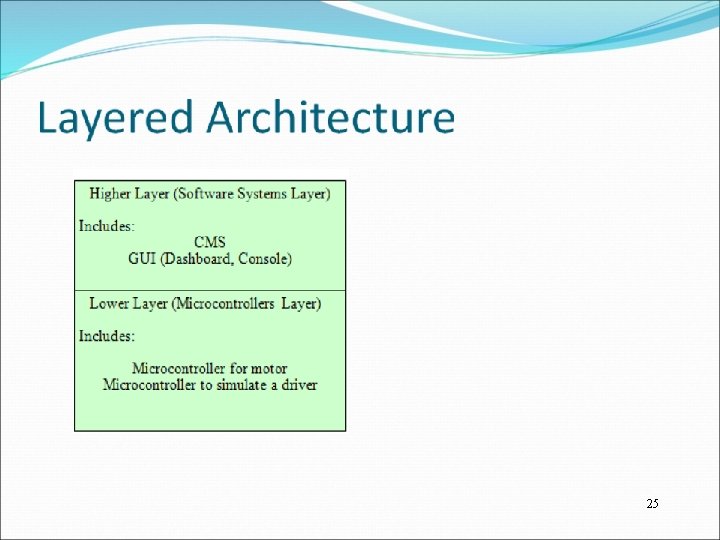

25

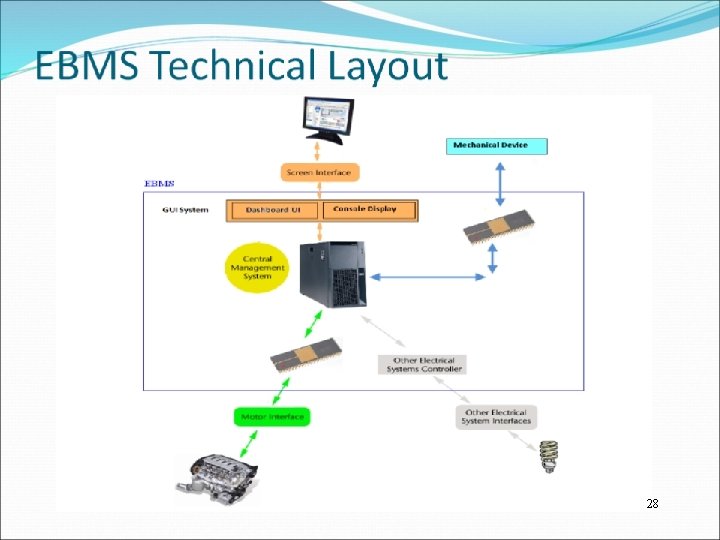

EBMS Communications 26

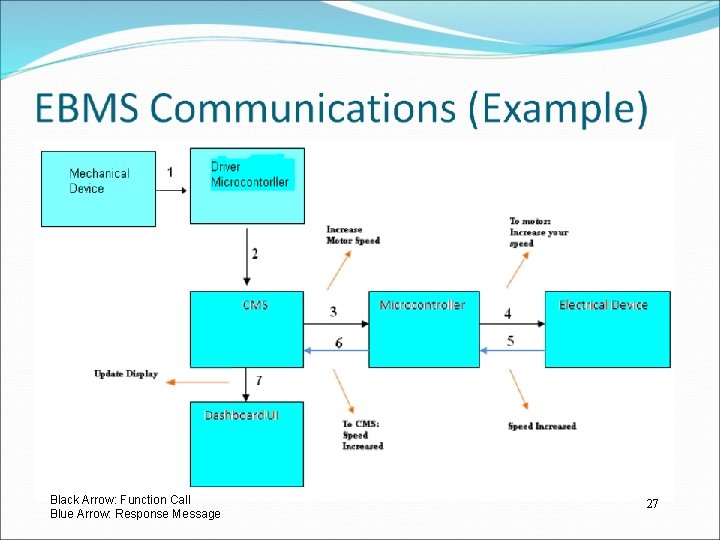

Black Arrow: Function Call Blue Arrow: Response Message 27

28

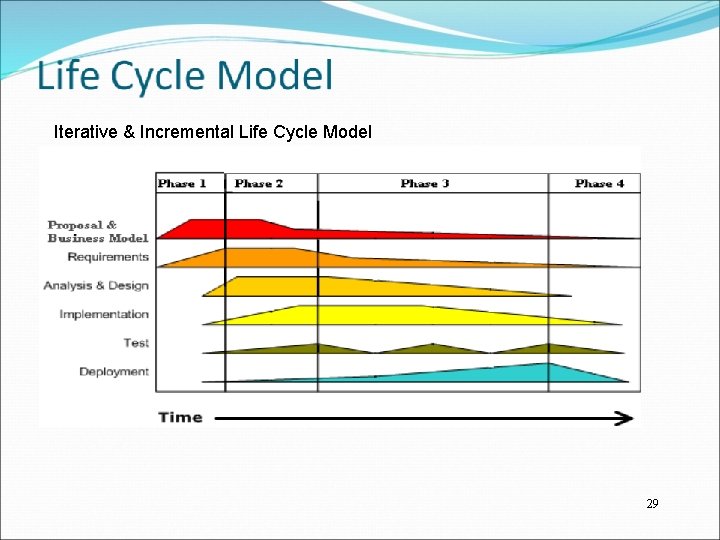

Iterative & Incremental Life Cycle Model 29

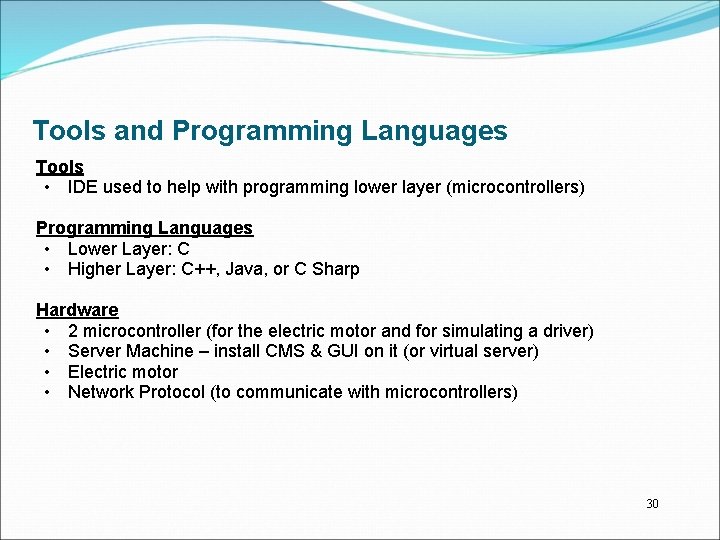

Tools and Programming Languages Tools • IDE used to help with programming lower layer (microcontrollers) Programming Languages • Lower Layer: C • Higher Layer: C++, Java, or C Sharp Hardware • 2 microcontroller (for the electric motor and for simulating a driver) • Server Machine – install CMS & GUI on it (or virtual server) • Electric motor • Network Protocol (to communicate with microcontrollers) 30

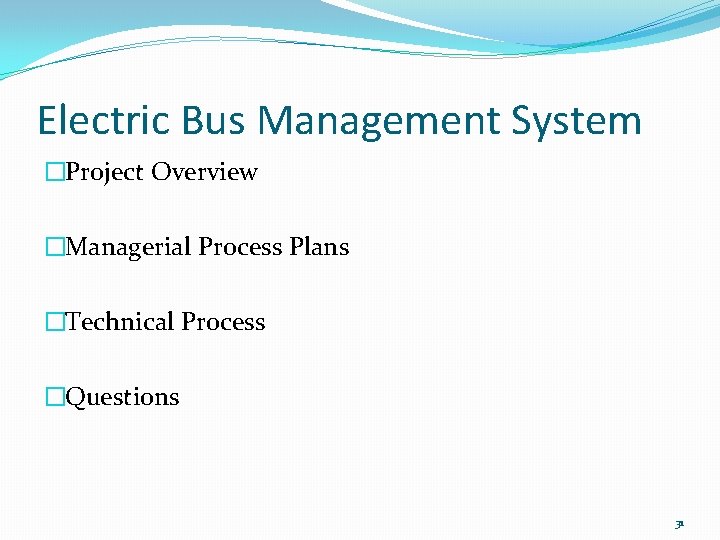

Electric Bus Management System �Project Overview �Managerial Process Plans �Technical Process �Questions 31

Questions 32
