ELEC 7770 Advanced VLSI Design Spring 2008 Constraint
- Slides: 33
ELEC 7770 Advanced VLSI Design Spring 2008 Constraint Graph and Performance Optimization Vishwani D. Agrawal James J. Danaher Professor ECE Department, Auburn University Auburn, AL 36849 vagrawal@eng. auburn. edu http: //www. eng. auburn. edu/~vagrawal/COURSE/E 7770_Spr 08/course. html Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 1
Retiming Theorem § Given a network G(V, E, W) and a cycle time T, (r 1, . . . ) is a feasible retiming if and only if: § ri – rj ≤ wij for all edges (vi, vj) ε E § ri – rj ≤ W(vi, vj) – 1 for all node-pairs vi, vj such that D(vi, vj) > T Where, W(vi, vj) is the minimum weight path between vi and vj D(vi, vj) is the maximum delay among all minimum weight paths between vi and vj Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 2
Timing Optimization § Find the clock period (T) by path analysis. § Set clock period to T/2 and find a feasible § § retiming. If feasible, further reduce the clock period to half. If not feasible, increase clock period. Do a binary search for optimum clock period. Retime the circuit. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 3
Representing a Constraint ri – rj ≤ wij rj Spring 08, Mar 4, 6 or – wij rj ≥ ri – wij ri ELEC 7770: Advanced VLSI Design (Agrawal) 4
Constraint Graph -6 r 1 ≥ r 0 + 3 r 1 ≥ r 2 + 1 r 2 ≥ r 0 + 1 r 2 ≥ r 1 – 1 r 3 ≥ r 1 + 1 r 3 ≥ r 2 + 4 r 0 ≥ r 3 – 6 r 1 3 1 -1 r 0 1 1 r 3 4 r 2 Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 5
Feasibility Condition § A set of values for variables can be found if and § only if the constraint graph has no positive cycles. This is also the condition for the solvability of the longest path problem, which provides a solution to the set of constraints. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 6
Example: Infeasible Constraints x 2 x 1 ≥ x 2 + 6 x 2 ≥ x 1 – 3 6 x 1 3 x 2 ≥ x 1 – 3 x 2 -3 Positive cycle mean no longest path can be found. Spring 08, Mar 4, 6 x 1 ≥ x 2 + 6 0 3 ELEC 7770: Advanced VLSI Design (Agrawal) 6 x 1 7
Solving a Constraint Set -6 r 1 ≥ r 0 + 3 r 1 ≥ r 2 + 1 r 2 ≥ r 0 + 1 r 2 ≥ r 1 – 1 r 3 ≥ r 1 + 1 r 3 ≥ r 2 + 4 r 0 ≥ r 3 – 6 r 1 3 r 0 Longest path from source r 0: 1 r 0, r 1, r 2, r 3 Path lengths: s 0=0, s 1=3, s 2=2, s 3=6 Solution: r 0=0, r 1=3, r 2=2, r 3=6 Spring 08, Mar 4, 6 1 -1 1 r 3 4 r 2 ELEC 7770: Advanced VLSI Design (Agrawal) 8
The General Path Problem § Find the shortest (or longest) path in a graph § from a source vertex to all other vertices. Graph has vertices and directed edges: § Edge weights can be positive or negative § Graph can be cyclic § Single source vertex – a vertex with 0 in-degree (not a necessary condition) § Inconsistent problems § Negative weight cycles for shortest path § Positive weight cycles for longest path Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 9
Dijkstra’s Shortest Path Algorithm § Greedy algorithm. § Applies to directed acyclic graphs (DAG) with positive § § edge weights. Computational complexity O(|E| + |V| log |V|) ≤ O(n 2) References: § A. Aho, J. Hopcroft and J. Ullman, Data Structures and Algorithms, Reading, Massachusetts: Addison-Wesley, 1983. § T. Cormen, C. Leiserson and R. Rivest, Introduction to Algorithms, New York: Mc. Graw-Hill, 1990. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 10
Dijkstra’s Shortest Path Algorithm Example 1 w 01=15 v 0 source v 1 3 v 3 10 2 v 2 6 si = path weight (v 0, vi) Alg. steps s 0 s 1 s 2 s 3 Initially: mark v 0 0 15 2 Step 1: mark v 2 0 12 2 8 Step 2: mark v 3 0 11 2 8 Step 3: mark v 1 0 11 2 8 Each step marks the path with smallest weight and updates the unmarked path weights. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 11
Dijkstra’s Shortest Path Algorithm Example 2 w 01=15 v 0 source v 1 3 v 3 6 2 v 2 10 si = path weight (v 0, vi) Alg. steps s 0 s 1 s 2 s 3 Initially: mark v 0 0 15 2 Step 1: mark v 2 0 8 2 12 Step 2: mark v 1 0 8 2 12 Step 3: mark v 3 0 8 2 12 Each step marks the path with smallest weight and updates the unmarked path weights. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 12
Dijkstra’s Algorithm, G(V, E, W) s 0(1) = 0 for ( i = 1 to n ) initialize source initialize path weights, n=|V| – 1 si(1) = w 0 i repeat { Select an unmarked vertex vq such that sq is minimal Mark vq foreach ( unmarked vertex vi ) si = min { si, sq + wqi } } until (all vertices are marked) Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 13
Try Dijkstra’s Algorithm for Your Graph http: //www. dgp. toronto. edu/people/James. Stewart/270/9798 s/Laffra/Dijkstra. Applet. html Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 14
Dijkstra’s Longest Path Algorithm w 01=15 v 0 source v 1 v 2 w 01= -15 v 0 source 3 v 3 10 2 v 1 6 -3 v 2 Alg. steps s 0 s 1 s 2 s 3 Initially 0 -15 -2 Step 1: mark v 1 0 -15 -2 Step 2: mark v 2 0 -15 -2 -8 Step 3: mark v 3 0 -15 -2 -8 v 3 -10 -2 Either change min to max Or change all positive weights to negatives -6 si = path length (v 0, vi) Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 15
Dijkstra’s Alg. Does Not Work for Cycles, Mixed Weights -2 w 01=15 v 0 source v 1 3 v 3 5 2 v 2 4 si = path weight (v 0, vi) Alg. steps s 0 s 1 s 2 s 3 Initially: mark v 0 0 15 2 Step 1: mark v 2 0 7 2 6 Step 2: mark v 3 0 7 2 6 Step 3: mark v 1 0 7 2 6? Algorithm stops because all vertices are marked. But, there exists a v 0 to v 3 path of length 5 Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 16
Bellman’s Equations – Shortest Path vj vk wki wji For all vertices: vi vm wmi si wni = min (sq + wqi) vq ε pred(vi) vn sq = minimum path weight between source and vq Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 17
Bellman-Ford Algorithm, G(V, E, W) Bellman-Ford { s 0(1) = 0 for ( i = 1 to n ) initialize source initialize path weights, n = |V| – 1 si(1) = w 0 i for ( j = 1 to n ) n iterations for ( i = 1 to n ) si(j+1) = min { si(j), sk(j) + wkj } vk ε pred(vi) } if ( si(j+1) == si(j) i ) return (true) } return (false) Spring 08, Mar 4, 6 Complexity = O(|V||E|) ≤ O(n 3) ELEC 7770: Advanced VLSI Design (Agrawal) 18
Bellman-Ford Shortest Path n=3 w 01=15 v 0 source v 1 3 v 3 10 2 v 2 6 si = path weight (v 0, vi) Spring 08, Mar 4, 6 Alg. steps s 0 s 1 s 2 s 3 Initially 0 15 2 Iteration 1 0 12 2 8 Iteration 2 0 11 2 8 Iteration 3 0 11 2 8 ELEC 7770: Advanced VLSI Design (Agrawal) 19
Bellman-Ford Longest Path Reverse the sign of weights and solve shortest path problem. (Alternative: keep original weights and change min operator in algorithm to max. ) n = 3 (shortest path) Weights reversed w 01= -15 v 0 source v 1 v 2 v 3 -6 si = path weight (v 0, vi) Spring 08, Mar 4, 6 s 0 s 1 s 2 s 3 Initially 0 -15 -2 Iteration 1 0 -15 -2 -8 Iteration 2 0 -15 -2 -8 -3 -10 -2 Alg. steps ELEC 7770: Advanced VLSI Design (Agrawal) 20
Bellman’s Equations – Longest Path vj vk wki wji For all vertices: vi vm wmi si wni = max (sq + wqi) vq ε pred(vi) vn sq = maximum path weight between source and vq Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 21
Bellman-Ford for Cycles, Neg. Weights w 01=15 v 0 source v 1 -2 3 v 3 5 2 v 2 4 si = path weight (v 0, vi) n = 3 (shortest path) Alg. steps s 0 s 1 s 2 s 3 Initially 0 15 2 Iteration 1 0 7 2 6 Iteration 2 0 7 2 5 Iteration 3 0 7 2 5 This was incorrect with Dijkstra’s shortest path algorithm Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 22
Bellman-Ford for Negative Cycle w 01=15 v 0 source v 1 -3 v 3 5 2 v 2 n = 3 (shortest path) 2 4 si = path weight (v 0, vi) Alg. steps s 0 s 1 s 2 s 3 Initially 0 15 2 Iteration 1 0 7 2 6 Iteration 2 0 3 2 6 Iteration 3 0 3 2 5 Values not stabilized after n iterations. Inconsistent problem: negative cycle. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 23
Retiming Example 10 a 5 b FF 5 c Delay Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 24
Retiming Graph a 10 b 5 FF 5 c 1 h 0 0 a 10 0 b 5 1 c 5 Critical path = 15 It is the longest path consisting only of zero weight edges. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 25

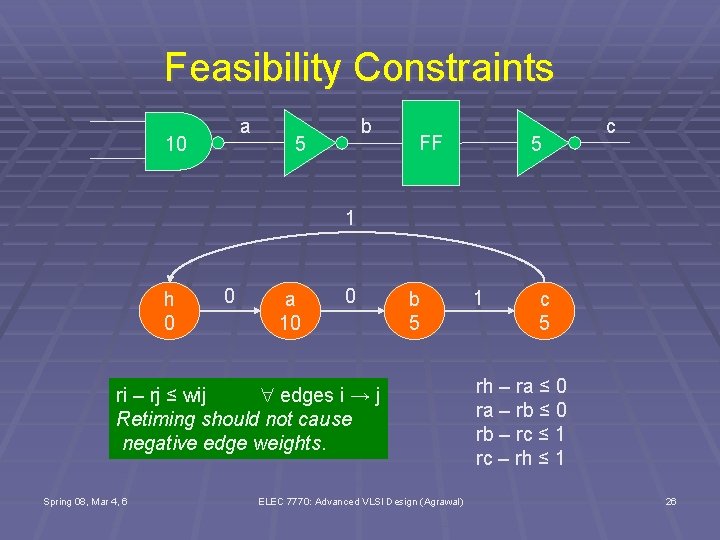

Feasibility Constraints a 10 b 5 FF 5 c 1 h 0 0 a 10 0 b 5 ri – rj ≤ wij edges i → j Retiming should not cause negative edge weights. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 1 c 5 rh – ra ≤ 0 ra – rb ≤ 0 rb – rc ≤ 1 rc – rh ≤ 1 26
Constraint Graph a 10 b 5 FF 5 c -1 rh 0 0 ra 10 0 rb 5 -1 rc 5 rh – ra ≤ 0 ra – rb ≤ 0 rb – rc ≤ 1 rc – rh ≤ 1 Observation: Constraint graph has the same structure as the original retiming graph, with signs of weights reversed. Vertex labels are the retiming integer variables. ri – rj ≤ wij edges i → j Retiming should not cause negative edge weights. Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 27
Max Delay for Min Weight Paths 1 h 0 0 a 10 0 b 5 1 c 5 T = 15 W(h, a) = 0 W(h, b) = 0 W(h, c) = 1 W(a, b) = 0 W(a, c) = 1 W(a, h) = 2 Spring 08, Mar 4, 6 D(h, a) = 10 D(h, b) = 15 D(h, c) = 20 D(a, b) = 15 D(a, c) = 20 D(a, h) = 20 W(b, c) = 1 W(b, h) = 2 W(b, a) = 2 W(c, h) = 1 W(c, a) = 1 W(c, b) = 1 ELEC 7770: Advanced VLSI Design (Agrawal) D(b, c) = 10 D(b, h) = 10 D(b, a) = 20 D(c, h) = 5 D(c, a) = 15 D(c, b) = 20 28
Timing Optimization, T = 7. 5? -1 rh 0 0 ra 10 ri – rj ≤ W(I, j) – 1 W(h, a) = 0 W(h, b) = 0 W(h, c) = 1 W(a, b) = 0 W(a, c) = 1 W(a, h) = 2 Spring 08, Mar 4, 6 0 Constraint graph (feasibility) rb 5 -1 rc 5 paths (i, j) such that D(i, j) > 7. 5 D(h, a) = 10 D(h, b) = 15 D(h, c) = 20 D(a, b) = 15 D(a, c) = 20 D(a, h) = 20 W(b, c) = 1 W(b, h) = 2 W(b, a) = 2 W(c, h) = 1 W(c, a) = 1 W(c, b) = 1 ELEC 7770: Advanced VLSI Design (Agrawal) D(b, c) = 10 D(b, h) = 10 D(b, a) = 20 D(c, h) = 5 D(c, a) = 15 D(c, b) = 20 29
Timing Optimization, T = 7. 5? -1 0 -1 -1 W(h, a) = 0 W(h, b) = 0 W(h, c) = 1 W(a, b) = 0 W(a, c) = 1 W(a, h) = 2 Spring 08, Mar 4, 6 1 1 1 rh 0 Positive cycle No solution 0 0 ra 10 -1 0 rb 5 -1 0 rc 5 0 0 D(h, a) = 10 D(h, b) = 15 D(h, c) = 20 D(a, b) = 15 D(a, c) = 20 D(a, h) = 20 W(b, c) = 1 W(b, h) = 2 W(b, a) = 2 W(c, h) = 1 W(c, a) = 1 W(c, b) = 1 ELEC 7770: Advanced VLSI Design (Agrawal) D(b, c) = 10 D(b, h) = 10 D(b, a) = 20 D(c, h) = 5 D(c, a) = 15 D(c, b) = 20 30
Timing Optimization, T = 11. 25? -1 1 1 rh 0 0 -1 0 ra 10 -1 0 W(h, a) = 0 W(h, b) = 0 W(h, c) = 1 W(a, b) = 0 W(a, c) = 1 W(a, h) = 2 Spring 08, Mar 4, 6 0 D(h, a) = 10 D(h, b) = 15 D(h, c) = 20 D(a, b) = 15 D(a, c) = 20 D(a, h) = 20 0 rb 5 -1 rc 5 rh = 0 rb = 1 rc = 0 ra = 0 0 W(b, c) = 1 W(b, h) = 2 W(b, a) = 2 W(c, h) = 1 W(c, a) = 1 W(c, b) = 1 ELEC 7770: Advanced VLSI Design (Agrawal) D(b, c) = 10 D(b, h) = 10 D(b, a) = 20 D(c, h) = 5 D(c, a) = 15 D(c, b) = 20 31
Retiming Graph a 10 b 5 FF 5 c 1 h 0 rh = 0 0 a 10 ra = 0 0 1 b 5 1 0 rb = 1 c 5 rc = 0 wij_retimed = wij + rj – ri Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 32
Retimed Circuit a 10 FF b 5 Logic optimization will remove these. 1 h 0 rh = 0 0 a 10 ra = 0 1 5 c b 5 0 rb = 1 c 5 rc = 0 Critical Path = 10 Spring 08, Mar 4, 6 ELEC 7770: Advanced VLSI Design (Agrawal) 33
