ELE 1001 Basic Electrical Technology L8 MAGNETIC CIRCUITS

ELE 1001: Basic Electrical Technology L-8 MAGNETIC CIRCUITS Dept. of E & E, MIT, Manipal 1

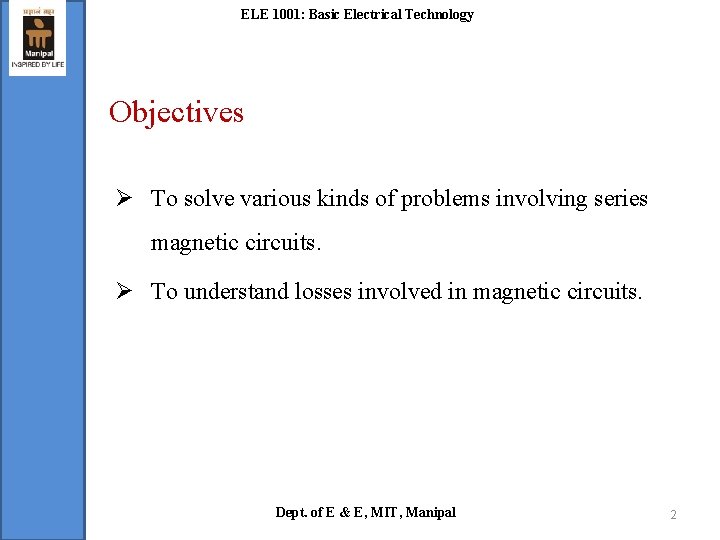

ELE 1001: Basic Electrical Technology Objectives Ø To solve various kinds of problems involving series magnetic circuits. Ø To understand losses involved in magnetic circuits. Dept. of E & E, MIT, Manipal 2

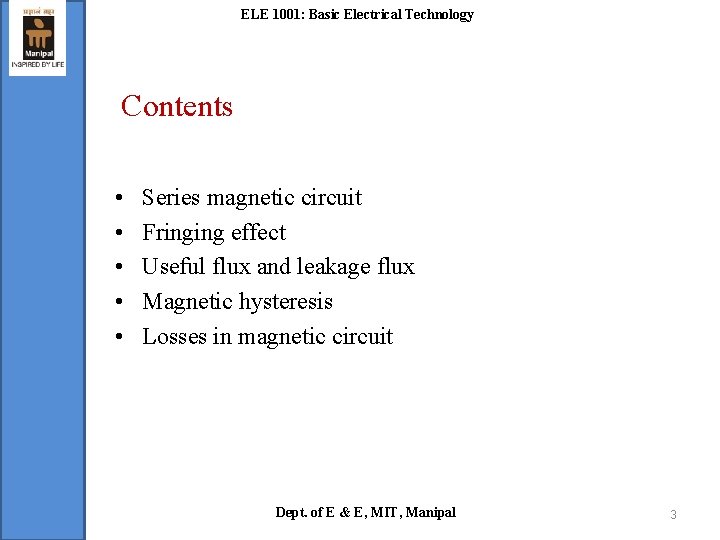

ELE 1001: Basic Electrical Technology Contents • • • Series magnetic circuit Fringing effect Useful flux and leakage flux Magnetic hysteresis Losses in magnetic circuit Dept. of E & E, MIT, Manipal 3

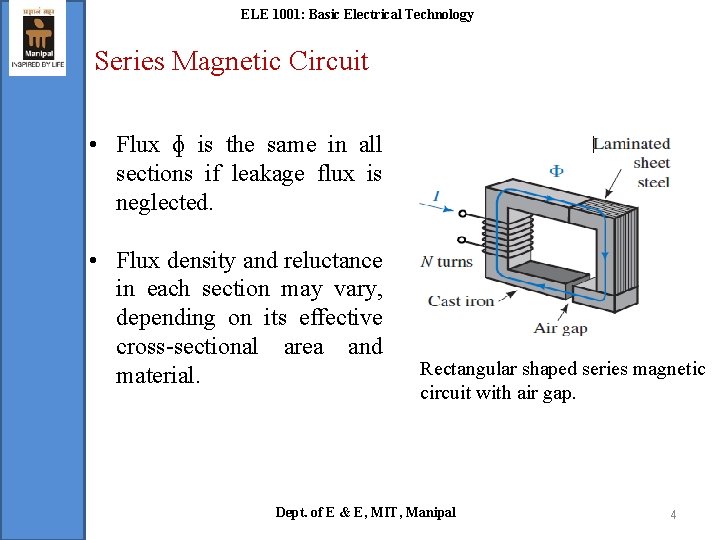

ELE 1001: Basic Electrical Technology Series Magnetic Circuit • Flux ɸ is the same in all sections if leakage flux is neglected. • Flux density and reluctance in each section may vary, depending on its effective cross-sectional area and material. Rectangular shaped series magnetic circuit with air gap. Dept. of E & E, MIT, Manipal 4

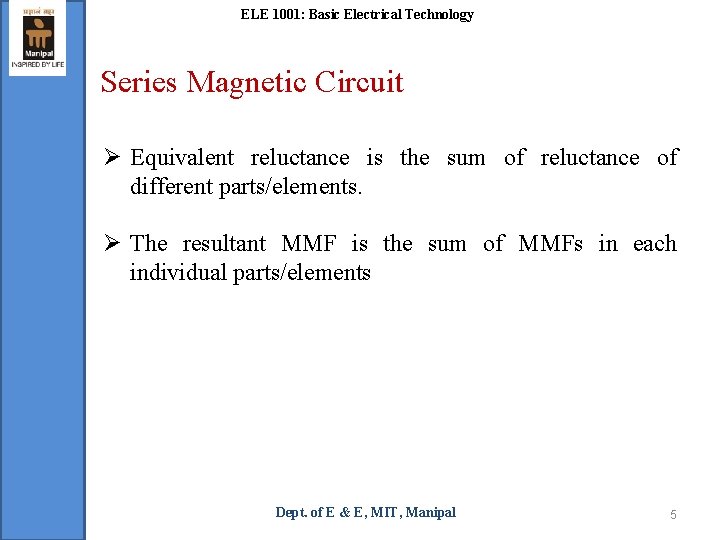

ELE 1001: Basic Electrical Technology Series Magnetic Circuit Ø Equivalent reluctance is the sum of reluctance of different parts/elements. Ø The resultant MMF is the sum of MMFs in each individual parts/elements Dept. of E & E, MIT, Manipal 5

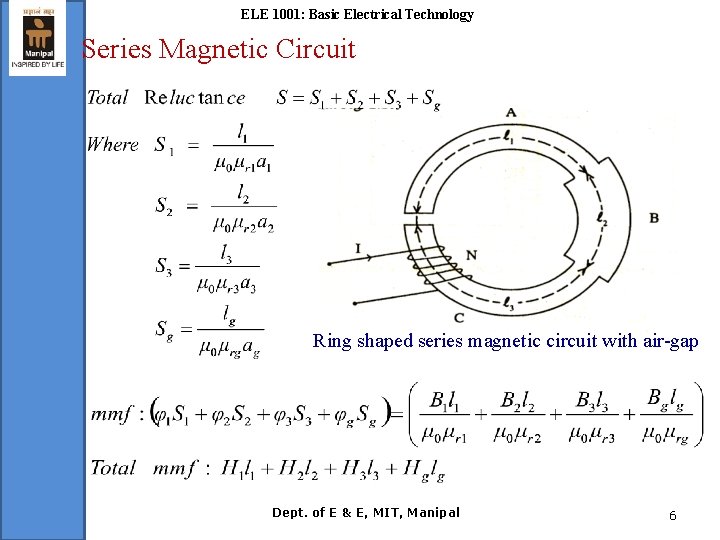

ELE 1001: Basic Electrical Technology Series Magnetic Circuit Ring shaped series magnetic circuit with air-gap Dept. of E & E, MIT, Manipal 6

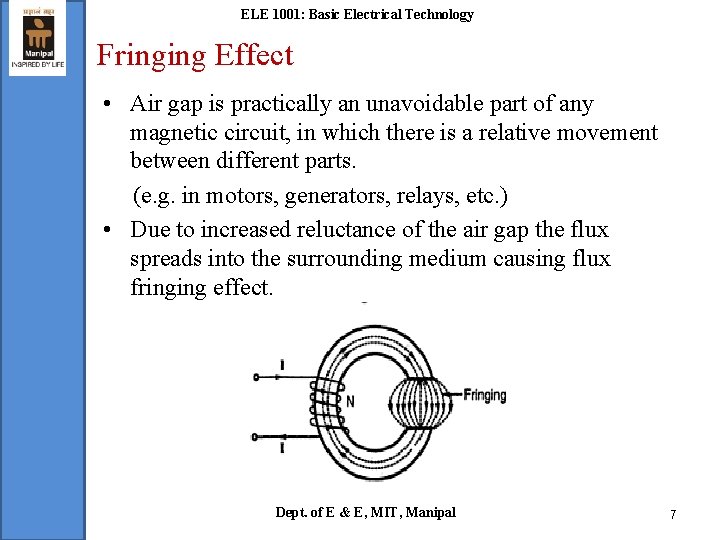

ELE 1001: Basic Electrical Technology Fringing Effect • Air gap is practically an unavoidable part of any magnetic circuit, in which there is a relative movement between different parts. (e. g. in motors, generators, relays, etc. ) • Due to increased reluctance of the air gap the flux spreads into the surrounding medium causing flux fringing effect. Dept. of E & E, MIT, Manipal 7

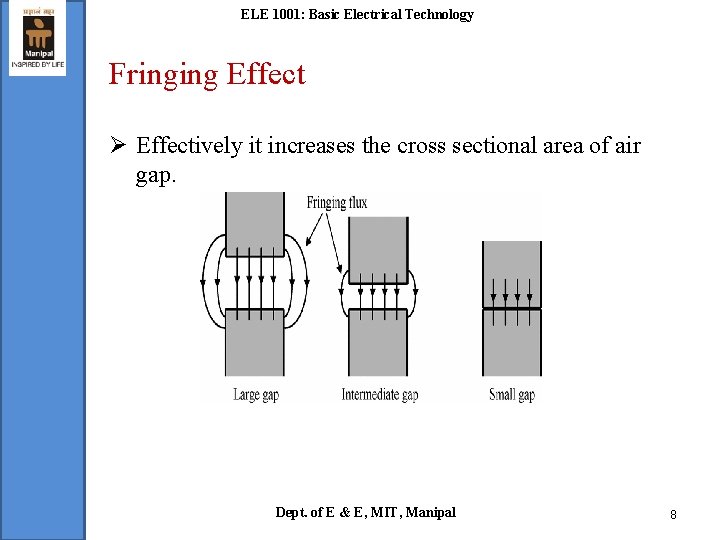

ELE 1001: Basic Electrical Technology Fringing Effect Ø Effectively it increases the cross sectional area of air gap. Dept. of E & E, MIT, Manipal 8

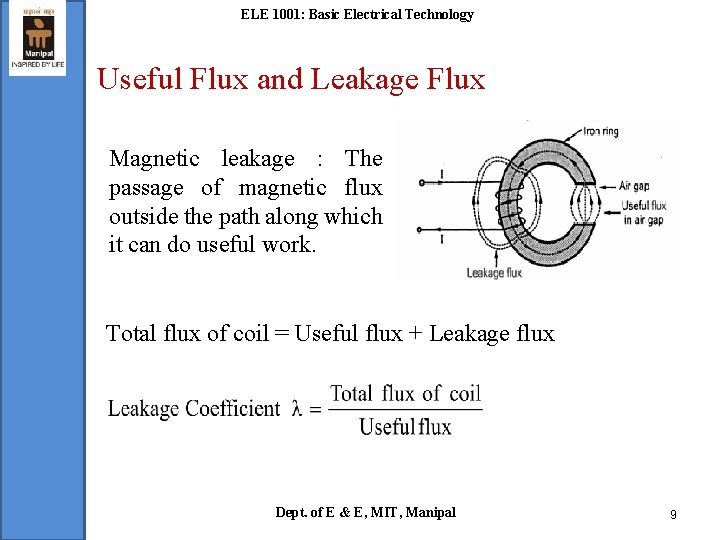

ELE 1001: Basic Electrical Technology Useful Flux and Leakage Flux Magnetic leakage : The passage of magnetic flux outside the path along which it can do useful work. Total flux of coil = Useful flux + Leakage flux Dept. of E & E, MIT, Manipal 9

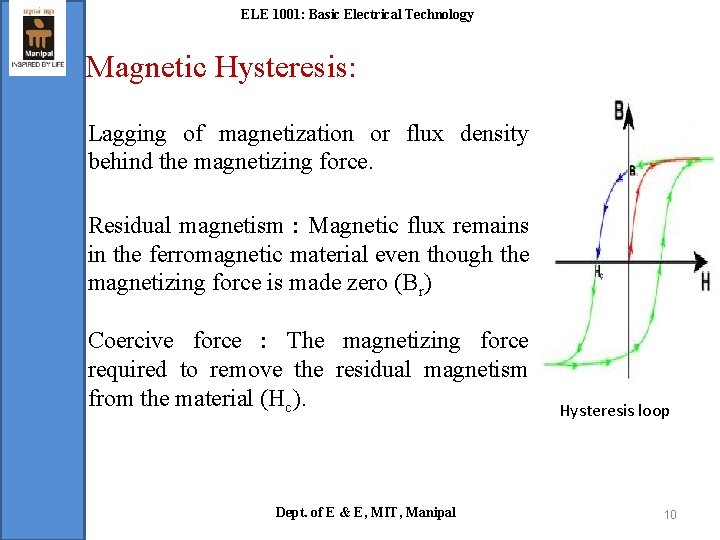

ELE 1001: Basic Electrical Technology Magnetic Hysteresis: Lagging of magnetization or flux density behind the magnetizing force. Residual magnetism : Magnetic flux remains in the ferromagnetic material even though the magnetizing force is made zero (Br) Coercive force : The magnetizing force required to remove the residual magnetism from the material (Hc). Dept. of E & E, MIT, Manipal Hysteresis loop 10

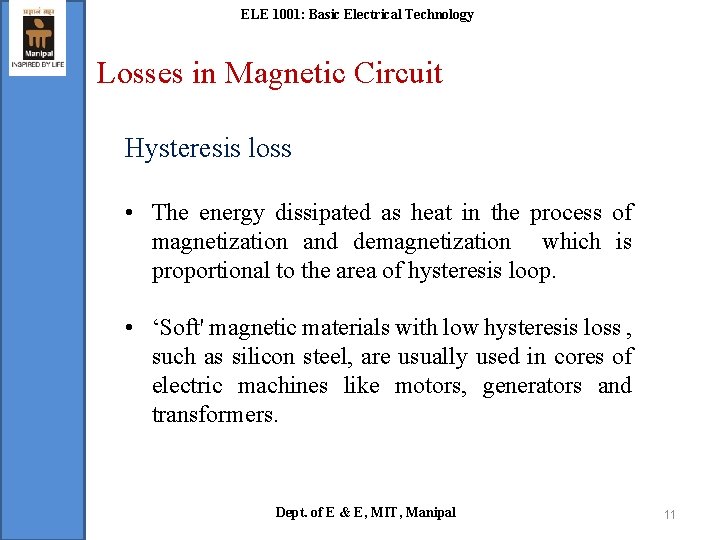

ELE 1001: Basic Electrical Technology Losses in Magnetic Circuit Hysteresis loss • The energy dissipated as heat in the process of magnetization and demagnetization which is proportional to the area of hysteresis loop. • ‘Soft' magnetic materials with low hysteresis loss , such as silicon steel, are usually used in cores of electric machines like motors, generators and transformers. Dept. of E & E, MIT, Manipal 11

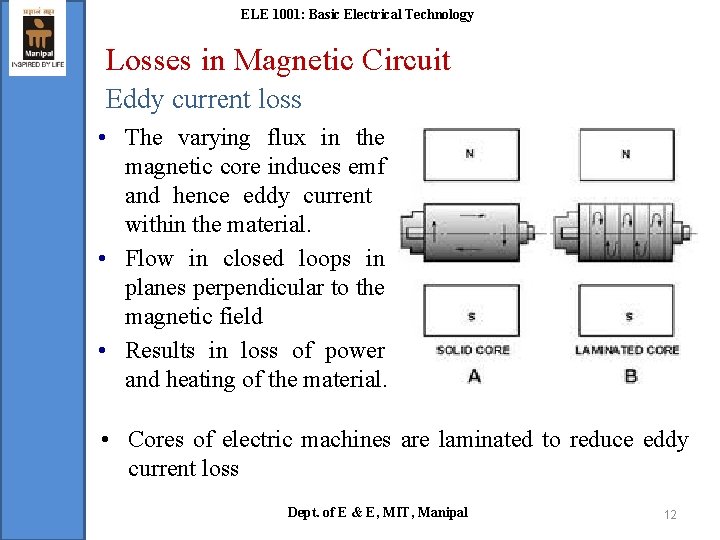

ELE 1001: Basic Electrical Technology Losses in Magnetic Circuit Eddy current loss • The varying flux in the magnetic core induces emf and hence eddy current within the material. • Flow in closed loops in planes perpendicular to the magnetic field • Results in loss of power and heating of the material. • Cores of electric machines are laminated to reduce eddy current loss Dept. of E & E, MIT, Manipal 12

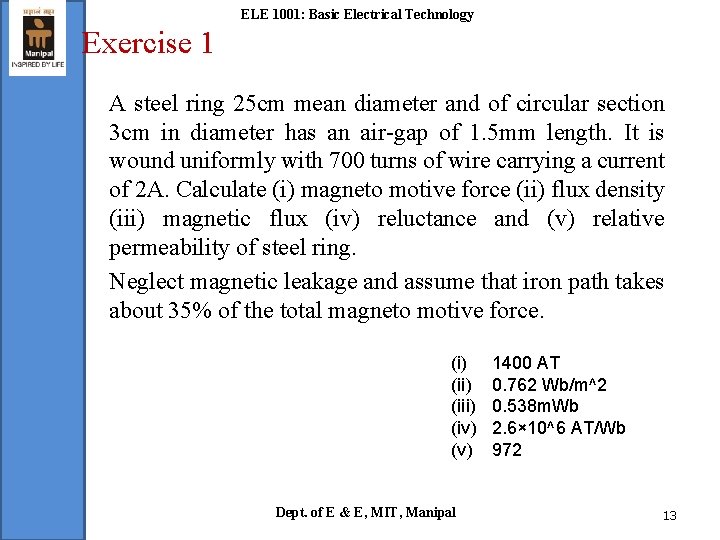

ELE 1001: Basic Electrical Technology Exercise 1 A steel ring 25 cm mean diameter and of circular section 3 cm in diameter has an air-gap of 1. 5 mm length. It is wound uniformly with 700 turns of wire carrying a current of 2 A. Calculate (i) magneto motive force (ii) flux density (iii) magnetic flux (iv) reluctance and (v) relative permeability of steel ring. Neglect magnetic leakage and assume that iron path takes about 35% of the total magneto motive force. (i) (iii) (iv) (v) Dept. of E & E, MIT, Manipal 1400 AT 0. 762 Wb/m^2 0. 538 m. Wb 2. 6× 10^6 AT/Wb 972 13

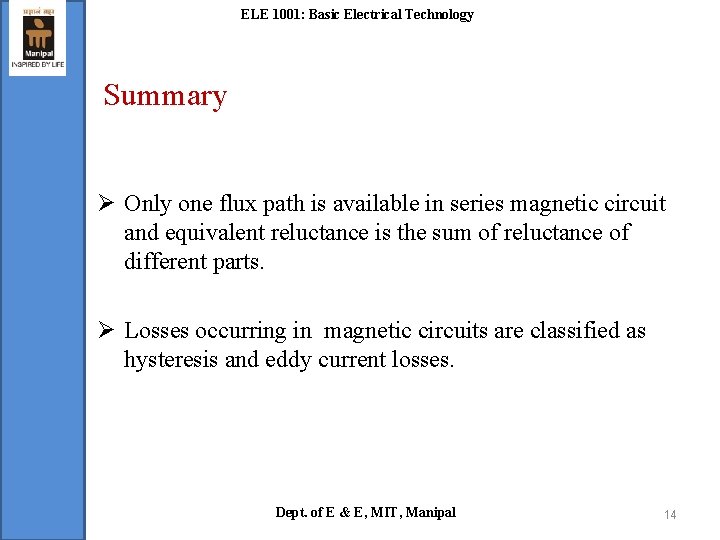

ELE 1001: Basic Electrical Technology Summary Ø Only one flux path is available in series magnetic circuit and equivalent reluctance is the sum of reluctance of different parts. Ø Losses occurring in magnetic circuits are classified as hysteresis and eddy current losses. Dept. of E & E, MIT, Manipal 14
