Elder L. Lionel Kendrick Of the First Quorum of the Seventy • It has been from the beginning and it will be till the end that the natural man will have a tendency to rationalize and to blame his behaviors on others or on certain circumstances. When we attempt to place responsibility for our choices on others, we are responding in a less than Christlike manner. Blaming is an unrighteous form of communication.

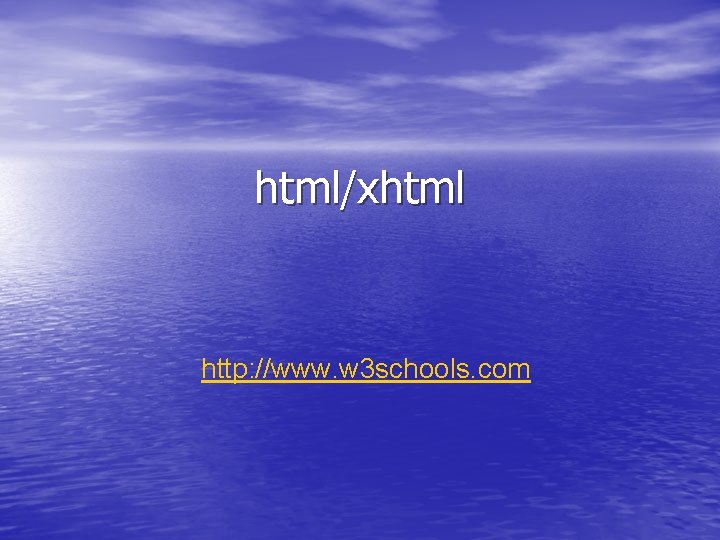

html/xhtml http: //www. w 3 schools. com

Objectives In this chapter, you will: • Learn about HTML and XHTML • Work with XHTML DTDs • Study elements and attributes • Work with basic body elements • Link your Web pages • Validate your Web pages

XHTML Document Type Definition (DTDs) 6 • A well formed document is a document that conforms to the rules and requirements of XHTML. • <!DOCTYPE> determines the XHTML DTD with which the document complies. • DTD (Document Type Definition) defines the tags and attributes that can be used in a document.

XHTML Document Type Definition (DTDs) • Three types of DTDs can be used with XHTML documents: Transitional, Strict, and Frameset. • Deprecated elements are elements that are considered obsolete and they will be eventually removed from a language. – Examples of deprecated HTML elements: <applet>, <basefont>, <center>, <dir>, <menu>… – http: //www. w 3 schools. com/tags/default. asp http: //www. w 3. org/TR/REC-html 40/index/attributes. html

XHTML Document Type Definition (DTDs) • A Transitional DTD allows the use of deprecated style tags in HTML documents: <!DOCTYPE html PUBLIC “-//W 3 C//DTD XHTML 1. 0 Transitional//EN” “http: //www/w 3. org/TR/xhtml 1/DTD/xhtml 1 -transitional. dtd”>

XHTML Document Type Definition (DTDs) • The Frameset DTD is identical to the Transitional DTD, except that it includes the <frameset> and <frame> elements: <!DOCTYPE html PUBLIC“-//W 3 C//DTD XHTML 1. 0 Frameset//EN” “http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -frameset. dtd”>

XHTML Document Type Definition (DTDs) The Strict DTD eliminates deprecated elements in the Transitional DTD and Frameset DTD: <!DOCTYPE html PUBLIC “-//W 3 C//DTD XHTML 1. 0 Strict//EN” “http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -strict. dtd”>

Introduction to HTML The general form of an HTML document is as follows: <html> <head> <title>title goes here</title> </head> <body> The body of the document goes here </body> </html>

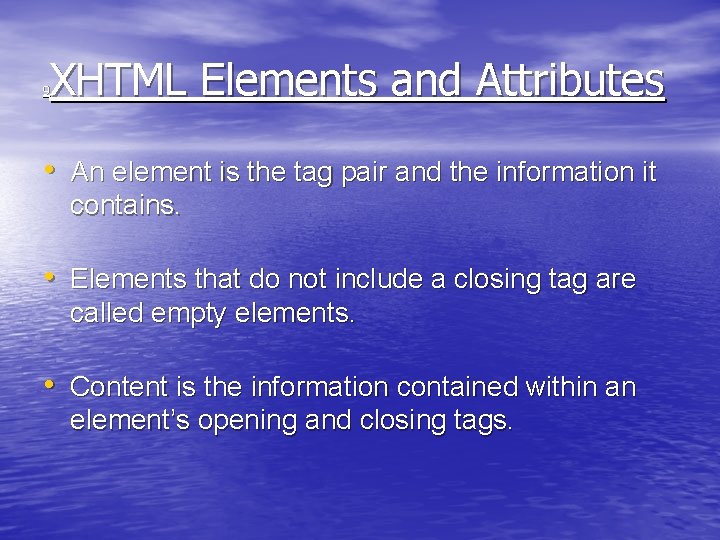

XHTML Elements and Attributes 9 • An element is the tag pair and the information it contains. • Elements that do not include a closing tag are called empty elements. • Content is the information contained within an element’s opening and closing tags.

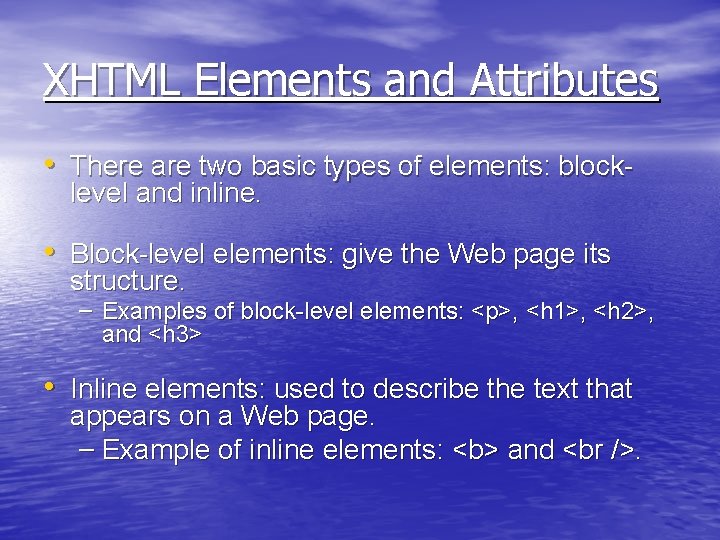

XHTML Elements and Attributes • There are two basic types of elements: blocklevel and inline. • Block-level elements: give the Web page its structure. – Examples of block-level elements: , <h 1>, <h 2>, and <h 3> • Inline elements: used to describe the text that appears on a Web page. – Example of inline elements: and .

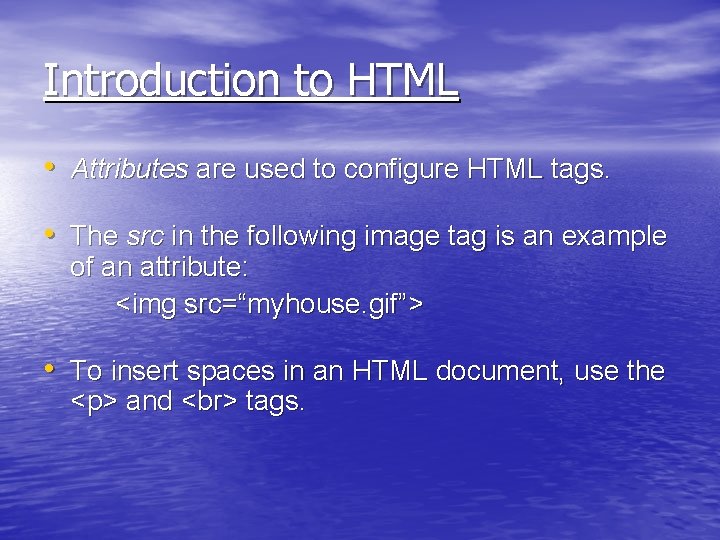

Introduction to HTML • Attributes are used to configure HTML tags. • The src in the following image tag is an example of an attribute: <img src=“myhouse. gif”> • To insert spaces in an HTML document, use the and tags.

XHTML Elements and Attributes 11 • Standard attributes are attributes that are available to almost every element. – Examples of standard attributes: class, dir, xml: lang, and style. • lang and xml: lang designate the language of the elements. • dir is used with lang. Its values are “ltr” (left to right) and “rtl” (right to left). • title provides descriptive text for an element.

Basic Body Elements 13 – Headings <h 1> through <h 6> – Paragraphs and line breaks – Horizontal rule <hr /> Headings: • They are block-level elements that are used for emphasizing a document’s headings and subheadings.

Linking Web Pages 20 • Hypertext links are text or graphics that the user can click to open files or to navigate to other documents on the Web. • Anchor is a text or image used to represent a link on a Web page. • The <a> element is used to create basic hypertext links: <a href=“AWeb. Page. html”> A Web Page </a>

Linking Web Pages 24 • The <a> element can be used to create a link to an external document or to a bookmark inside the current document. • Any element that includes an id attribute can be the target of a link. <h 3 id=“cpp”> C++, the language</h 3>

Linking Web Pages 27 • To create a link to a bookmark, an id value should be assigned to an href attribute. <a href=“#cpp”>Read about C++</a>

• Next Day

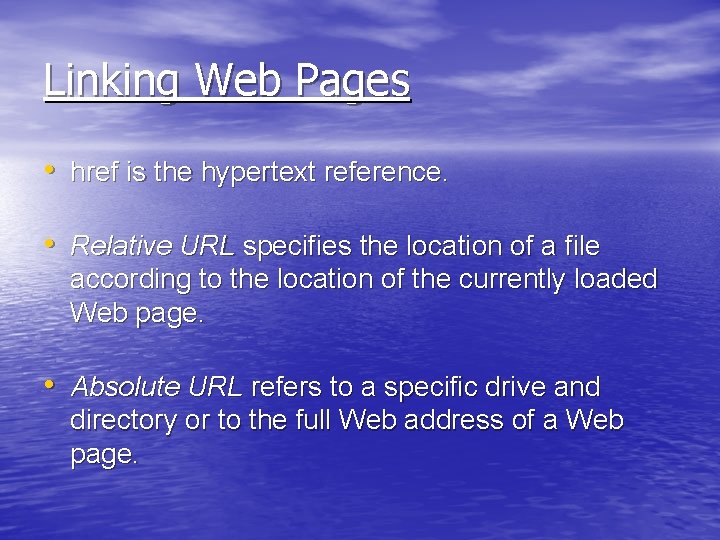

Linking Web Pages • href is the hypertext reference. • Relative URL specifies the location of a file according to the location of the currently loaded Web page. • Absolute URL refers to a specific drive and directory or to the full Web address of a Web page.

Creating Lists • Three types of lists can be added to a Web page: – – – Unordered lists Ordered lists Definition lists

Creating Lists List elements and their description: <ul> Block-level element that creates an unordered list <ol> Block-level element that creates an ordered list <li> Inline element that defines a list item <dl> Block-level element that creates a definition list <dt> Inline element that defines a definition list term <dd> Inline element that defines a definition list item

Creating Lists • An unordered list is a list of bulleted items. • The <li> elements are nested within the <ul> elements as follows: <ul> <li> list item 1 </li> <li> list item 2 </li> </ul>

Creating Lists • An ordered list is a list of numbered items. • <li> elements are nested within the <ol> elements: <ol> <li> Bill Clinton </li> <li> George Bush </li> </ol>

Creating Lists • A definition list is a list of terms and their definitions. • Definition lists are created using the <dl> element. Within the <dl> element, <dt> elements are nested for term names and <dd> elements for term definitions.

Creating Lists <dl> <dt>Ohm</dt> <dd>Measurement unit for electrical resistance or impedance. </dd> </dl>

Validating Web Pages 30 • A validating parser is a program that checks whether an XHTML document is well formed and whether the document conforms to a specific DTD. • A validator is available on: http: //validator. w 3. org • English and many Western languages use the ISO-8859 -1 character set.
