Elbow Injuries OBJECTIVES Describe the basic anatomy of

Elbow Injuries

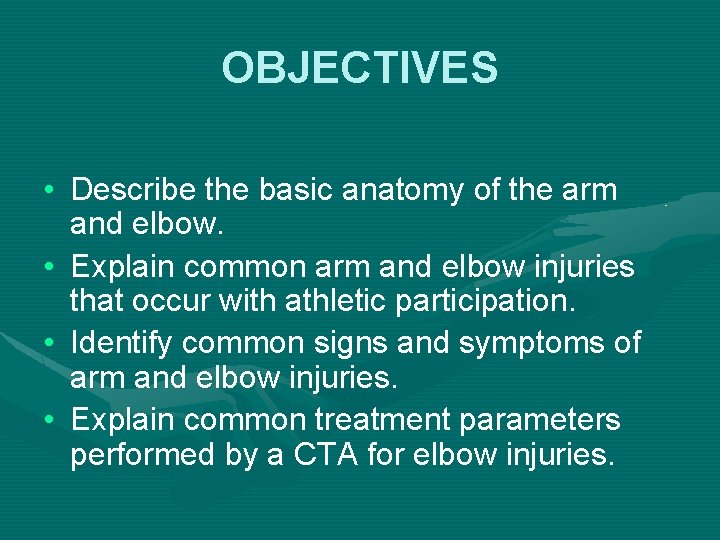

OBJECTIVES • Describe the basic anatomy of the arm and elbow. • Explain common arm and elbow injuries that occur with athletic participation. • Identify common signs and symptoms of arm and elbow injuries. • Explain common treatment parameters performed by a CTA for elbow injuries.

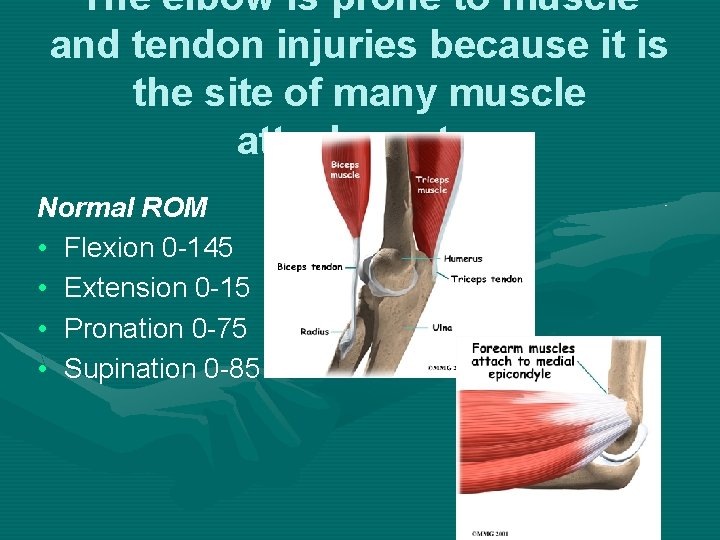

The elbow is prone to muscle and tendon injuries because it is the site of many muscle attachments. Normal ROM • Flexion 0 -145 • Extension 0 -15 • Pronation 0 -75 • Supination 0 -85

Anatomy • Hinge Joint- Moves in flexion and extension • 3 Bones – Humerus, radius and ulna • Radius allows the forearm to pronate and supinate

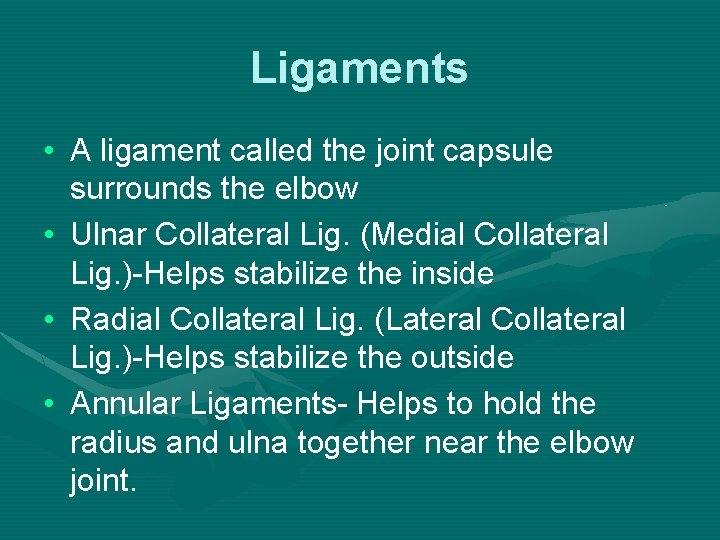

Ligaments • A ligament called the joint capsule surrounds the elbow • Ulnar Collateral Lig. (Medial Collateral Lig. )-Helps stabilize the inside • Radial Collateral Lig. (Lateral Collateral Lig. )-Helps stabilize the outside • Annular Ligaments- Helps to hold the radius and ulna together near the elbow joint.

Ligaments of the Elbow

Anatomy Cont. Muscles • Triceps perform elbow extension • Biceps perform elbow flexion • Wrist flexors attach to the medial epicondyle of the humerus and run toward the hand perform flexion of the wrist • Wrist extensors attach the later epicondyle of the humerus and run toward the hand perform extension of the wrist.

Muscles of the Elbow

Review Think-Pair-Share

Types of Elbow Injuries • • Many of the injuries that happen to the elbow are due to overuse. Stretching and strengthening-Don’t forget about the wrist flexors and extensors Proper technique Proper equipment Alter activity and rest after long days of throwing. Rules protect pitchers in baseball.

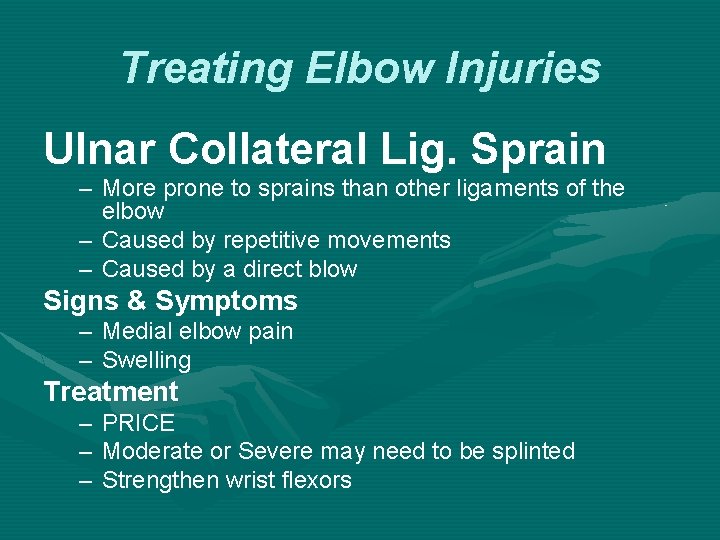

Treating Elbow Injuries Ulnar Collateral Lig. Sprain – More prone to sprains than other ligaments of the elbow – Caused by repetitive movements – Caused by a direct blow Signs & Symptoms – Medial elbow pain – Swelling Treatment – – – PRICE Moderate or Severe may need to be splinted Strengthen wrist flexors

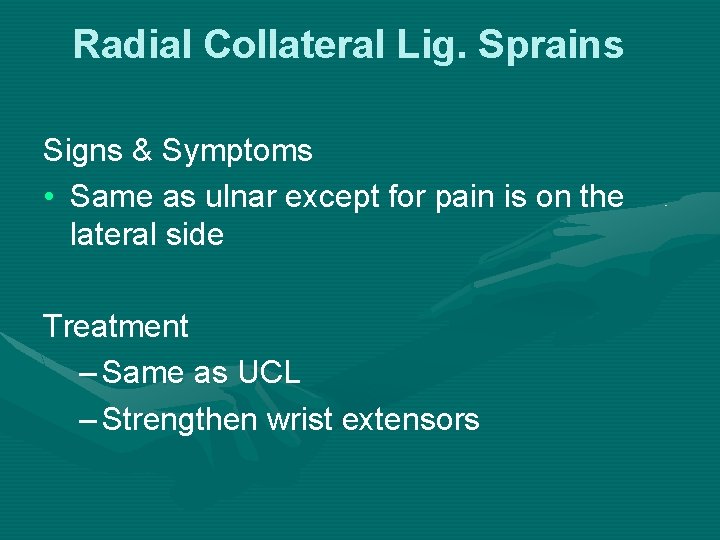

Radial Collateral Lig. Sprains Signs & Symptoms • Same as ulnar except for pain is on the lateral side Treatment – Same as UCL – Strengthen wrist extensors

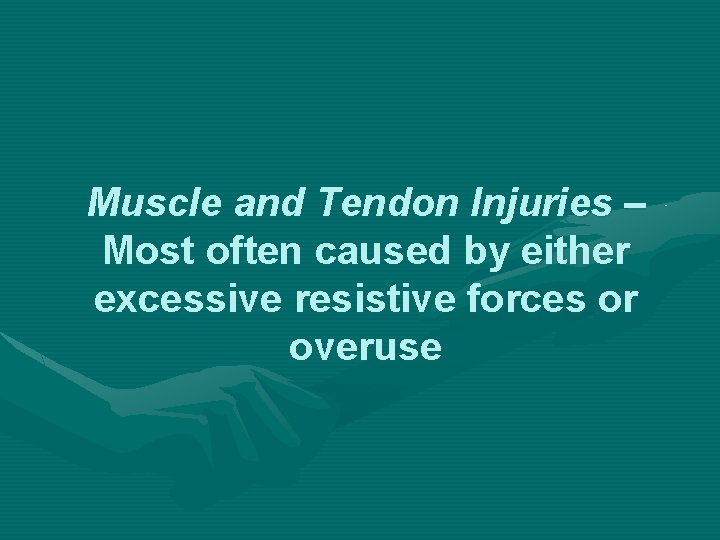

Muscle and Tendon Injuries – Most often caused by either excessive resistive forces or overuse

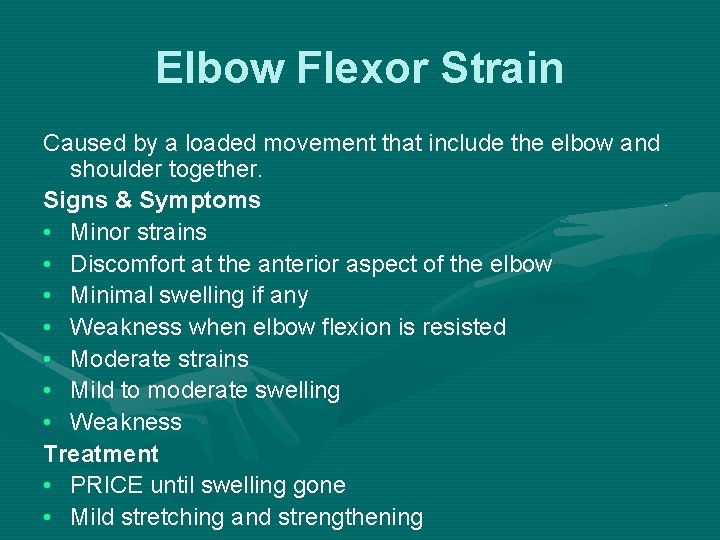

Elbow Flexor Strain Caused by a loaded movement that include the elbow and shoulder together. Signs & Symptoms • Minor strains • Discomfort at the anterior aspect of the elbow • Minimal swelling if any • Weakness when elbow flexion is resisted • Moderate strains • Mild to moderate swelling • Weakness Treatment • PRICE until swelling gone • Mild stretching and strengthening

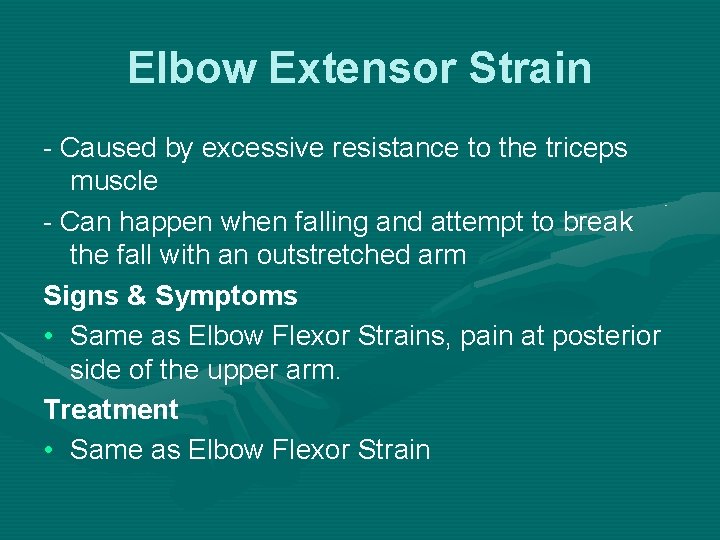

Elbow Extensor Strain - Caused by excessive resistance to the triceps muscle - Can happen when falling and attempt to break the fall with an outstretched arm Signs & Symptoms • Same as Elbow Flexor Strains, pain at posterior side of the upper arm. Treatment • Same as Elbow Flexor Strain

Wrist Flexor Strain • Caused by excessive resistance during wrist flexion movement or more commonly from overuse Signs & Symptoms • Pain over the medial epicondyle of the humerus or the front of the forearm Treatment • PRICE • Activity modified • Mild stretching and strengthening

Wrist Extensor Strains • Caused by excessive resistance during wrist extension movements or more commonly from overuse Signs & Symptoms • Pain over the lateral epicondyle of the humerus Treatment • PRICE • Activity Modified • Mild stretching and strengthening

Review!

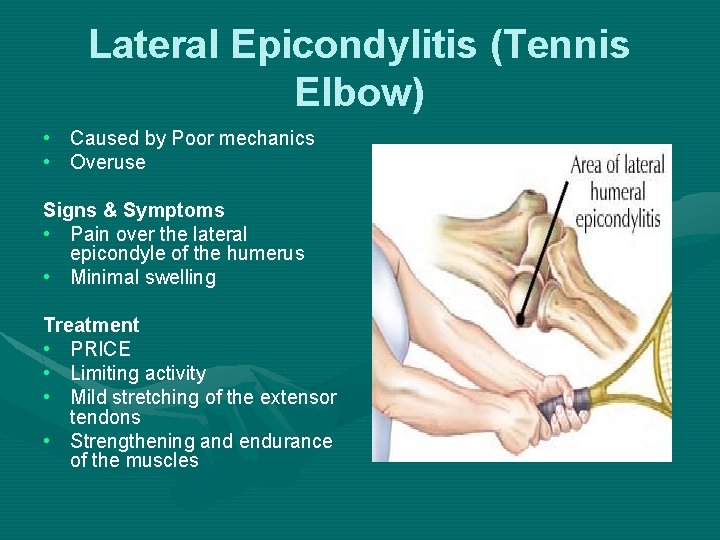

Lateral Epicondylitis (Tennis Elbow) • Caused by Poor mechanics • Overuse Signs & Symptoms • Pain over the lateral epicondyle of the humerus • Minimal swelling Treatment • PRICE • Limiting activity • Mild stretching of the extensor tendons • Strengthening and endurance of the muscles

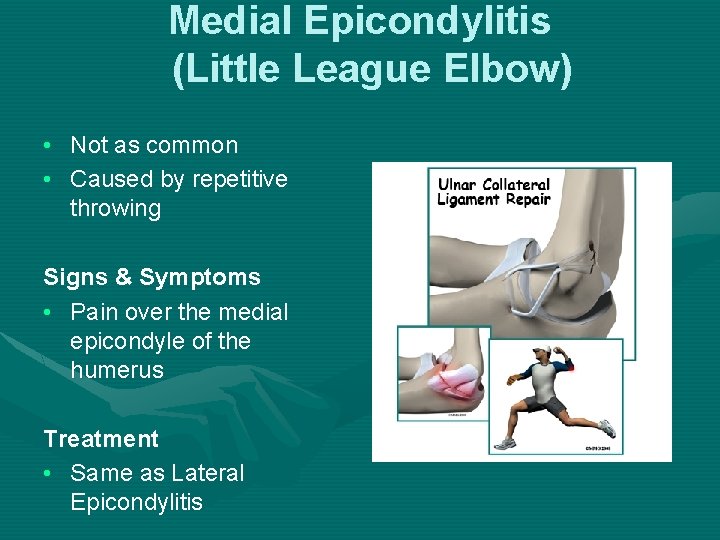

Medial Epicondylitis (Little League Elbow) • Not as common • Caused by repetitive throwing Signs & Symptoms • Pain over the medial epicondyle of the humerus Treatment • Same as Lateral Epicondylitis

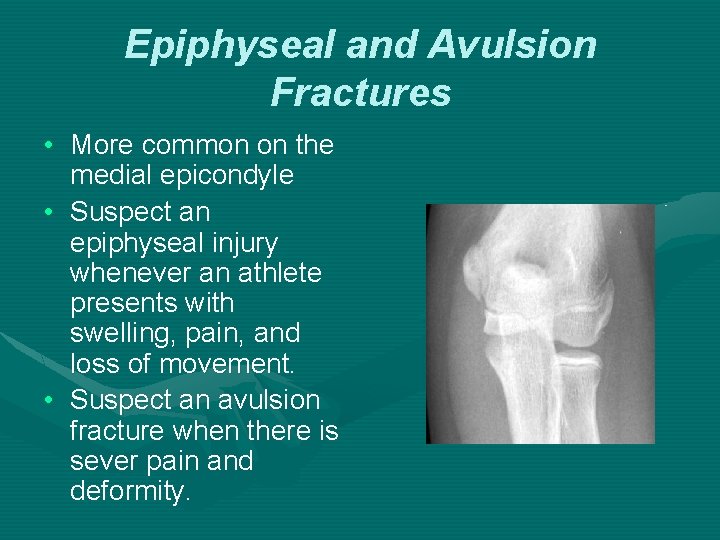

Epiphyseal and Avulsion Fractures • More common on the medial epicondyle • Suspect an epiphyseal injury whenever an athlete presents with swelling, pain, and loss of movement. • Suspect an avulsion fracture when there is sever pain and deformity.

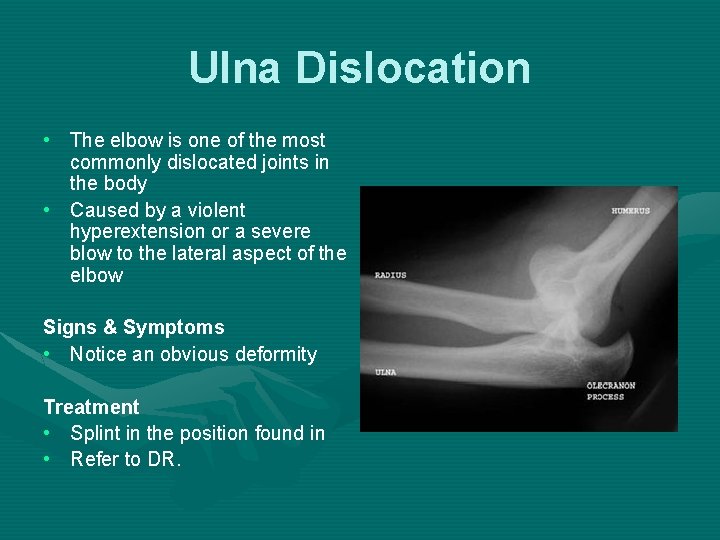

Ulna Dislocation • The elbow is one of the most commonly dislocated joints in the body • Caused by a violent hyperextension or a severe blow to the lateral aspect of the elbow Signs & Symptoms • Notice an obvious deformity Treatment • Splint in the position found in • Refer to DR.

Review!
