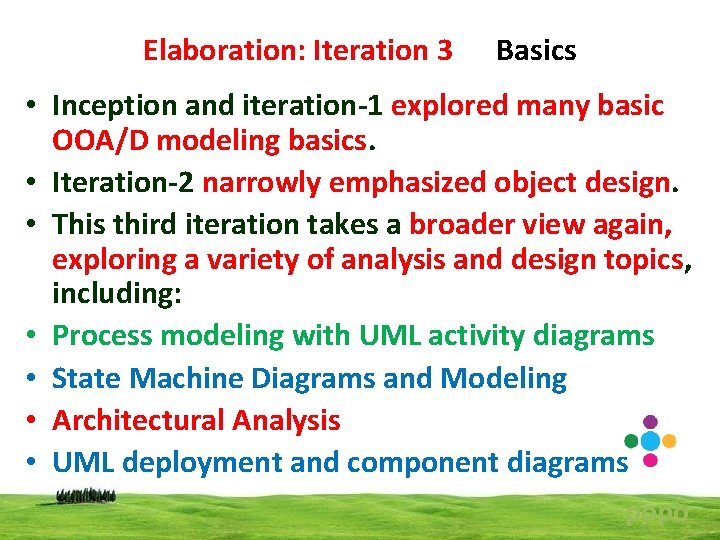

Elaboration: Iteration 3 Basics • Inception and iteration-1 explored many basic OOA/D modeling basics. • Iteration-2 narrowly emphasized object design. • This third iteration takes a broader view again, exploring a variety of analysis and design topics, including: • Process modeling with UML activity diagrams • State Machine Diagrams and Modeling • Architectural Analysis • UML deployment and component diagrams popo

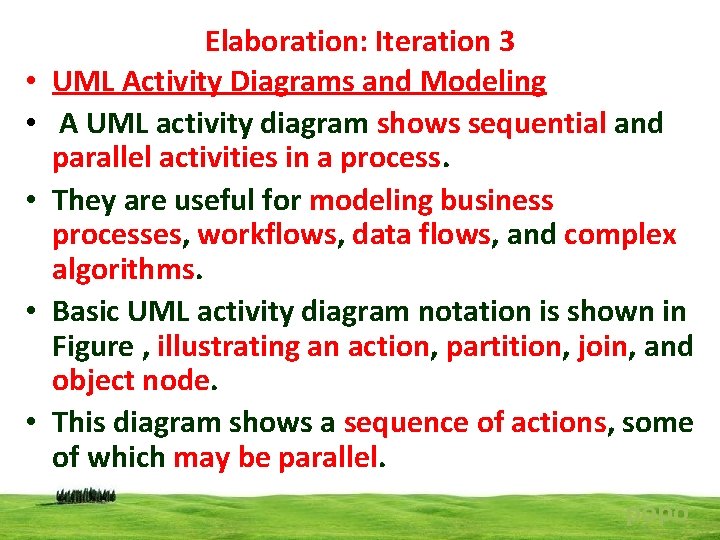

• • • Elaboration: Iteration 3 UML Activity Diagrams and Modeling A UML activity diagram shows sequential and parallel activities in a process. They are useful for modeling business processes, workflows, data flows, and complex algorithms. Basic UML activity diagram notation is shown in Figure , illustrating an action, partition, join, and object node. This diagram shows a sequence of actions, some of which may be parallel. popo
Elaboration: Iteration 3 • Activity Diagrams • popo
• • Elaboration: Iteration 3 UML Activity Diagrams and Modeling There are two points: Once an action is finished, there is an automatic outgoing transition The diagram can show both control flow and data flow • popo

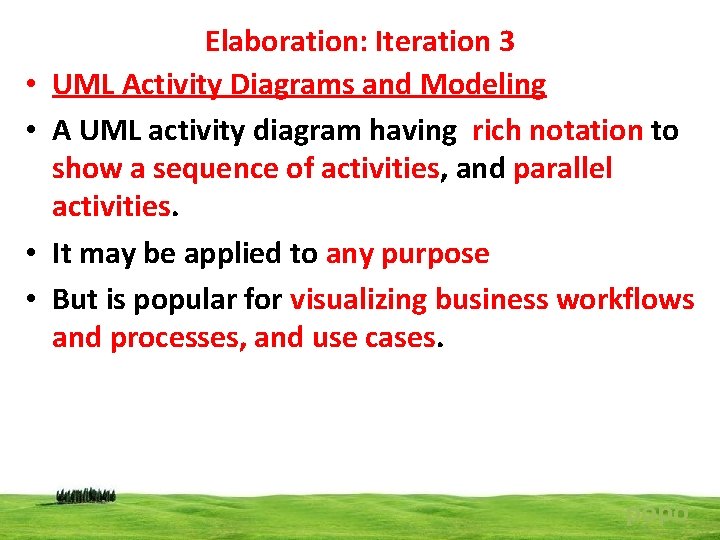

• • Elaboration: Iteration 3 UML Activity Diagrams and Modeling A UML activity diagram having rich notation to show a sequence of activities, and parallel activities. It may be applied to any purpose But is popular for visualizing business workflows and processes, and use cases. popo
• • • UML Activity Diagrams and Modeling Business Process Modeling The above Figure, example of applying UML activity diagrams to business process modeling. This is the model of a parcel shipping business. All this process can be captured in text (in use case text), in this activity diagrams is a great example of pictures being worth a thousand words. Activity diagrams used to understand the current complex business processes by visualizing them. popo

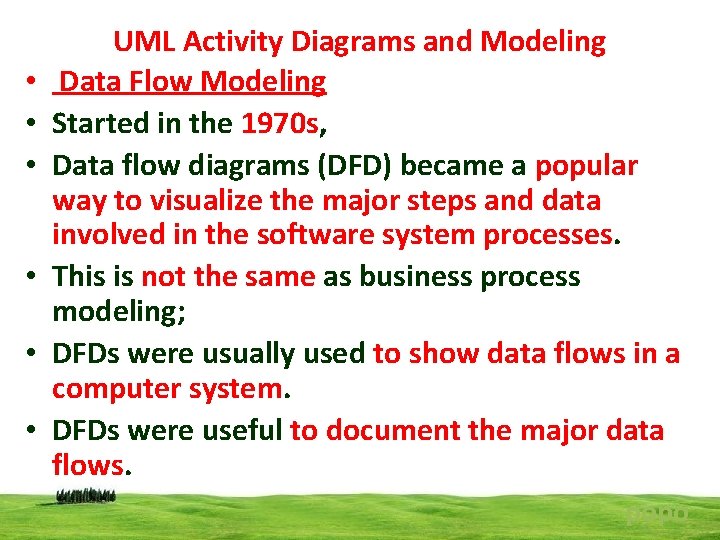

• • • UML Activity Diagrams and Modeling Data Flow Modeling Started in the 1970 s, Data flow diagrams (DFD) became a popular way to visualize the major steps and data involved in the software system processes. This is not the same as business process modeling; DFDs were usually used to show data flows in a computer system. DFDs were useful to document the major data flows. popo

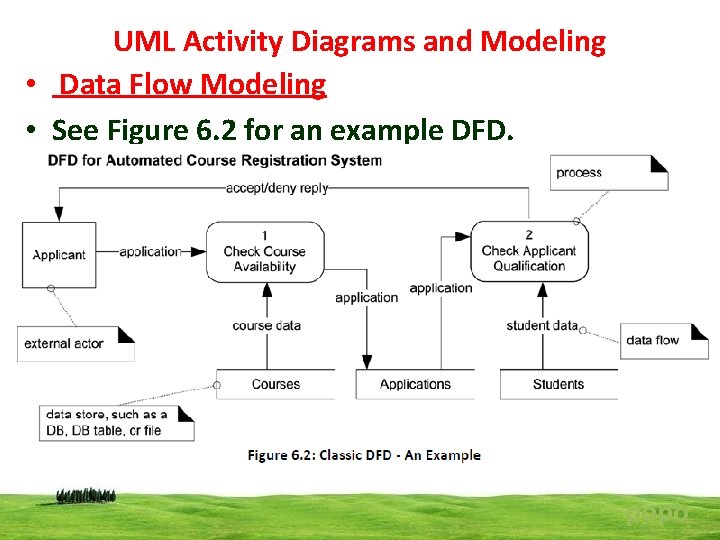

UML Activity Diagrams and Modeling • Data Flow Modeling • See Figure 6. 2 for an example DFD. popo

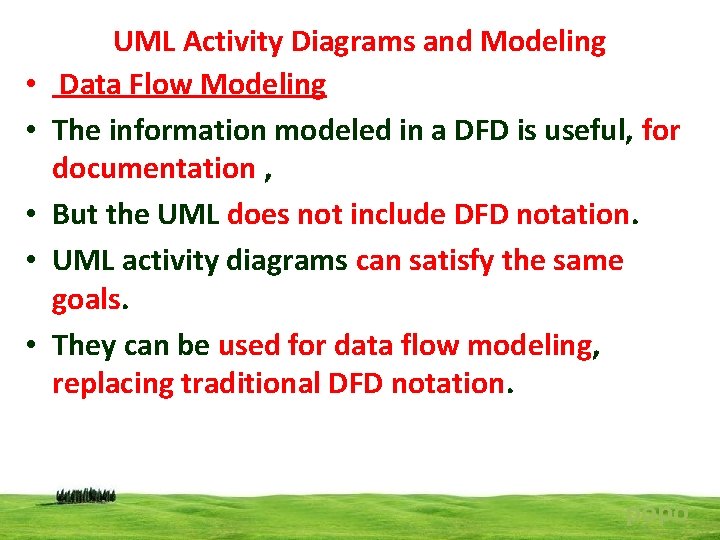

• • • UML Activity Diagrams and Modeling Data Flow Modeling The information modeled in a DFD is useful, for documentation , But the UML does not include DFD notation. UML activity diagrams can satisfy the same goals. They can be used for data flow modeling, replacing traditional DFD notation. popo

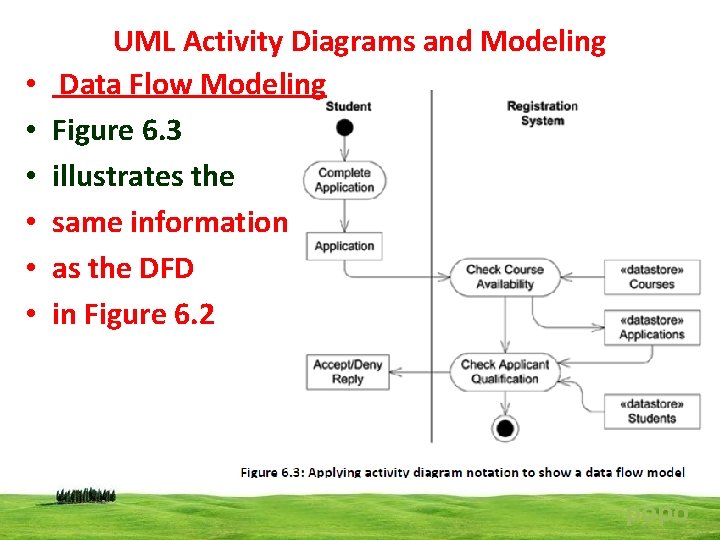

• • UML Activity Diagrams and Modeling Data Flow Modeling Figure 6. 3 illustrates the same information as the DFD in Figure 6. 2, But using a UML activity diagram. Notice that in addition to object nodes being useful to show data flow, the UML datastore node is applicable. popo
• • • UML Activity Diagrams and Modeling Data Flow Modeling Figure 6. 3 illustrates the same information as the DFD in Figure 6. 2 popo
