Einsteins Theory of Relativity 8 Curvature of Space
- Slides: 33
Einstein‘s Theory of Relativity 8. Curvature of Space, Curvature Tensor, Ricci Tensor, Bianchi Identity Ulrich R. M. E. Geppert 2/25/2021 U. R. M. E. Zielona Gora 1

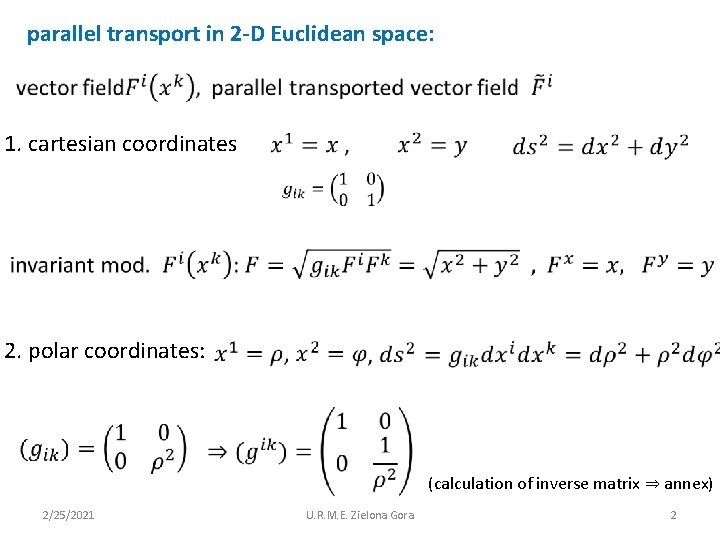

parallel transport in 2 -D Euclidean space: 1. cartesian coordinates 2. polar coordinates: (calculation of inverse matrix ⇒ annex) 2/25/2021 U. R. M. E. Zielona Gora 2

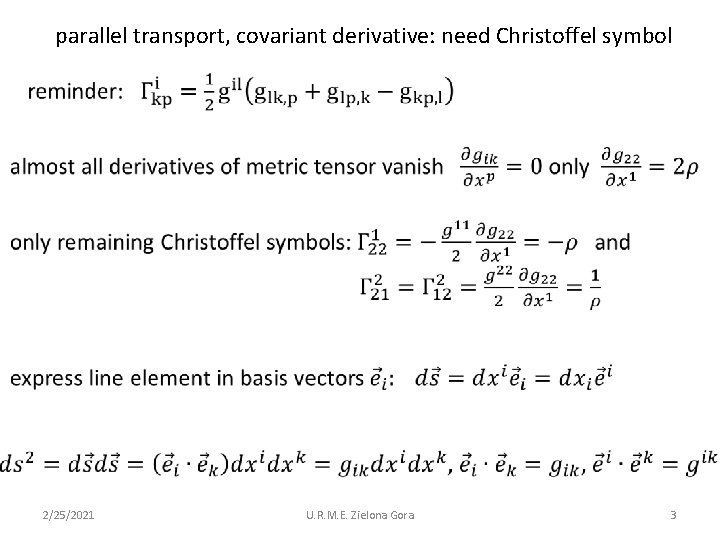

parallel transport, covariant derivative: need Christoffel symbol 2/25/2021 U. R. M. E. Zielona Gora 3

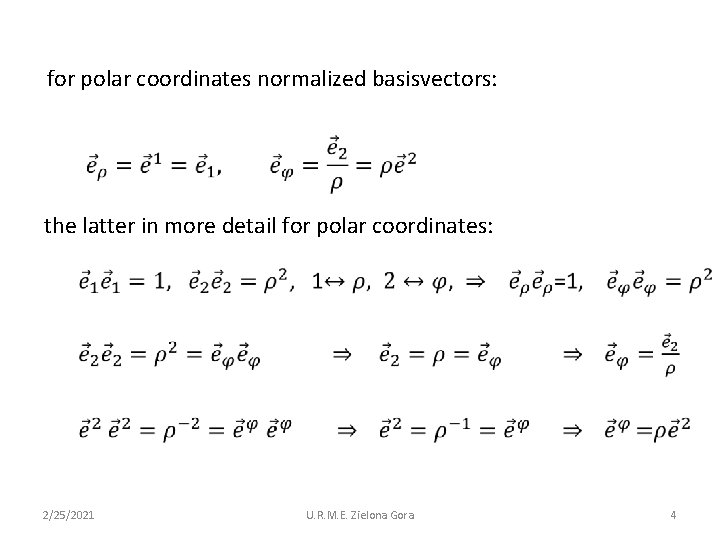

for polar coordinates normalized basisvectors: the latter in more detail for polar coordinates: 2/25/2021 U. R. M. E. Zielona Gora 4

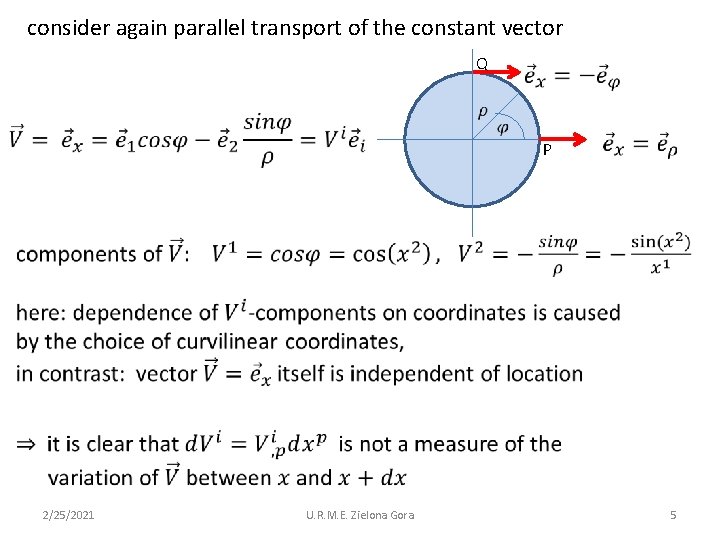

consider again parallel transport of the constant vector Q P 2/25/2021 U. R. M. E. Zielona Gora 5
2/25/2021 U. R. M. E. Zielona Gora 6

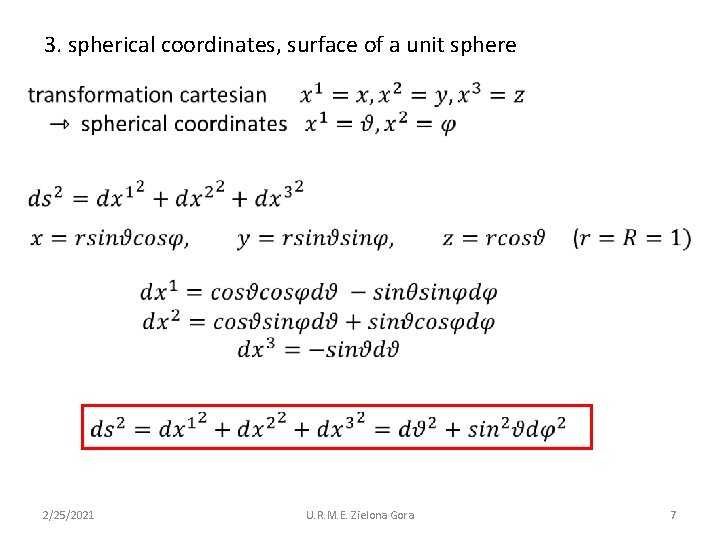

3. spherical coordinates, surface of a unit sphere 2/25/2021 U. R. M. E. Zielona Gora 7
coordinate singularity R Q P 2/25/2021 over Q to R back to P U. R. M. E. Zielona Gora 8
parallel transport of F from p to r either along C or along C‘ s p 2/25/2021 U. R. M. E. Zielona Gora r q 9

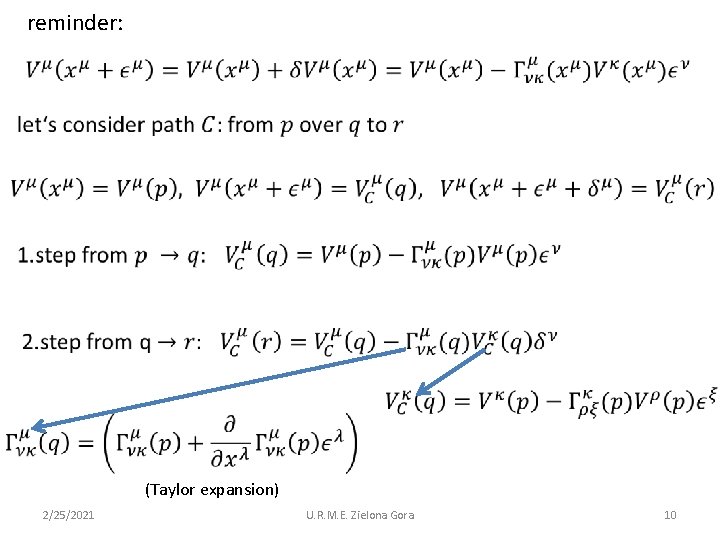

reminder: (Taylor expansion) 2/25/2021 U. R. M. E. Zielona Gora 10

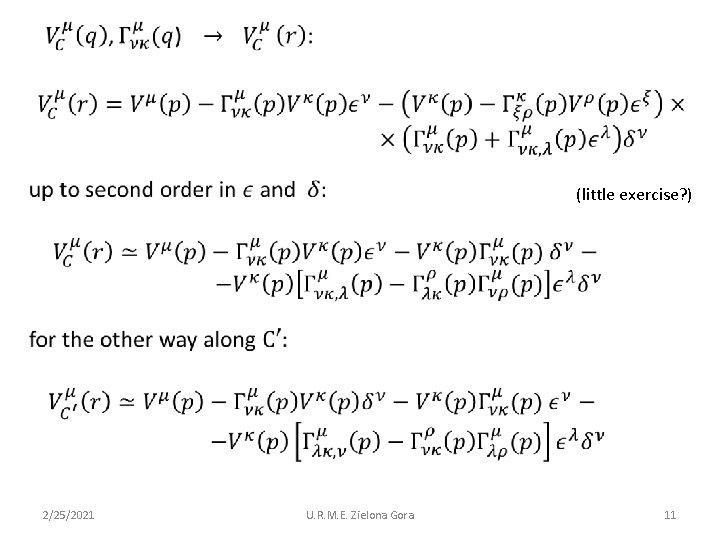

(little exercise? ) 2/25/2021 U. R. M. E. Zielona Gora 11

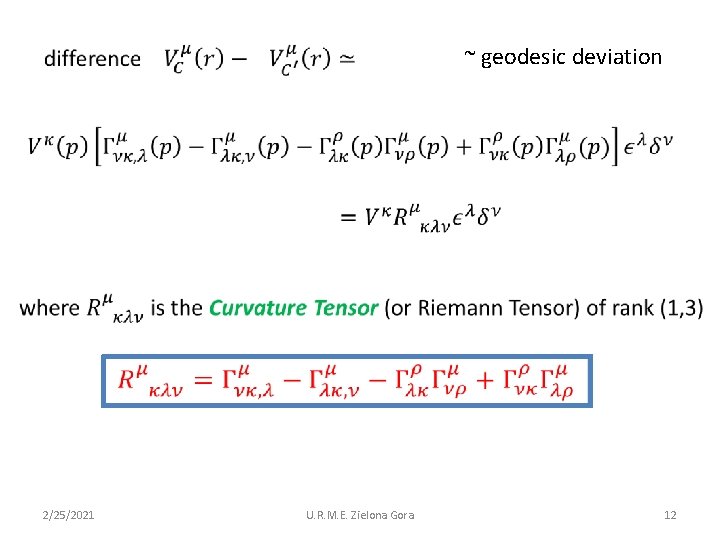

~ geodesic deviation 2/25/2021 U. R. M. E. Zielona Gora 12

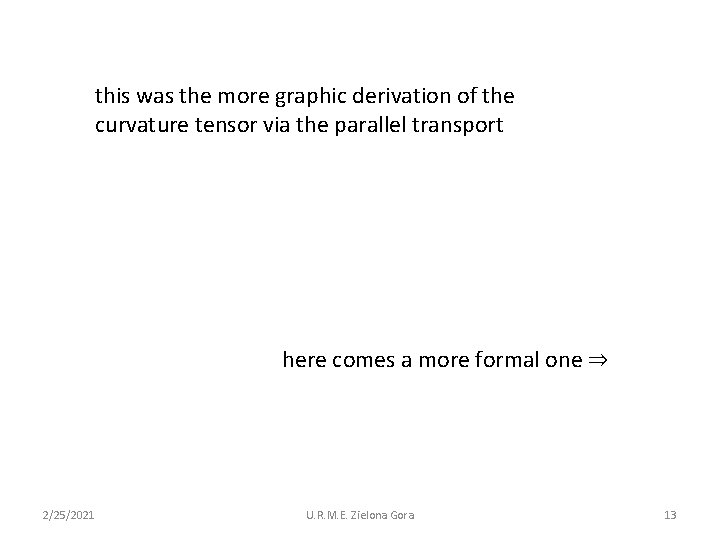

this was the more graphic derivation of the curvature tensor via the parallel transport here comes a more formal one ⇒ 2/25/2021 U. R. M. E. Zielona Gora 13
covariant derivatives of a vector are (i. g. ) not commutable: simply by counting and considering the indices: l. h. s. : tensor defines tensor too 2/25/2021 U. R. M. E. Zielona Gora vector 14

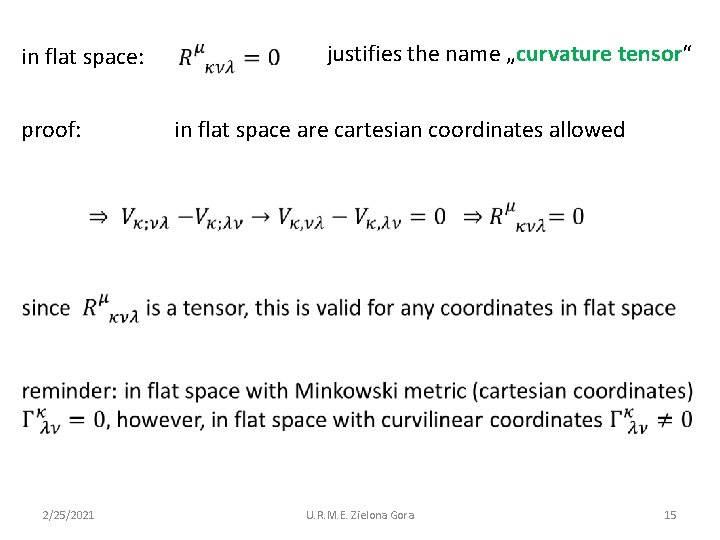

justifies the name „curvature tensor“ in flat space: proof: in flat space are cartesian coordinates allowed 2/25/2021 U. R. M. E. Zielona Gora 15

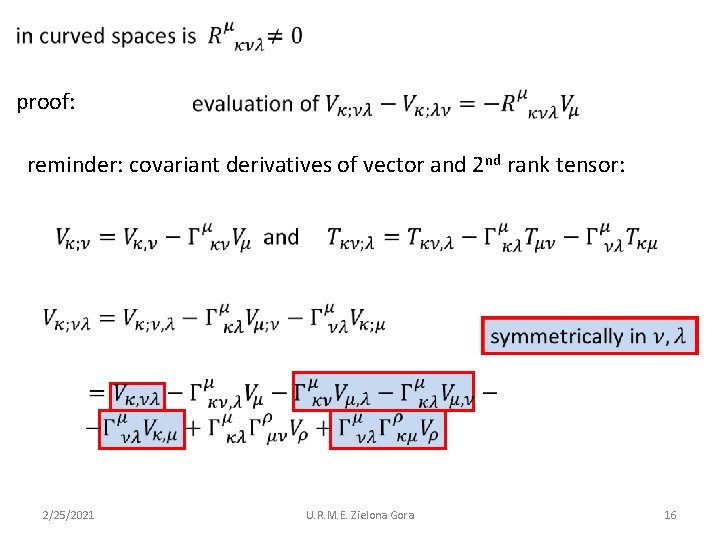

proof: reminder: covariant derivatives of vector and 2 nd rank tensor: 2/25/2021 U. R. M. E. Zielona Gora 16

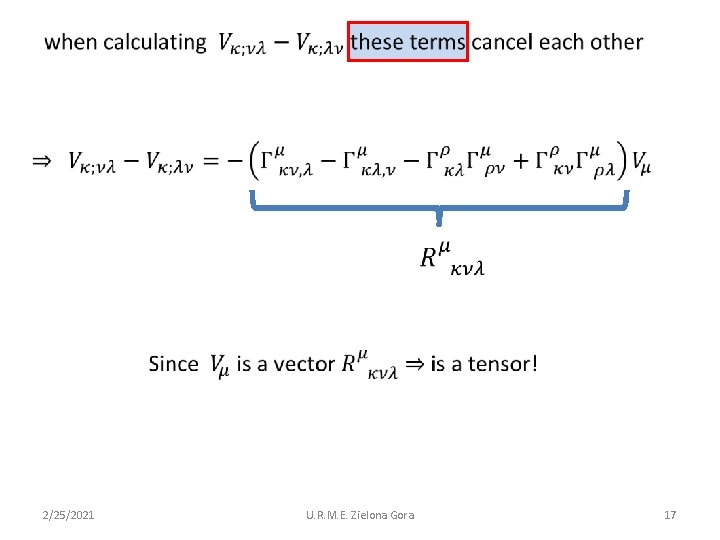

2/25/2021 U. R. M. E. Zielona Gora 17

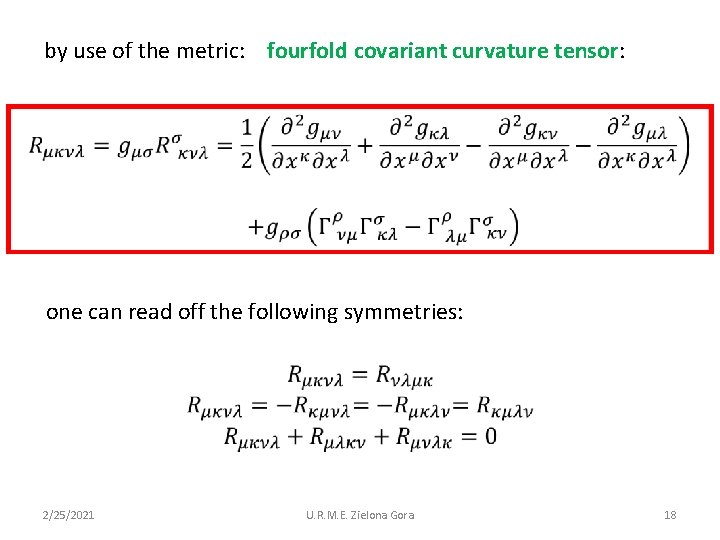

by use of the metric: fourfold covariant curvature tensor: one can read off the following symmetries: 2/25/2021 U. R. M. E. Zielona Gora 18

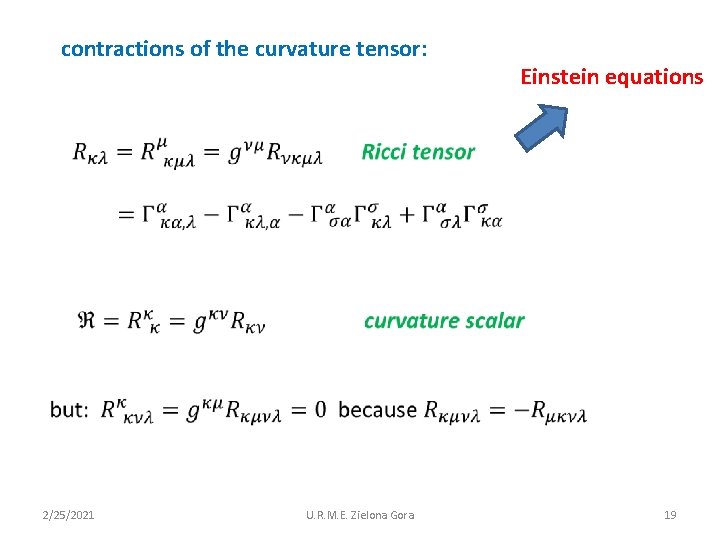

contractions of the curvature tensor: Einstein equations 2/25/2021 U. R. M. E. Zielona Gora 19

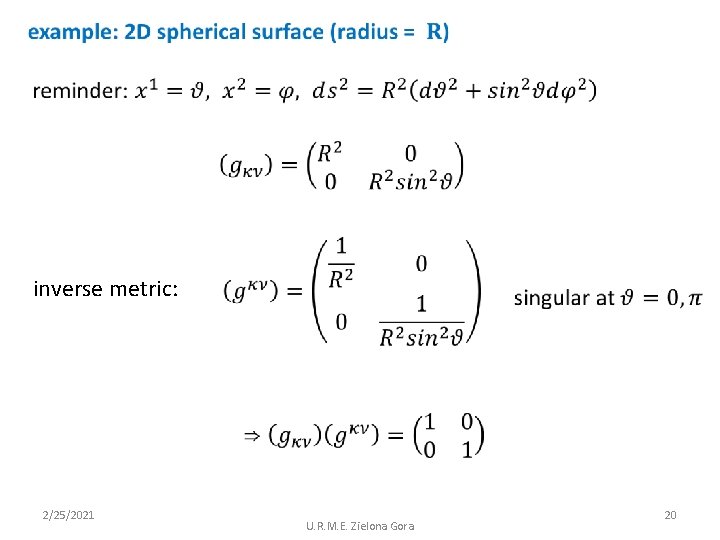

inverse metric: 2/25/2021 U. R. M. E. Zielona Gora 20

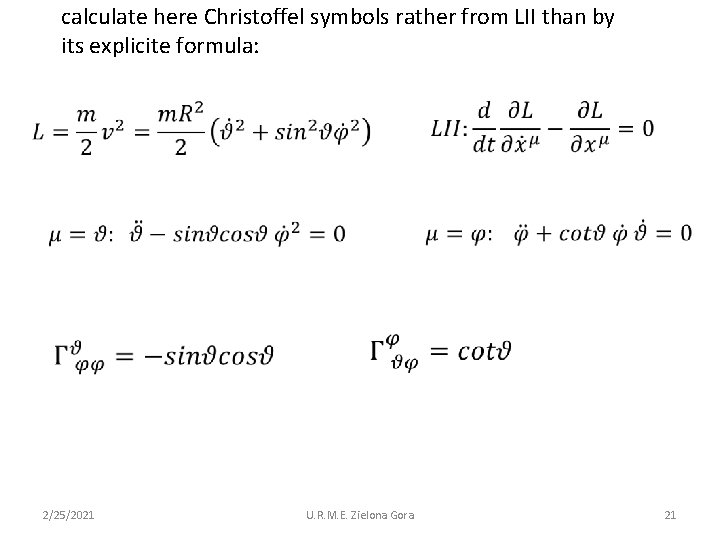

calculate here Christoffel symbols rather from LII than by its explicite formula: 2/25/2021 U. R. M. E. Zielona Gora 21

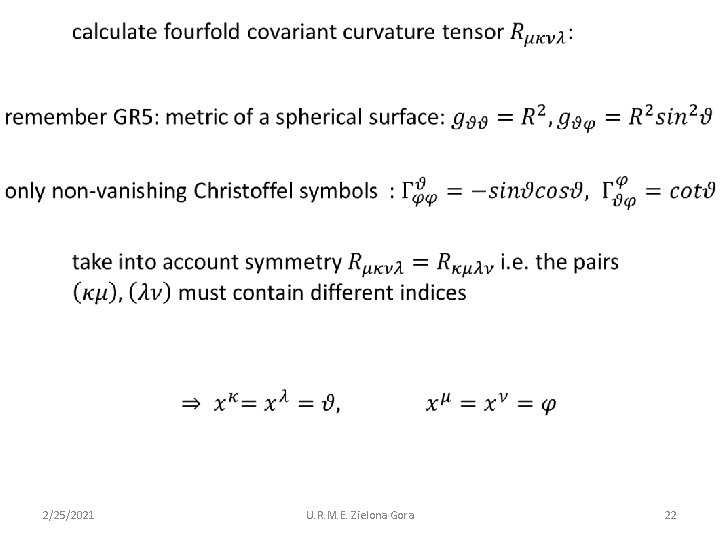

2/25/2021 U. R. M. E. Zielona Gora 22

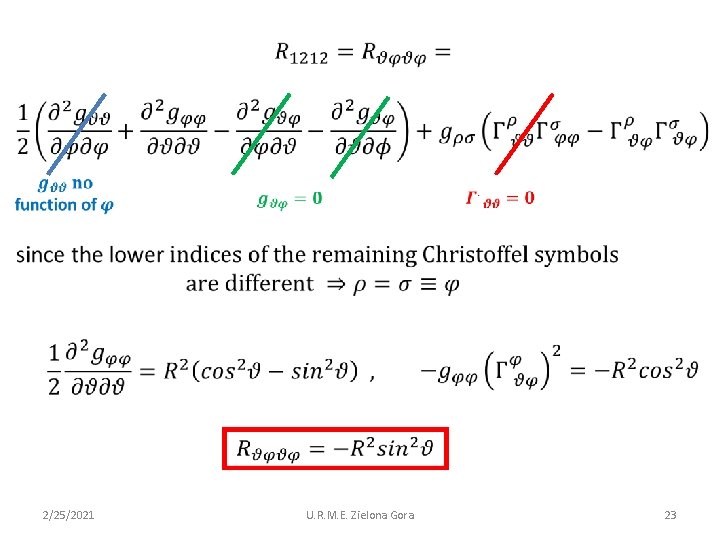

2/25/2021 U. R. M. E. Zielona Gora 23

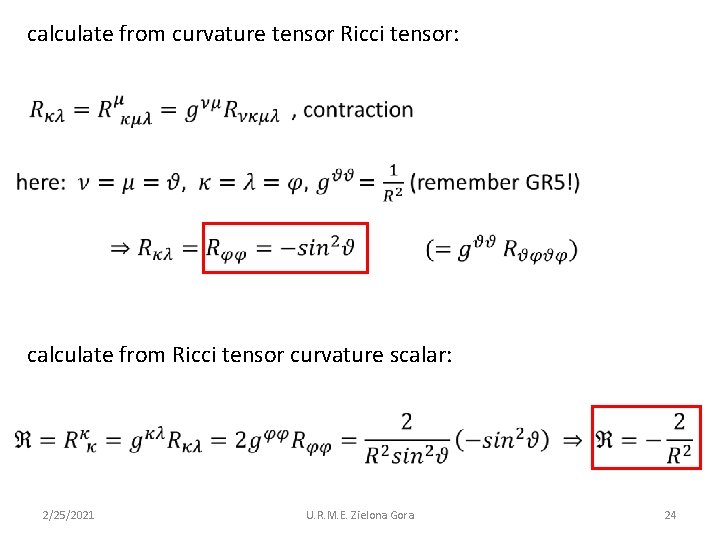

calculate from curvature tensor Ricci tensor: calculate from Ricci tensor curvature scalar: 2/25/2021 U. R. M. E. Zielona Gora 24

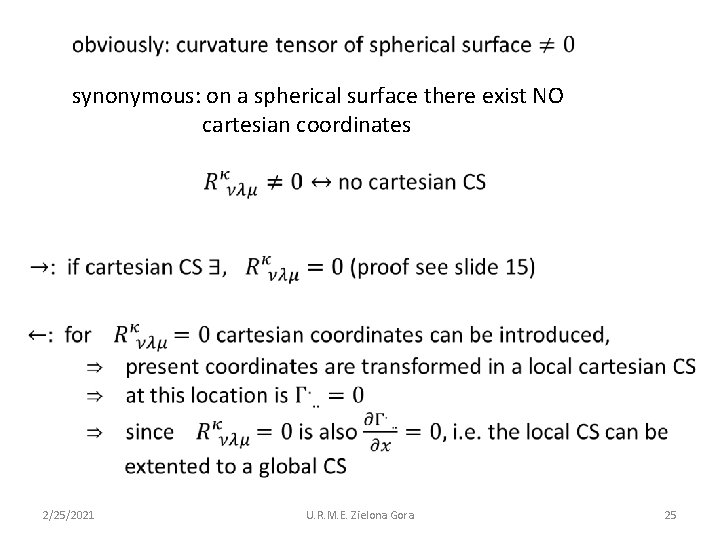

synonymous: on a spherical surface there exist NO cartesian coordinates 2/25/2021 U. R. M. E. Zielona Gora 25

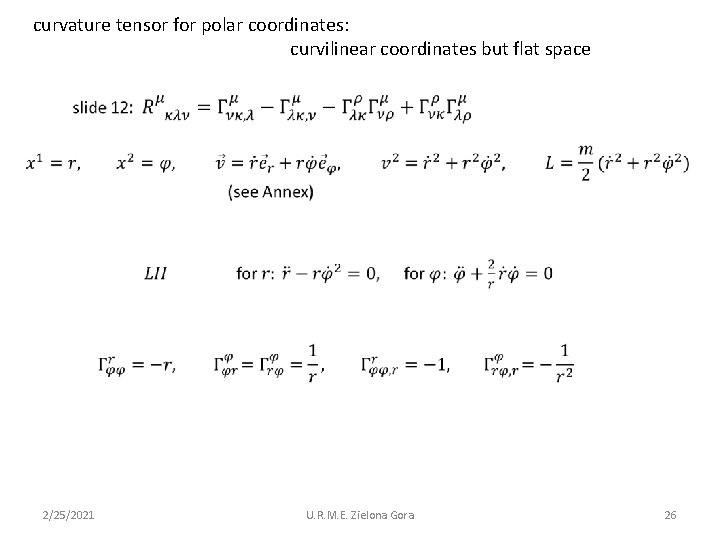

curvature tensor for polar coordinates: curvilinear coordinates but flat space 2/25/2021 U. R. M. E. Zielona Gora 26

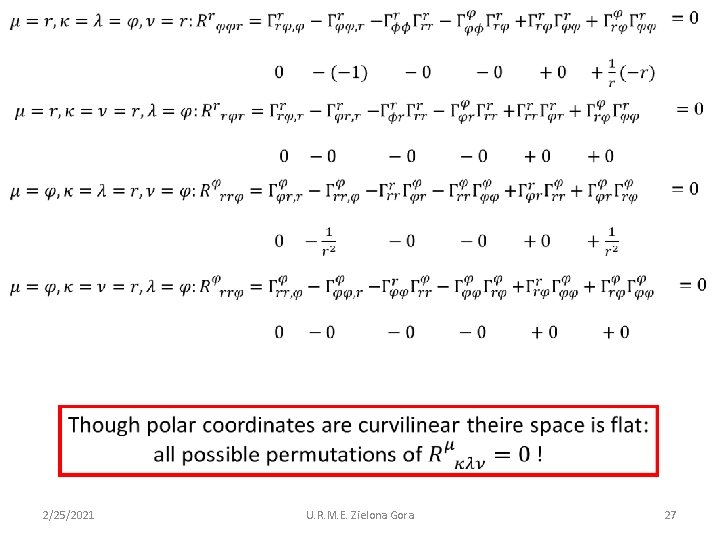

2/25/2021 U. R. M. E. Zielona Gora 27

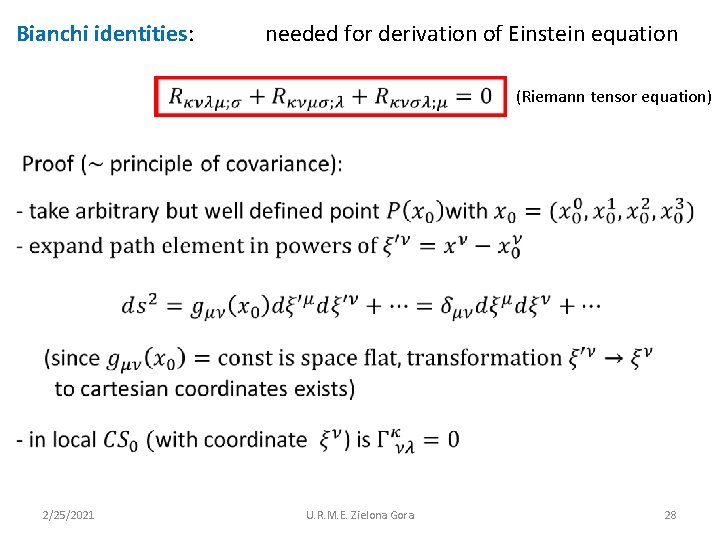

Bianchi identities: needed for derivation of Einstein equation (Riemann tensor equation) 2/25/2021 U. R. M. E. Zielona Gora 28

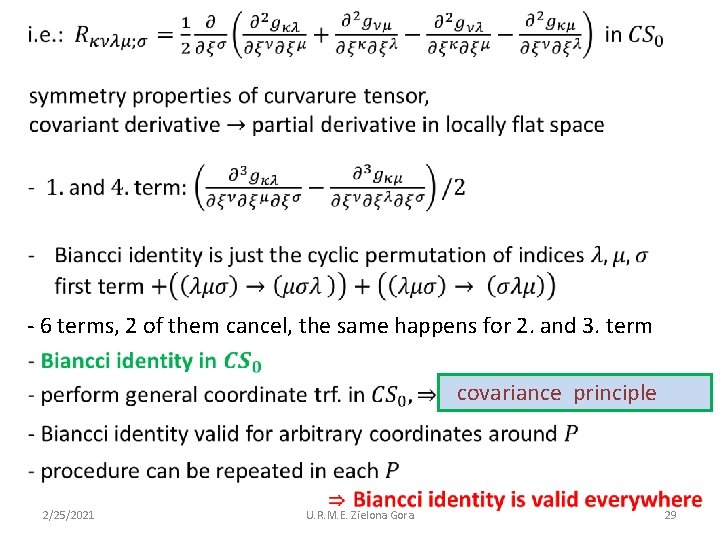

- 6 terms, 2 of them cancel, the same happens for 2. and 3. term covariance principle 2/25/2021 U. R. M. E. Zielona Gora 29

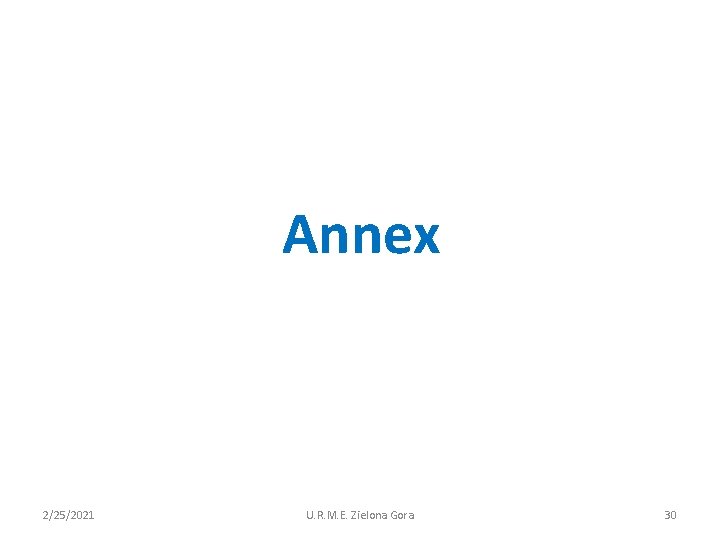

Annex 2/25/2021 U. R. M. E. Zielona Gora 30

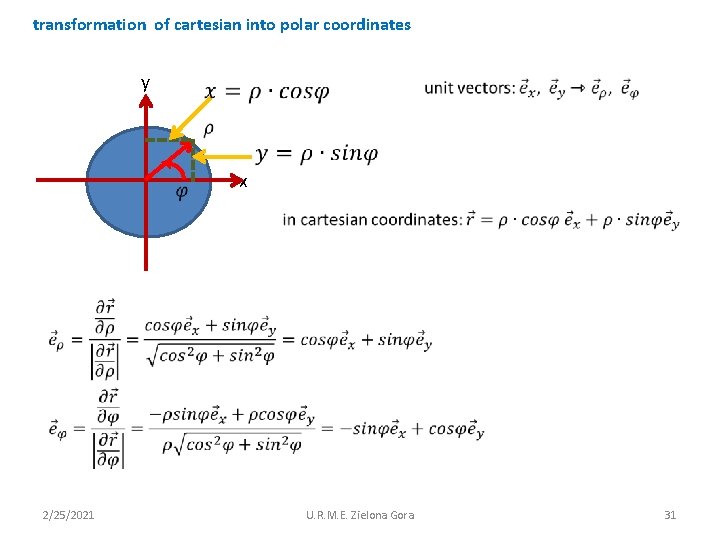

transformation of cartesian into polar coordinates y x 2/25/2021 U. R. M. E. Zielona Gora 31

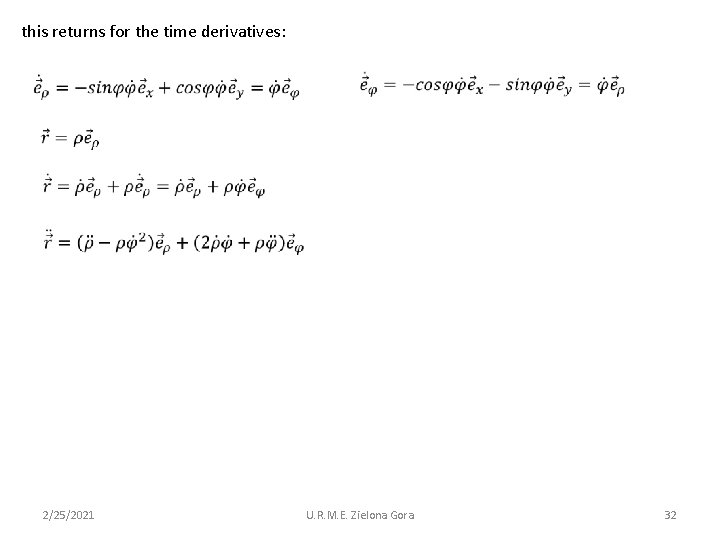

this returns for the time derivatives: 2/25/2021 U. R. M. E. Zielona Gora 32

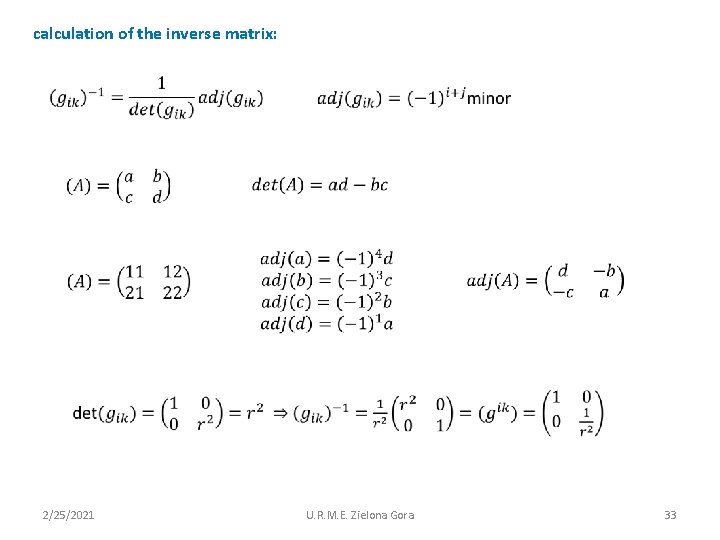

calculation of the inverse matrix: 2/25/2021 U. R. M. E. Zielona Gora 33
