Eight Gas Analysis for Complete Furnace Atmosphere Control
- Slides: 22
Eight Gas Analysis for Complete Furnace Atmosphere Control October 9, 2002 Ronald R. Rich, President Atmosphere Recovery, Inc. 15800 32 nd Avenue North, Suite 110 Plymouth, MN 55447 Ph: (763) 557 -8675 Fax: (763) 557 -8668 Web: www. atmrcv. com E-mail: rrr@atmrcv. com 1
Presentation Outline ® Atmosphere Control Issues ® Laser Gas Analyzer Technology ® Standard Process Applications ® Endothermic Carburizing ® Annealing/Brazing ® New Process Example ® Rapid Carburizing ® Economic Benefits of Eight Gas Control ® Questions 2
Heat Furnace Atmospheres – Similar Constituents & Control Needs ® Carburizing, Carbonitriding, FNC & Nitriding ® N 2, CO, H 2, CO 2, H 2 O, CH 4, O 2, NH 3, CH 3 OH ® Atmosphere Tempering and Annealing ® N 2, H 2, CO 2, H 2 O, CH 4, O 2, NH 3, Ar ® Steel, Copper and Aluminum Brazing ® N 2, H 2, CO 2, H 2 O, CH 4, O 2, NH 3, Ar ® Powdered Metal Sintering and Annealing ® H 2, N 2, CO 2, H 2 O, CH 4, O 2, NH 3, H 2 S 3

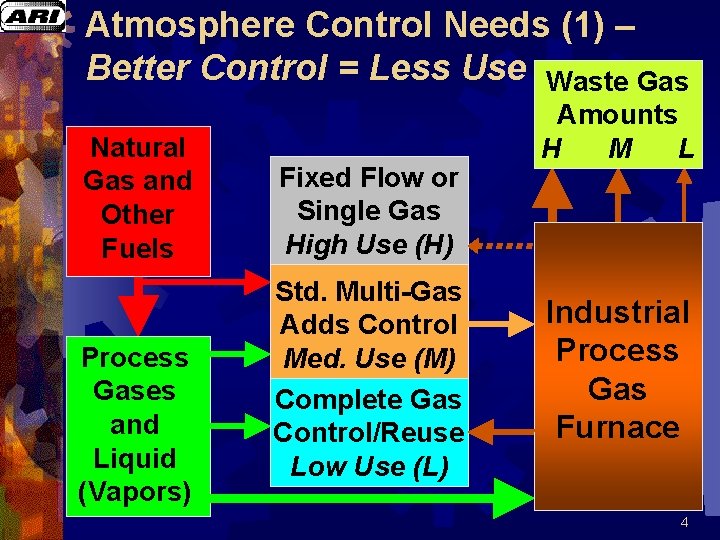

Atmosphere Control Needs (1) – Better Control = Less Use Waste Gas Natural Gas and Other Fuels Process Gases and Liquid (Vapors) Fixed Flow or Single Gas High Use (H) Std. Multi-Gas Adds Control Med. Use (M) Complete Gas Control/Reuse Low Use (L) Amounts H M L Industrial Process Gas Furnace 4
Atmosphere Control Needs (2) – Part/Product Quality ® Improved Real Time “Potential” Control ® Carbon (Carburizing & Neutral Hardening) ® Nitrogen (Nitriding) ® Oxidation/Reduction (All Gas Processes) ® Impurity Diffusion (Most Gas Processes) ® Surface Factors ® Retained Austenite ® Intergranular Oxidation ® Hardness ® Scaling/Coating for Process Function ® Atmosphere Constituent Uniformity 5
Atmosphere Control Needs (3) – Operation & Maintenance ® Equipment Deterioration Compensation ® Process Gas/Liquid Supply Variation ® Burner Tubes ® Soot Buildup ® Door and Seam Leaks ® Control System Performance ® Reduction of Downtime ® Scheduled and Periodic ® Unscheduled 6
Atmosphere Control Needs (4) – Other Significant Issues ® Energy Costs ® Destructive Analysis Requirements ® Parts Re-Work ® Process Documentation ® Furnace Safety ® Increase Furnace Throughput 7
ARI Products Measure, Control & Recycle Process Gases Natural Gas and Other Process Fuels Laser Gas Analyzer Furnace Process Gas Controller Process Gas Supply Process Gas Recycling Gas Mixtures 8
Core of ARI Control – Unique Process Gas Detector Gas to be Analyzed In Special Particle Filter 8 Optical Filters/Sensors (1 for Each Gas Measured) Detector Assembly Plasma Cell Mirror Polarizer Gas Sample Tube Laser Beam Prism & Mirror Gas Out 9
Laser Gas Analysis Principals ® Unique Signature for Each Chemical Bond Type (Molecular Scattering of Laser Light: “Raman Effect”) ® All Pertinent Gaseous Species Measurable (Principle of Measurement Requires a Chemical Bond) ® ® ® Simultaneous Measurement of 8 Different Species “Real Time” Detector Response (50 milliseconds) Linear Proportionality to Number of Gas Atoms 0 -100% Gas Concentrations with One Detector Accuracy Better Than NIST Calibration Gases Stable Zero and Single-Span Gas Calibration 10
Analyzer – Industrial Product Model 4 EN Furnace Gas Analyzer Outside View Inside View 11
Standard Furnace Constituents Monitored and Detection Limits Gas Species Hydrogen - H 2 Nitrogen - N 2 Oxygen - O 2 Water Vapor - H 2 O Carbon Monoxide - CO Carbon Dioxide - CO 2 Organics - Cx. Hy Ammonia - NH 3 Lower Limit 100 ppm 50 ppm 10 -50 ppm* 50 ppm 25 ppm 10 -50 ppm* *Customer Selectable – Selecting Lower Value Limits The Upper Range to 30%; Other Gas Species Substitutable as Options 12
Example Software Control Screens Main Control Screen Atmosphere Analysis Values 13
LGA Analysis Advantages ARI Approach Raman Gas Analyzer Other Approaches Features • Multi-Gas Detection (Eight) • Fast – Response in Seconds • All Key Gas Processes Controlled • Rugged and Reliable Limitations • Inefficient & Quality Control Issues Manual Flow Control • High Energy Use & Emissions • Inefficient & Quality Control Issues Single Gas Analyzers • Still High Energy Use & Emissions • Can’t Detect Key Gases Infrared Analyzers • Low Range & Frequent Calibration • Slow – Response in Minutes Gas Chromatographs • Carrier Gas & Frequent Calibration • Can’t Discriminate Key Gases Mass Spectrometers (Future) • Complex & Expensive 14

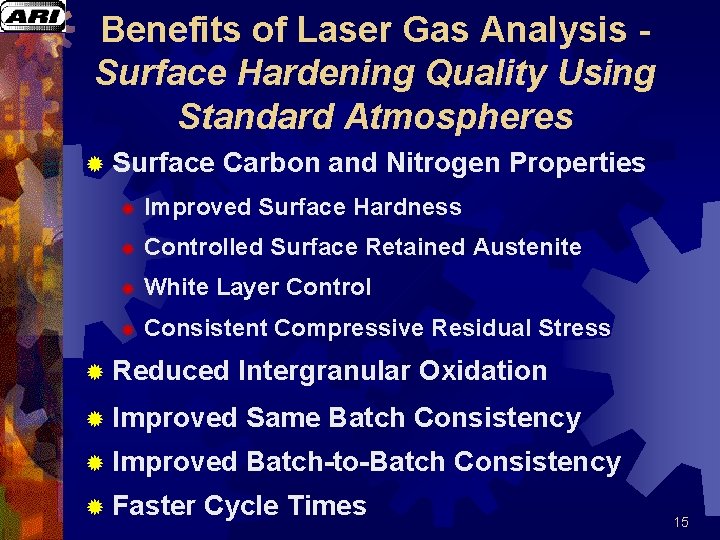

Benefits of Laser Gas Analysis Surface Hardening Quality Using Standard Atmospheres ® Surface Carbon and Nitrogen Properties ® Improved Surface Hardness ® Controlled Surface Retained Austenite ® White Layer Control ® Consistent Compressive Residual Stress ® Reduced Intergranular Oxidation ® Improved Same Batch Consistency ® Improved Batch-to-Batch Consistency ® Faster Cycle Times 15

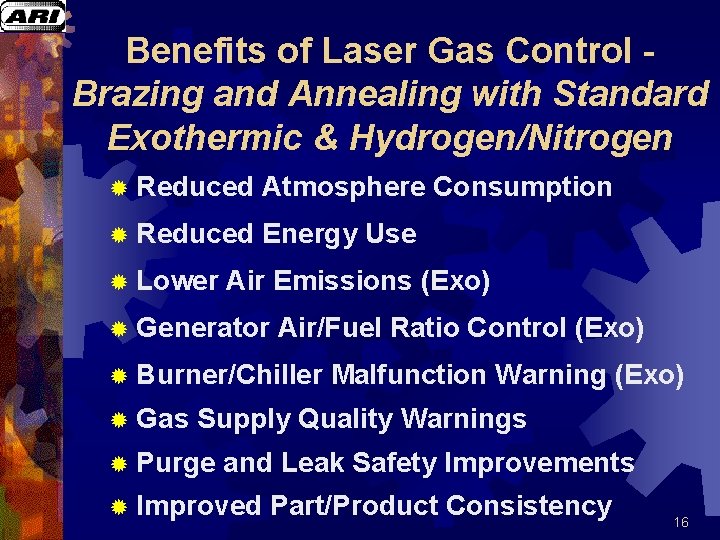

Benefits of Laser Gas Control Brazing and Annealing with Standard Exothermic & Hydrogen/Nitrogen ® Reduced Atmosphere Consumption ® Reduced Energy Use ® Lower Air Emissions (Exo) ® Generator Air/Fuel Ratio Control (Exo) ® Burner/Chiller Malfunction Warning (Exo) ® Gas Supply Quality Warnings ® Purge and Leak Safety Improvements ® Improved Part/Product Consistency 16
17
Benefits of Laser Gas Analysis Heat Treating Energy Savings ® Atmosphere Gas Consumption Reduced Endothermic Example – 90%+ Exothermic Example – 50%+ Hydrogen/Nitrogen Example – 80%+ Ammonia Reduction – 50%+? ® Extra Gas Generators Turned Off ® Shorter Cycle Times Inherent Carburizing Example – 20% ® Total Process Savings Significant Carburizing Example – 25% of Total Furnace Exothermic Example – 15% of Total Furnace 18
Benefits of Laser Gas Analysis – In-Situ Rapid Carburizing ® Greatly Increased Production Capacity Example: Cycle time for ~1 mm case reduced 50% ® Up to 40% Energy Savings ® Elimination of Endo Generators ® Further Improved Product Quality ® Reduced Sooting and Furnace Maintenance 19
Example 96% Endo Savings Door and Burner Leaks Reduced Stack and Flare Shut Off Surface Combustion All-Case Furnace (Shown Under Standard Operation) 20
Example Use for Rapid Carburizing 21
System Paybacks in Less Than 12 Months Benefit Productivity Improvement • Reduced Processing • Times Improved Quality Standard Carburizing Rapid Exothermic Carburizing Annealing Up to 20% Up to 50% 25% 40% Up to 30% Reduced Process Gas Use Up to 90% Up to 98% Up to 90% Reduced Regulated Emissions Over 90% Over 98% Over 90% ARI System Price (Typical) $40 -100 K $70 -150 K $40 -90 K Reduced Energy Consumption Example Customer Cost Benefits • Capital Savings (Avoiding Conventional Equipment)* • Operation & Maintenance Cost Reduction Gear Manufacturer Axle Copper Tube Manufacturer Annealer $150 K $250 K $90 K $100 K/year $200 K/year $100 K/year * Includes Furnaces, Atmosphere Generators, and Ancillary Equipment if Plant New or Near Capacity 22
