EIDE System Requirements and Specification Documents WECC DEWG
- Slides: 18
EIDE System Requirements and Specification Documents WECC DEWG EIDE Training
Overview ¨ What you will need to specify ¨ Identifying deliverables ¨ Specification boilerplate
What you will need to specify ¨ Network infrastructure ¨ Security ¨ Back office interfaces ¨ Data mapping ¨ Triggers ¨ Error conditions ¨ Redundancy
Network infrastructure ¨ How can you use your existing network infrastructure to meet your security and functionality requirements? ¨ Possibilities include: – Smart listener with code and access to back office through secure sockets or ports – Dumb listener with ability only to write documents – Somewhere in between
Security requirements ¨ Any design you create must meet your security requirements and should be reviewed by the 1300 compliance monitor. ¨ Firewall policy ¨ DMZ policy ¨ Authentication policy
Back office interfaces ¨ Which systems will you be getting data from and sending data to? ¨ How? Database, file, three tier? ¨ Can changes to the back office systems be isolated from the gateway? ¨ What methods will be implemented? ¨ How will you ensure reliability?
Data Mapping ¨ How will you flexibly map data between your system and others? ¨ EIDE protocol is flexible and allows various methods. ¨ Database structure and programming logic can allow any combination. ¨ Hierarchical approach can be used.
Triggers ¨ Timed transfers? ¨ Who sets these up and how? ¨ Manual transfers? ¨ What does the user interface look like? ¨ Will you do gets?
Error conditions ¨ What happens when you get an invalid inbound document? ¨ What happens when your database is temporarily down? ¨ What happens when you can’t find a path for a file write? ¨ What happens when the receiver system is down? ¨ How are timeouts and bad responses handled? ¨ Do you need acknowledgement?
Redundancy ¨ Dual internet connections through different vendors ¨ No single point of failure ¨ Hot standby configurations ¨ Parallel configurations ¨ Failover between database sessions
Identify Deliverables ¨ Based on what tasks are to be performed ¨ Assign responsibilities ¨ Specification documents can be created for each module with interfaces specified in each ¨ Deliverables may include: System Requirements Document, System Design Document, Database Design, Detailed Design, Technical Documentation, User Documentation, Data Dictionary or Glossary, RFP, Statement of Work

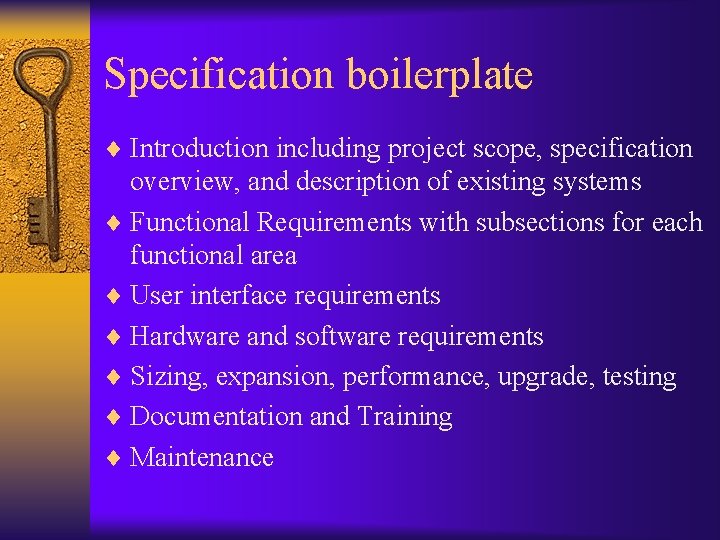

Specification boilerplate ¨ Introduction including project scope, specification overview, and description of existing systems ¨ Functional Requirements with subsections for each functional area ¨ User interface requirements ¨ Hardware and software requirements ¨ Sizing, expansion, performance, upgrade, testing ¨ Documentation and Training ¨ Maintenance
Functional Requirements ¨ Should specify “what” rather than “how” with exceptions where required ¨ Should allow for creative implementations ¨ Identify which methods will be required ¨ Identify any specific implementation requirements for back office interfaces – How 23 and 25 hour day is handled – How data is mapped
EIDE requirement examples ¨ Data sets containing a combination of EMS and Scheduling information can be configured to trigger each hour at HH: MM, each day at XX: MM, each week at XX: MM ¨ Data from EMS and scheduling system can be sent using either Put. Schedule or Put. Meter ¨ Messages received will be displayed at the _______ console in a popup box
EIDE Specification ¨ Compliance with schema and communications protocol document ¨ Ability to integrate schema modifications ¨ Functional requirements include validation of received documents based on your own business rules, back end system interfaces ¨ User interface requirements include both administrative and user.

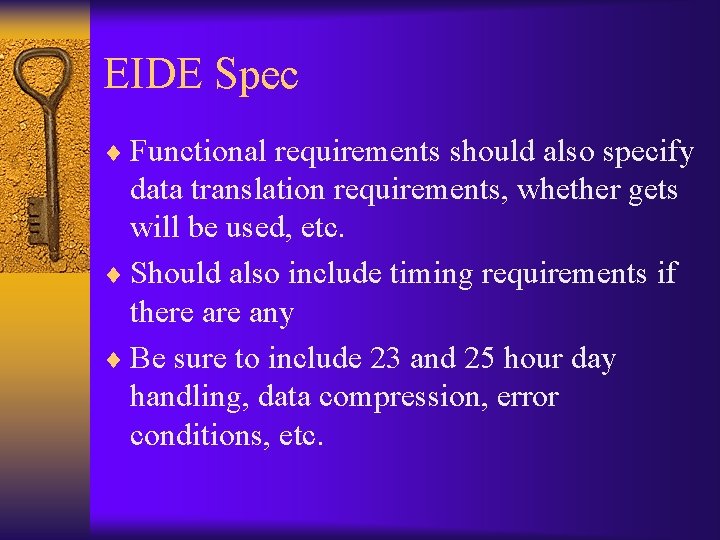

EIDE Spec ¨ Functional requirements should also specify data translation requirements, whether gets will be used, etc. ¨ Should also include timing requirements if there any ¨ Be sure to include 23 and 25 hour day handling, data compression, error conditions, etc.
RFP and SOW boiler plate ¨ Needs to include: – Terms and conditions • Responsibilities, deliverables, schedule, disclosure, termination, performance, project rights, agreement on definition and handling of work outside scope, invoicing and payments, software license/ownership, etc. – Project organization and procedures – Any company specific requirements
Tool choices ¨ There are many good tools available for describing the functional requirements ¨ These include DFD, UML, relationship charts for database…
