EGU General Assembly 2010 04 May 2010 Vienna, Austria Identification of sting-jet extratropical cyclones in ERA-Interim Oscar Martinez-Alvarado (O. Martinez. Alvarado@reading. ac. uk) Suzanne Gray Department of Meteorology University of Reading

Sting Jets • Jet descending from midtroposphere from the tip of the hooked cloud head • Located in the frontal fracture region • Mesoscale (~100 km) region of strong surface winds (that can reach more than 100 km/h) occurring in rapidly deepening extratropical cyclones • Transient (~ few hours), possibly composed of multiple circulations Shapiro-Keyser cyclogenesis Stage III Adapted from Clark et al. (2005) Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 2

Sting Jets • Case-studies Great Storm 15/16 October 1987 UK Browning 2004; Clark et al. 2005 Anna 25/26 February 2002 UK Martinez-Alvarado et al. 2010 Jeanette 27 October 2002 UK Parton et al. 2009 Oili 07 -11 February 2006 UK, Germany Weidle and Wernli Gudrun Baker 2009 07/08 January 2007 • Mechanisms UK, N. hypothesized Europe to be 2008 important: – Evaporative cooling of cloudy air, and – The release of conditional symmetric instability (CSI) • Global frequency and distribution are unknown Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 3

The need for a climatology of sting jets • There are just a handful of well-documented case studies on sting jets (Browning 2004, Clark et al. 2005, Parton et al. 2009, Baker 2009). • These are valuable for all the detailed insight they provide into the structure and dynamics of sting jets. • However, they cannot answer the question of how frequently sting jets occur. • Another unanswered question is what other regions (apart from the UK and N. Europe) are likely to experience sting jets. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 4

Mg increasing CSI and Downdraught SCAPE qe* increasing Unstable slantwise convective circulations in an otherwise inertially and gravitationally stable atmosphere Downdraught SCAPE (DSCAPE) is the potential energy available to parcel to descend in slanted downdraughts Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 5

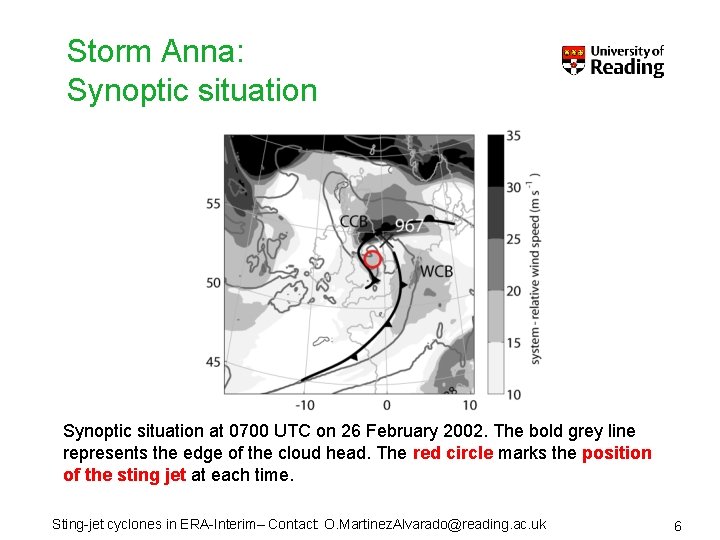

Storm Anna: Synoptic situation at 0700 UTC on 26 February 2002. The bold grey line represents the edge of the cloud head. The red circle marks the position of the sting jet at each time. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 6

Storm Anna: Downdraught SCAPE A B Downdraught SCAPE (DSCAPE, in J/kg) at (A) 0100 UTC and (B) 0300 UTC on 26 February 2002. The bold dark line represents the edge of the cloud head; the grey lines are lines of constant wet-bulb potential temperature (in K). The red circle marks the position of the sting jet at each time. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 7

A climatology of sting jets • Minimum DSCAPE descending from the mid-troposphere – • Search restricted to upper levels – • DSCAPE > 200 J kg-1 pstart < 650 h. Pa Moisture needed to precipitate over unstable areas with large DSCAPE – RH > 80 % • Location within a fractured cold front • Threshold values appear to be robust for a number of cases Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 8

A climatology of sting jets using ERA-Interim • ERA-Interim is the new ECMWF reanalysis covering the period 1989 -present • Resolution: ~0. 7° • This work looks at fields on pressure levels • Domain limited to 30°N - 70°N, 70°W - 30°E (North Atlantic and Europe) • 50 most intense cyclones during the first ten years in the reanalysis (1989 -1998). Thanks to Jen Catto for kindly providing these cyclone tracks. • Only winter months (DJF) Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 9

Sting Jet Cyclones in ERA-Interim: Track 39 RH at 550 h. Pa Instability region qw at 600 h. Pa Mid-tropospheric CSI regions near (red circles) or far from (green circles) cyclone. Grey: wet-bulb potential temperature at 600 h. Pa. Blue: RH at 550 h. Pa. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 10

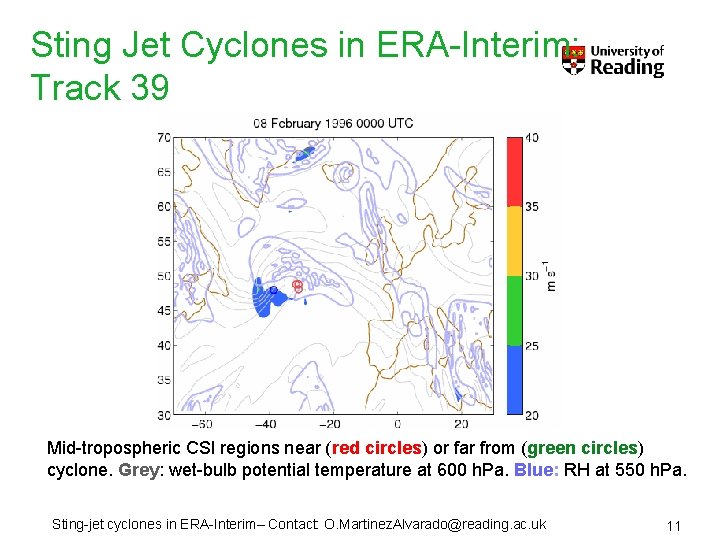

Sting Jet Cyclones in ERA-Interim: Track 39 Mid-tropospheric CSI regions near (red circles) or far from (green circles) cyclone. Grey: wet-bulb potential temperature at 600 h. Pa. Blue: RH at 550 h. Pa. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 11

Sting Jet Cyclones in ERA-Interim: Preliminary results From the 50 most intense cyclones: • ~29 show CSI in the vicinity of the cyclone centre • ~8 show the potential to develop sting jets. Dec 1989 Dec 1991 Jan 1992 Jan 1993 Dec 1995 Feb 1996 Feb 1997 • ~16 cyclones show instability regions associated with the warm conveyor belt Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 12

Limitations and possible ways forward • A missing link: surface observations (how much surface damage have sting jets actually caused? ) • The small number of cases found in these years in ERA-Interim will allow us to look into them in detail (in mesoscale simulations) • Ongoing work is to extend the period of analysis to the full ERA-Interim period, and to the rest of the extratropical region. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 13

Conclusions • Mid-tropospheric regions of CSI have been shown to be very well spatially correlated with descending sting jets in mesoscale simulations of 3 sting jet storms (and are not present in a storm without a sting jet). • A DSCAPE-based method to detect sting jet precursors has been developed and has started to give results. • This method is being currently applied to the ECMWF reanalysis ERA-Interim. • In the first 10 years of the dataset 8 out of 50 most intense cyclones show signs of mid-tropospheric CSI. • The occurrence of sting jets in these cyclones is still awaiting verification. Sting-jet cyclones in ERA-Interim– Contact: O. Martinez. Alvarado@reading. ac. uk 14
