EFL Tizen Platform UIFW TV Profile Heavensbusgmail com

소개 박진솔 EFL 한국 커뮤니티 운영진 삼성전자 Tizen Platform – UIFW, TV Profile Heavensbus@gmail. com

EFL? No!!!!! Executable and Linkable Format Enlightenment Foundation Library Window Manager Unity, Gnome shell , Lxde, Xfce, KDE etc… https: //www. enlightenment. org

EFL?

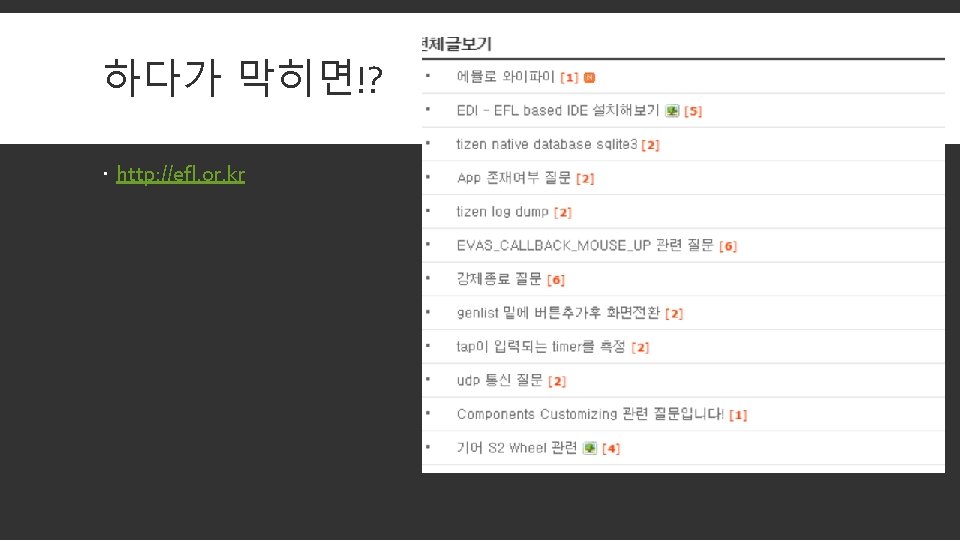

EFL 한국 커뮤니티 https: //www. facebook. com/enlightenment. or. kr http: //efl. or. kr

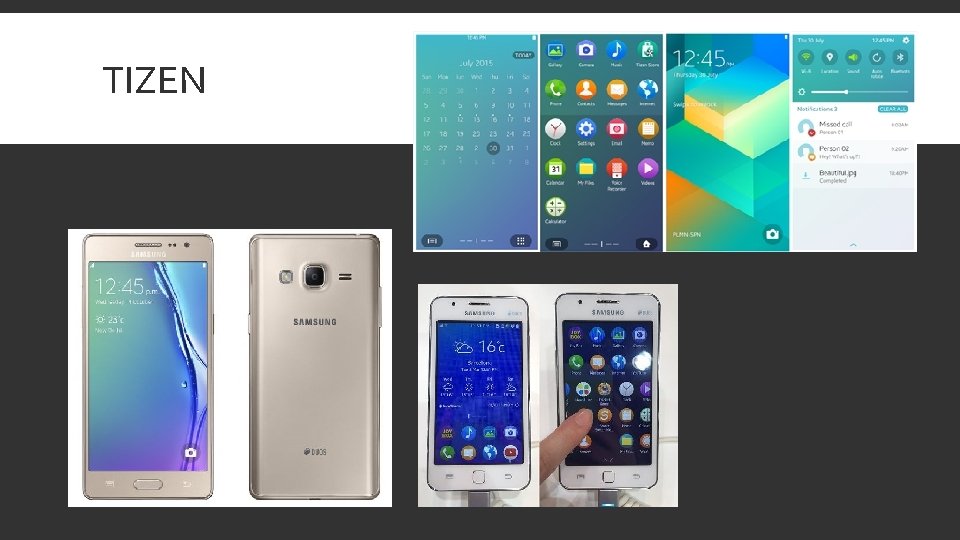

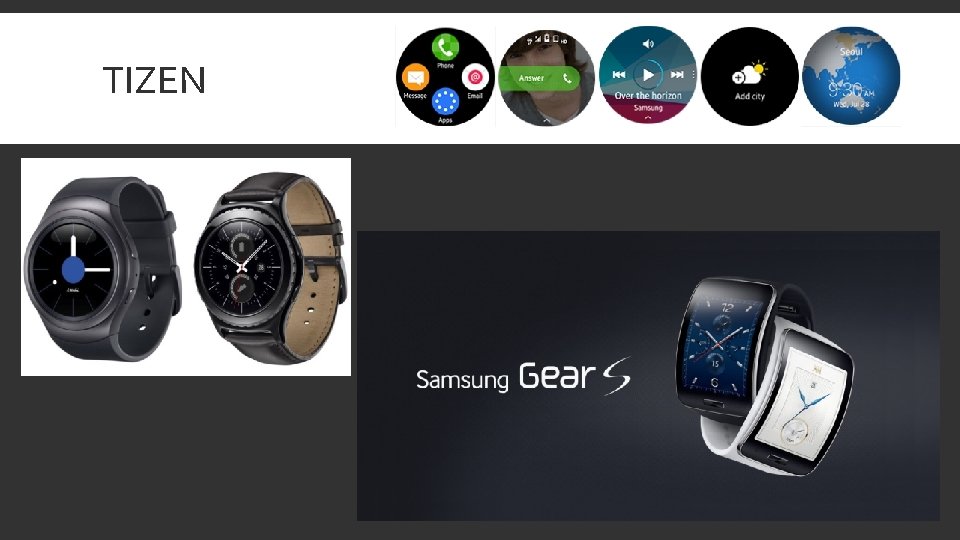

TIZEN Linux Foundation Project Samsung Electronics, Intel, etc. . . Profile - Mobile, Wearable, TV, IVI, etc TV - Native not support Smart TV Mobile – Native/Web Samsung Z, Z 3 Wearable – Native/Web Samsung Gear, Gear 2, Gear S 2

TIZEN

TIZEN

TIZEN

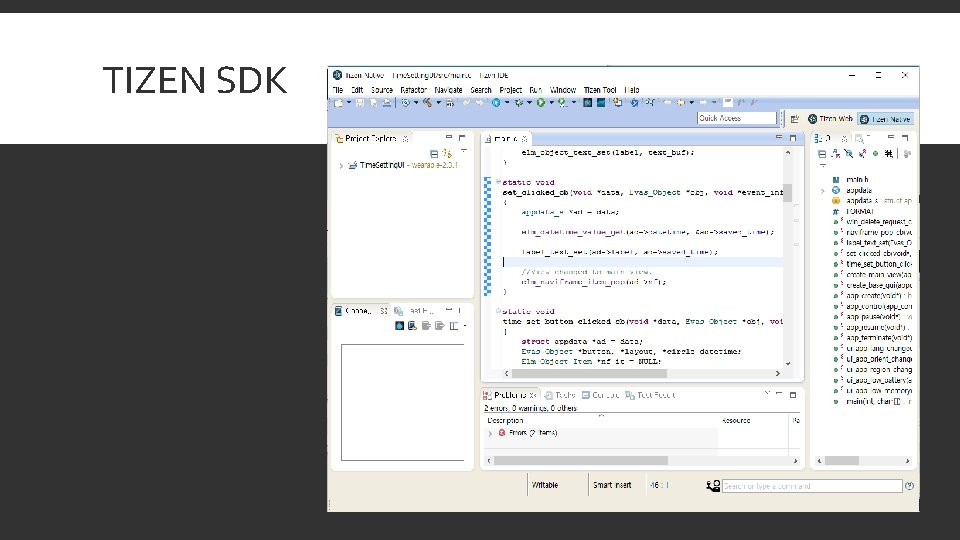

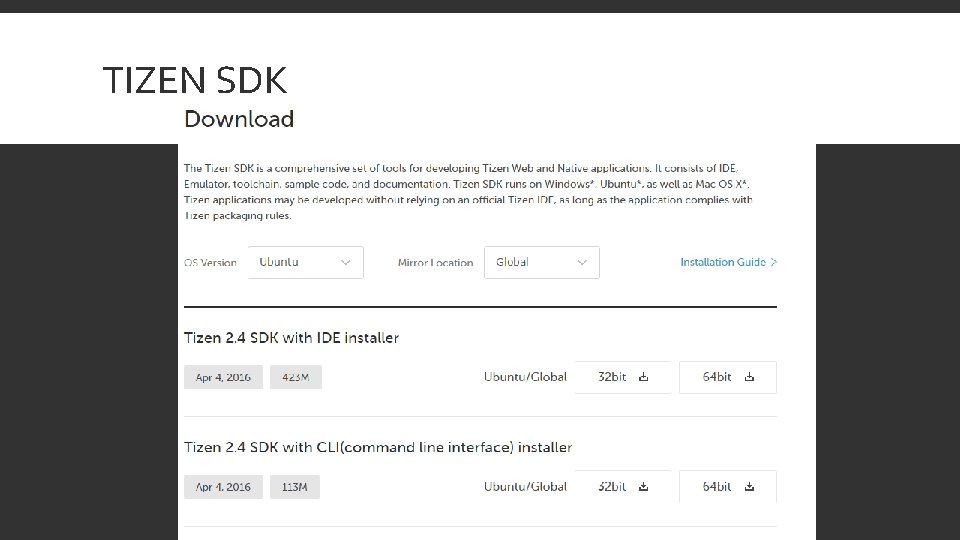

TIZEN SDK Tizen. org SDK Eclipse base Repo – Git Gerrit (Git review system) GBS (Git Build System) 지원 OS Ubuntu Windows Mac Tizen Platform 최신버전은 2. 4 http: //tizen. org

TIZEN SDK

TIZEN SDK Wearable Profile latest version 2. 3. 1

TIZEN SDK

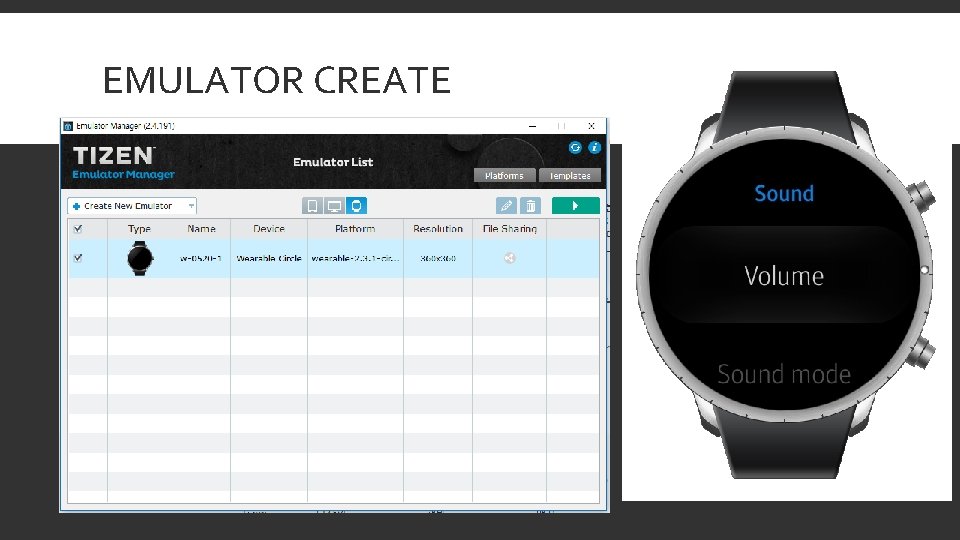

EMULATOR CREATE

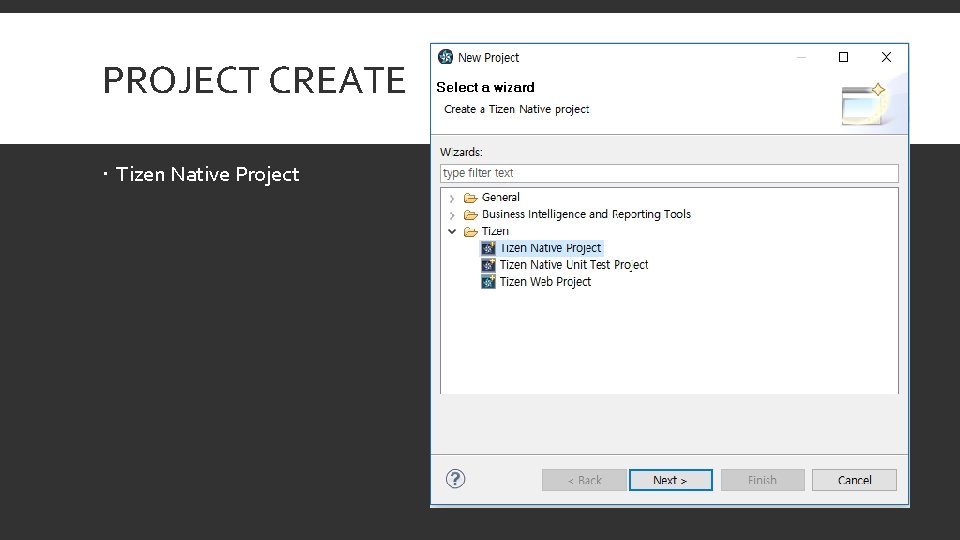

PROJECT CREATE Tizen Native Project

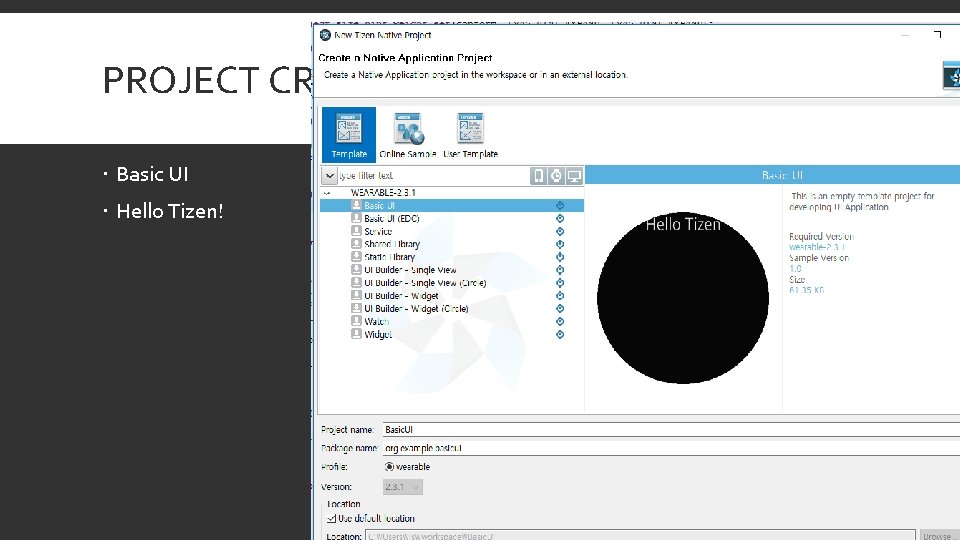

PROJECT CREATE Basic UI Hello Tizen!

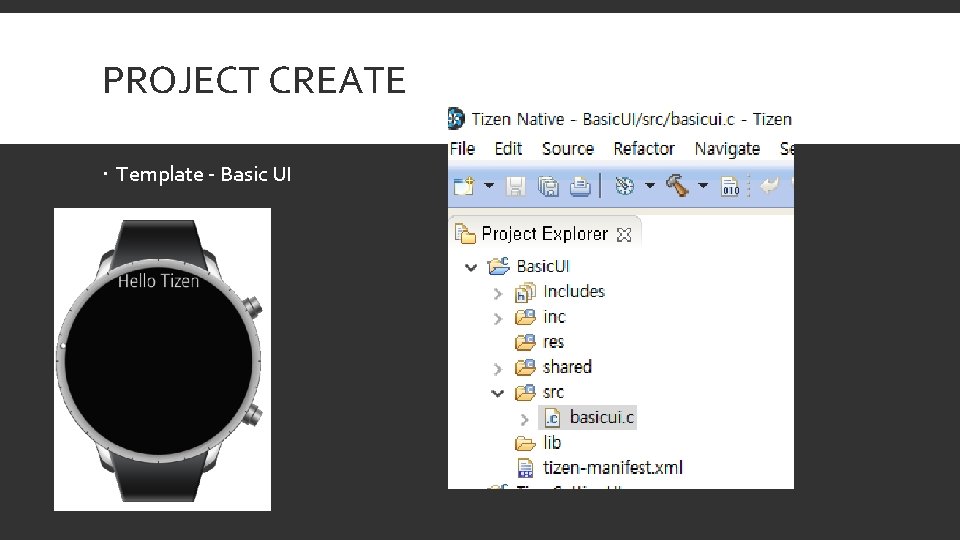

PROJECT CREATE Template - Basic UI

BASIC UI에서 하는일 - 초기화 int main(int argc, char *argv[]) { event_callback. create = app_create; event_callback. terminate = app_terminate; event_callback. pause = app_pause; event_callback. resume = app_resume; event_callback. app_control = app_control; ui_app_add_event_handler(&handlers[APP_EVENT_DEVICE_ORIENTATION_CHANGED], APP_EVENT_DEVICE_ORIENTATION_CHANGED, ui_app_orient_changed, &ad); ret = ui_app_main(argc, argv, &event_callback, &ad); return ret; }

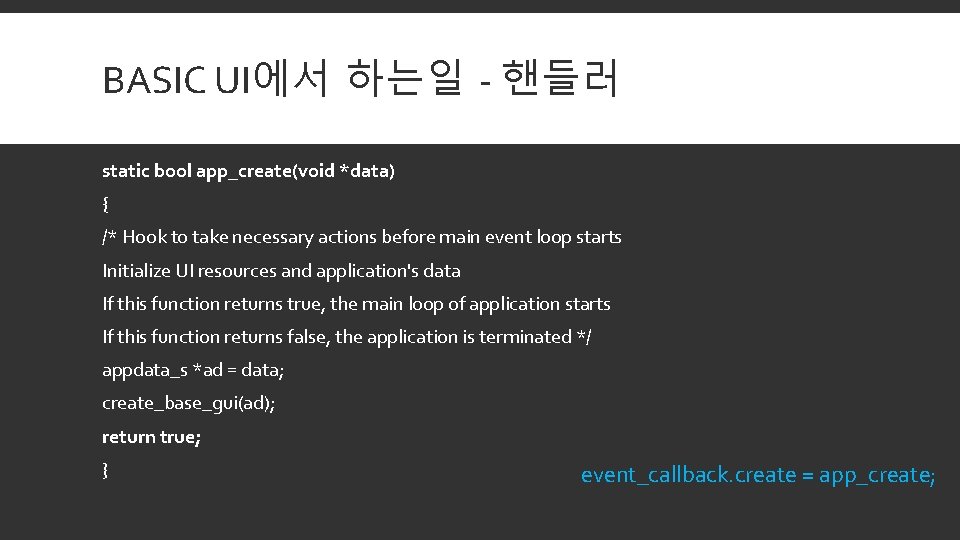

BASIC UI에서 하는일 - 핸들러 static bool app_create(void *data) { /* Hook to take necessary actions before main event loop starts Initialize UI resources and application's data If this function returns true, the main loop of application starts If this function returns false, the application is terminated */ appdata_s *ad = data; create_base_gui(ad); return true; } event_callback. create = app_create;

BASIC UI에서 하는일 – 화면 구성 static void create_base_gui(appdata_s *ad) { /* Window create */ ad->win = elm_win_util_standard_add(PACKAGE, PACKAGE); if (elm_win_wm_rotation_supported_get(ad->win)) { int rots[4] = { 0, 90, 180, 270 }; elm_win_wm_rotation_available_rotations_set(ad->win, (const int *)(&rots), 4);

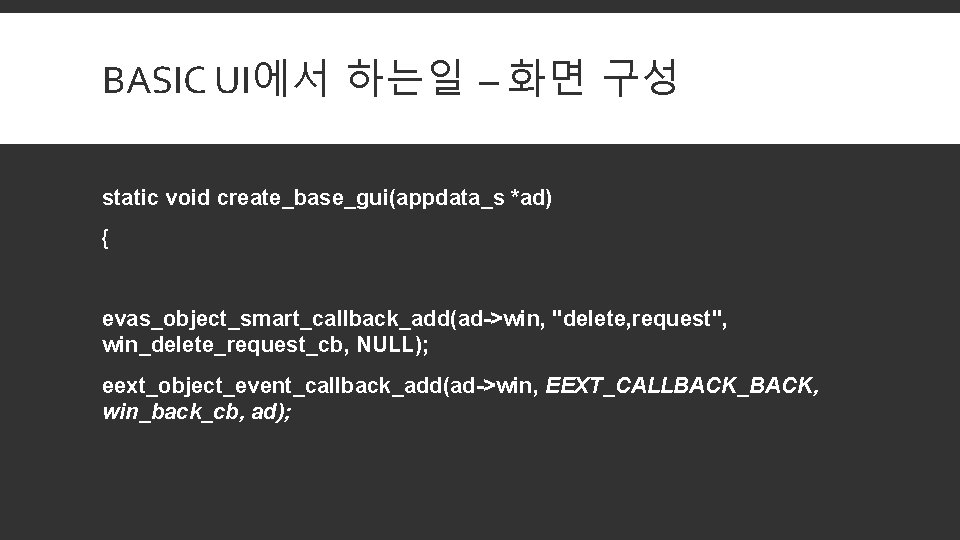

BASIC UI에서 하는일 – 화면 구성 static void create_base_gui(appdata_s *ad) { evas_object_smart_callback_add(ad->win, "delete, request", win_delete_request_cb, NULL); eext_object_event_callback_add(ad->win, EEXT_CALLBACK_BACK, win_back_cb, ad);

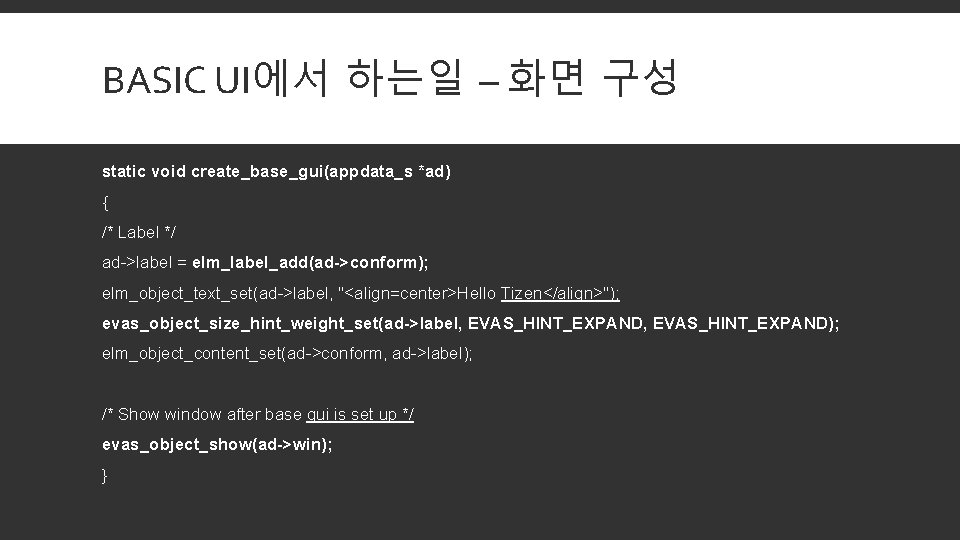

BASIC UI에서 하는일 – 화면 구성 static void create_base_gui(appdata_s *ad) { /* Label */ ad->label = elm_label_add(ad->conform); elm_object_text_set(ad->label, "<align=center>Hello Tizen</align>"); evas_object_size_hint_weight_set(ad->label, EVAS_HINT_EXPAND); elm_object_content_set(ad->conform, ad->label); /* Show window after base gui is set up */ evas_object_show(ad->win); }

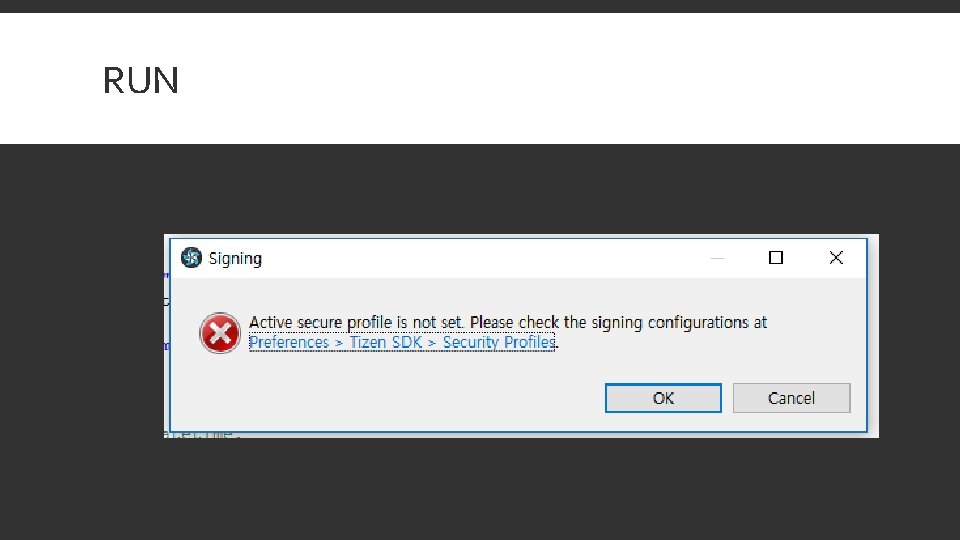

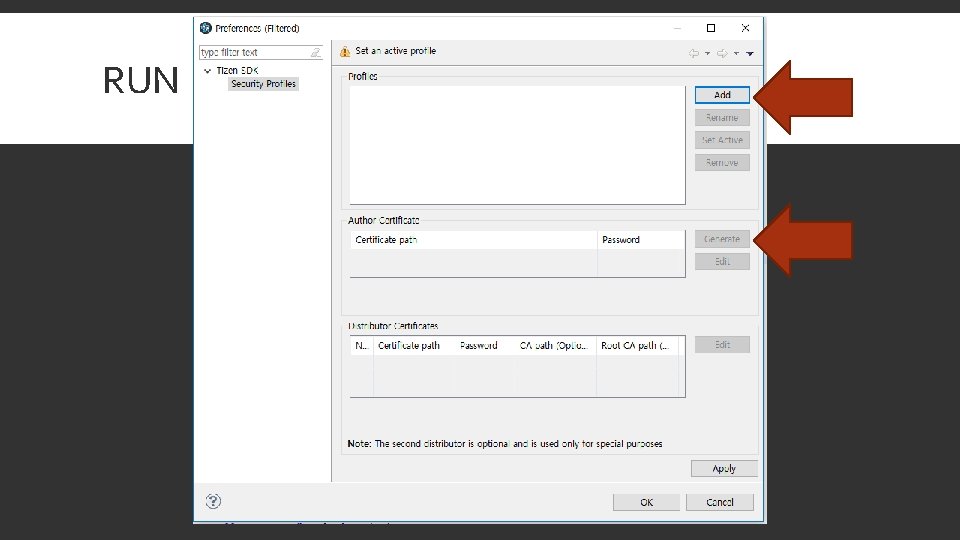

RUN

RUN

RUN

PROJECT CREATE Basic UI Builder Watch Widget Service Lib Widget

UI BUILDER

WIDGET

UI BUILDER

UI BUILDER

GEAR WATCH DESIGNER http: //developer. samsung. com/gear/design/watch-designer 간단한 Watch face를 만들고 싶을때는. .

WATCH APP - 초기화 int main(int argc, char *argv[]) { event_callback. create = app_create; event_callback. terminate = app_terminate; event_callback. pause = app_pause; event_callback. resume = app_resume; event_callback. app_control = app_control; event_callback. time_tick = app_time_tick; event_callback. ambient_tick = app_ambient_tick; event_callback. ambient_changed = app_ambient_changed; ret = watch_app_main(argc, argv, &event_callback, &ad); return ret; }

WATCH APP - UI구성 static void create_base_gui(appdata_s *ad, int width, int height) { /* Window */ ret = watch_app_get_elm_win(&ad->win); evas_object_resize(ad->win, width, height); /* Label*/ ad->label = elm_label_add(ad->conform); evas_object_resize(ad->label, width, height / 3); evas_object_move(ad->label, 0, height / 3); ret = watch_time_get_current_time(&watch_time); update_watch(ad, watch_time, 0); }

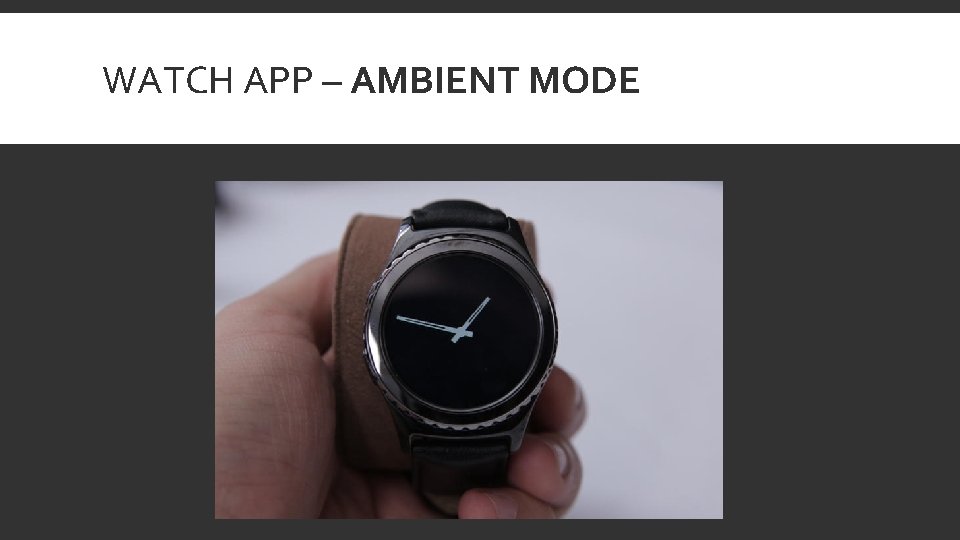

WATCH APP – AMBIENT MODE

WATCH APP – 시간이 지나가면 static void app_time_tick(watch_time_h watch_time, void *data) { /* Called at each second while your app is visible. Update watch UI. */ appdata_s *ad = data; update_watch(ad, watch_time, 0); } static void app_ambient_tick(watch_time_h watch_time, void *data) { /* Called at each minute while the device is in ambient mode. Update watch UI. */ appdata_s *ad = data; update_watch(ad, watch_time, 1); }

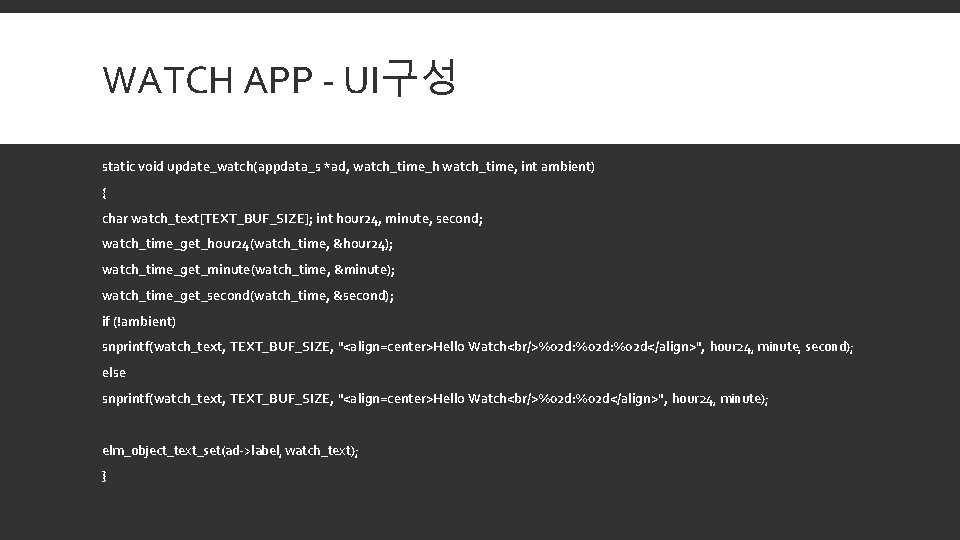

WATCH APP - UI구성 static void update_watch(appdata_s *ad, watch_time_h watch_time, int ambient) { char watch_text[TEXT_BUF_SIZE]; int hour 24, minute, second; watch_time_get_hour 24(watch_time, &hour 24); watch_time_get_minute(watch_time, &minute); watch_time_get_second(watch_time, &second); if (!ambient) snprintf(watch_text, TEXT_BUF_SIZE, "<align=center>Hello Watch<br/>%02 d: %02 d</align>", hour 24, minute, second); else snprintf(watch_text, TEXT_BUF_SIZE, "<align=center>Hello Watch<br/>%02 d: %02 d</align>", hour 24, minute); elm_object_text_set(ad->label, watch_text); }

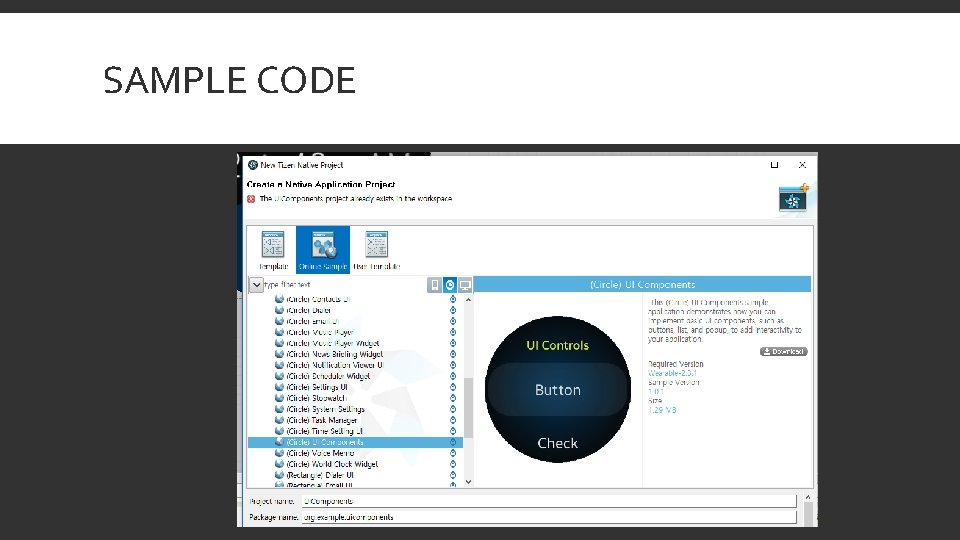

SAMPLE CODE

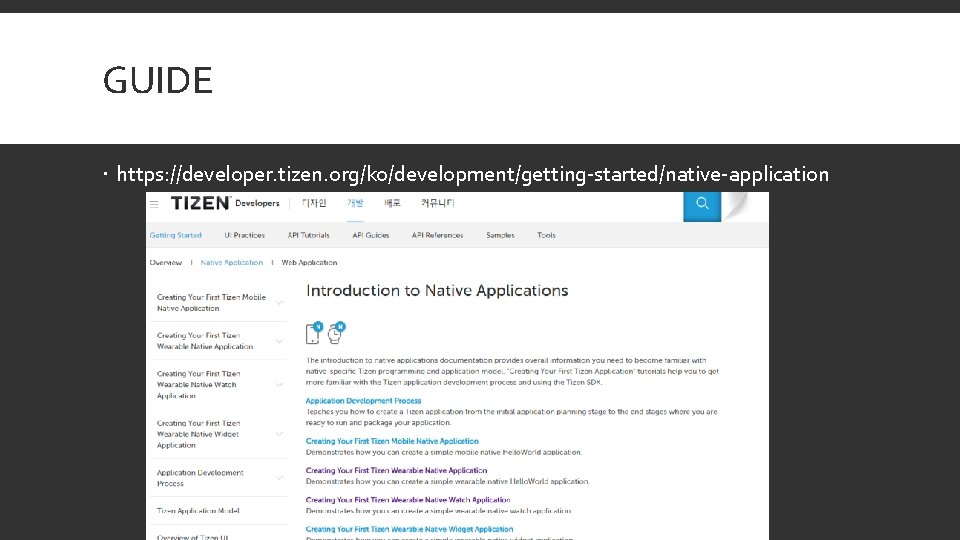

GUIDE https: //developer. tizen. org/ko/development/getting-started/native-application
