EEC-484/584 Computer Networks Lecture 10 Wenbing Zhao wenbing@ieee. org (Part of the slides are based on Drs. Kurose & Ross’s slides for their Computer Networking book) Spring Semester 2008 EEC-484/584: Computer Networks

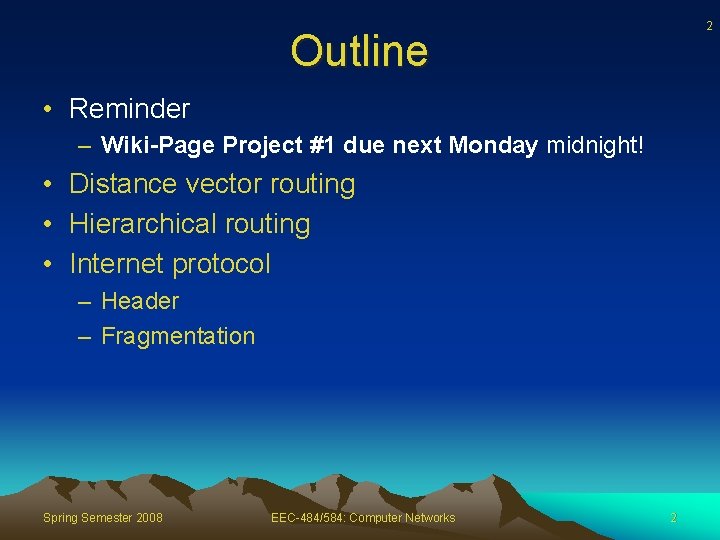

2 Outline • Reminder – Wiki-Page Project #1 due next Monday midnight! • Distance vector routing • Hierarchical routing • Internet protocol – Header – Fragmentation Spring Semester 2008 EEC-484/584: Computer Networks 2

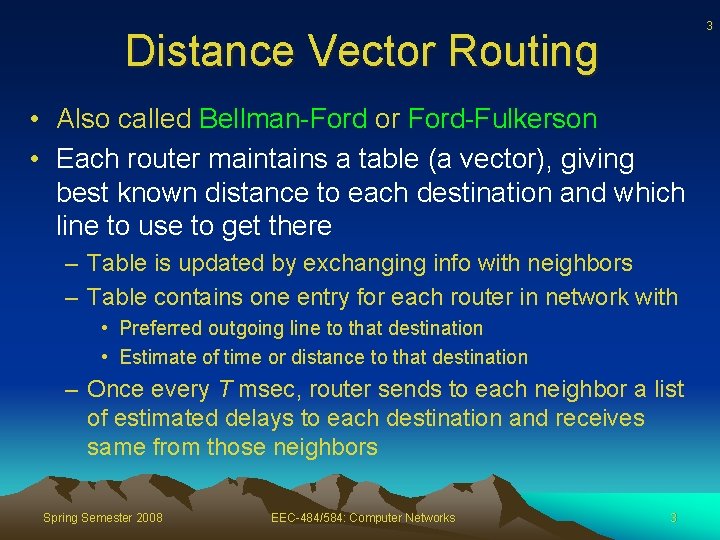

3 Distance Vector Routing • Also called Bellman-Ford or Ford-Fulkerson • Each router maintains a table (a vector), giving best known distance to each destination and which line to use to get there – Table is updated by exchanging info with neighbors – Table contains one entry for each router in network with • Preferred outgoing line to that destination • Estimate of time or distance to that destination – Once every T msec, router sends to each neighbor a list of estimated delays to each destination and receives same from those neighbors Spring Semester 2008 EEC-484/584: Computer Networks 3
4 Distance Vector Routing A d(A, Y) Y d(A, X) X d(X, Z) At router A, for Z Compute d(A, X) + d(X, Z) and d(A, Y) + d(Y, Z), take minimum d(Y, Z) Z d(A, Z) = min {d(A, v) + d(v, Z) } where min is taken over all neighbors v of A Spring Semester 2008 EEC-484/584: Computer Networks 4
from x 0 2 7 y ∞∞ ∞ z ∞∞ ∞ node y table cost to x y z from d(x, y) = min{d(x, y) + d(y, y), d(x, z) + d(z, y)} = min{2+0 , 7+1} = 2 node x table cost to x y z d(x, z) = min{d(x, y) + d(y, z), d(x, z) + d(z, z)} = min{2+1 , 7+0} = 3 x 0 2 3 y 2 0 1 z 7 1 0 x ∞ ∞ ∞ y 2 0 1 z ∞∞ ∞ node z table cost to x y z from x x ∞∞ ∞ y ∞∞ ∞ z 71 0 Spring Semester 2008 2 y 7 1 z time EEC-484/584: Computer Networks 5 5
Spring Semester 2008 from from from d(x, z) = min{d(x, y) + d(x, y) = min{d(x, y) + d(y, y), d(x, z) + d(z, y)} d(y, z), d(x, z) + d(z, z)} = min{2+0 , 7+1} = 2 = min{2+1 , 7+0} = 3 node x table cost to x y z x 0 2 7 x 0 2 3 y ∞∞ ∞ y 2 0 1 z 7 1 0 z ∞∞ ∞ z 3 1 0 node y table cost to x y z y x y z 2 1 x ∞ ∞ ∞ x 0 2 7 x 0 2 3 x z y 2 0 1 7 y 2 0 1 z ∞∞ ∞ z 7 1 0 z 3 1 0 node z table cost to x y z x 0 2 7 x 0 2 3 x ∞∞ ∞ y 2 0 1 y ∞∞ ∞ z 3 1 0 z 71 0 time EEC-484/584: Computer Networks 6 6
7 Distance Vector Routing • Delay A to B 12 ms, to C 25 ms, to D 40 ms, to G 18 ms • Delay J to A 8 ms, to I 10 ms, to H 12 ms, to K 6 ms • Delay J to A to G 8+18 = 26 ms to I to G 10+31 = 41 ms to H to G 12+6=18 ms to K to G 6+31=37 ms Spring Semester 2008 EEC-484/584: Computer Networks 7

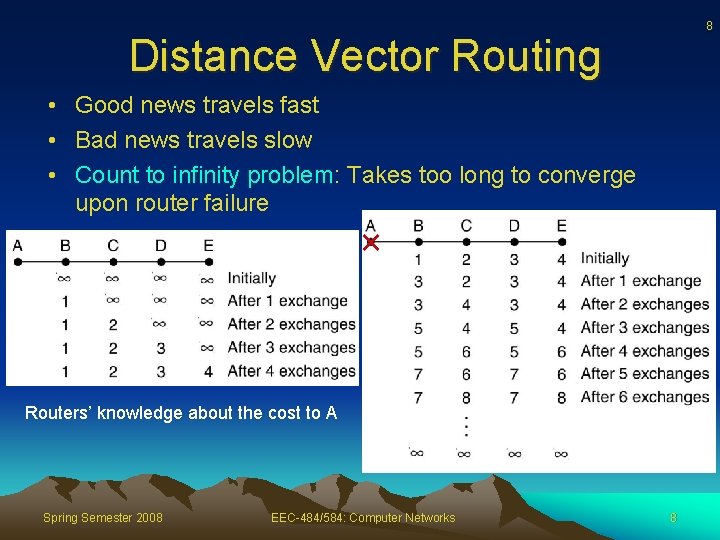

8 Distance Vector Routing • Good news travels fast • Bad news travels slow • Count to infinity problem: Takes too long to converge upon router failure × Routers’ knowledge about the cost to A Spring Semester 2008 EEC-484/584: Computer Networks 8
9 Distance Vector Routing: Exercise • Consider the subnet shown below. Distance vector routing is used, and the following vectors have just come in to router C: from B: (5, 0, 8, 12, 6, 2); from D: (16, 12, 6, 0, 9, 10); and from E: (7, 6, 3, 9, 0, 4). The measured delays to B, D, and E, are 6, 3, and 5, respectively. What is C's new routing table? Give both the outgoing line to use and the expected delay. Spring Semester 2008 EEC-484/584: Computer Networks 9
10 Hierarchical Routing • Problem: Bigger network => bigger routing table • Use hierarchical structure similar to telephone network to solve the problem – Regions: router knows details of how to route packets within its region, does not know internals of other regions – Clusters of regions, zones of clusters, groups of zones • Tradeoff: savings in memory space may result in longer path Spring Semester 2008 EEC-484/584: Computer Networks 10
11 Hierarchical Routing Spring Semester 2008 EEC-484/584: Computer Networks 11
12 Design Principles for Internet • Make sure it works – Build prototypes first • Keep it simple – When in doubt, use the simplest solution • Make clear choices – If there are several ways of doing the same thing, choose one • Exploit modularity – Use protocol stacks, each of whose layers is independent of all the other ones Spring Semester 2008 EEC-484/584: Computer Networks 12
13 Design Principles for Internet • Expect heterogeneity – Different types of hardware, transmission facilities, and applications will occur on any large network • Avoid static options and parameters – Have the sender and receiver negotiate a value • Look for a good design; it need not be perfect • Be strict when sending and tolerant when receiving • Think about scalability • Consider performance and cost Spring Semester 2008 EEC-484/584: Computer Networks 13
14 Collection of Subnetworks The Internet is an interconnected collection of many networks, or Autonomous Systems (ASes) Spring Semester 2008 EEC-484/584: Computer Networks 14
15 The Network Layer in Internet Host, router network layer functions: Transport layer: TCP, UDP Network layer IP protocol • addressing conventions • datagram format • packet handling conventions Routing protocols • path selection • RIP, OSPF, BGP forwarding table ICMP protocol • error reporting • router “signaling” Link layer physical layer Spring Semester 2008 EEC-484/584: Computer Networks 15

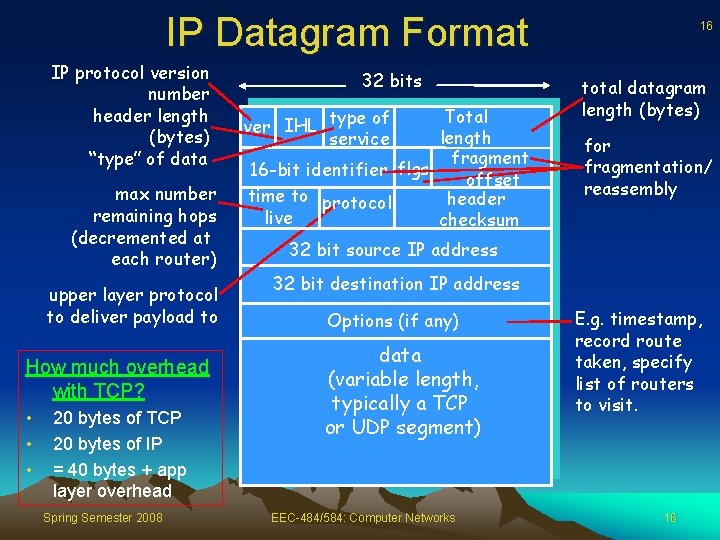

IP Datagram Format IP protocol version number header length (bytes) “type” of data max number remaining hops (decremented at each router) upper layer protocol to deliver payload to How much overhead with TCP? • • • 20 bytes of TCP 20 bytes of IP = 40 bytes + app layer overhead Spring Semester 2008 32 bits Total length fragment 16 -bit identifier flgs offset time to protocol header live checksum type of ver IHL service 16 total datagram length (bytes) for fragmentation/ reassembly 32 bit source IP address 32 bit destination IP address Options (if any) data (variable length, typically a TCP or UDP segment) EEC-484/584: Computer Networks E. g. timestamp, record route taken, specify list of routers to visit. 16
17 The IPv 4 Header • Version – 4 • IHL – length of header in 32 -bit words – Min 5, max 15 – i. e. , 60 bytes • Type of service - to distinguish different classes of service – To accommodate differentiated services (which class this packet belongs to) • Total length – header and data 65, 535 (216 -1) bytes • Identification – allows destination to determine which datagram a fragment belongs to Spring Semester 2008 EEC-484/584: Computer Networks 17
18 The IPv 4 Header • Time to live – counter to limit packet lifetimes – Max lifetime 255 sec – Packet is destroyed when counter becomes 0 • Protocol – which transport layer protocols being used • Header checksum – verifies header Spring Semester 2008 EEC-484/584: Computer Networks 18
19 The IPv 4 Header • Options – security, error reporting, etc. – Some of the IP options Spring Semester 2008 EEC-484/584: Computer Networks 19
20 IP Fragmentation • Fragmentation Flags – DF – tells routers “Don’t Fragment” – MF – More Fragments. All fragments except last have this set. Used as check against total length • Fragment offset – where in datagram this fragment belongs – All fragments (payload in the IP packet) except last must be multiples of 8 bytes – The number of 8 byte blocks is called Number of Fragment Blocks (NFB) – The unit of the offset is NFB Spring Semester 2008 EEC-484/584: Computer Networks 20
21 IP Fragmentation & Reassembly • Network links have MTU (max. transfer size) - largest possible link-level frame. – different link types, different MTUs • Large IP datagram divided (“fragmented”) within net – one datagram becomes several datagrams – “reassembled” only at final destination – IP header bits used to identify, order related fragments Spring Semester 2008 fragmentation: in: one large datagram out: 3 smaller datagrams reassembly EEC-484/584: Computer Networks 21

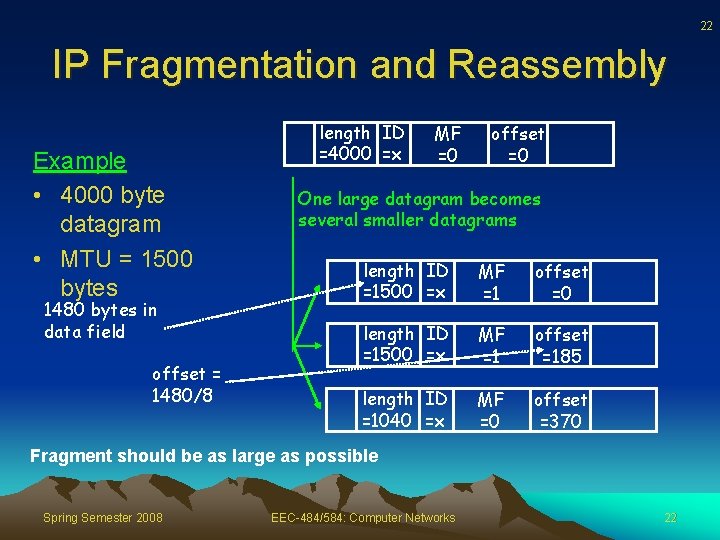

22 IP Fragmentation and Reassembly Example • 4000 byte datagram • MTU = 1500 bytes 1480 bytes in data field offset = 1480/8 length ID =4000 =x MF =0 offset =0 One large datagram becomes several smaller datagrams length ID =1500 =x MF =1 offset =0 length ID =1500 =x MF =1 offset =185 length ID =1040 =x MF =0 offset =370 Fragment should be as large as possible Spring Semester 2008 EEC-484/584: Computer Networks 22
23 Exercise: IP Fragmentation • Suppose that host A is connected to a router R 1, R 1 is connected to another router, R 2, and R 2 is connected to host B. Suppose that a TCP message that contains 900 bytes of data and 20 bytes of TCP header is passed to the IP code at host A for delivery to B. Show the Total length, Identification, DF, MF, and Fragment offset fields of the IP header in each packet transmitted over the three links. Assume that link A-R 1 can support a maximum frame size of 1024 bytes including a 14 -byte frame header, link R 1 -R 2 can support a maximum frame size of 512 bytes, including an 8 -byte frame header, and link R 2 -B can support a maximum frame size of 512 bytes including a 12 -byte frame header. Spring Semester 2008 EEC-484/584: Computer Networks 23
