Edge Localized Modes (ELMs) control by Resonant Magnetic Perturbations (RMPs) E. Nardon, M. Bécoulet, G. Huysmans, O. Czarny ETFP workshop, Krakow, September 2006 E. Nardon 1/17

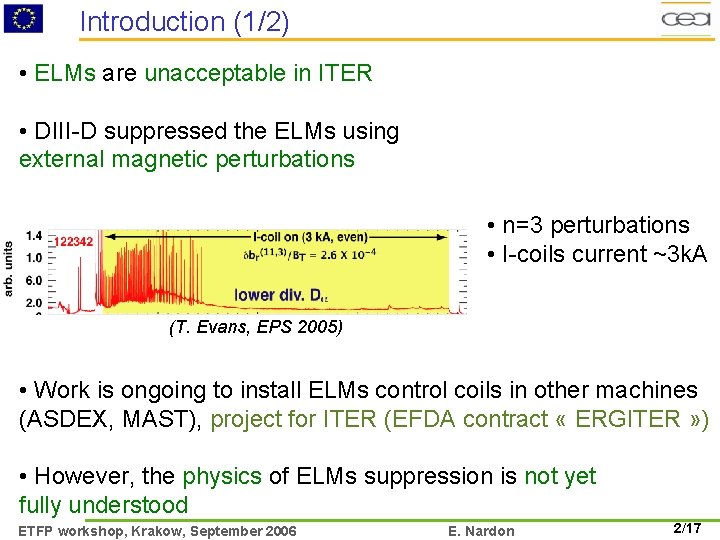

Introduction (1/2) • ELMs are unacceptable in ITER • DIII-D suppressed the ELMs using external magnetic perturbations • n=3 perturbations • I-coils current ~3 k. A (T. Evans, EPS 2005) • Work is ongoing to install ELMs control coils in other machines (ASDEX, MAST), project for ITER (EFDA contract « ERGITER » ) • However, the physics of ELMs suppression is not yet fully understood ETFP workshop, Krakow, September 2006 E. Nardon 2/17

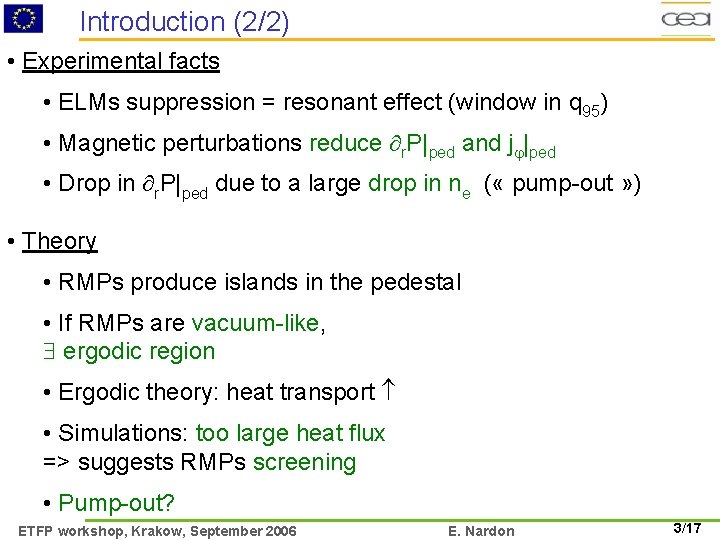

Introduction (2/2) • Experimental facts • ELMs suppression = resonant effect (window in q 95) • Magnetic perturbations reduce r. P|ped and j |ped • Drop in r. P|ped due to a large drop in ne ( « pump-out » ) • Theory • RMPs produce islands in the pedestal • If RMPs are vacuum-like, ergodic region • Ergodic theory: heat transport • Simulations: too large heat flux => suggests RMPs screening • Pump-out? ETFP workshop, Krakow, September 2006 E. Nardon 3/17

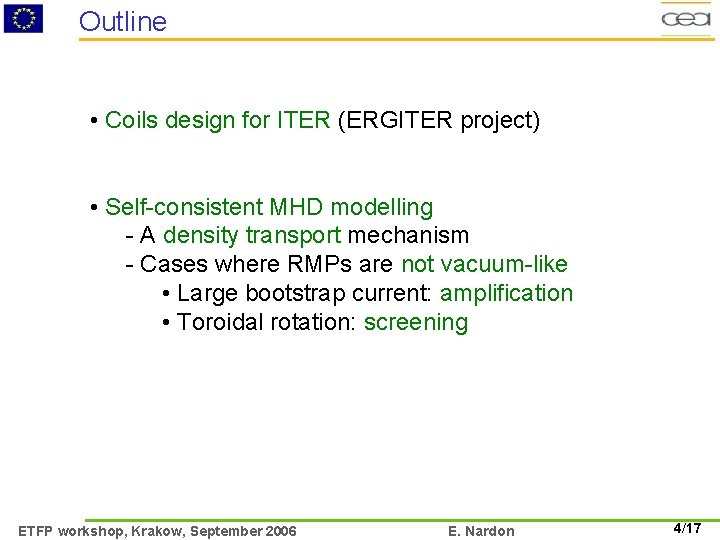

Outline • Coils design for ITER (ERGITER project) • Self-consistent MHD modelling - A density transport mechanism - Cases where RMPs are not vacuum-like • Large bootstrap current: amplification • Toroidal rotation: screening ETFP workshop, Krakow, September 2006 E. Nardon 4/17

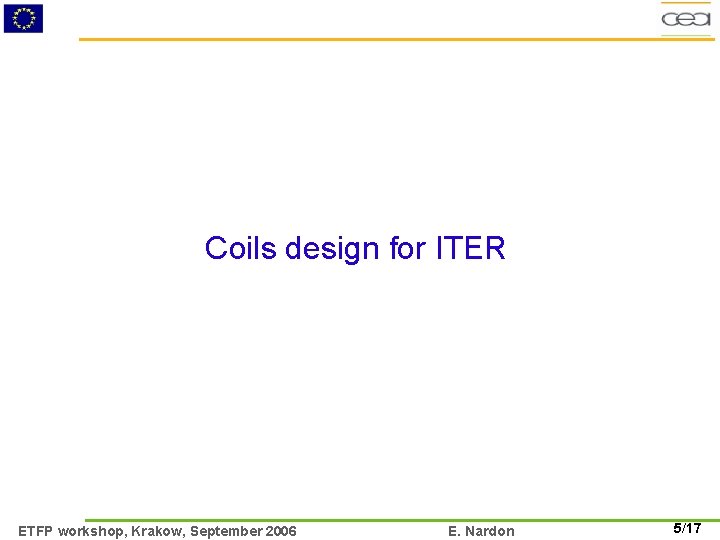

Coils design for ITER ETFP workshop, Krakow, September 2006 E. Nardon 5/17

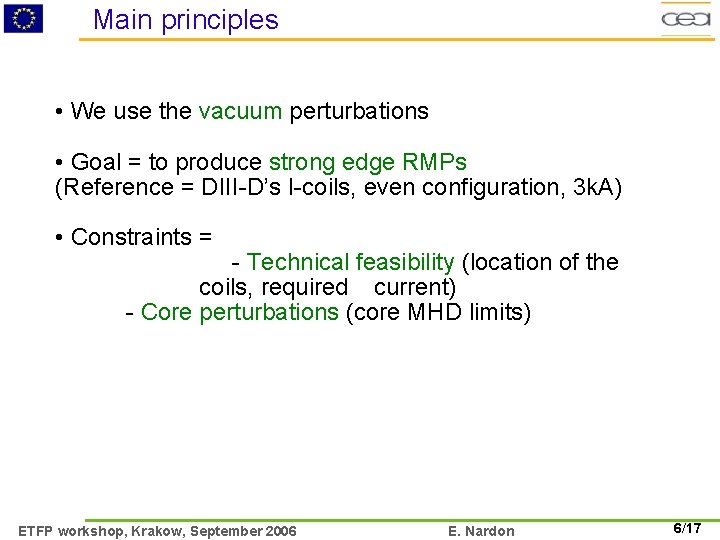

Main principles • We use the vacuum perturbations • Goal = to produce strong edge RMPs (Reference = DIII-D’s I-coils, even configuration, 3 k. A) • Constraints = - Technical feasibility (location of the coils, required current) - Core perturbations (core MHD limits) ETFP workshop, Krakow, September 2006 E. Nardon 6/17

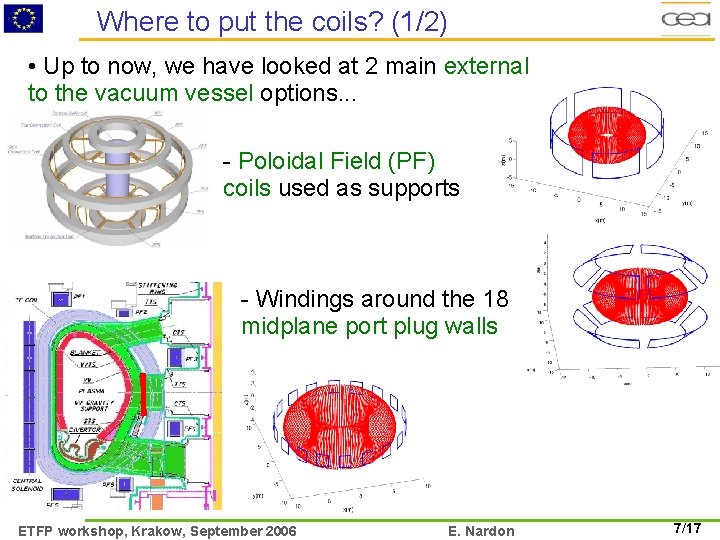

Where to put the coils? (1/2) • Up to now, we have looked at 2 main external to the vacuum vessel options. . . - Poloidal Field (PF) coils used as supports - Windings around the 18 midplane port plug walls ETFP workshop, Krakow, September 2006 E. Nardon 7/17

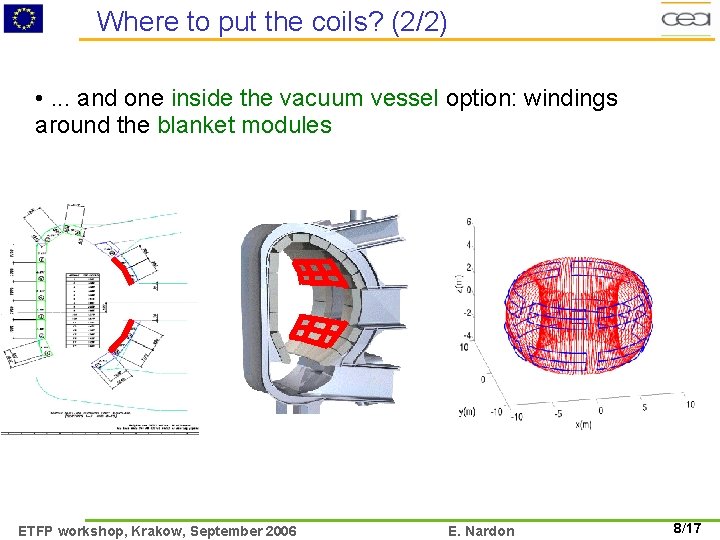

Where to put the coils? (2/2) • . . . and one inside the vacuum vessel option: windings around the blanket modules ETFP workshop, Krakow, September 2006 E. Nardon 8/17

Main conclusions of the calculations • n=3 configurations seem to be the best • External to the VV designs require several hundreds k. A for the H-mode, and much more for hybrid and steady-state • The internal design requires no more than ~20 k. A, whether q 95=3, 4 or 5 (possibility of adaptation by changing the phasings) + + --- + + -+ -+ • Core perturbations should be looked at carefully: 4/3 islands typically ~6 cm wide (but screening due to toroidal rotation could improve this) ETFP workshop, Krakow, September 2006 E. Nardon 9/17

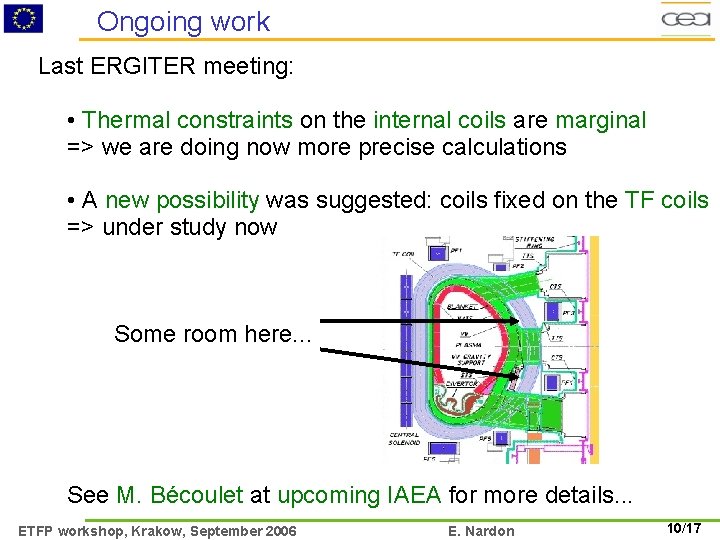

Ongoing work Last ERGITER meeting: • Thermal constraints on the internal coils are marginal => we are doing now more precise calculations • A new possibility was suggested: coils fixed on the TF coils => under study now Some room here. . . See M. Bécoulet at upcoming IAEA for more details. . . ETFP workshop, Krakow, September 2006 E. Nardon 10/17

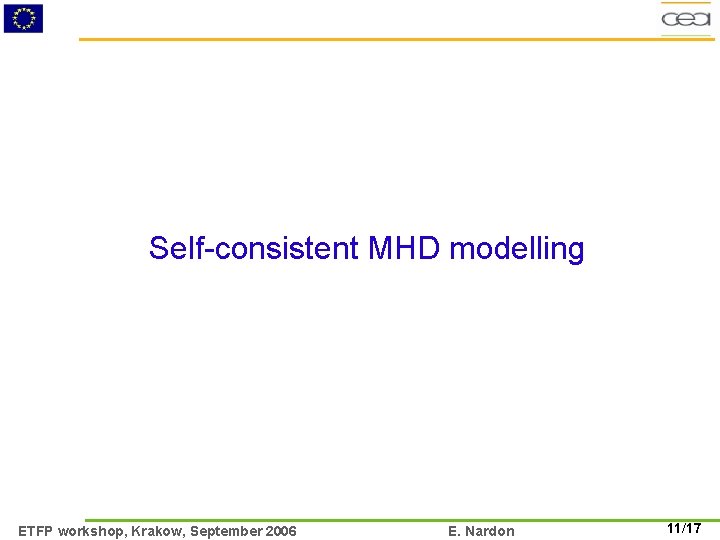

Self-consistent MHD modelling ETFP workshop, Krakow, September 2006 E. Nardon 11/17

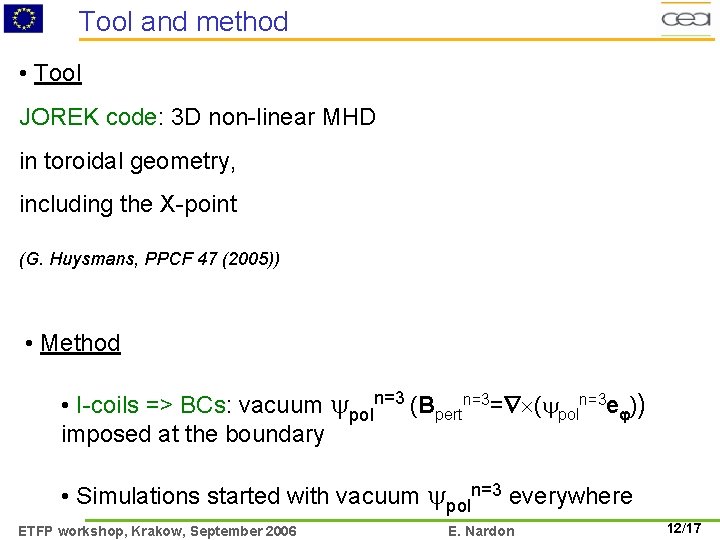

Tool and method • Tool JOREK code: 3 D non-linear MHD in toroidal geometry, including the X-point (G. Huysmans, PPCF 47 (2005)) • Method • I-coils => BCs: vacuum poln=3 (Bpertn=3= ( poln=3 e )) imposed at the boundary • Simulations started with vacuum poln=3 everywhere ETFP workshop, Krakow, September 2006 E. Nardon 12/17

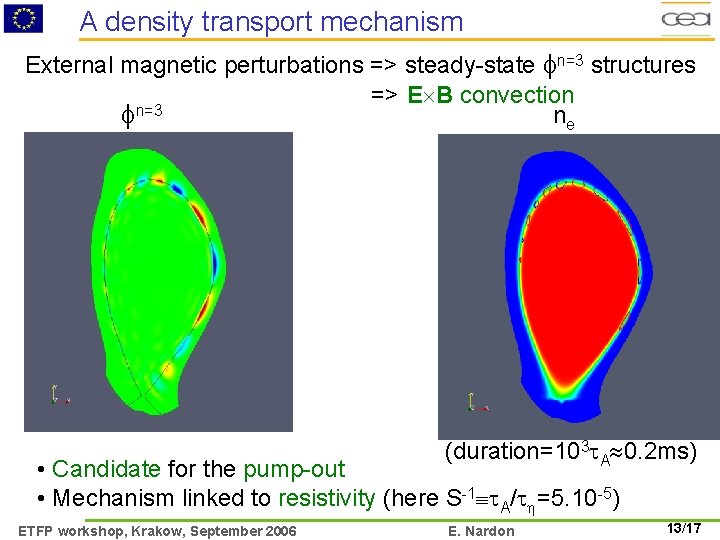

A density transport mechanism External magnetic perturbations => steady-state n=3 structures => E B convection n=3 ne (duration=103 A 0. 2 ms) • Candidate for the pump-out • Mechanism linked to resistivity (here S-1 A/ =5. 10 -5) ETFP workshop, Krakow, September 2006 E. Nardon 13/17

A case of amplification of the RMPs (1/2) • Tearing-stable plasmas can amplify external RMPs if close to instability threshold • Scan in jbootstrap and I-coils current 3 k. A Emagn=3 1 k. A 0. 3 k. A Unstable « Too » stable 0 k. A Stable but… time (in A) ETFP workshop, Krakow, September 2006 E. Nardon 14/17

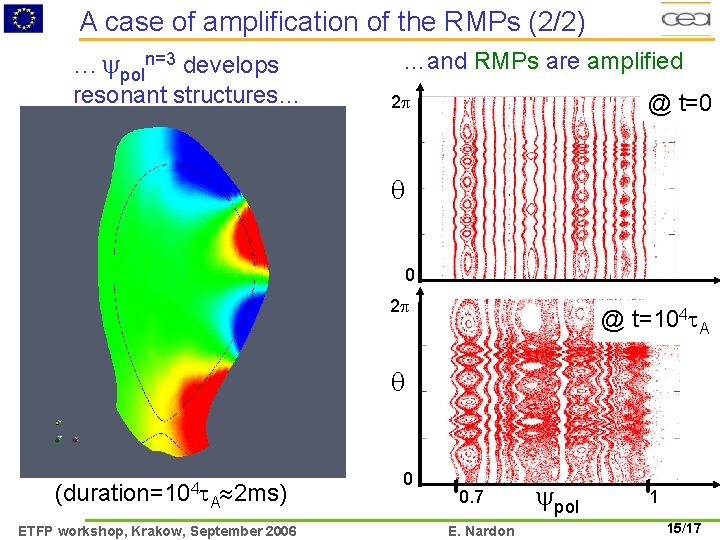

A case of amplification of the RMPs (2/2) … poln=3 develops resonant structures… …and RMPs are amplified @ t=0 2 @ t=104 A (duration=104 A 2 ms) ETFP workshop, Krakow, September 2006 0 0. 7 E. Nardon pol 1 15/17

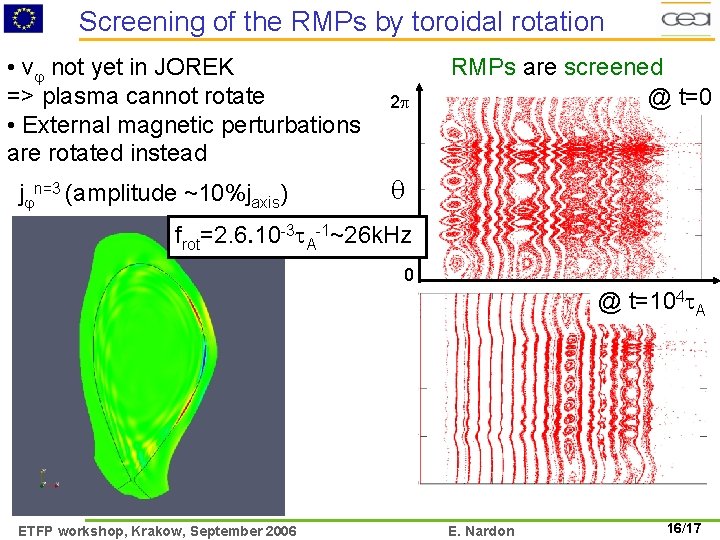

Screening of the RMPs by toroidal rotation • v not yet in JOREK => plasma cannot rotate • External magnetic perturbations are rotated instead j n=3 (amplitude ~10%jaxis) 2 RMPs are screened @ t=0 frot=2. 6. 10 -3 A-1~26 k. Hz 0 ETFP workshop, Krakow, September 2006 @ t=104 A E. Nardon 16/17

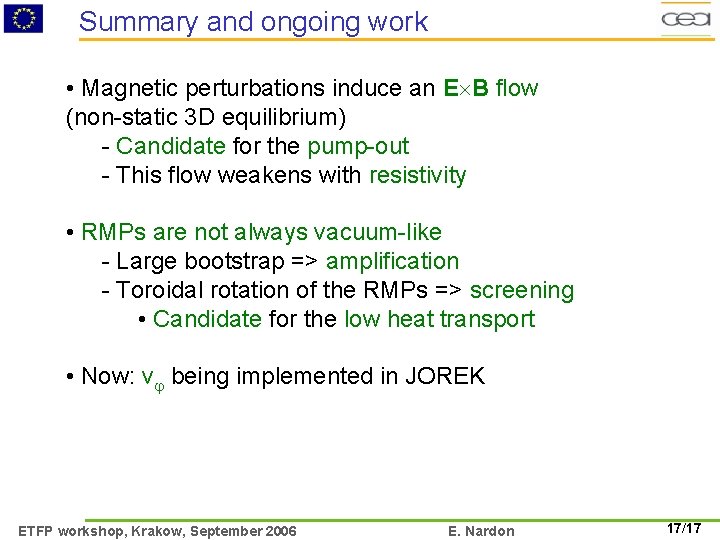

Summary and ongoing work • Magnetic perturbations induce an E B flow (non-static 3 D equilibrium) - Candidate for the pump-out - This flow weakens with resistivity • RMPs are not always vacuum-like - Large bootstrap => amplification - Toroidal rotation of the RMPs => screening • Candidate for the low heat transport • Now: v being implemented in JOREK ETFP workshop, Krakow, September 2006 E. Nardon 17/17
