EDF Engineering Data File A motivation A sample

EDF: Engineering Data File A motivation. . .

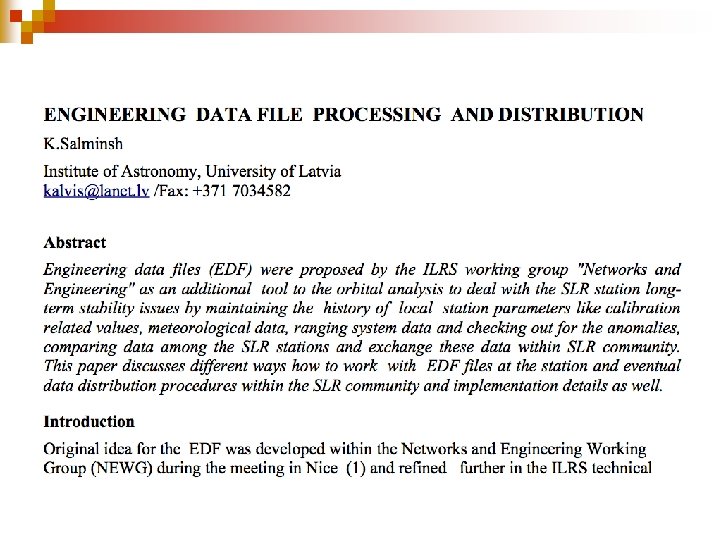

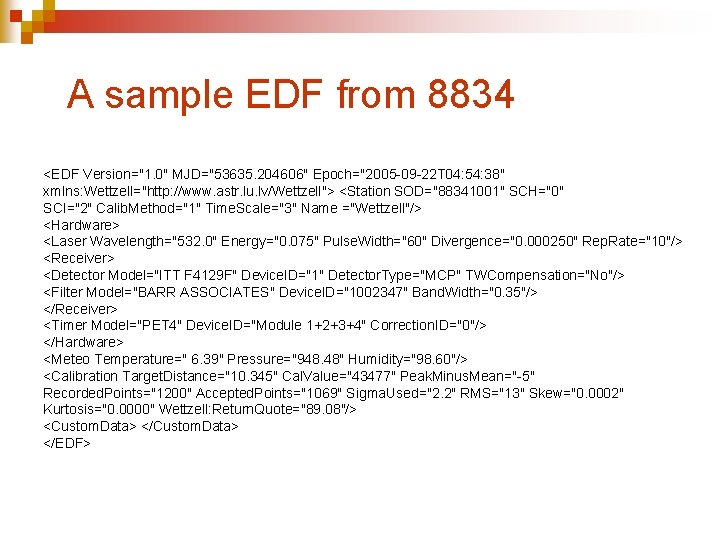

A sample EDF from 8834 <EDF Version="1. 0" MJD="53635. 204606" Epoch="2005 -09 -22 T 04: 54: 38" xmlns: Wettzell="http: //www. astr. lu. lv/Wettzell"> <Station SOD="88341001" SCH="0" SCI="2" Calib. Method="1" Time. Scale="3" Name ="Wettzell"/> <Hardware> <Laser Wavelength="532. 0" Energy="0. 075" Pulse. Width="60" Divergence="0. 000250" Rep. Rate="10"/> <Receiver> <Detector Model="ITT F 4129 F" Device. ID="1" Detector. Type="MCP" TWCompensation="No"/> <Filter Model="BARR ASSOCIATES" Device. ID="1002347" Band. Width="0. 35"/> </Receiver> <Timer Model="PET 4" Device. ID="Module 1+2+3+4" Correction. ID="0"/> </Hardware> <Meteo Temperature=" 6. 39" Pressure="948. 48" Humidity="98. 60"/> <Calibration Target. Distance="10. 345" Cal. Value="43477" Peak. Minus. Mean="-5" Recorded. Points="1200" Accepted. Points="1069" Sigma. Used="2. 2" RMS="13" Skew="0. 0002" Kurtosis="0. 0000" Wettzell: Return. Quote="89. 08"/> <Custom. Data> </EDF>

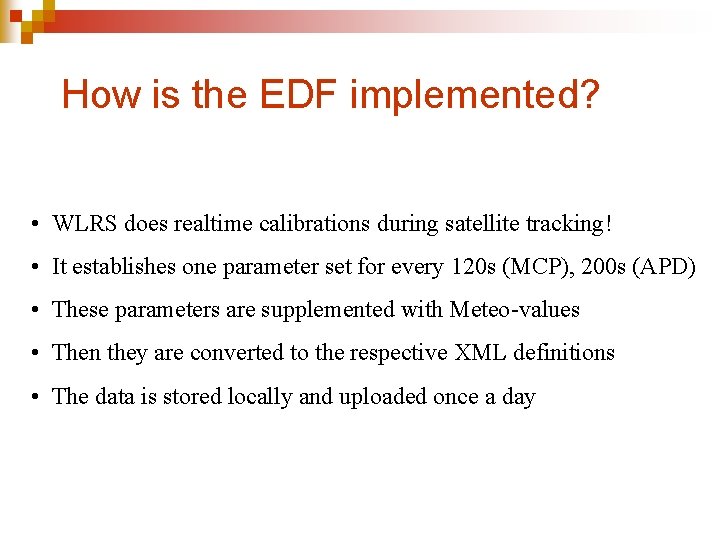

How is the EDF implemented? • WLRS does realtime calibrations during satellite tracking! • It establishes one parameter set for every 120 s (MCP), 200 s (APD) • These parameters are supplemented with Meteo-values • Then they are converted to the respective XML definitions • The data is stored locally and uploaded once a day

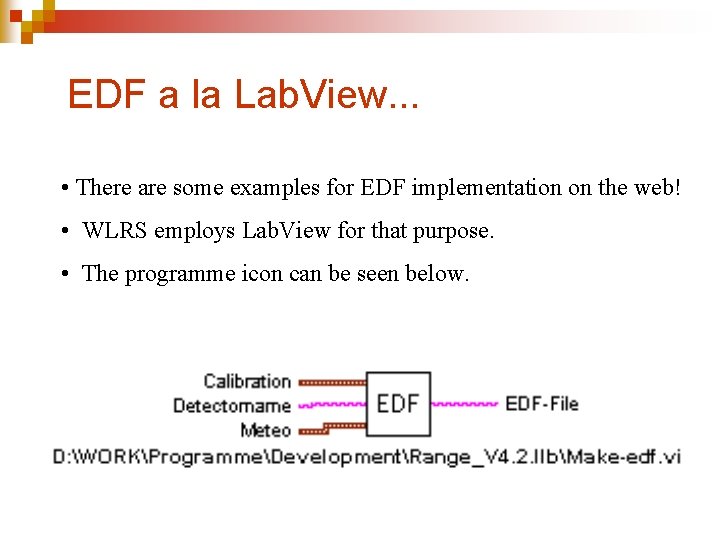

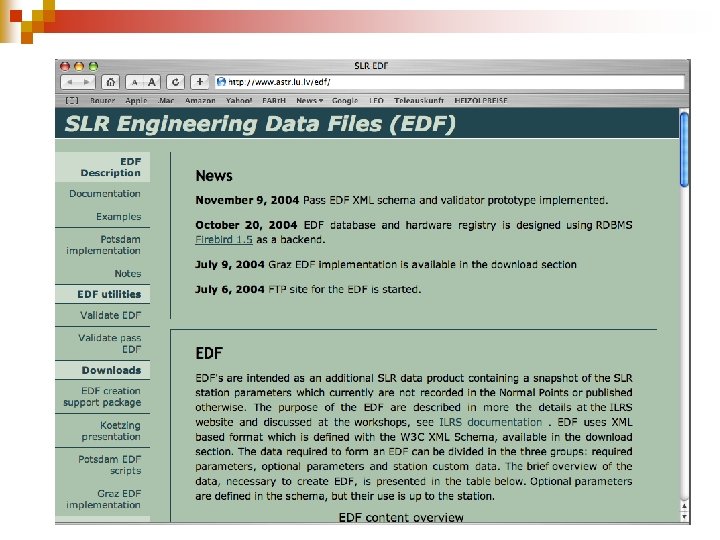

EDF a la Lab. View. . . • There are some examples for EDF implementation on the web! • WLRS employs Lab. View for that purpose. • The programme icon can be seen below.

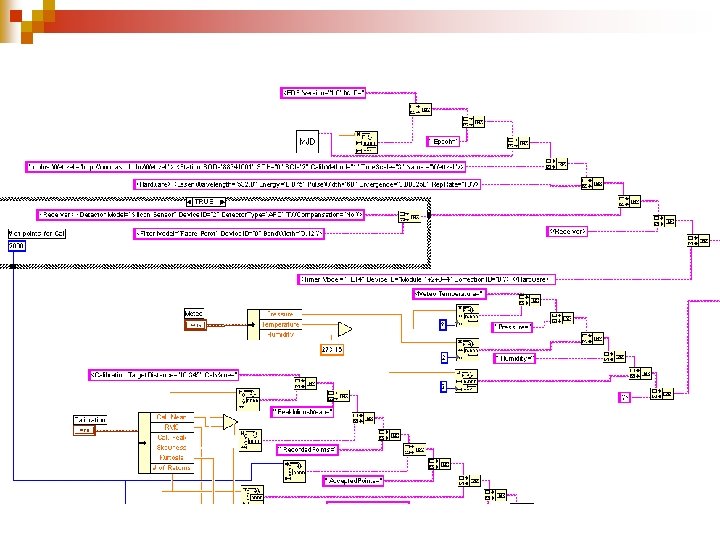

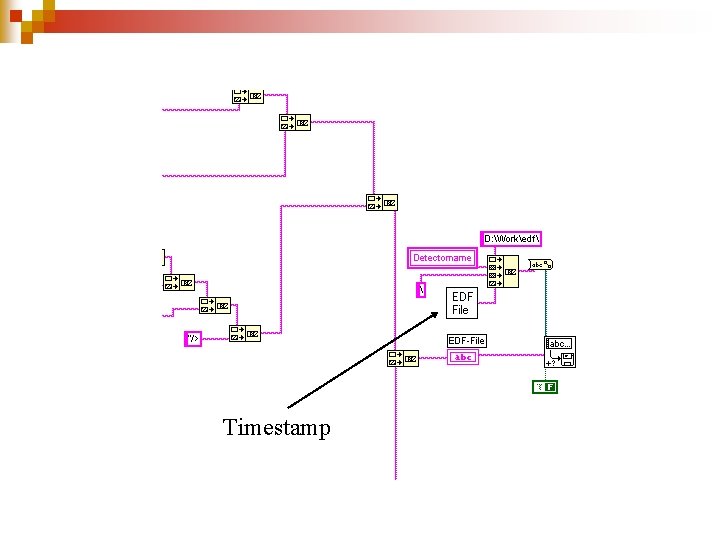

Timestamp
