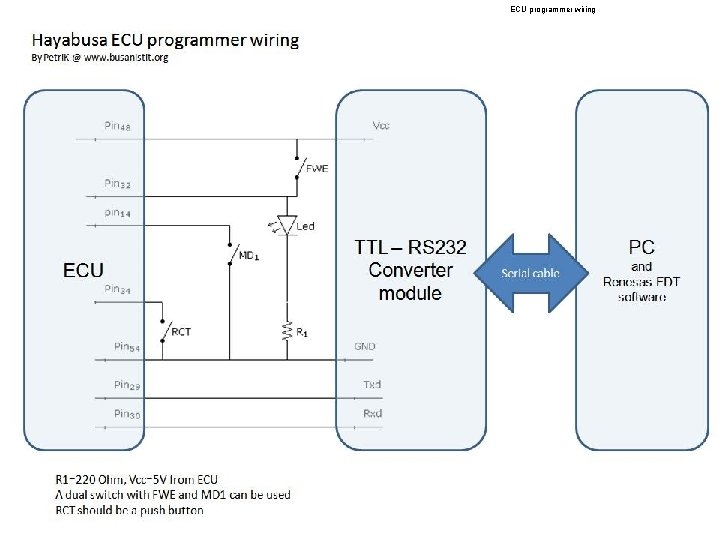

ECU programmer wiring Hayabusa K 2 K 7

ECU programmer wiring

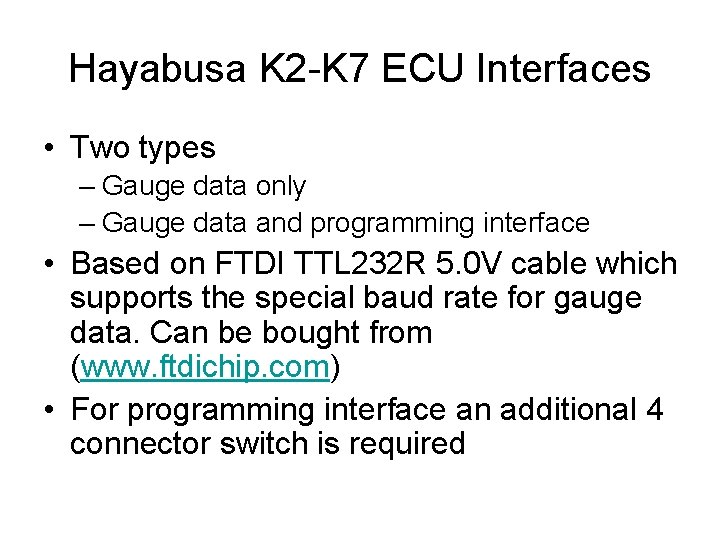

Hayabusa K 2 -K 7 ECU Interfaces • Two types – Gauge data only – Gauge data and programming interface • Based on FTDI TTL 232 R 5. 0 V cable which supports the special baud rate for gauge data. Can be bought from (www. ftdichip. com) • For programming interface an additional 4 connector switch is required

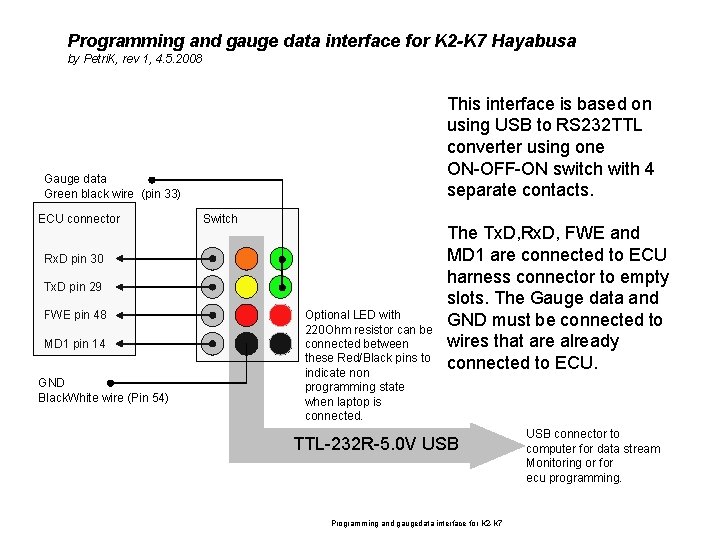

Programming and gauge data interface for K 2 -K 7 Hayabusa by Petri. K, rev 1, 4. 5. 2008 This interface is based on using USB to RS 232 TTL converter using one ON-OFF-ON switch with 4 separate contacts. Gauge data Green black wire (pin 33) ECU connector Switch Rx. D pin 30 Tx. D pin 29 FWE pin 48 MD 1 pin 14 GND Black. White wire (Pin 54) Optional LED with 220 Ohm resistor can be connected between these Red/Black pins to indicate non programming state when laptop is connected. The Tx. D, Rx. D, FWE and MD 1 are connected to ECU harness connector to empty slots. The Gauge data and GND must be connected to wires that are already connected to ECU. TTL-232 R-5. 0 V USB Programming and gaugedata interface for K 2 -K 7 USB connector to computer for data stream Monitoring or for ecu programming.

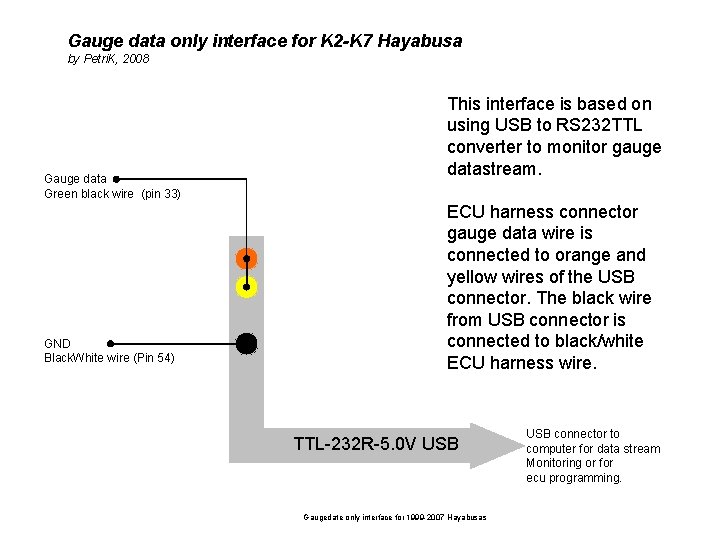

Gauge data only interface for K 2 -K 7 Hayabusa by Petri. K, 2008 Gauge data Green black wire (pin 33) GND Black. White wire (Pin 54) This interface is based on using USB to RS 232 TTL converter to monitor gauge datastream. ECU harness connector gauge data wire is connected to orange and yellow wires of the USB connector. The black wire from USB connector is connected to black/white ECU harness wire. TTL-232 R-5. 0 V USB Gaugedate only interface for 1999 -2007 Hayabusas USB connector to computer for data stream Monitoring or for ecu programming.

Gauge data only interface for K 2 -K 7 Hayabusa by Petri. K, 2008 Gaugedata only : USB to RS 232 -TTL cable Ready made interface: Programming / gaugedata interface: Innovate Plugin interface ECU Editor/monitor interface FDT Programming interface USB to RS 232 -TTL cable Switch with 4 contacts 4 harness pin wires (yoshi wires can be used) 2 wires for GND and Gauge Data Shrinking tube Pictures of interfaces and parts
