eCommerce User Meeting Presented by Deb Williams Click

e-Commerce User Meeting Presented by Deb Williams Click Here To End Show

X 12 vs. EDIFACT Comparison and Contrast e-Commerce User Meeting COMPARE ANSI Transaction EDIFACT Message 810 830 856 862 997 INVOIC DELFOR ORDERS DESADV DELJIT CONTRL Invoice Planning Schedule Purchase Order Ship Manifest Notice Shipping Schedule Functional Ack. Invoice Delivery Schedule Purchase Order Dispatch Advice Delivery Just In Time Functional Ack. Click Here To End Show

X 12 vs. EDIFACT Comparison and Contrast e-Commerce User Meeting ASC X 12 EDIFACT North American - ANSI International - UN American National Standards Institute EDI for Administration, Commerce and Transaction Set Segment Tables (Loops) Segment Elements Sub-element Transport Message Segment Groups (Loops) Segment Simple Data Element Composite Data Element Click Here To End Show

X 12 vs. EDIFACT Groups e-Commerce User Meeting Group 1 Group 2 Group 6 includes Group 12 includes the LIN, PIA, MEA, LOC and Group 15 and 17 Click Here To End Show

X 12 vs. EDIFACT Groups e-Commerce User Meeting Group 12 Continued. . . Group 15 includes QTY, DTM and Group 16 Group 17 includes QTY, DTM and Group 18 includes QTY and DTM Click Here To End Show

X 12 vs. EDIFACT Comparison and Contrast e-Commerce User Meeting ASC X 12 ISA GS ST EDIFACT UNA (delimiter String Advice) UNB UNG UNH first message nth message CTT SE GE IEA NO DETAIL OR HL COUNTERS UNT UNE UNZ Click Here To End Show

X 12 vs. EDIFACT Delimiters e-Commerce User Meeting EDIFACT allows the trading partners to either - Establish a service string: UNA - Default Service String Apostrophe ('): segment terminator Plus sign (+): segment tag and data element separator Colon (: ): component data element separator Component Separator Data Element Separators Segment Terminator LIN+1+8+R 12555: IN’ Click Here To End Show

X 12 vs. EDIFACT Comparison and Contrast e-Commerce User Meeting The Material Release (830) vs. The Delivery Schedule (Delfor) Click Here To End Show

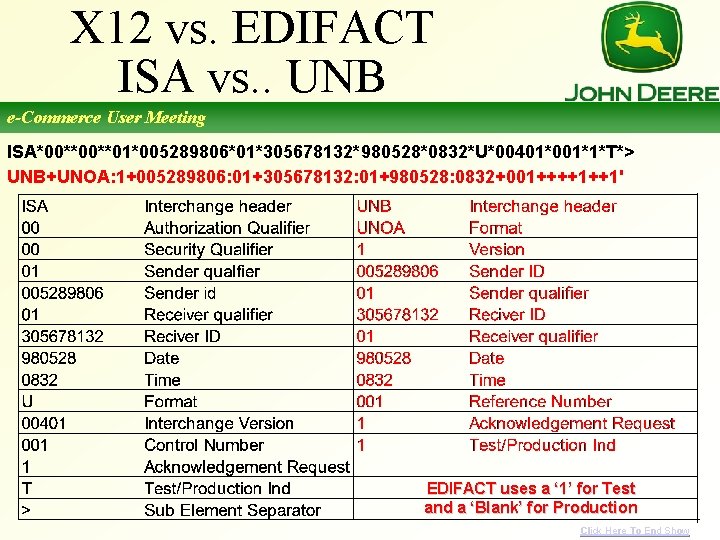

X 12 vs. EDIFACT ISA vs. . UNB e-Commerce User Meeting ISA*00**01*005289806*01*305678132*980528*0832*U*00401*001*1*T*> UNB+UNOA: 1+005289806: 01+305678132: 01+980528: 0832+001++++1++1' EDIFACT uses a ‘ 1’ for Test and a ‘Blank’ for Production Click Here To End Show

X 12 vs. EDIFACT GS vs. . UNG e-Commerce User Meeting GS*PS*005289806*350678132*19980528*0832*001*X*004010 UNG+DELFOR+005289806+350678132+19980528: 0832+001+UN+D: 99 A' Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting ANSI ASC X 12 – 830 Transaction Set ST*830*0001 EDIFACT DELFOR Message UNH+0001+DELFOR: D: 99 A: UN' BFR*05*98147132019* BGM+241+98147+5' DTM+137: 19980528: 102’ DL*A*19980227*20000118* DTM+158: 19980227: 102’ 19980528 DTM+159: 20000118: 102’ RFF+ON: 98147132019 ANSI transaction sets has different Beginning Segments for each transaction EDIFACT has 1 Beginning Segment BGM for all messages Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting 4 Segments ANSI ASC X 12 – 830 Transaction Set N 1*ST*JOHN DEERE FACTORY*1*005289806 N 2*C/O ACME WAREHOUSE N 3*1000 MAIN STREET N 4*MOLINE*IL*61265*US vs. . 1 Segment EDIFACT DELFOR Message NAD+ST+005289806: : 16++JOHN DEERE FACTORY++ C/O ACME WAREHOUSE+1000 MAIN STREET C/O ACME WAREHOUSE+MOLINE+IL+6126 5+US’ Click Here To End Show

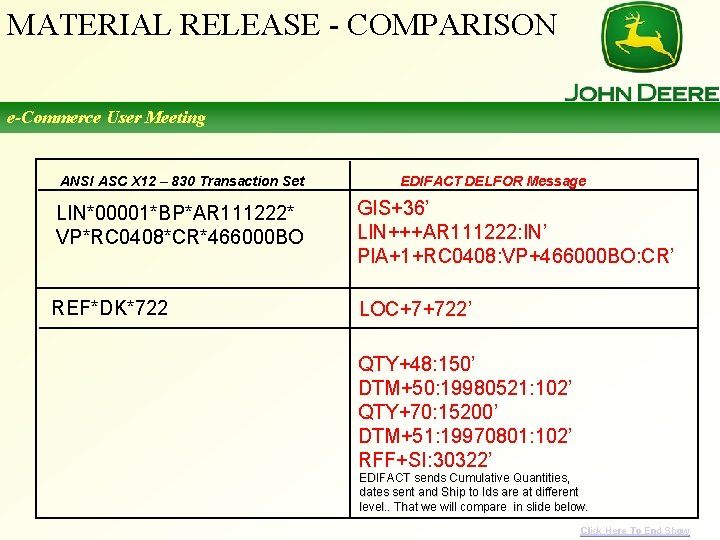

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting ANSI ASC X 12 – 830 Transaction Set EDIFACT DELFOR Message LIN*00001*BP*AR 111222* VP*RC 0408*CR*466000 BO GIS+36’ LIN+++AR 111222: IN’ PIA+1+RC 0408: VP+466000 BO: CR’ REF*DK*722 LOC+7+722’ QTY+48: 150’ DTM+50: 19980521: 102’ QTY+70: 15200’ DTM+51: 19970801: 102’ RFF+SI: 30322’ EDIFACT sends Cumulative Quantities, dates sent and Ship to Ids are at different level. . That we will compare in slide below. Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting ANSI ASC X 12 – 830 Transaction Set FST*150*C*D*19980604 EDIFACT DELFOR Message SCC+2++D’ QTY+1: 150’ DTM+2: 19980604: 102’ FST*100*C*D*19980618 QTY+1: 100’ DTM+2: 19980618: 102’ FST*100*D*D*19980625 SCC+4++D’ QTY+1: 100’ DTM+2: 19980625: 102’ FST*200*D*D*19980702 QTY+1: 200’ DTM+2: 19980702: 102’ Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting ANSI ASC X 12 – 830 Transaction Set SHP*01*150*050*19980521 EDIFACT DELFOR Message QTY+48: 150’ DTM+50: 19980521: 102’ SHP*02*15200*051*19970801 QTY+70: 15200’ DTM+51: 19970801: 102’ (This is equivalent to SHP but not at this level) REF*SI*30322 RFF+SI: 30322 ' CTT*1*3350 No Line or HL counters used in EDIFACT SE*17*0001 UNT+26+0001’ GE*1*001 IEA*1*001 UNE+1+001’ UNZ+1+001’ Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting Click Here To End Show

MATERIAL RELEASE - COMPARISON e-Commerce User Meeting Any Questions Now ? ? ? Click Here To End Show
