ECM Portable Ultrasound Producer

I. HISTORY For all veterinarian applications on all animal species…

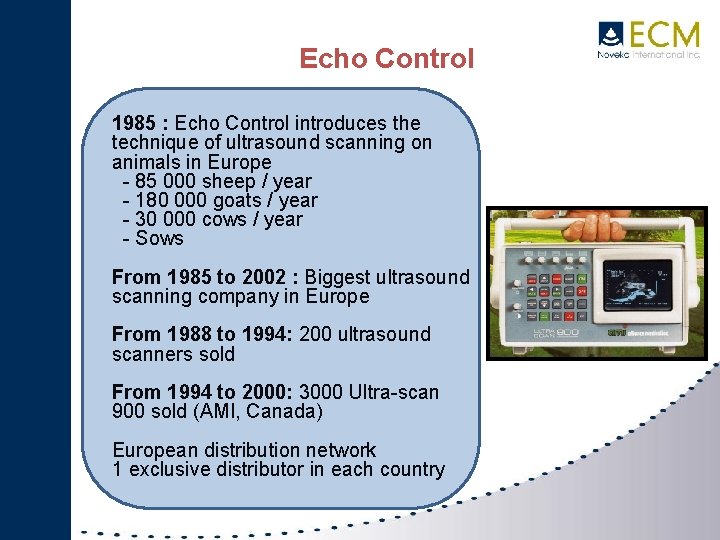

Echo Control 1985 : Echo Control introduces the technique of ultrasound scanning on animals in Europe - 85 000 sheep / year - 180 000 goats / year - 30 000 cows / year - Sows From 1985 to 2002 : Biggest ultrasound scanning company in Europe From 1988 to 1994: 200 ultrasound scanners sold From 1994 to 2000: 3000 Ultra-scan 900 sold (AMI, Canada) European distribution network 1 exclusive distributor in each country

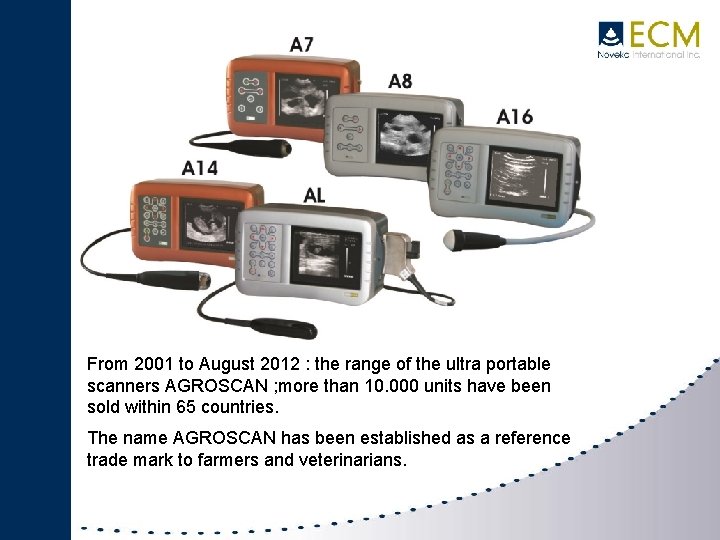

I. HISTORY From 2001 to August 2012 : the range of the ultra portable scanners AGROSCAN ; more than 10. 000 units have been sold within 65 countries. The name AGROSCAN has been established as a reference trade mark to farmers and veterinarians.

Research and Development Production After Sales Service

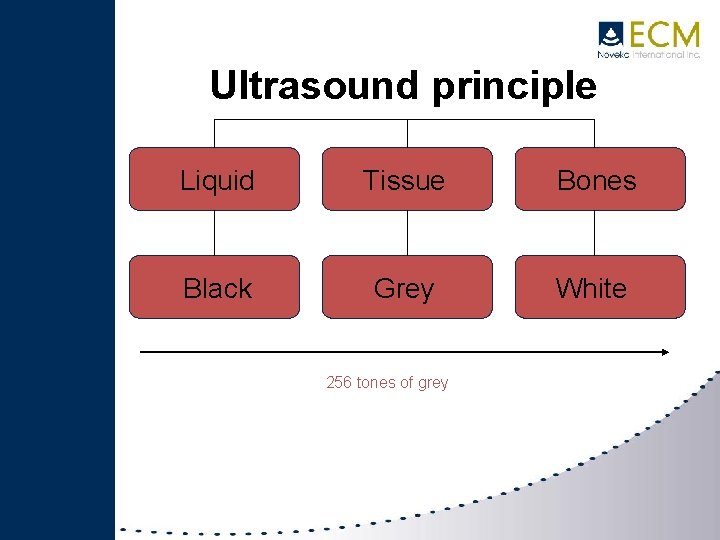

Ultrasound principle Liquid Black Tissue Liqui Grey 256 tones of grey Bones White

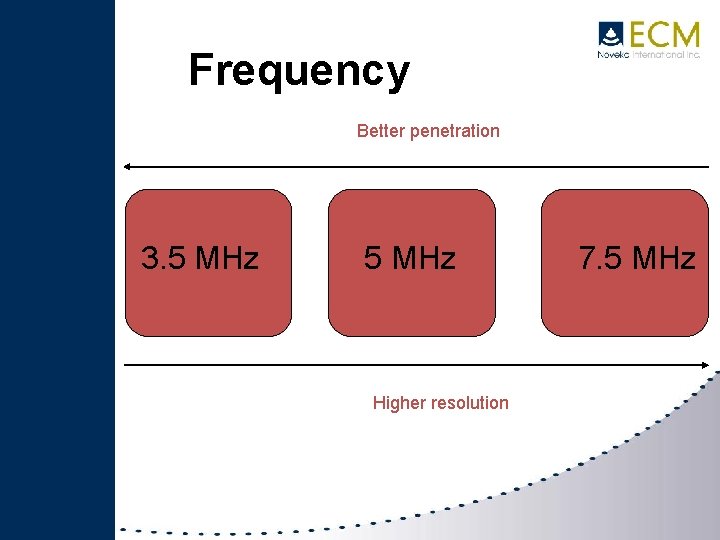

Frequency Better penetration 3. 5 MHz Higher resolution 7. 5 MHz

Not only for pregnancy control…

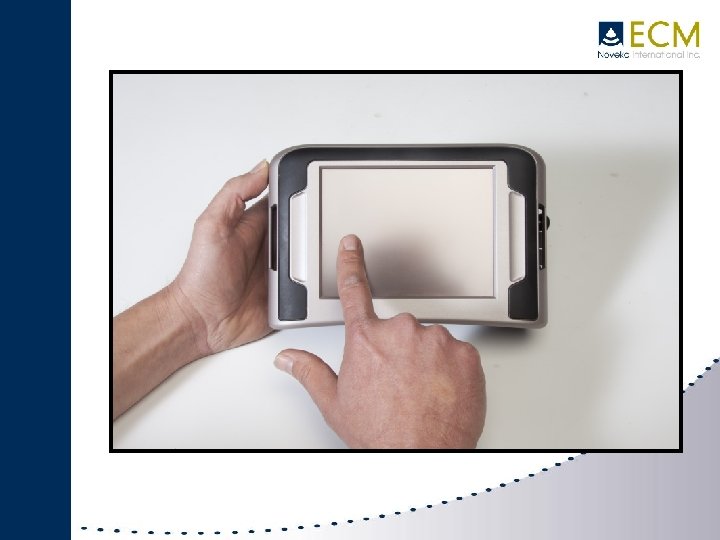

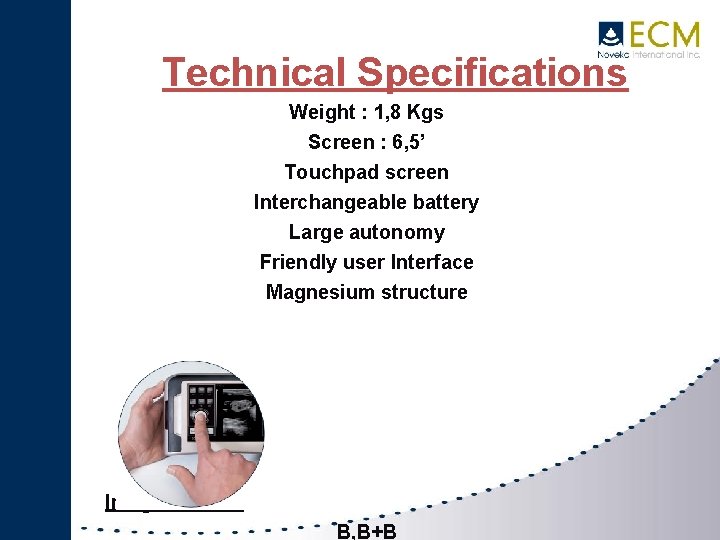

Technical Specifications Weight : 1, 8 Kgs Screen : 6, 5’ Touchpad screen Interchangeable battery Large autonomy Friendly user Interface Magnesium structure Images Modes B, B+B

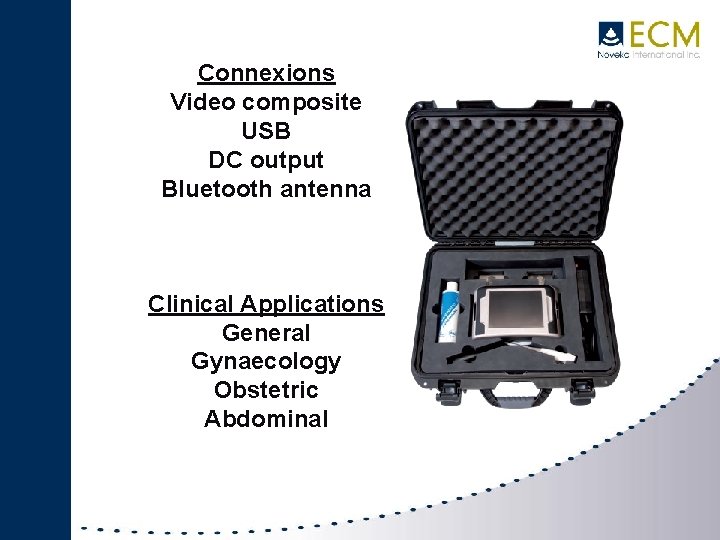

Connexions Video composite USB DC output Bluetooth antenna Clinical Applications General Gynaecology Obstetric Abdominal

IMAGO PROBES Linear rectal 5/10 MHz Linear ‘T’ 5/10 MHz Sector 3, 5/5 MHz Convex 2, 5/5 MHz

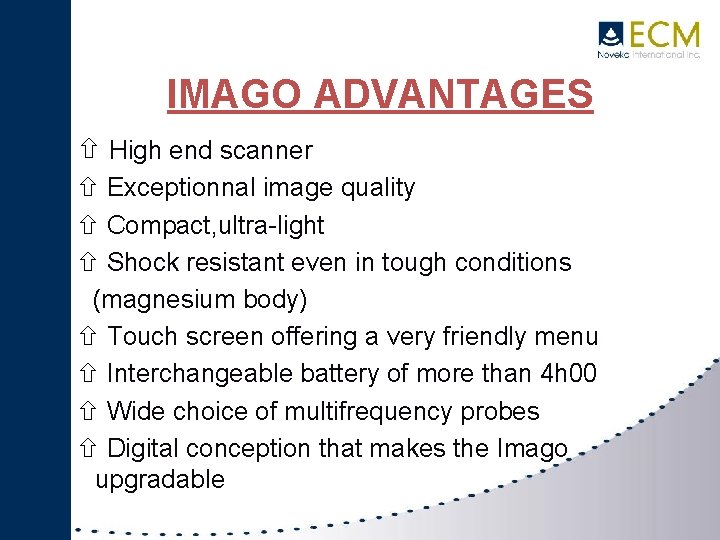

IMAGO ADVANTAGES High end scanner Exceptionnal image quality Compact, ultra-light Shock resistant even in tough conditions (magnesium body) Touch screen offering a very friendly menu Interchangeable battery of more than 4 h 00 Wide choice of multifrequency probes Digital conception that makes the Imago upgradable

Fare clic per modificare stile IMAGO SWINE

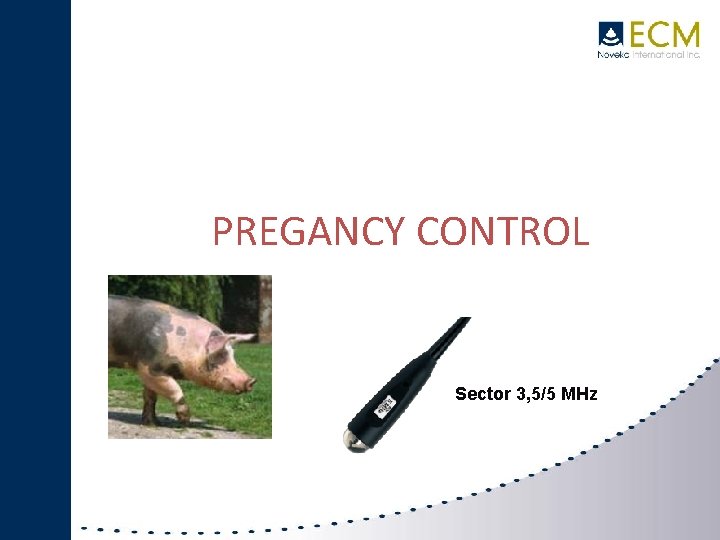

IMAGO PREGANCY CONTROL SWINE Sector 3, 5/5 MHz

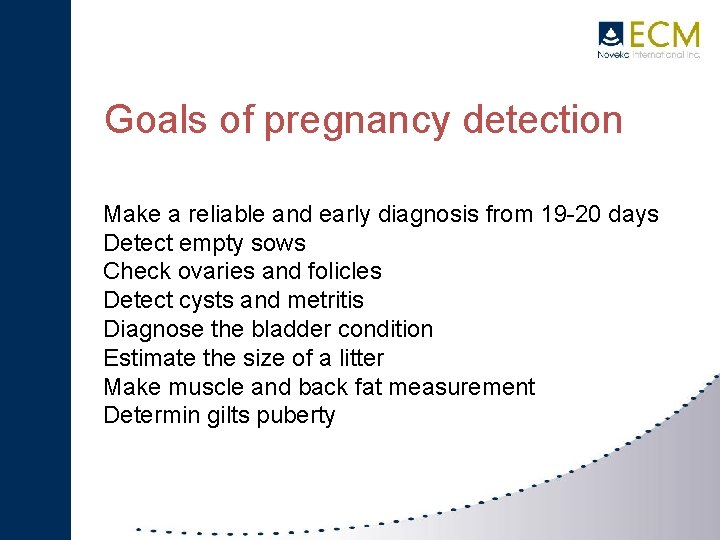

Goals of pregnancy detection Make a reliable and early diagnosis from 19 -20 days Detect empty sows Check ovaries and folicles Detect cysts and metritis Diagnose the bladder condition Estimate the size of a litter Make muscle and back fat measurement Determin gilts puberty

III. EXAGO + Large abdominal probe L 3130 B

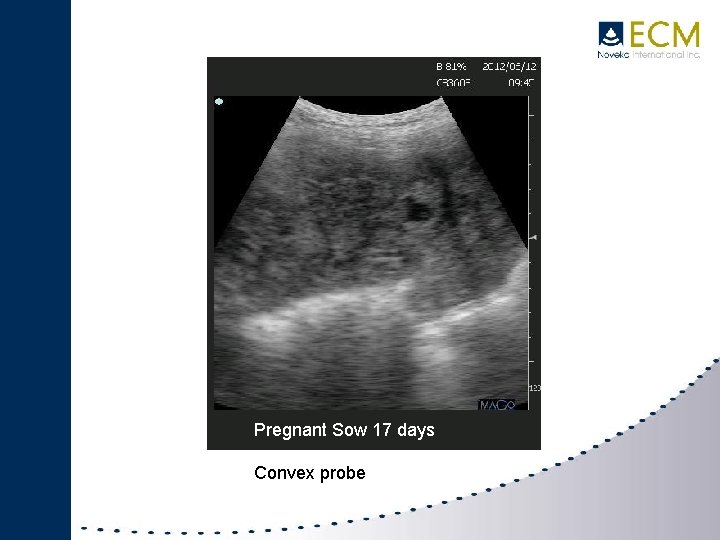

Pregnant Sow 17 days Convex probe

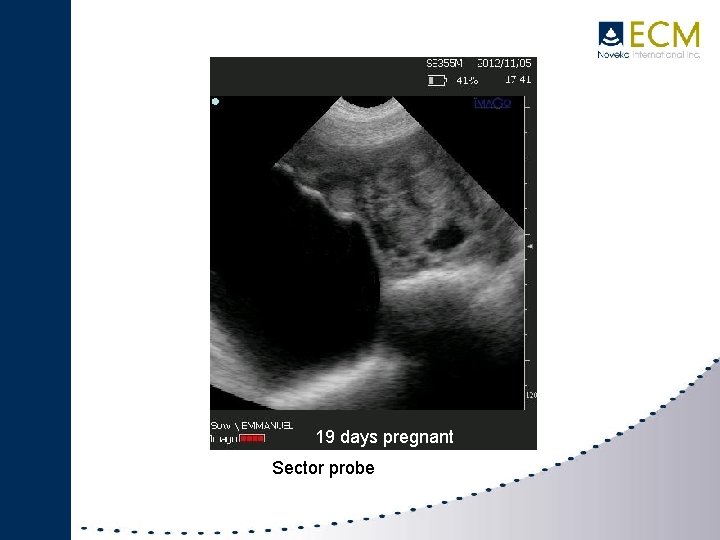

19 days pregnant Sector probe

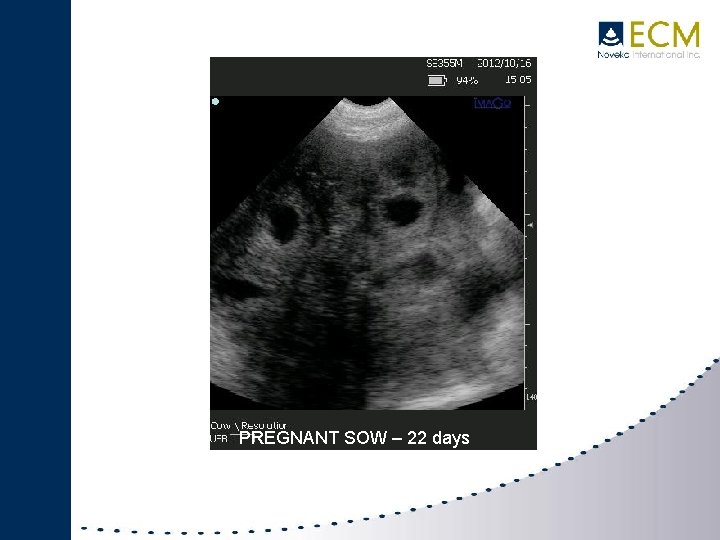

IMAGO SWINE PREGNANT SOW – 22 days

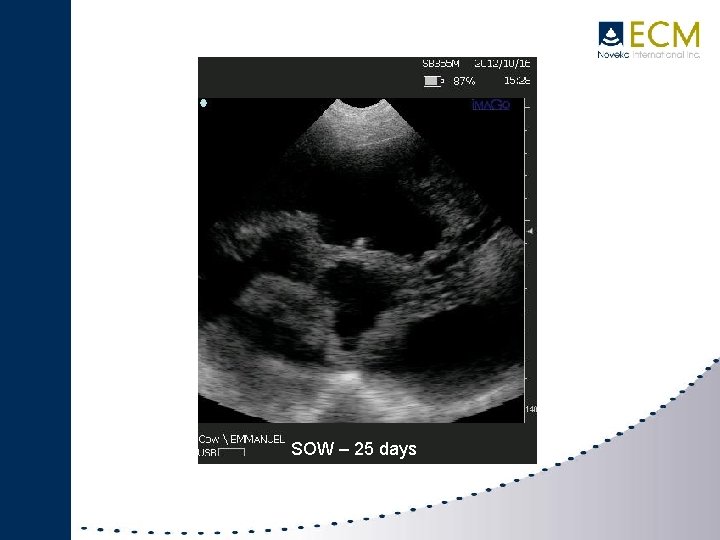

IMAGO SWINE SOW – 25 days

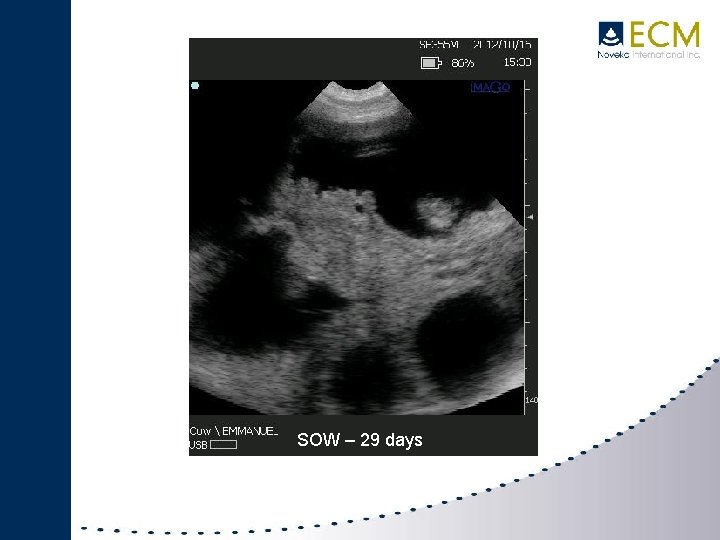

IMAGO SWINE SOW – 29 days

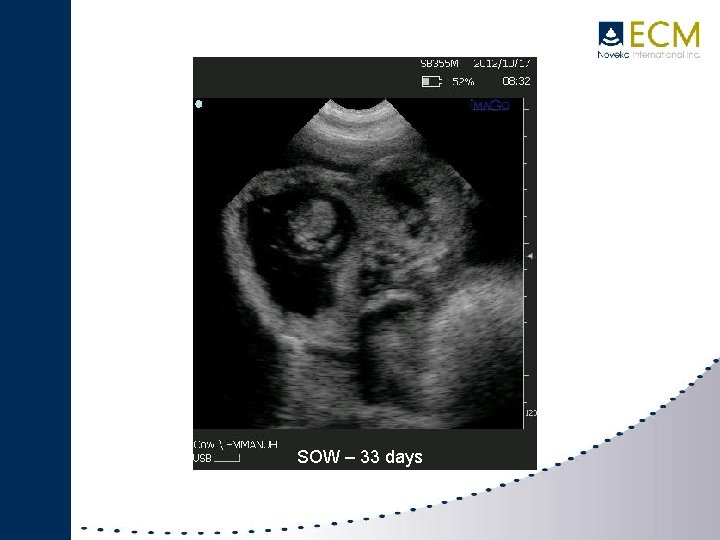

IMAGO SWINE SOW – 33 days

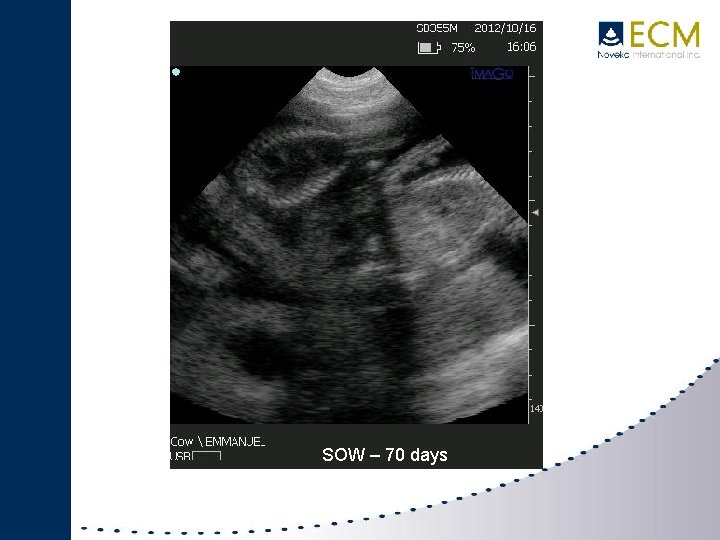

IMAGO SWINE SOW – 70 days

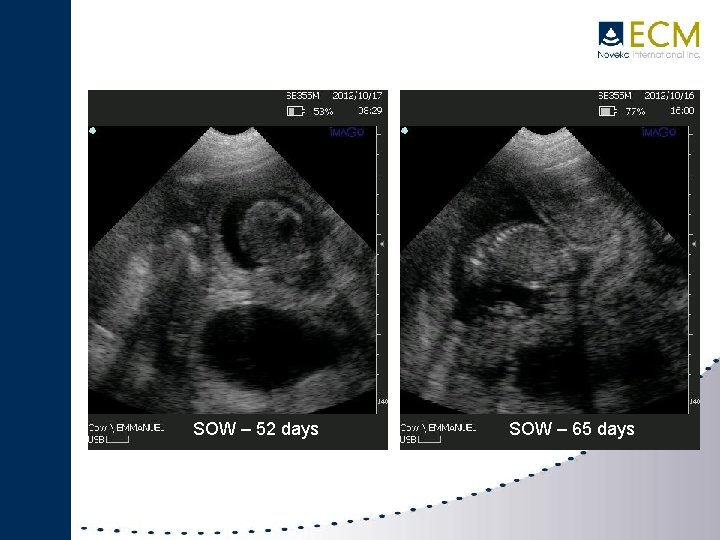

IMAGO SWINE SOW – 52 days SOW – 65 days

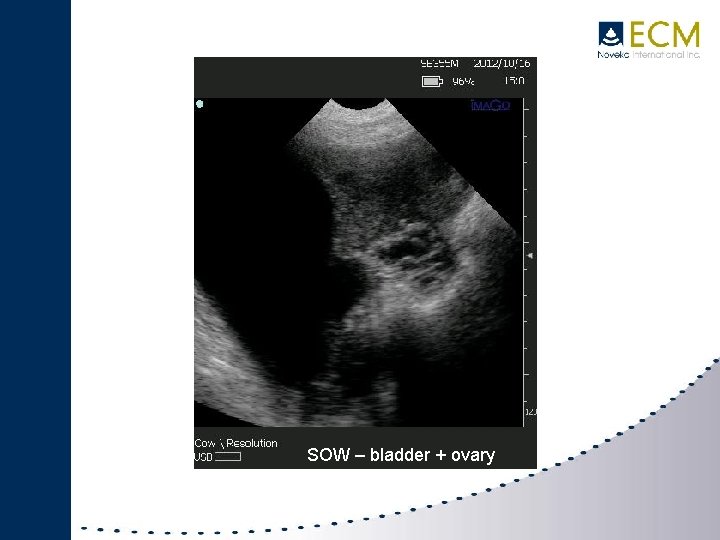

IMAGO SWINE SOW – bladder + ovary

IMAGO SWINE SOW – Empty one SOW – bladder + uterus

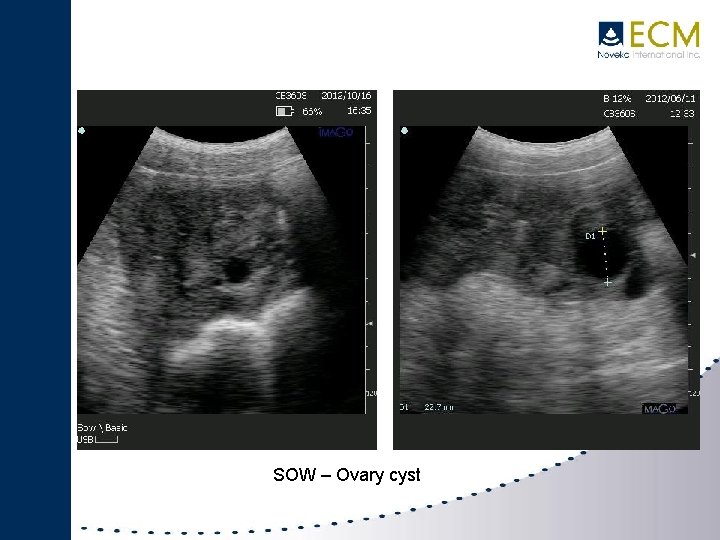

IMAGO SWINE SOW – Ovary cyst

Vidéo 1 IMAGO SWINE Vidéo 2

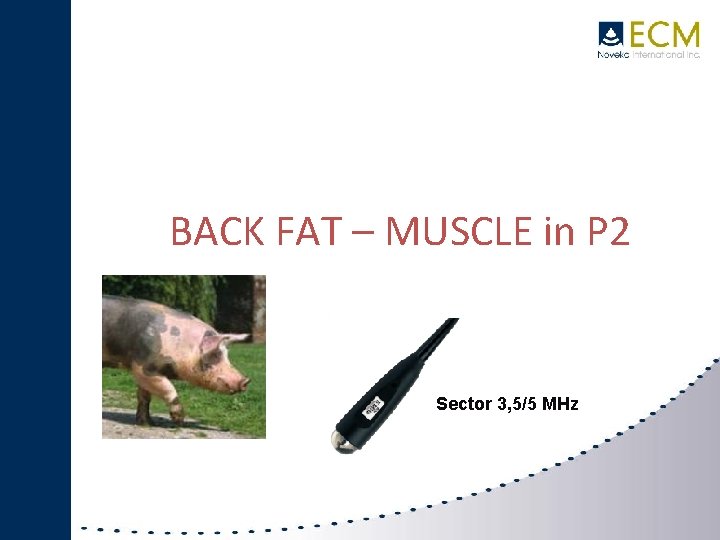

IMAGO BACK FAT – MUSCLE in P 2 SWINE Sector 3, 5/5 MHz

III. EXAGO + Large abdominal probe L 3130 B

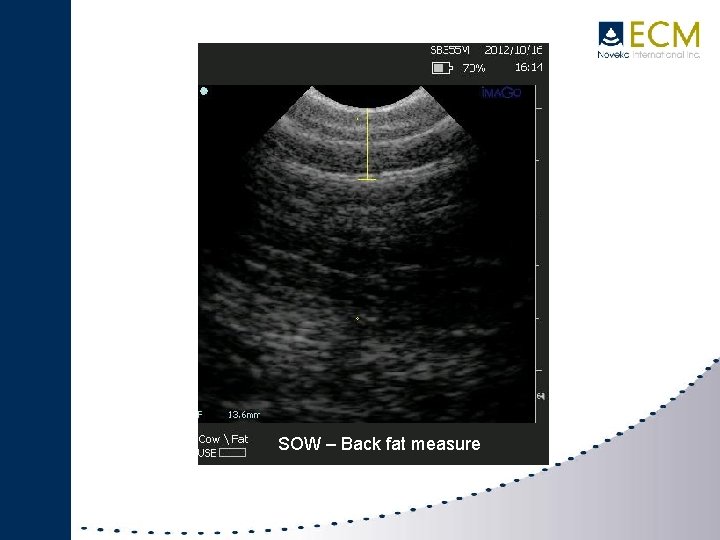

IMAGO SWINE SOW – Back fat measure

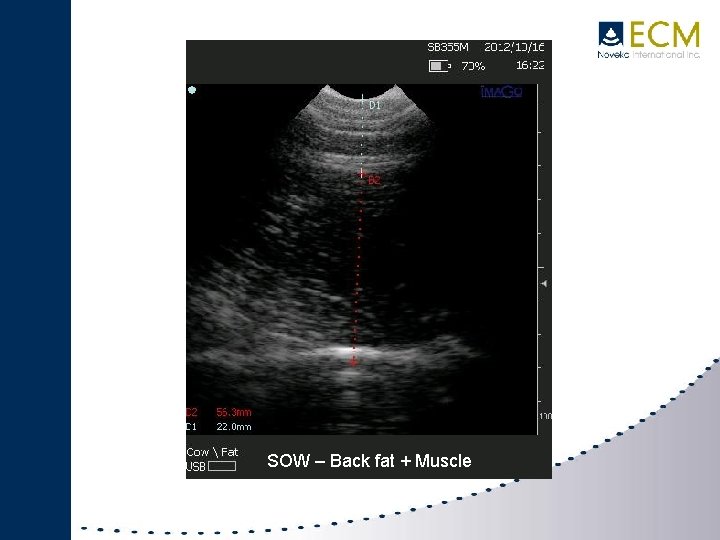

IMAGO SWINE SOW – Back fat + Muscle

BACK FAT – MUSCLE - IMF IMAGO MEASUREMENTS SWINE Linear probe 5/10 MHz

IMAGO SWINE PIG – Back Fat + Muscle measures

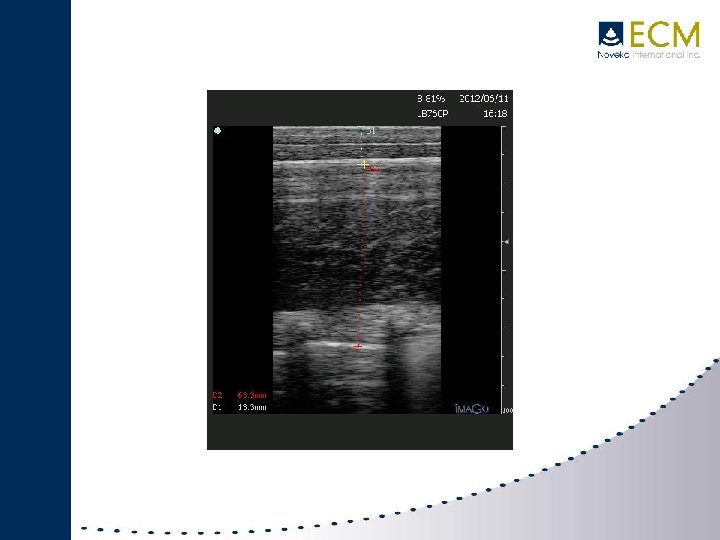

IMAGO SWINE

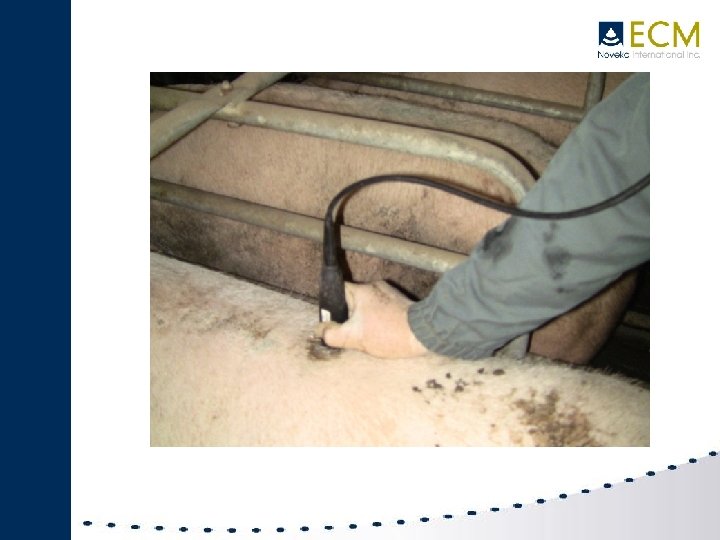

III. EXAGO + Large abdominal probe L 3130 B The high end portable unit…

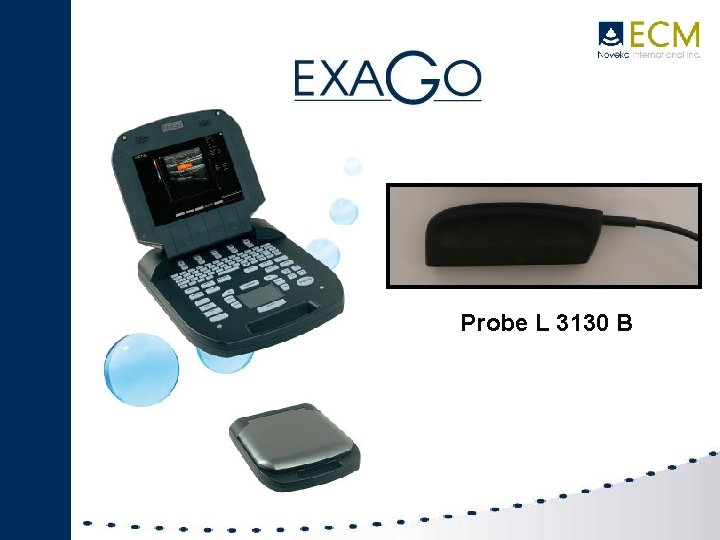

Probe L 3130 B

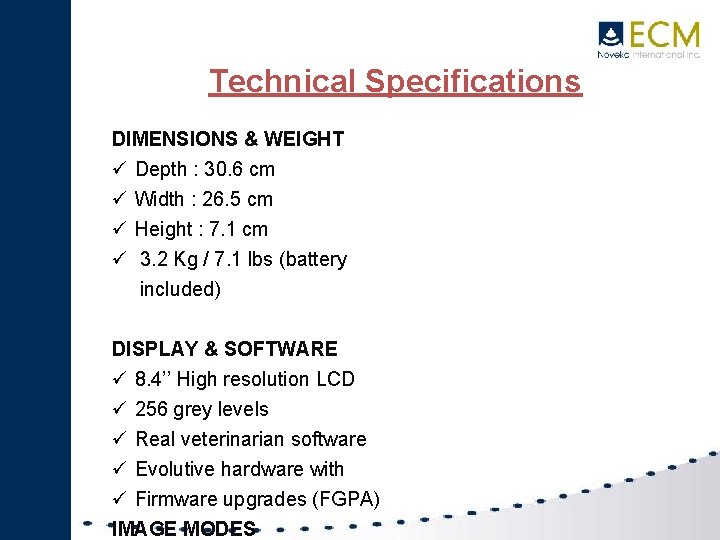

Technical Specifications DIMENSIONS & WEIGHT Depth : 30. 6 cm Width : 26. 5 cm Height : 7. 1 cm 3. 2 Kg / 7. 1 lbs (battery included) DISPLAY & SOFTWARE 8. 4’’ High resolution LCD 256 grey levels Real veterinarian software Evolutive hardware with Firmware upgrades (FGPA) IMAGE MODES

CONNEXIONS Standard video output RJ 45 (DICOM) USB port DVI connection OPERATOR KEYBOARD Touch-pad Alphanumeric keyboard

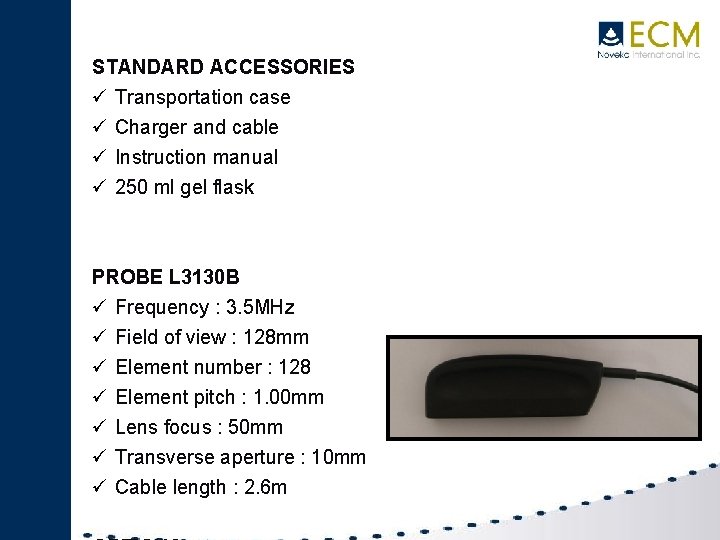

STANDARD ACCESSORIES Transportation case Charger and cable Instruction manual 250 ml gel flask PROBE L 3130 B Frequency : 3. 5 MHz Field of view : 128 mm Element number : 128 Element pitch : 1. 00 mm Lens focus : 50 mm Transverse aperture : 10 mm Cable length : 2. 6 m

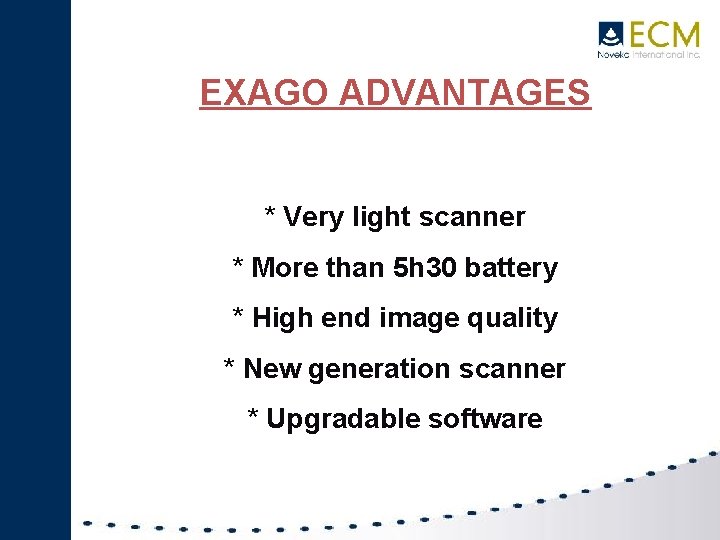

EXAGO ADVANTAGES * Very light scanner * More than 5 h 30 battery * High end image quality * New generation scanner * Upgradable software

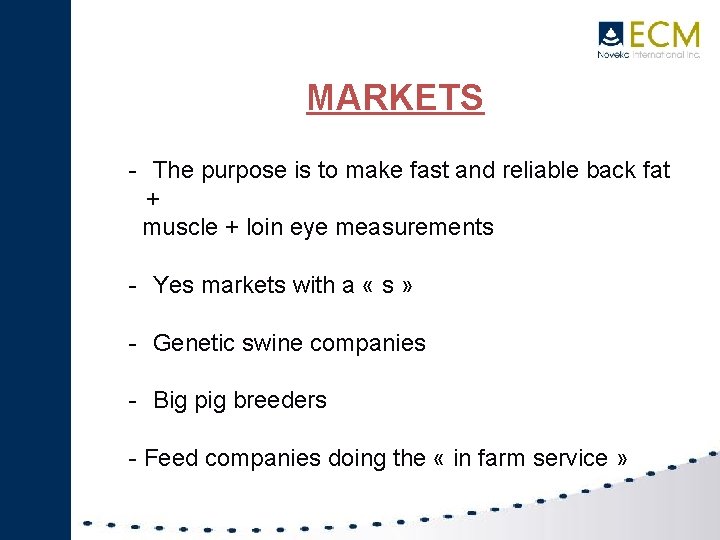

MARKETS - The purpose is to make fast and reliable back fat + muscle + loin eye measurements - Yes markets with a « s » - Genetic swine companies - Big pig breeders - Feed companies doing the « in farm service »

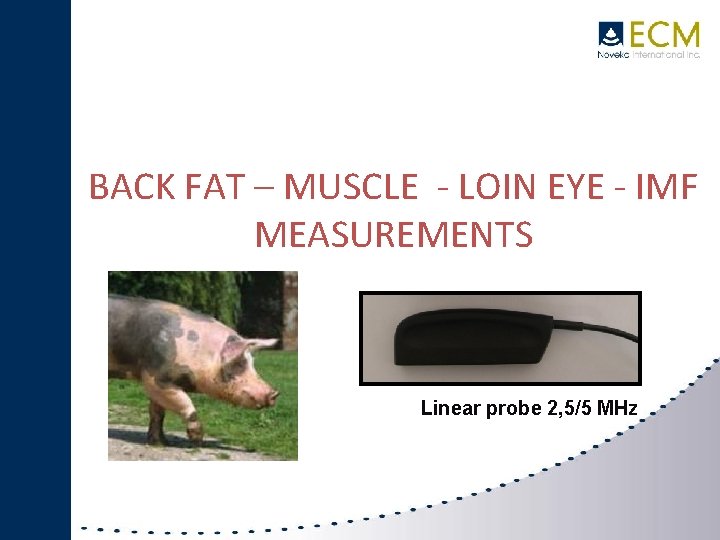

BACK FAT – MUSCLE - LOIN EYE - IMF IMAGO MEASUREMENTS SWINE Linear probe 2, 5/5 MHz

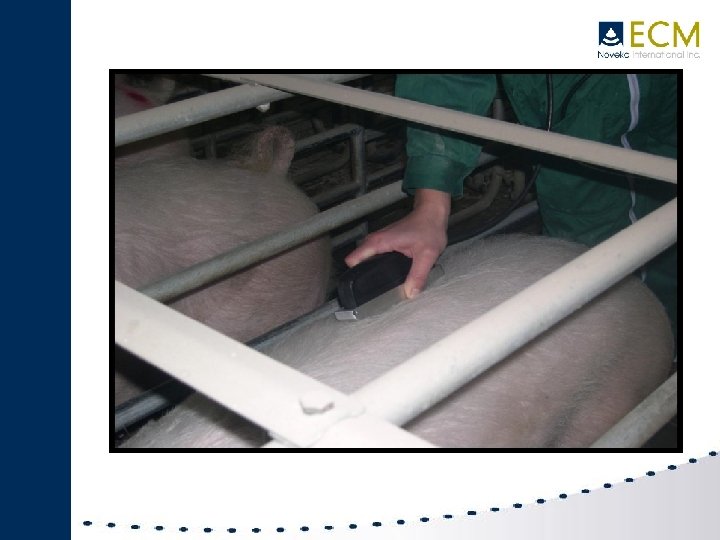

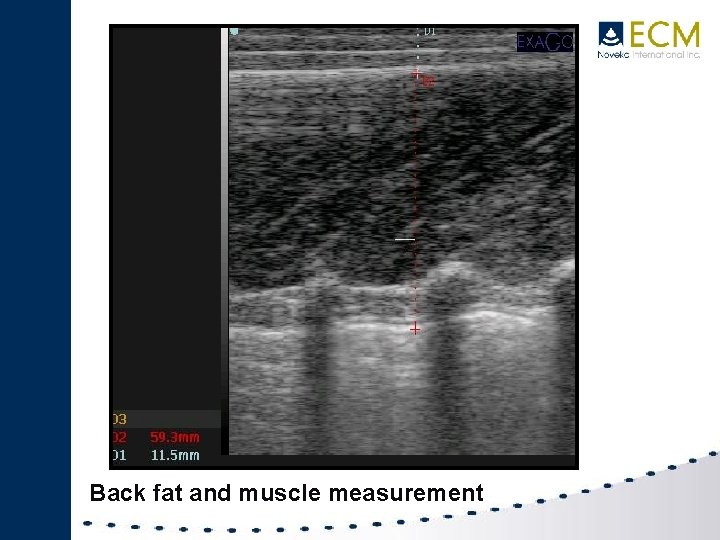

Back fat and muscle measurement

IMAGO SWINE

Back fat and muscle measurement

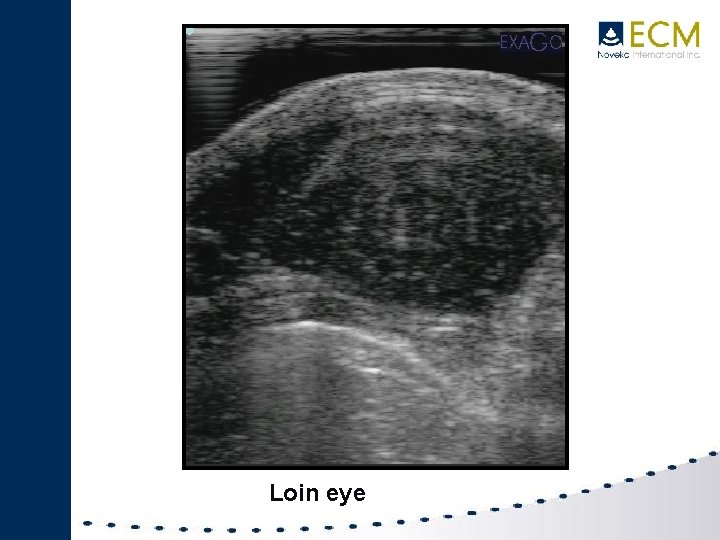

Loin eye

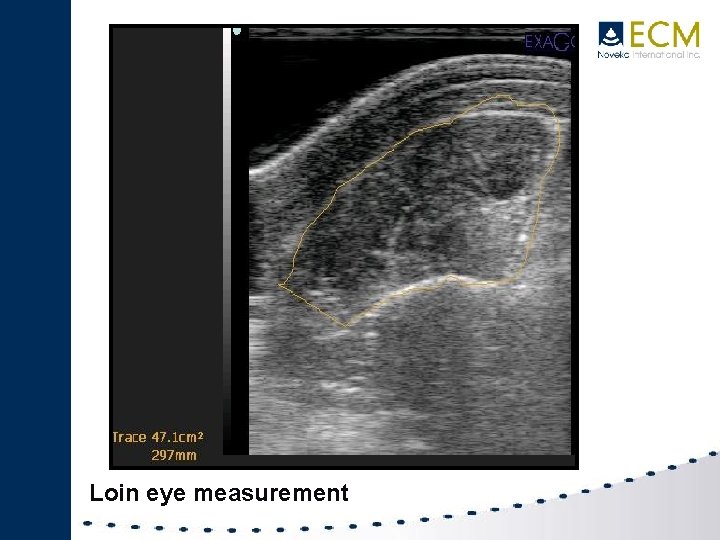

Loin eye measurement

Thanks for your attention.
