ECHO BASICS II 2 D ECHO AND M
ECHO BASICS - II 2 D ECHO AND M – MODE BASIC VIEWS Dr. BENNY JOSE P. SENIOR RESIDENT DEPT OF CARDIOLOGY MEDICAL COLLEGE, KOZHIKODE.

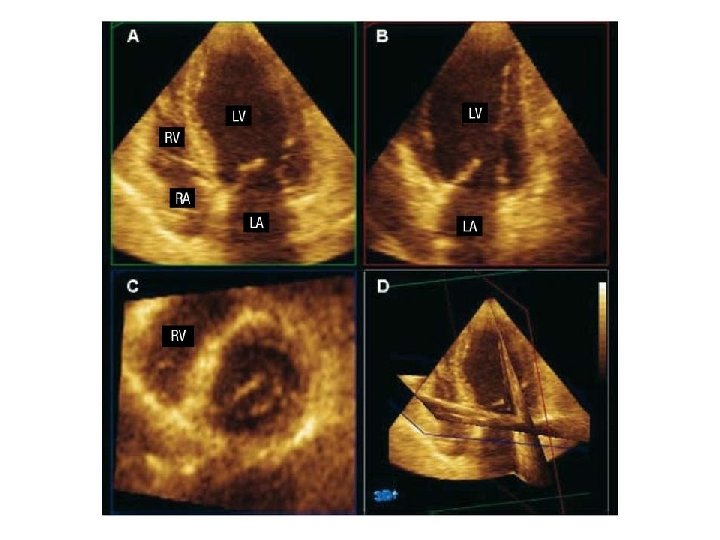

2 D ECHO

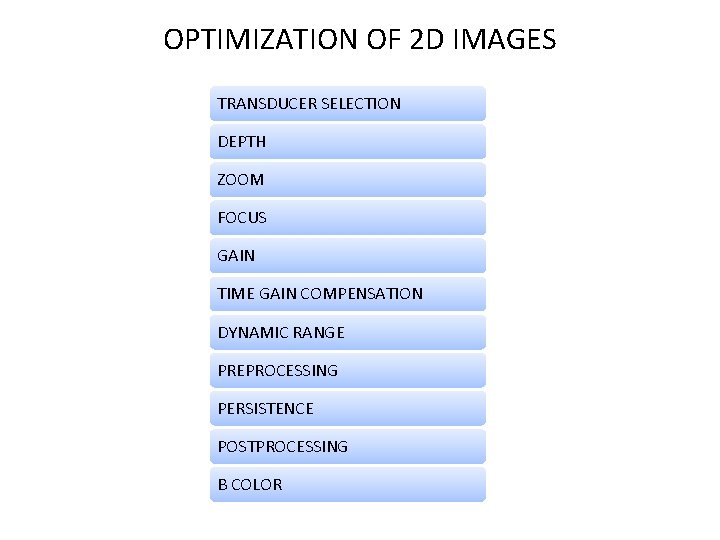

OPTIMIZATION OF 2 D IMAGES TRANSDUCER SELECTION DEPTH ZOOM FOCUS GAIN TIME GAIN COMPENSATION DYNAMIC RANGE PREPROCESSING PERSISTENCE POSTPROCESSING B COLOR

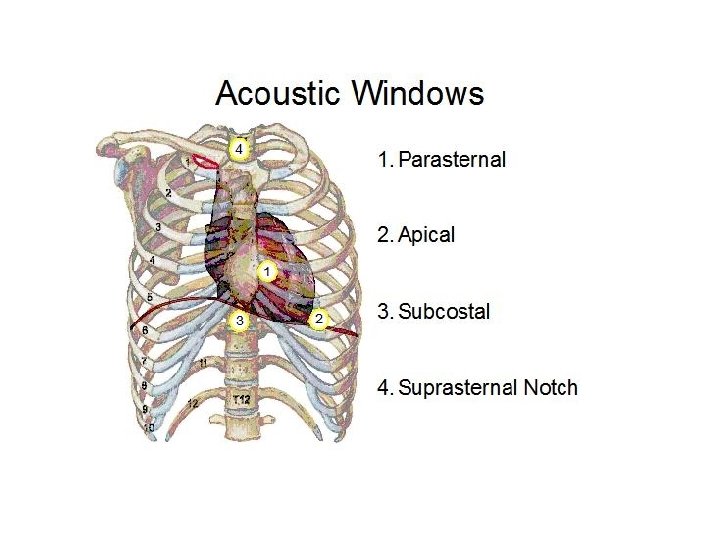

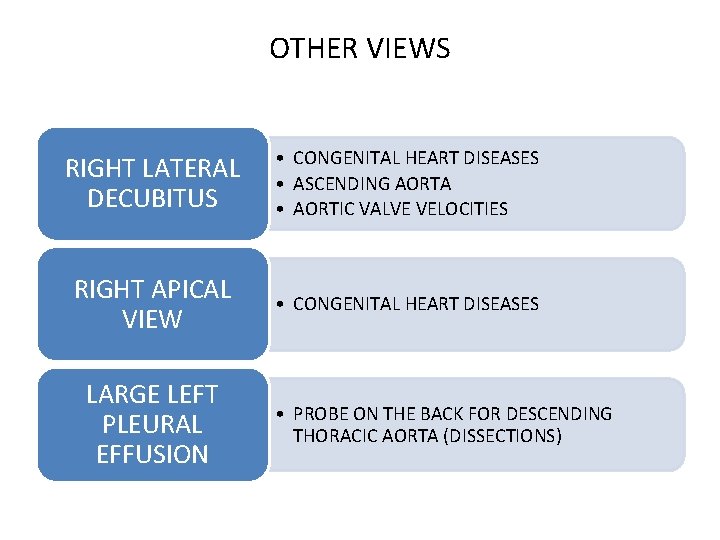

OTHER VIEWS RIGHT LATERAL DECUBITUS • CONGENITAL HEART DISEASES • ASCENDING AORTA • AORTIC VALVE VELOCITIES RIGHT APICAL VIEW • CONGENITAL HEART DISEASES LARGE LEFT PLEURAL EFFUSION • PROBE ON THE BACK FOR DESCENDING THORACIC AORTA (DISSECTIONS)
PATIENT POSITIONING
PARASTERNAL AND APICAL VIEWS

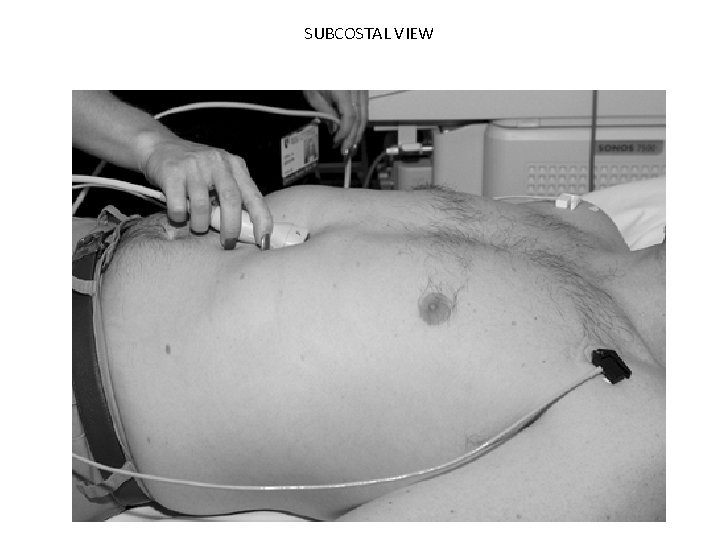

SUBCOSTAL VIEW
SUPRASTERNAL VIEW

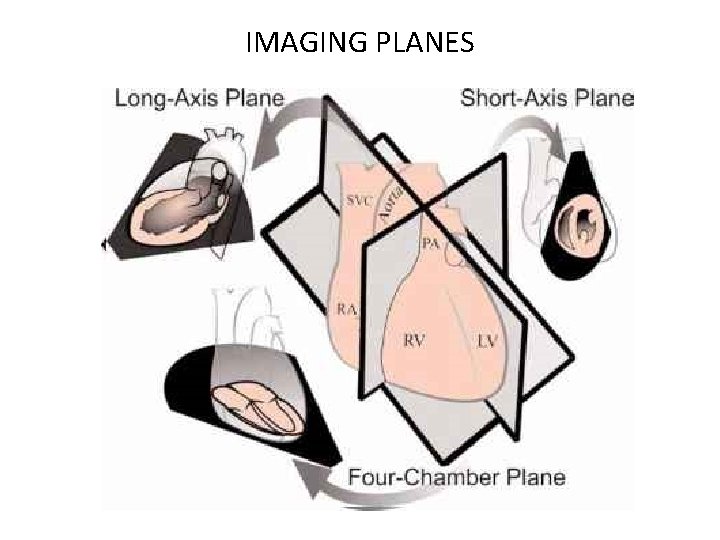

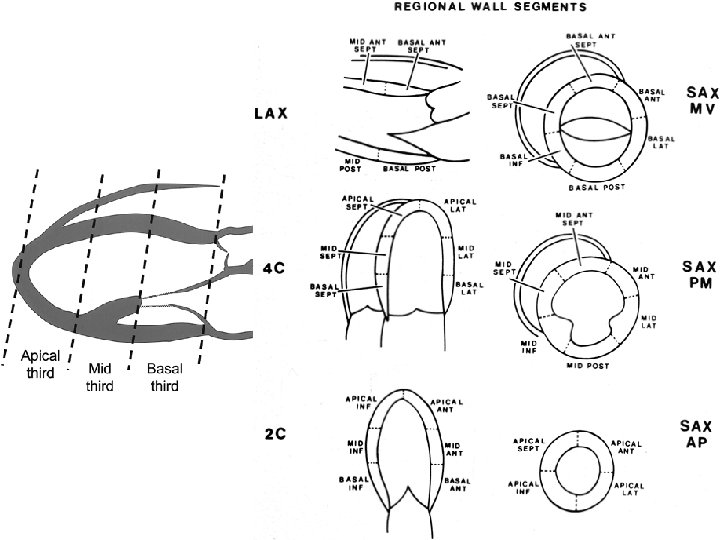

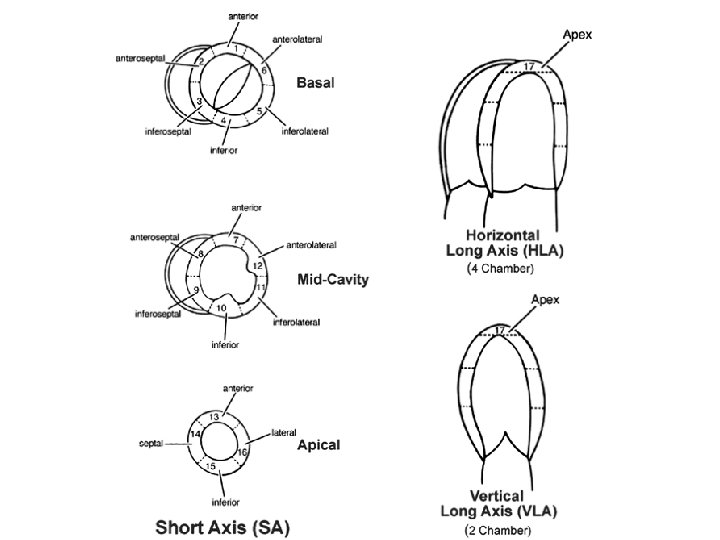

IMAGING PLANES

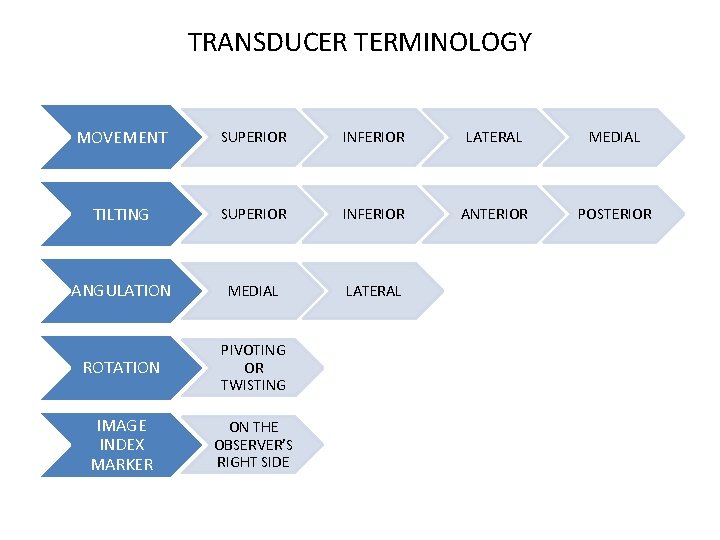

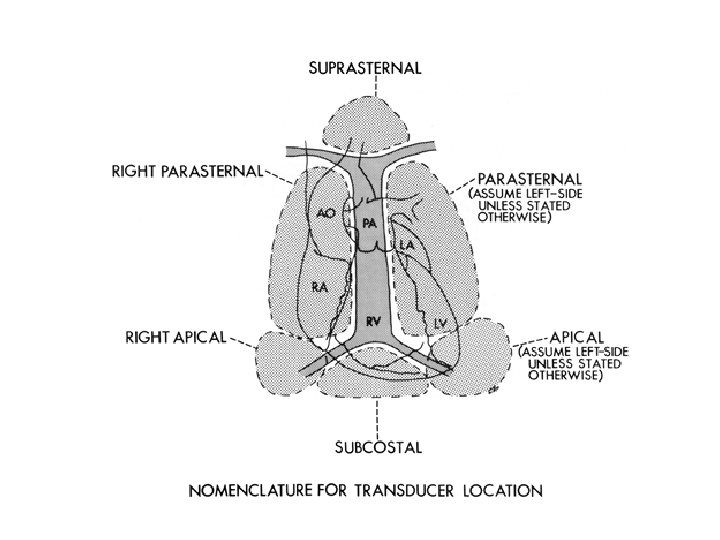

TRANSDUCER TERMINOLOGY MOVEMENT SUPERIOR INFERIOR LATERAL MEDIAL TILTING SUPERIOR INFERIOR ANTERIOR POSTERIOR ANGULATION MEDIAL LATERAL ROTATION PIVOTING OR TWISTING IMAGE INDEX MARKER ON THE OBSERVER’S RIGHT SIDE
2 D ECHO VIEWS
PARASTERNAL LONG AXIS
PARASTERNAL LONG AXIS

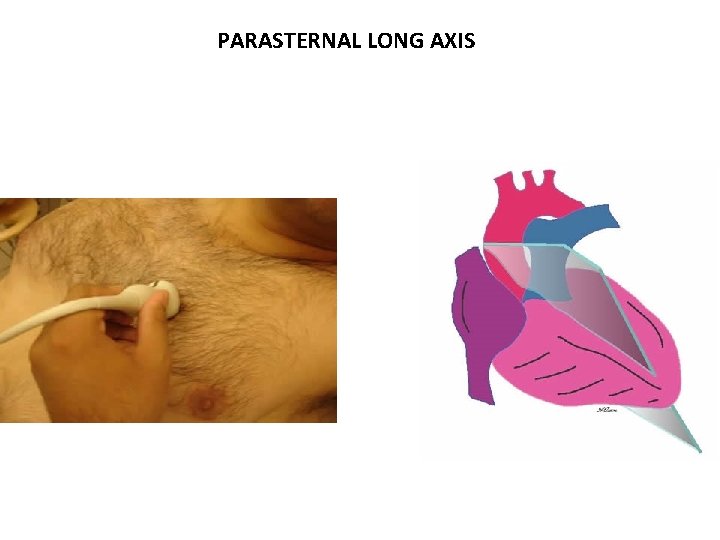

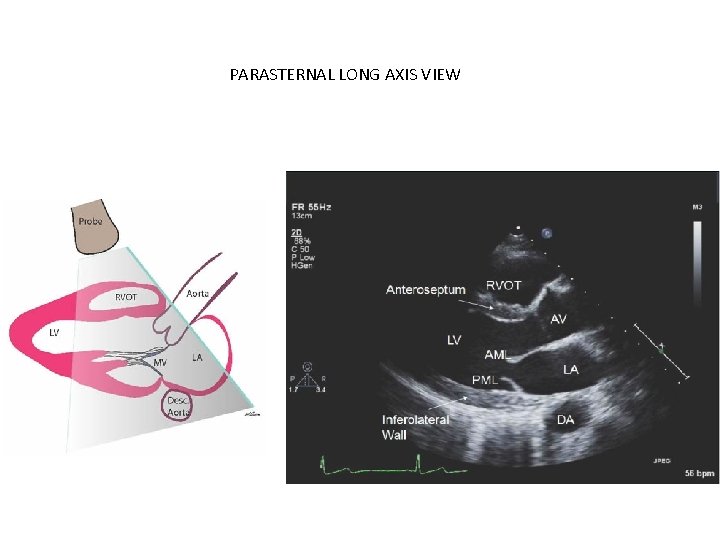

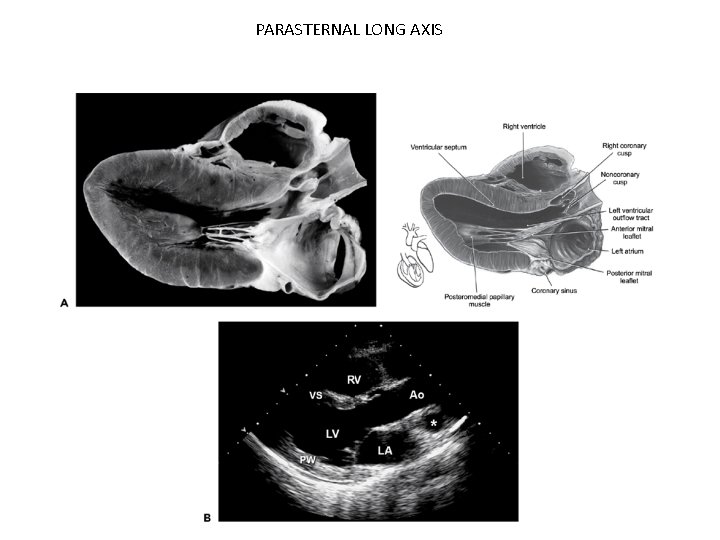

PARASTERNAL LONG AXIS VIEW

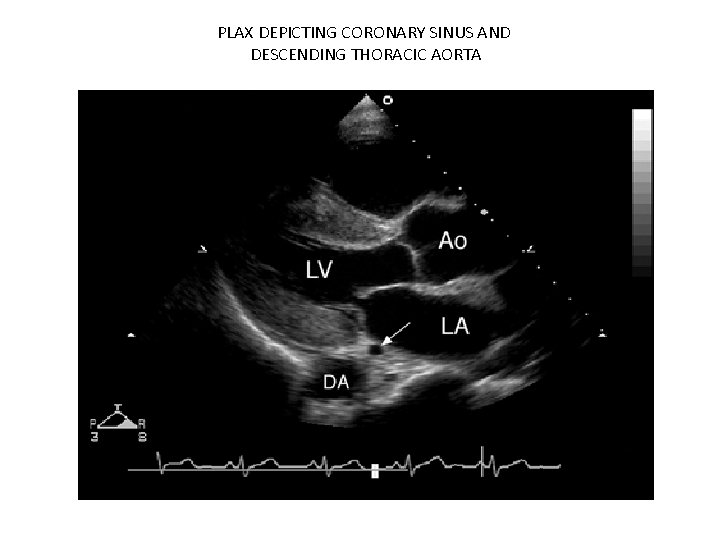

PLAX DEPICTING CORONARY SINUS AND DESCENDING THORACIC AORTA

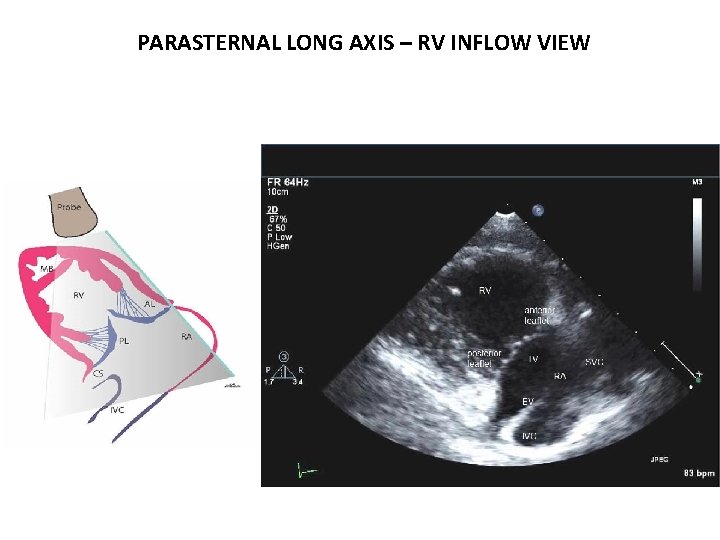

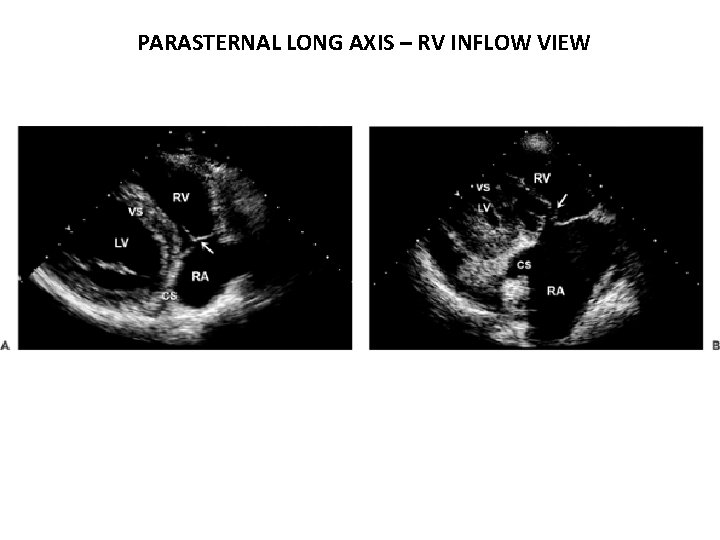

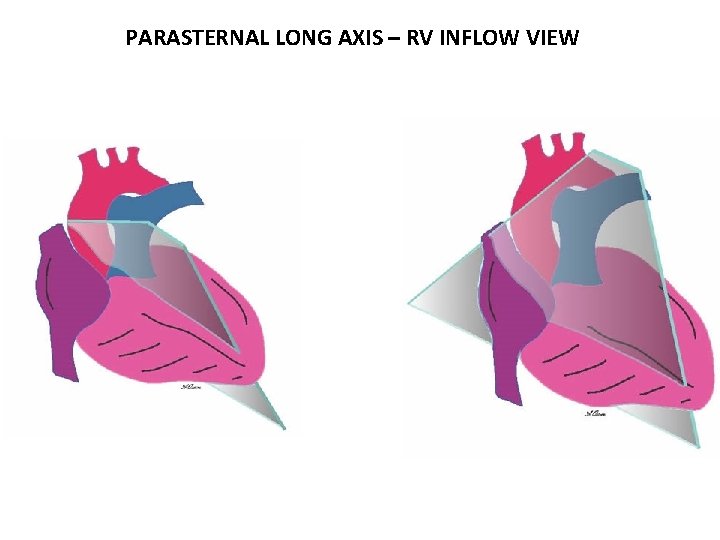

PARASTERNAL LONG AXIS – RV INFLOW VIEW
PARASTERNAL LONG AXIS – RV INFLOW VIEW
PARASTERNAL LONG AXIS – RV INFLOW VIEW

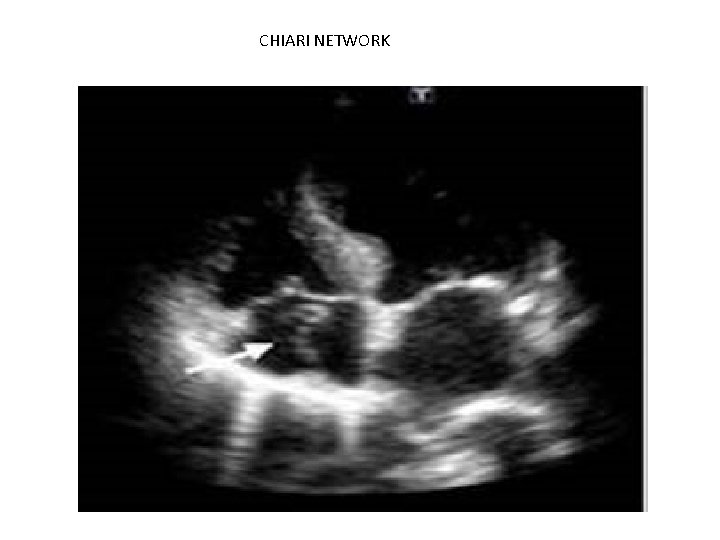

CHIARI NETWORK

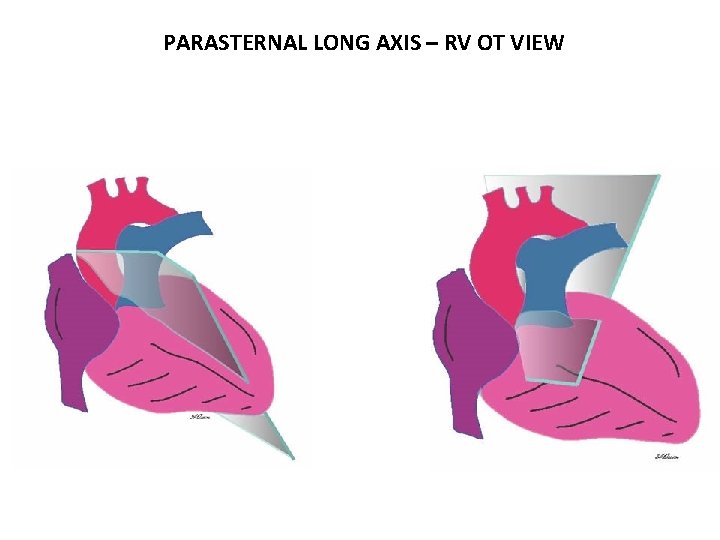

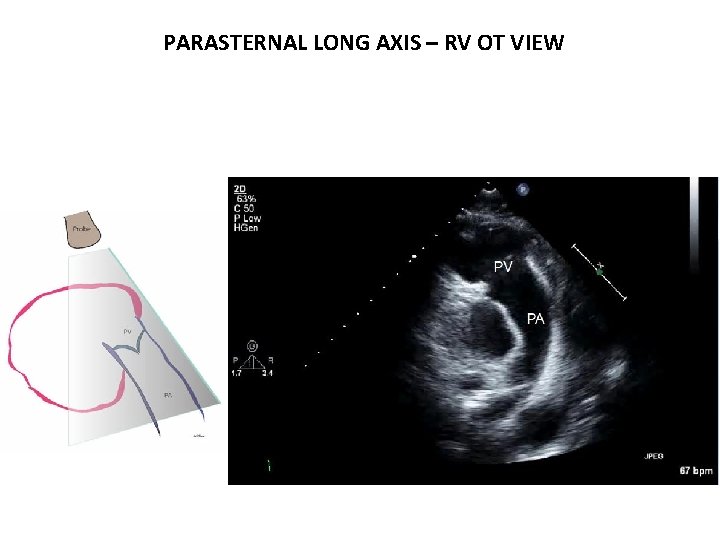

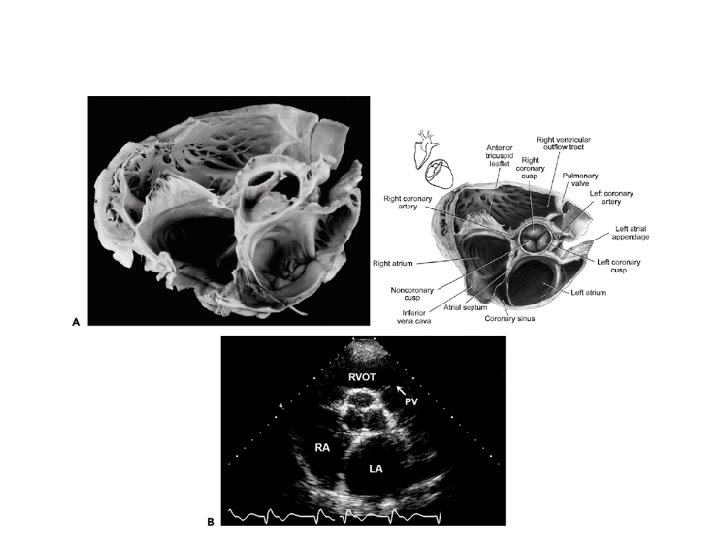

PARASTERNAL LONG AXIS – RV OT VIEW
PARASTERNAL LONG AXIS – RV OT VIEW

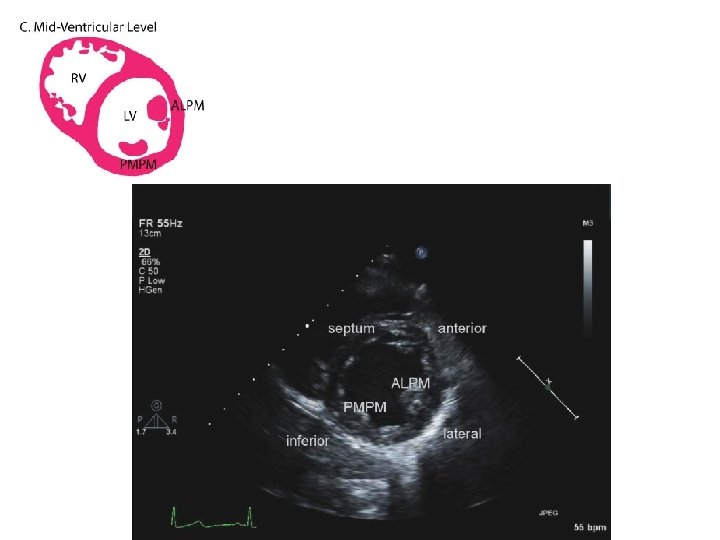

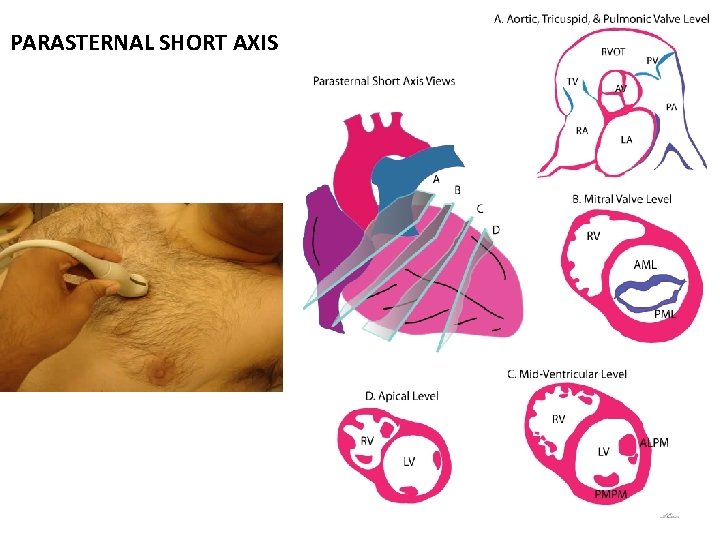

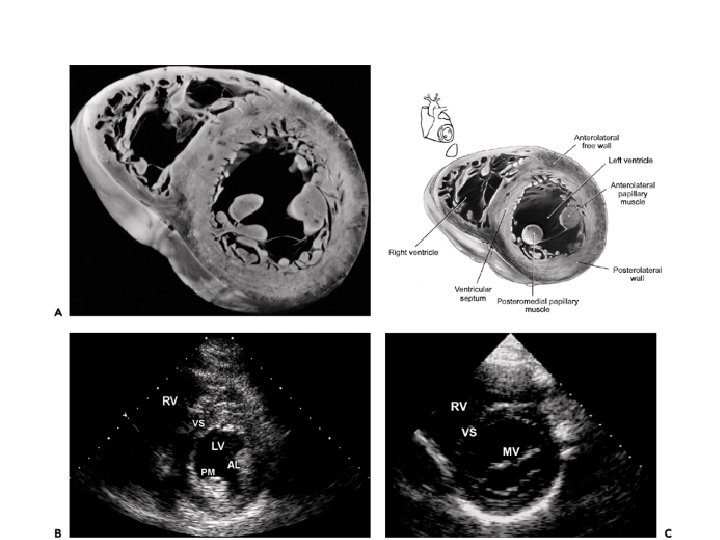

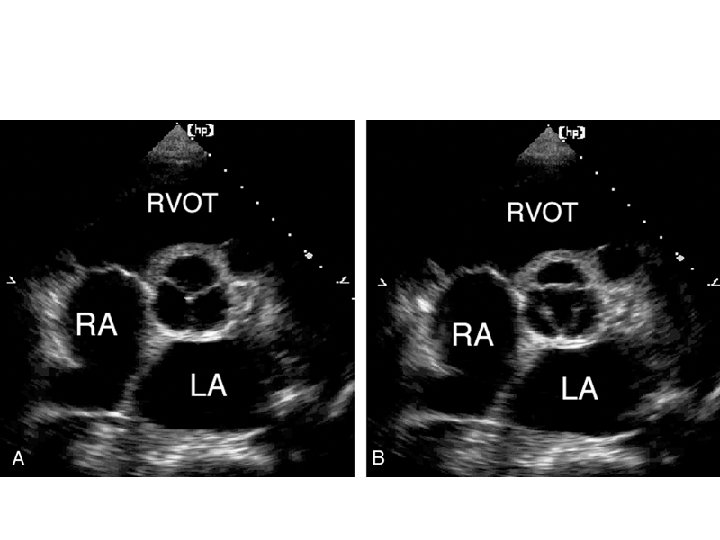

PARASTERNAL SHORT AXIS

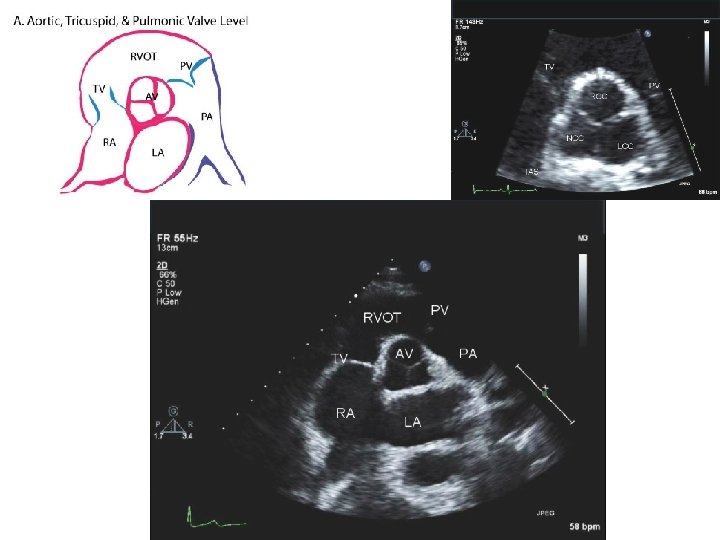

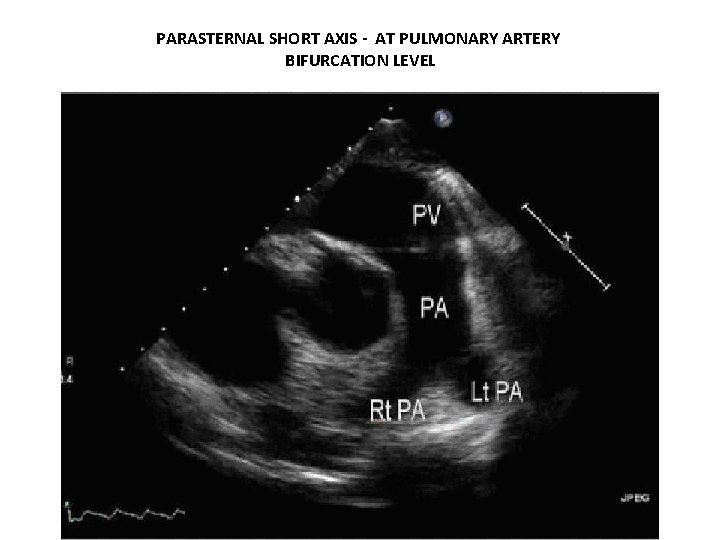

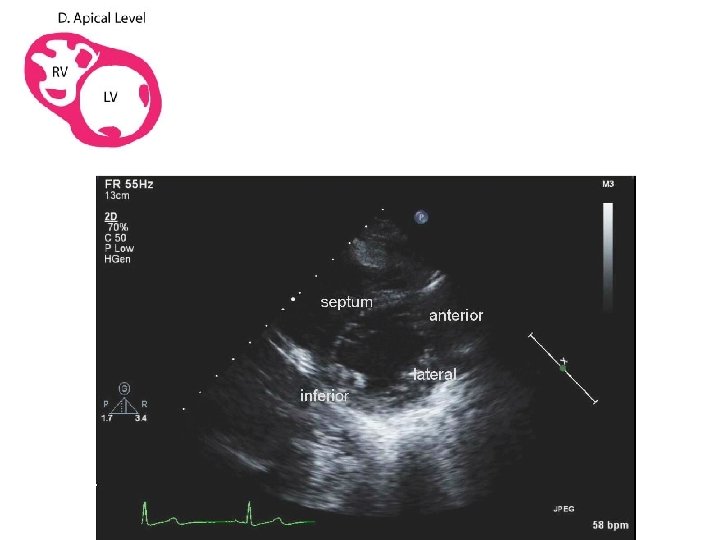

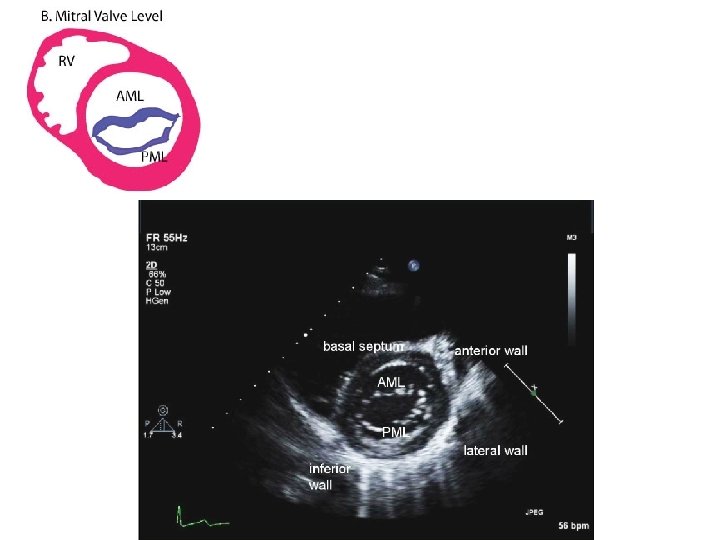

PARASTERNAL SHORT AXIS - AT PULMONARY ARTERY BIFURCATION LEVEL

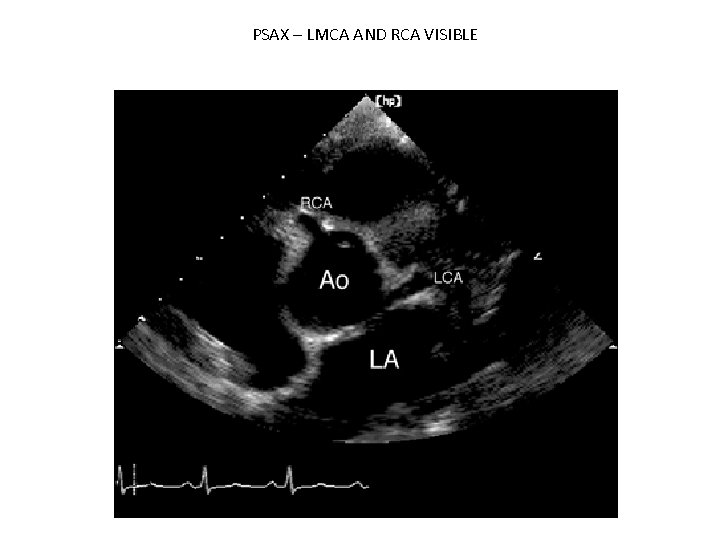

PSAX – LMCA AND RCA VISIBLE

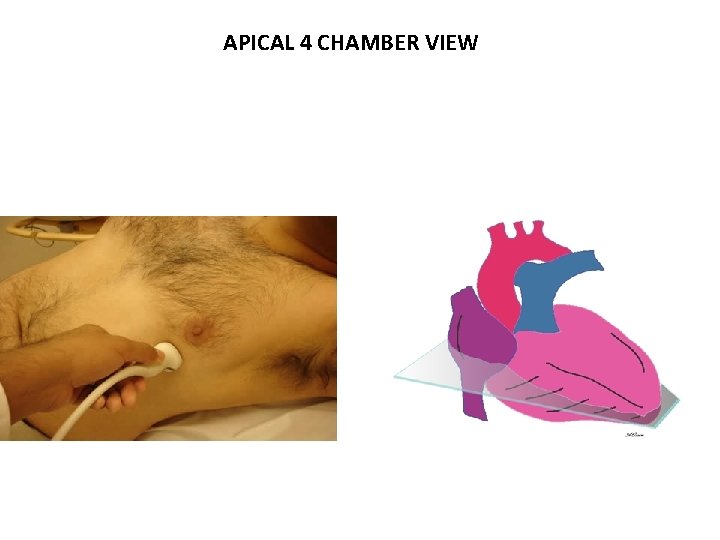

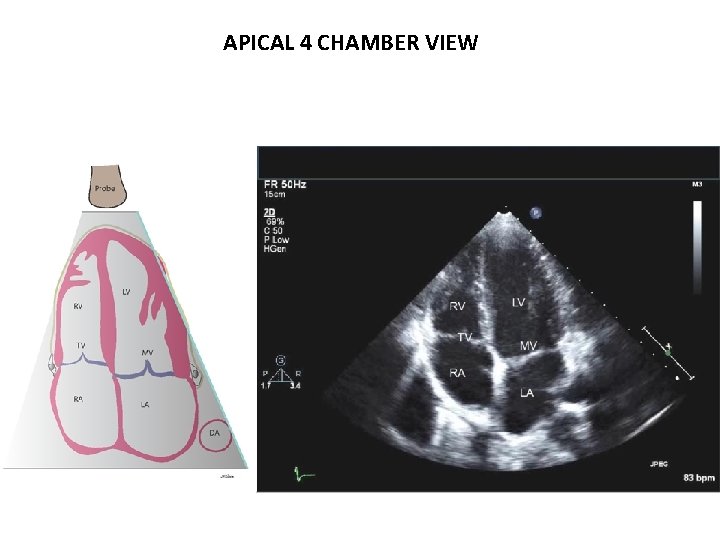

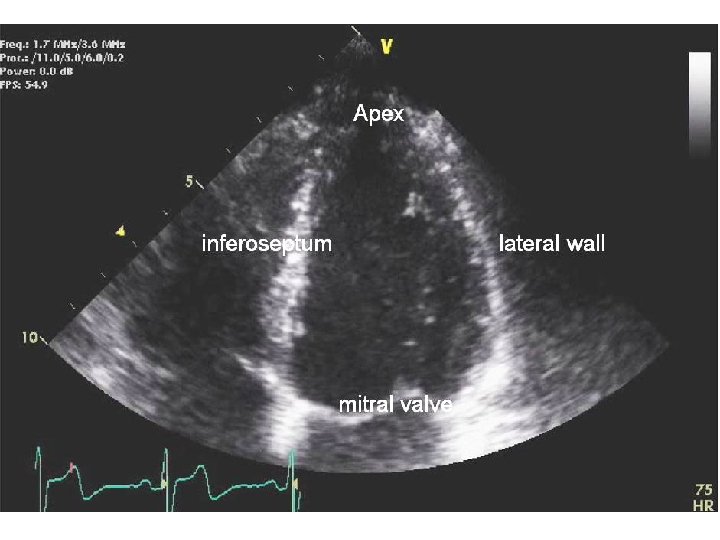

APICAL 4 CHAMBER VIEW
APICAL 4 CHAMBER VIEW

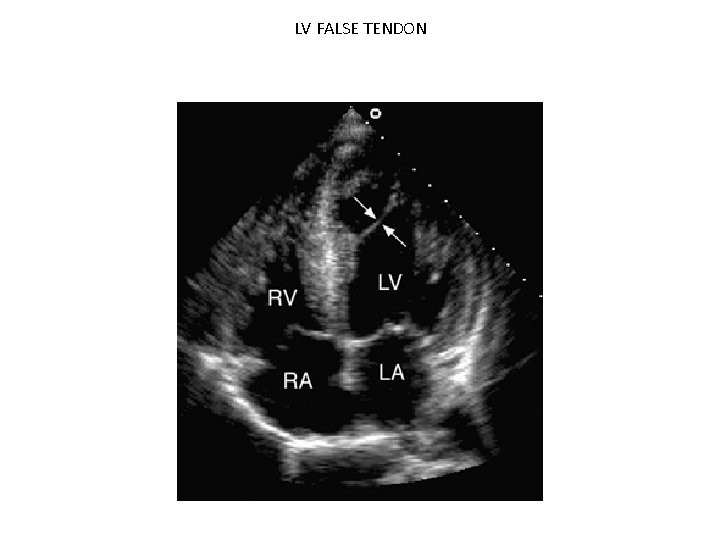

LV FALSE TENDON

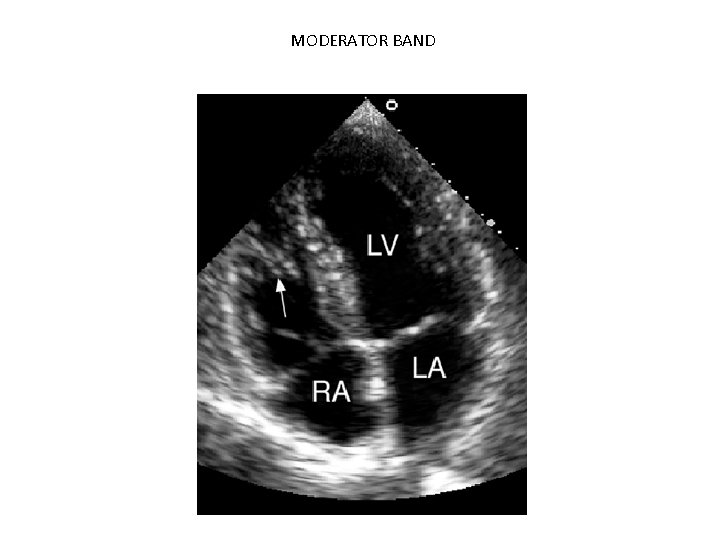

MODERATOR BAND

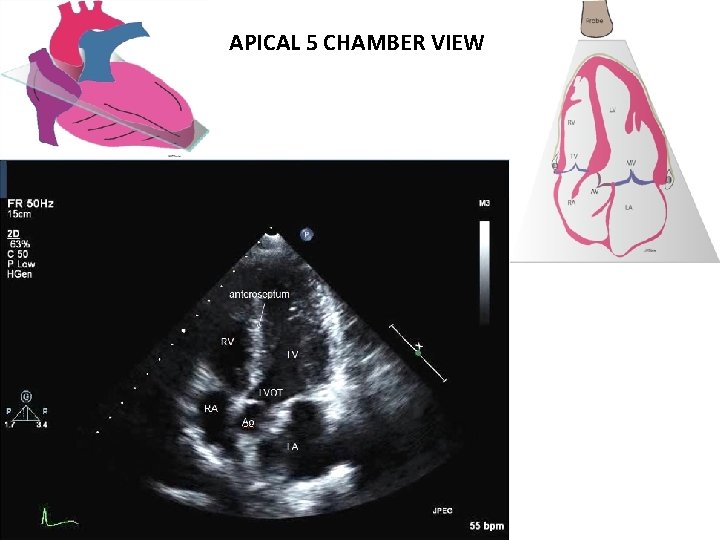

APICAL 5 CHAMBER VIEW

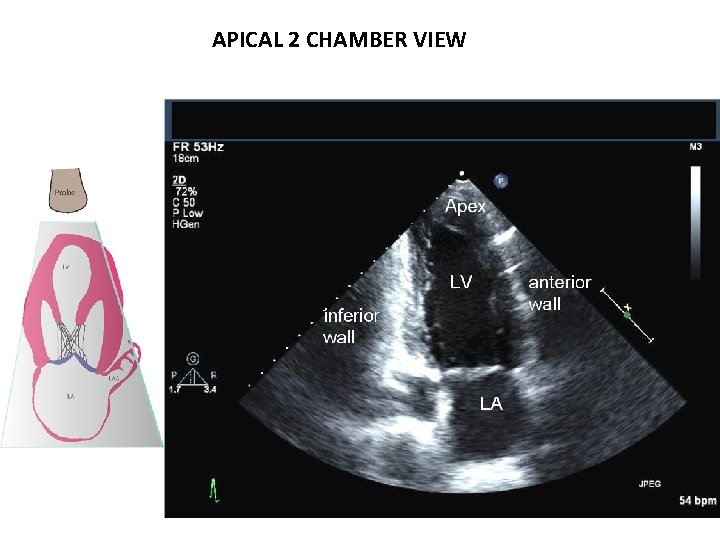

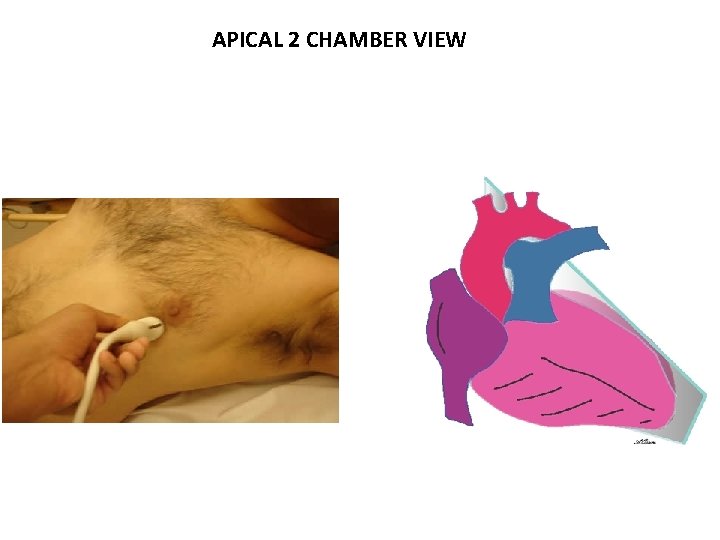

APICAL 2 CHAMBER VIEW
APICAL 2 CHAMBER VIEW
APICAL 2 CHAMBER VIEW – OFF AXIS POSTERIOR TILT, MEDIAL ANGULATION, COUNTERCLOCKWISE ROTATION

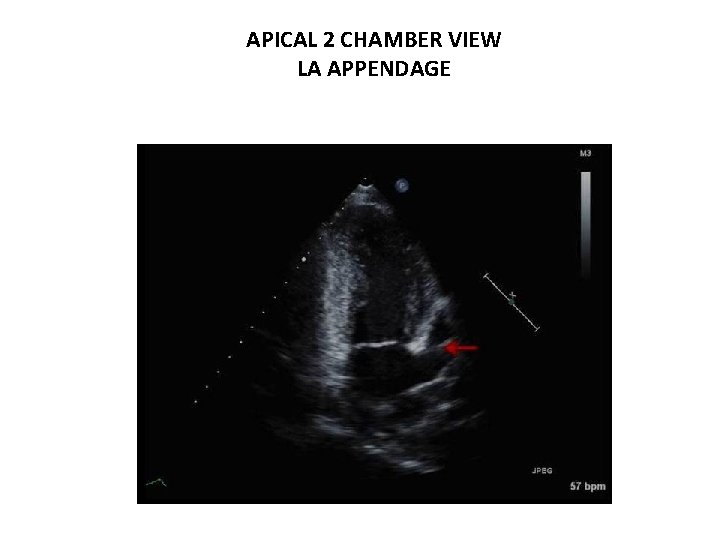

APICAL 2 CHAMBER VIEW LA APPENDAGE

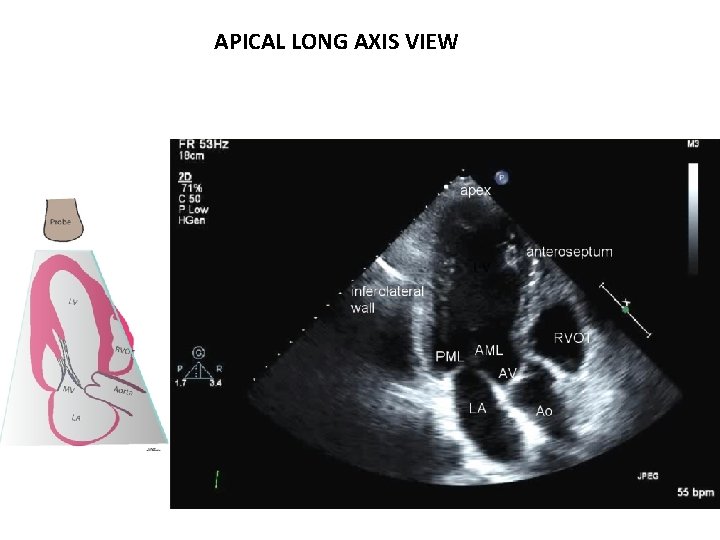

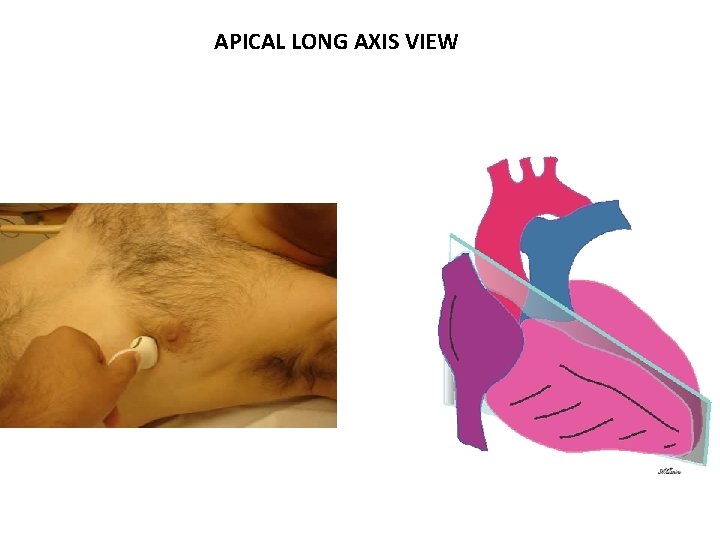

APICAL LONG AXIS VIEW
APICAL LONG AXIS VIEW

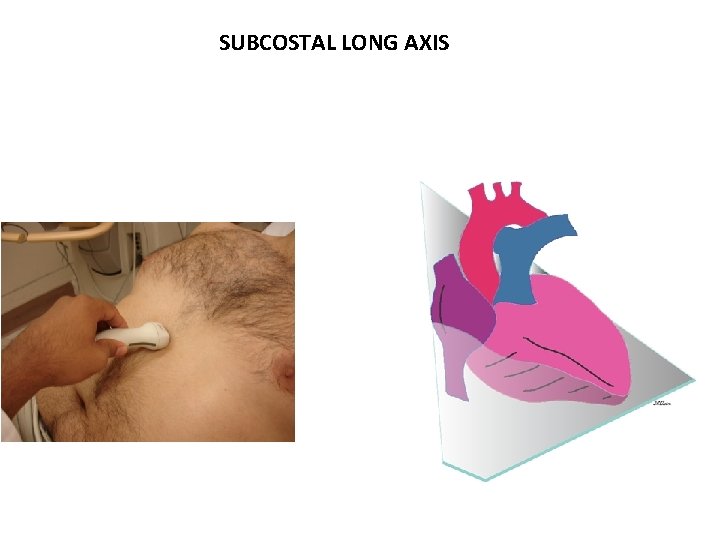

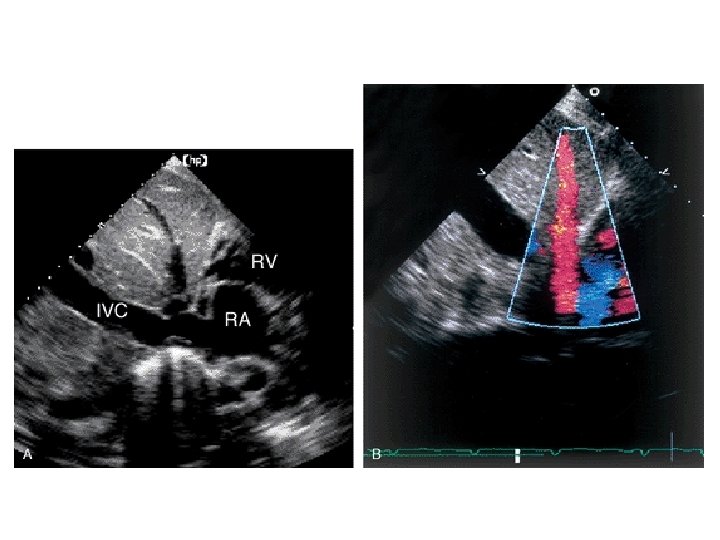

SUBCOSTAL LONG AXIS

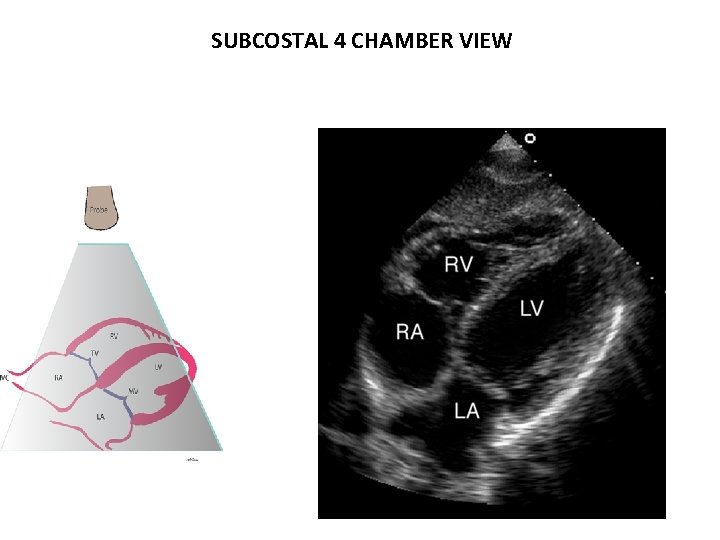

SUBCOSTAL 4 CHAMBER VIEW

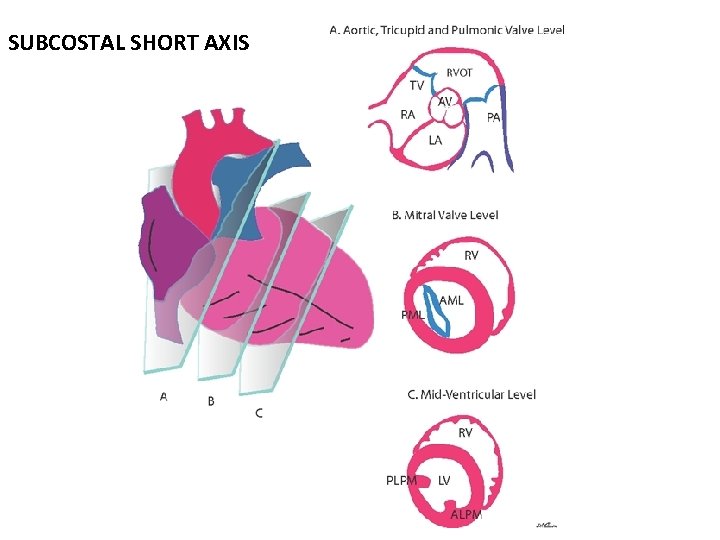

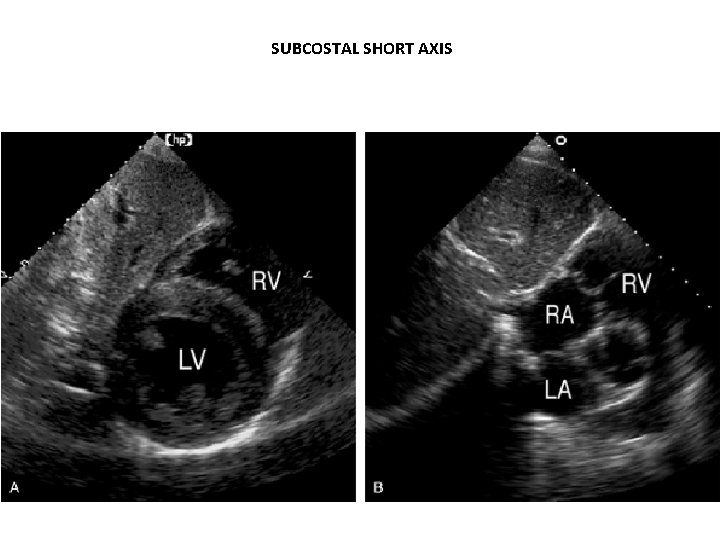

SUBCOSTAL SHORT AXIS
SUBCOSTAL SHORT AXIS
SUBCOSTAL GREAT VESSEL VIEW

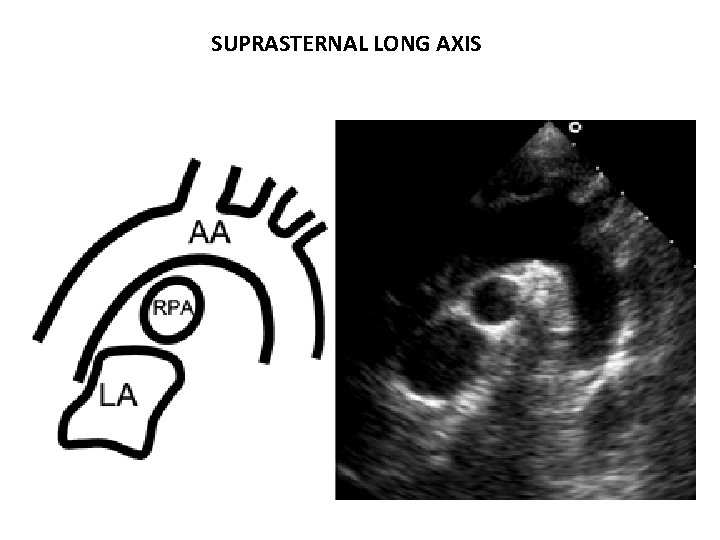

SUPRASTERNAL LONG AXIS

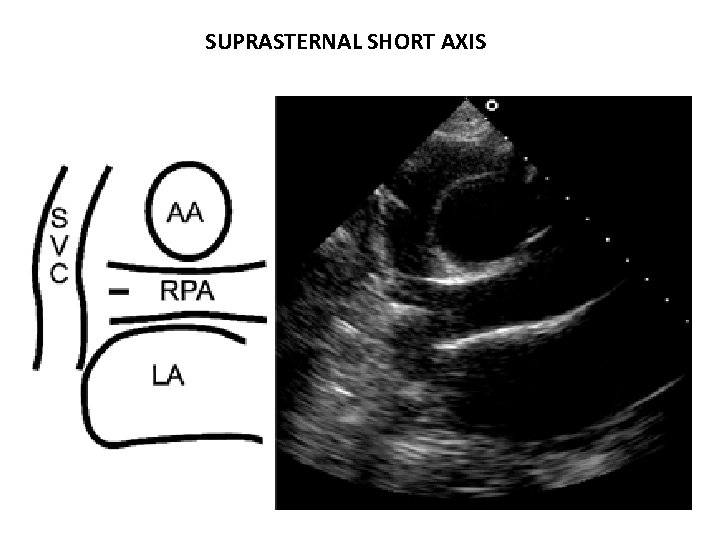

SUPRASTERNAL SHORT AXIS

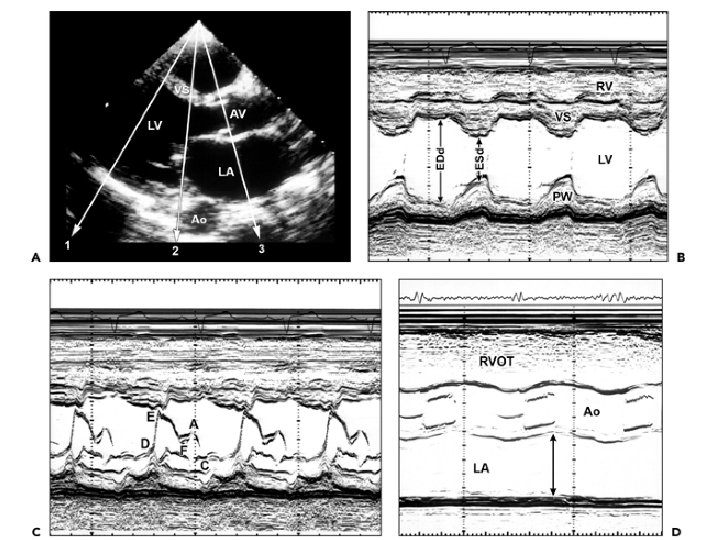

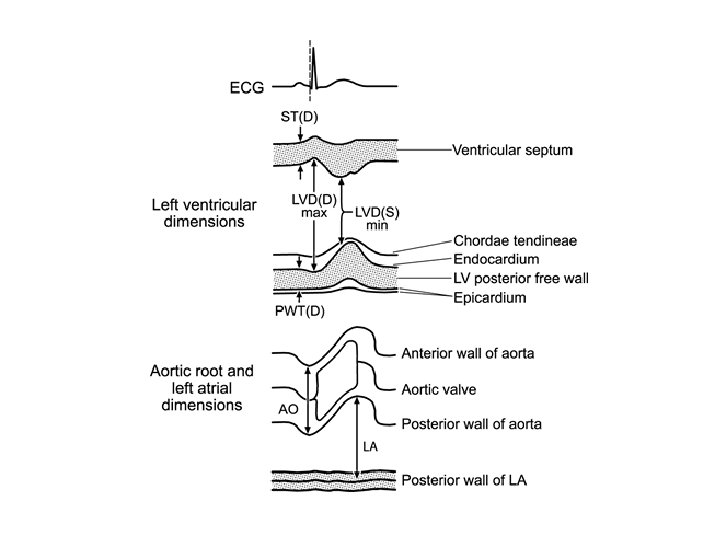

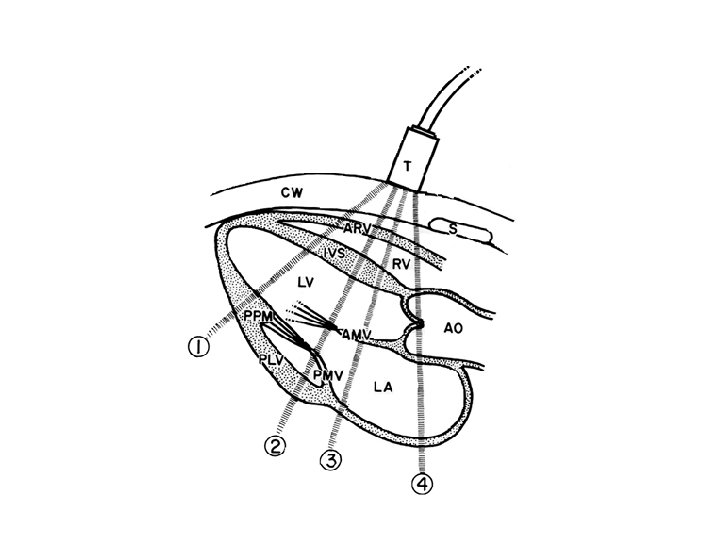

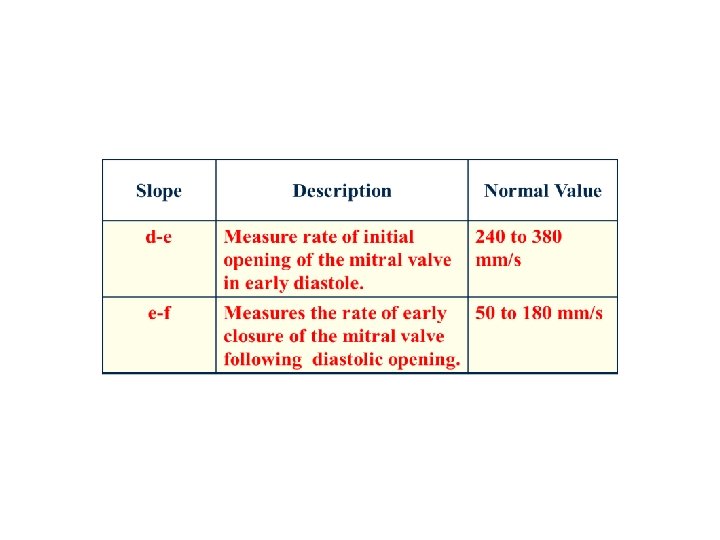

M – MODE SCAN

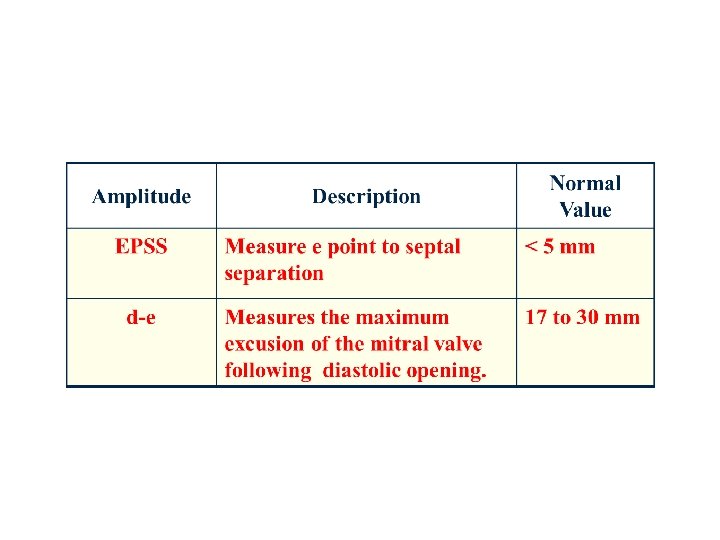

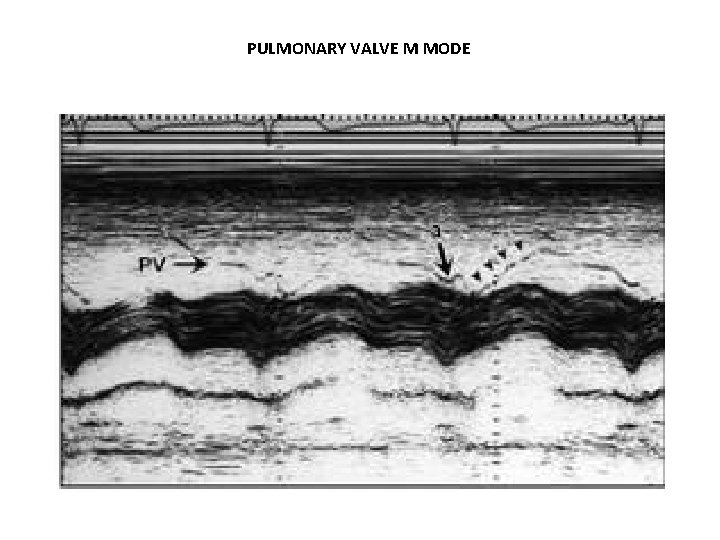

PULMONARY VALVE M MODE
