Echinoderms Chordates Phylum Echinodermata echinoderms About 6 000

Echinoderms & Chordates

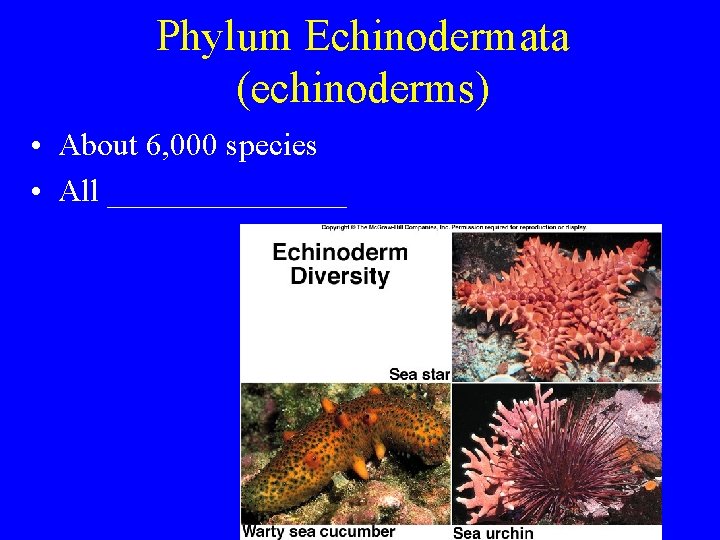

Phylum Echinodermata (echinoderms) • About 6, 000 species • All ________

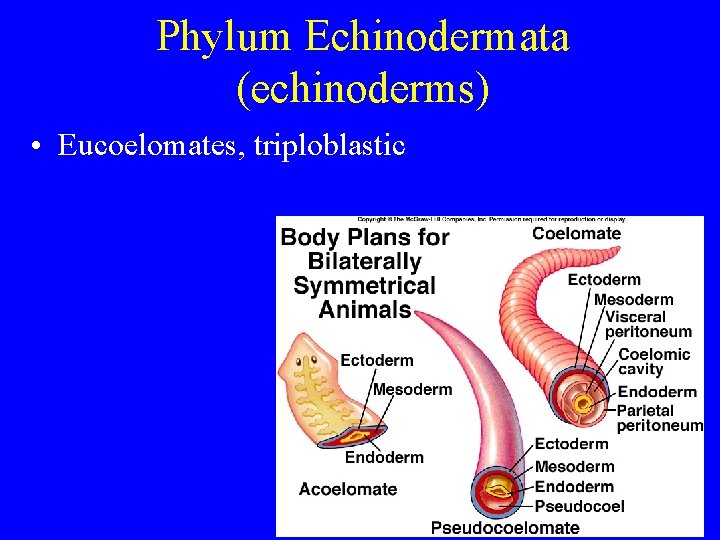

Phylum Echinodermata (echinoderms) • Eucoelomates, triploblastic

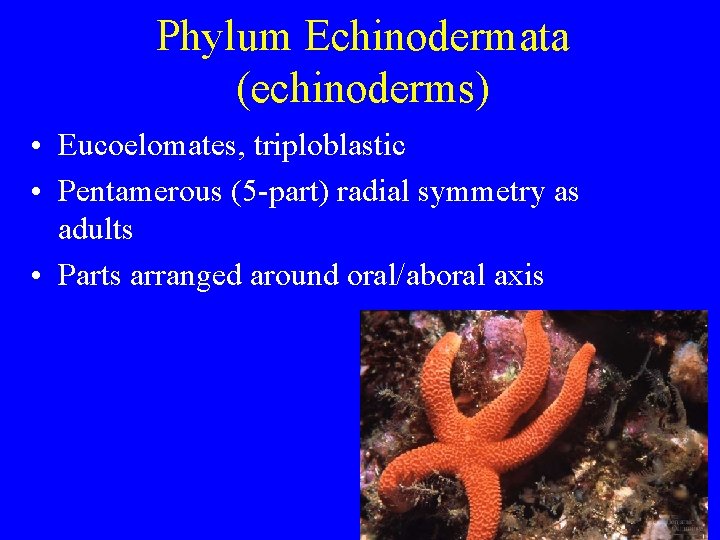

Phylum Echinodermata (echinoderms) • Eucoelomates, triploblastic • Pentamerous (5 -part) radial symmetry as adults • Parts arranged around oral/aboral axis

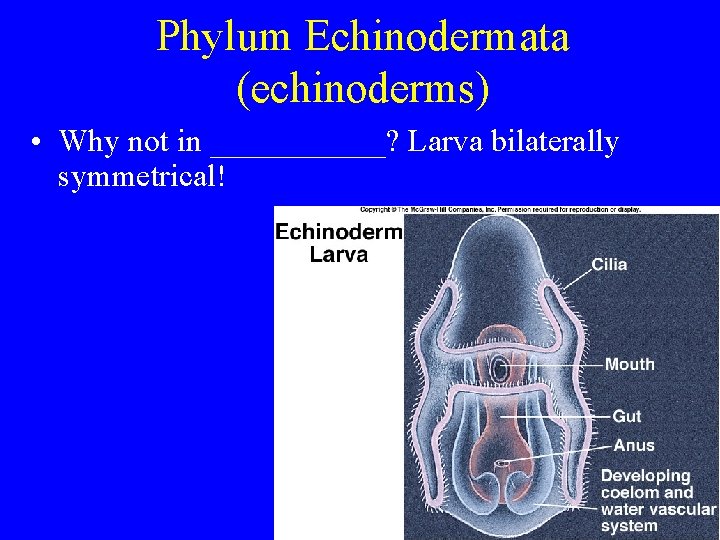

Phylum Echinodermata (echinoderms) • Why not in ______? Larva bilaterally symmetrical!

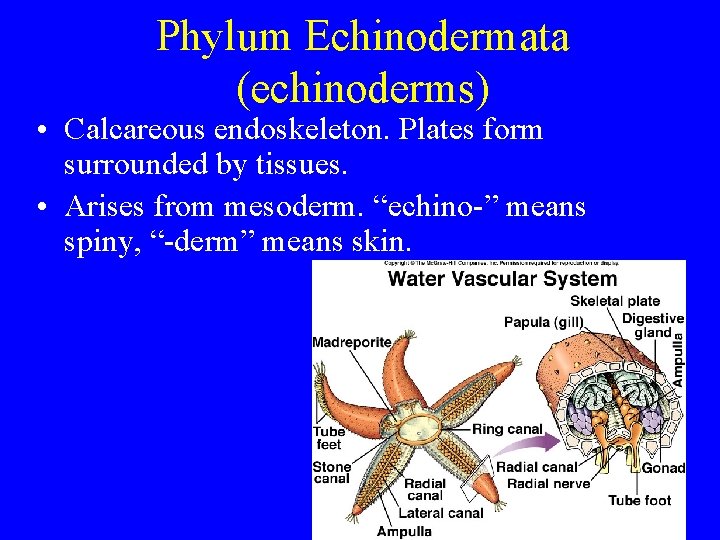

Phylum Echinodermata (echinoderms) • Calcareous endoskeleton. Plates form surrounded by tissues. • Arises from mesoderm. “echino-” means spiny, “-derm” means skin.

Phylum Echinodermata • Water vascular system in _______ • Connect to tube feet • Note madreporite on aboral surface of starfish (takes water into system)

Phylum Echinodermata • Tube feet in action

Phylum Echinodermata (echinoderms) • Complete digestive system • Reproduction: have good regeneration abilities, some can break into parts and reproduce asexually.

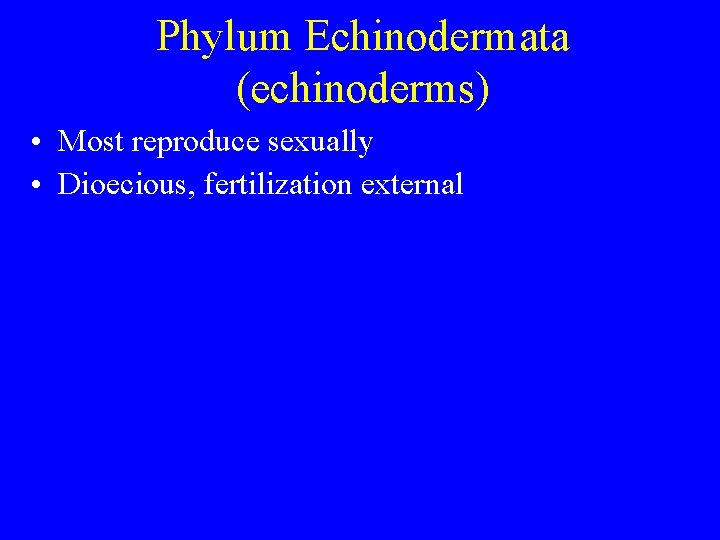

Phylum Echinodermata (echinoderms) • Most reproduce sexually • Dioecious, fertilization external

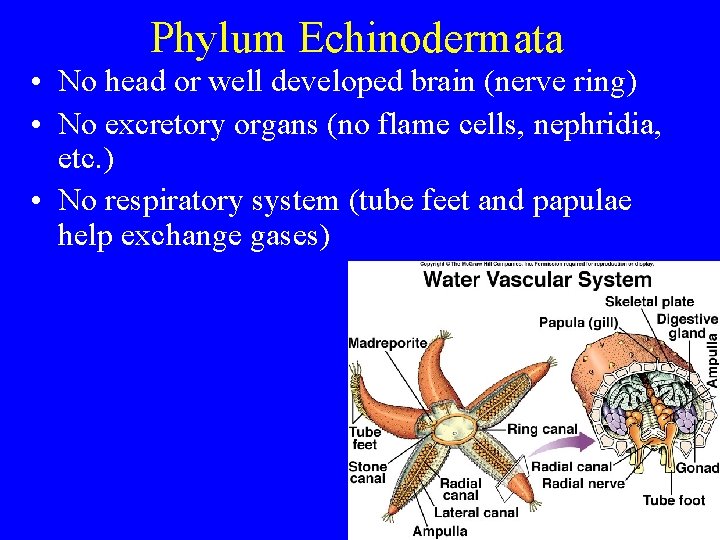

Phylum Echinodermata • No head or well developed brain (nerve ring) • No excretory organs (no flame cells, nephridia, etc. ) • No respiratory system (tube feet and papulae help exchange gases)

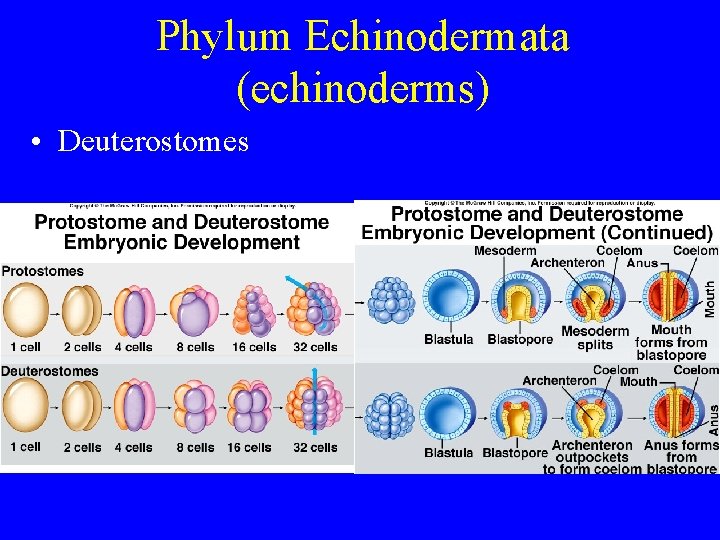

Phylum Echinodermata (echinoderms) • Deuterostomes

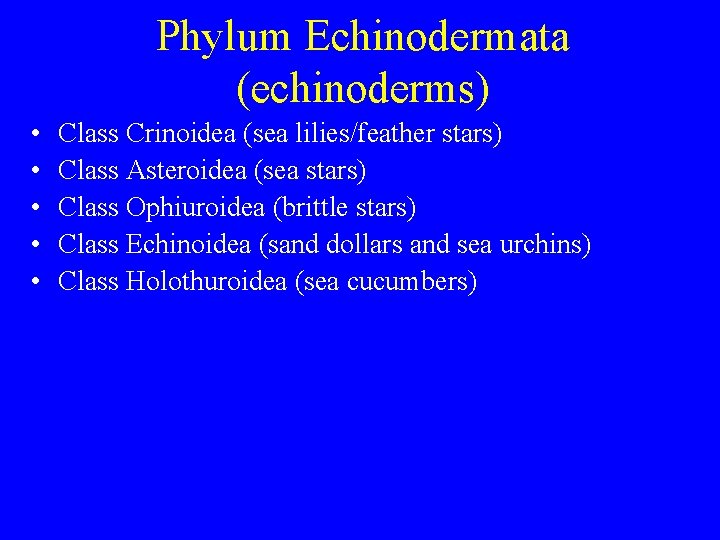

Phylum Echinodermata (echinoderms) • • • Class Crinoidea (sea lilies/feather stars) Class Asteroidea (sea stars) Class Ophiuroidea (brittle stars) Class Echinoidea (sand dollars and sea urchins) Class Holothuroidea (sea cucumbers)

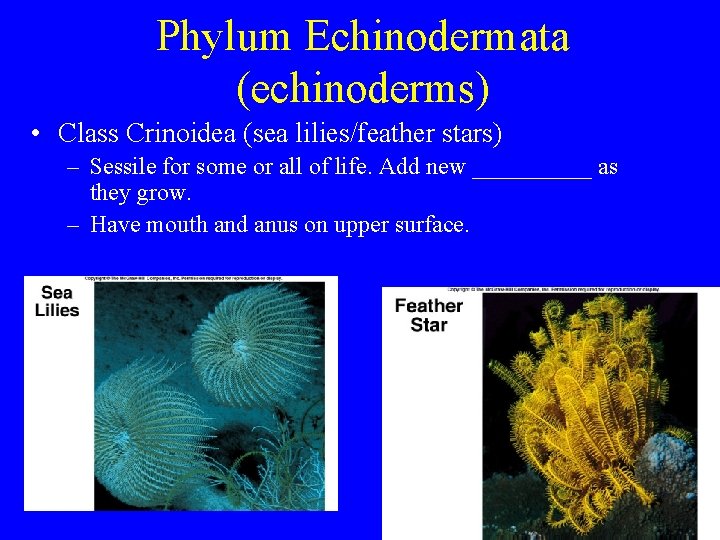

Phylum Echinodermata (echinoderms) • Class Crinoidea (sea lilies/feather stars) – Sessile for some or all of life. Add new _____ as they grow. – Have mouth and anus on upper surface.

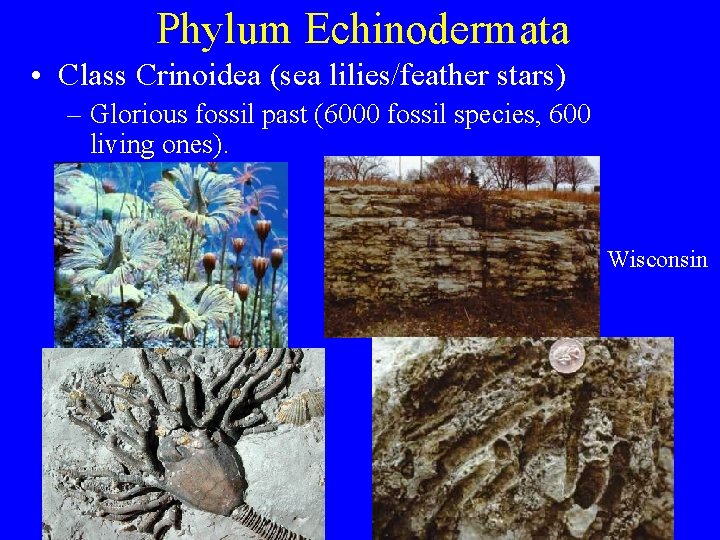

Phylum Echinodermata • Class Crinoidea (sea lilies/feather stars) – Glorious fossil past (6000 fossil species, 600 living ones). Wisconsin

Phylum Echinodermata (echinoderms) • • • Class Crinoidea (sea lilies/feather stars) Class Asteroidea (sea stars) Class Ophiuroidea (brittle stars) Class Echinoidea (sand dollars and sea urchins) Class Holothuroidea (sea cucumbers)

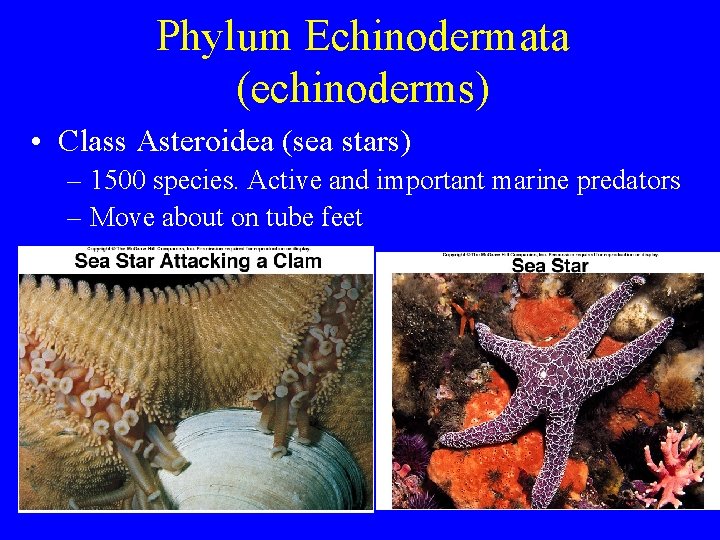

Phylum Echinodermata (echinoderms) • Class Asteroidea (sea stars) – 1500 species. Active and important marine predators – Move about on tube feet

Phylum Echinodermata (echinoderms) • Class Asteroidea (sea stars) – Predation may cause problems – Ex, crown of thorns starfish (coral predator)

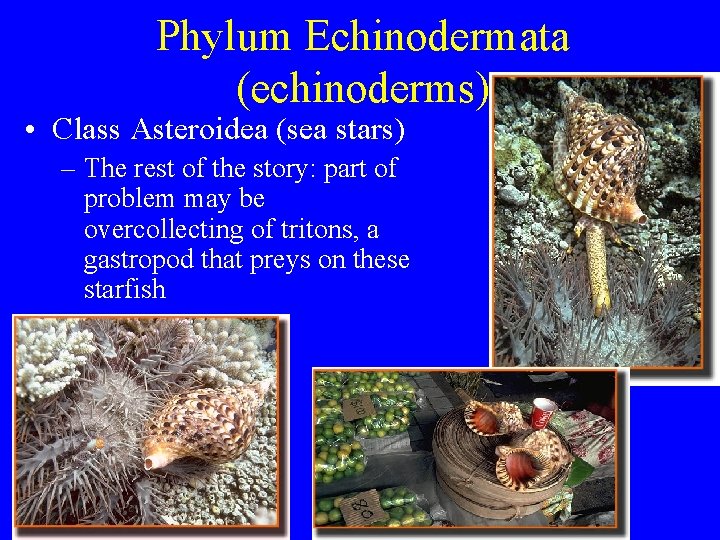

Phylum Echinodermata (echinoderms) • Class Asteroidea (sea stars) – The rest of the story: part of problem may be overcollecting of tritons, a gastropod that preys on these starfish

Phylum Echinodermata (echinoderms) • • • Class Crinoidea (sea lilies/feather stars) Class Asteroidea (sea stars) Class Ophiuroidea (brittle stars) Class Echinoidea (sand dollars and sea urchins) Class Holothuroidea (sea cucumbers)

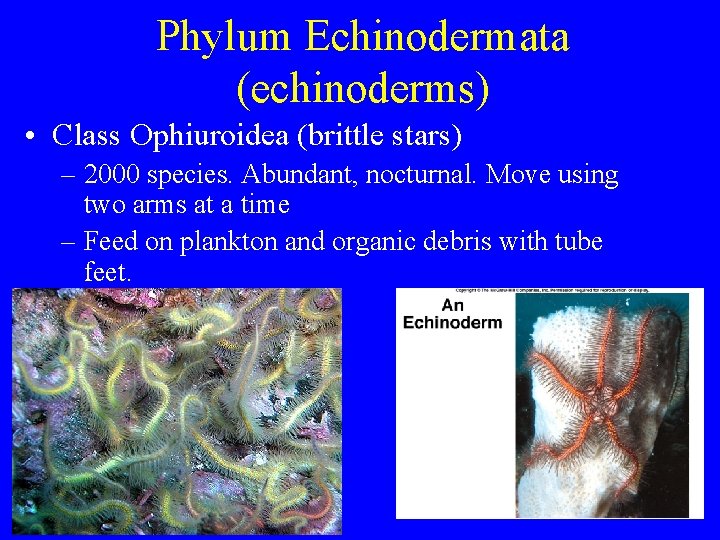

Phylum Echinodermata (echinoderms) • Class Ophiuroidea (brittle stars) – 2000 species. Abundant, nocturnal. Move using two arms at a time – Feed on plankton and organic debris with tube feet.

Phylum Echinodermata (echinoderms) • • • Class Crinoidea (sea lilies/feather stars) Class Asteroidea (sea stars) Class Ophiuroidea (brittle stars) Class Echinoidea (sand dollars and sea urchins) Class Holothuroidea (sea cucumbers)

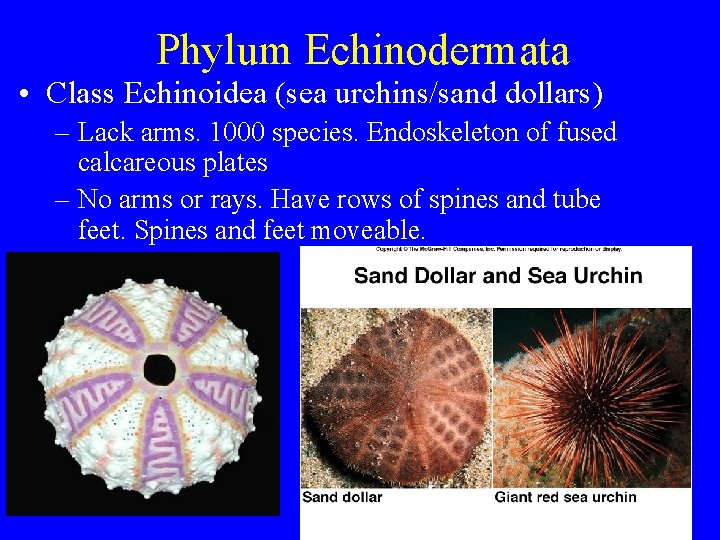

Phylum Echinodermata • Class Echinoidea (sea urchins/sand dollars) – Lack arms. 1000 species. Endoskeleton of fused calcareous plates – No arms or rays. Have rows of spines and tube feet. Spines and feet moveable.

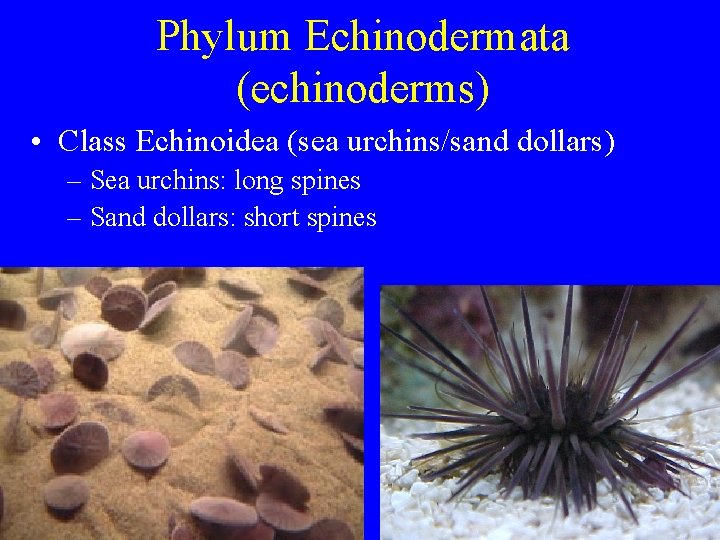

Phylum Echinodermata (echinoderms) • Class Echinoidea (sea urchins/sand dollars) – Sea urchins: long spines – Sand dollars: short spines

Phylum Echinodermata (echinoderms) • Class Echinoidea (sea urchins/sand dollars) – Pedicillariae. Discourage small invertebrates from settling on surface.

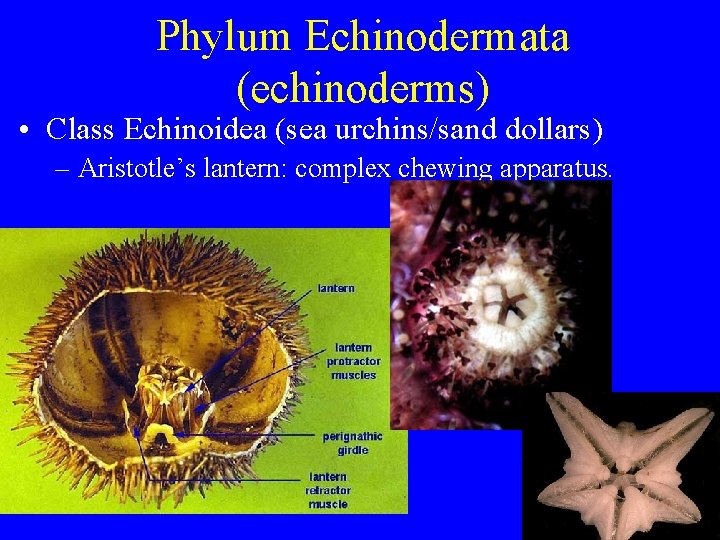

Phylum Echinodermata (echinoderms) • Class Echinoidea (sea urchins/sand dollars) – Aristotle’s lantern: complex chewing apparatus.

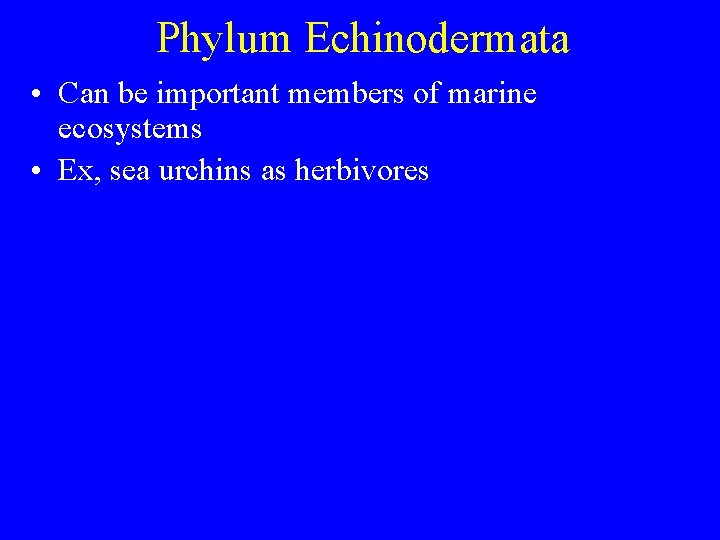

Phylum Echinodermata • Can be important members of marine ecosystems • Ex, sea urchins as herbivores

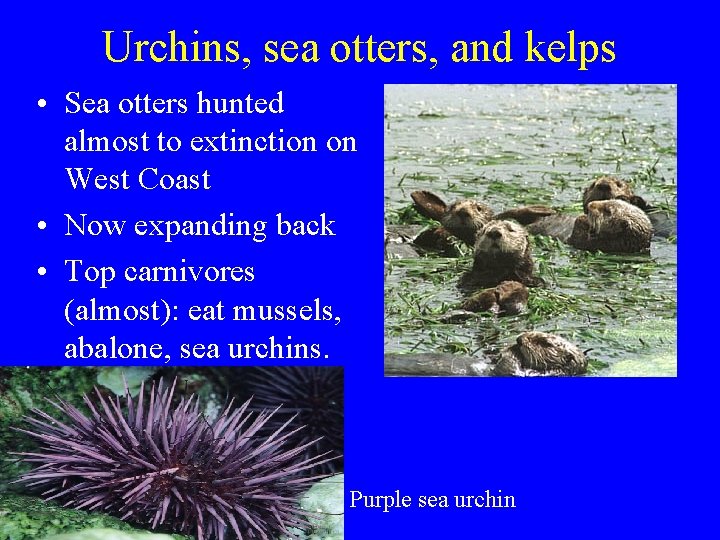

Urchins, sea otters, and kelps • Sea otters hunted almost to extinction on West Coast • Now expanding back • Top carnivores (almost): eat mussels, abalone, sea urchins. Purple sea urchin

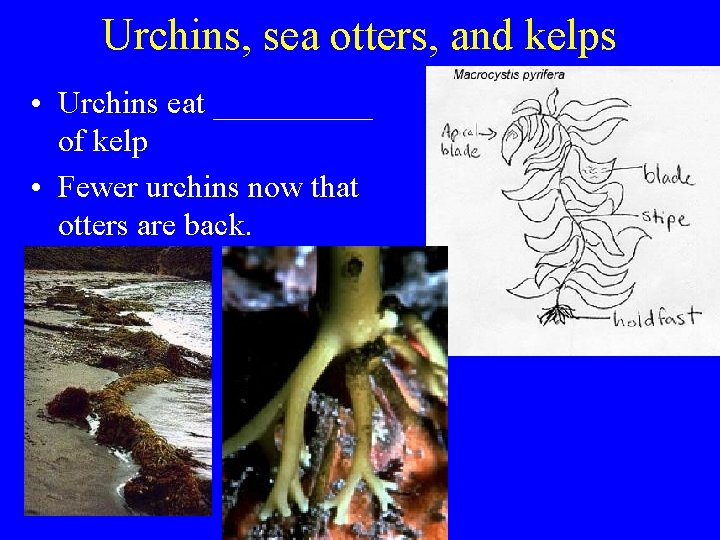

Urchins, sea otters, and kelps • Urchins eat _____ of kelp • Fewer urchins now that otters are back.

Urchins, sea otters, and kelps • Giant kelp forests recovering as otters return. • Fish and other associates rebounding.

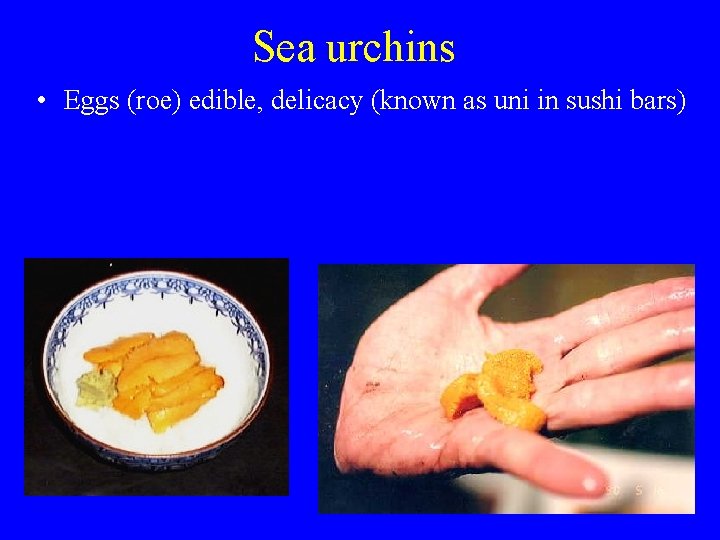

Sea urchins • Eggs (roe) edible, delicacy (known as uni in sushi bars)

Phylum Echinodermata (echinoderms) • • • Class Crinoidea (sea lilies/feather stars) Class Asteroidea (sea stars) Class Ophiuroidea (brittle stars) Class Echinoidea (sand dollars and sea urchins) Class Holothuroidea (sea cucumbers)

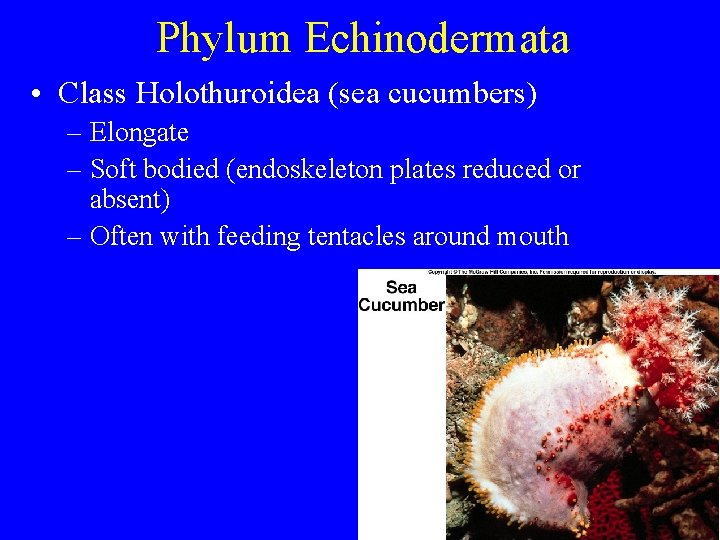

Phylum Echinodermata • Class Holothuroidea (sea cucumbers) – Elongate – Soft bodied (endoskeleton plates reduced or absent) – Often with feeding tentacles around mouth

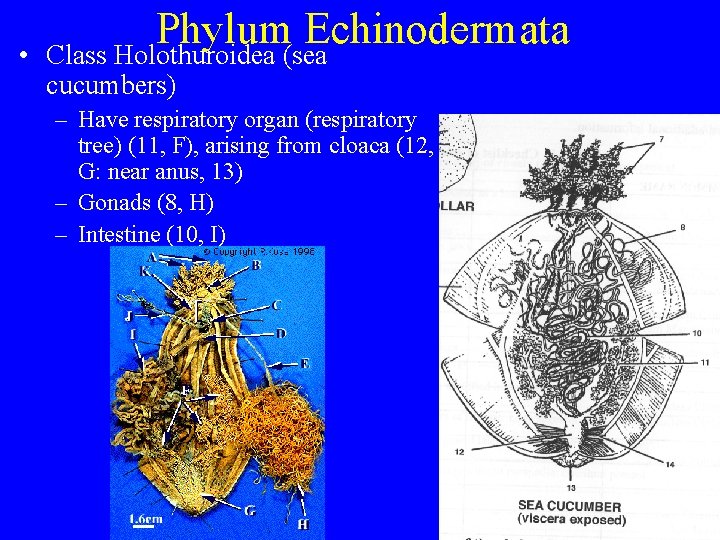

• Phylum Echinodermata Class Holothuroidea (sea cucumbers) – Have respiratory organ (respiratory tree) (11, F), arising from cloaca (12, G: near anus, 13) – Gonads (8, H) – Intestine (10, I)

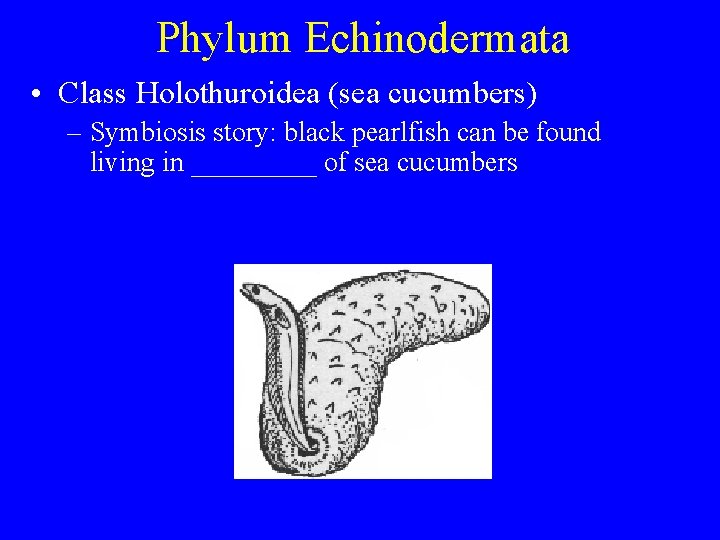

Phylum Echinodermata • Class Holothuroidea (sea cucumbers) – Symbiosis story: black pearlfish can be found living in _____ of sea cucumbers

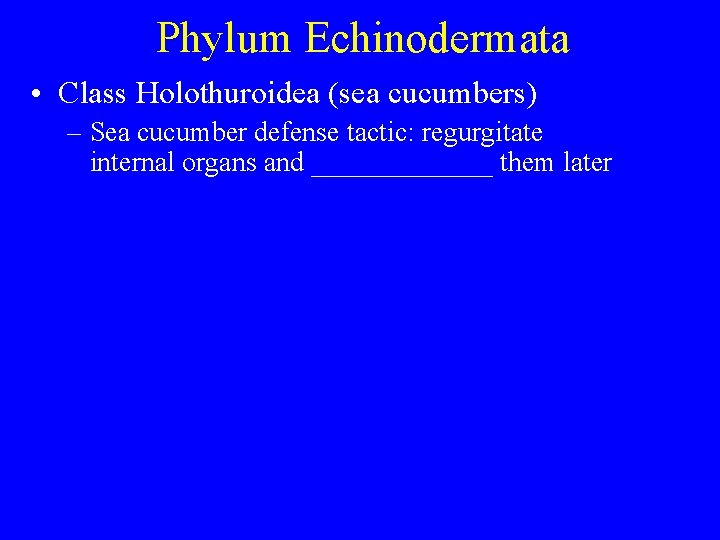

Phylum Echinodermata • Class Holothuroidea (sea cucumbers) – Sea cucumber defense tactic: regurgitate internal organs and _______ them later

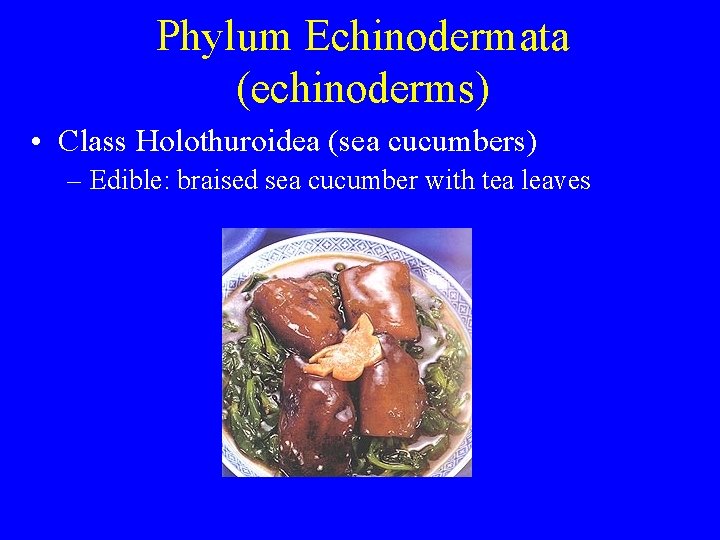

Phylum Echinodermata (echinoderms) • Class Holothuroidea (sea cucumbers) – Edible: braised sea cucumber with tea leaves

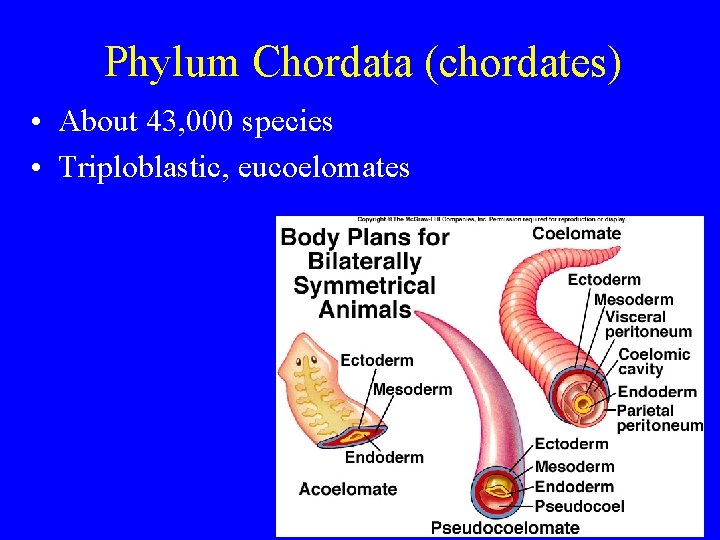

Phylum Chordata (chordates) • About 43, 000 species • Triploblastic, eucoelomates

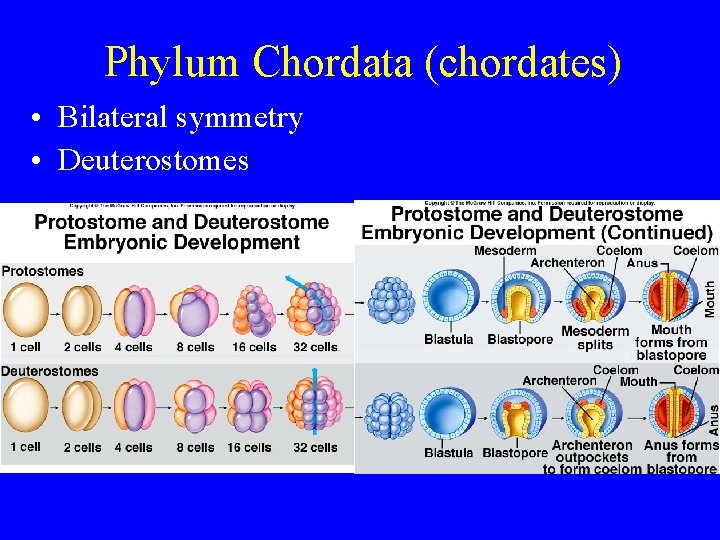

Phylum Chordata (chordates) • Bilateral symmetry • Deuterostomes

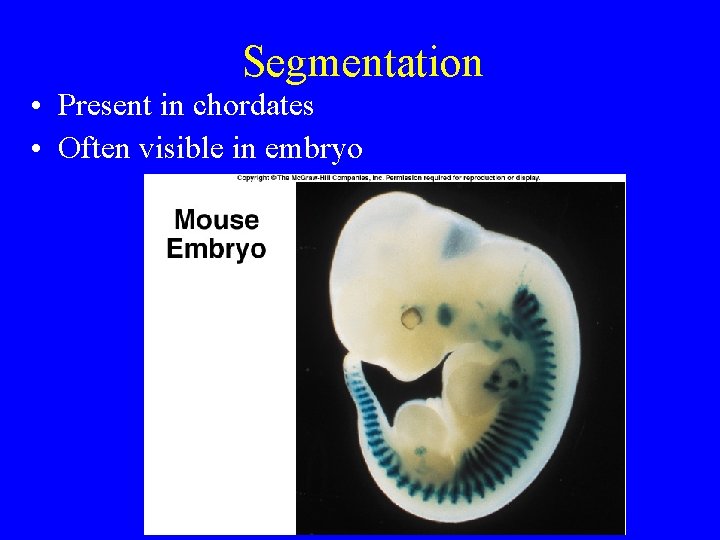

Segmentation • Present in chordates • Often visible in embryo

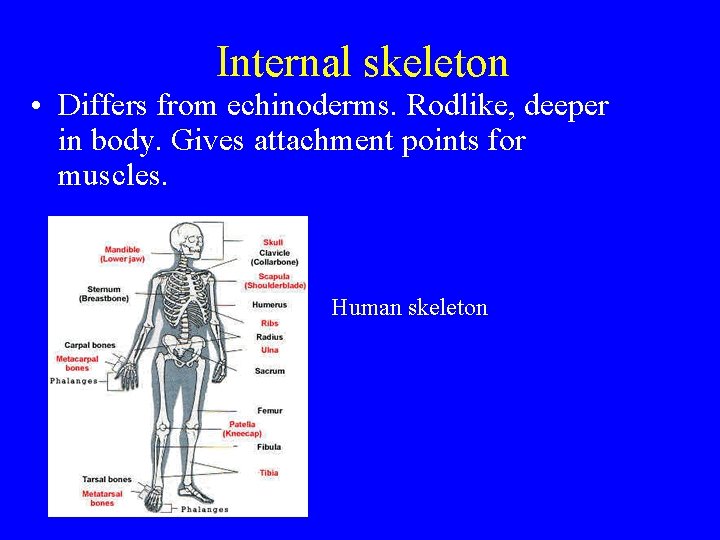

Internal skeleton • Differs from echinoderms. Rodlike, deeper in body. Gives attachment points for muscles. Human skeleton

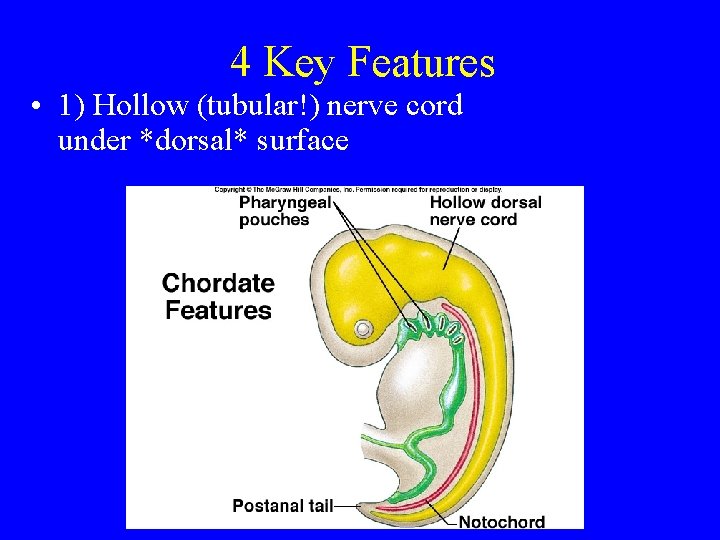

4 Key Features • 1) Hollow (tubular!) nerve cord under *dorsal* surface

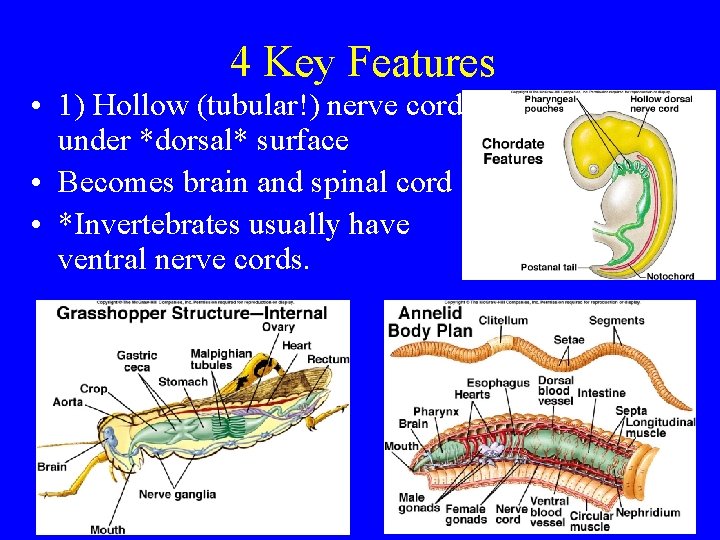

4 Key Features • 1) Hollow (tubular!) nerve cord under *dorsal* surface • Becomes brain and spinal cord • *Invertebrates usually have ventral nerve cords.

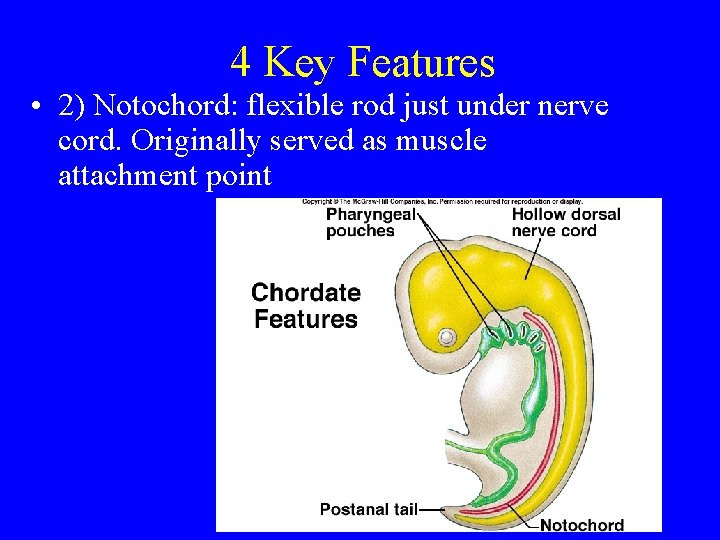

4 Key Features • 2) Notochord: flexible rod just under nerve cord. Originally served as muscle attachment point

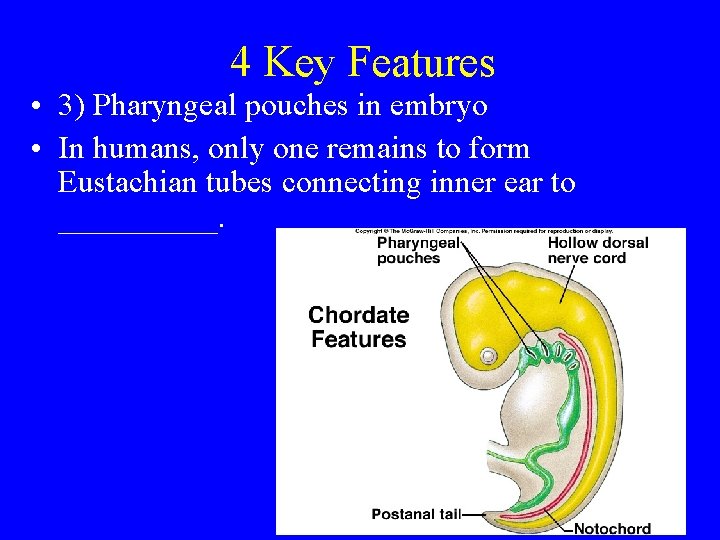

4 Key Features • 3) Pharyngeal pouches in embryo • In humans, only one remains to form Eustachian tubes connecting inner ear to _____.

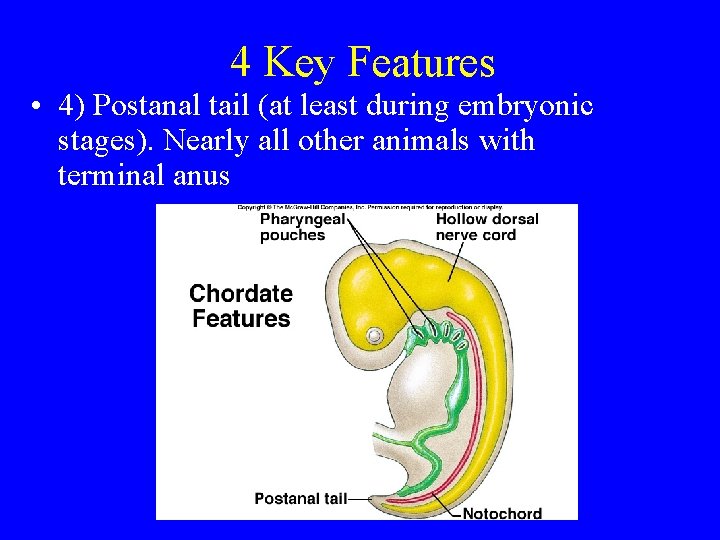

4 Key Features • 4) Postanal tail (at least during embryonic stages). Nearly all other animals with terminal anus

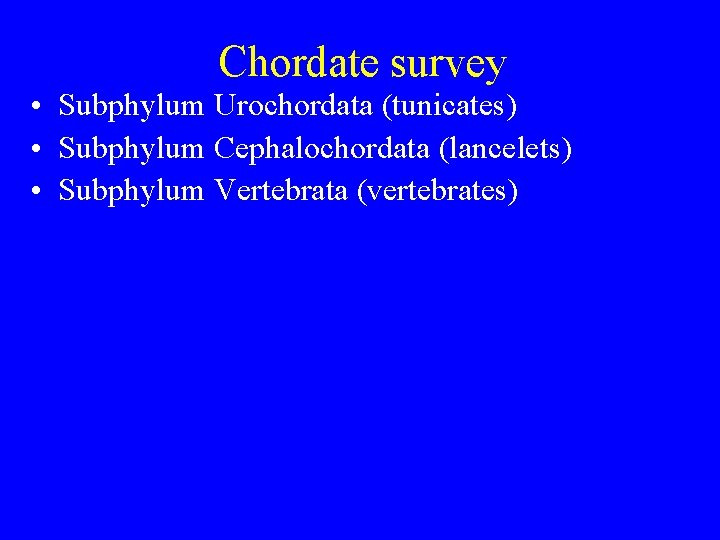

Chordate survey • Subphylum Urochordata (tunicates) • Subphylum Cephalochordata (lancelets) • Subphylum Vertebrata (vertebrates)

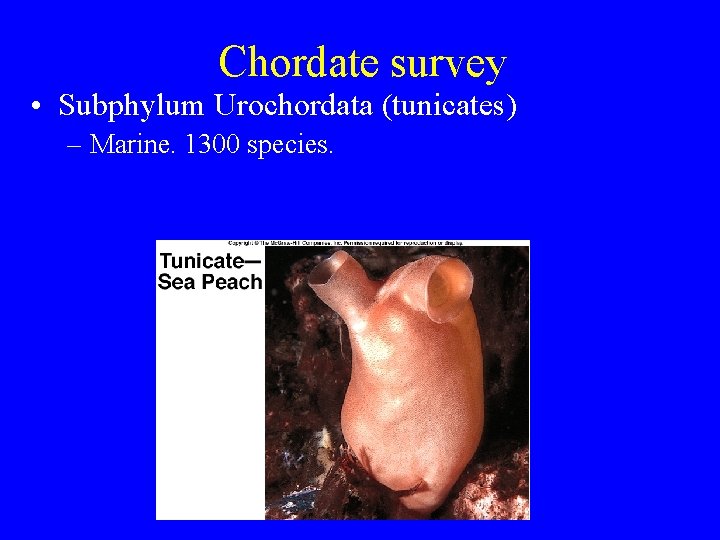

Chordate survey • Subphylum Urochordata (tunicates) – Marine. 1300 species.

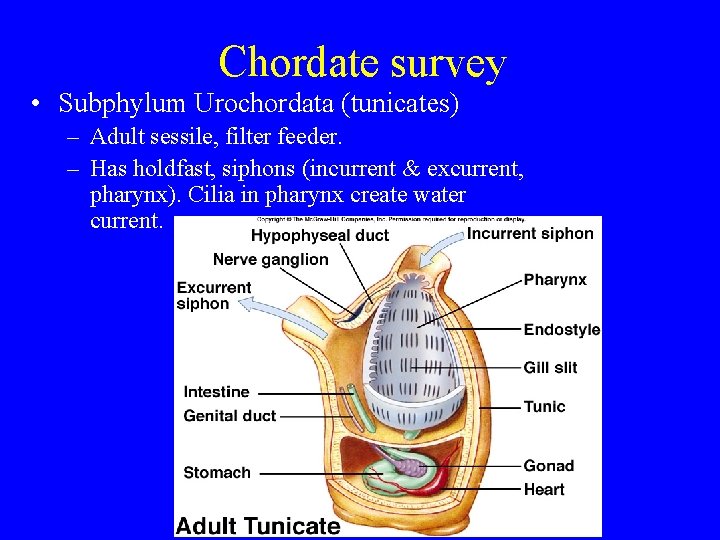

Chordate survey • Subphylum Urochordata (tunicates) – Adult sessile, filter feeder. – Has holdfast, siphons (incurrent & excurrent, pharynx). Cilia in pharynx create water current.

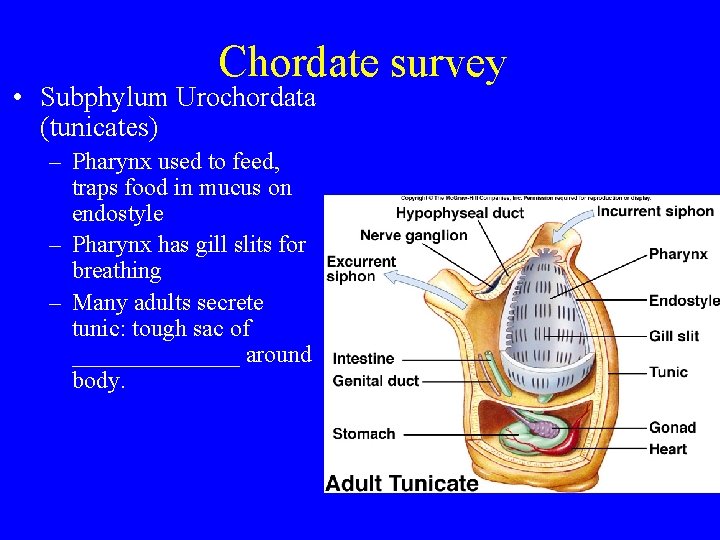

Chordate survey • Subphylum Urochordata (tunicates) – Pharynx used to feed, traps food in mucus on endostyle – Pharynx has gill slits for breathing – Many adults secrete tunic: tough sac of _______ around body.

Chordate survey • Subphylum Urochordata (tunicates) • Subphylum Cephalochordata (lancelets) • Subphylum Vertebrata (vertebrates)

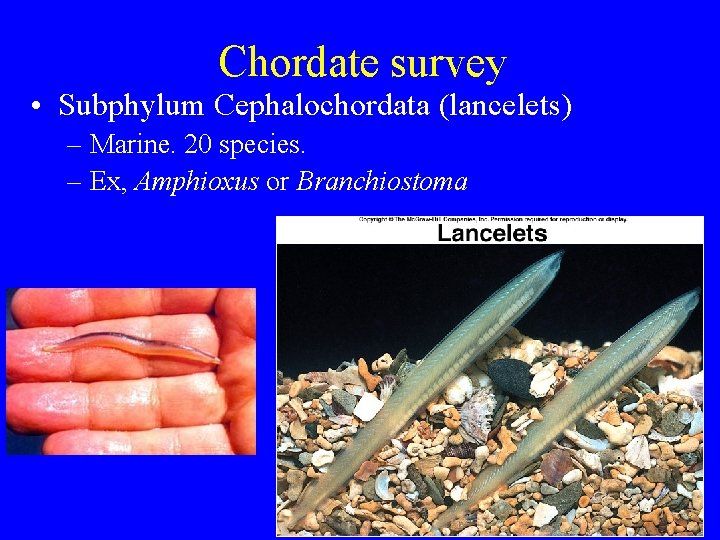

Chordate survey • Subphylum Cephalochordata (lancelets) – Marine. 20 species. – Ex, Amphioxus or Branchiostoma

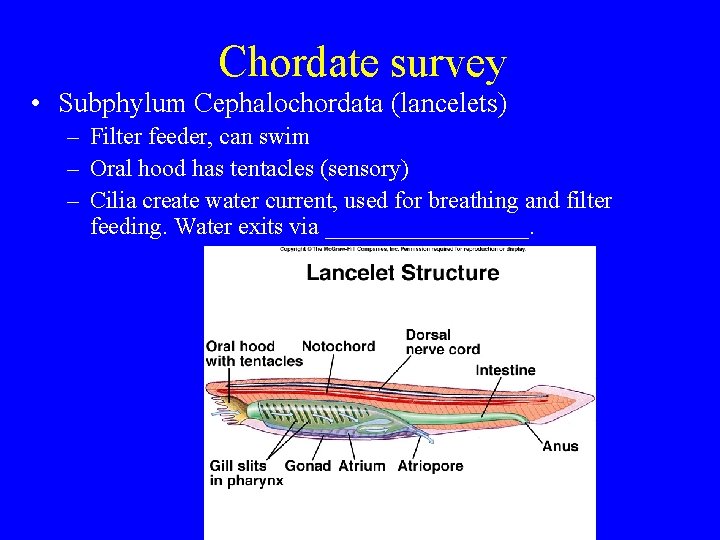

Chordate survey • Subphylum Cephalochordata (lancelets) – Filter feeder, can swim – Oral hood has tentacles (sensory) – Cilia create water current, used for breathing and filter feeding. Water exits via _________.

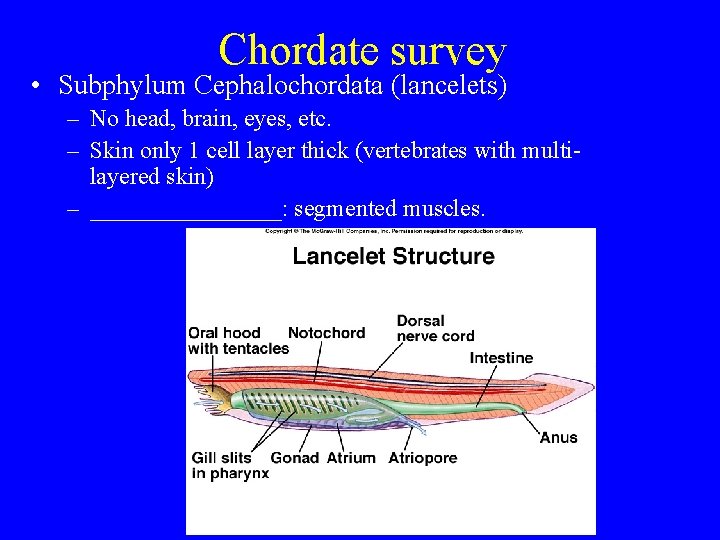

Chordate survey • Subphylum Cephalochordata (lancelets) – No head, brain, eyes, etc. – Skin only 1 cell layer thick (vertebrates with multilayered skin) – ________: segmented muscles.

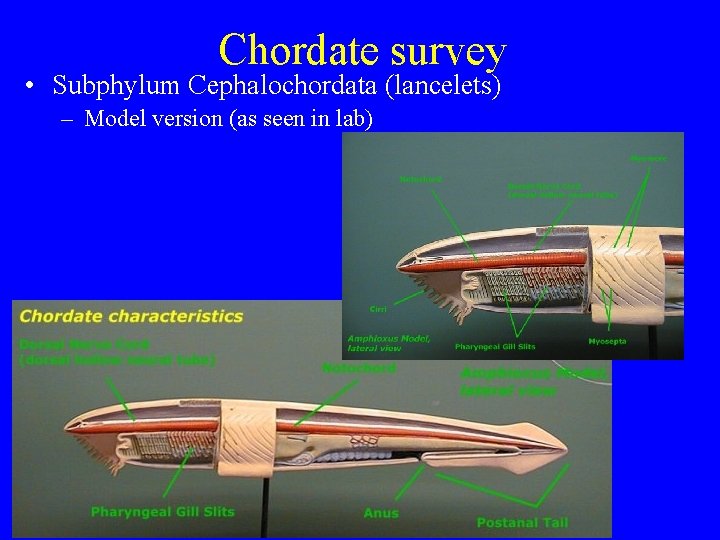

Chordate survey • Subphylum Cephalochordata (lancelets) – Model version (as seen in lab)

Chordate survey • Subphylum Urochordata (tunicates) • Subphylum Cephalochordata (lancelets) • Subphylum Vertebrata (vertebrates)

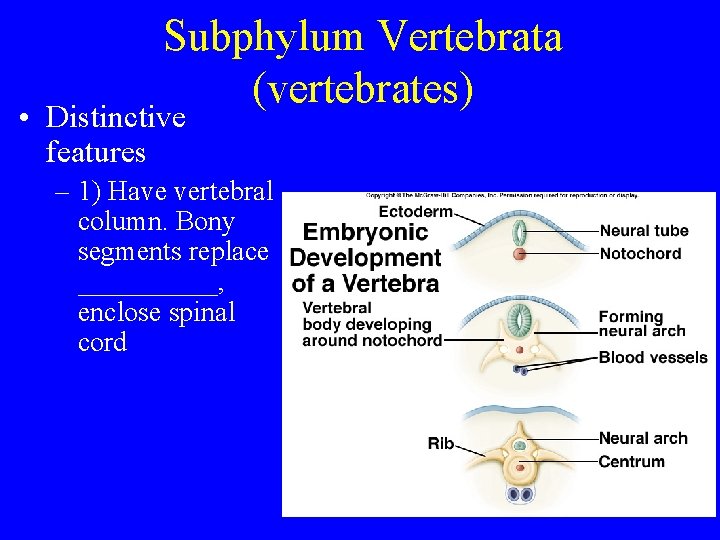

Subphylum Vertebrata (vertebrates) • Distinctive features – 1) Have vertebral column. Bony segments replace _____, enclose spinal cord

Subphylum Vertebrata (vertebrates) • Distinctive features – 2) Have well-developed head (with skull and brain)

Subphylum Vertebrata (vertebrates) • Other features – 3) Neural crest in embryo. Cells migrate to form many tissues (parts of muscle, nerve, skin, systems, etc. ) in various places in body.

Subphylum Vertebrata (vertebrates) • Other features – 4) Internal organs: liver, kidneys, endocrine glands, heart and closed circulatory system – 5) Endoskeleton of _____ (protein) or bone (protein and calcium crystals). Bone strong but not brittle. Can make big bodies this way.

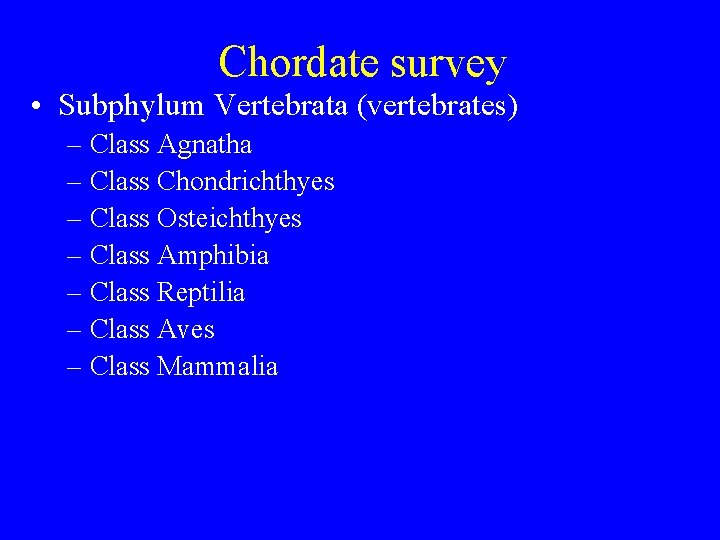

Chordate survey • Subphylum Vertebrata (vertebrates) – Class Agnatha – Class Chondrichthyes – Class Osteichthyes – Class Amphibia – Class Reptilia – Class Aves – Class Mammalia
