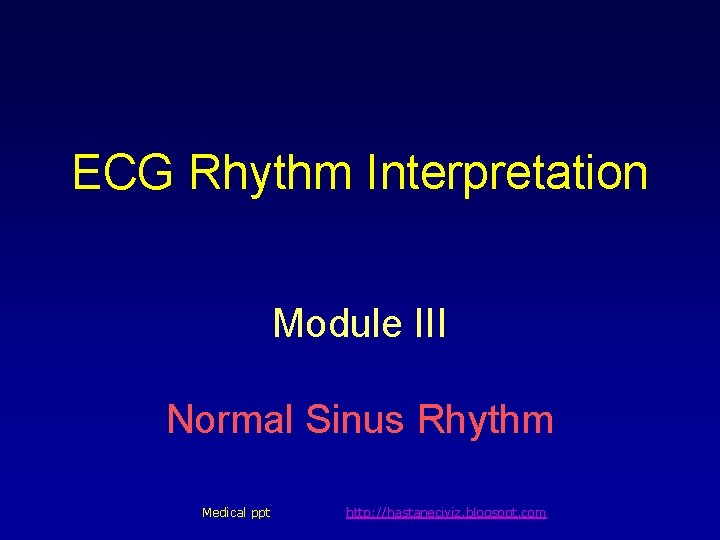

ECG Rhythm Interpretation Module III Normal Sinus Rhythm Medical ppt http: //hastaneciyiz. blogspot. com

ECG Rhythm Interpretation Module III Normal Sinus Rhythm Medical ppt http: //hastaneciyiz. blogspot. com

Course Objectives • To recognize the normal rhythm of the heart - “Normal Sinus

Course Objectives • To recognize the normal rhythm of the heart - “Normal Sinus Rhythm. ” • To recognize the 13 most common rhythm disturbances. • To recognize an acute myocardial infarction on a 12 -lead ECG.

Learning Modules • • • ECG Basics How to Analyze a Rhythm Normal Sinus

Learning Modules • • • ECG Basics How to Analyze a Rhythm Normal Sinus Rhythm Heart Arrhythmias Diagnosing a Myocardial Infarction Advanced 12 -Lead Interpretation

Normal Sinus Rhythm (NSR) • Etiology: the electrical impulse is formed in the SA

Normal Sinus Rhythm (NSR) • Etiology: the electrical impulse is formed in the SA node and conducted normally. • This is the normal rhythm of the heart; other rhythms that do not conduct via the typical pathway are called arrhythmias.

NSR Parameters • Rate 60 - 100 bpm • Regularity regular • P waves

NSR Parameters • Rate 60 - 100 bpm • Regularity regular • P waves normal • PR interval 0. 12 - 0. 20 s • QRS duration 0. 04 - 0. 12 s Any deviation from above is sinus tachycardia, sinus bradycardia or an arrhythmia

Arrhythmia Formation Arrhythmias can arise from problems in the: • Sinus node • Atrial

Arrhythmia Formation Arrhythmias can arise from problems in the: • Sinus node • Atrial cells • AV junction • Ventricular cells

SA Node Problems The SA Node can: • fire too slow • fire too

SA Node Problems The SA Node can: • fire too slow • fire too fast Sinus Bradycardia Sinus Tachycardia may be an appropriate response to stress.

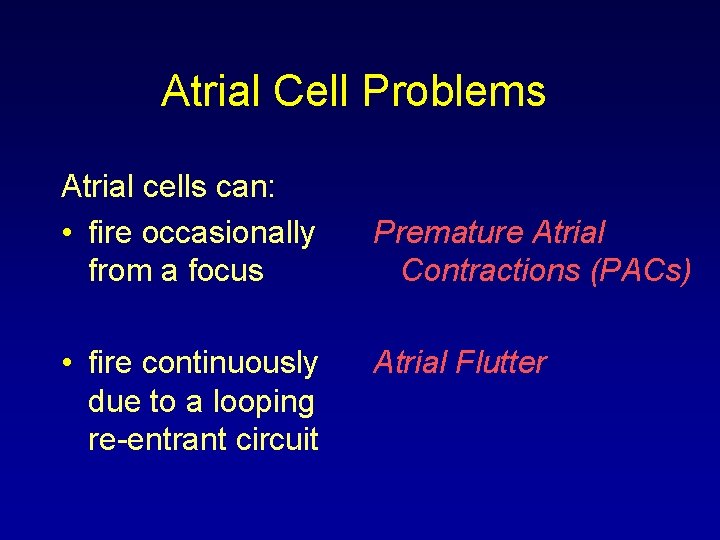

Atrial Cell Problems Atrial cells can: • fire occasionally from a focus • fire

Atrial Cell Problems Atrial cells can: • fire occasionally from a focus • fire continuously due to a looping re-entrant circuit Premature Atrial Contractions (PACs) Atrial Flutter

Teaching Moment • A re-entrant pathway occurs when an impulse loops and results in

Teaching Moment • A re-entrant pathway occurs when an impulse loops and results in selfperpetuating impulse formation.

Atrial Cell Problems Atrial cells can also: • fire continuously Atrial Fibrillation from multiple

Atrial Cell Problems Atrial cells can also: • fire continuously Atrial Fibrillation from multiple foci or Atrial Fibrillation fire continuously due to multiple micro re-entrant “wavelets”

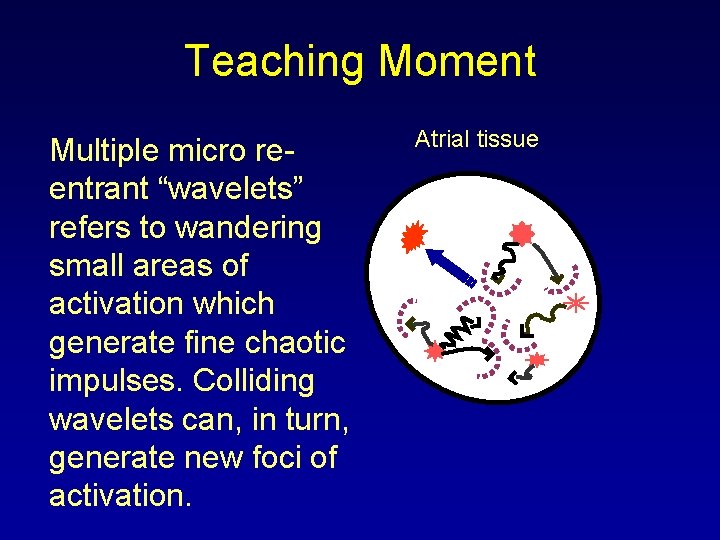

Teaching Moment Multiple micro reentrant “wavelets” refers to wandering small areas of activation which

Teaching Moment Multiple micro reentrant “wavelets” refers to wandering small areas of activation which generate fine chaotic impulses. Colliding wavelets can, in turn, generate new foci of activation. Atrial tissue

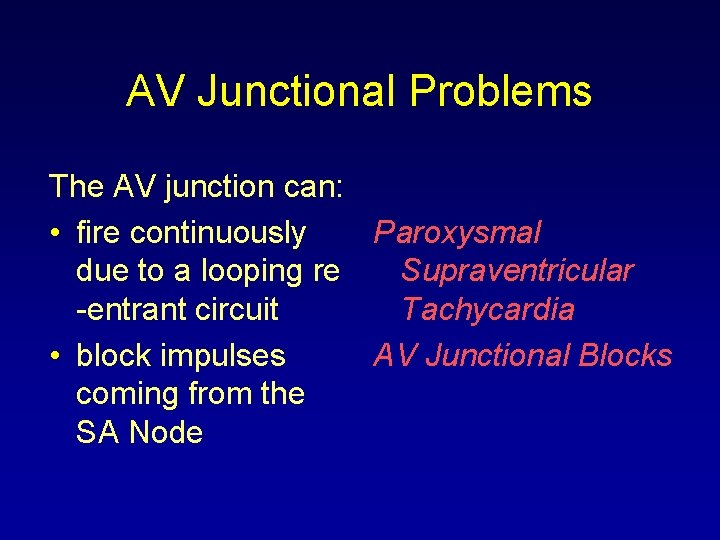

AV Junctional Problems The AV junction can: • fire continuously Paroxysmal due to a

AV Junctional Problems The AV junction can: • fire continuously Paroxysmal due to a looping re Supraventricular -entrant circuit Tachycardia • block impulses AV Junctional Blocks coming from the SA Node

Ventricular Cell Problems Ventricular cells can: • fire occasionally Premature Ventricular from 1 or

Ventricular Cell Problems Ventricular cells can: • fire occasionally Premature Ventricular from 1 or more foci Contractions (PVCs) • fire continuously Ventricular Fibrillation from multiple foci • fire continuously Ventricular Tachycardia due to a looping re -entrant circuit

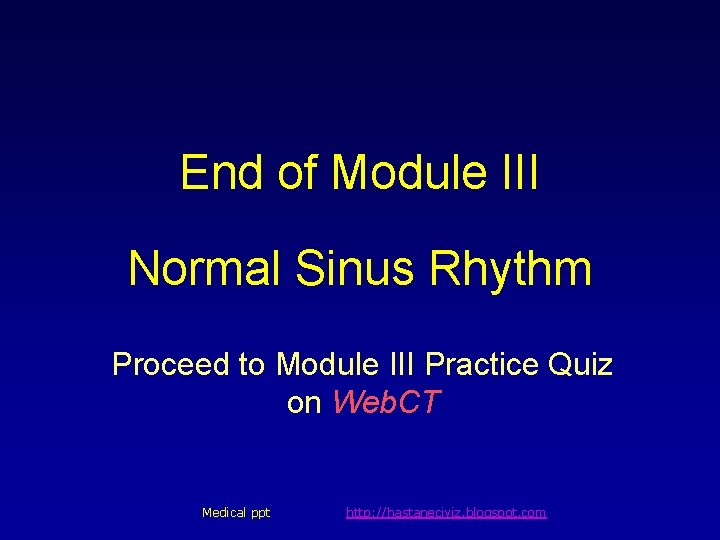

End of Module III Normal Sinus Rhythm Proceed to Module III Practice Quiz on

End of Module III Normal Sinus Rhythm Proceed to Module III Practice Quiz on Web. CT Medical ppt http: //hastaneciyiz. blogspot. com
