ECG in ischemia and MI 1395 29 2
- Slides: 62
ECG in ischemia and MI 1395 ﺗیﺮ 29 ﺩکﺘﺮ ﻃﻮﺑی کﺎﻇﻤی 2 st Summer School

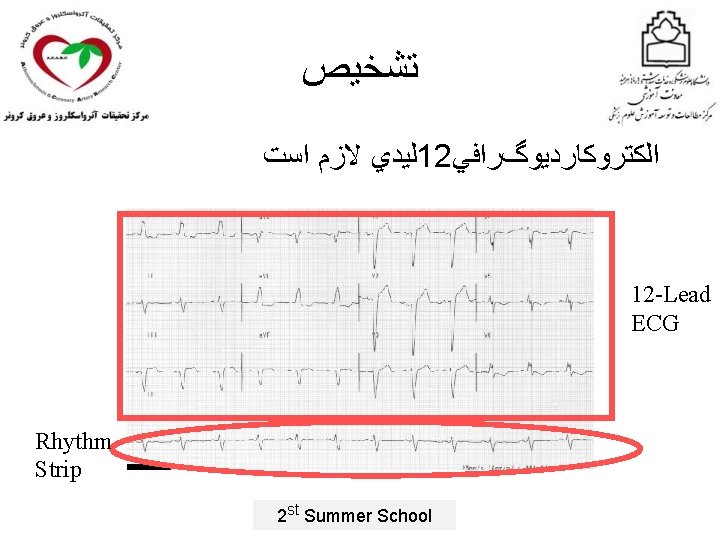

کﻠیﺎﺕ 2 st Summer School
Q wave 2 st Summer School
ST segment 2 st Summer School
T Wave 2 st Summer School
2 st Summer School
2 st Summer School
T wave inversion/ Tall T wave 2 st Summer School
ST Elevation/Depression 2 st Summer School
2 st Summer School
ØST T changes: primary secondary 2 st Summer School
2 st Summer School
2 st Summer School http: //www. emedu. org/
2 st Summer School
2 st Summer School
Ø ECG IN ISCHEMIA MI 2 st Summer School
Lead Localization 2 st Summer School

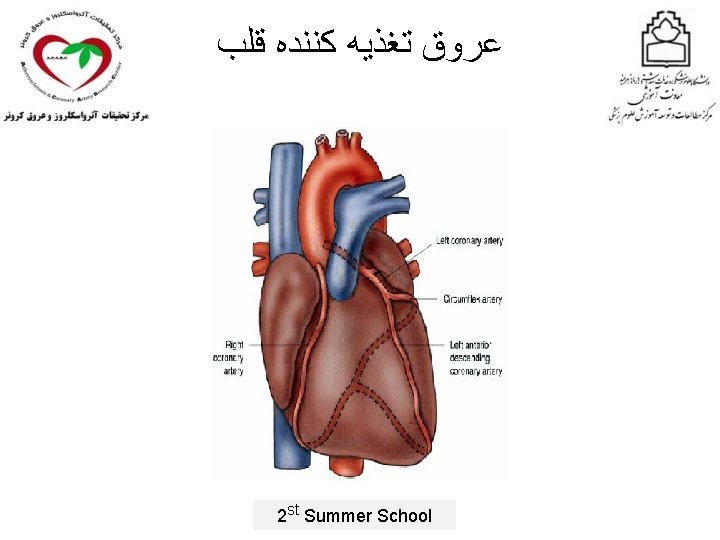

Anatomy 2 st Summer School
Views of the Heart Some leads get a good view of the: Anterior portion of the heart Inferior portion of the heart 2 st Summer School Lateral portion of the heart
Anatomical Leads 2 st Summer School
Anatomic Groups (Summary) 2 st Summer School
2 st Summer School
2 st Summer School
2 st Summer School
2 st Summer School

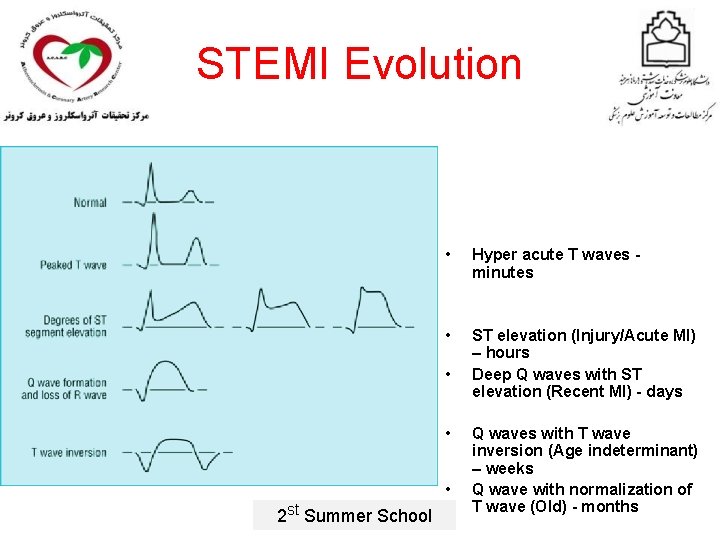

STEMI Evolution • Hyper acute T waves minutes • ST elevation (Injury/Acute MI) – hours Deep Q waves with ST elevation (Recent MI) - days • • • 2 st Summer School Q waves with T wave inversion (Age indeterminant) – weeks Q wave with normalization of T wave (Old) - months
ST Elevation 2 st Summer School
Reciprocal ST Depression 2 st Summer School
ST elevations Reciprocal depressions 2 st Summer School
Reciprocal depression ST elevation 2 st Summer School
2 st Summer School
ST elevations Reciprocal depressions 2 st Summer School
2 st Summer School
POST Flip or Use a Mirror! 2 st Summer School MI

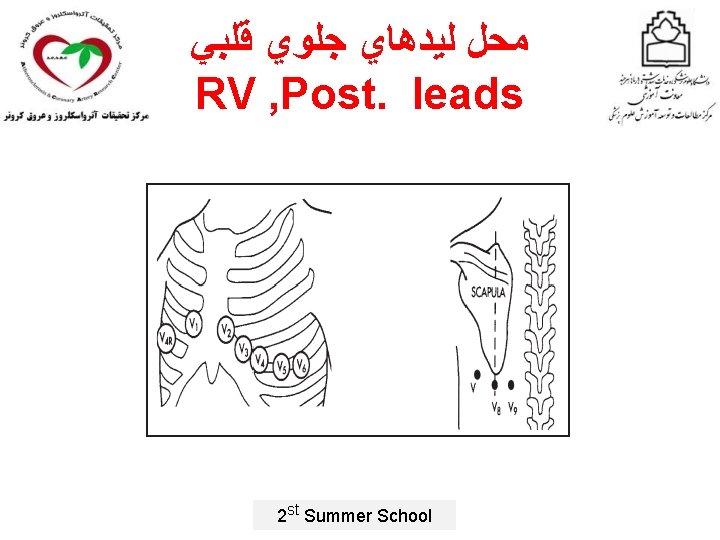

RV MI Right sided leads with ST elevation Inferior STEMI 2 st Summer School
POST MI 2 st Summer School
2 st Summer School
2 st Summer School

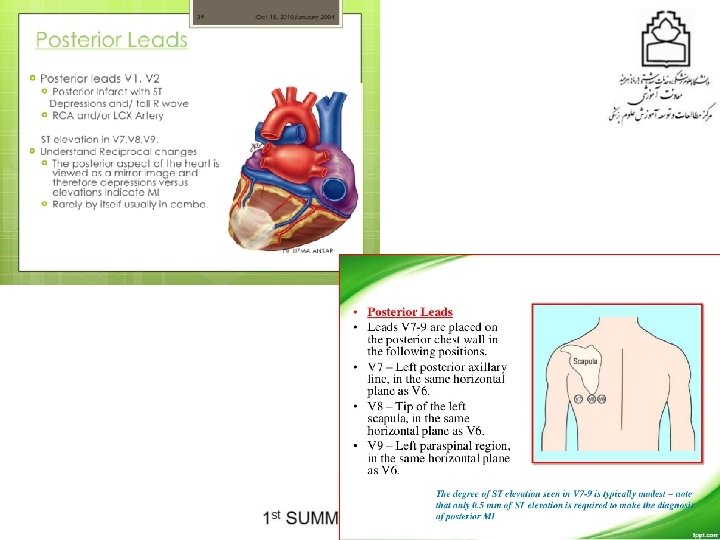

Posterior MI 2 st Summer School
