ECG Dr. Bernhard Arianto Purba, M. Kes. , AIFO

ECG Dr. Bernhard Arianto Purba, M. Kes. , AIFO

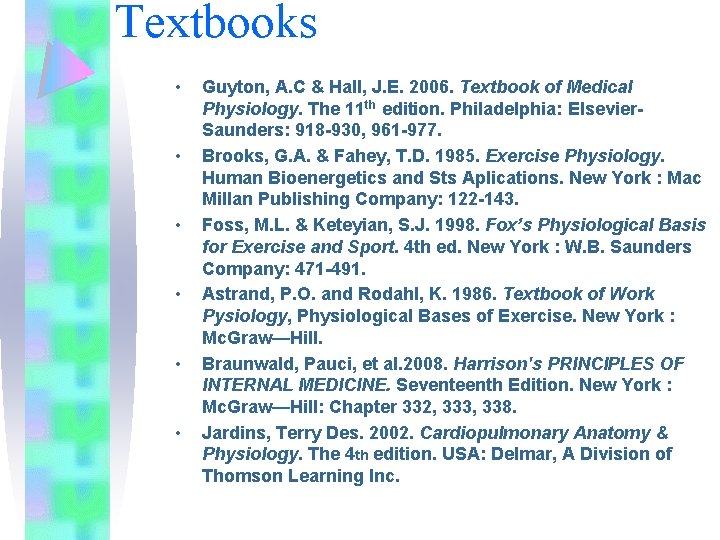

Textbooks • • • Guyton, A. C & Hall, J. E. 2006. Textbook of

Textbooks • • • Guyton, A. C & Hall, J. E. 2006. Textbook of Medical Physiology. The 11 th edition. Philadelphia: Elsevier. Saunders: 918 -930, 961 -977. Brooks, G. A. & Fahey, T. D. 1985. Exercise Physiology. Human Bioenergetics and Sts Aplications. New York : Mac Millan Publishing Company: 122 -143. Foss, M. L. & Keteyian, S. J. 1998. Fox’s Physiological Basis for Exercise and Sport. 4 th ed. New York : W. B. Saunders Company: 471 -491. Astrand, P. O. and Rodahl, K. 1986. Textbook of Work Pysiology, Physiological Bases of Exercise. New York : Mc. Graw—Hill. Braunwald, Pauci, et al. 2008. Harrison's PRINCIPLES OF INTERNAL MEDICINE. Seventeenth Edition. New York : Mc. Graw—Hill: Chapter 332, 333, 338. Jardins, Terry Des. 2002. Cardiopulmonary Anatomy & Physiology. The 4 th edition. USA: Delmar, A Division of Thomson Learning Inc.

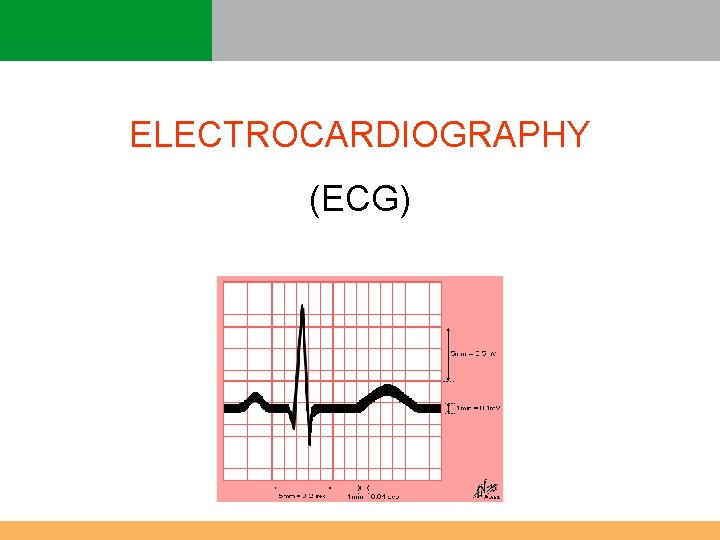

ELECTROCARDIOGRAPHY (ECG)

ELECTROCARDIOGRAPHY (ECG)

ECG

ECG

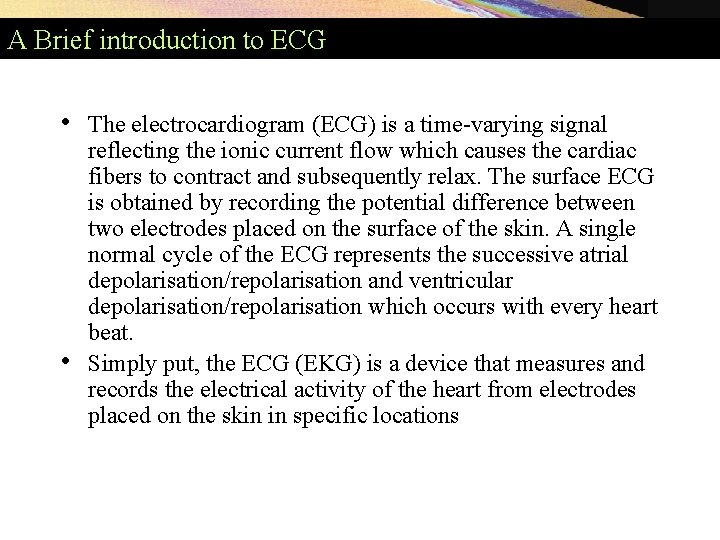

A Brief introduction to ECG • • The electrocardiogram (ECG) is a time-varying signal

A Brief introduction to ECG • • The electrocardiogram (ECG) is a time-varying signal reflecting the ionic current flow which causes the cardiac fibers to contract and subsequently relax. The surface ECG is obtained by recording the potential difference between two electrodes placed on the surface of the skin. A single normal cycle of the ECG represents the successive atrial depolarisation/repolarisation and ventricular depolarisation/repolarisation which occurs with every heart beat. Simply put, the ECG (EKG) is a device that measures and records the electrical activity of the heart from electrodes placed on the skin in specific locations

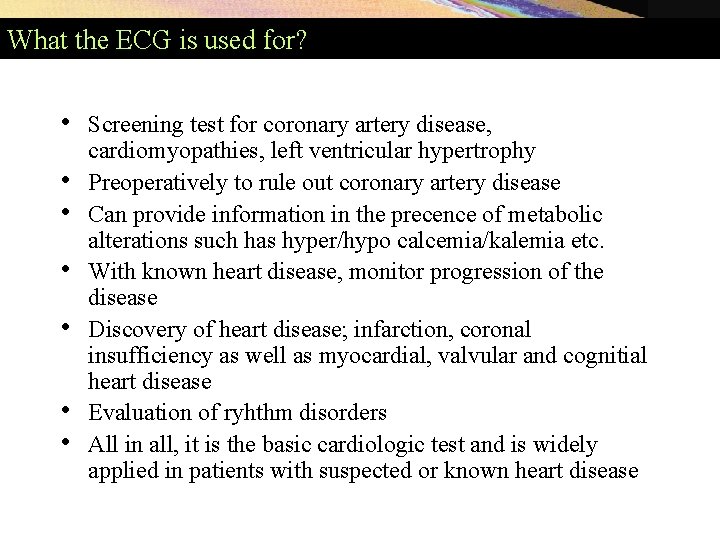

What the ECG is used for? • • Screening test for coronary artery disease,

What the ECG is used for? • • Screening test for coronary artery disease, cardiomyopathies, left ventricular hypertrophy Preoperatively to rule out coronary artery disease Can provide information in the precence of metabolic alterations such has hyper/hypo calcemia/kalemia etc. With known heart disease, monitor progression of the disease Discovery of heart disease; infarction, coronal insufficiency as well as myocardial, valvular and cognitial heart disease Evaluation of ryhthm disorders All in all, it is the basic cardiologic test and is widely applied in patients with suspected or known heart disease

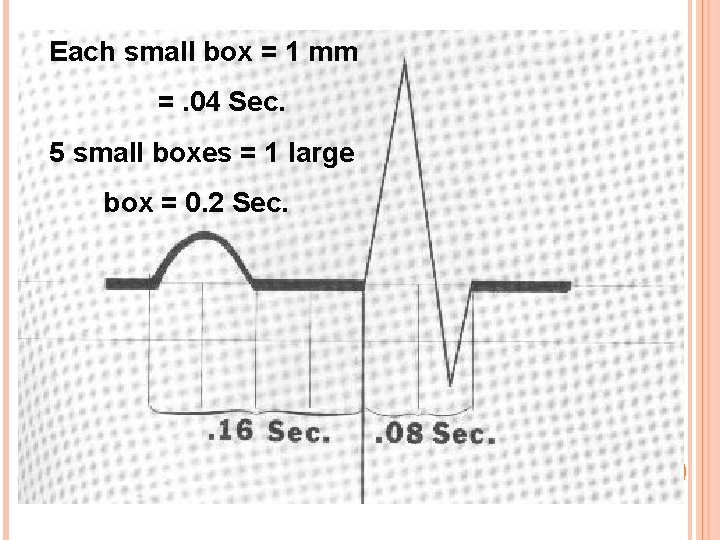

Each small box = 1 mm =. 04 Sec. 5 small boxes = 1

Each small box = 1 mm =. 04 Sec. 5 small boxes = 1 large box = 0. 2 Sec.

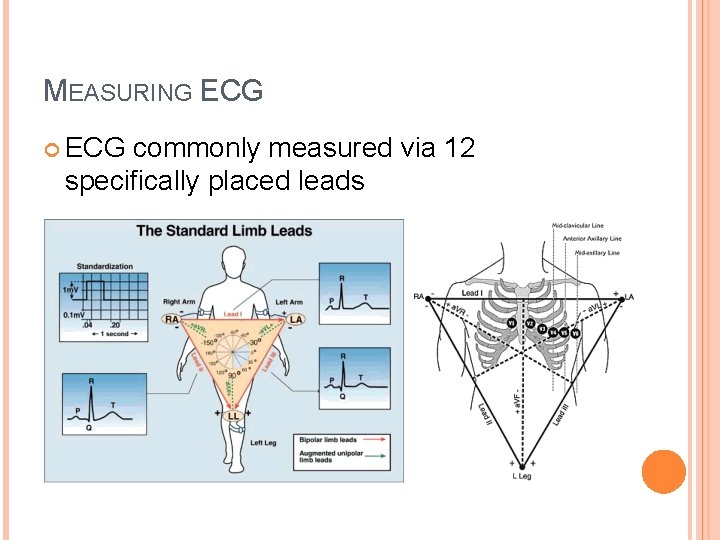

MEASURING ECG commonly measured via 12 specifically placed leads

MEASURING ECG commonly measured via 12 specifically placed leads

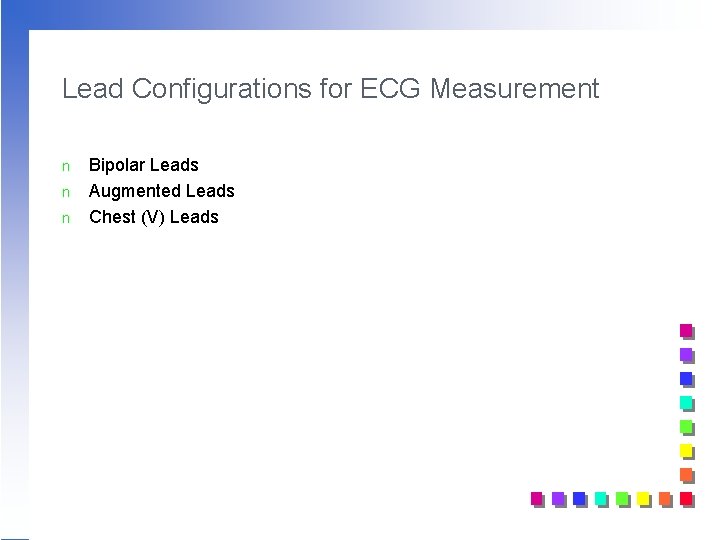

Lead Configurations for ECG Measurement n n n Bipolar Leads Augmented Leads Chest (V)

Lead Configurations for ECG Measurement n n n Bipolar Leads Augmented Leads Chest (V) Leads

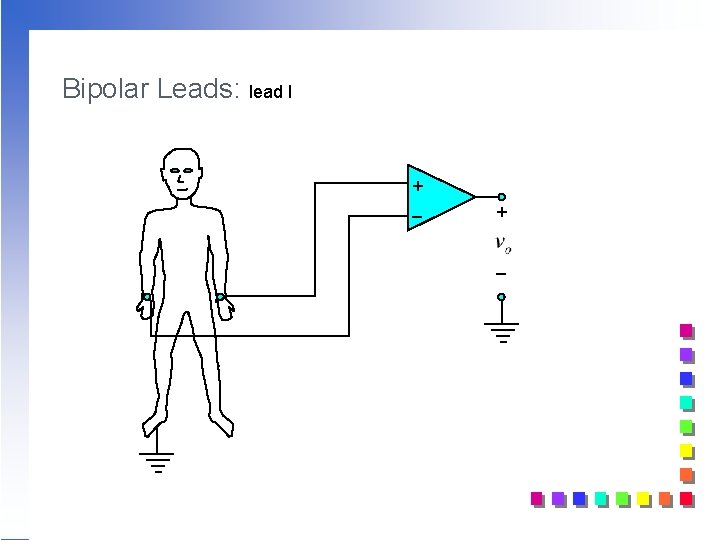

Bipolar Leads: lead I + _

Bipolar Leads: lead I + _

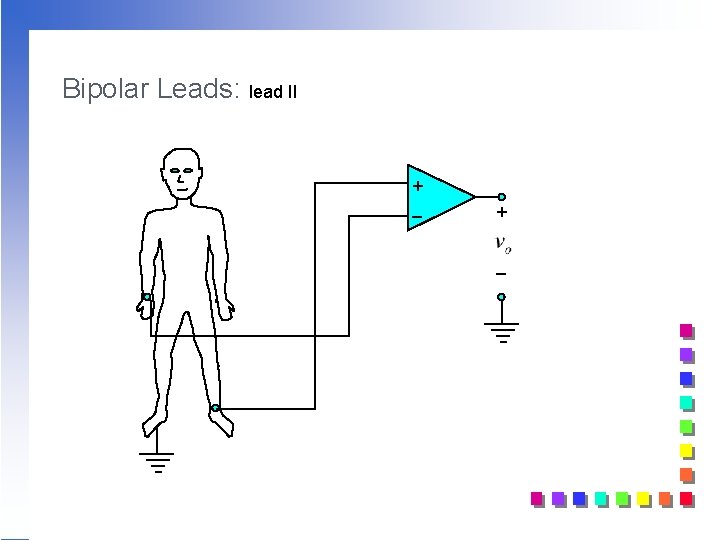

Bipolar Leads: lead II + _

Bipolar Leads: lead II + _

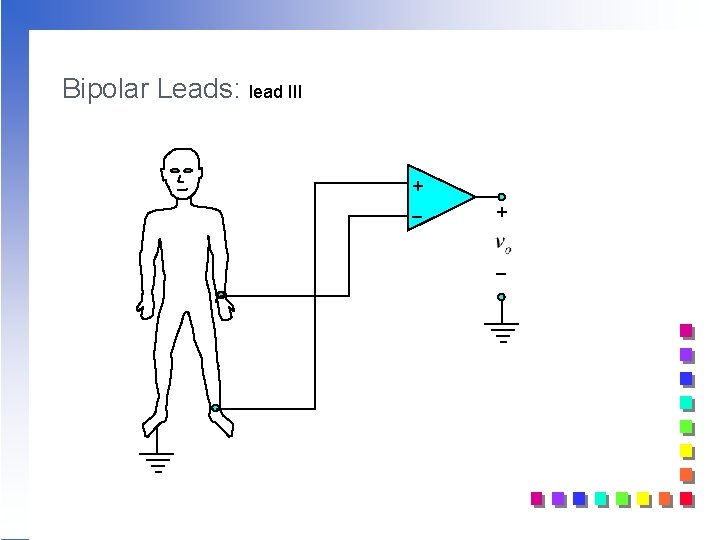

Bipolar Leads: lead III + _

Bipolar Leads: lead III + _

ECG Limb Leads

ECG Limb Leads

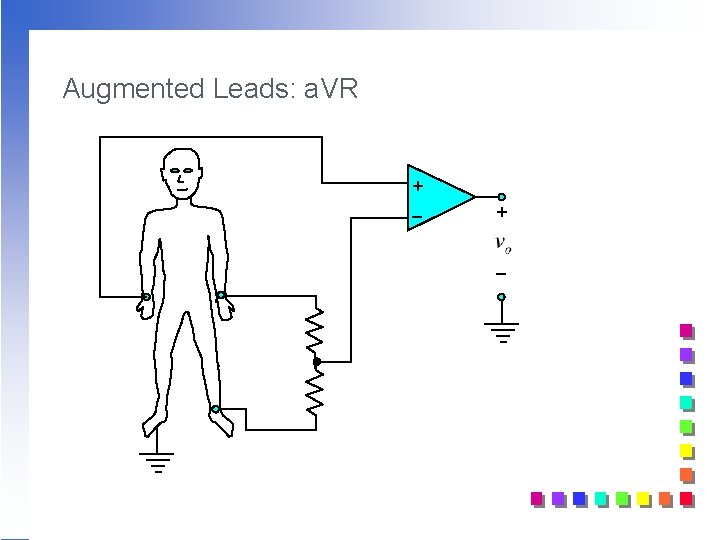

Augmented Leads: a. VR + _

Augmented Leads: a. VR + _

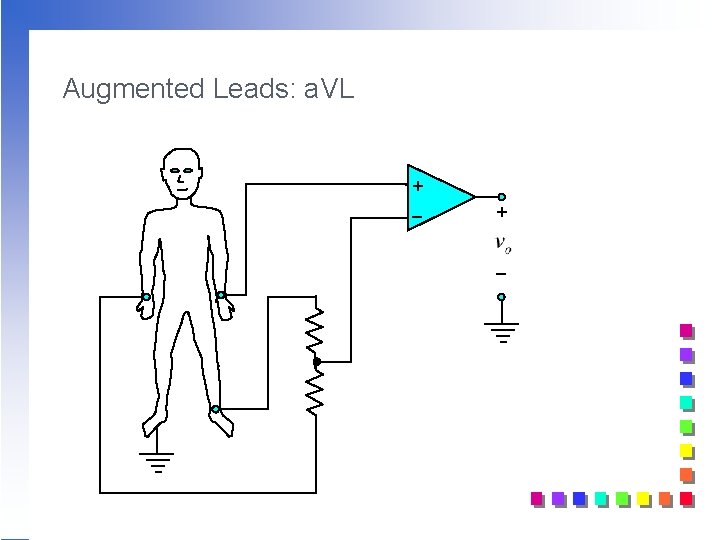

Augmented Leads: a. VL + _

Augmented Leads: a. VL + _

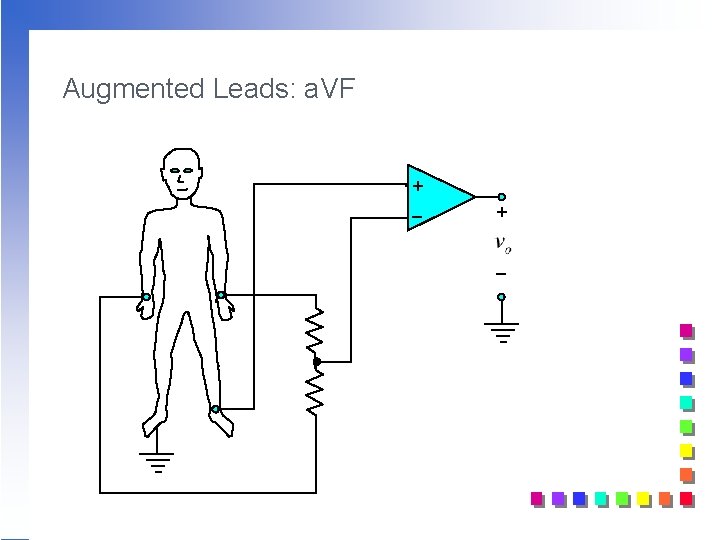

Augmented Leads: a. VF + _

Augmented Leads: a. VF + _

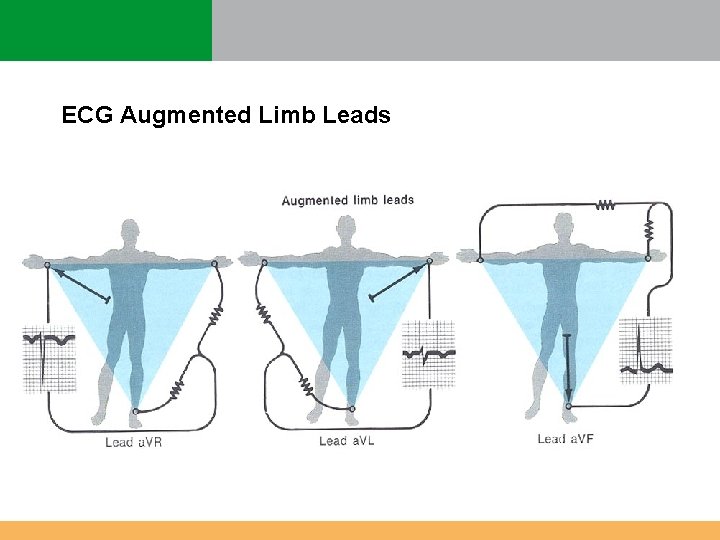

ECG Augmented Limb Leads

ECG Augmented Limb Leads

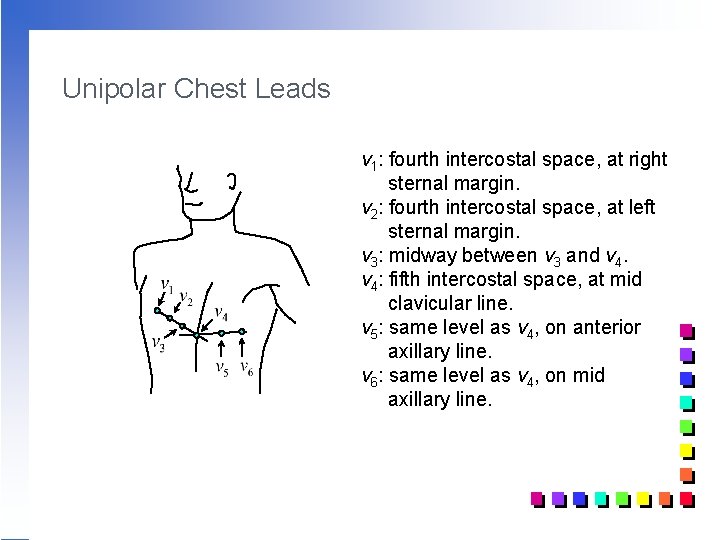

Unipolar Chest Leads v 1: fourth intercostal space, at right sternal margin. v 2:

Unipolar Chest Leads v 1: fourth intercostal space, at right sternal margin. v 2: fourth intercostal space, at left sternal margin. v 3: midway between v 3 and v 4: fifth intercostal space, at mid clavicular line. v 5: same level as v 4, on anterior axillary line. v 6: same level as v 4, on mid axillary line.

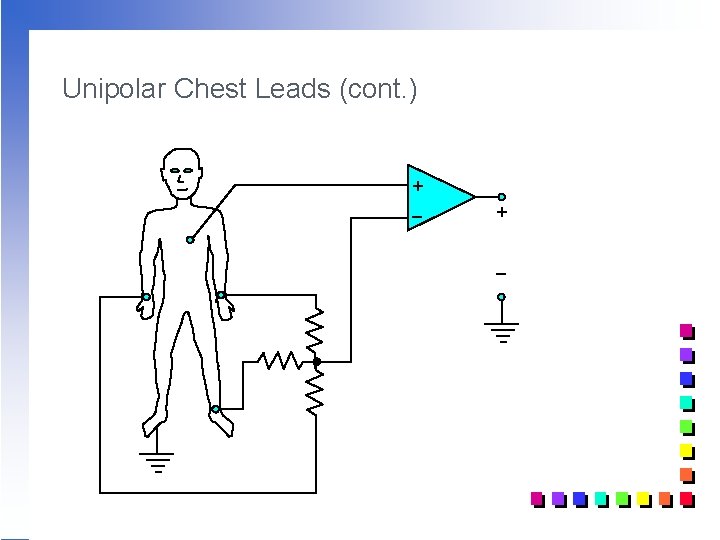

Unipolar Chest Leads (cont. ) + _

Unipolar Chest Leads (cont. ) + _

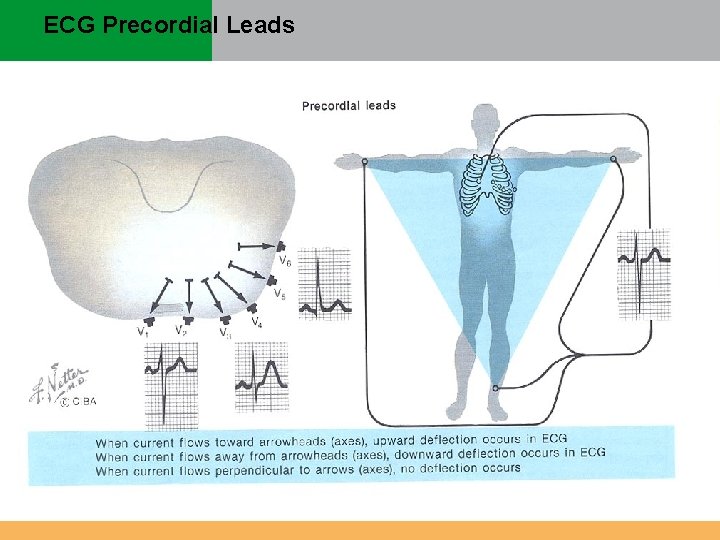

ECG Precordial Leads

ECG Precordial Leads

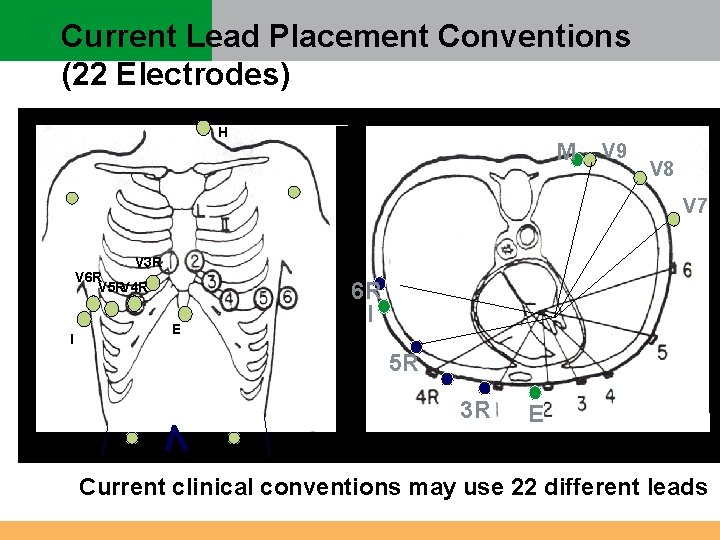

Current Lead Placement Conventions (22 Electrodes) H M V 9 V 8 V 7

Current Lead Placement Conventions (22 Electrodes) H M V 9 V 8 V 7 V 3 R V 6 R V 5 RV 4 R I E 6 R I 5 R 3 R E Current clinical conventions may use 22 different leads

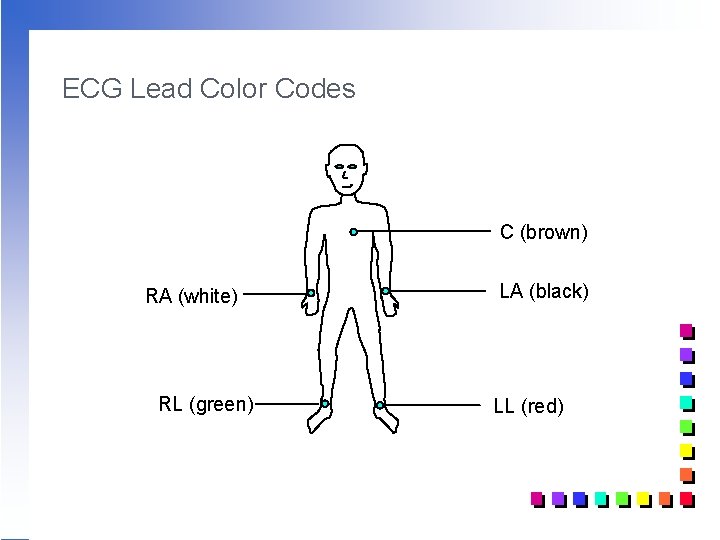

ECG Lead Color Codes C (brown) RA (white) RL (green) LA (black) LL (red)

ECG Lead Color Codes C (brown) RA (white) RL (green) LA (black) LL (red)

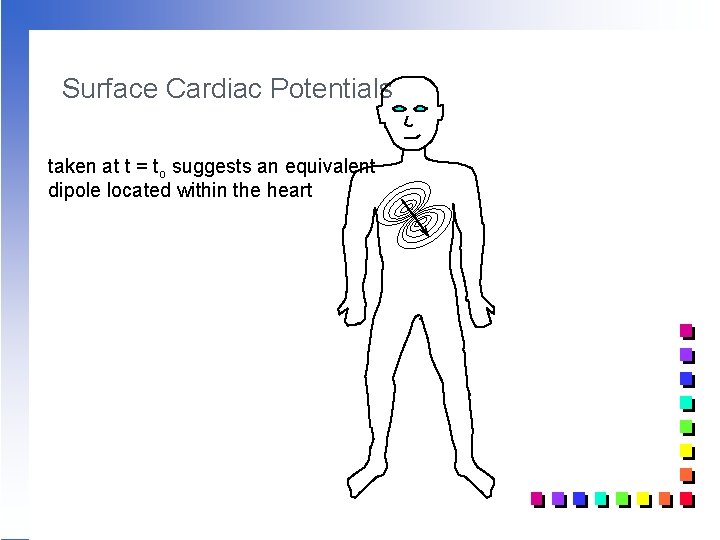

Surface Cardiac Potentials taken at t = to suggests an equivalent dipole located within

Surface Cardiac Potentials taken at t = to suggests an equivalent dipole located within the heart

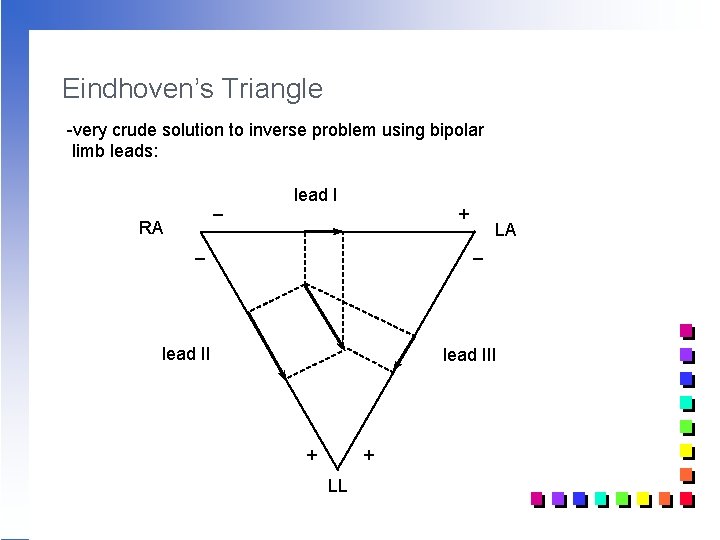

Eindhoven’s Triangle -very crude solution to inverse problem using bipolar limb leads: _ lead

Eindhoven’s Triangle -very crude solution to inverse problem using bipolar limb leads: _ lead I + RA _ LA _ lead III + + LL

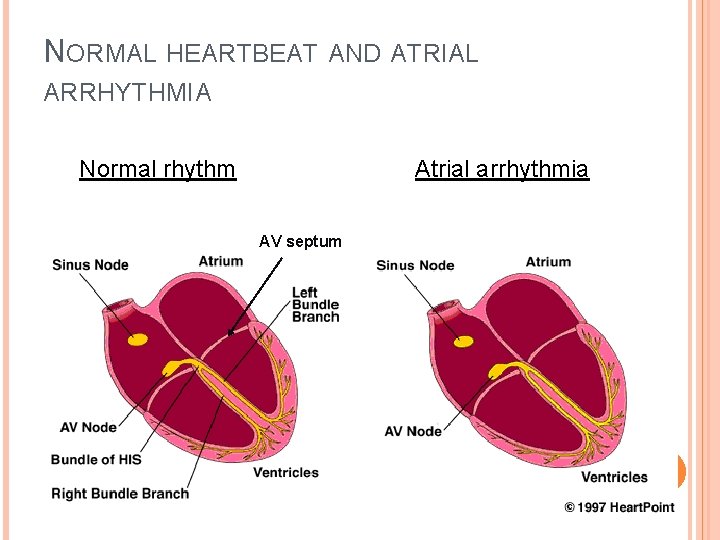

NORMAL HEARTBEAT AND ATRIAL ARRHYTHMIA Normal rhythm Atrial arrhythmia AV septum

NORMAL HEARTBEAT AND ATRIAL ARRHYTHMIA Normal rhythm Atrial arrhythmia AV septum

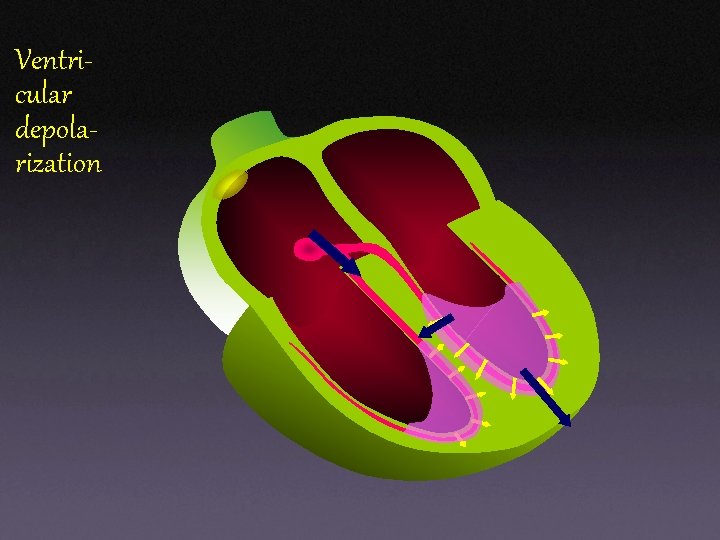

Ventricular depolarization

Ventricular depolarization

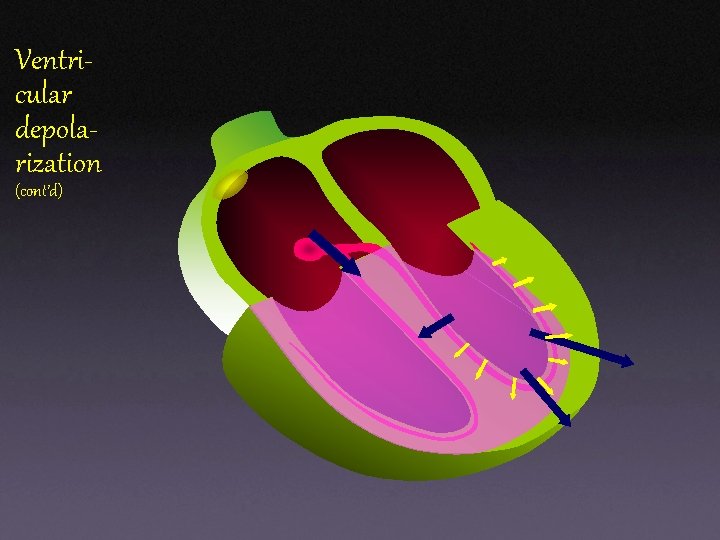

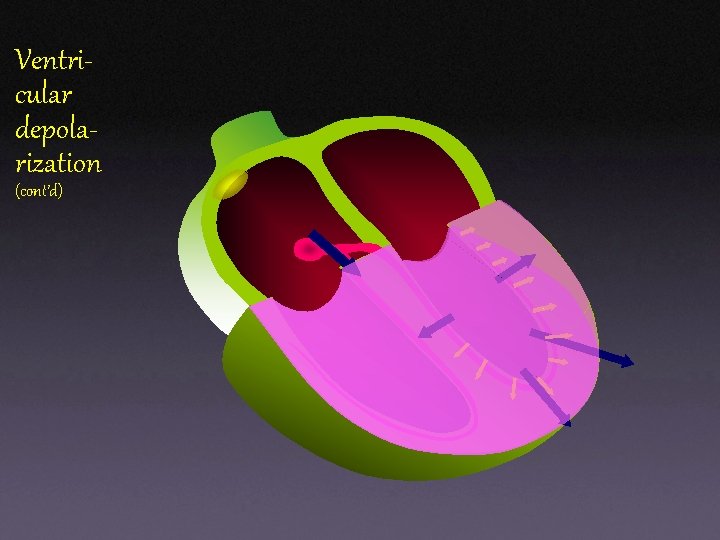

Ventricular depolarization (cont’d)

Ventricular depolarization (cont’d)

Ventricular depolarization (cont’d)

Ventricular depolarization (cont’d)

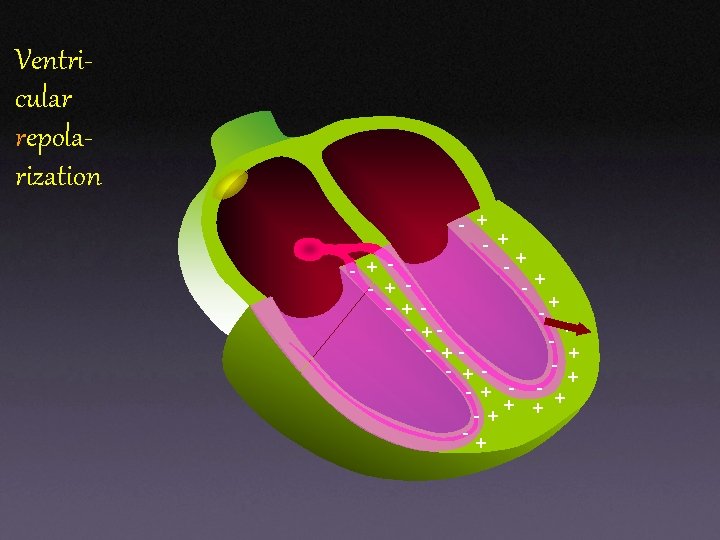

Ventricular repolarization - + + -+ + - - + - +- + -

Ventricular repolarization - + + -+ + - - + - +- + - + + -+ + +

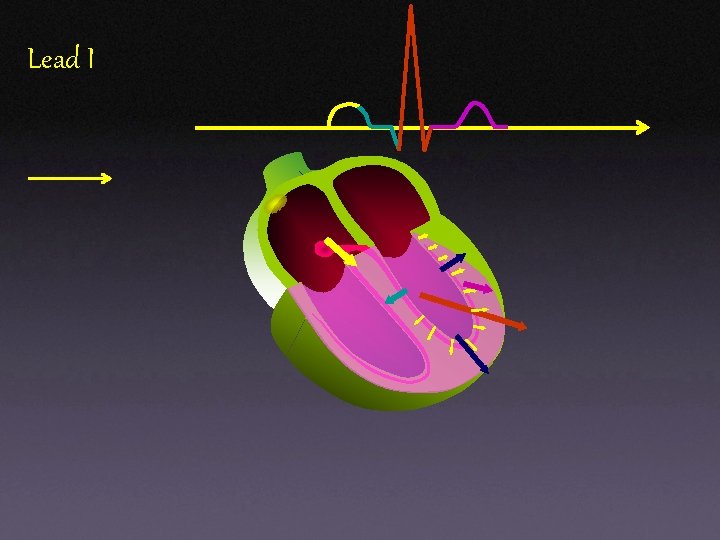

Lead I

Lead I

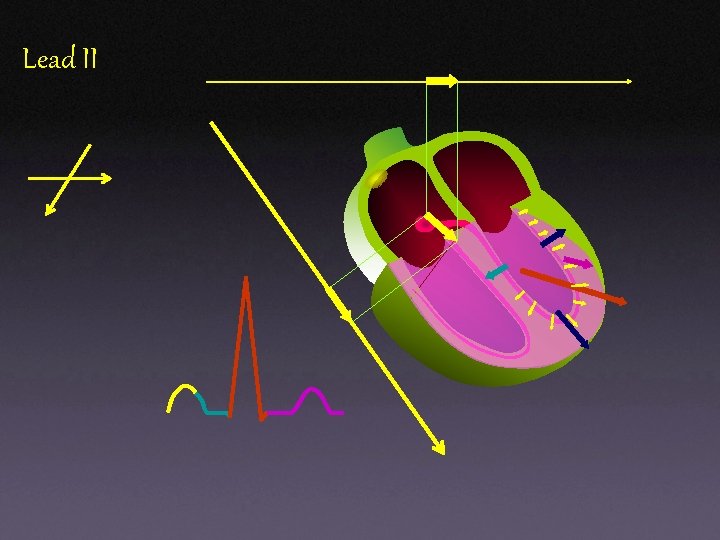

Lead II

Lead II

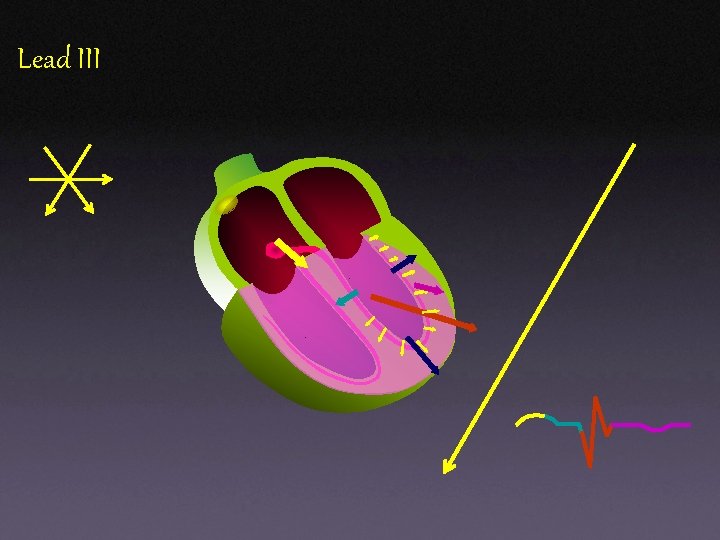

Lead III

Lead III

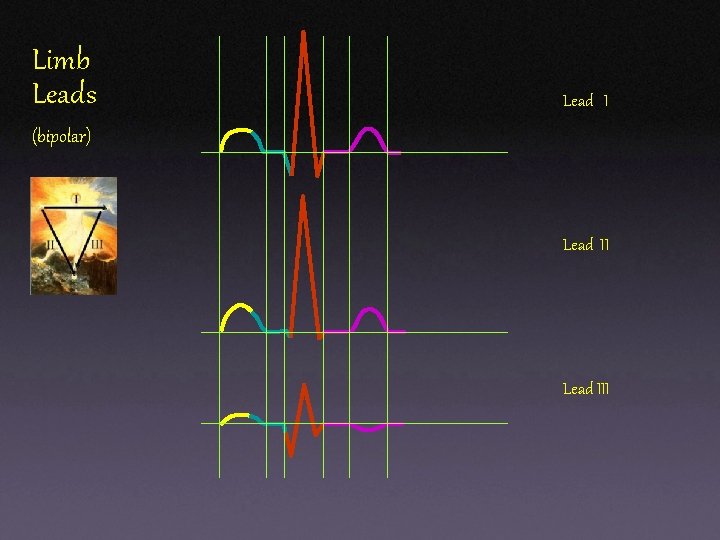

Limb Leads Lead I (bipolar) Lead III

Limb Leads Lead I (bipolar) Lead III

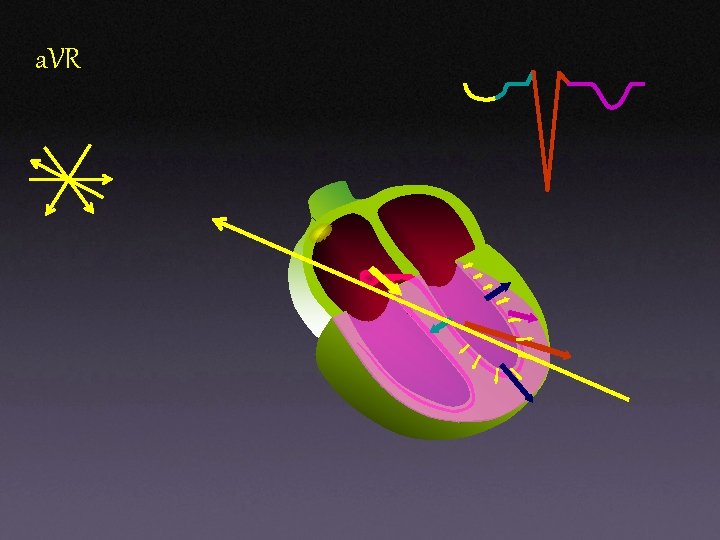

a. VR

a. VR

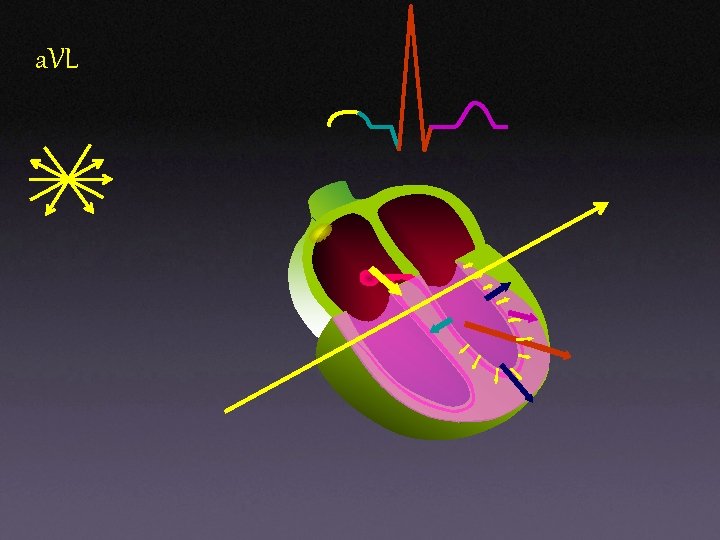

a. VL

a. VL

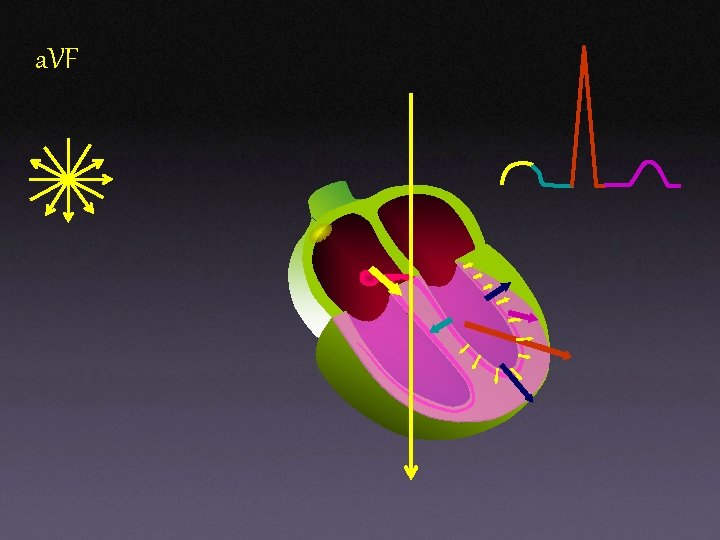

a. VF

a. VF

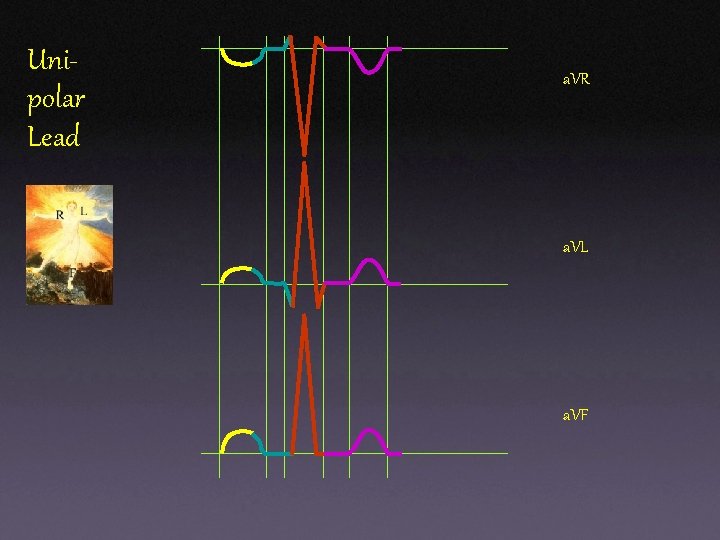

Unipolar Lead a. VR a. VL a. VF

Unipolar Lead a. VR a. VL a. VF

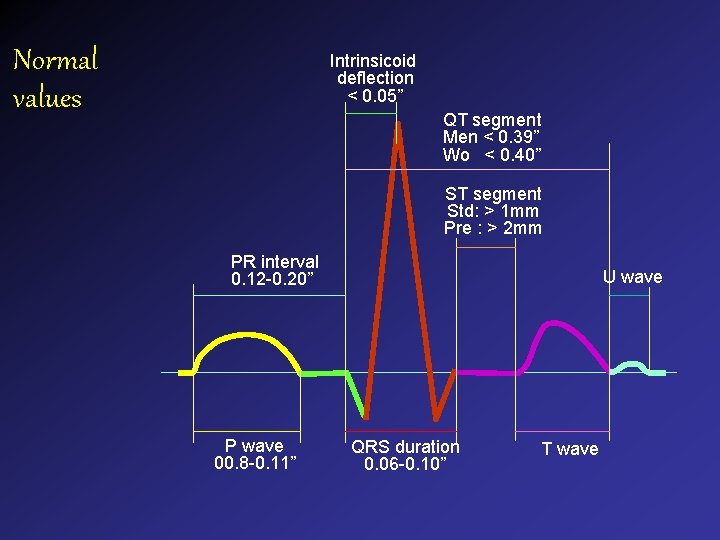

Normal values Intrinsicoid deflection < 0. 05” QT segment Men < 0. 39” Wo

Normal values Intrinsicoid deflection < 0. 05” QT segment Men < 0. 39” Wo < 0. 40” ST segment Std: > 1 mm Pre : > 2 mm PR interval 0. 12 -0. 20” P wave 00. 8 -0. 11” U wave QRS duration 0. 06 -0. 10” T wave

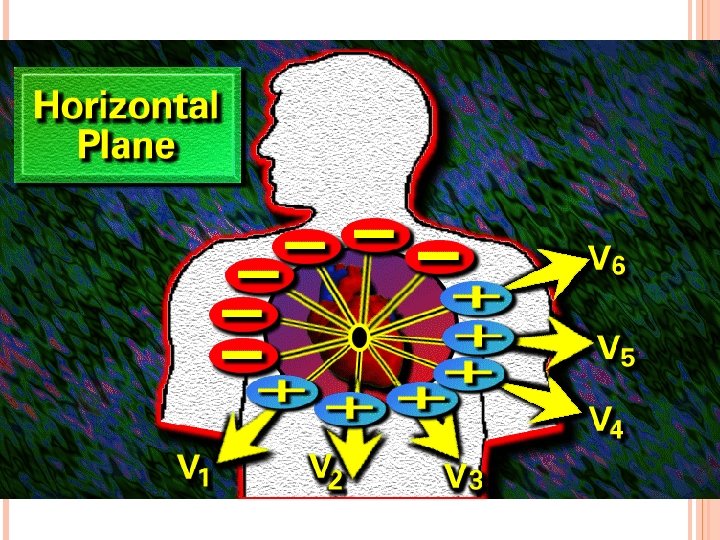

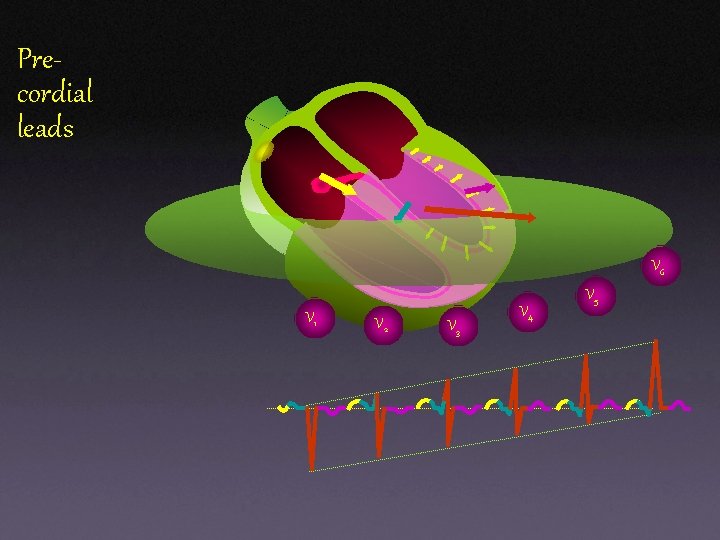

Precordial leads V 6 V 1 V 2 V 3 V 4 V 5

Precordial leads V 6 V 1 V 2 V 3 V 4 V 5

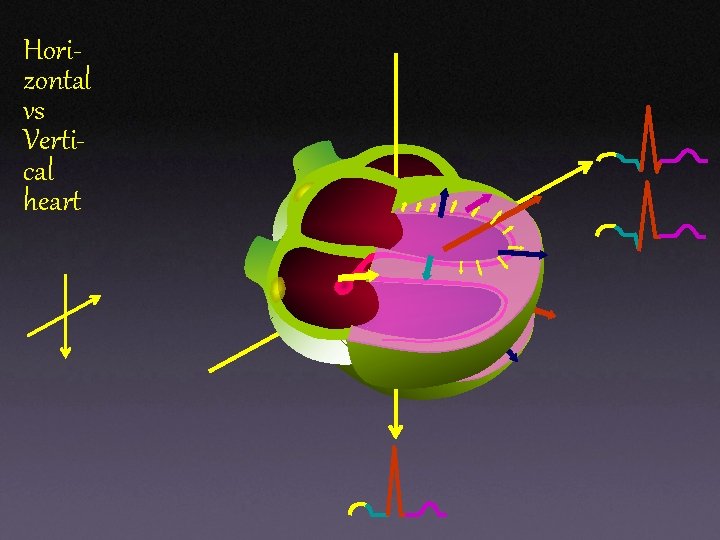

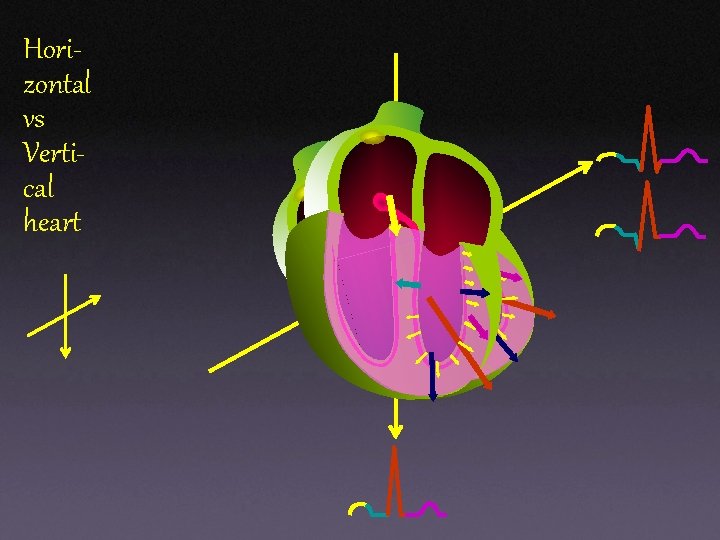

Horizontal vs Vertical heart

Horizontal vs Vertical heart

Horizontal vs Vertical heart

Horizontal vs Vertical heart

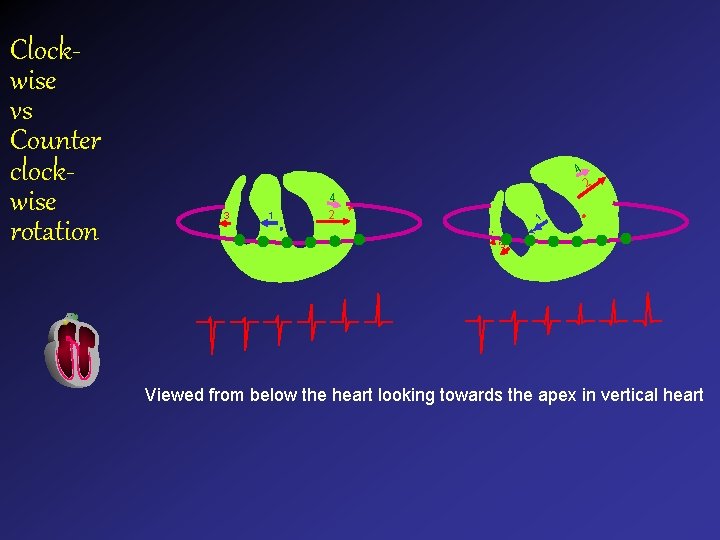

Clockwise vs Counter clockwise rotation 4 1 1 3 3 24 2 4 4

Clockwise vs Counter clockwise rotation 4 1 1 3 3 24 2 4 4 2 2 11 3 3 Viewed from below the heart looking towards the apex in vertical heart

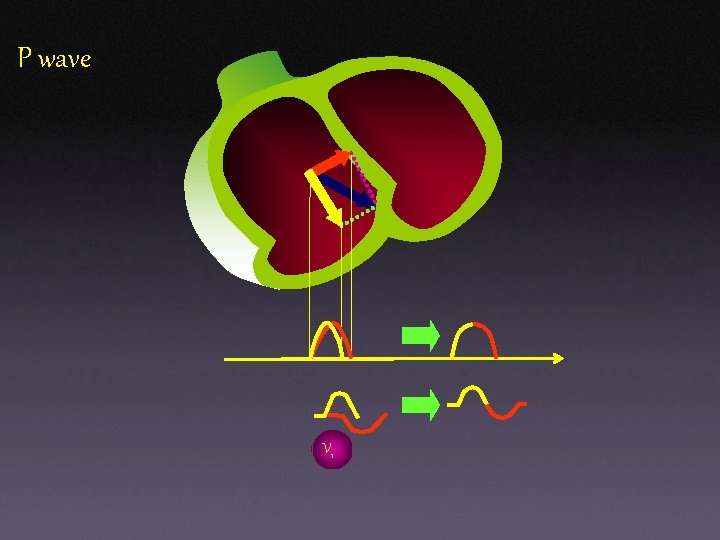

P wave V 1

P wave V 1

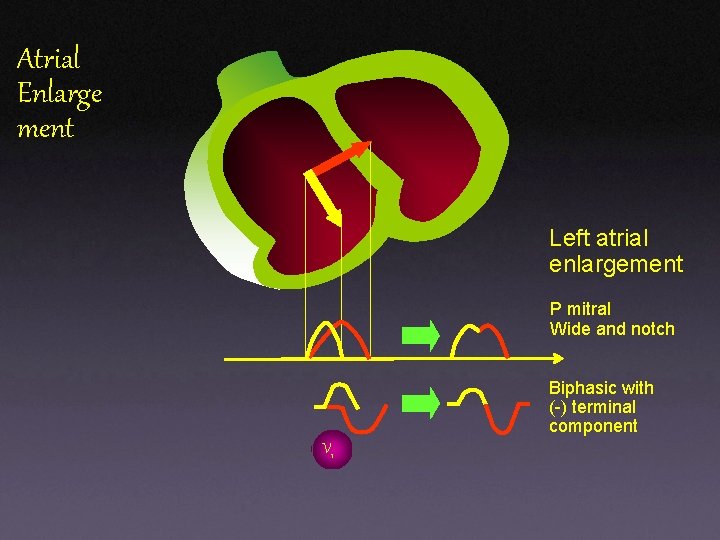

Atrial Enlarge ment Left atrial enlargement P mitral Wide and notch Biphasic with (-)

Atrial Enlarge ment Left atrial enlargement P mitral Wide and notch Biphasic with (-) terminal component V 1

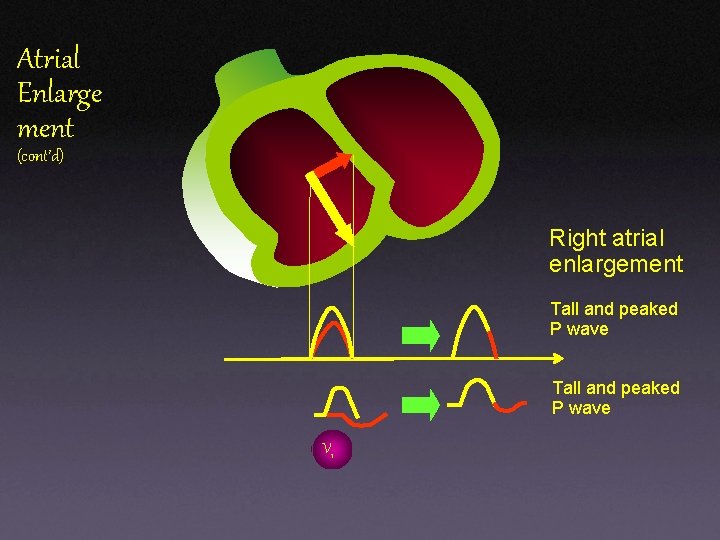

Atrial Enlarge ment (cont’d) Right atrial enlargement Tall and peaked P wave V 1

Atrial Enlarge ment (cont’d) Right atrial enlargement Tall and peaked P wave V 1

Electrical axis q. RS = +3 Lead I q. RS = +1 a. VF

Electrical axis q. RS = +3 Lead I q. RS = +1 a. VF

The QRS Bundle of His LBB Anterosuperior division Posteroinferior division RBB

The QRS Bundle of His LBB Anterosuperior division Posteroinferior division RBB

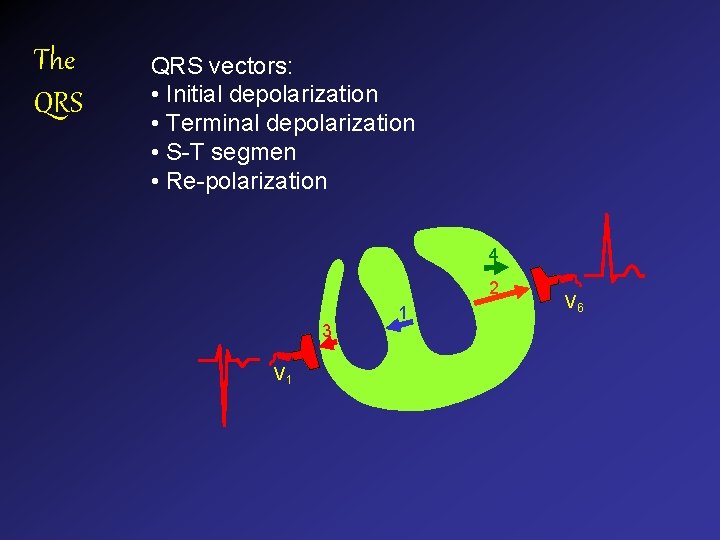

The QRS vectors: • Initial depolarization • Terminal depolarization • S-T segmen • Re-polarization

The QRS vectors: • Initial depolarization • Terminal depolarization • S-T segmen • Re-polarization 4 2 3 V 1 1 V 6

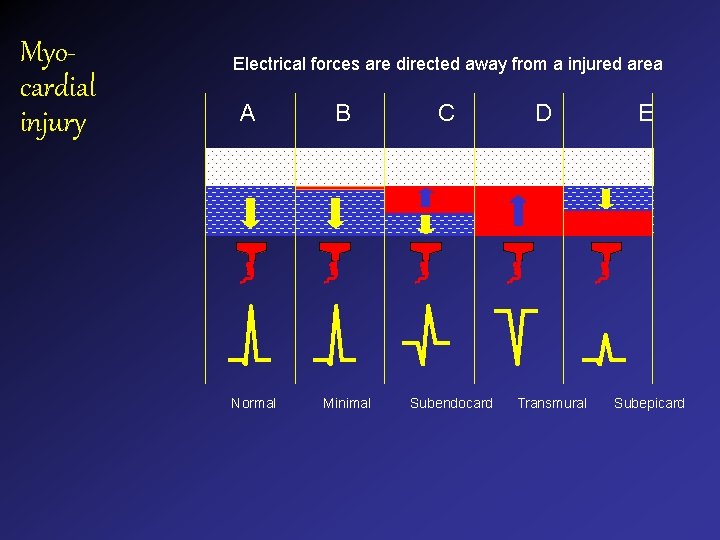

Myocardial injury Electrical forces are directed away from a injured area A Normal B

Myocardial injury Electrical forces are directed away from a injured area A Normal B Minimal C Subendocard D Transmural E Subepicard

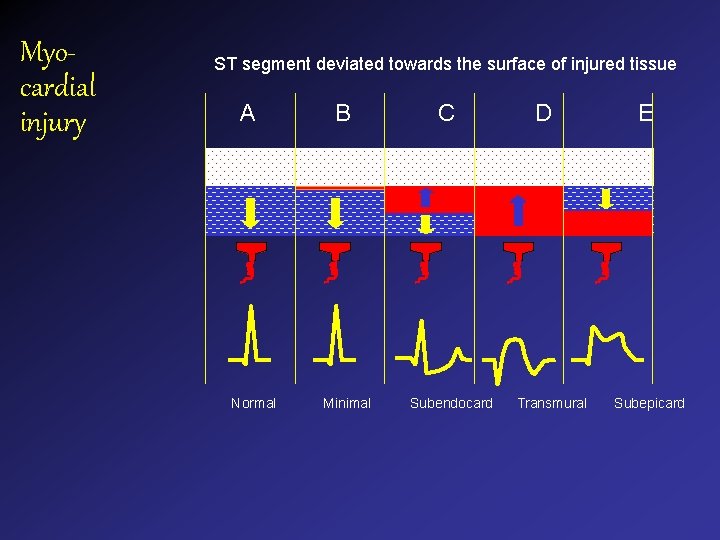

Myocardial injury ST segment deviated towards the surface of injured tissue A Normal B

Myocardial injury ST segment deviated towards the surface of injured tissue A Normal B Minimal C Subendocard D Transmural E Subepicard

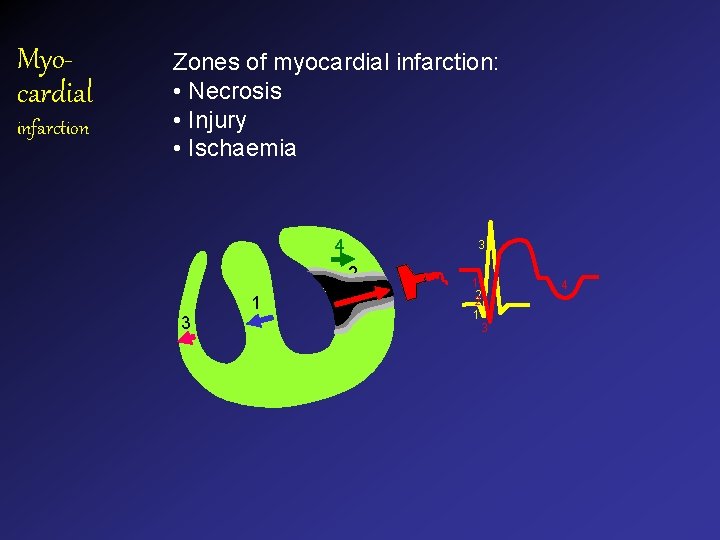

Myocardial infarction Zones of myocardial infarction: • Necrosis • Injury • Ischaemia 4 3

Myocardial infarction Zones of myocardial infarction: • Necrosis • Injury • Ischaemia 4 3 2 1 3 1 22 1 3 4

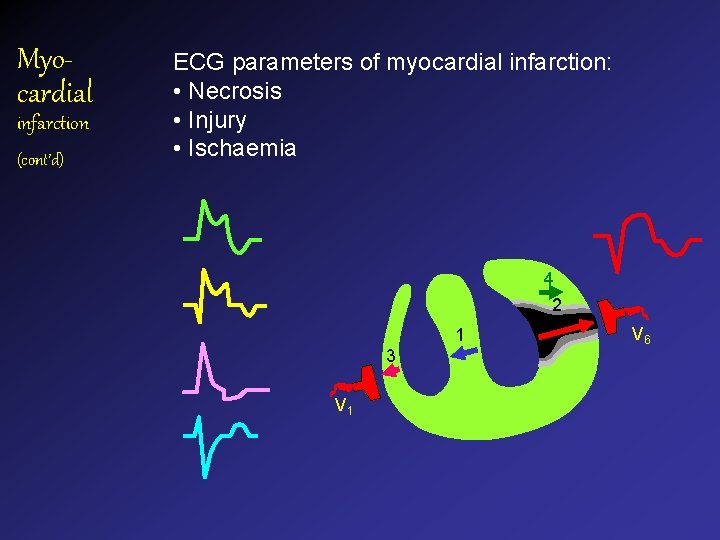

Myocardial infarction (cont’d) ECG parameters of myocardial infarction: • Necrosis • Injury • Ischaemia

Myocardial infarction (cont’d) ECG parameters of myocardial infarction: • Necrosis • Injury • Ischaemia 4 2 1 3 V 1 V 6

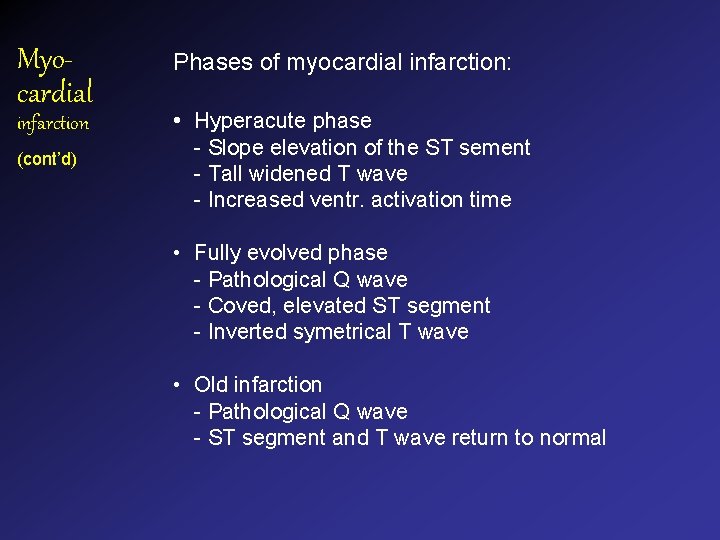

Myocardial infarction (cont’d) Phases of myocardial infarction: • Hyperacute phase - Slope elevation of

Myocardial infarction (cont’d) Phases of myocardial infarction: • Hyperacute phase - Slope elevation of the ST sement - Tall widened T wave - Increased ventr. activation time • Fully evolved phase - Pathological Q wave - Coved, elevated ST segment - Inverted symetrical T wave • Old infarction - Pathological Q wave - ST segment and T wave return to normal

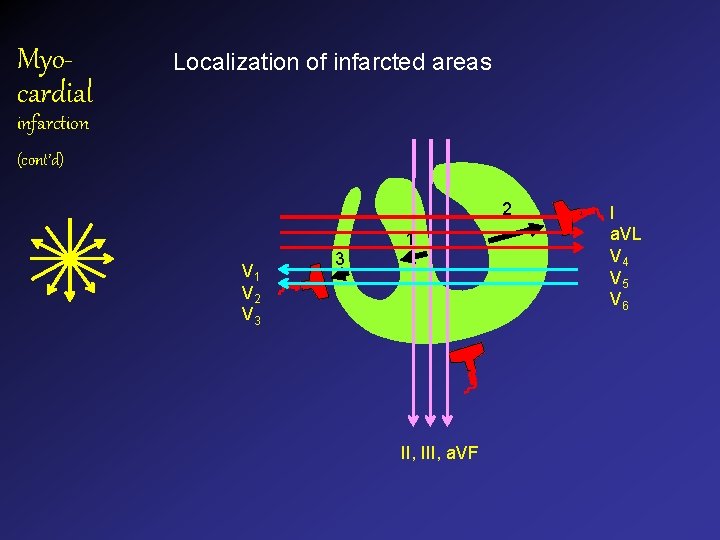

Myocardial Localization of infarcted areas infarction (cont’d) 2 1 V 2 V 3 3

Myocardial Localization of infarcted areas infarction (cont’d) 2 1 V 2 V 3 3 II, III, a. VF I a. VL V 4 V 5 V 6

Right ventri cular hyper trophy 4 2 3 V 1 1 V 6

Right ventri cular hyper trophy 4 2 3 V 1 1 V 6

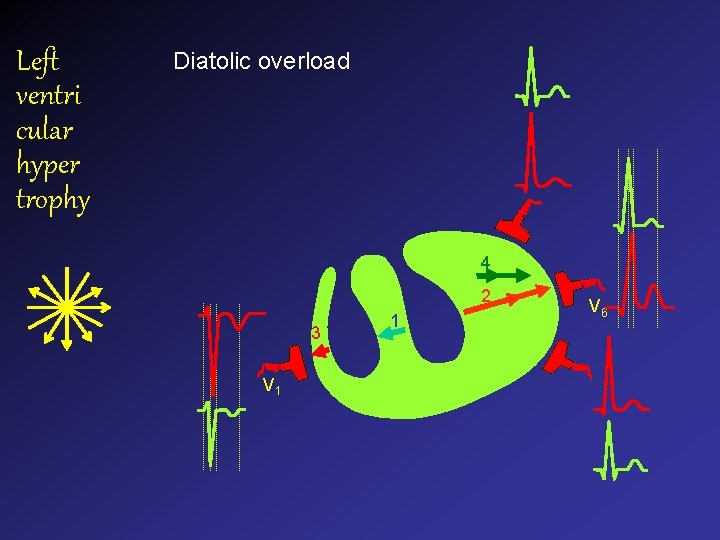

Left ventri cular hyper trophy Diatolic overload 4 2 3 V 1 1 V

Left ventri cular hyper trophy Diatolic overload 4 2 3 V 1 1 V 6

Left ventri cular hyper trophy Systolic overload 4 2 3 V 1 1 V

Left ventri cular hyper trophy Systolic overload 4 2 3 V 1 1 V 6

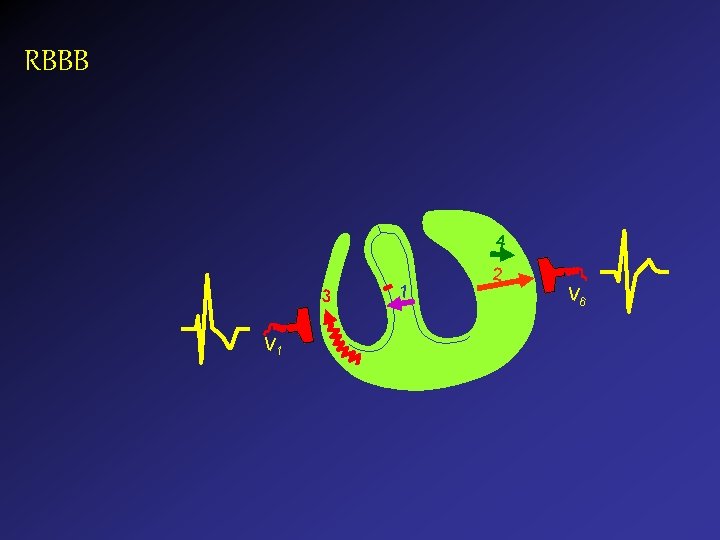

RBBB 4 3 V 1 1 2 V 6

RBBB 4 3 V 1 1 2 V 6

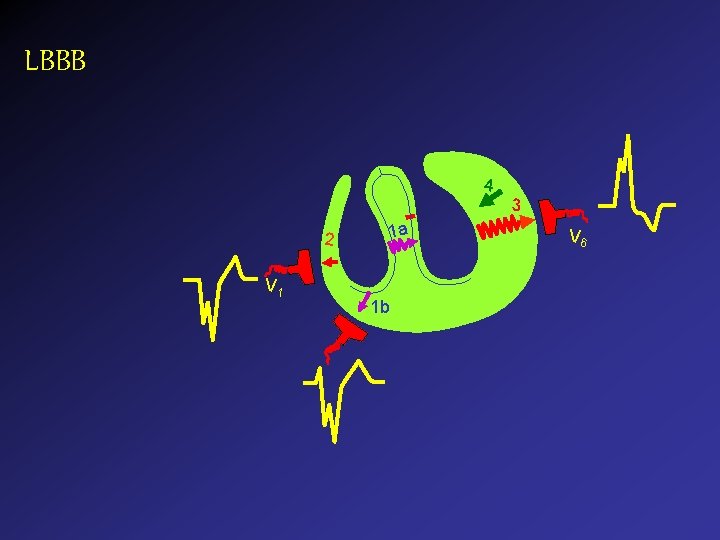

LBBB 4 3 2 V 1 1 a 1 b V 6

LBBB 4 3 2 V 1 1 a 1 b V 6

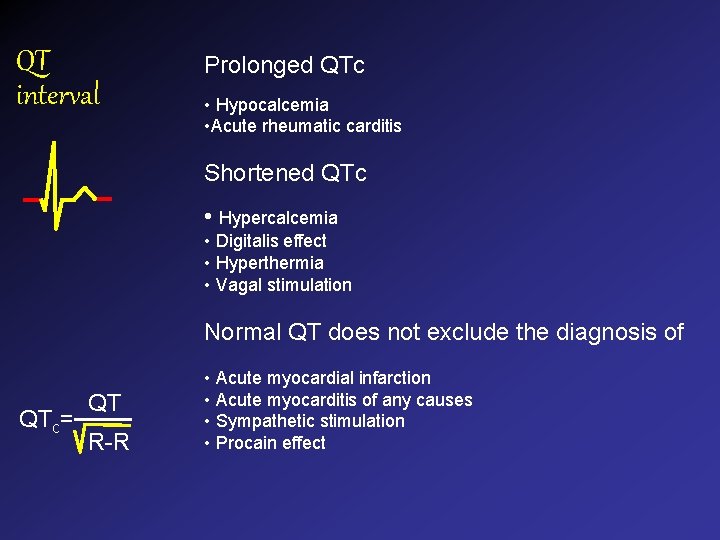

QT interval Prolonged QTc • Hypocalcemia • Acute rheumatic carditis Shortened QTc • Hypercalcemia

QT interval Prolonged QTc • Hypocalcemia • Acute rheumatic carditis Shortened QTc • Hypercalcemia • Digitalis effect • Hyperthermia • Vagal stimulation Normal QT does not exclude the diagnosis of QTc= QT R-R • Acute myocardial infarction • Acute myocarditis of any causes • Sympathetic stimulation • Procain effect

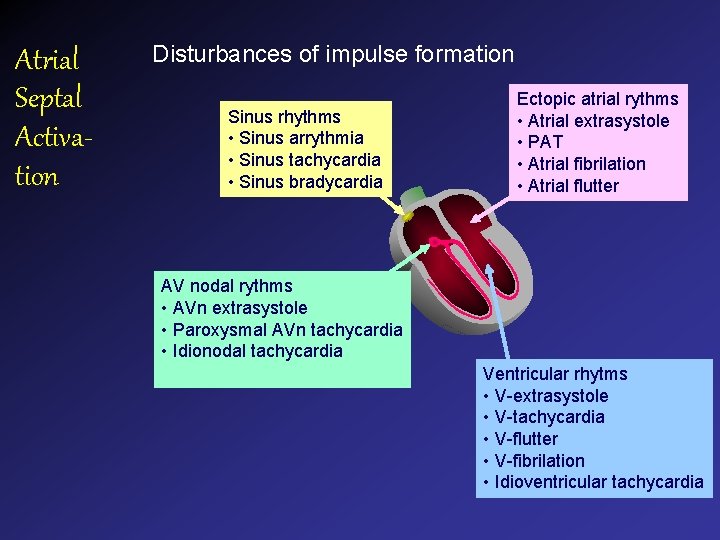

Atrial Septal Activation Disturbances of impulse formation Sinus rhythms • Sinus arrythmia • Sinus

Atrial Septal Activation Disturbances of impulse formation Sinus rhythms • Sinus arrythmia • Sinus tachycardia • Sinus bradycardia Ectopic atrial rythms • Atrial extrasystole • PAT • Atrial fibrilation • Atrial flutter AV nodal rythms • AVn extrasystole • Paroxysmal AVn tachycardia • Idionodal tachycardia Ventricular rhytms • V-extrasystole • V-tachycardia • V-flutter • V-fibrilation • Idioventricular tachycardia

Arrhyth mias Disturbances of impulse conduction A-V block S-A block Reciprocal rythms WPW syndrome

Arrhyth mias Disturbances of impulse conduction A-V block S-A block Reciprocal rythms WPW syndrome (Wolf-Parkinson-White) LGL syndrome (Lawn-Ganong-Levin)

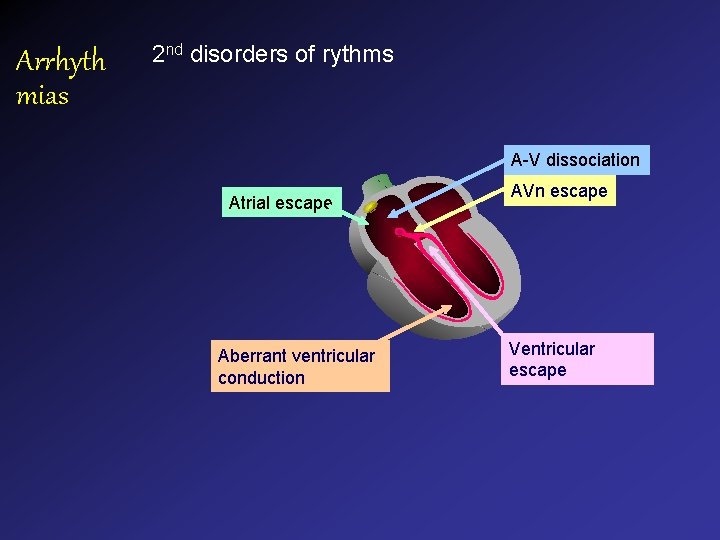

Arrhyth mias 2 nd disorders of rythms A-V dissociation Atrial escape Aberrant ventricular conduction

Arrhyth mias 2 nd disorders of rythms A-V dissociation Atrial escape Aberrant ventricular conduction AVn escape Ventricular escape

Arrhyth mias Diagnostic approach To be continued next week Insyaa Allah

Arrhyth mias Diagnostic approach To be continued next week Insyaa Allah

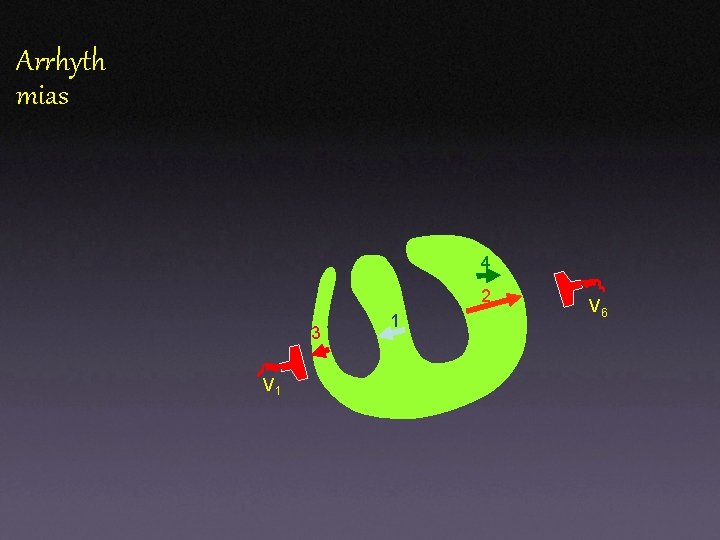

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

Arrhyth mias 4 2 3 V 1 1 V 6

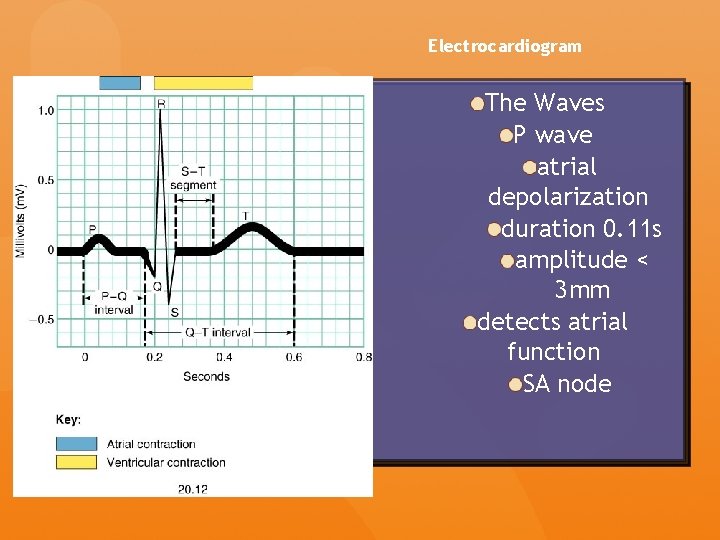

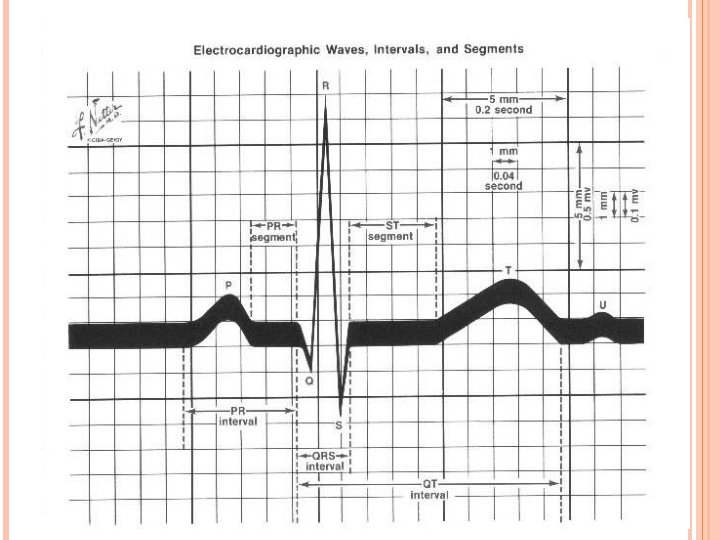

Electrocardiogram The Waves P wave atrial depolarization duration 0. 11 s amplitude < 3

Electrocardiogram The Waves P wave atrial depolarization duration 0. 11 s amplitude < 3 mm detects atrial function SA node

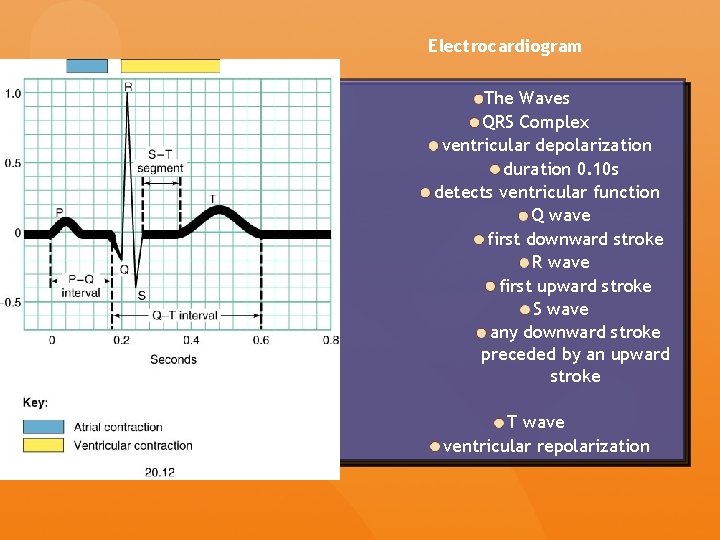

Electrocardiogram The Waves QRS Complex ventricular depolarization duration 0. 10 s detects ventricular function

Electrocardiogram The Waves QRS Complex ventricular depolarization duration 0. 10 s detects ventricular function Q wave first downward stroke R wave first upward stroke S wave any downward stroke preceded by an upward stroke T wave ventricular repolarization

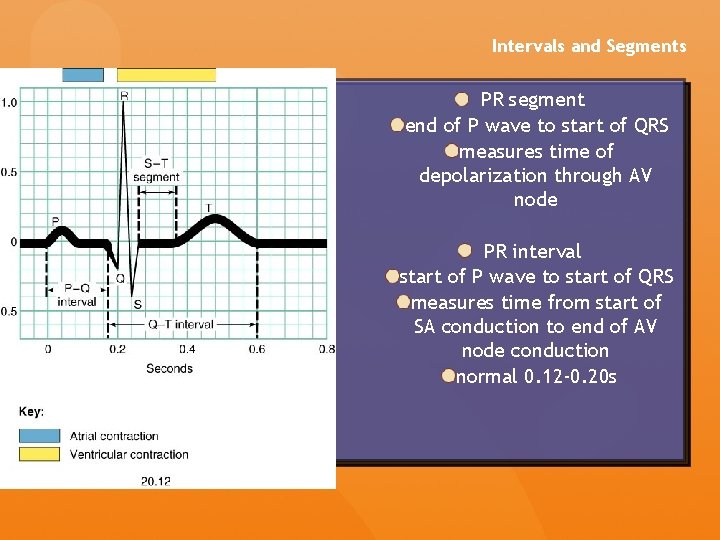

Intervals and Segments PR segment end of P wave to start of QRS measures

Intervals and Segments PR segment end of P wave to start of QRS measures time of depolarization through AV node PR interval start of P wave to start of QRS measures time from start of SA conduction to end of AV node conduction normal 0. 12 -0. 20 s

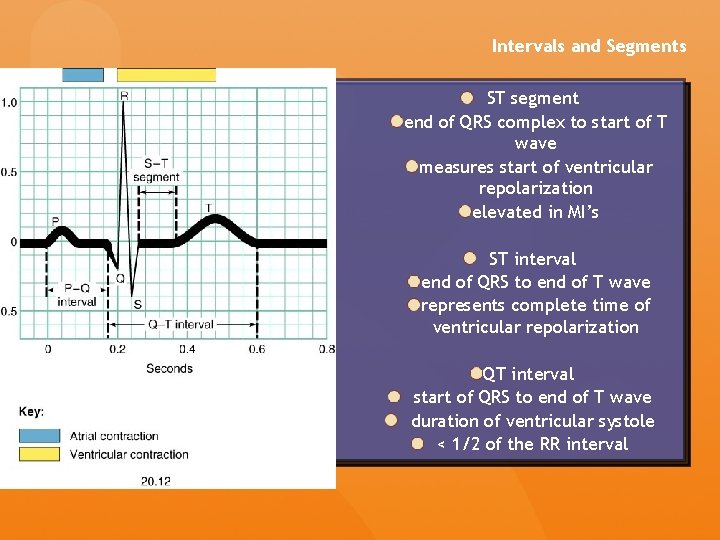

Intervals and Segments ST segment end of QRS complex to start of T wave

Intervals and Segments ST segment end of QRS complex to start of T wave measures start of ventricular repolarization elevated in MI’s ST interval end of QRS to end of T wave represents complete time of ventricular repolarization QT interval start of QRS to end of T wave duration of ventricular systole < 1/2 of the RR interval

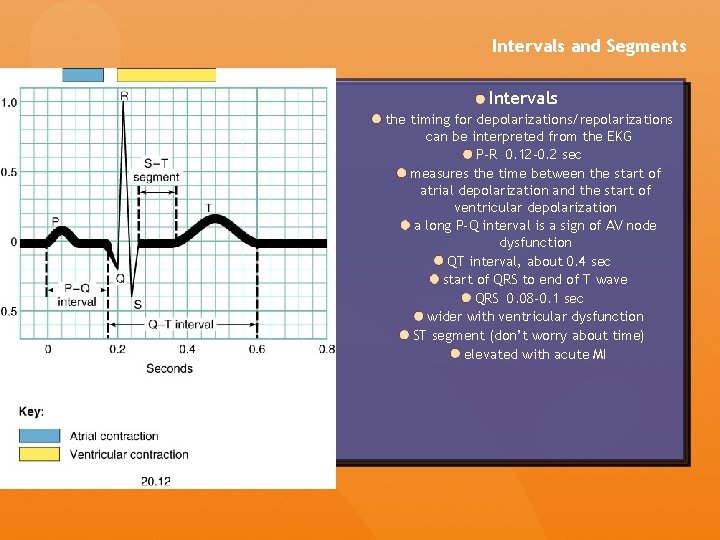

Intervals and Segments Intervals the timing for depolarizations/repolarizations can be interpreted from the EKG

Intervals and Segments Intervals the timing for depolarizations/repolarizations can be interpreted from the EKG P-R 0. 12 -0. 2 sec measures the time between the start of atrial depolarization and the start of ventricular depolarization a long P-Q interval is a sign of AV node dysfunction QT interval, about 0. 4 sec start of QRS to end of T wave QRS 0. 08 -0. 1 sec wider with ventricular dysfunction ST segment (don’t worry about time) elevated with acute MI

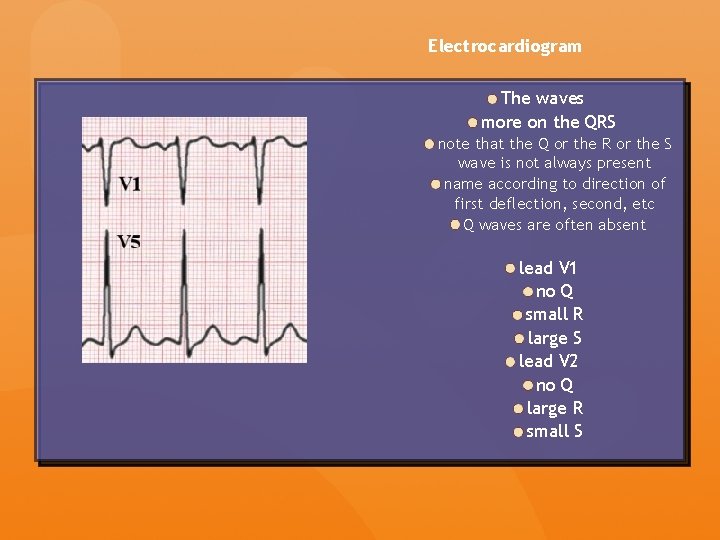

Electrocardiogram The waves more on the QRS note that the Q or the R

Electrocardiogram The waves more on the QRS note that the Q or the R or the S wave is not always present name according to direction of first deflection, second, etc Q waves are often absent lead V 1 no Q small R large S lead V 2 no Q large R small S

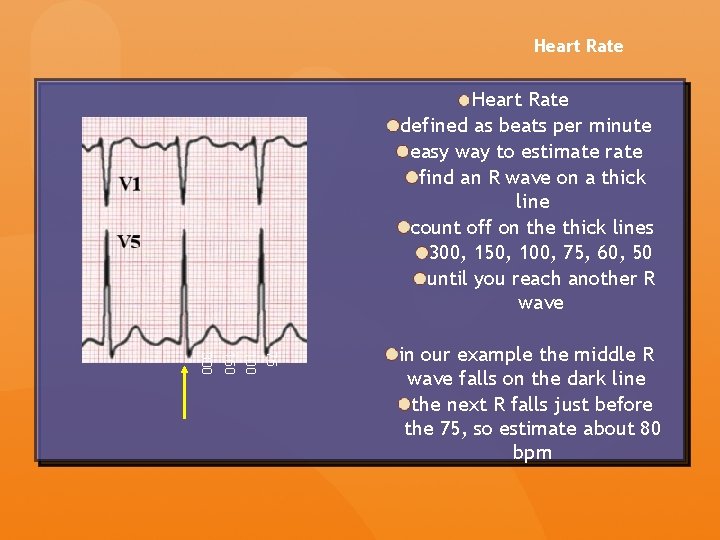

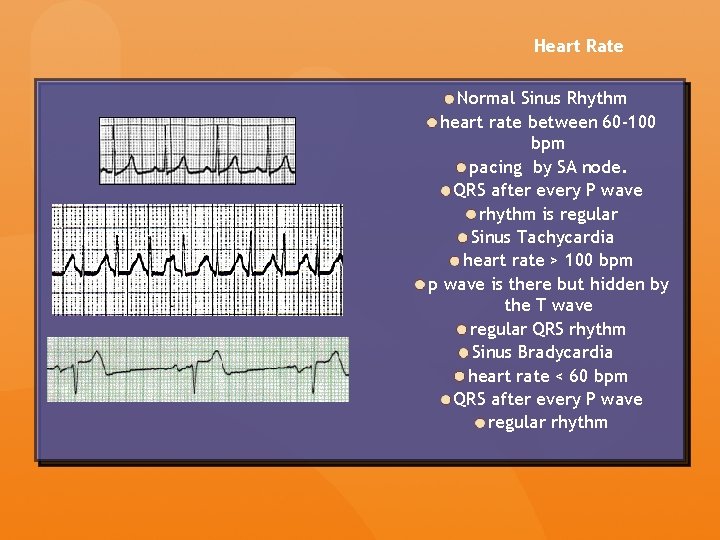

Heart Rate defined as beats per minute easy way to estimate rate find an

Heart Rate defined as beats per minute easy way to estimate rate find an R wave on a thick line count off on the thick lines 300, 150, 100, 75, 60, 50 until you reach another R wave 75 100 150 300 in our example the middle R wave falls on the dark line the next R falls just before the 75, so estimate about 80 bpm

Heart Rate Normal Sinus Rhythm heart rate between 60 -100 bpm pacing by SA

Heart Rate Normal Sinus Rhythm heart rate between 60 -100 bpm pacing by SA node. QRS after every P wave rhythm is regular Sinus Tachycardia heart rate > 100 bpm p wave is there but hidden by the T wave regular QRS rhythm Sinus Bradycardia heart rate < 60 bpm QRS after every P wave regular rhythm

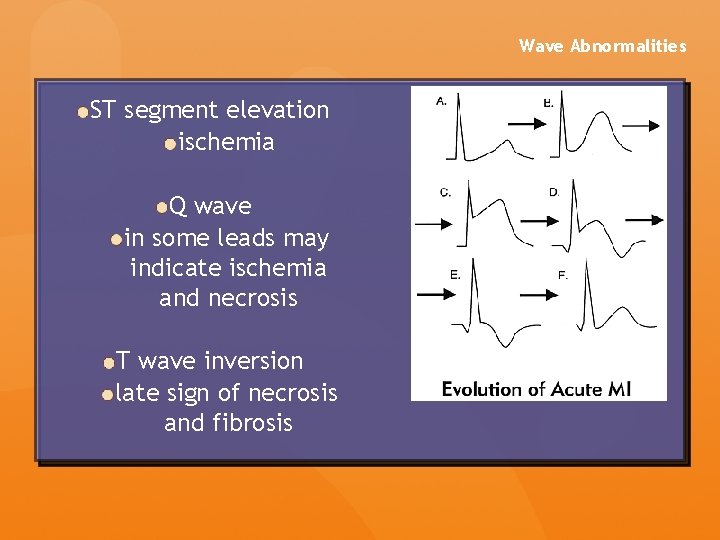

Wave Abnormalities ST segment elevation ischemia Q wave in some leads may indicate ischemia

Wave Abnormalities ST segment elevation ischemia Q wave in some leads may indicate ischemia and necrosis T wave inversion late sign of necrosis and fibrosis

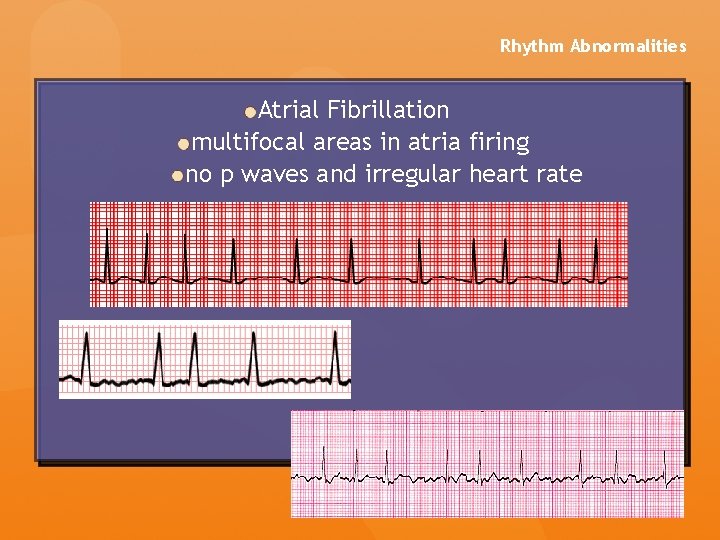

Rhythm Abnormalities Atrial Fibrillation multifocal areas in atria firing no p waves and irregular

Rhythm Abnormalities Atrial Fibrillation multifocal areas in atria firing no p waves and irregular heart rate

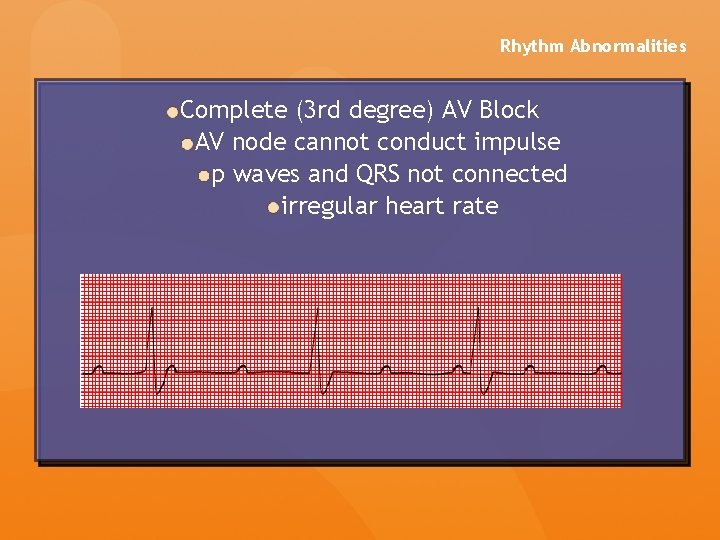

Rhythm Abnormalities Complete (3 rd degree) AV Block AV node cannot conduct impulse p

Rhythm Abnormalities Complete (3 rd degree) AV Block AV node cannot conduct impulse p waves and QRS not connected irregular heart rate

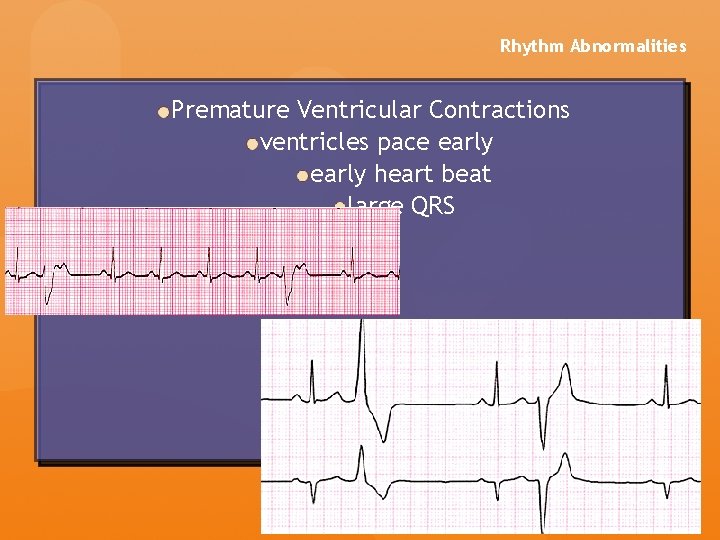

Rhythm Abnormalities Premature Ventricular Contractions ventricles pace early heart beat large QRS

Rhythm Abnormalities Premature Ventricular Contractions ventricles pace early heart beat large QRS

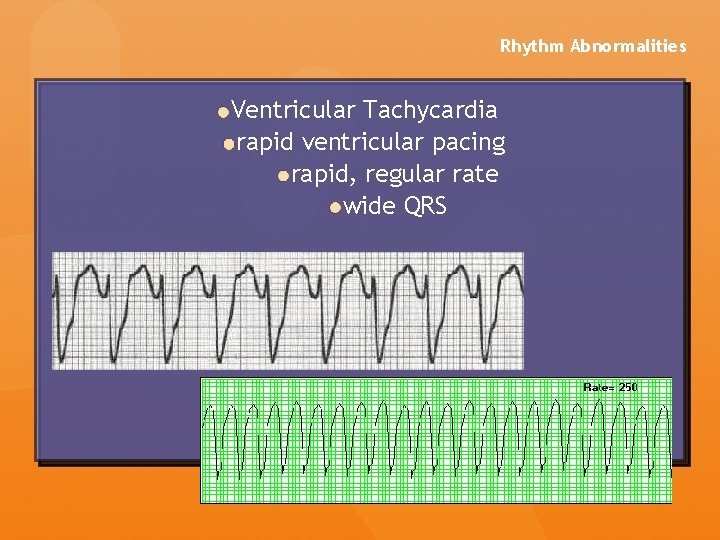

Rhythm Abnormalities Ventricular Tachycardia rapid ventricular pacing rapid, regular rate wide QRS

Rhythm Abnormalities Ventricular Tachycardia rapid ventricular pacing rapid, regular rate wide QRS

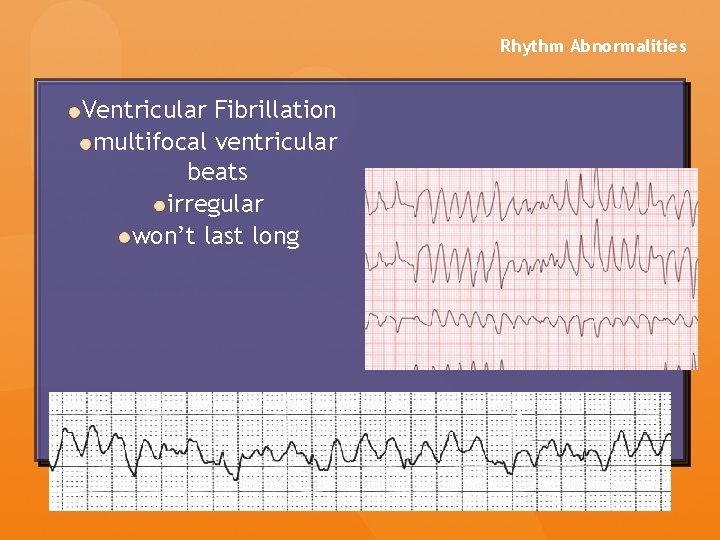

Rhythm Abnormalities Ventricular Fibrillation multifocal ventricular beats irregular won’t last long

Rhythm Abnormalities Ventricular Fibrillation multifocal ventricular beats irregular won’t last long

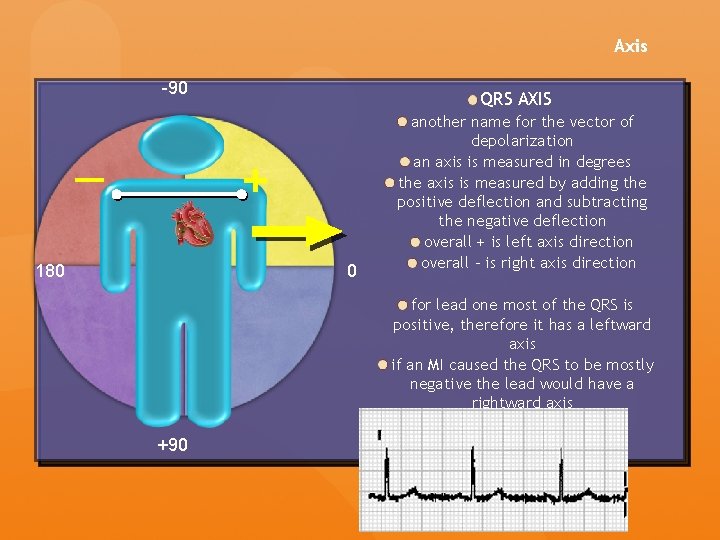

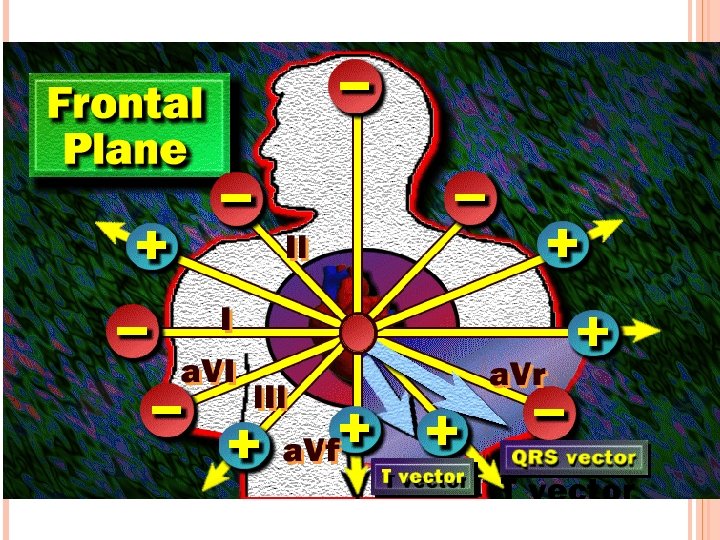

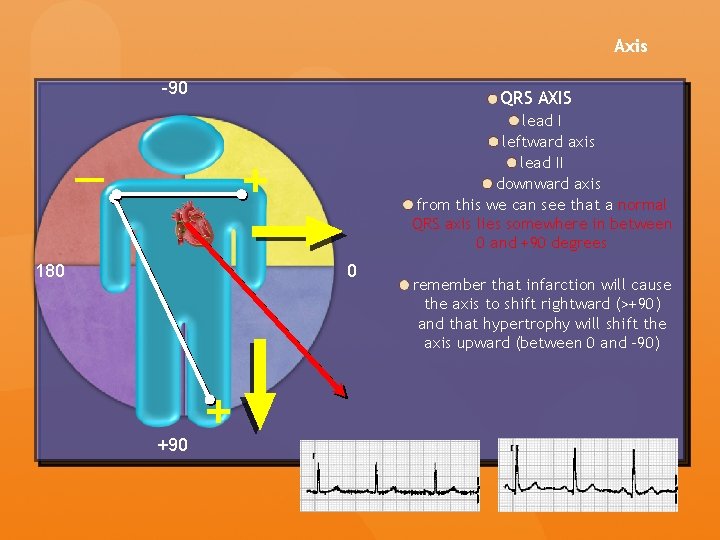

Axis -90 QRS AXIS + — 180 0 another name for the vector of

Axis -90 QRS AXIS + — 180 0 another name for the vector of depolarization an axis is measured in degrees the axis is measured by adding the positive deflection and subtracting the negative deflection overall + is left axis direction overall - is right axis direction for lead one most of the QRS is positive, therefore it has a leftward axis if an MI caused the QRS to be mostly negative the lead would have a rightward axis +90

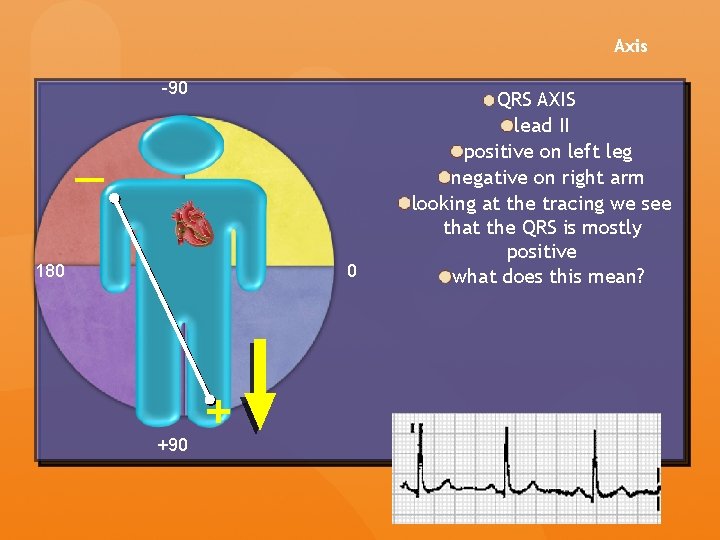

Axis -90 — 180 0 +90 + QRS AXIS lead II positive on left

Axis -90 — 180 0 +90 + QRS AXIS lead II positive on left leg negative on right arm looking at the tracing we see that the QRS is mostly positive what does this mean?

Axis -90 — 180 0 +90 + QRS AXIS lead III positive on left

Axis -90 — 180 0 +90 + QRS AXIS lead III positive on left leg negative on left arm looking at the tracing we see that the QRS is mostly positive what does this mean?

Axis -90 QRS AXIS lead I leftward axis lead II downward axis from this

Axis -90 QRS AXIS lead I leftward axis lead II downward axis from this we can see that a normal QRS axis lies somewhere in between 0 and +90 degrees + — 180 0 +90 + remember that infarction will cause the axis to shift rightward (>+90) and that hypertrophy will shift the axis upward (between 0 and -90)

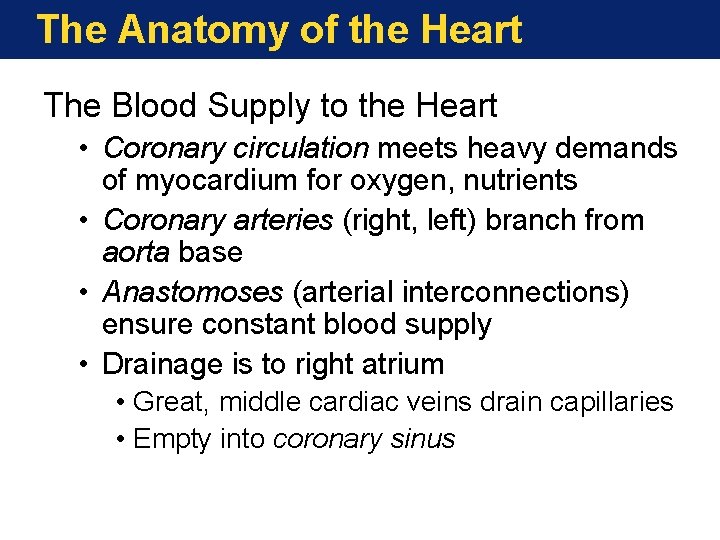

The Anatomy of the Heart The Blood Supply to the Heart • Coronary circulation

The Anatomy of the Heart The Blood Supply to the Heart • Coronary circulation meets heavy demands of myocardium for oxygen, nutrients • Coronary arteries (right, left) branch from aorta base • Anastomoses (arterial interconnections) ensure constant blood supply • Drainage is to right atrium • Great, middle cardiac veins drain capillaries • Empty into coronary sinus

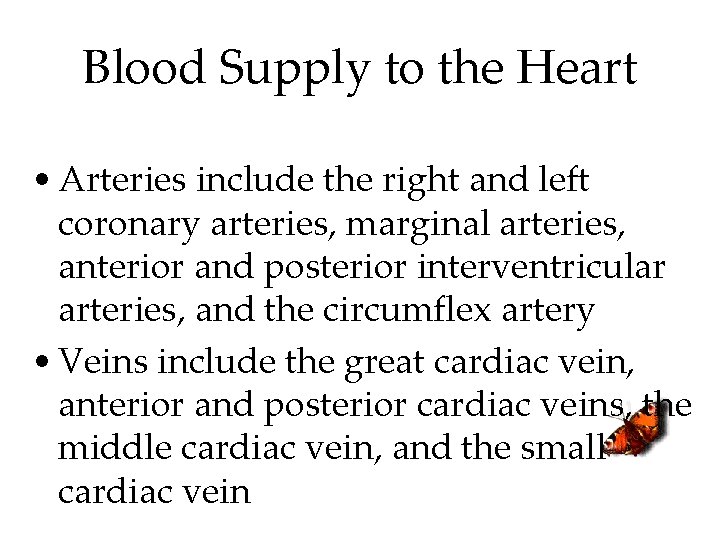

Blood Supply to the Heart • Arteries include the right and left coronary arteries,

Blood Supply to the Heart • Arteries include the right and left coronary arteries, marginal arteries, anterior and posterior interventricular arteries, and the circumflex artery • Veins include the great cardiac vein, anterior and posterior cardiac veins, the middle cardiac vein, and the small cardiac vein

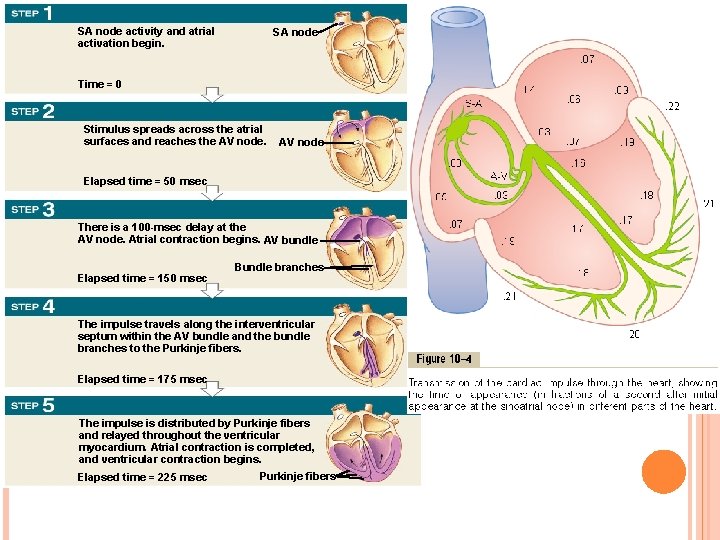

SA node activity and atrial activation begin. SA node Time = 0 Stimulus spreads

SA node activity and atrial activation begin. SA node Time = 0 Stimulus spreads across the atrial surfaces and reaches the AV node Elapsed time = 50 msec There is a 100 -msec delay at the AV node. Atrial contraction begins. AV bundle Elapsed time = 150 msec Bundle branches The impulse travels along the interventricular septum within the AV bundle and the bundle branches to the Purkinje fibers. Elapsed time = 175 msec The impulse is distributed by Purkinje fibers and relayed throughout the ventricular myocardium. Atrial contraction is completed, and ventricular contraction begins. Elapsed time = 225 msec Purkinje fibers

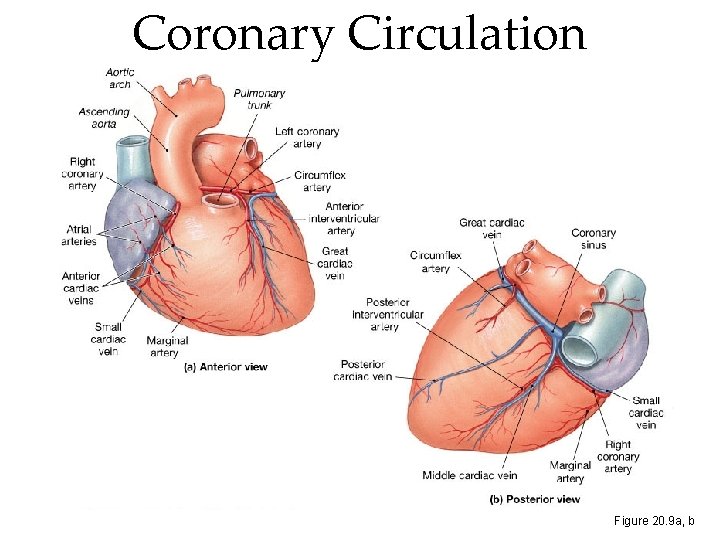

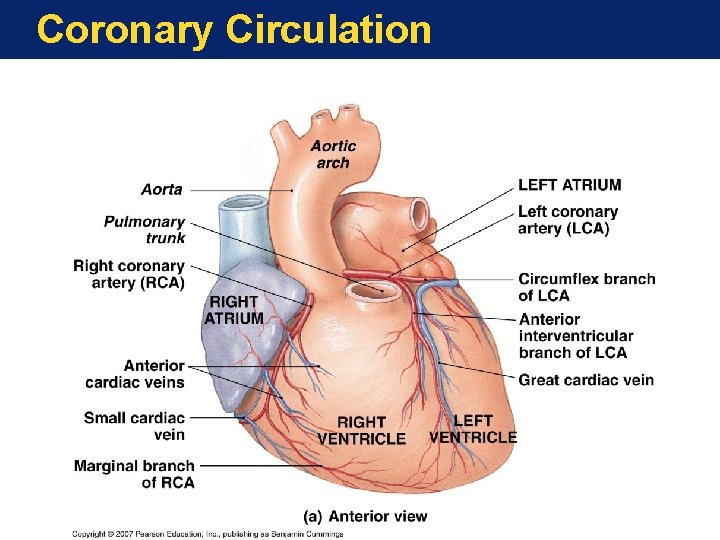

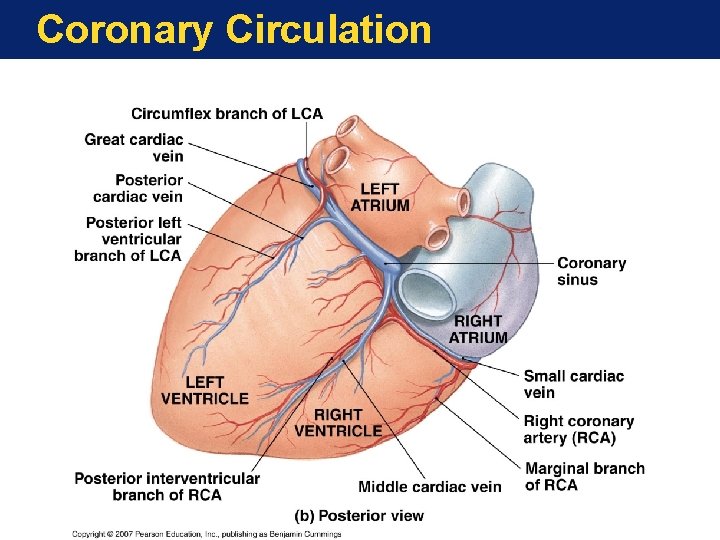

Coronary Circulation

Coronary Circulation

Coronary Circulation

Coronary Circulation

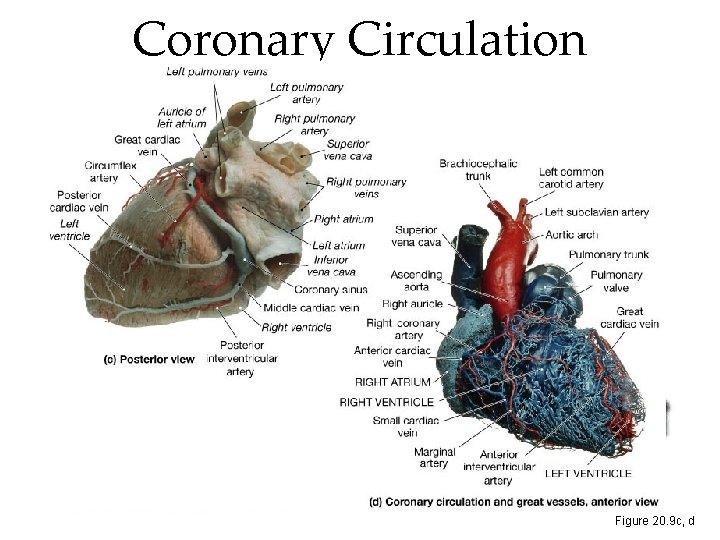

Coronary Circulation Figure 20. 9 a, b

Coronary Circulation Figure 20. 9 a, b

Coronary Circulation Figure 20. 9 c, d

Coronary Circulation Figure 20. 9 c, d

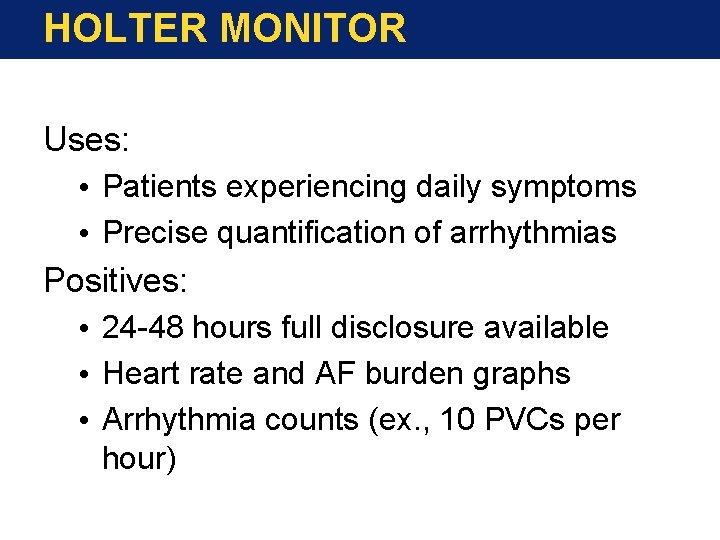

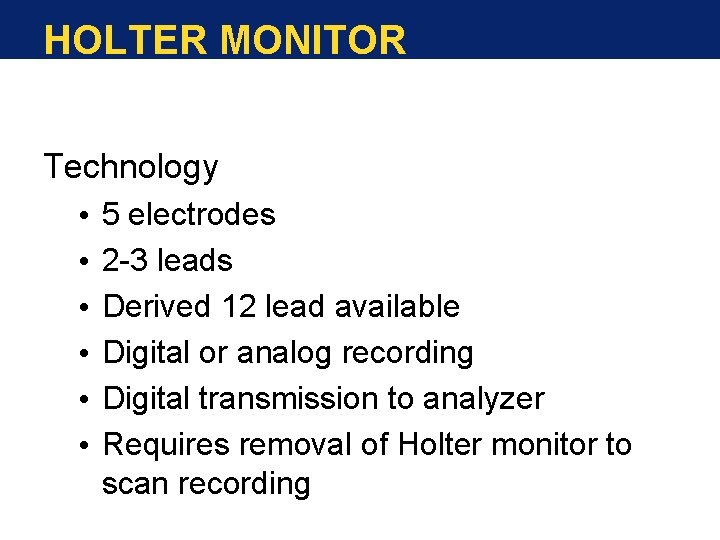

HOLTER MONITOR Technology • 5 electrodes • 2 -3 leads • Derived 12 lead

HOLTER MONITOR Technology • 5 electrodes • 2 -3 leads • Derived 12 lead available • Digital or analog recording • Digital transmission to analyzer • Requires removal of Holter monitor to scan recording

HOLTER MONITOR Uses: • Patients experiencing daily symptoms • Precise quantification of arrhythmias Positives:

HOLTER MONITOR Uses: • Patients experiencing daily symptoms • Precise quantification of arrhythmias Positives: • 24 -48 hours full disclosure available • Heart rate and AF burden graphs • Arrhythmia counts (ex. , 10 PVCs per hour)
