ECE 699: Lecture 9 Programmable Logic Memories

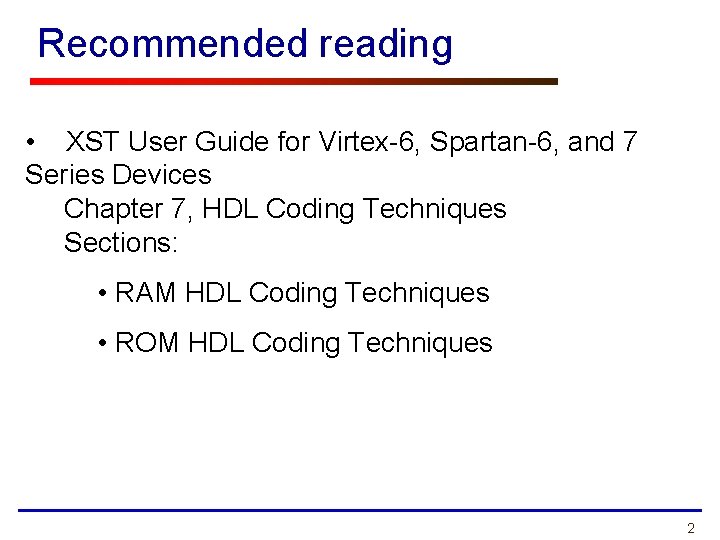

Recommended reading • XST User Guide for Virtex-6, Spartan-6, and 7 Series Devices Chapter 7, HDL Coding Techniques Sections: • RAM HDL Coding Techniques • ROM HDL Coding Techniques 2

Memory Types 3

Memory Types Memory ROM RAM Memory Single port Dual port Memory With asynchronous read With synchronous read 4

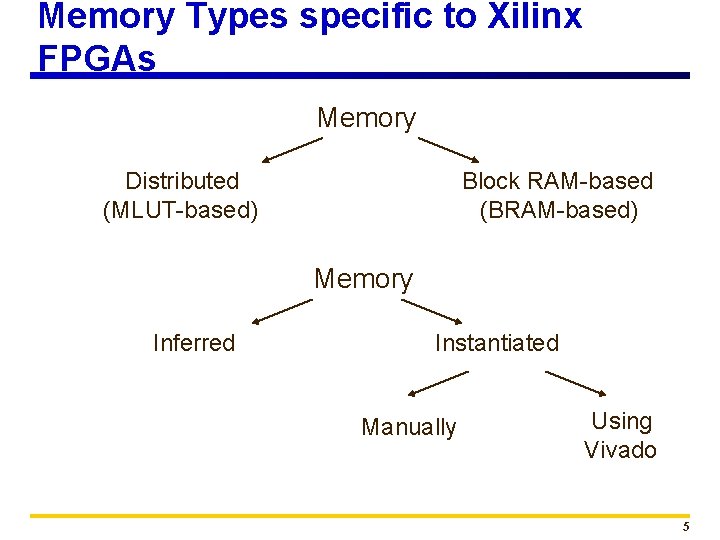

Memory Types specific to Xilinx FPGAs Memory Distributed (MLUT-based) Block RAM-based (BRAM-based) Memory Inferred Instantiated Manually Using Vivado 5

Programmable Logic (PL) CLBs and IOBs Source: The Zynq Book

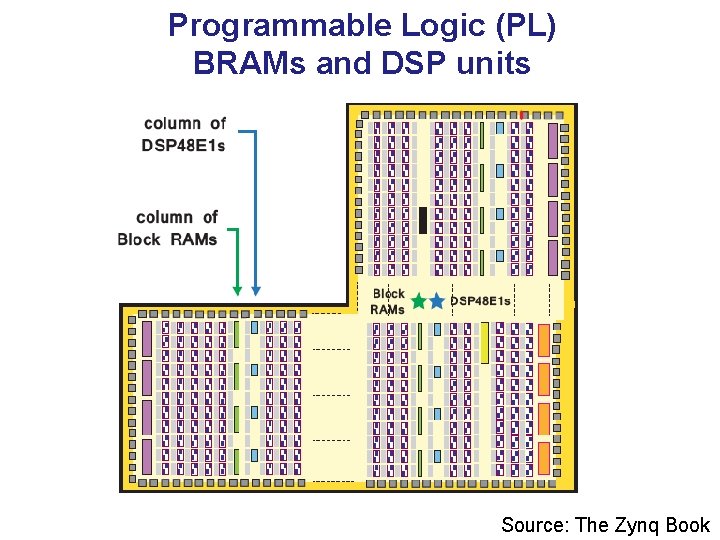

Programmable Logic (PL) BRAMs and DSP units Source: The Zynq Book

FPGA Distributed Memory

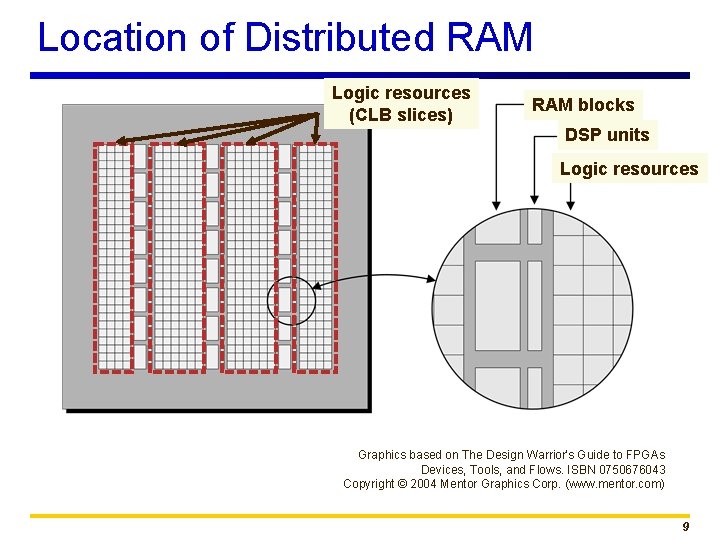

Location of Distributed RAM Logic resources (CLB slices) RAM blocks DSP units Logic resources Graphics based on The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) 9

SLICEL 10

u Each Slice. L and Slice. M contains separate logic and routing for the fast generation MSB of sum & carry signals • Increases efficiency and performance of adders, subtractors, accumulators, comparators, and counters u Carry logic is independent of normal logic and routing resources LSB Carry Logic Routing Fast Carry Logic 11

Accessing Carry Logic u All major synthesis tools can infer carry logic for arithmetic functions • • Addition (SUM <= A + B) Subtraction (DIFF <= A - B) Comparators (if A < B then…) Counters (count <= count +1) 12

ECE 448 – FPGA and ASIC Design with VHDL 13

SLICEM ECE 448 – FPGA and ASIC Design with VHDL 14

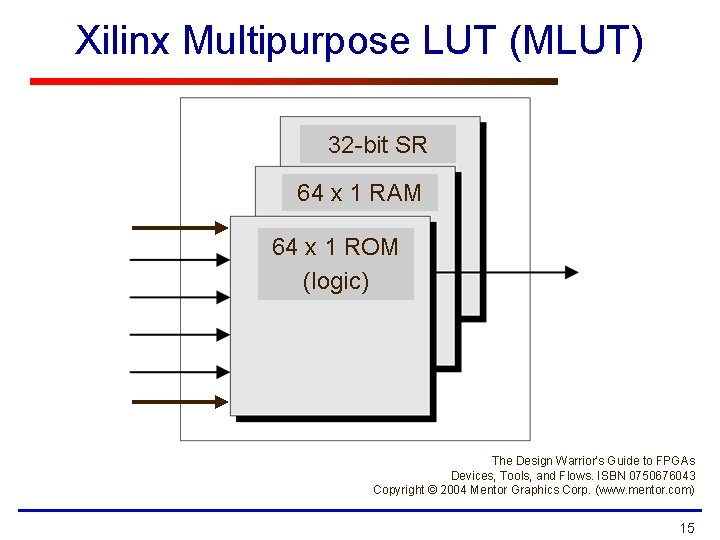

Xilinx Multipurpose LUT (MLUT) 32 -bit SR 64 x 1 RAM 64 x 1 ROM (logic) The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) 15

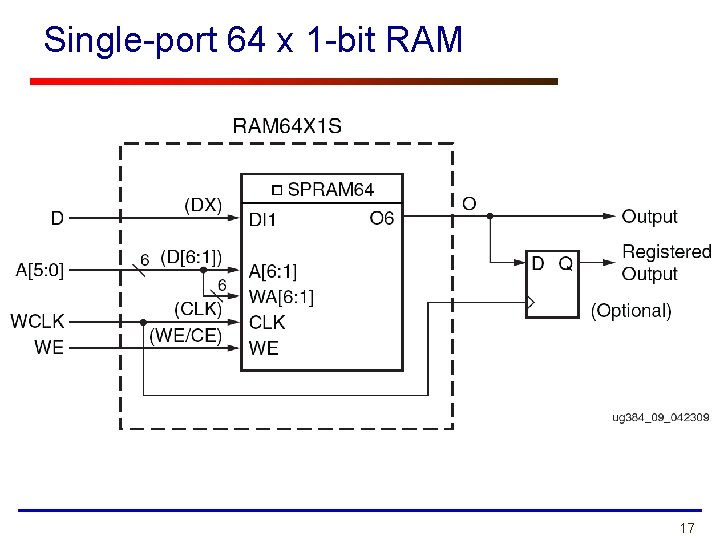

Single-port 64 x 1 -bit RAM 16

Single-port 64 x 1 -bit RAM 17

Memories Built of Neighboring MLUTs Memories built of 2 MLUTs: • Single-port 128 x 1 -bit RAM: • Dual-port 64 x 1 -bit RAM : RAM 128 x 1 S RAM 64 x 1 D Memories built of 4 MLUTs: • • Single-port 256 x 1 -bit RAM: RAM 256 x 1 S Dual-port 128 x 1 -bit RAM: RAM 128 x 1 D Quad-port 64 x 1 -bit RAM: RAM 64 x 1 Q Simple-dual-port 64 x 3 -bit RAM: RAM 64 x 3 SDP (one address for read, one address for write) 18

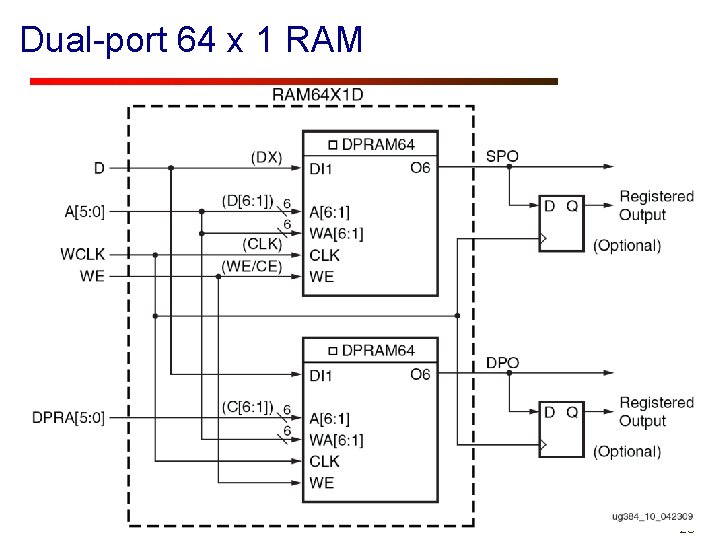

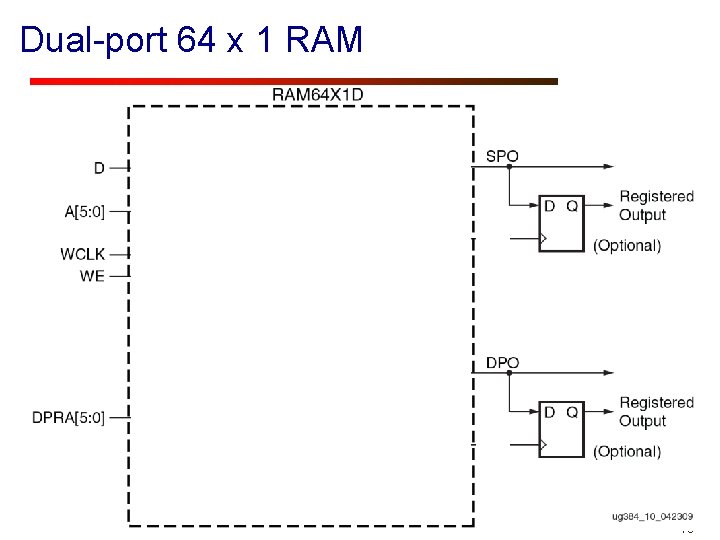

Dual-port 64 x 1 RAM • • Dual-port 64 x 1 -bit RAM : Single-port 128 x 1 -bit RAM: 64 x 1 D 128 x 1 S 19

Dual-port 64 x 1 RAM • • Dual-port 64 x 1 -bit RAM : Single-port 128 x 1 -bit RAM: 64 x 1 D 128 x 1 S 20

FPGA Block RAM 21

Location of Block RAMs Logic resources (CLB slices) RAM blocks DSP units Logic resources Graphics based on The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) 22

Block RAM Configured as 1 x 36 kbit RAM or 2 x 18 kbit RAMs 23

Block RAM Simple Dual Port (SDP) = one port for read, one port for write (write_A-read_B, read_A_write_B) True Dual Port (TDP) = both ports can be used for read or write (read_A-read_B, read_A-write_B, write_A-read_B, write_A-write_B) 24

Block RAM can have various configurations (port aspect ratios) 1 2 0 4 0 0 4 k x 4 8 k x 2 4, 095 16 k x 1 8, 191 8+1 0 2 k x (8+1) 2047 16+2 0 1023 1024 x (16+2) 16, 383 25

26

27

18 k Block RAM Port Aspect Ratios 28

Block RAM Interface 29

Block RAM Ports 30

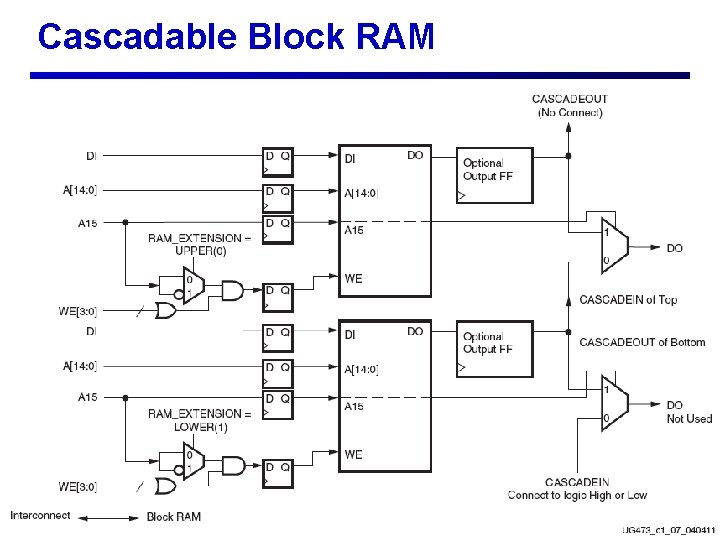

Cascadable Block RAM 31

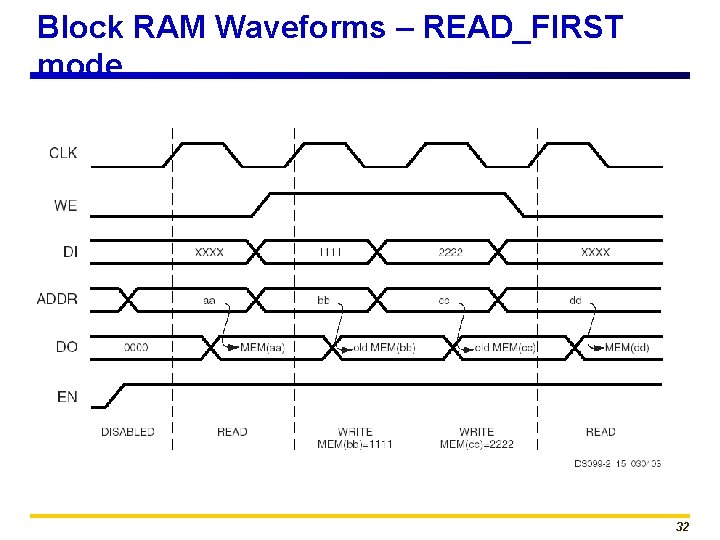

Block RAM Waveforms – READ_FIRST mode 32

Block RAM Waveforms – WRITE_FIRST mode 33

Block RAM Waveforms – NO_CHANGE mode 34

Features of Block RAMs 35

Inference vs. Instantiation 36

37

Generic Inferred ROM 38

Distributed ROM with asynchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; Entity ROM is generic ( w : integer : = 12; -- number of bits per ROM word r : integer : = 3); -- 2^r = number of words in ROM port (addr : in std_logic_vector(r-1 downto 0); dout : out std_logic_vector(w-1 downto 0)); end ROM; 39

Distributed ROM with asynchronous read architecture behavioral of rominfr is type rom_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); constant ROM_array : rom_type : = ("000011000100", "010011010010", "010011011011", "011011000010", "000011110001", "011111010110", "010011010000", "111110011111"); begin dout <= ROM_array(to_integer(unsigned(addr))); end behavioral; 40

Distributed ROM with asynchronous read architecture behavioral of rominfr is type rom_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); constant ROM_array : rom_type : = (X"0 C 4", X"4 D 2", X"4 DB", X"6 C 2", X"0 F 1", X"7 D 6", X"4 D 0", X"F 9 F"); begin dout <= ROM_array(to_integer(unsigned(addr))); end behavioral; 41

42

Distributed versus Block RAM Inference Examples: 1. Distributed single-port RAM with asynchronous read 2. Distributed dual-port RAM with asynchronous read 1. Block RAM with synchronous read (no version with asynchronous read!) More excellent RAM examples from XST Coding Guidelines. 43

Distributed single-port RAM with asynchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 6); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; a : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); do : out std_logic_vector(w-1 downto 0)); end raminfr; 44

Distributed single-port RAM with asynchronous read architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (we = '1') then RAM(to_integer(unsigned(a))) <= di; end if; end process; do <= RAM(to_integer(unsigned(a))); end behavioral; 45

Distributed dual-port RAM with asynchronous read library ieee; use ieee. std_logic_1164. all; use ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 6); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; a : in std_logic_vector(r-1 downto 0); dpra : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); spo : out std_logic_vector(w-1 downto 0); dpo : out std_logic_vector(w-1 downto 0)); end raminfr; 46

Distributed dual-port RAM with asynchronous read architecture syn of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (we = '1') then RAM(to_integer(unsigned(a))) <= di; end if; end process; spo <= RAM(to_integer(unsigned(a))); dpo <= RAM(to_integer(unsigned(dpra))); end syn; 47

Block RAM Waveforms – READ_FIRST mode 48

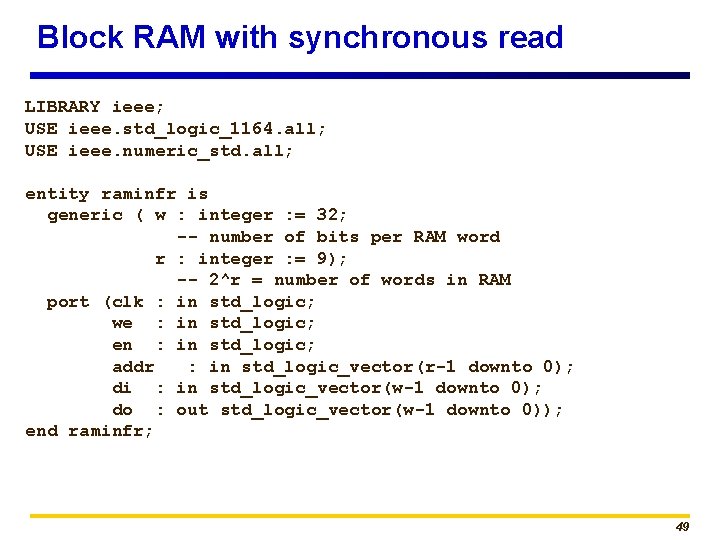

Block RAM with synchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 9); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; en : in std_logic; addr : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); do : out std_logic_vector(w-1 downto 0)); end raminfr; 49

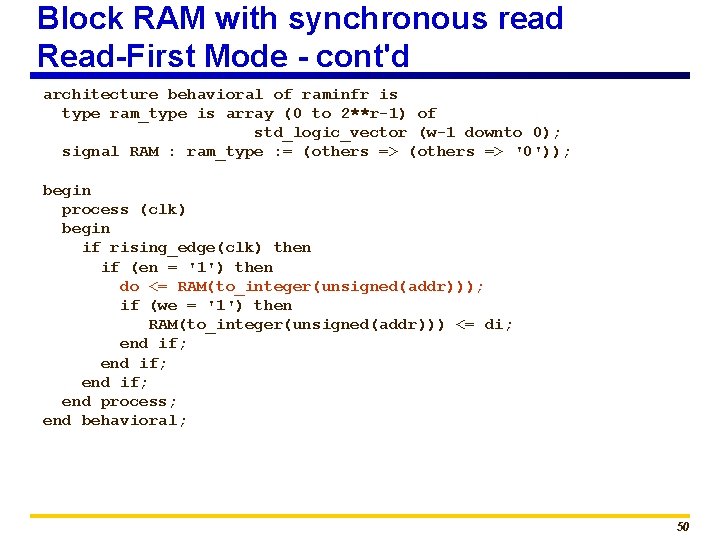

Block RAM with synchronous read Read-First Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (en = '1') then do <= RAM(to_integer(unsigned(addr))); if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; end if; end process; end behavioral; 50

Block RAM Waveforms – WRITE_FIRST mode 51

Block RAM with synchronous read Write-First Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if (clk'event and clk = '1') then if (en = '1') then if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; do <= di; else do <= RAM(to_integer(unsigned(addr))); end if; end process; end behavioral; 52

Block RAM Waveforms – NO_CHANGE mode 53

Block RAM with synchronous read No-Change Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if (clk'event and clk = '1') then if (en = '1') then if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; else do <= RAM(to_integer(unsigned(addr))); end if; end process; end behavioral; 54

Criteria for Implementing Inferred RAM in BRAMs 55

FIFOs 56

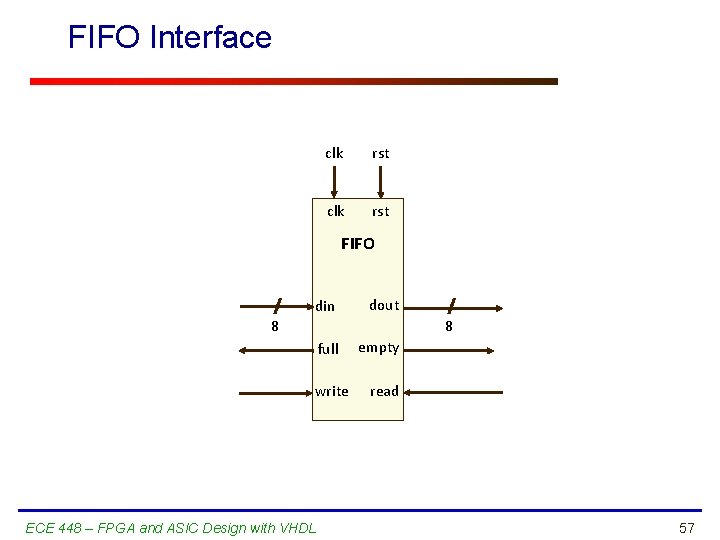

FIFO Interface clk rst FIFO din dout 8 8 full write ECE 448 – FPGA and ASIC Design with VHDL empty read 57

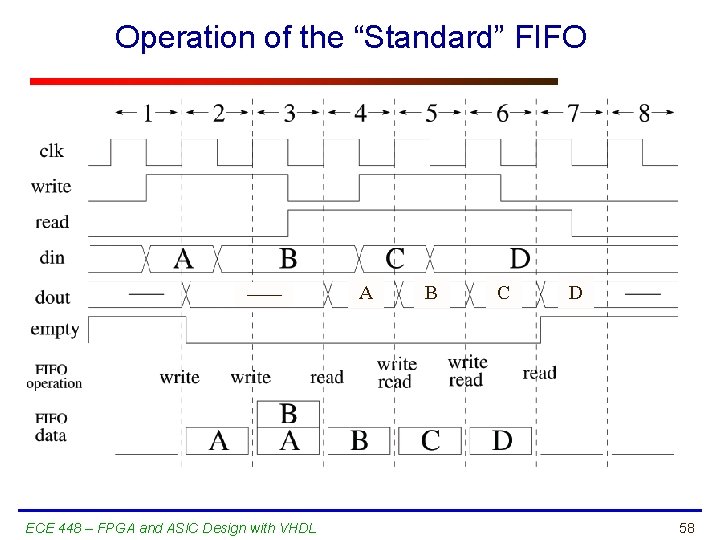

Operation of the “Standard” FIFO −−−−− ECE 448 – FPGA and ASIC Design with VHDL A B C D 58

Operation of the First-Word Fall-Through FIFO ECE 448 – FPGA and ASIC Design with VHDL 59
